Seasonic - ATX3PRIMEPX1600 - Black
FREE shipping to
More Buying Options
Specifications
- Wattage1600 wattsModularFully modularEnergy Efficiency80 PLUS PlatinumATX Connector20+4 pin ATXPCIe Connector6+2 pin PCIe, 12+4 pin PCIe Gen 5SATA Connector5
- Key Specs
- Wattage: 1600 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Platinum (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 20+4 pin ATX (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 6+2 pin PCIe, 12+4 pin PCIe Gen 5 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- SATA Connector: 5 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 4+4 pin EPS 12V (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 8.27 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: Seasonic
- Model Number: Prime PX-1600 ATX 3.1
- Product Name: ATX3PRIMEPX1600
- Color: Black
- Power
- Wattage: 1600 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Platinum (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Connectivity
- ATX Connector: 20+4 pin ATX (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 6+2 pin PCIe, 12+4 pin PCIe Gen 5 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- SATA Connector: 5 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 4+4 pin EPS 12V (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 3.39 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 5.91 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 8.27 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 12.96 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 12 Years
- Other
- UPC: 4711173878032

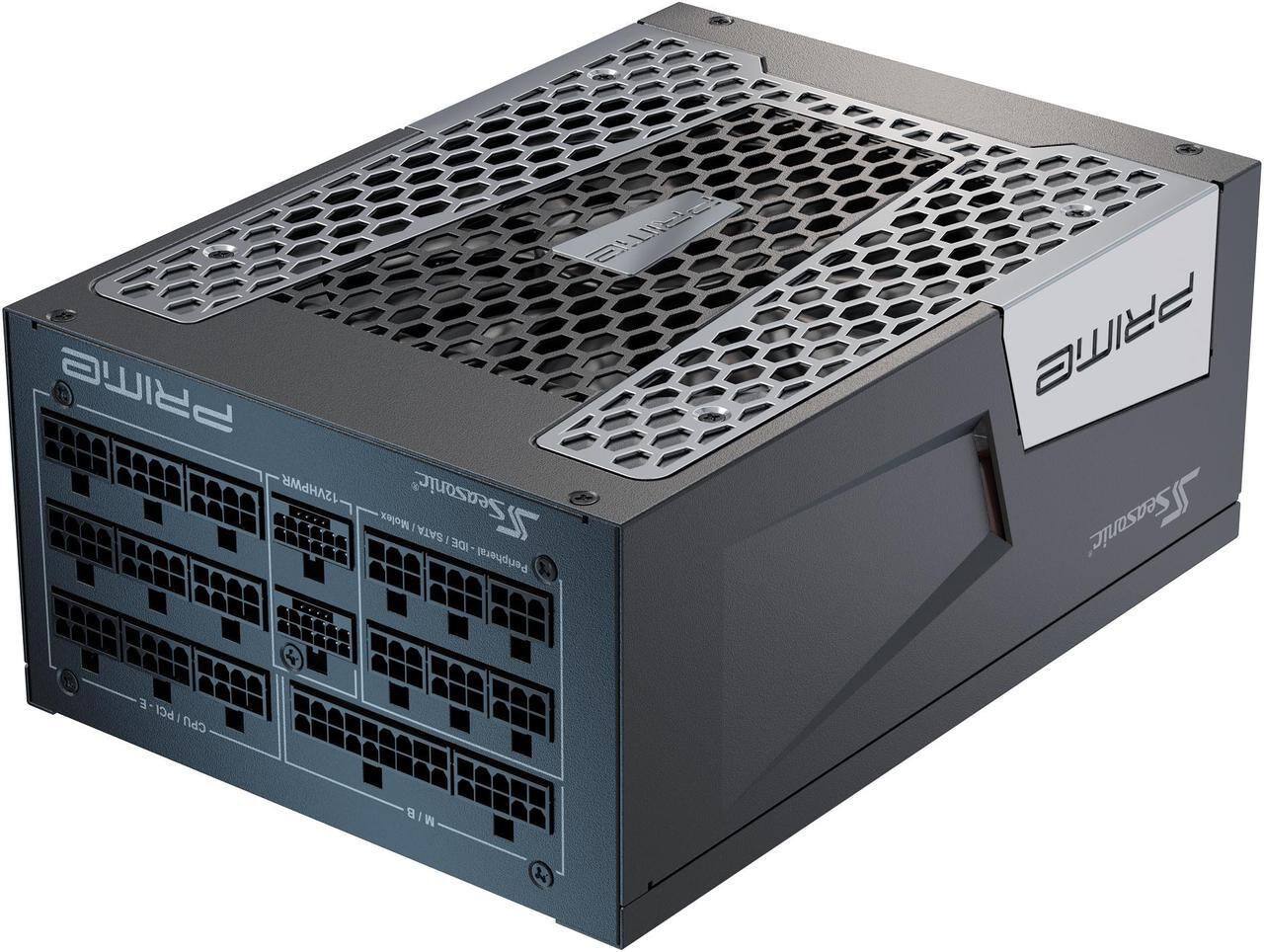

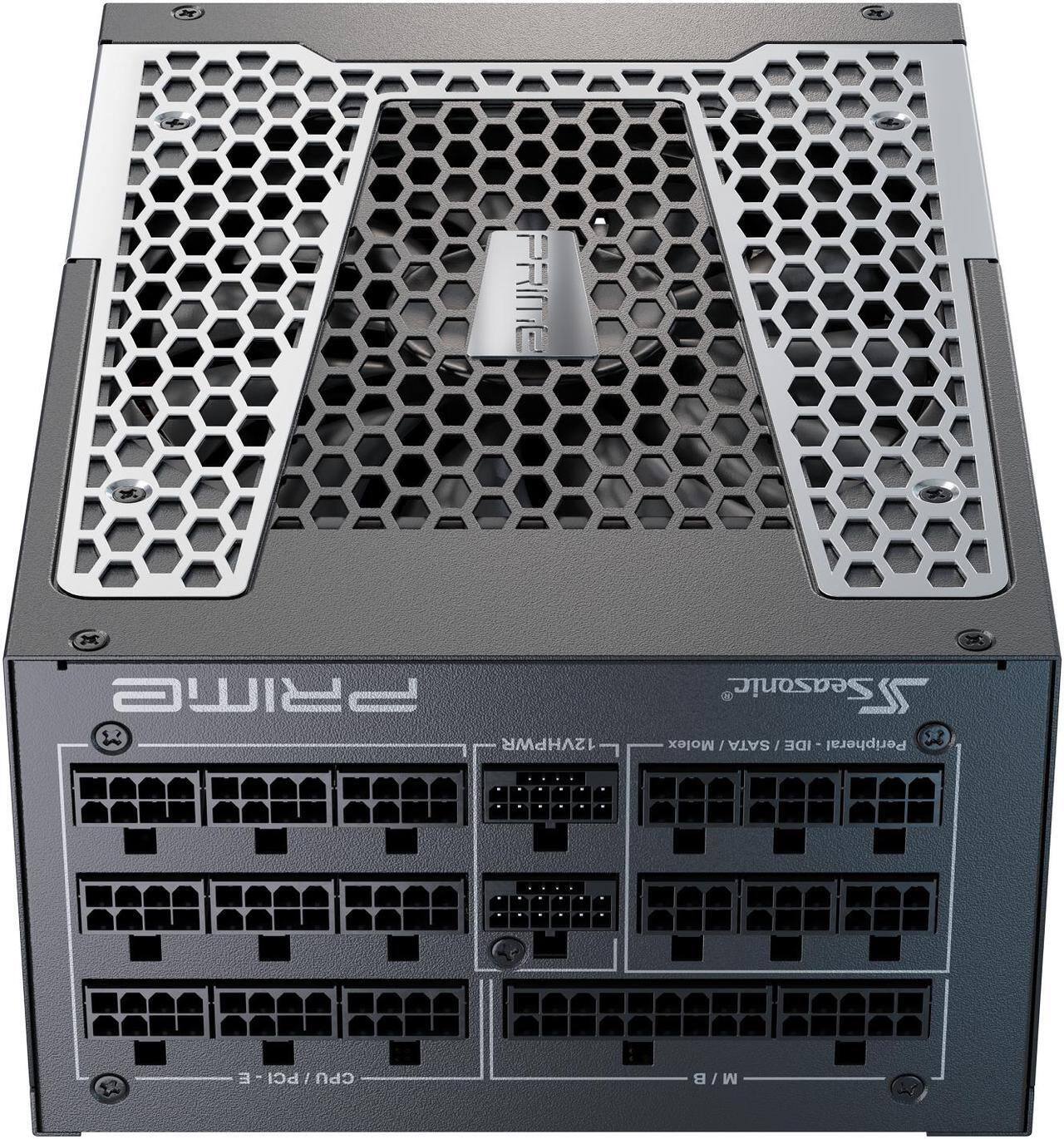

The ATX3PRIMEPX1600 is a 1600W power supply unit designed for high-performance systems, featuring 80 PLUS Platinum certification, fully modular cabling, and a 135 mm fluid dynamic bearing fan for efficient cooling.
- Ultra-High Efficiency 80 PLUS Platinum Certified: Achieves 80 PLUS Platinum certification with 92% efficiency at 50% system load.

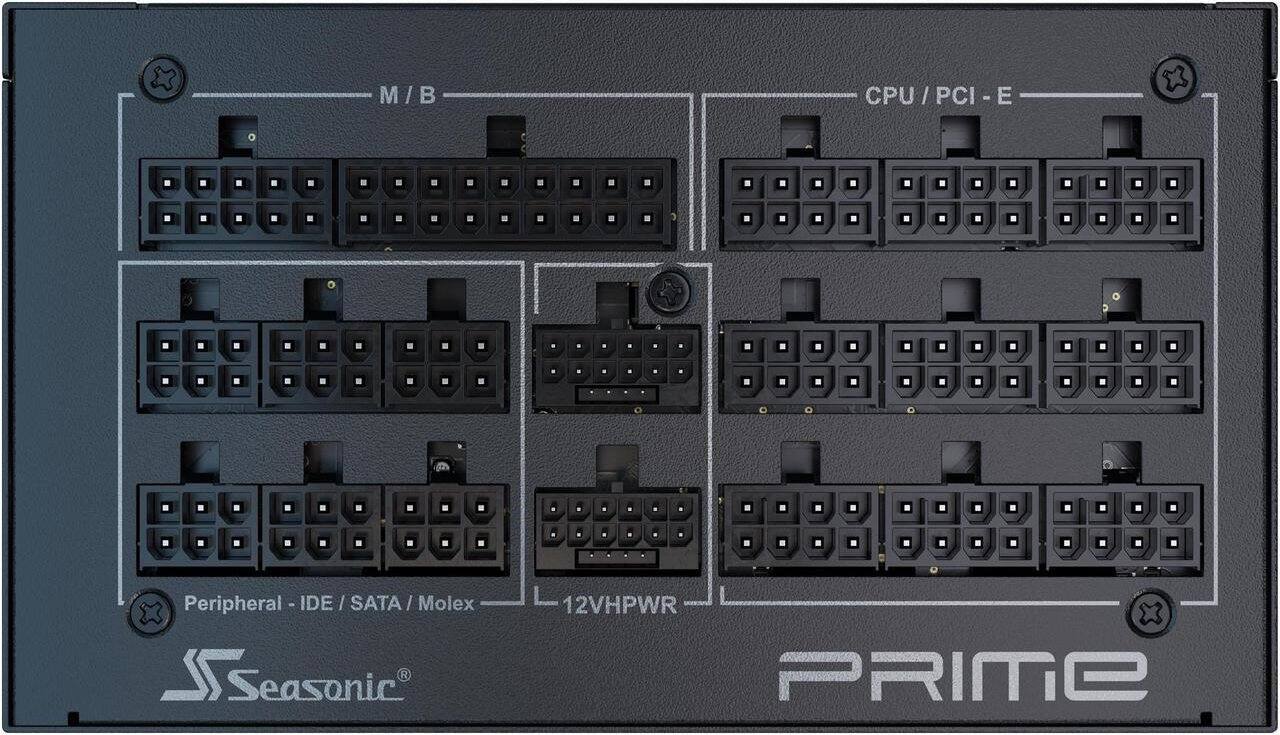

- Fully Modular Cabling Design: Allows for customized cable management, reducing clutter and improving airflow.
- Top-Quality 135 mm Fluid Dynamic Bearing Fan: Ensures quiet and efficient cooling with a fan rated for 50,000 hours at 40°C.
- Micro Tolerance Load Regulation (MTLR) [0.5 %]: Maintains voltage stability with a regulation tolerance of 0.5%.
- Cable-free Connection Design: Utilizes a copper plate for PCB connections, enhancing power quality and reducing production errors.
- Ultra-High Efficiency 80 PLUS Platinum Certified: Achieves 80 PLUS Platinum certification with 92% efficiency at 50% system load.
- Fully Modular Cabling Design: Allows for customized cable management, reducing clutter and improving airflow.
- Top-Quality 135 mm Fluid Dynamic Bearing Fan: Ensures quiet and efficient cooling with a fan rated for 50,000 hours at 40°C.
- Micro Tolerance Load Regulation (MTLR) [0.5 %]: Maintains voltage stability with a regulation tolerance of 0.5%.
- Cable-free Connection Design: Utilizes a copper plate for PCB connections, enhancing power quality and reducing production errors.
Compare similar products
The ATX3PRIMEPX1600 is a 1600W power supply unit designed for high-performance systems, featuring 80 PLUS Platinum certification, fully modular cabling, and a 135 mm fluid dynamic bearing fan for efficient cooling.

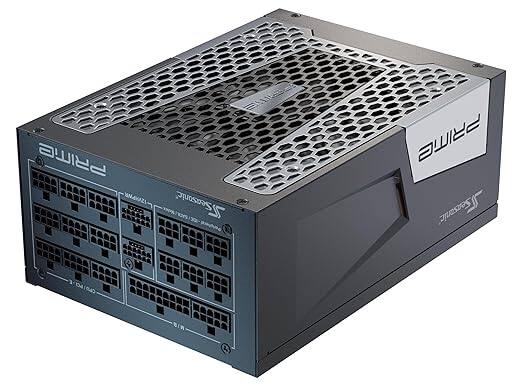

Built for users who demand maximum stability and efficiency, PRIME TX-1600 features dual native 12V-2x6 connectors for next-generation GPUs and AI workstations. 80 PLUS and Cybenetics Titanium certified, 100% Japanese capacitors, and a 12-year warranty ensure reliable power under continuous high loads. The hybrid fan control with a 135 mm FDB fan delivers quiet, efficient cooling.
CORSAIR HXi Series Fully Modular Ultra-Low Noise Power Supplies deliver exceptional 80 PLUS Platinum efficient power and low-noise fluid dynamic bearing fan performance. ATX 3.1 and PCIe 5.1 compliance, HXi PSUs have every connection needed to power today’s most demanding PC upgrades. Powerful CORSAIR iCUE software enables custom fan curves, monitoring and adjusting power settings, and more thanks to a fully digital platform. Japanese 105°C-rated electrolytic capacitors deliver long life and reliability, backed by a ten-year warranty. Wake your computer faster and consume less power with Modern Standby sleep mode. Zero RPM mode ensures near-silent operation at low and medium loads. The HXi Series puts platinum power at your command.
Its ultra-high efficiency and outstanding performance are the fine results of Seasonic’s continuous commitment to innovation and advancement. Improved low-load efficiency, highly suppressed ripple noise and a generous 12-year manufacturer’s warranty are just some of the characteristics that set these series apart from other power supplies on the market.
