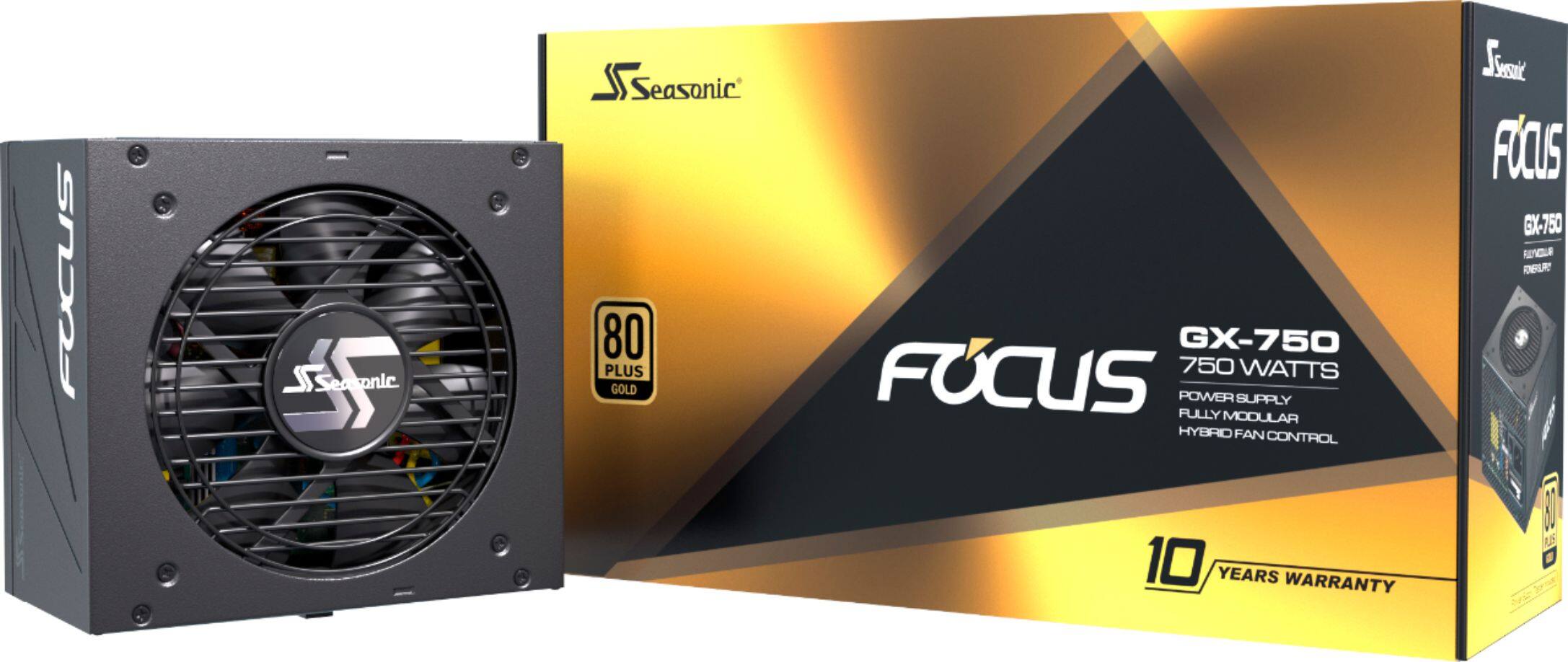

Name: Seasonic - FOCUS GX-750, 750W 80+ Gold PSU, Full-Modular, Fan Control in Fanless, Silent, Cooling Mode, 10 Yr Warranty - Black
Brand: Seasonic
SKU: 6414263
Rating: 4.8 (113 reviews)

Key Specs
- Wattage: 750 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 5 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 12 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Product Length: 139.7 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
General
- Brand: Seasonic
- Model Number: FOCUS GX-750
- Product Name: FOCUS GX-750, 750W 80+ Gold PSU, Full-Modular, Fan Control in Fanless, Silent, Cooling Mode, 10 Yr Warranty
- Color: Black
Power
- Wattage: 750 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Specification Compliance: ATX12V / EPS12V
Connectivity
- ATX Connector: 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 5 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 12 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
Dimensions
- Product Height: 86.36 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 149.86 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 139.7 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
Cooling
- Cooling Fan Type: Other
Other
- UPC: 4711173873365

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. This breakthrough solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.

750W power supply: Delivers the power needed to run your PC.
AC 100-240V input: With input 50-60Hz frequency for wide-ranging use.
ATX12V and EPS12V compliance: Meets industry standards.
120mm fluid dynamic bearing cooling fan: Dissipates heat to help the power supply remain working at optimal temperature levels.
Maximum safety to your critical system components: Provides overheat, overcurrent, overvoltage, overpower, undervoltage and short-circuit protection.
80 PLUS Gold Certification: Delivers 90% energy efficiency at real world load conditions.
Modular cable management: Allows you to use only the cables you need.
750W power supply: Delivers the power needed to run your PC.
AC 100-240V input: With input 50-60Hz frequency for wide-ranging use.
ATX12V and EPS12V compliance: Meets industry standards.
120mm fluid dynamic bearing cooling fan: Dissipates heat to help the power supply remain working at optimal temperature levels.
Maximum safety to your critical system components: Provides overheat, overcurrent, overvoltage, overpower, undervoltage and short-circuit protection.
80 PLUS Gold Certification: Delivers 90% energy efficiency at real world load conditions.
Modular cable management: Allows you to use only the cables you need.

Whats Included

Seasonic Power Supply
Seasonic Power Supply

Product Manuals

Q: Does this have 3 6pin connectors for a 3090 graphics card?

A: Dear Customer, FOCUS GX-750 only comes with 2 x (6+2 PCIe) Cables. If you need 3 6-pin cables to power a 3090 graphics card, we recommend FOCUS GX-850 or FOCUS GX-1000. Those models include 3 x (6+2 PCIe) Cables. For all high demand graphics cards, please follow our directions below to avoid issues as well. Thank you. https://seasonic.com/focus-gx#cables https://knowledge.seasonic.com/article/8-installation-remark-for-high-power-consumption-graphics-cards

Q: My Dog chewed the cord from the power supply to the wall. what is that cord called so I can buy a replacement?

A: You can find these here or on Amazon or even in Walmart. Best to get the highest quality you can afford as far as Wire Gauge and power rating: Computer Power Cord, NEMA 5-15P to C13, 10A 125V, 18AWG, Black Replacement AC Power Cord, Printer Power Cord, PC Power Supply Cable, Monitor Power Cable

Q: Would this power supply be able to fit in an lian li o 11 mini?

A: Does not appear so. normal SFX power supply always measures 100 x 125 x 63.5 mm, whilst an SFX-L measures 125 x 125 x 63.5 mm. This PSU is 140 mm (L) x 150 mm (W) x 86 mm (H)
