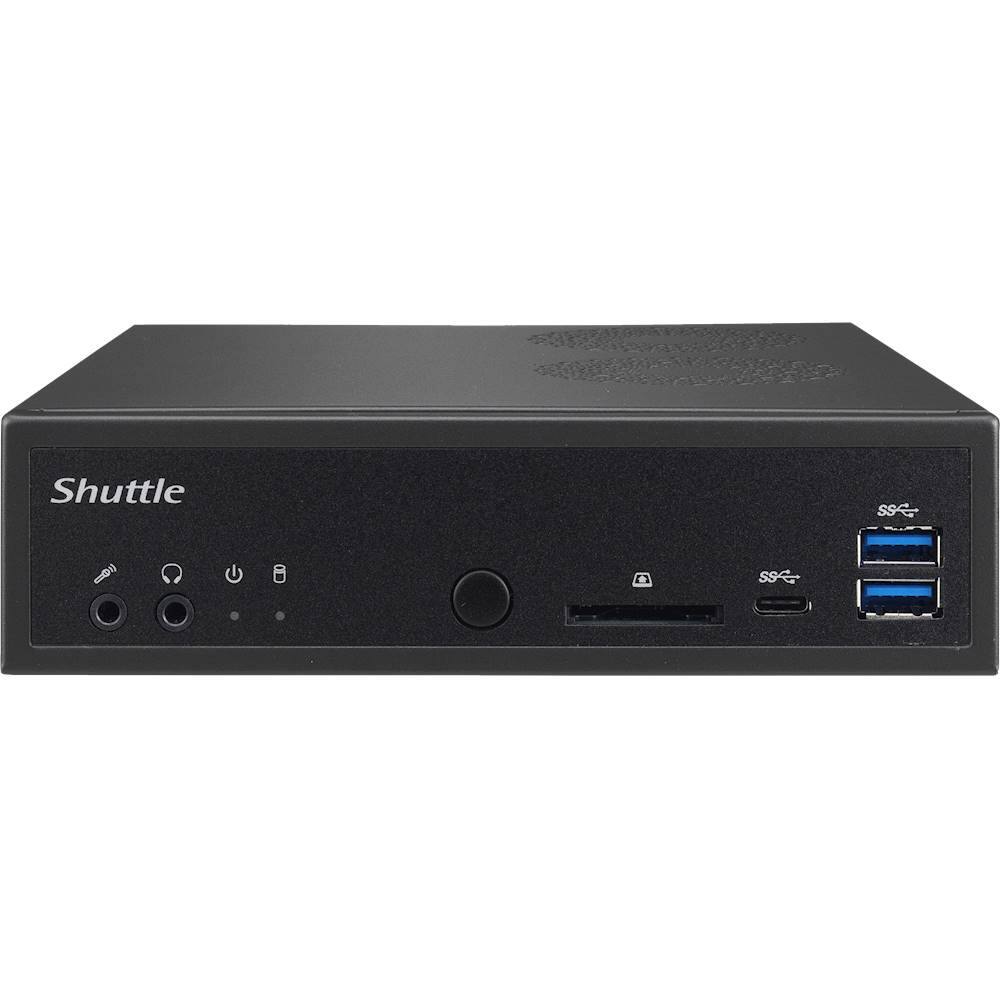

Shuttle - XPC Slim DH270 Barebone Desktop - Black
Model: DH270
SKU: 6359715
This item is no longer available in new condition. See similar items below
- General
- Brand: Shuttle
- Model Number: DH270
- Product Name: XPC Slim DH270 Barebone Desktop
- Color: Black
- Processor
- Processor Included: false (Indicates whether the product comes with a processor.)
- Processor Compatibility: Intel Celeron, Intel Pentium, Intel Core i3, Intel Core i5, Intel Core i7
- Memory
- System Memory (RAM): 0 gigabytes (Random-access memory (RAM) is a computing device's short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the device can handle large amounts of information at one time. For example, gaming or video editing requires more RAM for optimal performance.)
- Type of Memory (RAM): DDR3L SoDIMM (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Number Of Memory Slots: 2
- System Memory RAM Expandable To: 32 gigabytes (Adding more random-access memory (RAM) to a computer speeds up performance and improves efficiency. Upgrades to memory are limited by the number of expansion slots for additional RAM and existing RAM installed on the device.)
- Graphics
- Graphics Processing Unit (GPU) Included: false (Indicates whether the product comes with a graphics processing unit (GPU)/graphics card.)
- Compatibility
- Motherboard Form Factor: Proprietary (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Connectivity
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Ethernet Card: 10/100/1000 (Also known as an Ethernet adapter, this card plugs into a computer's motherboard and enables it to access an Ethernet network. Ethernet data transmission speeds are measured in Mbps (megabits per second) and Gbps (gigabits per second). For example, a 10/100 Ethernet port transmits 10 and 100 Mbps, while a 10/100/1000 Ethernet port transmits 10 and 100 Mbps and has a maximum speed of 1000 Mbps (1 Gbps).)
- Number Of Ethernet Ports: 2
- Number of HDMI Outputs (Total): 3
- Number of USB Ports (Total): 7
- USB Ports: 4 x USB-A 2.0, 2 x USB-A 3.0, 1 x USB-C 2.0 (The number and type of USB ports the product has.)
- Expansion
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of Internal 2.5" Bays: 1
- Features
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Enclosure Type: Other
- Dimensions
- Product Height: 1.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 6.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 7.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 2.8 pounds (The out of box weight of the item.)
- Included
- Optical Drive Type: None (An optical disk drive (ODD) uses a laser light to read data from or write data to an optical disc. These discs include CDs, DVDs, and Blu-ray Discs. This allows you to play music or watch movies using prerecorded discs.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 887993001319
XPC Slim DH270 Barebone Desktop: Build a space-saving desktop with this Shuttle barebone mini computer. The high-quality motherboard accepts 6th and 7th Gen Intel Core processors, and the three HDMI ports support multiple displays. This Shuttle barebone mini computer holds up to 32GB of DDR3L RAM, and the heat-pipe cooling module enables efficient temperature control for lasting performance.
- Intel 6th and 7th Gen processor* support: Compatible with Intel® 6th and 7th Gen Core® i3/i5/i7 series, Pentium, and Celeron® LGA 1151 processors. Maximum supported processor power consumption (TDP): 65W.
- Up to 32GB system memory: Each of two memory slots supports up to 16GB DDR3L RAM to smoothly run your graphics-heavy PC games and video-editing applications, as well as numerous programs and browser tabs at the same time.
- One 2.5" HDD/SSD bay: Supports one hard disk or SSD drive (maximum height of 12.5mm). The mainboard provides one SATA interface (maximum 6GB/sec. supported).
- Slim tower design cuts down on bulk: The tower is less than 1.7" high, so it fits into smaller workspaces.
- Built-in card reader for simple photo transfer: Supports SD memory card formats.
- Two USB 3.0 ports maximize the latest high-speed devices: Also includes four USB 2.0 Type-A ports and one USB 2.0 Type-C to connect more accessories and peripherals. The USB 3.0 ports are backward compatible with USB 2.0 devices (at 2.0 speeds).
- Wired network connectivity: Two built-in Gigabit Ethernet LAN ports plug into your wired network.
- 5.1-channel high-definition audio: Creates surround sound experience for your music, movies, streaming web content, and games. (Speakers sold separately.)
- Multidisplay capability: Connect one monitor, or add a second monitor to double your viewing space for work and games. (Monitors sold separately.)
- Additional ports: HDMI 2.0 and two HDMI 1.4b outputs for a high-definition monitor or HDTV, one microphone jack, one headphone jack, and two RS232 ports.
Whats Included
- Shuttle XPC Slim DH270 Barebone Desktop
- Driver DVD
- SATA cable
- Heatsink compound
- Screw pack
- Power cord
- VESA mount
- Protection cap for CPU socket
- Owner's manual
