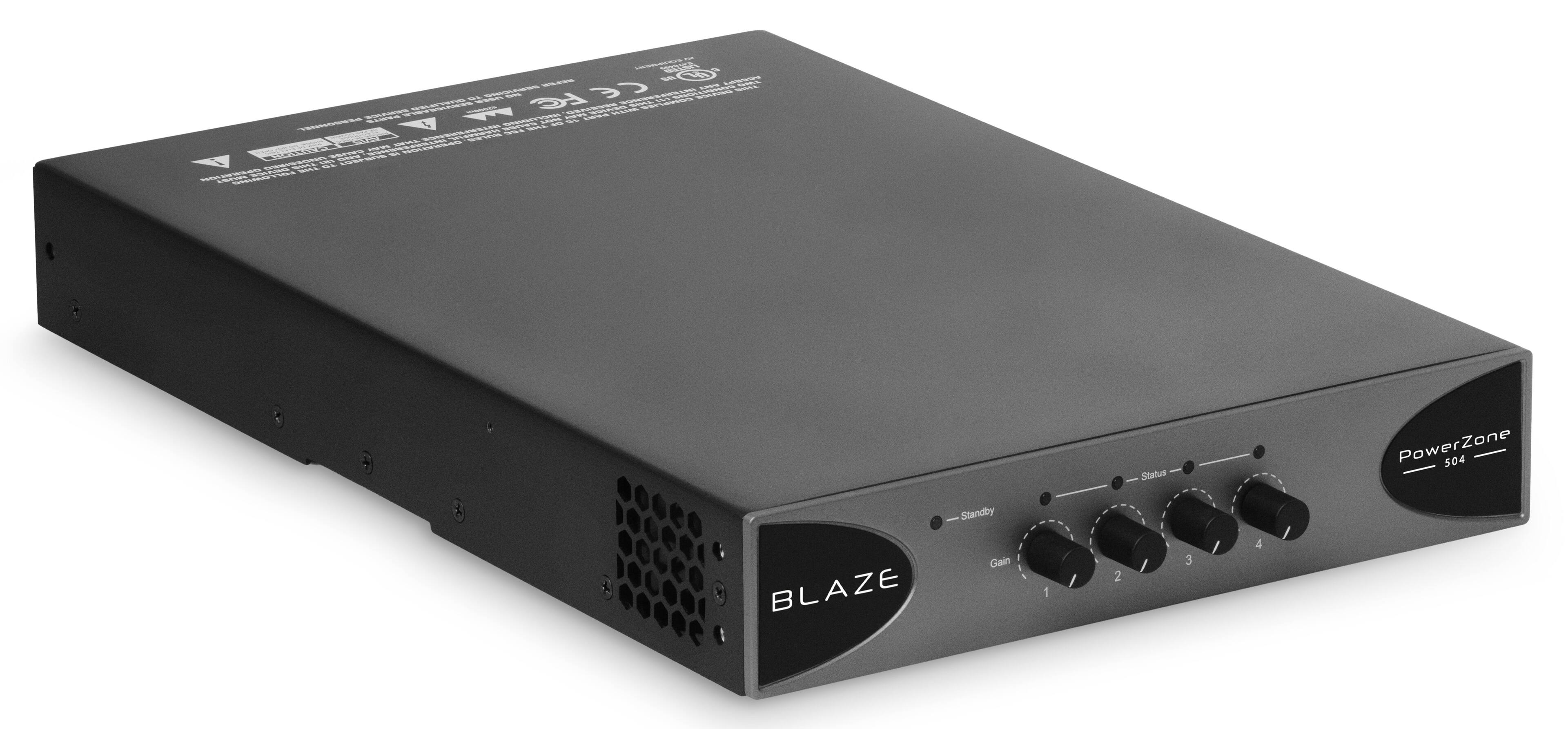

Sonance - Blaze PowerZone 504 – 500 W DSP-enabled Class-D amplifier with 4 channels (Each) - Black
- Key Specs
- Continuous Watts x Channel @ Ohms: 125 W x 4 @ 8 ohm
- Number of Channels: 4 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Network Connector(s): 1 x LAN
- General
- Brand: Sonance
- Model Number: UBX-888-016
- Product Name: Blaze PowerZone 504 – 500 W DSP-enabled Class-D amplifier with 4 channels (Each)
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 125 W x 4 @ 8 ohm
- Maximum Watts x Channel @ Ohms: 250 W @ 4 Ω (bridged, 2 channels) (This is the maximum load the speaker, subwoofer or amp can drive.)
- Total Power Handling: 500 watts (How much amplifier (amplified) power (wattage) that can be handled before damaging the product.)
- Number of Channels: 4 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Minimum Frequency Response: 20 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Amplifier Type: Power amplifiers
- Audio
- Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Inputs
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Audio/Video Inputs: No audio/video inputs (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x LAN
- Antenna Input: No antenna inputs
- Speaker-Level Inputs: false (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Outputs
- Speaker Connection Type: Banana Jack/Screw Terminals
- Audio/Video Outputs: No audio/video outputs (The number and type of HDMI outputs the product has.)
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Fan Cooled: true
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Dimensions
- Product Height: 1.73 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.66 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 13.31 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 5.29 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 810103860544
PowerZone is a series of non-networked Class-D installation amplifiers engineered for professionals who demand affordable, reliable, high-performance audio power. Key features include flexible configuration options that allow each output channel to be independently set to drive either Lo-Z or Hi-Z loads, enabling you to tailor your system to drive both types of loudspeakers from a single unit. Additionally, the PowerZone series' power-sharing technology (exclusive to the 252 and 504 models) intelligently distributes the total available power across channels, ensuring optimal performance and reliability. With full rack support and adaptable desk and wall mount brackets, the PowerZone series offers unparalleled installation versatility in a compact form factor that seamlessly fits into spaces where other amplifiers may fall short. Like all PowerZone products from Blaze Audio, these amplifiers come with a 5- year warranty.
- Ultra-Compact ½-Rack Form Factor: Efficient space-saving design ideal for small to mid-sized installations.
- Hybrid Power Distribution (4 ohm, 8 ohm, 16 ohm, 70V/100 V): Flexible power distribution supporting both low-impedance (4 ohm to 16 ohm) and high-impedance (70 V/100 V) speaker configurations.
- Pascal UMAC Class-D Technology: High-efficiency Class-D amplification powered by Pascal UMAC for superior audio performance.
- Eight-Position DIP Switch: Simplifies setup with configurable operational modes, including front panel gain lock.
- Configurable GPIO (general purpose input/output): Customizable GPIO ports for enhanced control and integration with external systems.
- Energy Efficiency & Compliance: Compliant with ErP and Energy Star standards for environmentally friendly operation.
- UL Listed Audio Equipment: Certified to meet UL safety standards for professional audio equipment.
- UREC™ Universal Power Supply with PFC: Reliable power supply featuring Power Factor Correction (PFC) for global compatibility.
- 5-Year Warranty: Comes with a comprehensive 5-year warranty for long-term peace of mind.
Whats Included
- (1) PowerZone 252 Amplifier Unit
- (1) Mains Power Cable
- (4) Input Connectors
- (4) Euroblock Output Connectors
- (1) GPIO Socket Connector
- (4) Adhesive Rubber Feet
- 1) Document Pack (Quick Start Guide & Manuals)
Q: Are line-level inputs supported by this amplifier?
A: Yes, line-level inputs are supported by this amplifier.
Q: Is the amplifier app compatible?
A: Yes, the amplifier is app compatible.
Q: Can this amplifier support both low and high impedance speaker configurations?
A: Yes, this amplifier supports both low and high impedance speaker configurations.
Q: Is this amplifier energy efficient?
A: Yes, this amplifier is compliant with ErP and Energy Star standards.
Q: What is the amplifier class for this product?
A: The amplifier class for this product is D.
Q: Does this amplifier have configurable GPIO ports?
A: Yes, this amplifier has customizable GPIO ports for enhanced control.
Q: Does this amplifier come with a warranty?
A: Yes, this amplifier comes with a 5-year warranty.
