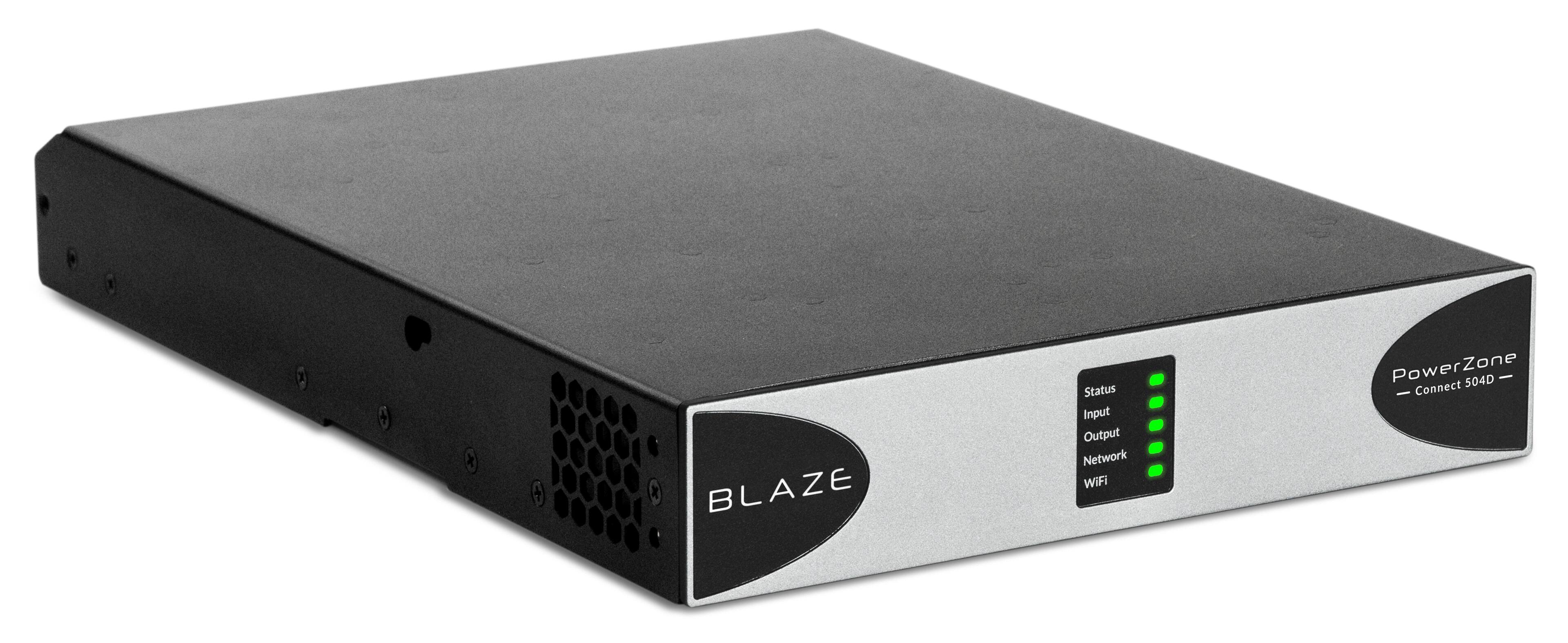

Sonance - Blaze PowerZone Connect 504D – 500 W DSP-enabled Class-D amplifier with 4 channels and Dante (Each) - Black
Specifications

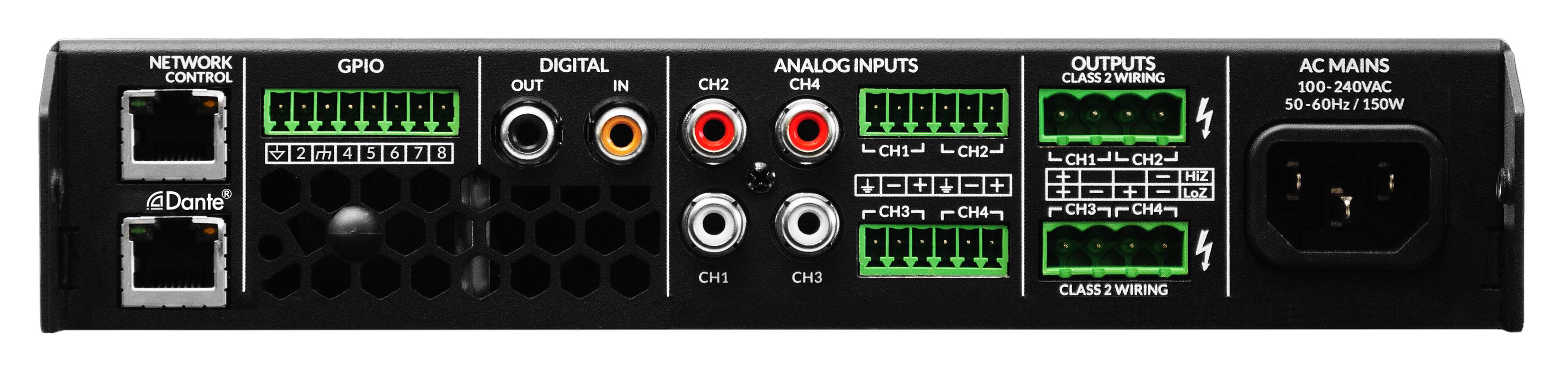

- Continuous Watts x Channel @ Ohms125 W x 4 @ 8 ohmNumber of Channels4Audio Only InputsUnbalanced RCANetwork Connector(s)1 x LAN
- Key Specs
- Continuous Watts x Channel @ Ohms: 125 W x 4 @ 8 ohm
- Number of Channels: 4 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Audio Only Inputs: Unbalanced RCA
- Network Connector(s): 1 x LAN
- General
- Brand: Sonance
- Model Number: UBX-888-029
- Product Name: Blaze PowerZone Connect 504D – 500 W DSP-enabled Class-D amplifier with 4 channels and Dante (Each)
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 125 W x 4 @ 8 ohm
- Maximum Watts x Channel @ Ohms: 250 W @ 4 ohms bridged (2 channels) (This is the maximum load the speaker, subwoofer or amp can drive.)
- Total Power Handling: 500 watts (How much amplifier (amplified) power (wattage) that can be handled before damaging the product.)
- Number of Channels: 4 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Minimum Frequency Response: 20 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Amplifier Type: Integrated amplifiers
- Audio
- Impedance: 8 ohm (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Inputs
- Audio Only Inputs: Unbalanced RCA
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Audio/Video Inputs: No audio/video inputs (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x LAN
- Antenna Input: No antenna inputs
- Speaker-Level Inputs: false (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Outputs
- Speaker Connection Type: Banana Jack/Screw Terminals
- Audio/Video Outputs: No audio/video outputs (The number and type of HDMI outputs the product has.)
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Fan Cooled: true
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Dimensions
- Product Height: 1.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 12.6 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 6.17 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 810103860803
The PowerZone Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to simplify the lives of system installers, providing unmatched reliability, efficiency, and exceptional system configuration. Their compact form factor makes them an ideal choice for audio/voice installation projects with limited space constraints, demanding high-output performance of up to 500 W. The 1U family powers both conventional low-impedance (4 ohms to 16 ohms) loudspeakers and constant voltage (70 V/100 V) transformer-coupled loudspeakers, and features automatic power-sharing technology for proportional distribution. Our intuitive PowerZone Control web app is built into all our PowerZone Connect amplifiers for easy system setup. PowerZone Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more. Specific models of the PowerZone Connect 1U amplifiers offer compatibility with Audinate Dante AoIP networks and installations.
- Ultra-Compact ½-Rack Design: Space-saving ½-rack form factor, perfect for installations where efficiency and performance must go hand in hand.
- Full-Matrix DSP Configuration via PowerZone Control: Configure and manage the full DSP matrix directly through the built-in PowerZone Control web application.
- Dante 4×4 Networking: Integrated Dante Ultimo 4×4 chip for seamless digital audio networking and system integration.
- Hybrid Power Distribution (4 ohm, 8 ohm, 16 ohm, 70V/100 V): Flexible power distribution supporting both low-impedance (4 ohm to 16 ohm) and high-impedance (70 V/100 V) speaker configurations.
- Pascal UMAC Class-D Amplification: Delivers clean, efficient, and reliable power with industry-leading Class-D amplifier technology.
- Flexible Power Sharing: Distribute and allocate output power across channels to match system requirements without wasted capacity.
- Digital Connectivity with S/PDIF: Includes both input and output for high-quality digital audio signal transfer.
- Configurable GPIO (general purpose input/output): Customizable GPIO ports for enhanced control and integration with external systems.
- Energy Efficient and Compliant: ErP and Energy Star certified for reduced power consumption and environmentally responsible operation.
- Certified & Reliable: UL listed for safety assurance, built with the UREC™ universal power supply with PFC for worldwide compatibility.
- 5-Year Warranty: Comes with a comprehensive 5-year warranty for long-term peace of mind.
Whats Included
- (1) PowerZone Connect 504D Amplifier Unit
- (1) Mains Power Cable
- (4) Input Connectors
- (4) Euroblock Output Connectors
- (1) GPIO Socket Connector
- (4) Adhesive Rubber Feet
- 1) Document Pack (Quick Start Guide & Manuals)
Q: Is this amplifier bridgeable?
A: Yes, this amplifier is bridgeable.
Q: How long is the warranty for parts on this amplifier?
A: The parts warranty for this amplifier is five years.
Q: Does this amplifier have an app for control?
A: Yes, this amplifier is app compatible.
Q: Are there any audio only inputs on this amplifier?
A: Yes, this amplifier has unbalanced RCA audio only inputs.
Q: Can this amplifier support both low and high impedance speaker configurations?
A: Yes, this amplifier supports both low and high impedance speaker configurations.
Q: What type of amplifier class is this?
A: This is a class D amplifier.
Q: Does this amplifier have digital connectivity?
A: Yes, it includes input and output for digital audio signal transfer.
