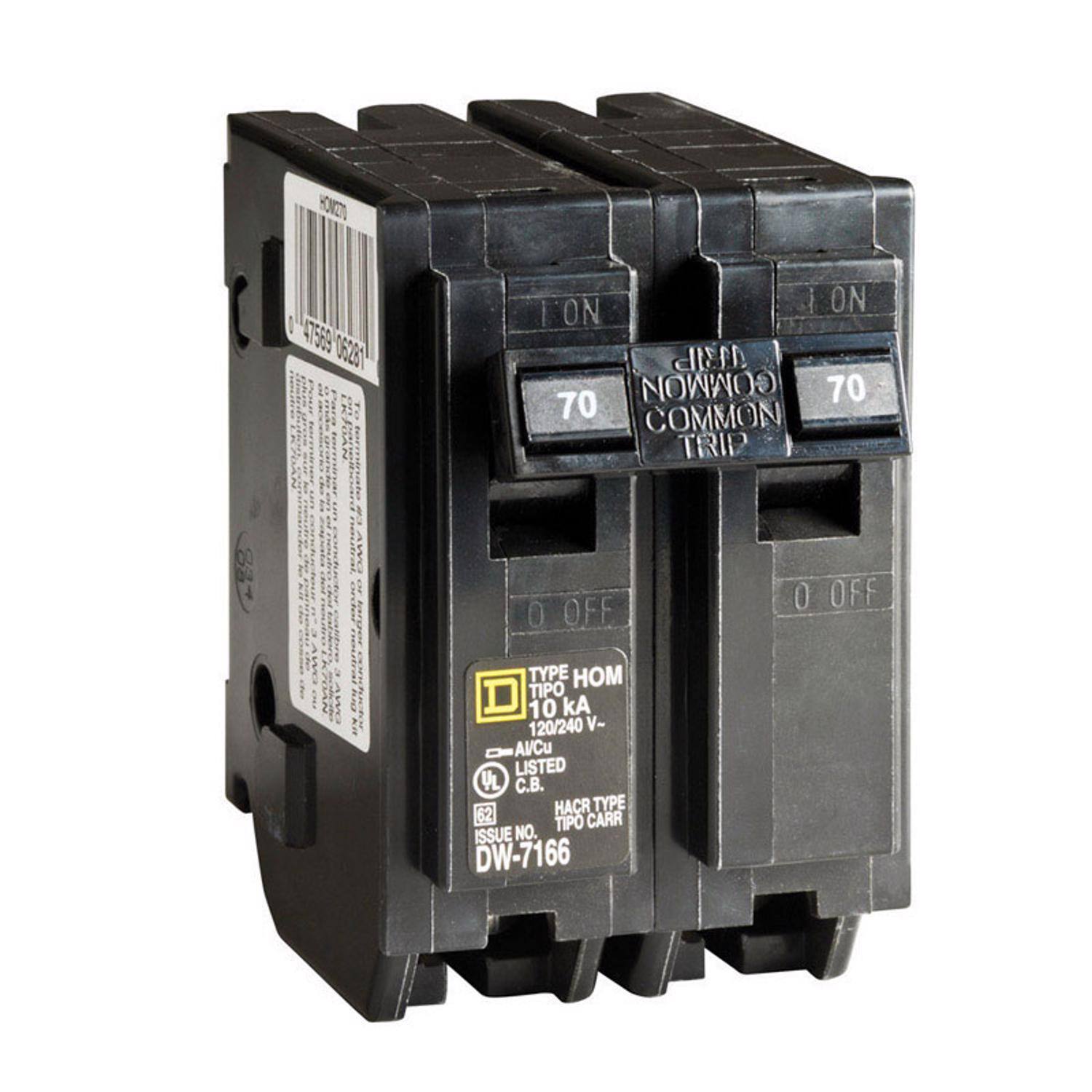

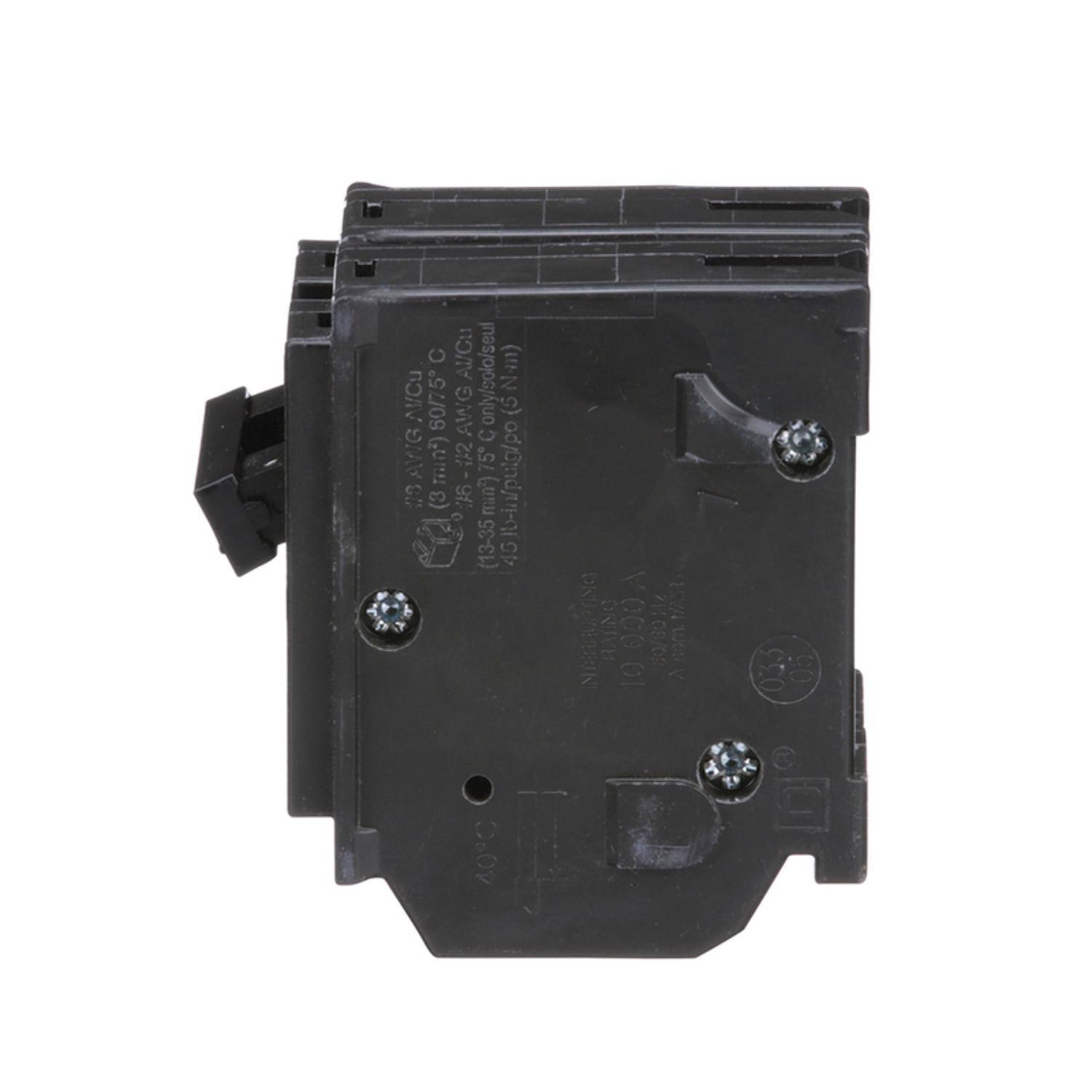

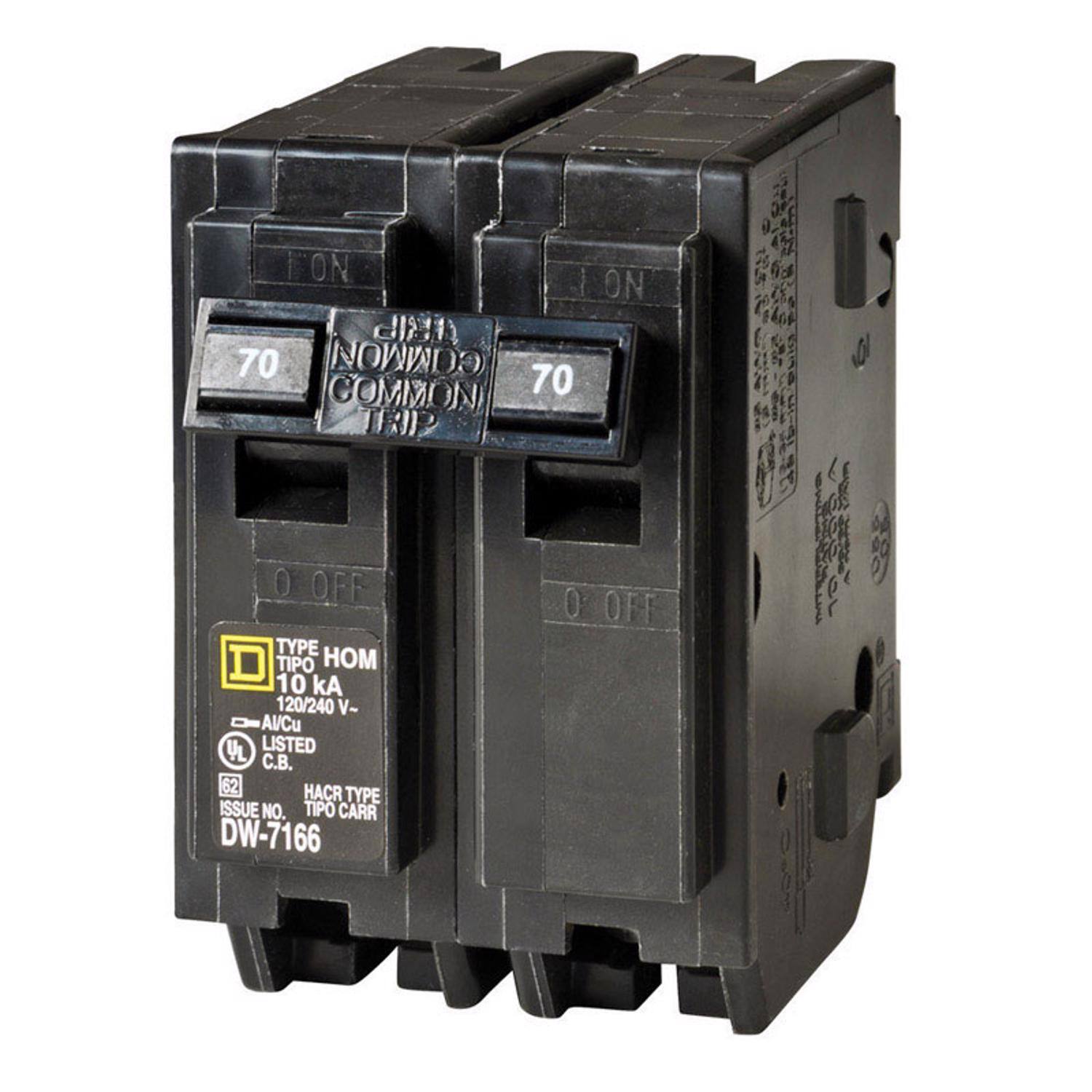

Square D - HomeLine 70 amps Plug In 2-Pole Circuit Breaker
Reviews coming soon
About this product
The Square D Homeline 70 Amp Circuit Breaker offers reliable residential circuit protection, safeguarding against overloads and short circuits. Designed for easy installation, its plug-on neutral design fits seamlessly into Square D Homeline load centers and CSEDs, taking up two spaces and allowing for a fast, hassle-free setup. This double-pole breaker operates on 120/240V AC circuits, commonly used for appliances which require larger amounts of power (clothes dryers, ranges, furnaces, air conditioners, etc.). Compact yet powerful, it features a 70A current rating, 10kA breaking capacity, and a space-saving design. UL-listed for safety and reliability, this circuit breaker is an essential addition to any residential electrical system. Dimensions: 3.13" H x 2" W x 2.98" D.From the ManufacturerFormat 1". Thermal/magnetic tripping mechanism. 120/240 Volts ac; 10,000 AIC. U.L. Listed as HACR type for use with air conditioning, heating and refrigeration equipment having motor group combinations and marked for use with HACR type circuit breakers.
Amperage
70 amperesFeature 1
Product Series: HomeLine
- BrandSquare DModel NumberHOM270CPProduct NameSquare D HomeLine 70 amps Plug In 2-Pole Circuit BreakerAmperage70 amperesMaximum Voltage240 voltsGround Fault InterrupterNo
Reviews
This product doesn't have any reviews yet.
Compare similar products
The Square D Homeline 70 Amp Circuit Breaker offers reliable residential circuit protection, safeguarding against overloads and short circuits. Designed for easy installation, its plug-on neutral design fits seamlessly into Square D Homeline load centers and CSEDs, taking up two spaces and allowing for a fast, hassle-free setup. This double-pole breaker operates on 120/240V AC circuits, commonly used for appliances which require larger amounts of power (clothes dryers, ranges, furnaces, air conditioners, etc.). Compact yet powerful, it features a 70A current rating, 10kA breaking capacity, and a space-saving design. UL-listed for safety and reliability, this circuit breaker is an essential addition to any residential electrical system. Dimensions: 3.13" H x 2" W x 2.98" D.From the ManufacturerFormat 1". Thermal/magnetic tripping mechanism. 120/240 Volts ac; 10,000 AIC. U.L. Listed as HACR type for use with air conditioning, heating and refrigeration equipment having motor group combinations and marked for use with HACR type circuit breakers.
he Square D QO24L70RB is a load center with a current rating of 70 Amps and a voltage rating of 120/240VAC. It has a short circuit current rating of 65kAIC. The QO24L70RB is used for QO circuit breakers.
Square D™ Homeline™ Miniature Circuit Breakers, HOM120CAFIC, is in a 1 inch wide format for 1-pole circuit breakers. They are designed to plug into Homeline load centers. Equipped with Combination ground and Arc-fault interrupter (Pigtail Neutral). Comes in clam packing. UL listed.
Q Line circuit breakers are oneinch wide per pole, compact, thermalmagnetic devices designed for residential and commercial applications in load centers or lighting panels. All Q Line circuit breakers feature Quickmake / Quickbreak mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications. The THQL2180 breaker features 2 poles, an ampere rating of 80 A, an interrupting rating of 10kAIC, and a voltage rating of 120/240V. Features. 80A Q Line Plug In 2Pole Circuit Breaker. Tinplated copper stabs create reliable, permanent and corrosionresistant connections. Calibration screw is cemented to prevent shifting. GE residential electrical products is switching to ABB. Trips to the center positionSpecifications. Amps 80A. CSA Listed Yes. Circuit Protection Type Plug In. Depth 5.12. Height 5.75. Mounting Type PlugOn. Number of Poles 2Pole. Number of Spaces 2 space. UL Listed Yes. Volts 120/240 volt. Width 5.12. Indoor or Outdoor Outdoor. Country of Origin United States of America. Product Type Circuit Breaker. Weight 0.63 lbs
