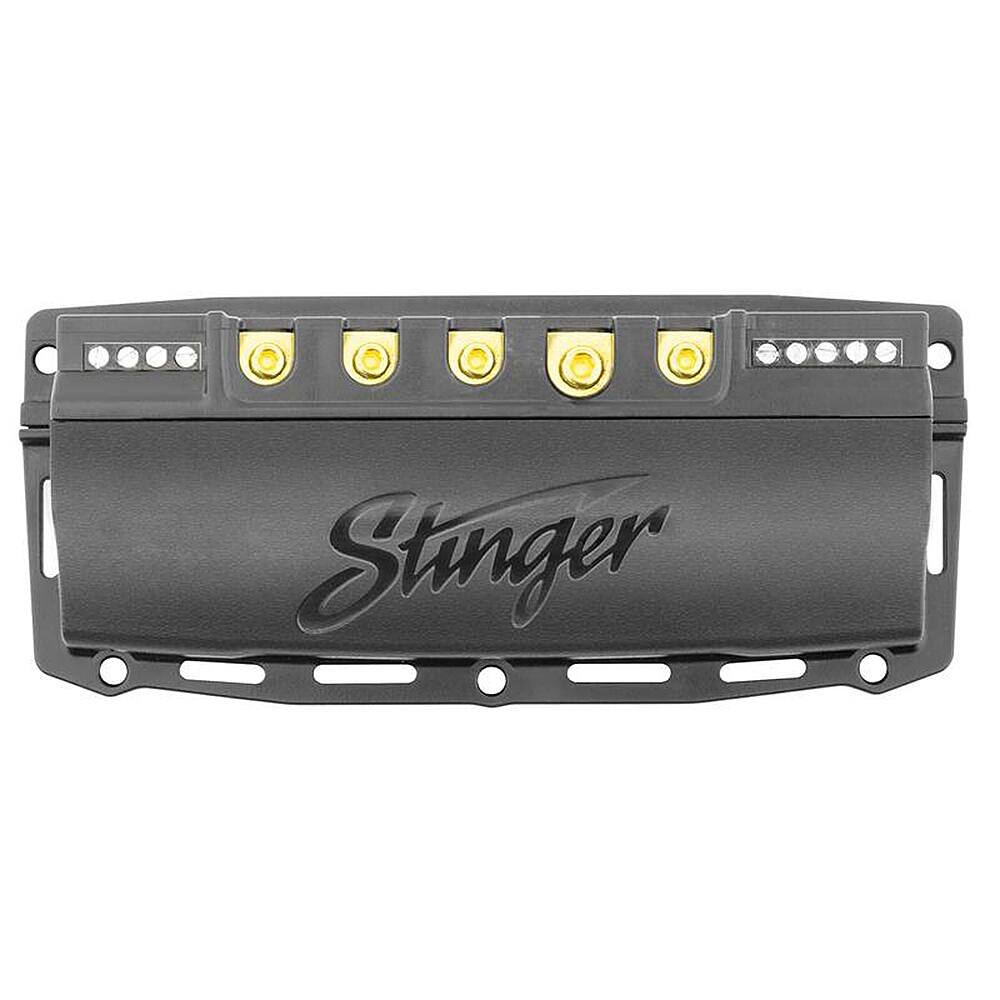

Stinger - SwitchHUB 4-Channel 100 Amp Solid-State Relay - Black
About This Item
- General
- Brand: Stinger
- Model Number: SPXSH440
- Product Name: SwitchHUB 4-Channel 100 Amp Solid-State Relay
- Color: Black
- Power
- Amperage: 100 amperes (Strength of electrical current.)
- Number of Poles: 4
- Maximum Voltage: 16 volts
- Ground Fault Interrupter: true
- Arc Fault Circuit Interrupter: true
- Mount Type: Fixed
- Securing Style: Bolted
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): Not Applicable (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- ANSI Certified: false (Meets the requirements of the American National Standards Institute.)
- Dimensions
- Product Height: 1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 2.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 6.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.63 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: None
- Other
- UPC: 609098833097

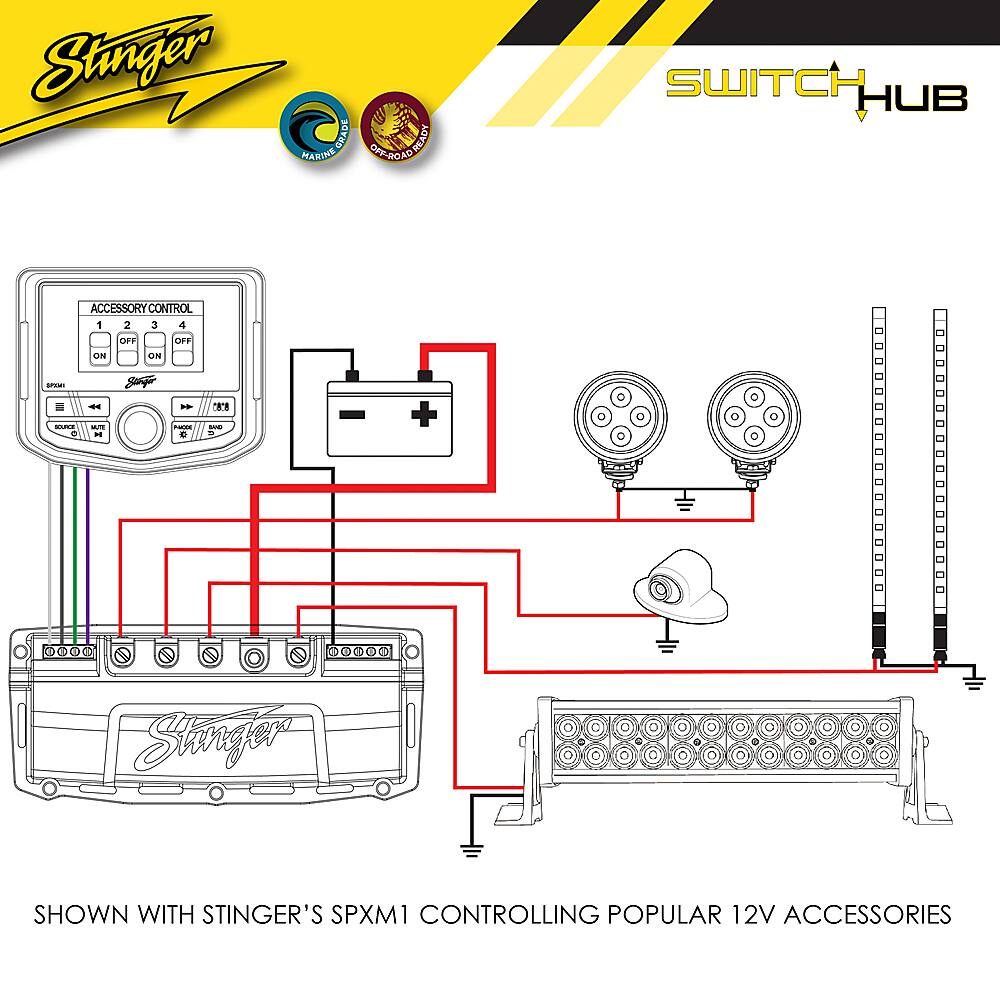

Control up to four 12V high current accessories such as LED whip lights, rock lights, and more without excessive wiring or adding multiple relays with the SwitchHUB 4-Channel 100 Amp Solid-State Relay by Stinger. This plug-and-play high current relay block features one 40A output and three 20A outputs with thermal overload and short circuit protection that can be independently triggered or combined for a total of 100A continuous. The SPXSH440 also features IP69-rated corrosion resistant terminals and element resistant housing for long-lasting use.
- Solid-state 4-way 40 Amp relay: Control up to four high current devices with one 40A output and three 20A outputs for a combined total of 100A continuous.
- Four independent outputs: Can be triggered independently by either a positive or negative trigger or combined for greater amperage capability.
- IP69-rated weather-resistant design: Features corrosion resistant terminals and element-resistant housing to ensure long-lasting use.
- Automatic thermal overload and short circuit protection: For each output.
- LED status indicators: Alerts the driver to thermal/overload and active/inactive status.

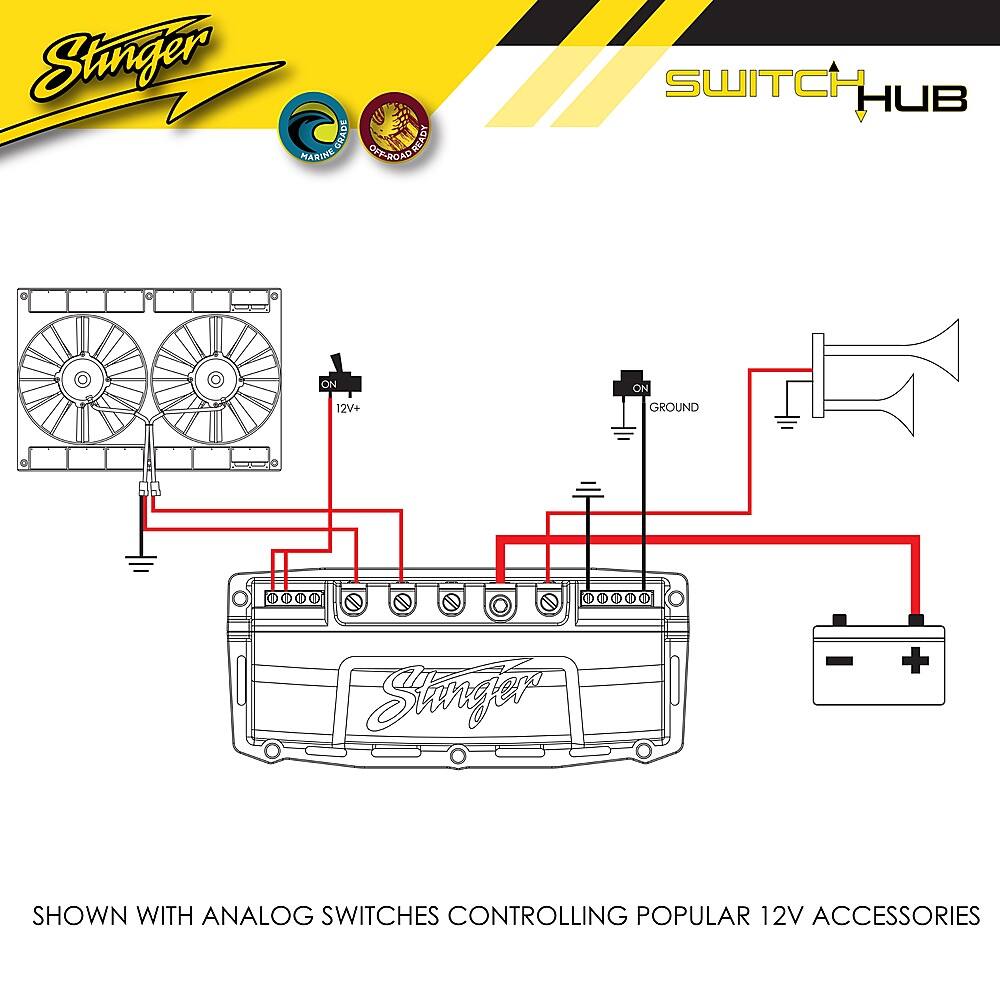

- Power or ground activated: Can be used on a wide variety of existing switches from the vehicle.
- Solid-state 4-way 40 Amp relay: Control up to four high current devices with one 40A output and three 20A outputs for a combined total of 100A continuous.
- Four independent outputs: Can be triggered independently by either a positive or negative trigger or combined for greater amperage capability.
- IP69-rated weather-resistant design: Features corrosion resistant terminals and element-resistant housing to ensure long-lasting use.
- Automatic thermal overload and short circuit protection: For each output.
- LED status indicators: Alerts the driver to thermal/overload and active/inactive status.
- Power or ground activated: Can be used on a wide variety of existing switches from the vehicle.
- Solid-state 4-way 40 Amp relay: Control up to four high current devices with one 40A output and three 20A outputs for a combined total of 100A continuous.
- Four independent outputs: Can be triggered independently by either a positive or negative trigger or combined for greater amperage capability.
- IP69-rated weather-resistant design: Features corrosion resistant terminals and element-resistant housing to ensure long-lasting use.
- Automatic thermal overload and short circuit protection: For each output.
- LED status indicators: Alerts the driver to thermal/overload and active/inactive status.
- Power or ground activated: Can be used on a wide variety of existing switches from the vehicle.
Whats Included
- Stinger SwitchHUB 4-Channel 100 Amp Solid-State Relay
- User manual
- Stinger SwitchHUB 4-Channel 100 Amp Solid-State Relay
- User manual
- Stinger SwitchHUB 4-Channel 100 Amp Solid-State Relay
- User manual
Q: Are the terminals on the relay IP69-rated?
A: The SPXSH440 relay features IP69-rated corrosion-resistant terminals.
Q: What is the warranty period for the relay?
A: The manufacturer's warranty for parts on the SwitchHUB 4-Channel 100 Amp Solid-State Relay is 1 year.
Q: How many channels does the relay have?
A: The relay has four channels.
Q: What is the maximum amperage the relay can handle?
A: The maximum amperage the relay can handle is 100 amps.
Q: Can the relay be used to control multiple accessories simultaneously?
A: Yes, the Stinger SwitchHUB 4-Channel 100 Amp Solid-State Relay can control up to four 12V high current accessories simultaneously.
Q: What are the dimensions of the relay?
A: The SwitchHUB 4-Channel 100 Amp Solid-State Relay is 6.5 inches deep, 1 inch high, and 2.75 inches wide.
