Streamline - 36 inches - Externally Vented - Under cabinet Range Hood - Brushed Stainless Steel
Streamline - 36 inches - Externally Vented - Under cabinet Range Hood - Brushed Stainless Steel
Related Item
Specifications
- Color FinishStainless steelProduct Height5.3 inchesProduct Width35.2 inchesProduct Depth18.9 inchesExhaust Vent LocationTop/RearVent TypeDucted
- Key Specs
- Color Finish: Stainless steel
- Product Height: 5.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Streamline
- Model Number: T-10351-1-DL
- Product Name: 36 in. Olbia Ductless Undermount 80 CFM Range Hood, Mesh Filters, Push Button Control, LED Light
- Color: Brushed Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 5.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 25.6 inches
- Maximum Installation Height Above Cooktop: 29.5 inches
- Product Width: 35.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 17 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 5 inches
- Duct Length: 78 inches
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Display Type: None
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 1
- Number of Light Levels: 1
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 2 watts
- Performance
- Maximum Air Flow Capacity: 80 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 60 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 9 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 4 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Aluminum
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical
- Amperage: 2 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): ETL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 3 year limited
- Warranty - Labor: Not applicable
- Other
- UPC: 722047285898
Refine your kitchen with the sleek Streamline 36 in. Olbia Ductless Undermount Range Hood in Brushed Stainless Steel. Delivering 80 CFM of airflow, it offers 3-speed push button control, for adaptable ventilation. The integrated LED light enhances your cooking space, while aluminum mesh filters keep the air clean. Installation is quick and easy with the included 3-prong 120-volt power cord. Bring modern style and functionality to your kitchen.

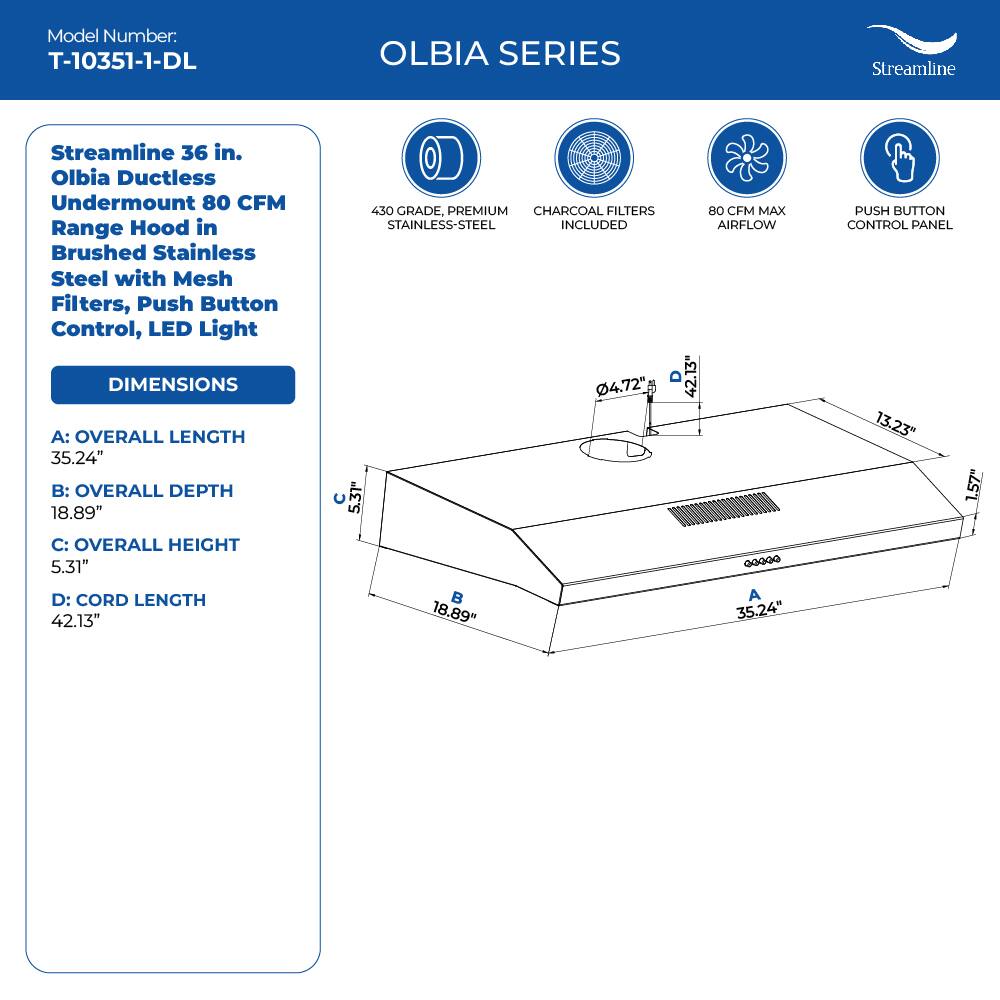

- Overall Range Hood Dimensions: Overall Range Hood Dimensions: 35.2" L x 18.9" W x 5.3" H
- Material: Crafted from high-quality and effortlessly manageable premium 430 grade stainless steel, this material exhibits excellent heat resistance and remarkable durability in the face of dents, scratches, rust, and corrosion.
- Installation Type: The range hood is prepared for ductless installation out of the box.
- Filter Type: Premium aluminum mesh filters capture grease and odor particles efficiently, leaving behind clean air in your kitchen area. The aluminum mesh filters are also dishwasher safe!
- Range Hood CFM Values: A versatile 3-speed fan control (60/70/80 CFM) allows for easy and seamless adjustment based on your specific cooking needs.
