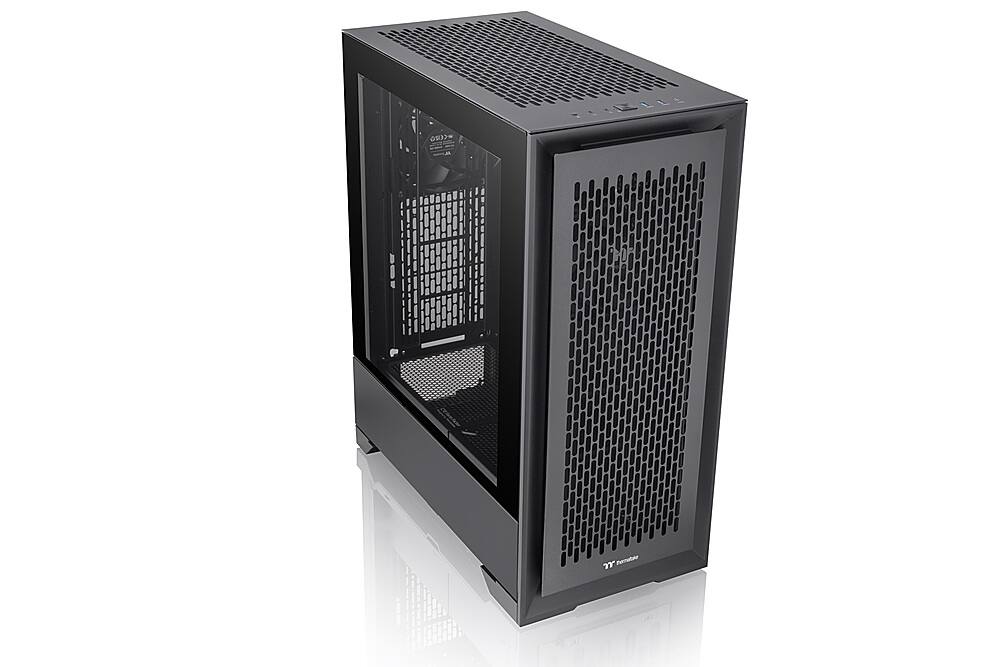

Thermaltake - CTE T500 Air Full Tower Case - Black
Model: CA-1X8-00F1WN-00
SKU: 6569203
This item is no longer available in new condition. See similar items below
- Key Specs
- Motherboard Form Factor: ATX, EATX, microATX, Mini-ITX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 385 millimeters
- Product Height: 20 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Left side
- Case Material: Tempered glass, Aluminum
- General
- Brand: Thermaltake
- Model Number: CA-1X8-00F1WN-00
- Product Name: CTE T500 Air Full Tower Case
- Color: Black
- Case Material: Tempered glass, Aluminum
- Compatibility
- Motherboard Form Factor: ATX, EATX, microATX, Mini-ITX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 180 millimeters
- Maximum GPU Length: 385 millimeters
- Number of Expansion Slots: 7
- Ports
- USB Port Location: Top
- Number of USB Ports (Total): 3
- USB Ports: 2 x USB-A 3.0, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 6
- Number Of Internal 3.5" Bays: 4
- Dimensions
- Product Height: 20 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 34 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Full tower
- Window Panel(s): Left side
- Customizable Case Lighting: false
- Lighting Type: None
- Cooling
- Maximum CPU Cooler Height: 195 millimeters
- Number of Fans Supported: 11
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Number of Fans Included: 3
- Liquid Cooling Ready: true
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 841163085547
The CTE T500 Air brings the design philosophy of the CTE lineup to a more conventional style Full Tower chassis. Utilizing a single chamber, the CTE T500 Air keeps the 90-degree rotated motherboard to centralized main components of the system for optimal cooling. Able to support up to a 420mm AIO up front and up to a 360mm AIO in the rear, the T500 Air comes preinstalled with three 140mm CT140 fans.
- CTE Form Factor: CTE (Centralized Thermal Efficiency) was to provide a high level of thermal performance by altering our approach to traditional case design.
- Maximized Intake: The rotation of the motherboard tray not only allows the CTE design to bring the CPU and GPU close to intake sources but goes one step further in providing them each their own intake sources with space for up to three 140mm/120mm fans or a radiator up to 420mm.
- Three pre-installed 140mm CT140 fans: Pre-installed three 140mm CT fan with standard 4 Pin PWM connectors.
- Display it your way: Rotatable PCI-E and riser mounting bracket, allowing for both conventional direct connection to the motherboard or rotation of the card with the use of a riser cable for optimal viewing angles.
- Perfect Dust Protection: Fine removable filters at the top, front, bottom, rear and right side of the chassis to provide excellent protection against dust, and they are easily removable for cleaning.
- Everything You Need Is Located In One Place: Two USB 3.0 ports, one USB 3.2 Gen 2 Type-C, and HD Audio ports are placed on the top panel to grant direct access when needed.
- CTE Form Factor: CTE (Centralized Thermal Efficiency) was to provide a high level of thermal performance by altering our approach to traditional case design.
- Maximized Intake: The rotation of the motherboard tray not only allows the CTE design to bring the CPU and GPU close to intake sources but goes one step further in providing them each their own intake sources with space for up to three 140mm/120mm fans or a radiator up to 420mm.
- Three pre-installed 140mm CT140 fans: Pre-installed three 140mm CT fan with standard 4 Pin PWM connectors.
- Display it your way: Rotatable PCI-E and riser mounting bracket, allowing for both conventional direct connection to the motherboard or rotation of the card with the use of a riser cable for optimal viewing angles.
- Perfect Dust Protection: Fine removable filters at the top, front, bottom, rear and right side of the chassis to provide excellent protection against dust, and they are easily removable for cleaning.
- Everything You Need Is Located In One Place: Two USB 3.0 ports, one USB 3.2 Gen 2 Type-C, and HD Audio ports are placed on the top panel to grant direct access when needed.
