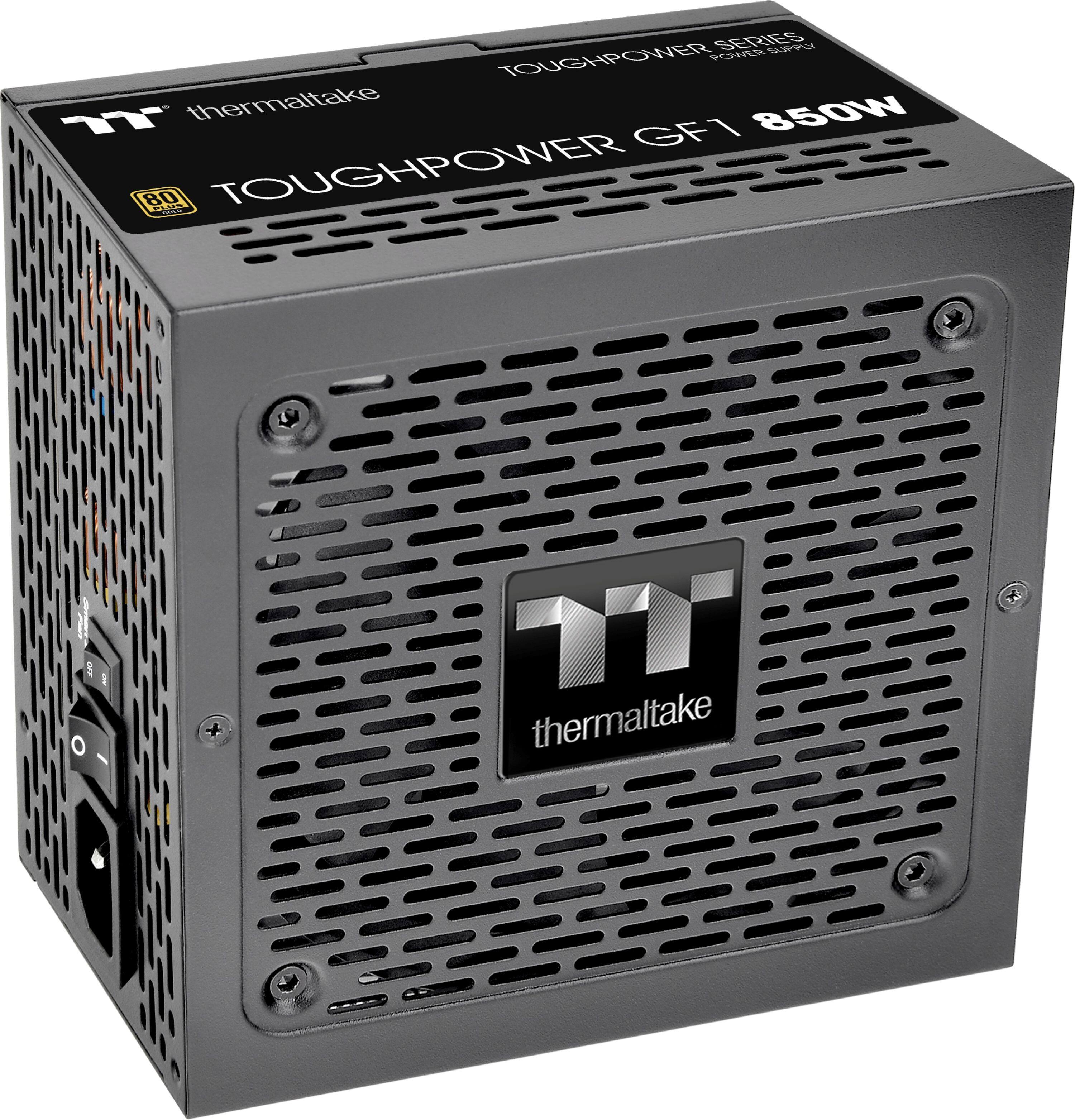

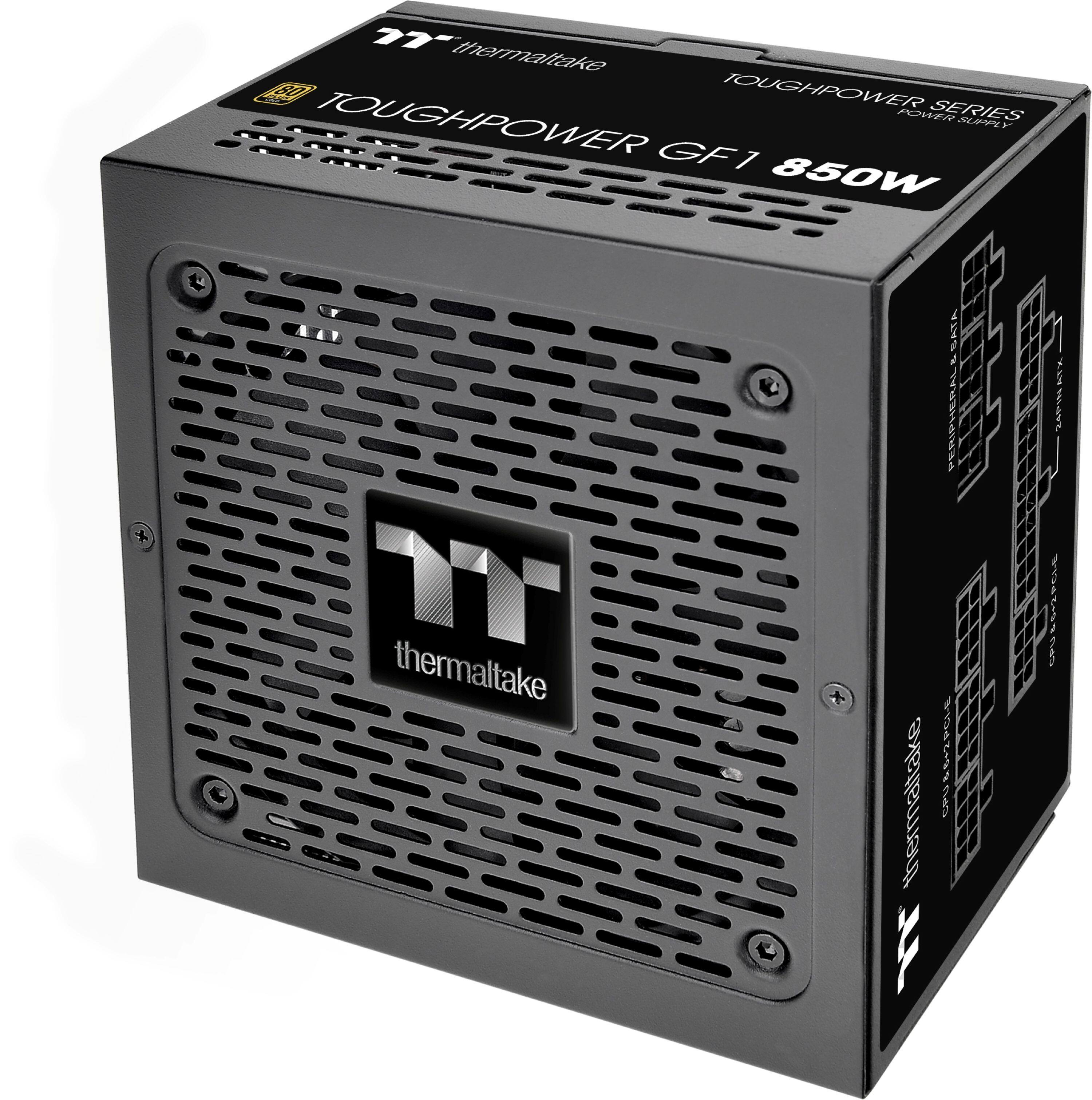

Thermaltake - GF1 (2024) 850W 80 PLUS Gold Fully Modular Power Supply - Black
Wattage
850 wattsMore Buying Options
Related Item
Specifications

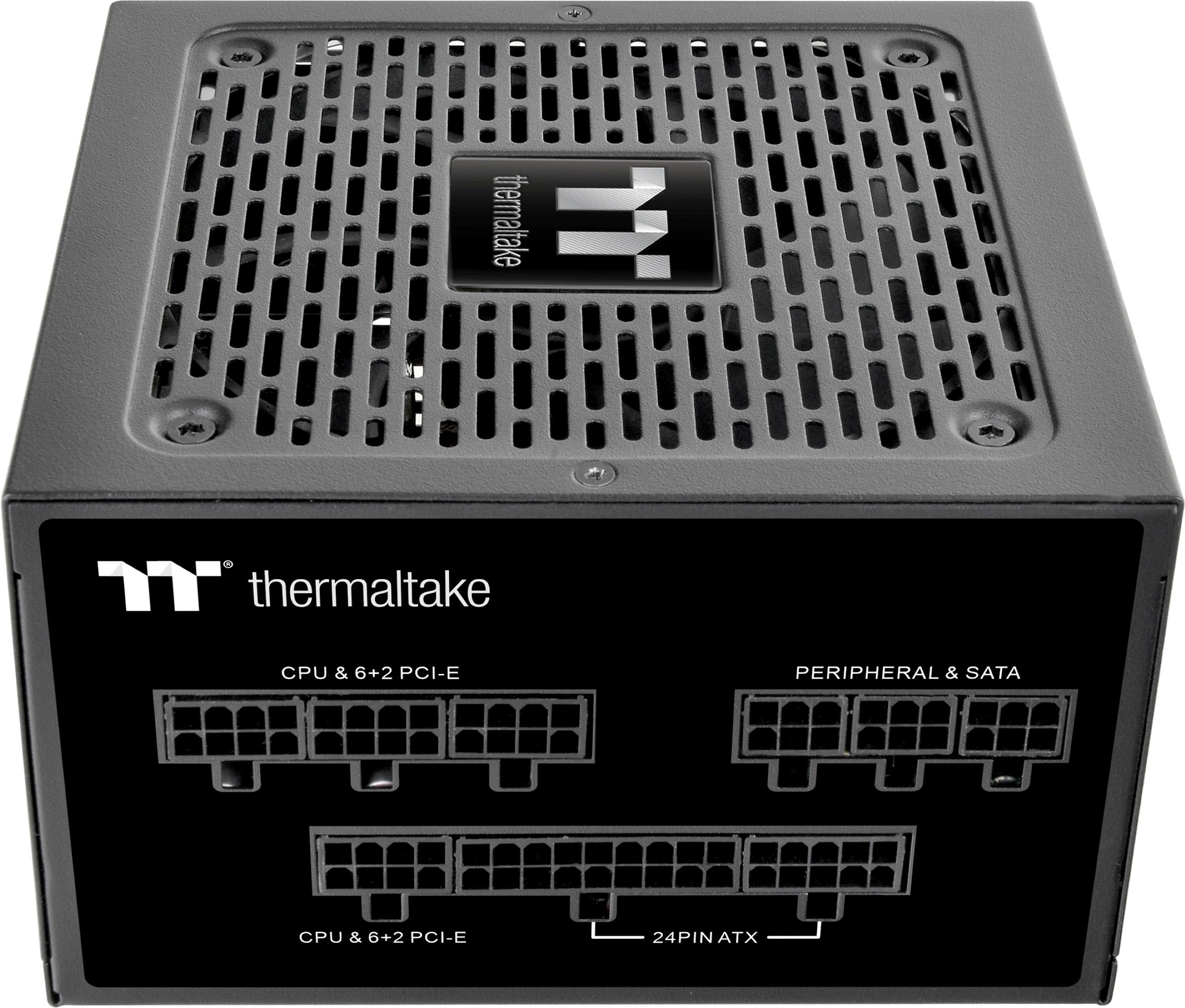

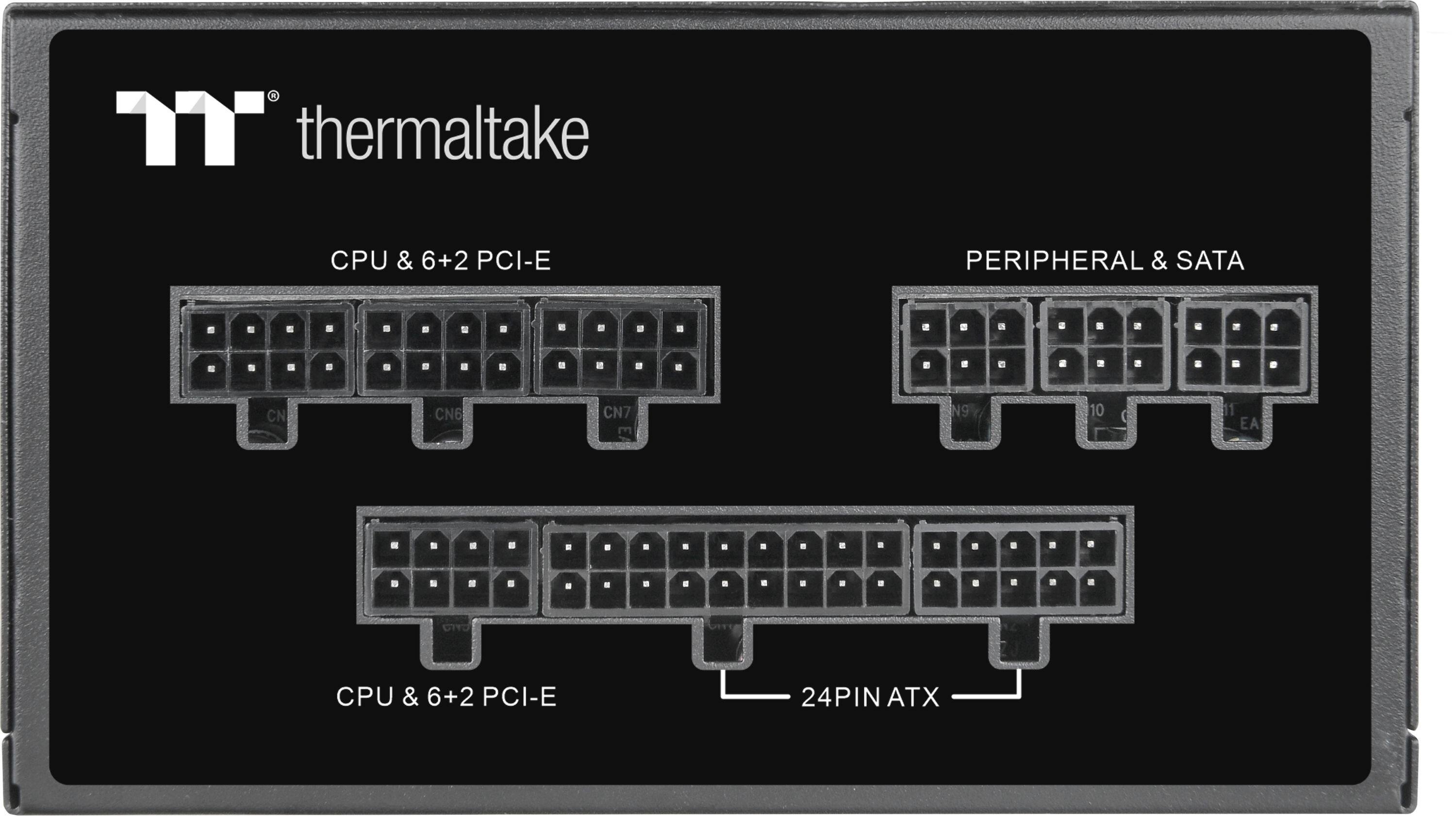

- Wattage850 wattsModularFully modularEnergy Efficiency80 PLUS GoldATX Connector2 x ATX 12V 4+4Pin (650mm+150mm) x 1PCIe Connector6 x PCI-E 6+2Pin connectors (500mm + 150mm) x 3Peripheral Connector4 x Peripheral connectors (500mm + 150mm + 150mm + 150mm) x 1
- Key Specs
- Wattage: 850 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 2 x ATX 12V 4+4Pin (650mm+150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 6 x PCI-E 6+2Pin connectors (500mm + 150mm) x 3 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 x Peripheral connectors (500mm + 150mm + 150mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 8 x SATA connectors (500mm + 150mm + 150mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 x ATX 12V 4+4Pin (650mm+150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 4.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 140 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: Thermaltake
- Model Number: PS-TPD-0850FNFAGU-P
- Product Name: GF1 (2024) 850W 80 PLUS Gold Fully Modular Power Supply
- Color: Black
- Power
- Wattage: 850 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Cord Length: 2.13 feet
- Connectivity
- ATX Connector: 2 x ATX 12V 4+4Pin (650mm+150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 6 x PCI-E 6+2Pin connectors (500mm + 150mm) x 3 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 x Peripheral connectors (500mm + 150mm + 150mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 8 x SATA connectors (500mm + 150mm + 150mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 x ATX 12V 4+4Pin (650mm+150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 4.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 86 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 150 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 140 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 55 ounces (The out of box weight of the item.)
- Cooling
- Cooling Fan Type: 120mm Fluid Dynamic Bearing Fan
- Features
- Lighting Type: None
- Warranty
- Warranty - Parts: 10 years
- Warranty - Labor: 10 years
- Other
- UPC: 841163090848
Thermaltake GF1 Series power supplies with EPS12V connectors are built with the highest quality components to deliver 80 PLUS Gold efficient power to your PC. GF1 PSUs use only High Quality 105°C main capacitors, for long life and reliability backed by a ten-year warranty. A 120mm fluid bearing fan ensures high performance coupled with low noise. Smart Zero Fan mode ensures virtually silent operation at low and medium loads. Fully modular cables make PC builds and upgrades easy, as you need only connect the cables your system requires. An GF1 PSU is quiet, efficient and dependable enough to power your high-performance PC for years to come.
- Fully Modular: Only connect the cables your system needs, making clean and tidy builds easier.
- 120mm Fluid Bearing Fan: Utilizes a fluid bearing and custom engineered rotors for high performance, low noise, and superior reliability.
- EPS12V Connector: For wide compatibility with modern graphics cards and motherboards.
- 100% High Quality 105°C Main Capacitors: Premium internal components ensure unwavering power delivery and long-term reliability.
- 80 PLUS Gold Certified: High efficiency operation for lower power consumption, less noise, and cooler temperatures.
Q: Does the power supply have a fan?
A: The Thermaltake GF1 Series power supply uses a 120mm fluid bearing fan to ensure high performance and low noise operation.
Q: Can the power supply be used with a PCI Express 4.0 system?
A: This power supply is compatible with PCI Express 4.0 systems.
Q: What is the power supply's wattage output?
A: The wattage output of the power supply is 850 watts.
Q: Are cables included with the power supply?
A: Fully modular cables make PC builds and upgrades easy, as you need only connect the cables your system requires.
Q: What are the dimensions of the power supply?
A: The dimensions of the power supply are 150 millimeters wide, 86 millimeters high, and 140 millimeters long.
Q: What is the warranty period for the power supply?
A: The warranty for both parts and labor on the GF1 power supply is ten years.
Q: Is the power supply fully modular?
A: This power supply is fully modular.
Q: Can this be used on any brand monitor
A: Hello, these power supplies are only compatible to desktop computers. Best regards, Thermaltake Support
