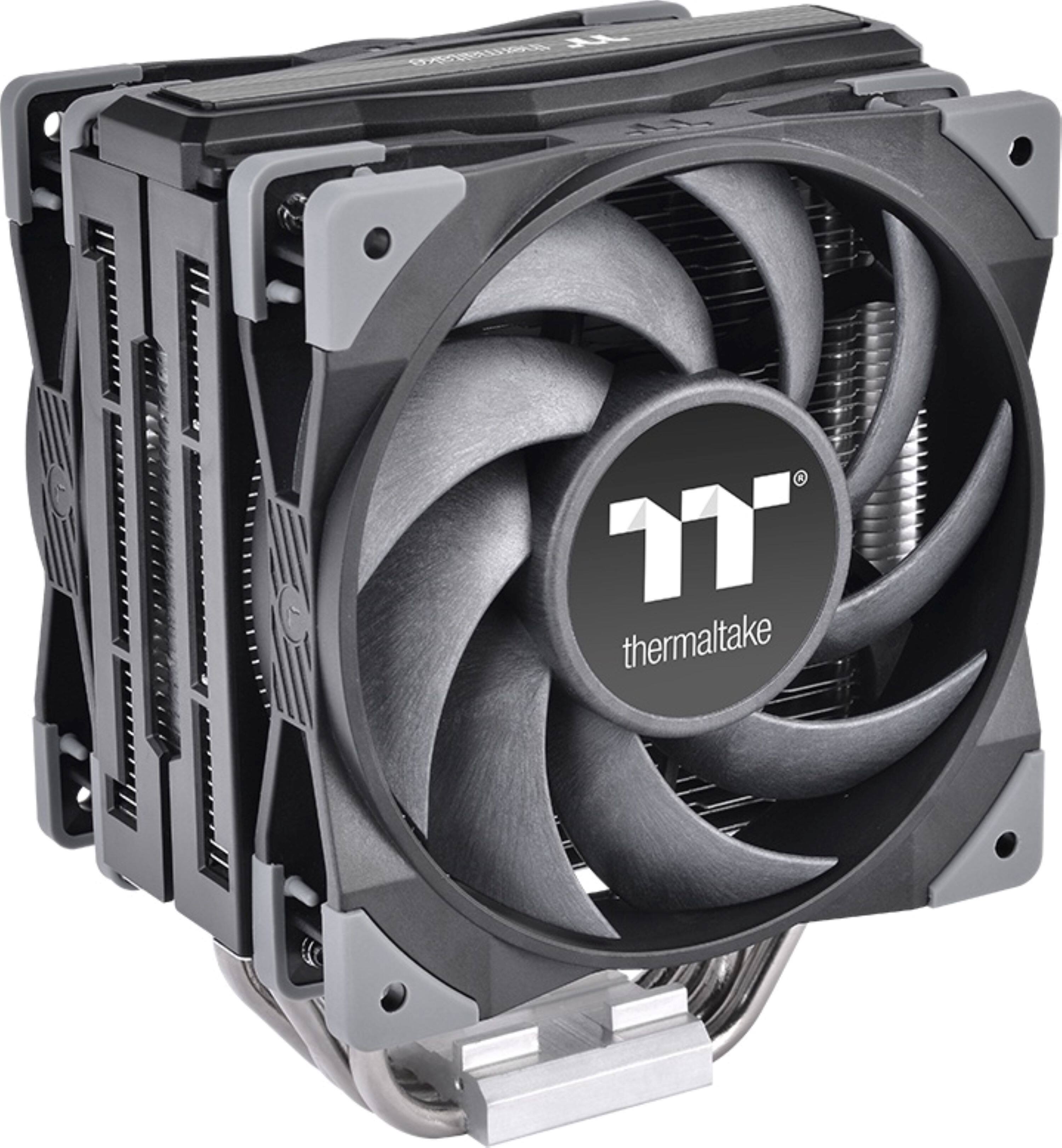

Thermaltake - TOUGHAIR 510 CPU Cooler - Black/Silver
- Key Specs
- Airflow Volume: 58.35 cubic feet per minute
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Fan Size: 120 millimeters
- Fan Speed: 2000 revolutions per minute
- Noise Level: 23.6 decibels adjusted
- Number of Fans Included: 2
- Lighting Type: None
- Product Height: 160 1/50 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 3 9/10 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Processor Socket: Socket LGA 1700, Socket LGA 1200, Socket H (LGA 1156), Socket H2 (LGA 1155), Socket H4 (LGA 1151), Socket H3 (LGA 1150), Socket AM4 (PGA 1331), Socket AM3+ (PGA 942), Socket AM3 (PGA 940/941), Socket AM2+ (PGA 940), Socket AM2 (PGA 940), Socket FM2 (PGA 904), Socket FM1 (PGA 905), Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- General
- Brand: Thermaltake
- Model Number: CL-P075-AL12BL-A
- Product Name: TOUGHAIR 510 CPU Cooler
- Color: Black/Silver
- Cooling
- Airflow Volume: 58.35 cubic feet per minute
- Cooling Fan Type: CPU
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Fan Size: 120 millimeters
- Fan Speed: 2000 revolutions per minute
- Noise Level: 23.6 decibels adjusted
- Number of Fans Included: 2
- Fan Life Expectation: 39744 hours
- Heatsink Material: Aluminum, Copper
- Bearing Type: Hydraulic bearing
- Fan/Cooling System Connector: 4 pin (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Features
- Lighting Type: None
- Power
- Power Consumption: 5.76 watts
- 12-Volt Rated: true
- Dimensions
- Product Height: 160 1/50 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 3 9/10 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 6.3 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 30.4 ounces (The out of box weight of the item.)
- Compatibility
- Processor Socket: Socket LGA 1700, Socket LGA 1200, Socket H (LGA 1156), Socket H2 (LGA 1155), Socket H4 (LGA 1151), Socket H3 (LGA 1150), Socket AM4 (PGA 1331), Socket AM3+ (PGA 942), Socket AM3 (PGA 940/941), Socket AM2+ (PGA 940), Socket AM2 (PGA 940), Socket FM2 (PGA 904), Socket FM1 (PGA 905), Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Warranty
- Warranty - Parts: 2 year limited
- Warranty - Labor: 2 year limited
- Other
- UPC: 841163077658

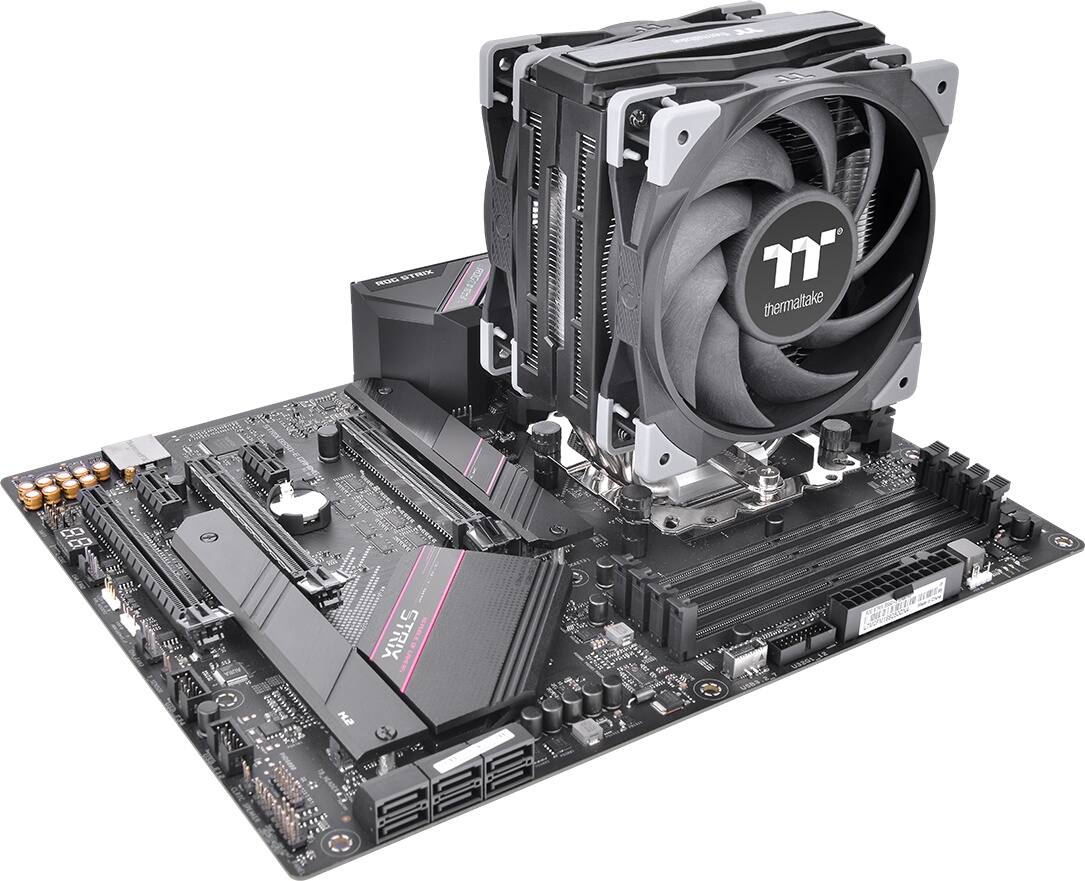

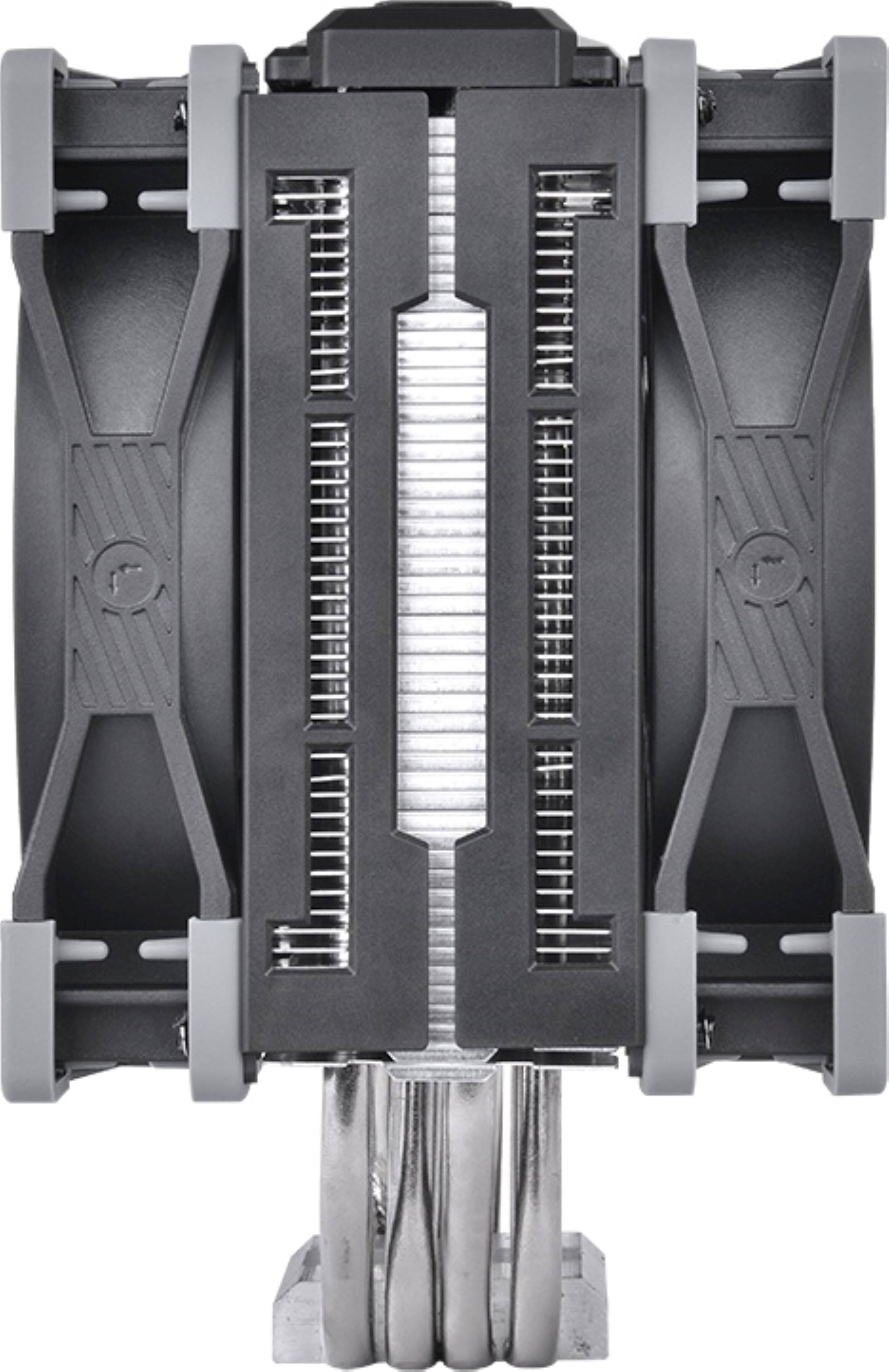

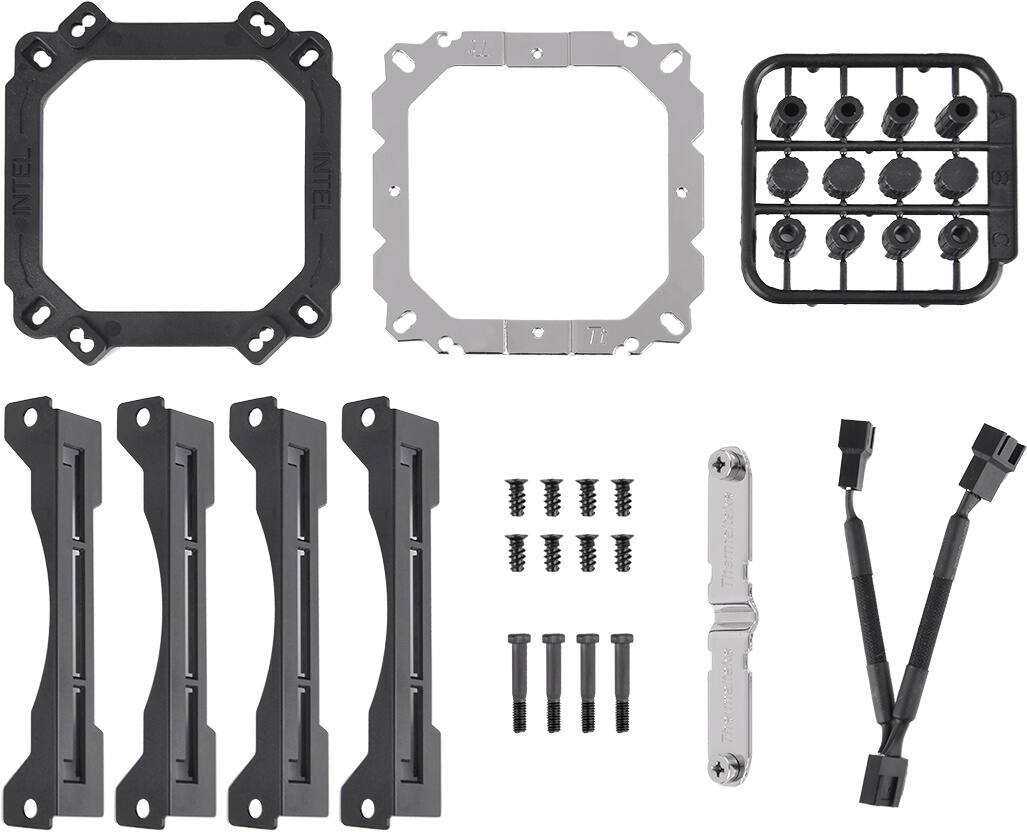

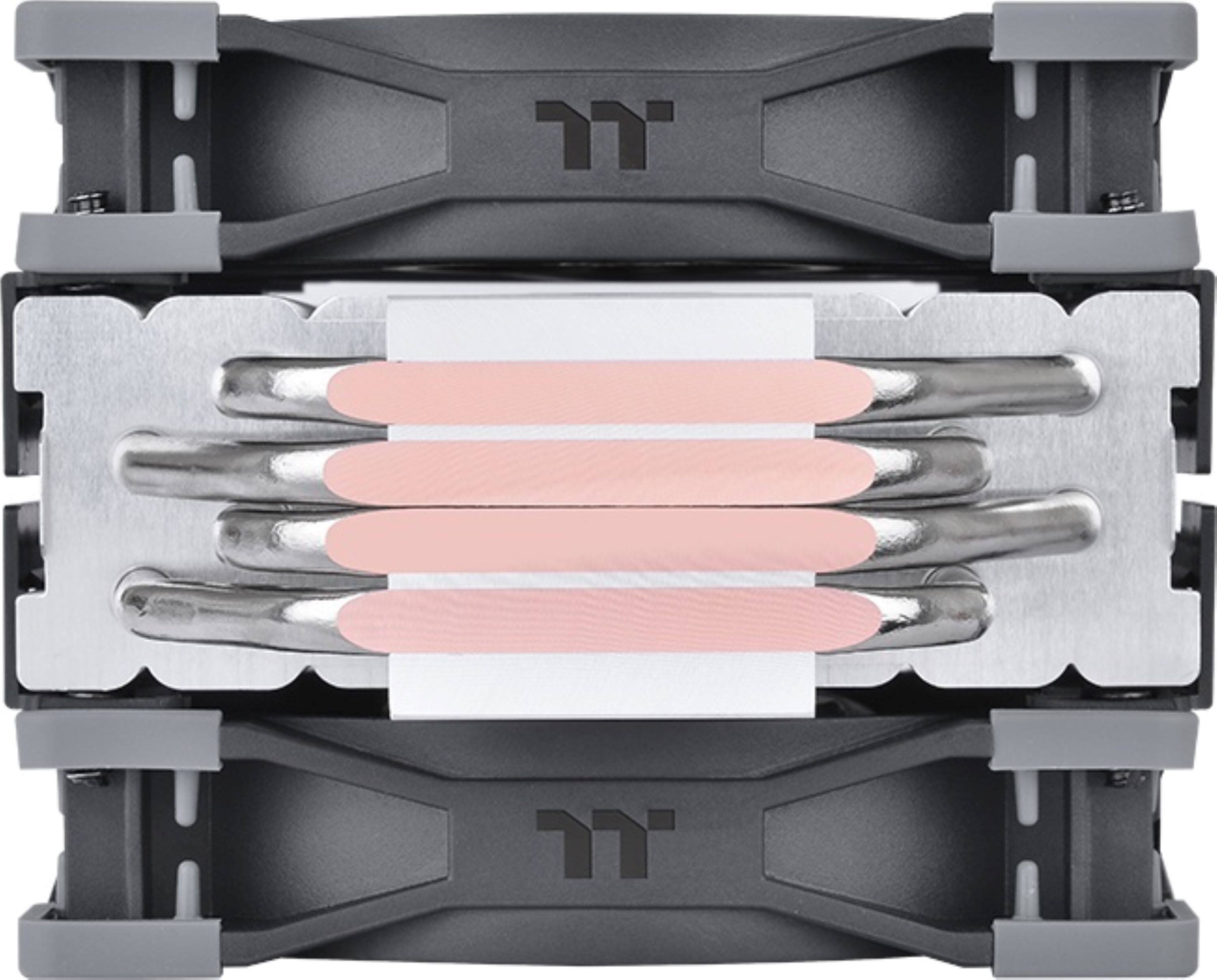

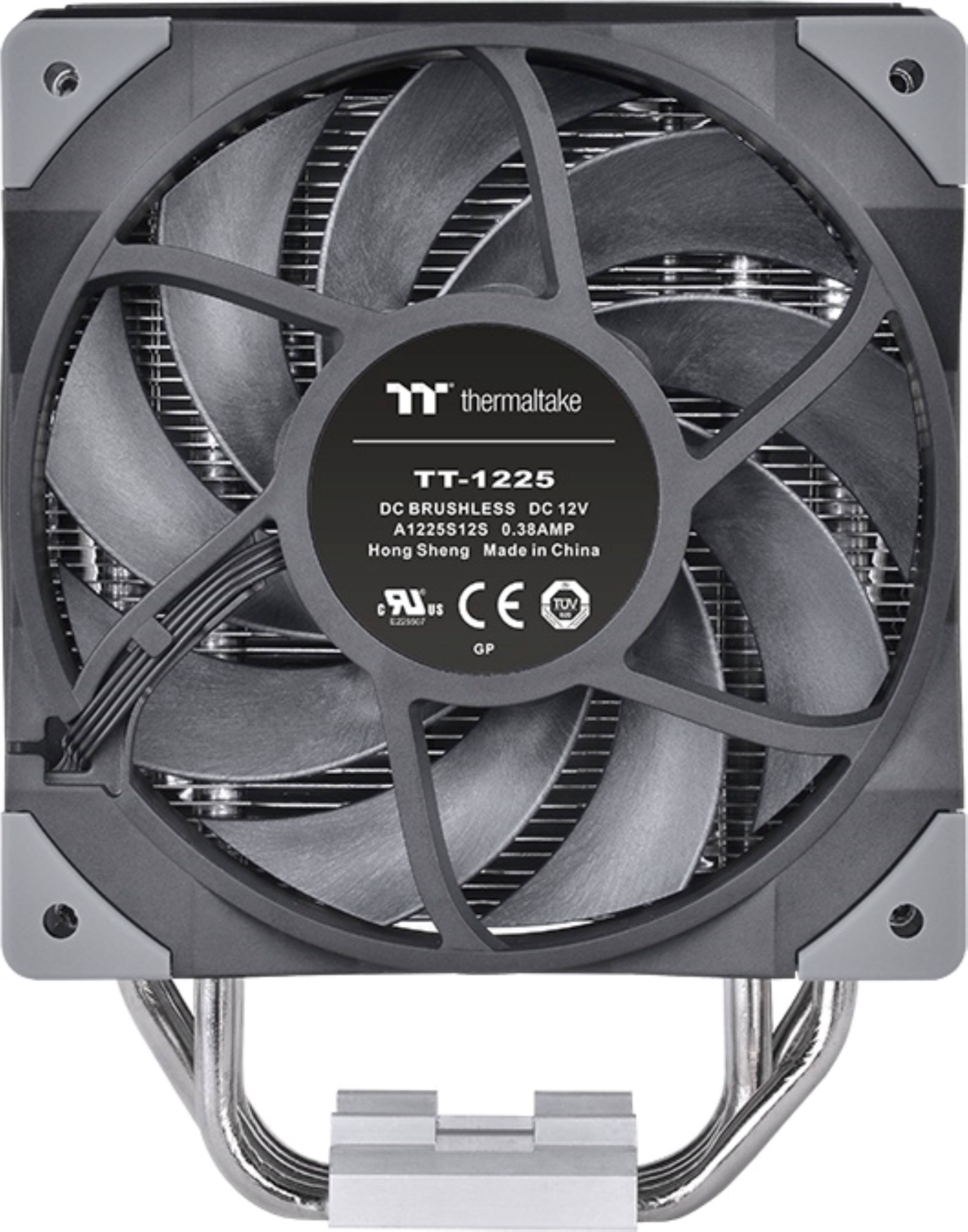

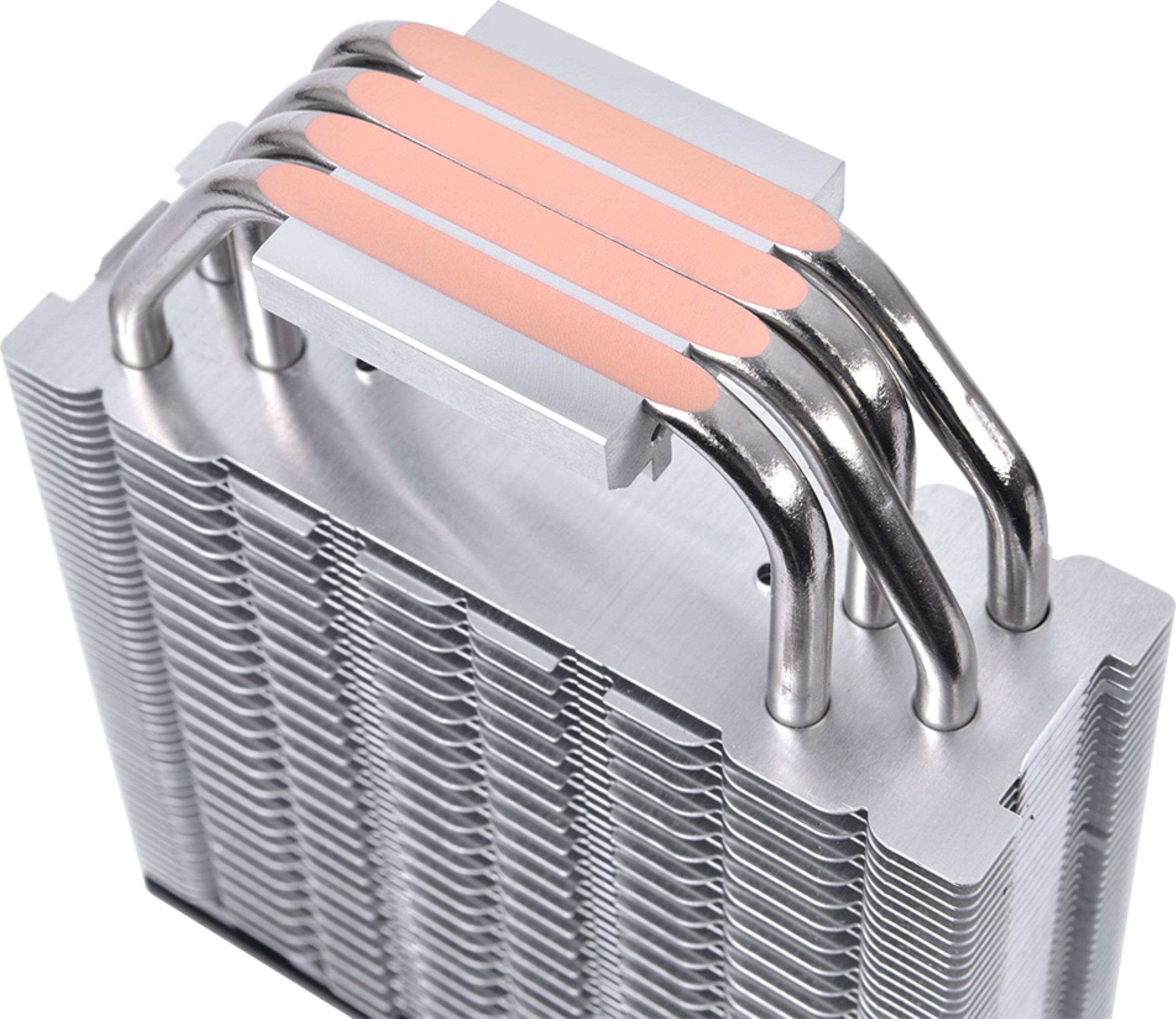

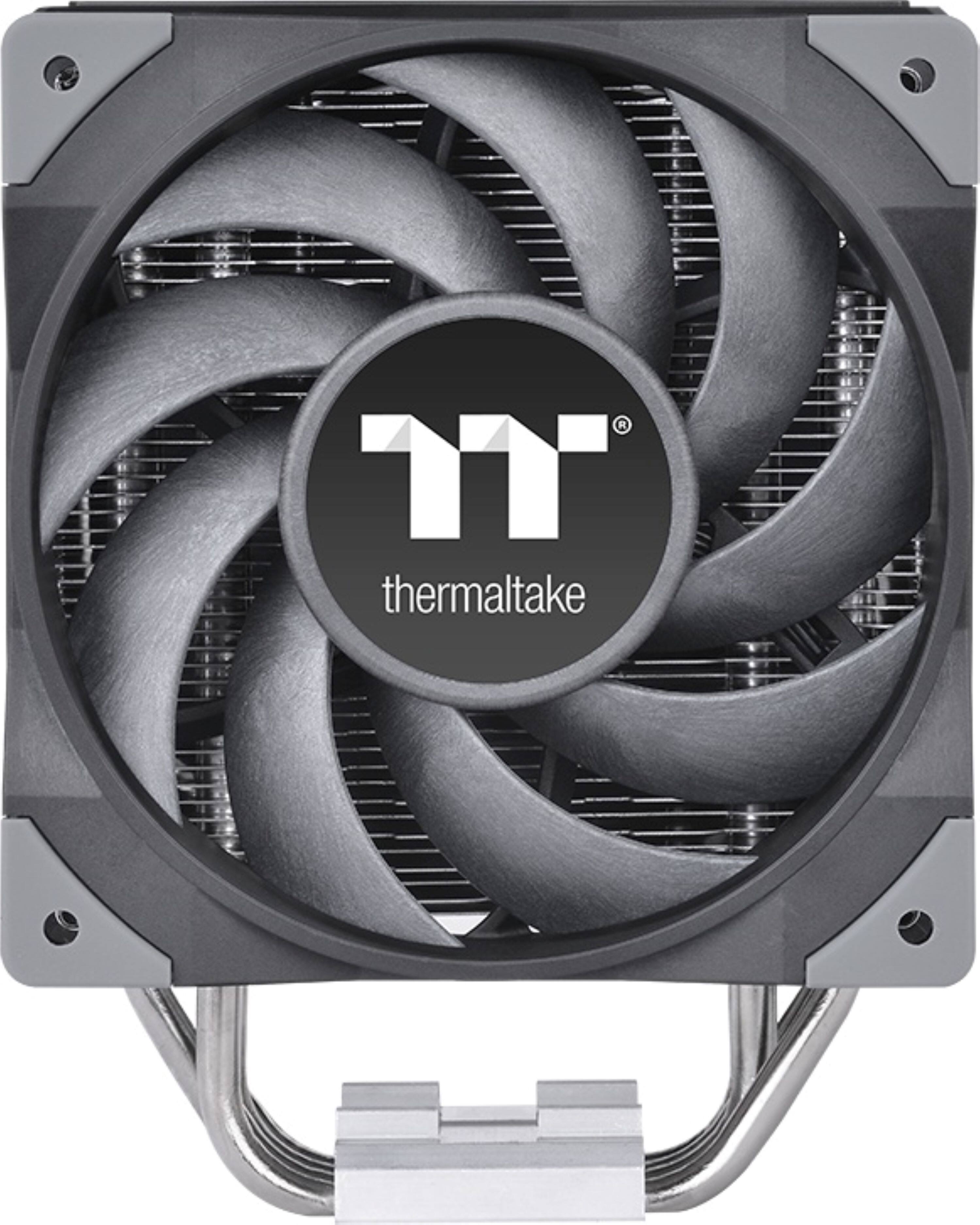

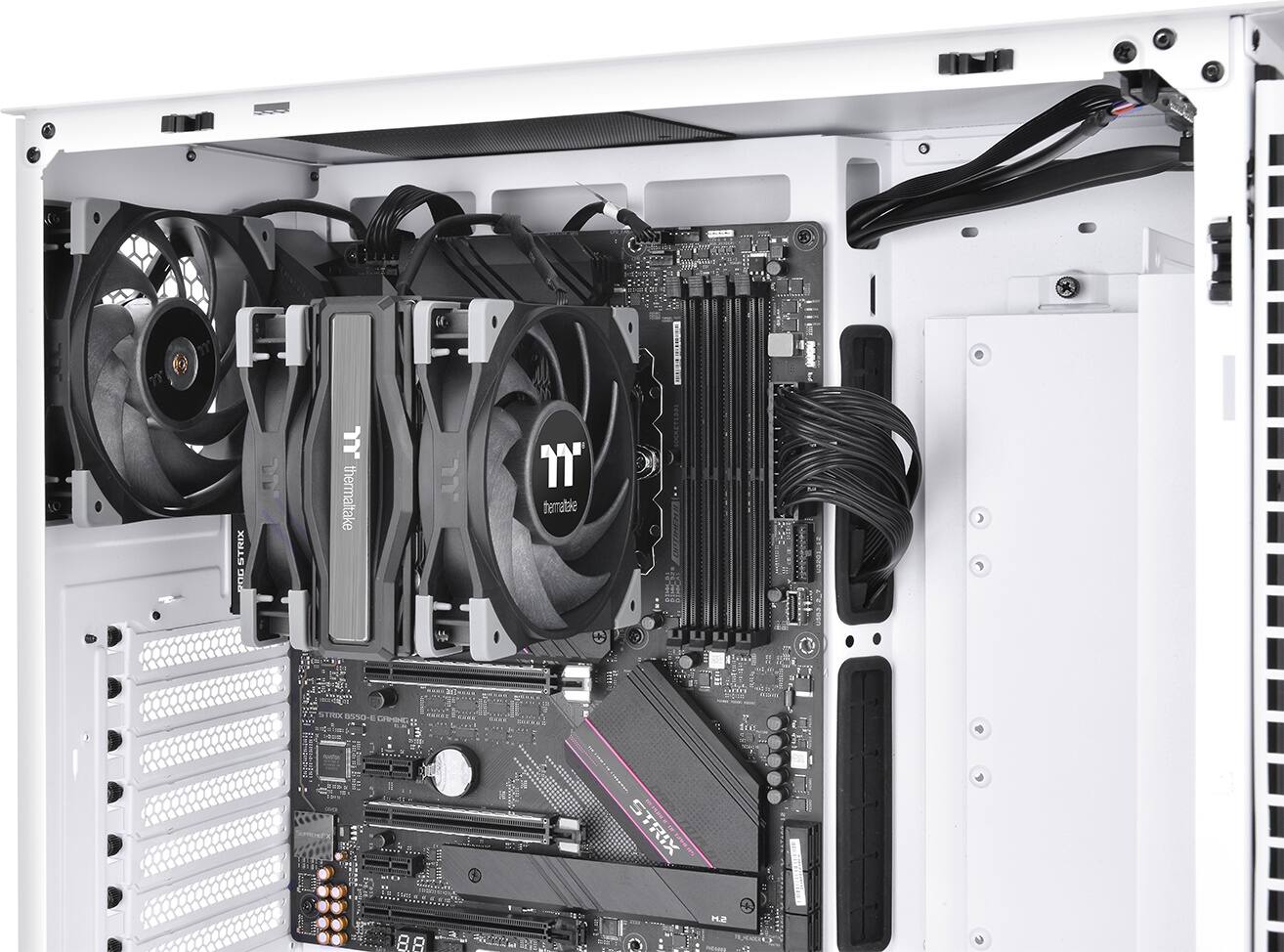

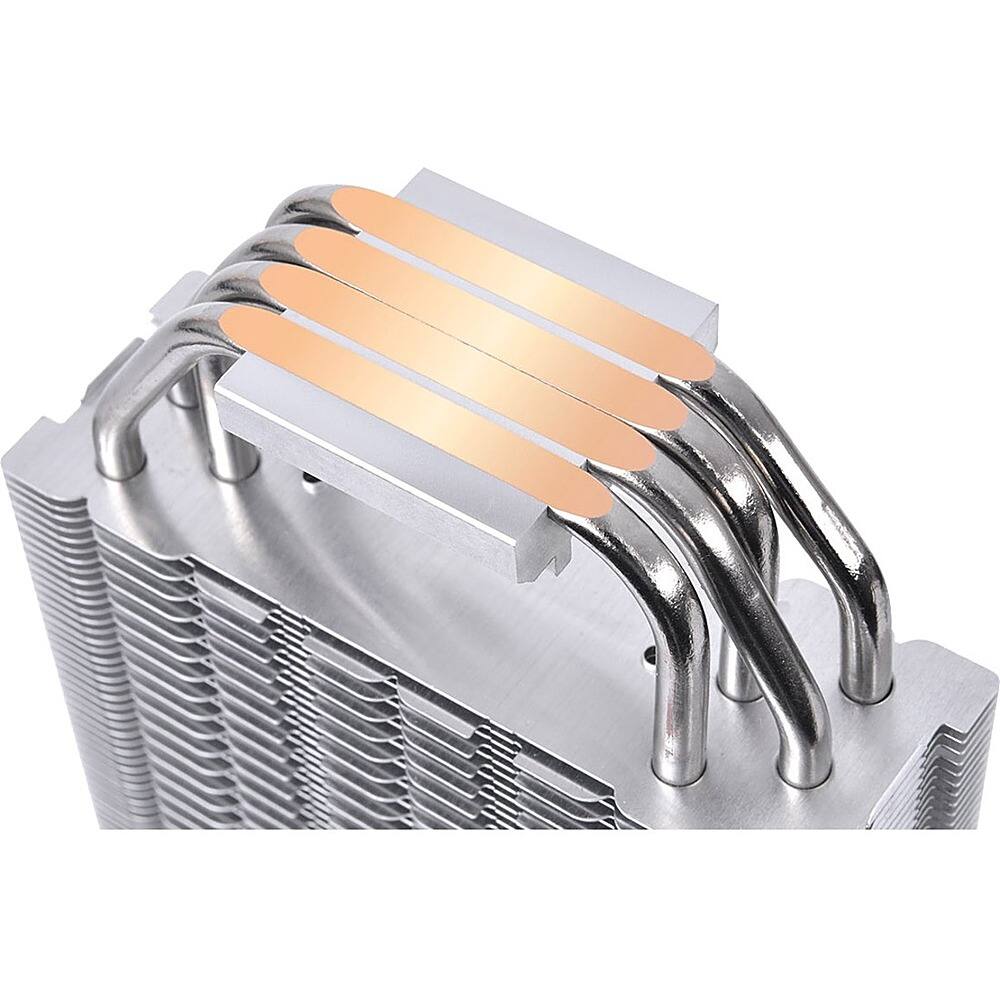

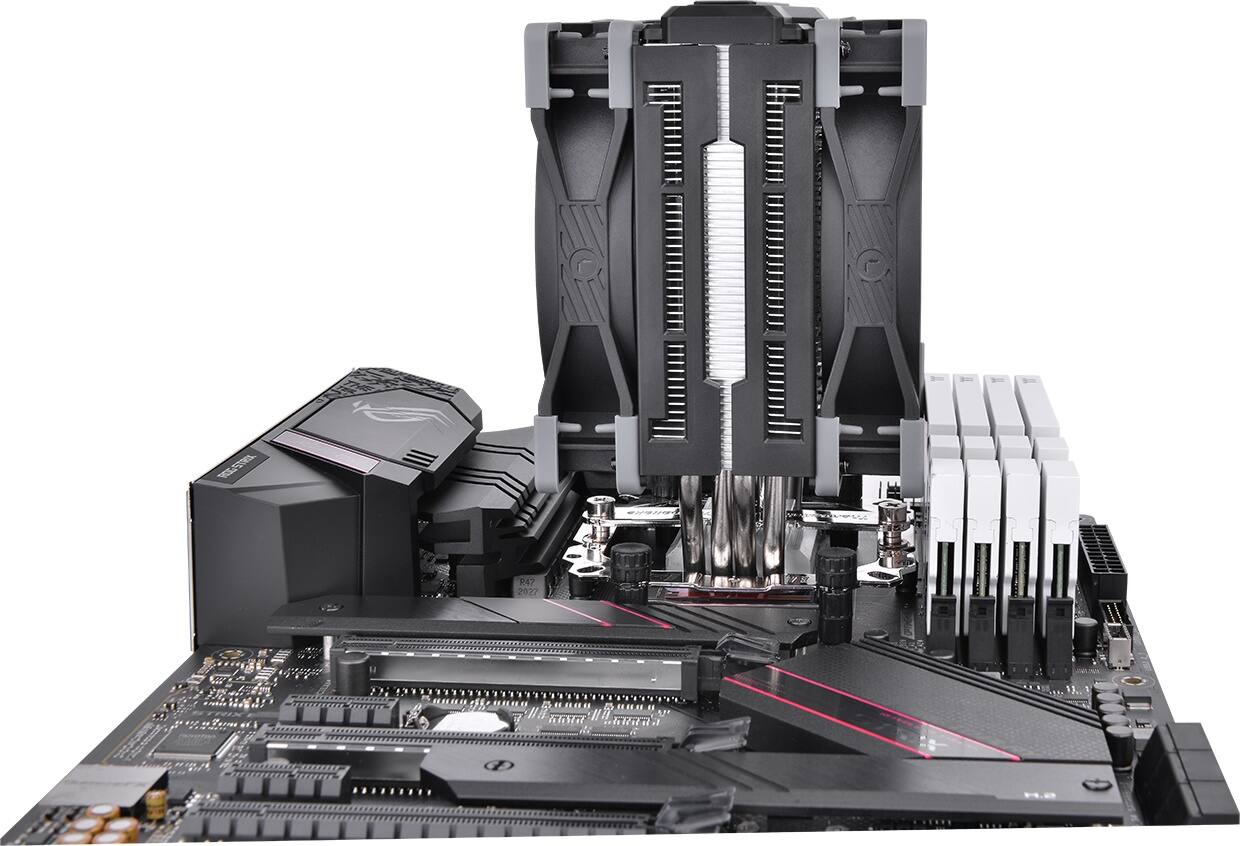

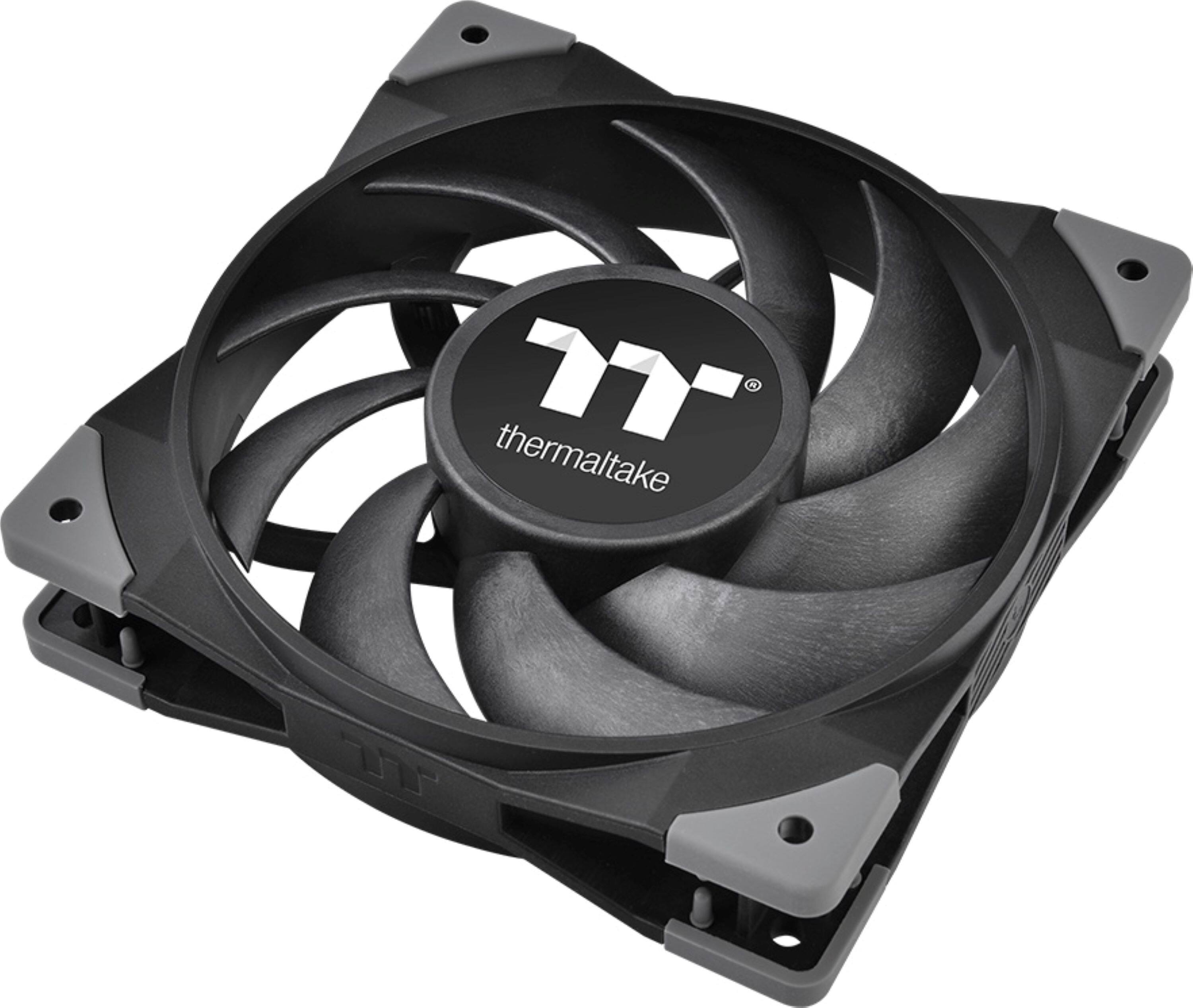

A single tower dual fan designed CPU cooler equipped with two optimized 120 mm high static pressure fan and a newly designed heat sink, guaranteeing its outstanding performance. Single Tower Dual Fan Design TOUGHAIR 510 is a single tower duel fan designed air cooler with 4 heat pipes running through the fins, the U-shape heat pipes increase heat circulation creating better heat dissipation in your system and supports up to 180W. Enhanced 120 mm high static pressure Fan TOUGHAIR series utilizes high static pressure fans, which leverages the TOUGHFAN 12 design and boosts the fan speed to 2000 RPM, providing a new level of cooling performance to our CPU cooler. Asymmetric Fin Structure The fin is designed with an asymmetric structure that allows larger air intake through the fins. This design lowers the air turbulence and straightens out the airflow making it easier to disperse heat from the fins, delivering superb cooling performance. High-Performance U-shape copper heat pipes 4 x ?�6 mm heat pipes directly touch the CPU and thermal paste. The U-shape design creates perfect circulation for better CPU cooling performance. Universal Compatibility TOUGHAIR Series are designed to fit Intel and AMD sockets including the following models:Intel LGA 1200/1156/1155/1151/1150AMD AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
- Cooling Fan/Heatsink: The fan and heatsink combo lets you experience efficient cooling and wintry air pleasure
- Air Cooler: Computer air-cooler uses the ambient air around it to push hot air out of the system, working to chill things down as you multitask on your PC
- Noise Level: 23.6 dB(A) noise levels for quieter operation and fast retrieval of data and information.
- Fan Speed: 2000 rpm smoothly dissipates heat and keeps your computer cool, thus preventing any damage to the components.
- Maximum Air flow: 436.5 gal/min maximum airflow provides an operational airflow through the cooling solution to efficiently evacuate heat out of the system.
- Product Color: Comes in Black color to better suit your theme and style.
- Heatsink Material: Built with Aluminum to offer high strength and durability.
- Limited Warranty: 2 Year limited warranty details allow dependable replacement and time-efficient services for your maximum convenience.
- Cooling Fan/Heatsink: The fan and heatsink combo lets you experience efficient cooling and wintry air pleasure
- Air Cooler: Computer air-cooler uses the ambient air around it to push hot air out of the system, working to chill things down as you multitask on your PC
- Noise Level: 23.6 dB(A) noise levels for quieter operation and fast retrieval of data and information.
- Fan Speed: 2000 rpm smoothly dissipates heat and keeps your computer cool, thus preventing any damage to the components.
- Maximum Air flow: 436.5 gal/min maximum airflow provides an operational airflow through the cooling solution to efficiently evacuate heat out of the system.
- Product Color: Comes in Black color to better suit your theme and style.
- Heatsink Material: Built with Aluminum to offer high strength and durability.
- Limited Warranty: 2 Year limited warranty details allow dependable replacement and time-efficient services for your maximum convenience.
Whats Included
- TOUGHAIR 510 CPU Cooler (2-Pack)
- Owner's manual
- TOUGHAIR 510 CPU Cooler (2-Pack)
- Owner's manual
Product Manuals
Q: What is the airflow volume of the TOUGHAIR 510 CPU Cooler?
A: The airflow volume is 58.35 cubic feet per minute.
Q: What type of bearings does the TOUGHAIR 510 CPU Cooler use?
A: The TOUGHAIR 510 CPU Cooler uses hydraulic bearings.
Q: How much noise does the TOUGHAIR 510 CPU Cooler generate?
A: The noise level of the TOUGHAIR 510 CPU Cooler is 23.6 dB(A).
Q: What is the maximum fan speed of the TOUGHAIR 510 CPU Cooler?
A: The maximum fan speed is 2000 RPM.
Q: What is the maximum airflow of this CPU cooler?
A: This CPU cooler has a maximum airflow of 436.5 gal/min.
Q: What is the heat sink material used in the TOUGHAIR 510 CPU Cooler?
A: The heat sink is made of aluminum and copper.
Q: Is it enough to be used with I7-14700K processor?
A: Hello, We would not recommend this unit for your processor. You would need something that can dissipate 250w TDP like our new Astria series 600, coming soon. Best Regards, Thermaltake Support
