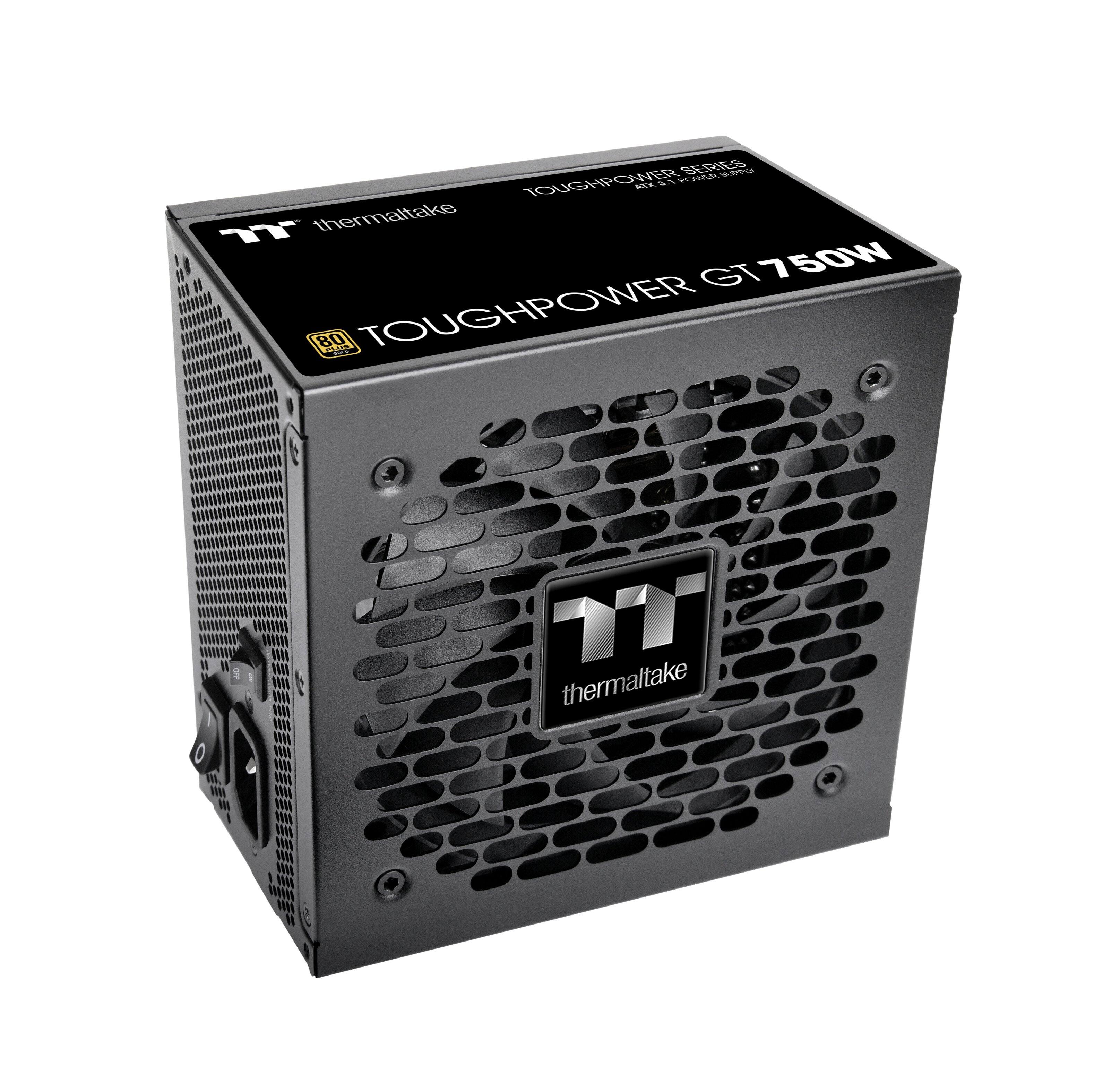

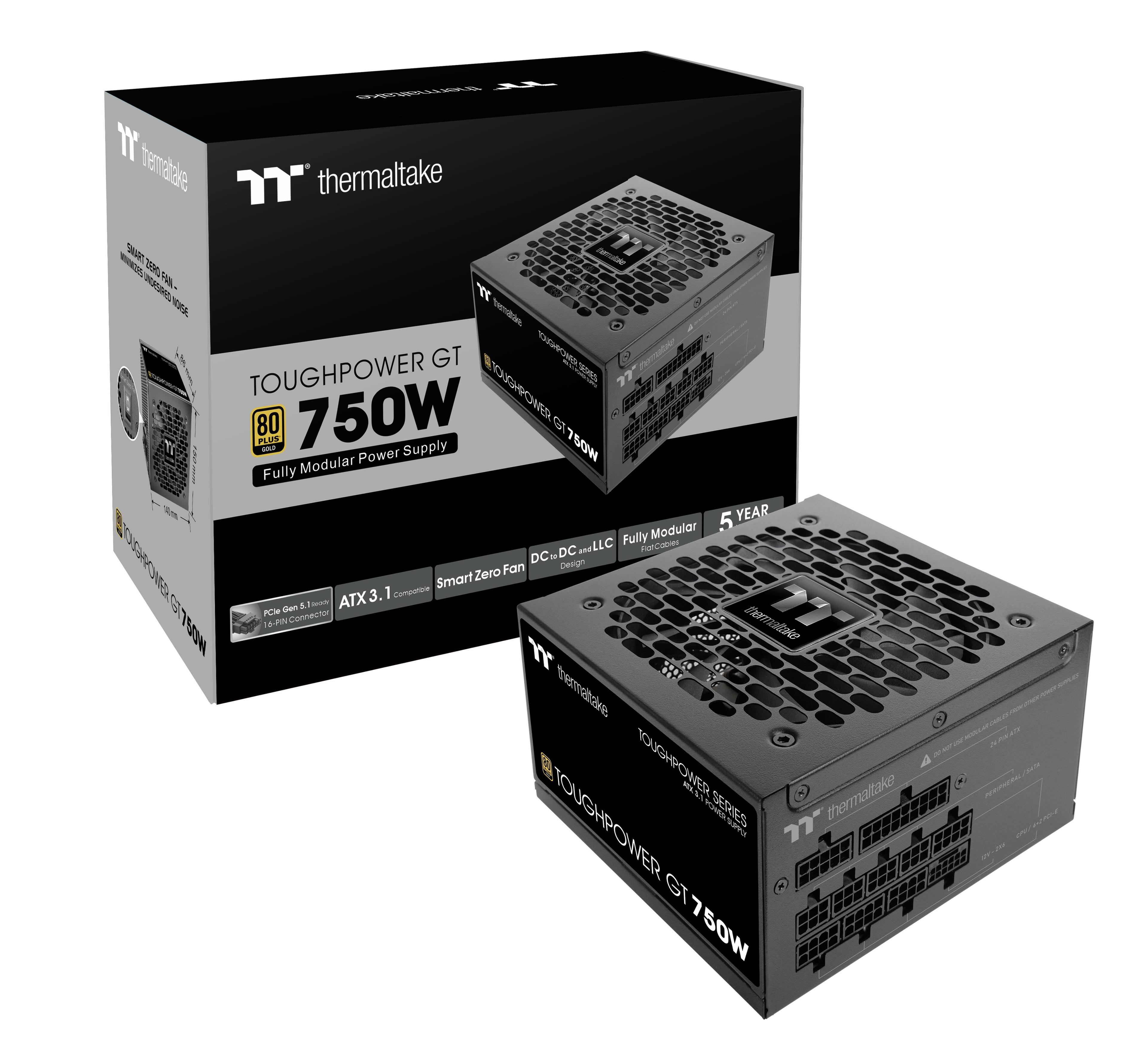

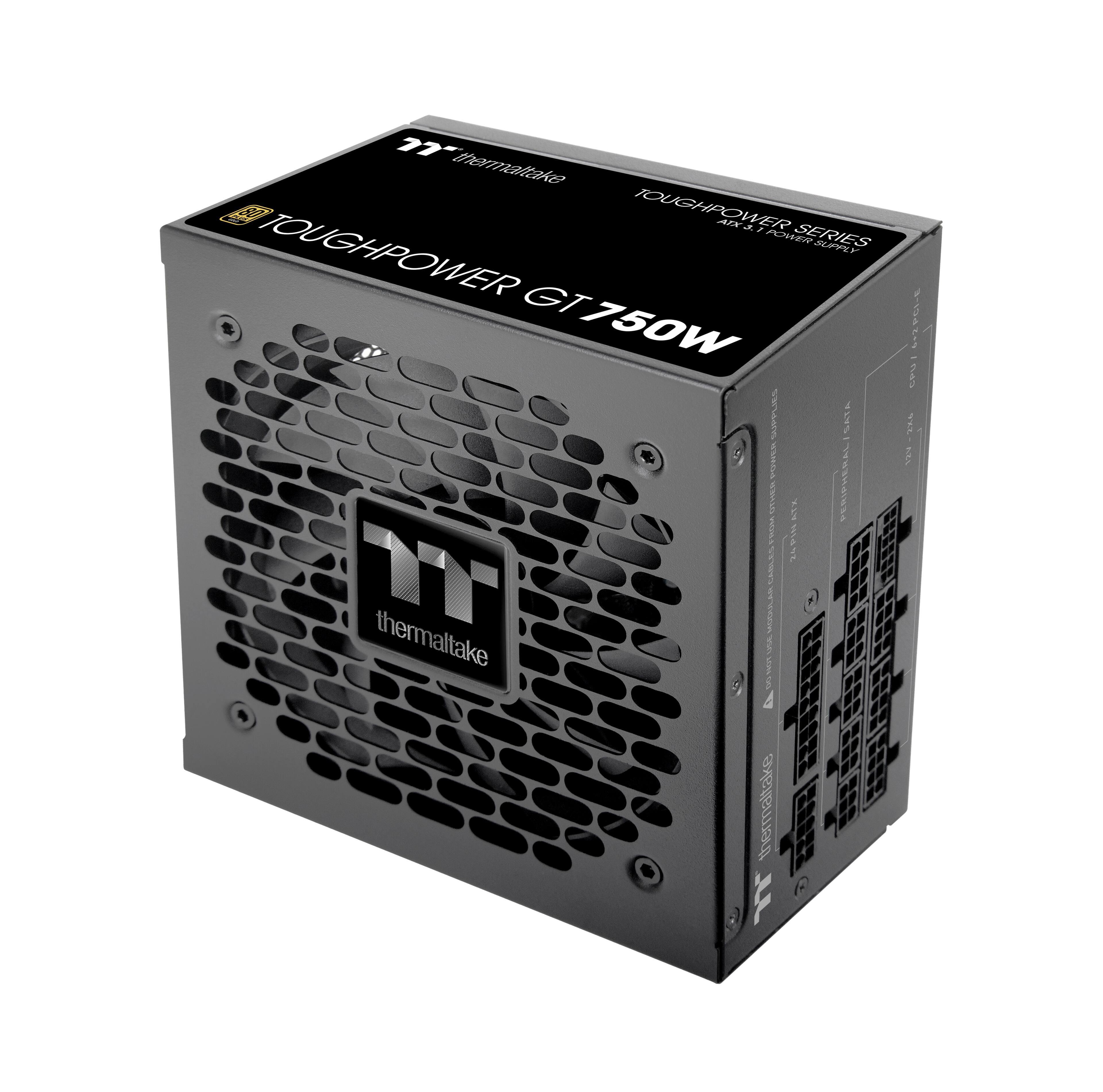

Thermaltake - Toughpower GT 750W 80+ Gold ATX 3.1 Power Supply - Black
Wattage
750 watts
Key Accessories:
- CORSAIR - iCUE LINK TITAN 360 RX LCD Liquid CPU Cooler - White$219.99
More Buying Options from Best Buy and Marketplace sellers
Specifications
- Wattage750 wattsModularFully modularEnergy Efficiency80 PLUS GoldATX Connector24pin Main connector (550mm) x 1PCIe ConnectorPCI-E 12+4Pin connectors (600mm) x 1. 4 x PCI-E 6+2Pin connectors (600mm + 150mm) x 2Peripheral Connector4 x Peripheral connectors (400mm + 150mm + 150mm + 150mm) x 1
- Key Specs
- Wattage: 750 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 24pin Main connector (550mm) x 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: PCI-E 12+4Pin connectors (600mm) x 1. 4 x PCI-E 6+2Pin connectors (600mm + 150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 x Peripheral connectors (400mm + 150mm + 150mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 6 x SATA connectors (450mm + 150mm + 150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 x ATX 12V 4+4Pin (700mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 140 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: Thermaltake
- Model Number: PS-TPT-0750FNFAGU-3
- Product Name: Toughpower GT 750W 80+ Gold ATX 3.1 Power Supply
- Color: Black
- Power
- Wattage: 750 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Connectivity
- ATX Connector: 24pin Main connector (550mm) x 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: PCI-E 12+4Pin connectors (600mm) x 1. 4 x PCI-E 6+2Pin connectors (600mm + 150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 x Peripheral connectors (400mm + 150mm + 150mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 6 x SATA connectors (450mm + 150mm + 150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 x ATX 12V 4+4Pin (700mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 86 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 150 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 140 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 67.2 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Fan Type: 12cm Hydraulic bearing fan
- Number of Fans Included: 1
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 841163097397
The Toughpower GT Series is built to meet modern power demands, supporting the latest ATX 3.1 standards. Available in 750W and 850W models, it provides 80 PLUS Gold efficiency and includes a native PCIe Gen 5.1 12+4 pin connector for high-performance GPUs. With Smart Zero Fan technology and a 120mm hydraulic bearing fan, it ensures quiet operation and reliable power delivery. Backed by a 5-year warranty, it offers stable, efficient performance for demanding users.
- 80 PLUS Gold Efficiency and ATX 3.1 Compliance: The Toughpower GT Series complies with the latest ATX 3.1 standards, delivering up to 90% efficiency under real-world conditions. This ensures stable power for modern systems, reducing energy consumption and heat output for extended PSU lifespan.
- Fully Modular Design: With fully modular low-profile flat cables, users can install only the cables they need, reducing clutter and improving airflow inside the case, which helps with cooling.
- Native PCIe 5.1 Support: The PSU comes equipped with a native PCIe Gen 5.1 connector, including a 12V-2x6 (12+4 pin) cable, making it compatible with the latest graphics cards and ensuring high performance.
- Smart Zero Fan with Quiet Operation: Equipped with a 120mm hydraulic bearing fan, the Smart Zero Fan stays off during low loads for silent operation and activates only when needed, providing quiet yet efficient cooling for your system.
- High Amperage Single +12V Rail: The single +12V rail design delivers stable and continuous power to high-end GPUs and CPUs, ensuring reliable performance under heavy workloads.
- DC-DC and LLC Circuit Design: Advanced DC-DC and LLC circuits provide precise voltage regulation and stable power output, minimizing voltage fluctuations and improving overall system reliability.
- Comprehensive Protection Features: The PSU is equipped with multiple protection mechanisms, including OCP (Over Current Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), OTP (Over Temperature Protection), and SCP (Short Circuit Protection).
- ErP and Energy Star Ready: Fully compliant with Energy Star 5.0 and ErP Lot 6 standards, the Toughpower GT minimizes energy consumption in standby mode, making it eco-friendly and cost-efficient.
- Compact Size and Easy Installation: With compact dimensions of 150mm x 86mm x 140mm, this PSU fits easily in a wide range of cases, offering flexible installation options in both standard and compact builds.
- 5-Year Warranty for Peace of Mind: Backed by a 5-year warranty, the Toughpower GT series provides long-term reliability and support for users seeking stability and performance.
Q: What kind of fan is included in this power supply?
A: This power supply includes a 120mm hydraulic bearing fan.
Q: Does this power supply comply with Energy Star standards?
A: Yes, this power supply is compliant with Energy Star 5.0 standards.
Q: Does this power supply have a modular design?
A: Yes, this power supply features a fully modular design.
Q: What is the wattage of this power supply?
A: The wattage of this power supply is 750 watts.
Q: Are there protections included in this power supply?
A: Yes, this power supply has comprehensive protection features.
Q: Is the power cord included with this power supply?
A: Yes, the power cord is included with this power supply.
Q: Does this power supply come with a warranty?
A: Yes, this power supply is backed by a 5-year warranty.
