Thermaltake - View 170 TG ARGB Micro-ATX Mid-Tower PC Case - Snow
Color
SnowKey Accessories:
- CORSAIR - TM30 Performance Thermal Paste - Black$7.99
More Buying Options
Related Item
Specifications
- Motherboard Form FactormicroATX, Mini-ITXMaximum GPU Length340 millimetersProduct Height17.2 inchesProduct Width8.4 inchesProduct Depth14.9 inchesWindow Panel(s)Front, Left side
- Key Specs
- Motherboard Form Factor: microATX, Mini-ITX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 340 millimeters
- Product Height: 17.2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Front, Left side
- Case Material: Steel
- General
- Brand: Thermaltake
- Model Number: CA-1Z4-00M6WN-00
- Product Name: View 170 TG ARGB Micro-ATX Mid-Tower PC Case
- Color: Snow
- Case Material: Steel
- Assembly Required: Yes
- Compatibility
- Motherboard Form Factor: microATX, Mini-ITX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 180 millimeters
- Maximum GPU Length: 340 millimeters
- Number of Expansion Slots: 4
- Ports
- USB Port Location: Top
- Number of USB Ports (Total): 2
- USB Ports: 2 x USB-A 3.0 (The number and type of USB ports the product has.)
- Number of USB-A Charging Ports: 2
- Number of Thunderbolt Ports (Total): 0
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 2
- Number Of Internal 3.5" Bays: 1
- Number Of External 2.5" Expansion Bays: 0
- Number Of External 3.5" Expansion Bays: 0
- Dimensions
- Product Height: 17.2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 10.25 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Front, Left side
- Customizable Case Lighting: true
- Lighting Type: RGB
- Cooling
- Maximum CPU Cooler Height: 160 millimeters
- Number of Fans Supported: 6
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Number of Fans Included: 3
- Liquid Cooling Ready: true
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 841163095355

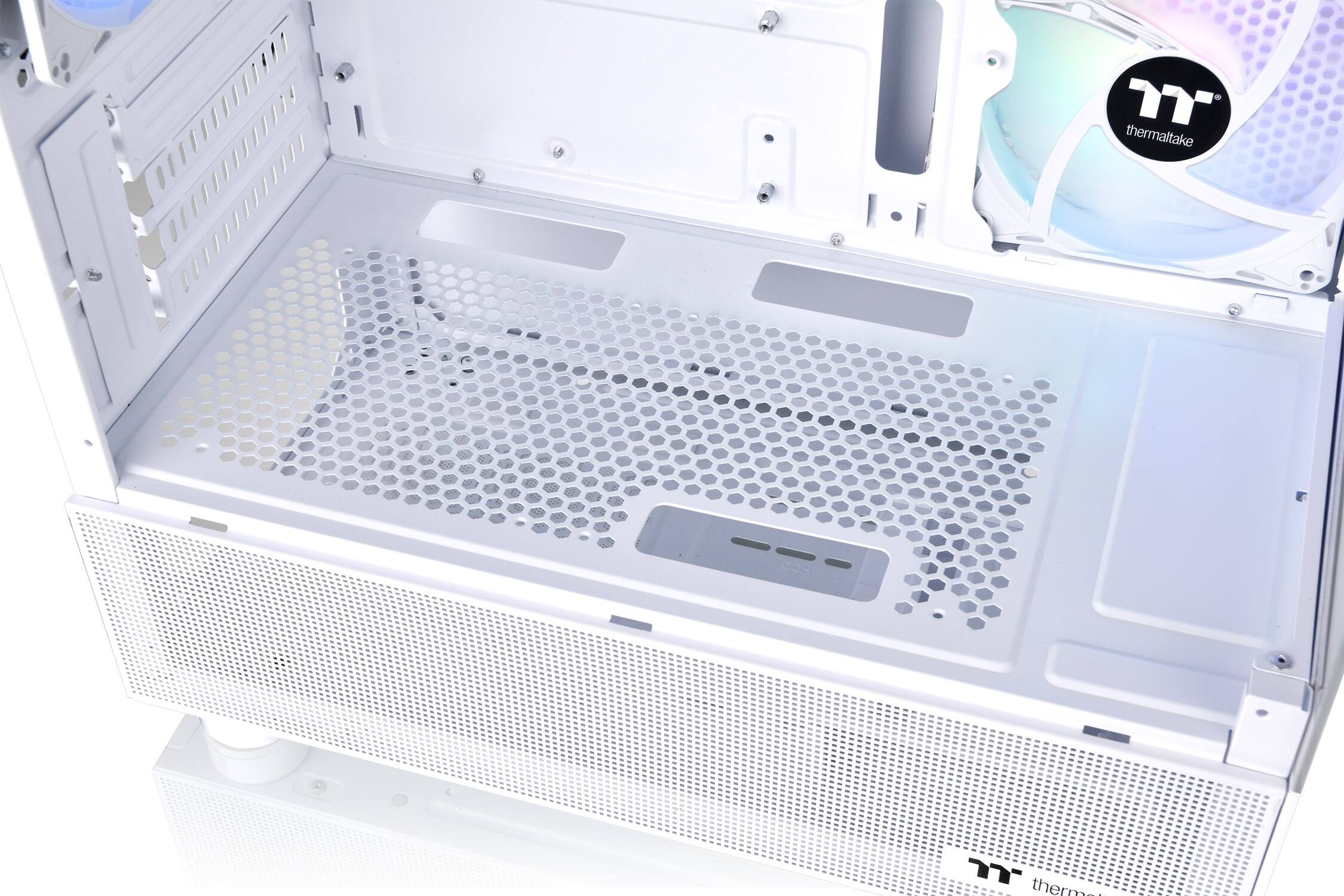

Built for amazing views thanks to the front and side tempered glass side panels the View 170 TG ARGB Snow is sure to impress. Supporting M-ATX builds, mounting points for up to 7 fans, and a ventilated bottom shroud the View 170 TG ARGB Snow brings flexibility in a small package.
- View 170 TG ARGB Micro Chassis: Built for amazing views, the View 170 TG ARGB Snow Micro Chassis is an M-ATX case that features tempered glass front and left panels, and comes with three Hydraulic Bearing 120mm ARGB Lite Fans pre-installed. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to seven 120mm fans can be installed in the chassis, and up to a 280mm/240mm radiator can be placed on the top of the View 170 TG ARGB Micro Chassis.

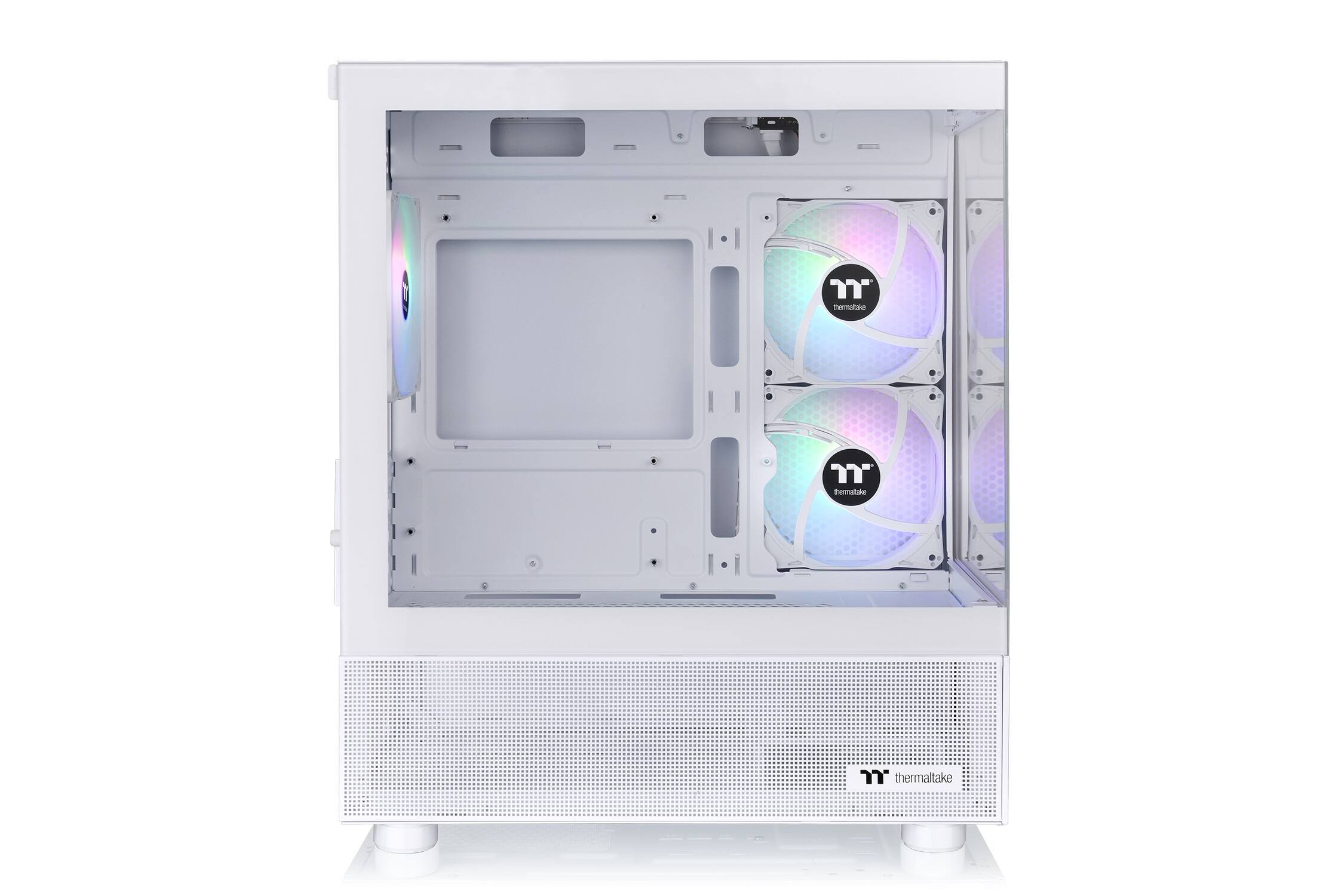

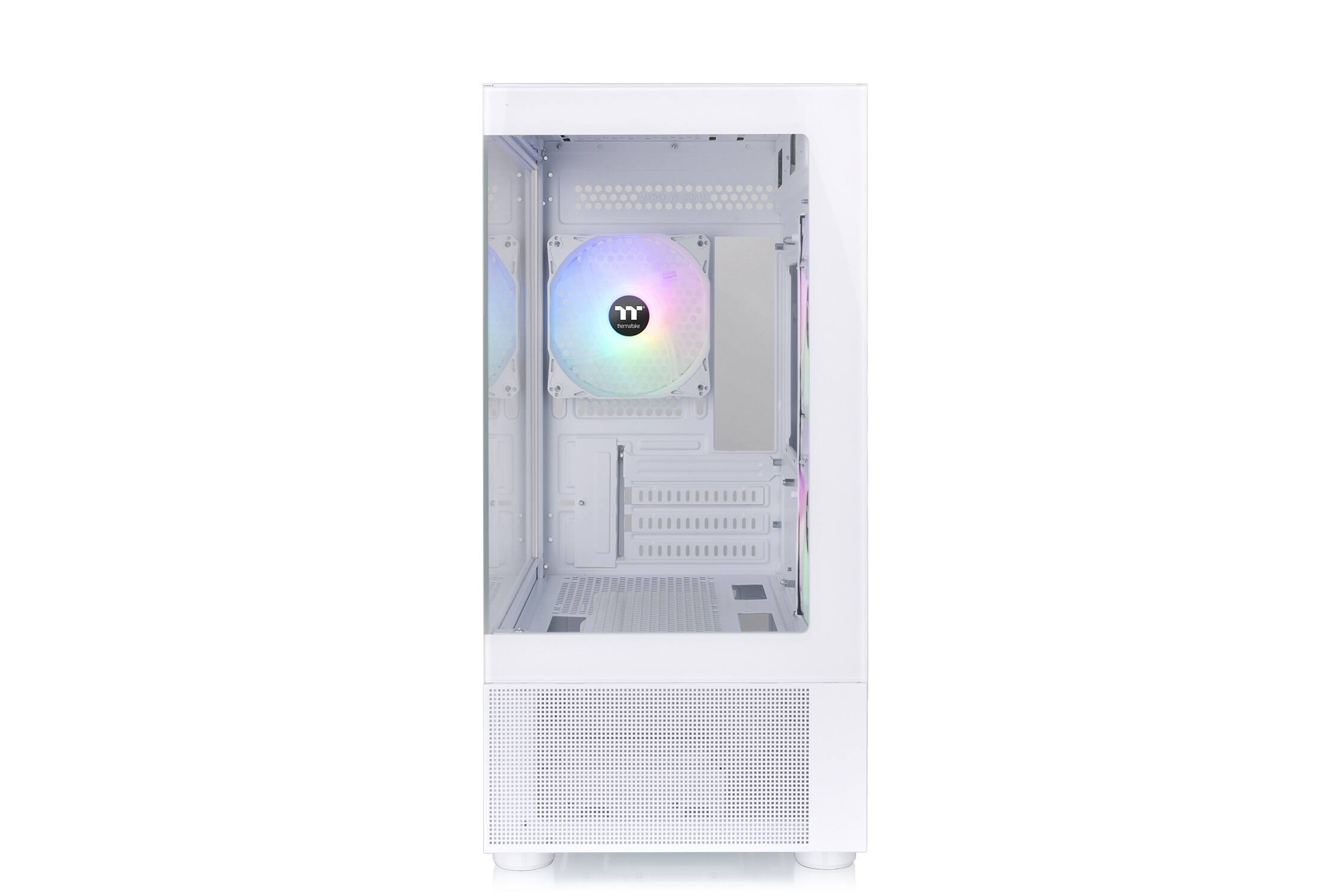

- Tempered Glass Front and Left Panels: The View 170 TG ARGB Snow Micro Chassis is designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.

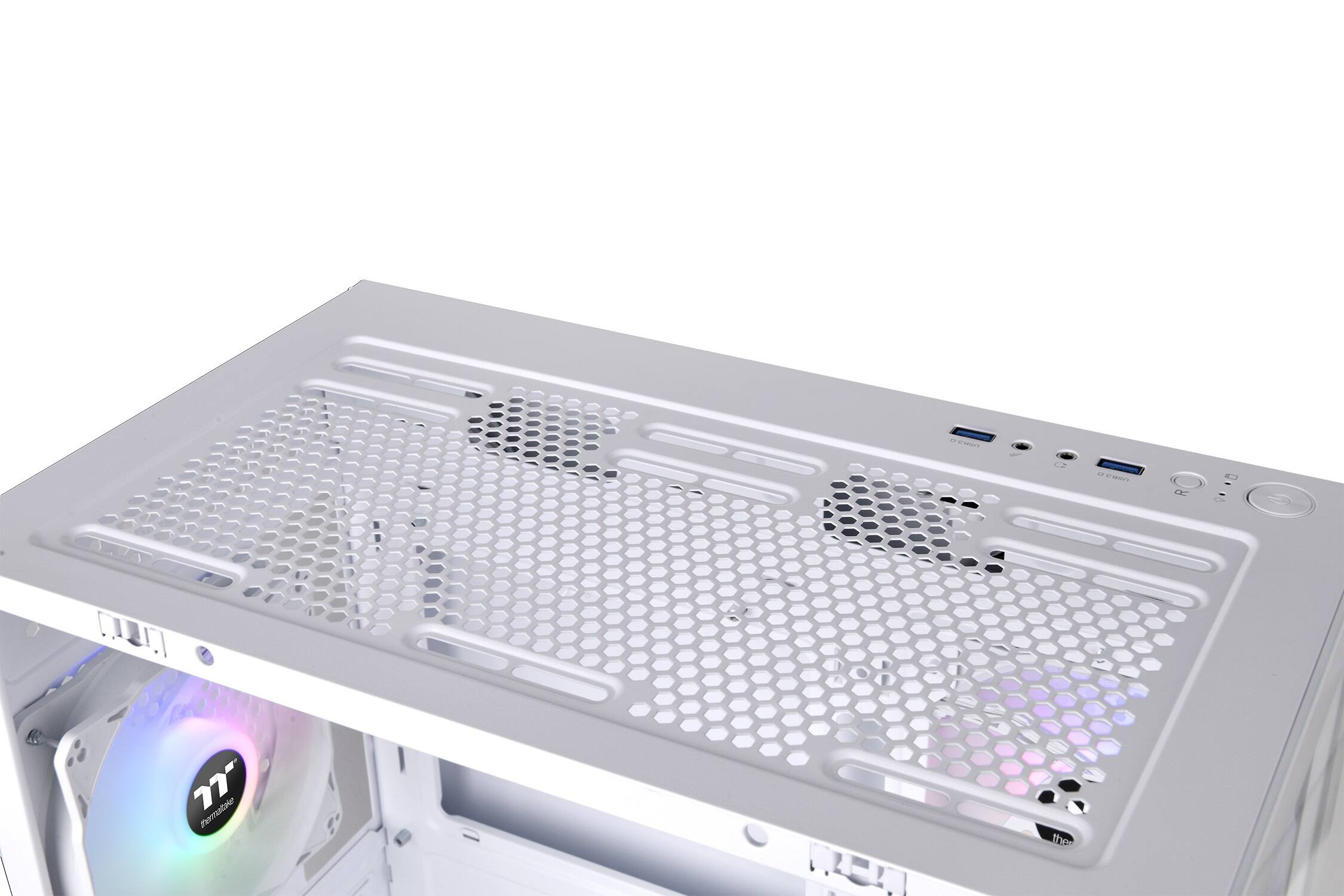

- Up to a 280mm/240mm Radiator: Providing good cooling support, users can choose to place a 280mm/240mm radiator on the top of the View 170 TG ARGB Snow Micro Chassis.

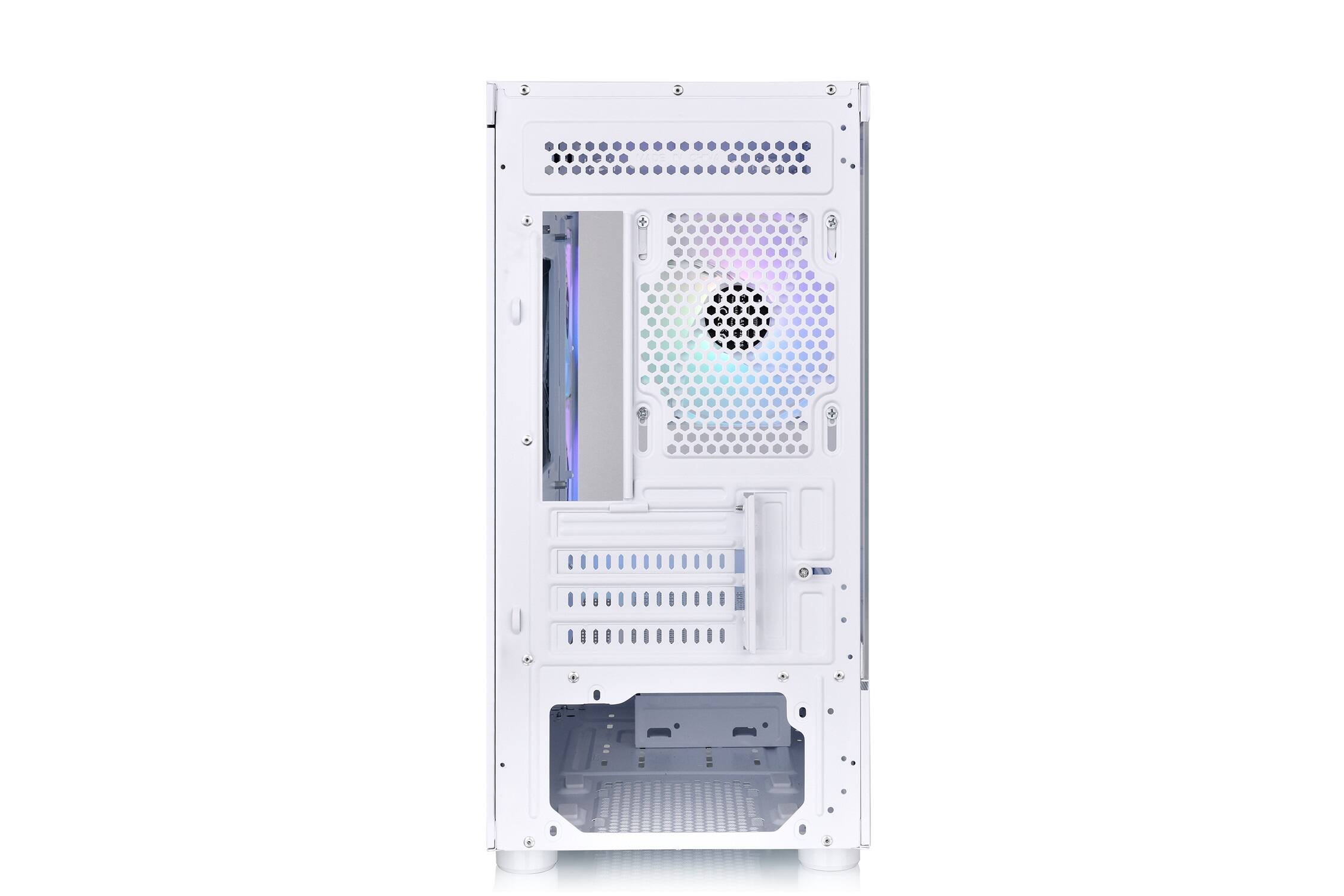

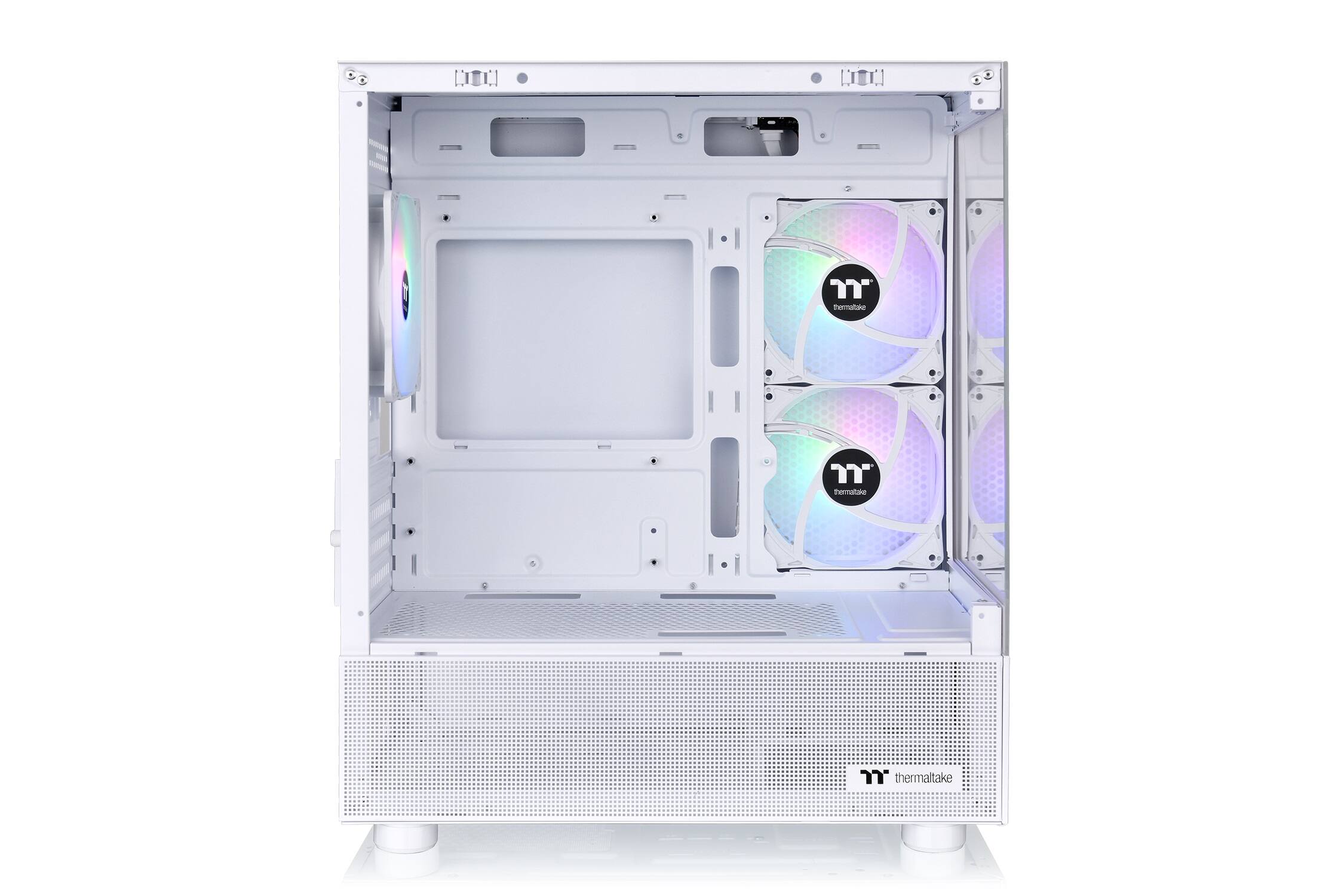

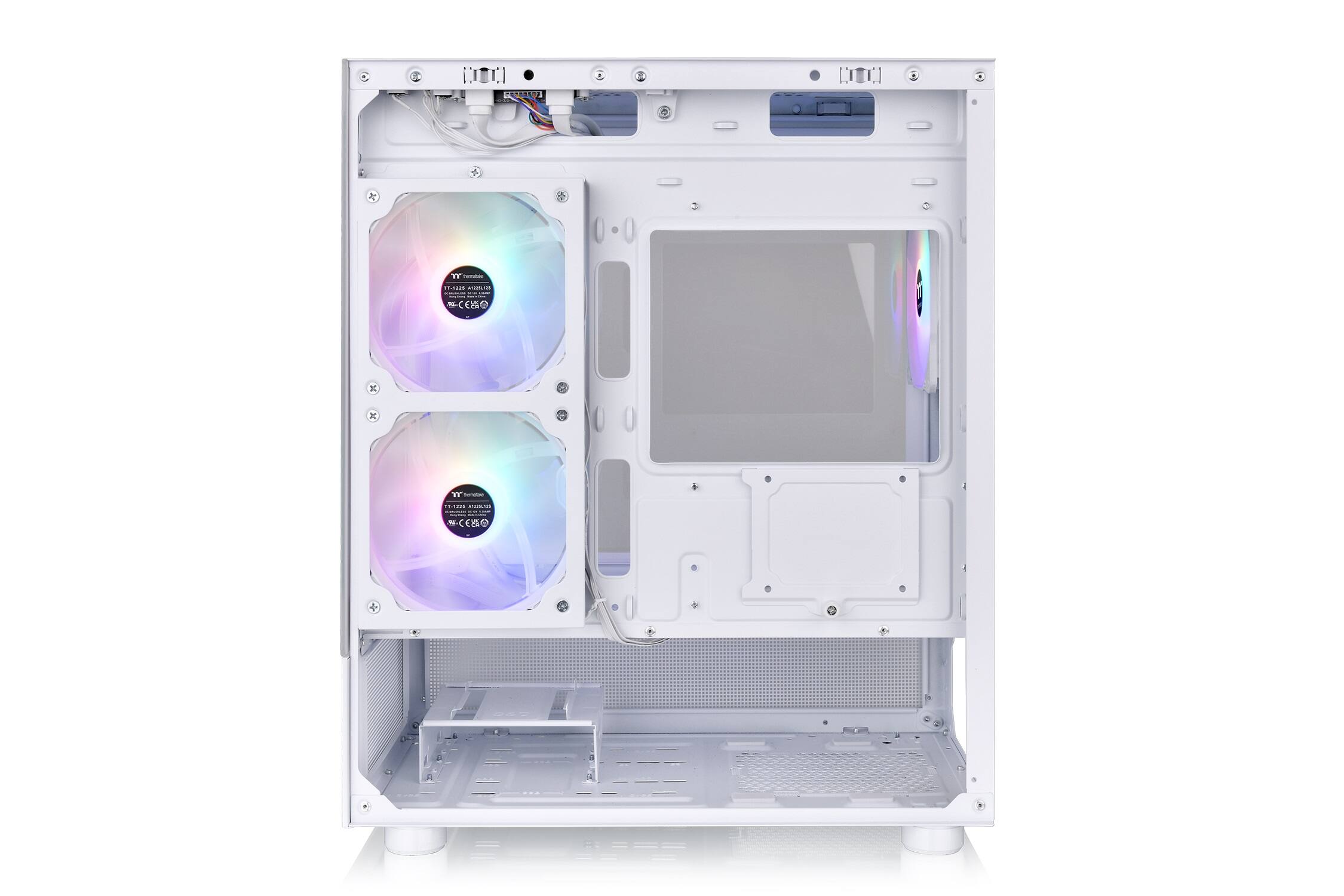

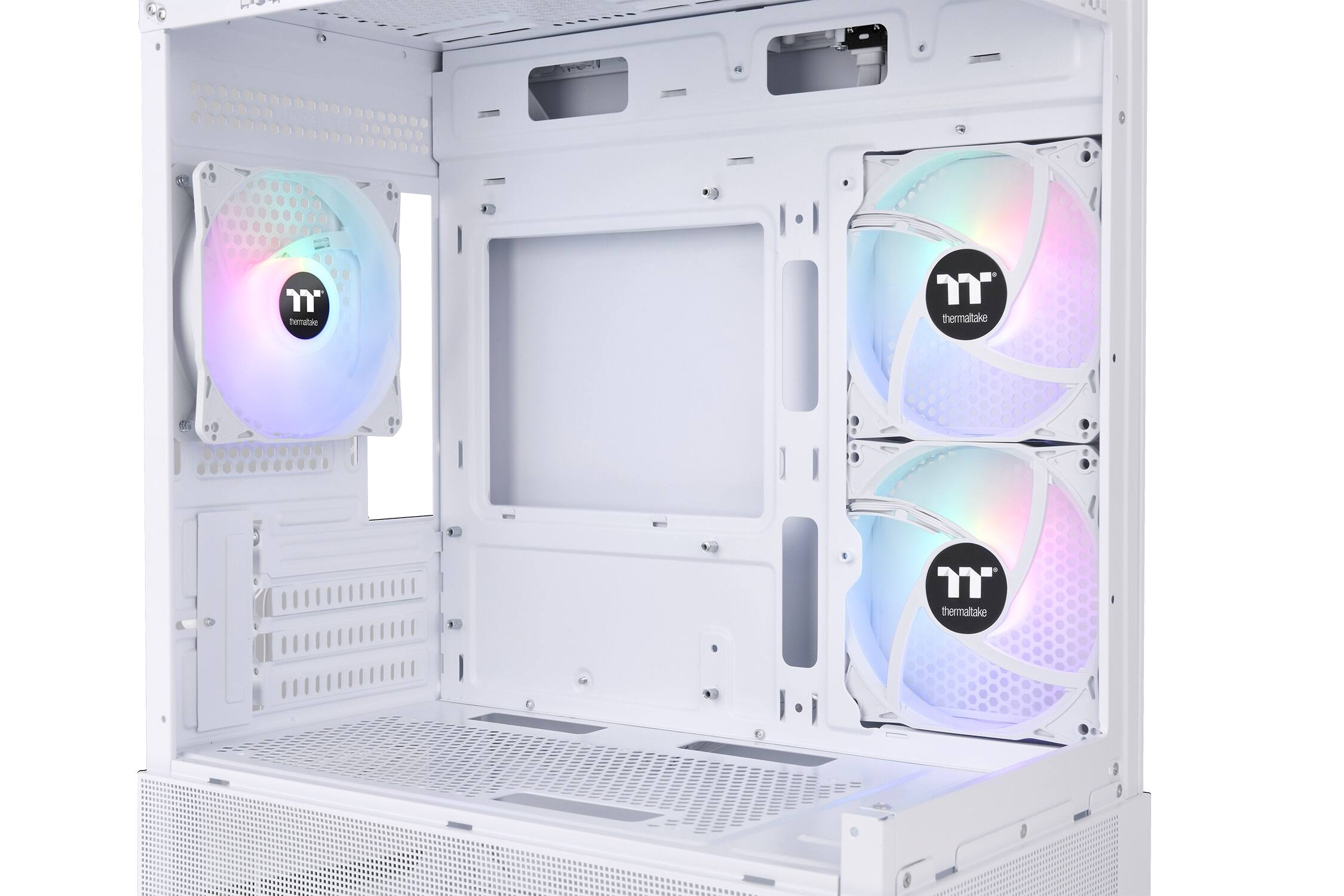

- Three Hydraulic Bearing 120mm ARGB Lite Fans Pre-installed: The View 170 TG ARGB Snow Micro Chassis comes with three Hydraulic Bearing 120mm ARGB Lite Fans at the motherboard side and the rear. It’s fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
- Flexibility to Build Your Best: The View 170 TG ARGB Micro Chassis offers good expandability. It can support a CPU cooler with a maximum height of 160mm, VGA placement up to 340mm in length, a power supply up to 180mm in length. Optimized for excellent cooling performance, the case comes with three Hydraulic Bearing 120mm ARGB Lite Fans, and up to seven 120mm fans can be installed. For radiator compatibility, it can support up to a 280mm/240mm on top, giving more options for high-end expansion!

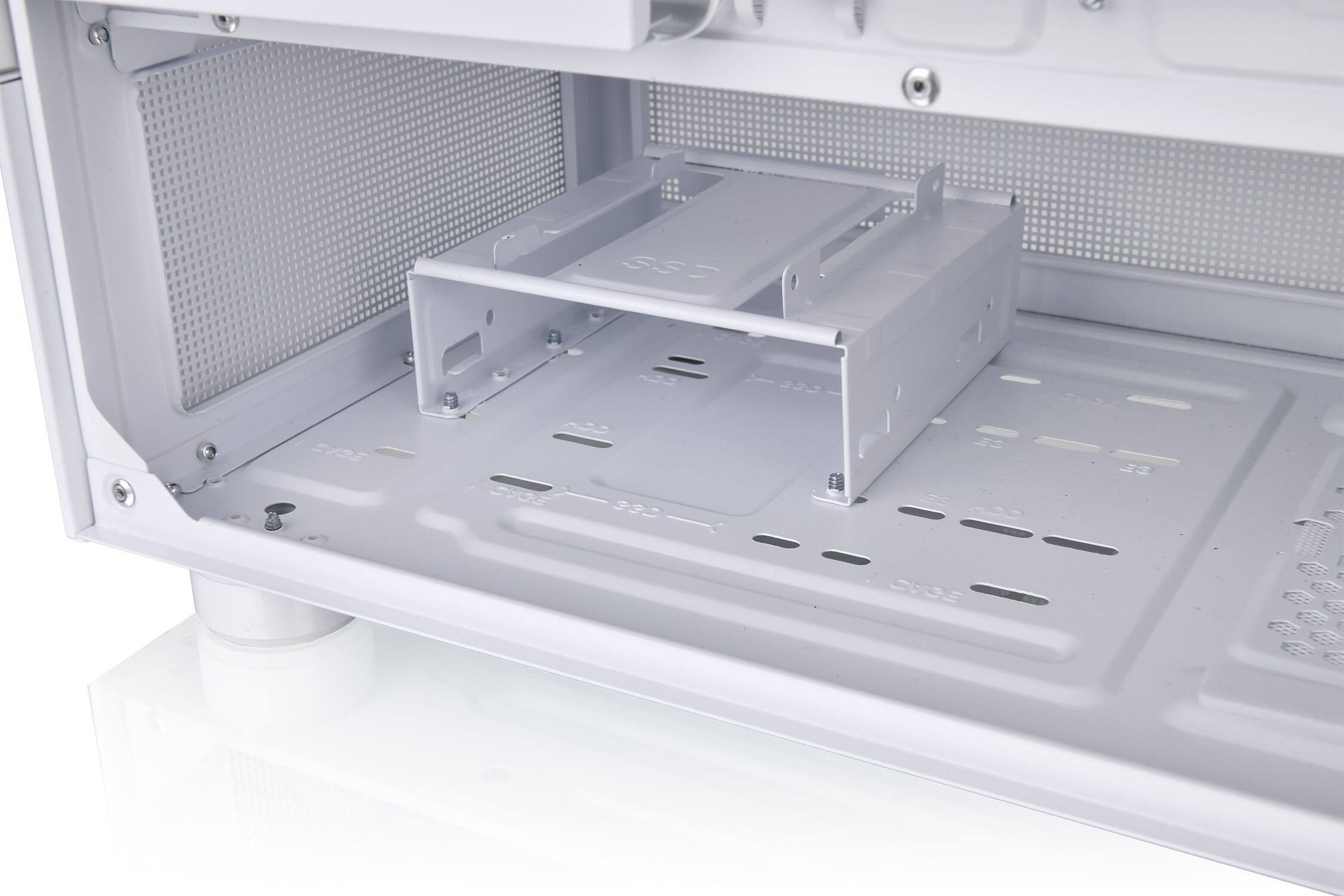

- How Much Storage Is Totally Up To You: For storage compatibility, the View 170 TG ARGB Snow Micro Chassis gives maximum support of up to two 2.5‘’ SSDs or one 3.5‘’ HDD in total.

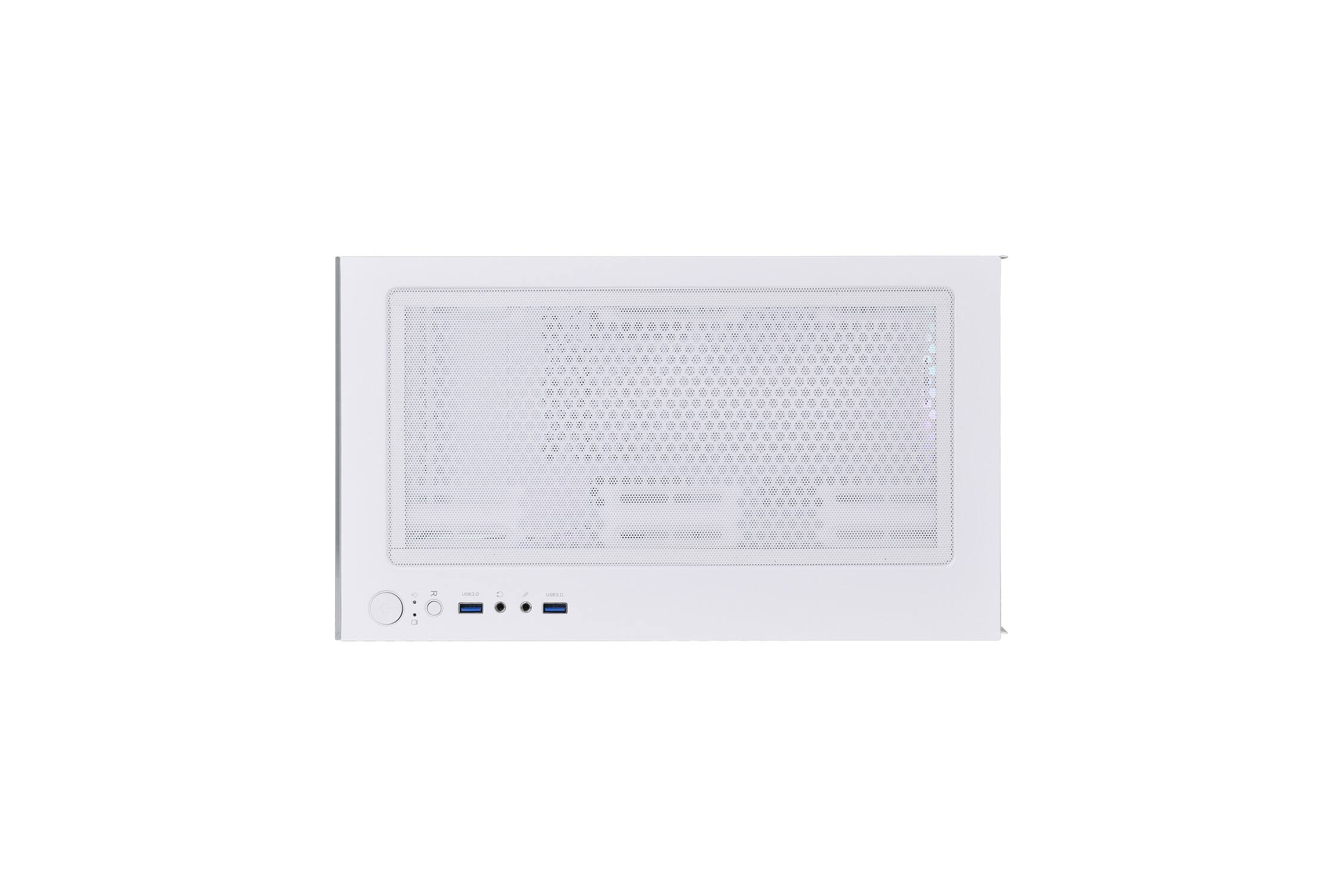

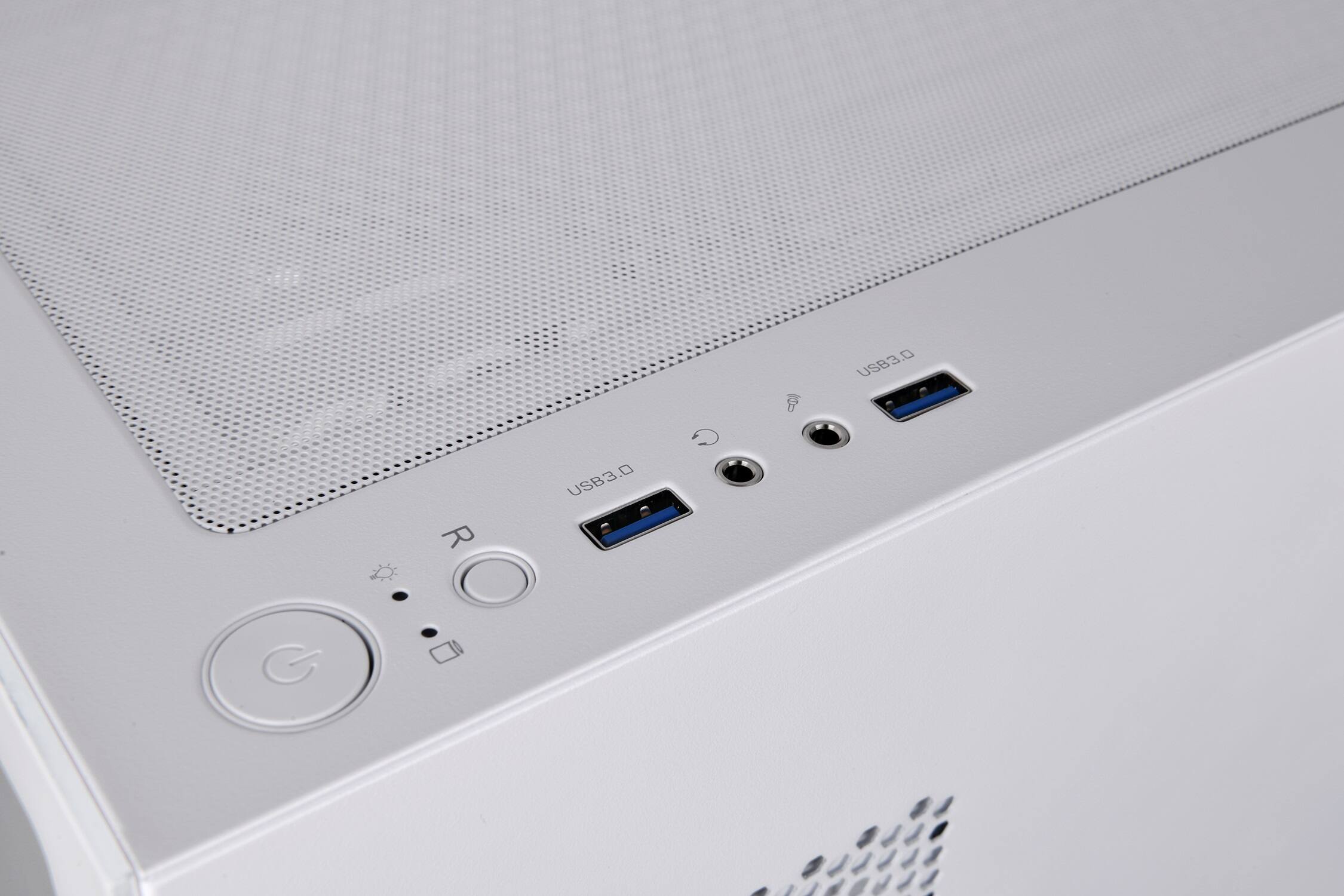

- Handy I/O Ports: Two USB 3.0 ports and an HD audio port are located on the top panel for instant access when needed.
- Sync with Motherboard RGB Software: Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
Whats Included
- 1x View 170 TG ARGB Snow Micro ATX Case
Q: What is the maximum length of a graphics card that can fit in this case?
A: The View 170 TG ARGB can accommodate a graphics card up to 340mm in length.
Q: Can I install a liquid cooler in the Thermaltake View 170?
A: Yes, the case is liquid cooling ready and supports up to a 280mm/240mm radiator on top.
Q: Does this case have a tempered glass panel?
A: Yes, the View 170 TG ARGB Snow Micro Chassis has tempered glass front and left panels.
Q: What motherboard form factors does this PC case support?
A: This PC case supports microATX motherboards.
Q: How many fans are included with the View 170 TG ARGB Snow Micro ATX Case?
A: The case comes with three pre-installed 120mm ARGB Lite fans.
Q: How many USB ports are available on the View 170 TG ARGB?
A: The case has two USB 3.0 ports located on the top panel.
Q: Does the fan have adjustable fan speeds?
A: Hello, no the fans do not adjust. Best regards, Thermaltake Support
A: Hello, motherboard software. Best regards, Thermaltake Support
