Thermaltake - View 170 TG ARGB Micro-ATX Mid-Tower PC Case - Black
Thermaltake - View 170 TG ARGB Micro-ATX Mid-Tower PC Case - Black
Color
Black- CORSAIR - RMe Series RM750e 80 PLUS Gold Fully Modular Low-Noise ATX 3.1 and PCIE 5.1 Power Supply - Black$89.99The price was $114.99
More Buying Options
Related Item
Specifications
- Motherboard Form FactormicroATX, Mini-ITXMaximum GPU Length340 millimetersProduct Height17.2 inchesProduct Width8.4 inchesProduct Depth14.9 inchesWindow Panel(s)Front, Left side
- Key Specs
- Motherboard Form Factor: microATX, Mini-ITX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 340 millimeters
- Product Height: 17.2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Front, Left side
- Case Material: Steel
- General
- Brand: Thermaltake
- Model Number: CA-1Z4-00M1WN-00
- Product Name: View 170 TG ARGB Micro-ATX Mid-Tower PC Case
- Color: Black
- Case Material: Steel
- Assembly Required: Yes
- Compatibility
- Motherboard Form Factor: microATX, Mini-ITX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 180 millimeters
- Maximum GPU Length: 340 millimeters
- Number of Expansion Slots: 4
- Ports
- USB Port Location: Top
- Number of USB Ports (Total): 2
- USB Ports: 2 x USB-A 3.0 (The number and type of USB ports the product has.)
- Number of USB-A Charging Ports: 2
- Number of Thunderbolt Ports (Total): 0
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 2
- Number Of Internal 3.5" Bays: 1
- Number Of External 2.5" Expansion Bays: 0
- Number Of External 3.5" Expansion Bays: 0
- Dimensions
- Product Height: 17.2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 10.25 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Front, Left side
- Customizable Case Lighting: true
- Lighting Type: RGB
- Cooling
- Maximum CPU Cooler Height: 160 millimeters
- Number of Fans Supported: 6
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Number of Fans Included: 3
- Liquid Cooling Ready: true
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 841163095348

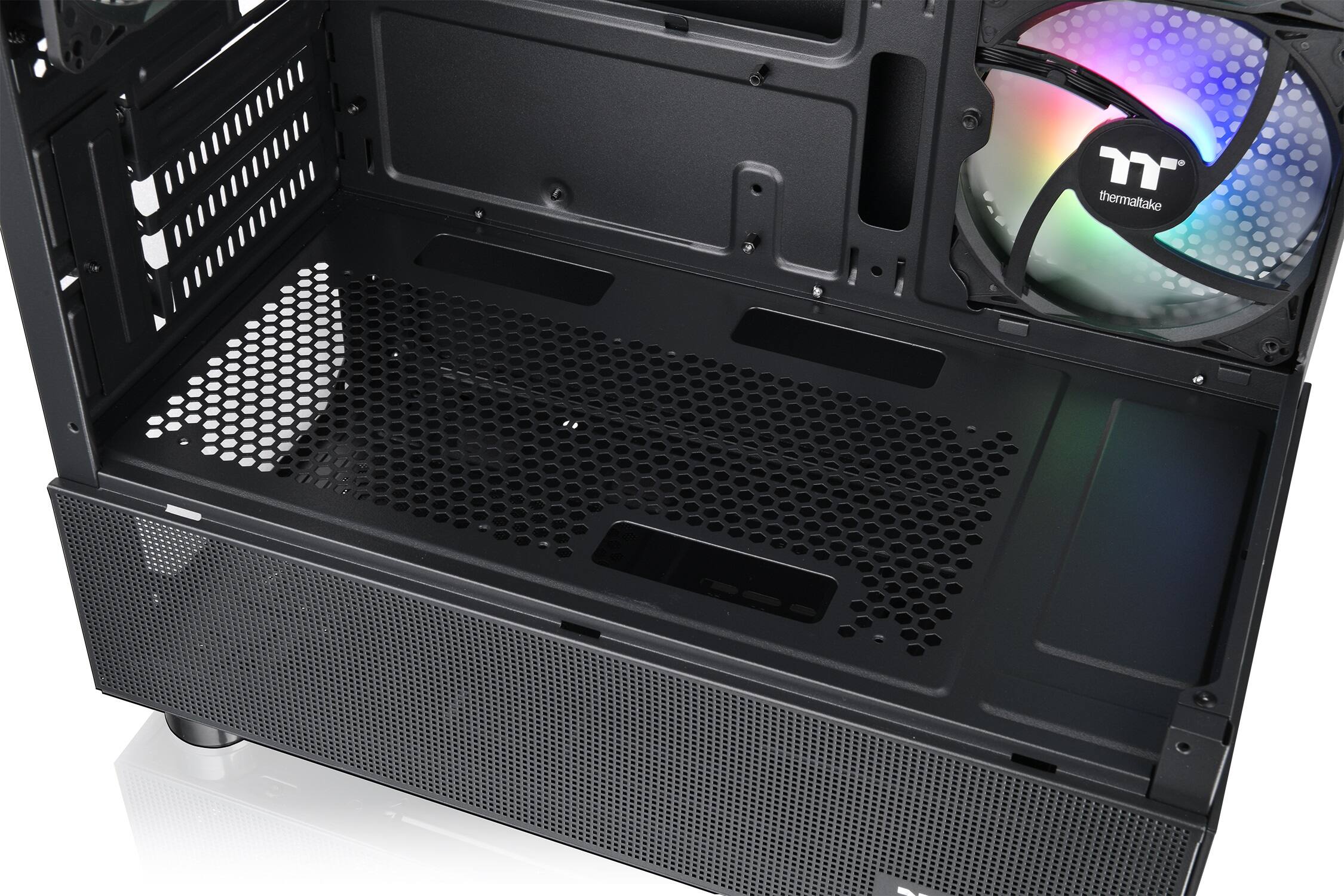

Built for amazing views thanks to the front and side tempered glass side panels the View 170 TG ARGB Snow is sure to impress. Supporting M-ATX builds, mounting points for up to 7 fans, and a ventilated bottom shroud the View 170 TG ARGB Snow brings flexibility in a small package.
- View 170 TG ARGB Micro Chassis: Built for amazing views, the View 170 TG ARGB Snow Micro Chassis is an M-ATX case that features tempered glass front and left panels, and comes with three Hydraulic Bearing 120mm ARGB Lite Fans pre-installed. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to seven 120mm fans can be installed in the chassis, and up to a 280mm/240mm radiator can be placed on the top of the View 170 TG ARGB Micro Chassis.

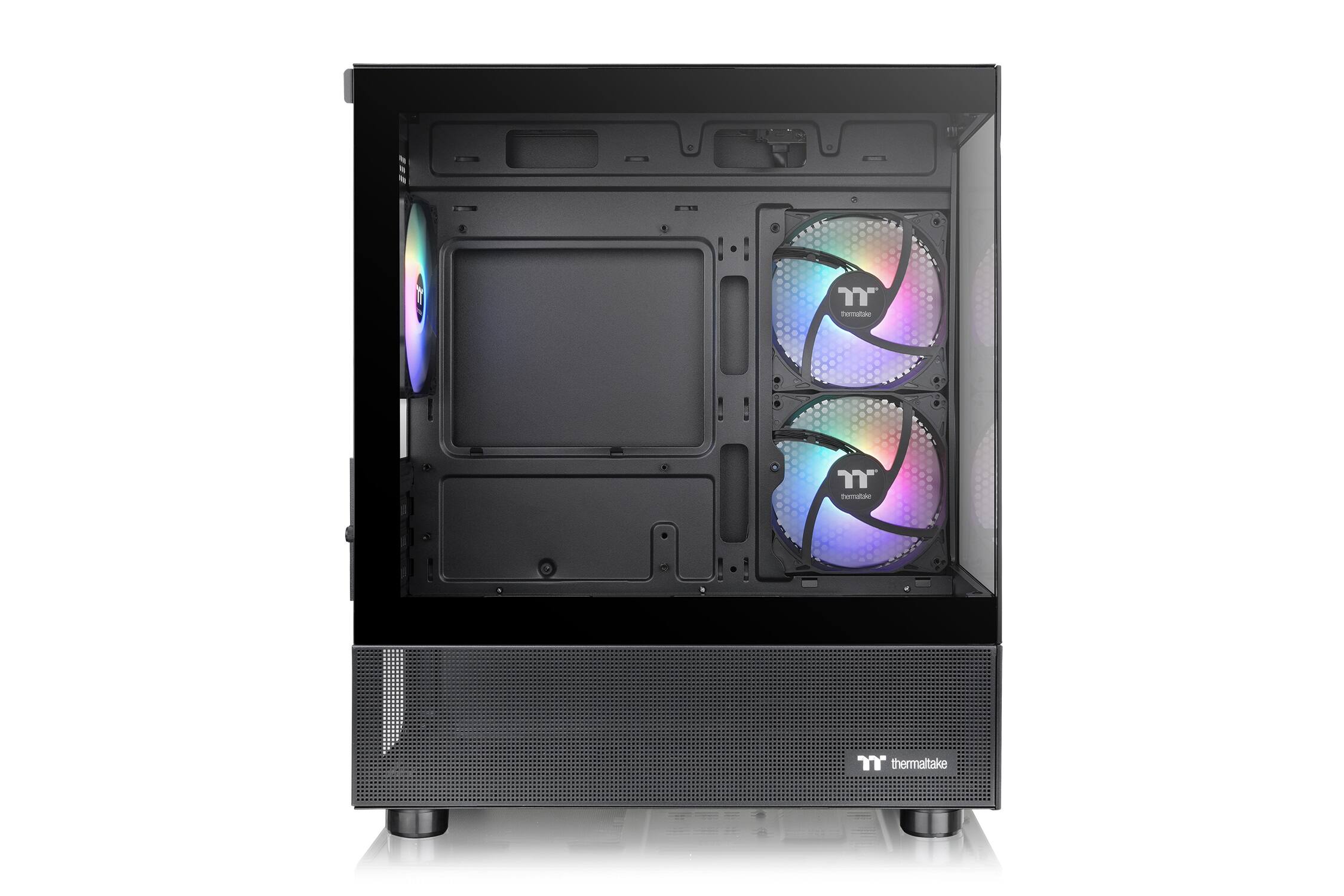

- Tempered Glass Front and Left Panels: The View 170 TG ARGB Micro Chassis is designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.
- Up to a 280mm/240mm Radiator: Providing good cooling support, users can choose to place a 280mm/240mm radiator on the top of the View 170 TG ARGB Micro Chassis.

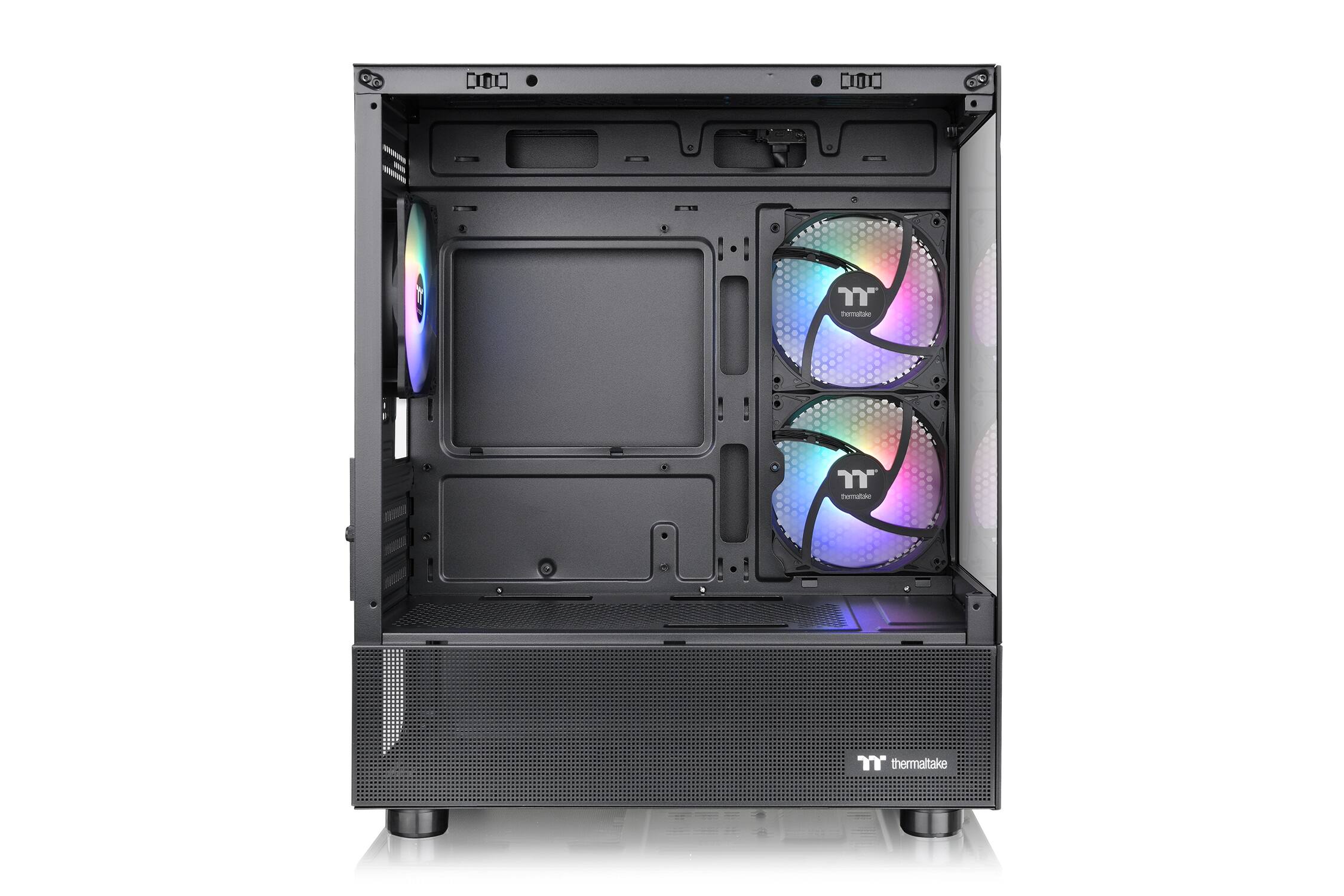

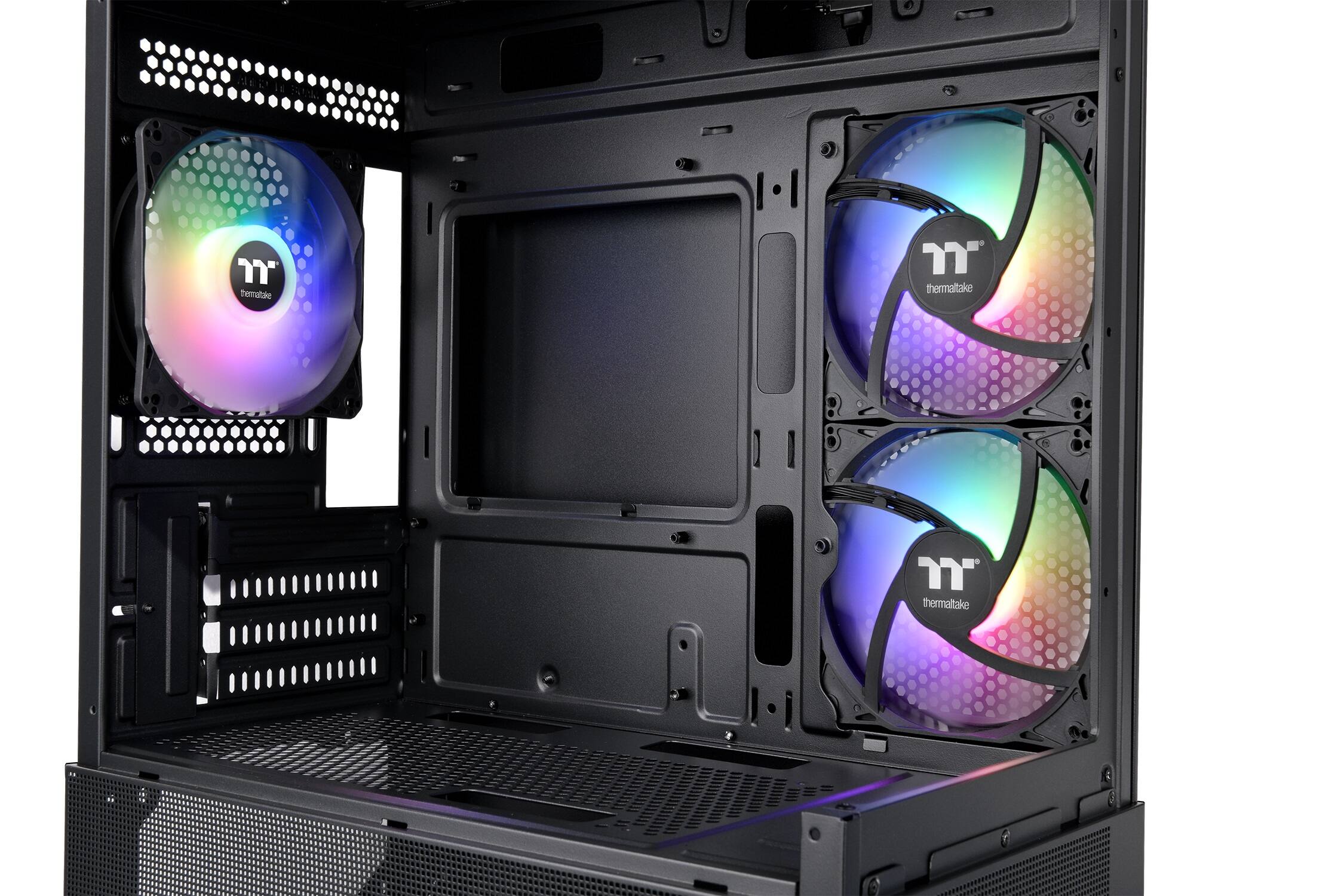

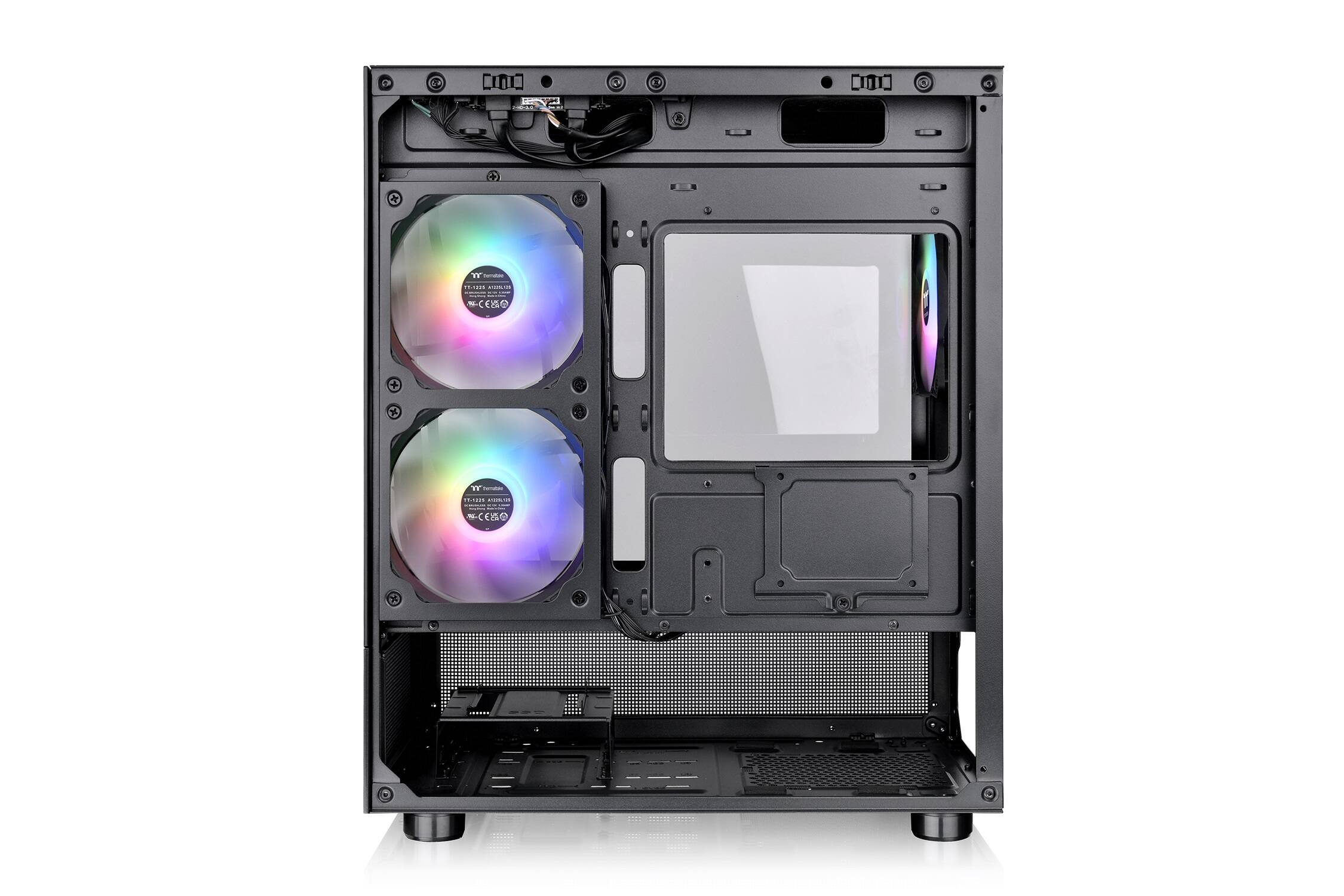

- Three Hydraulic Bearing 120mm ARGB Lite Fans Pre-installed: The View 170 TG ARGB Micro Chassis comes with three Hydraulic Bearing 120mm ARGB Lite Fans at the motherboard side and the rear. It’s fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
- Flexibility to Build Your Best: The View 170 TG ARGB Micro Chassis offers good expandability. It can support a CPU cooler with a maximum height of 160mm, VGA placement up to 340mm in length, a power supply up to 180mm in length. Optimized for excellent cooling performance, the case comes with three Hydraulic Bearing 120mm ARGB Lite Fans, and up to seven 120mm fans can be installed. For radiator compatibility, it can support up to a 280mm/240mm on top, giving more options for high-end expansion!

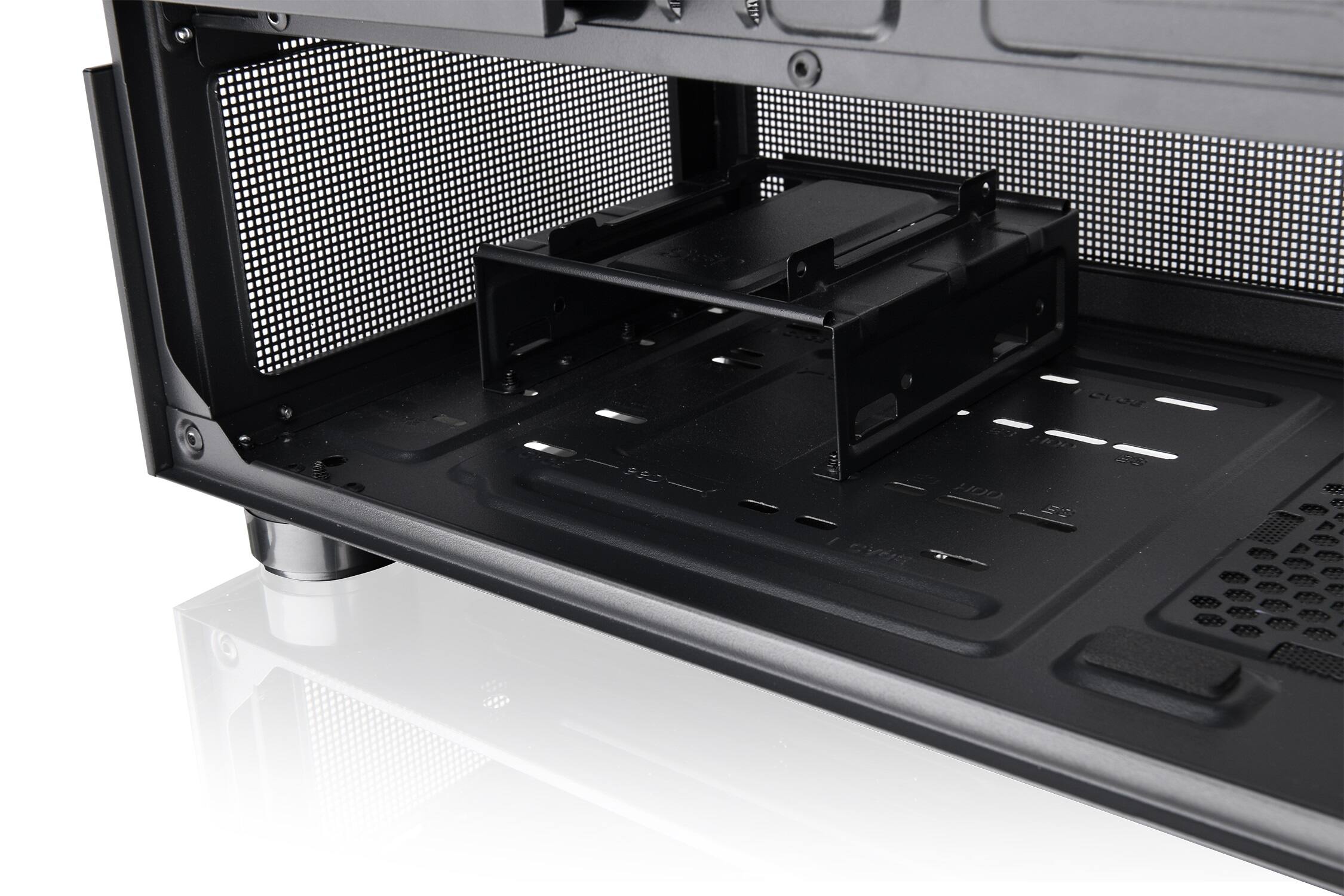

- How Much Storage Is Totally Up To You: For storage compatibility, the View 170 TG ARGB Micro Chassis gives maximum support of up to two 2.5‘’ SSDs or one 3.5‘’ HDD in total.

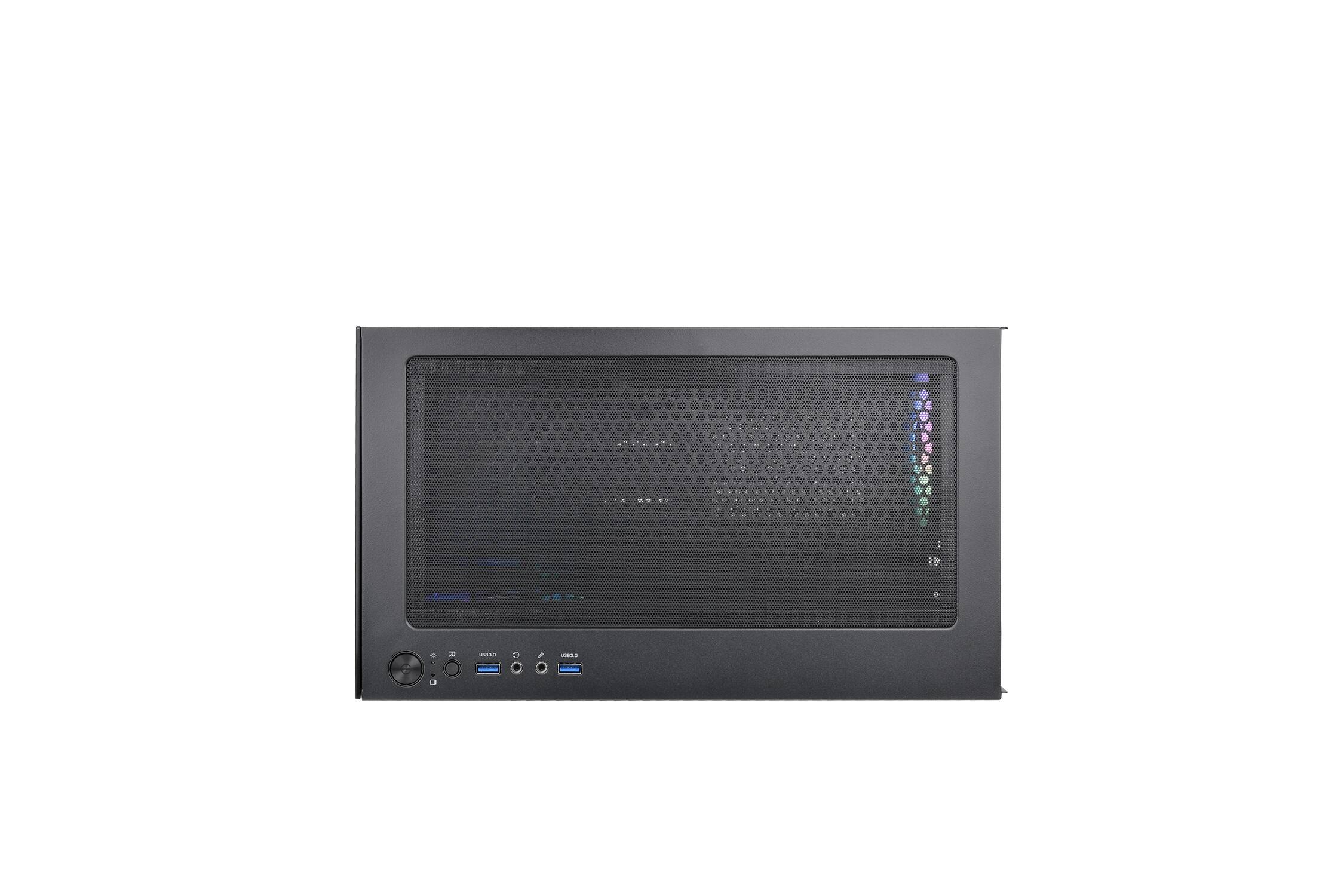

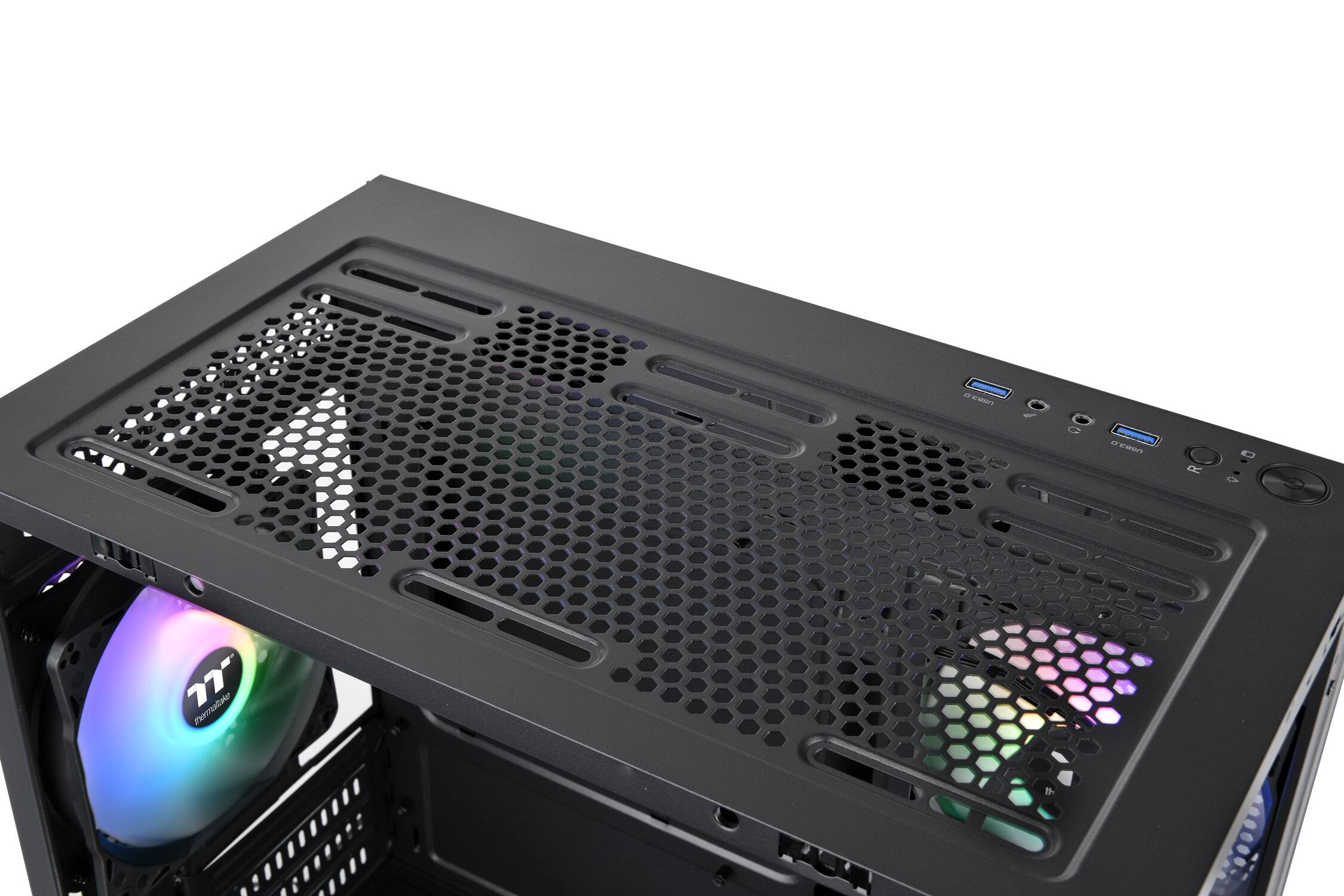

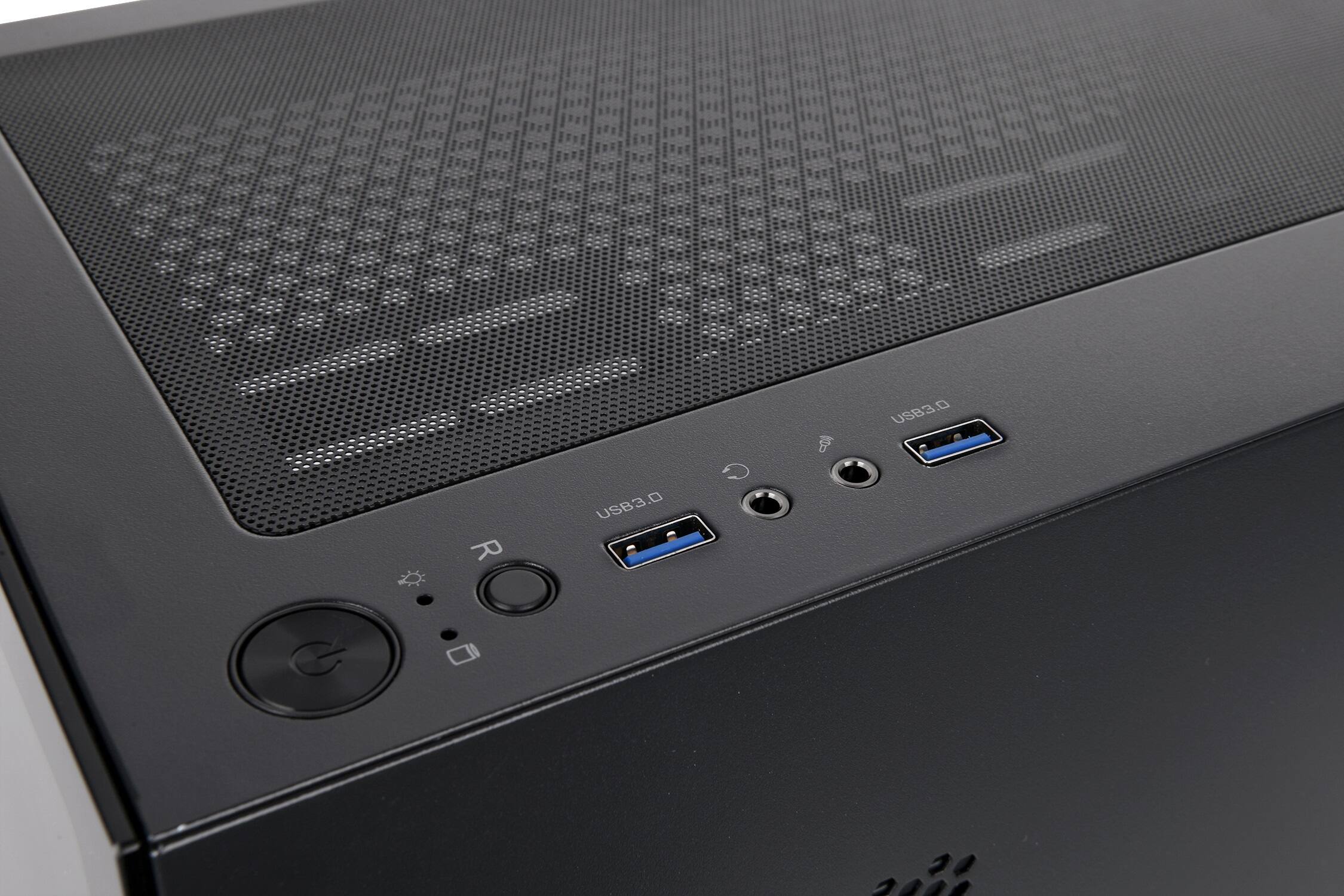

- Handy I/O Ports: Two USB 3.0 ports and an HD audio port are located on the top panel for instant access when needed.
- Sync with Motherboard RGB Software: Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
Whats Included
- 1x View 170 TG ARGB Micro ATX Case
Q: What is the maximum length of a graphics card that can fit in this case?
A: The View 170 TG ARGB can accommodate a graphics card up to 340mm in length.
Q: Can I install a liquid cooler in the Thermaltake View 170?
A: Yes, the case is liquid cooling ready and supports up to a 280mm/240mm radiator on top.
Q: Does this case have a tempered glass panel?
A: Yes, the View 170 TG ARGB Snow Micro Chassis has tempered glass front and left panels.
Q: What motherboard form factors does this PC case support?
A: This PC case supports microATX motherboards.
Q: How many fans are included with the View 170 TG ARGB Snow Micro ATX Case?
A: The case comes with three pre-installed 120mm ARGB Lite fans.
Q: How many USB ports are available on the View 170 TG ARGB?
A: The case has two USB 3.0 ports located on the top panel.
Q: Does the fan have adjustable fan speeds?
A: Hello, no the fans do not adjust. Best regards, Thermaltake Support
A: Hello, motherboard software. Best regards, Thermaltake Support
Compare similar products
Built for amazing views thanks to the front and side tempered glass side panels the View 170 TG ARGB Snow is sure to impress. Supporting M-ATX builds, mounting points for up to 7 fans, and a ventilated bottom shroud the View 170 TG ARGB Snow brings flexibility in a small package.
The Focus G is a chassis that showcases the hardware at the heart of your system with elegant accents and sophisticated style. Its flexible ATX layout supports a multitude of hardware combinations including high-profile CPU coolers, up to two dual-fan radiators, full-length graphics cards, multiple HDDs and SSDs, and even support for optical drives. The Fractal Design Focus G hits the mark for the discerning PC enthusiast seeking an aggressively priced chassis that stands out from the competition.
The H3 Flow is a space-efficient micro-ATX PC case delivering exceptional airflow and versatile component compatibility. Designed for optimal cooling, the mesh panels and ventilated PSU shroud keep high-performance components running smoothly.
Designed for entry-level PC builders and gamers, Thermaltake Versa H18 Tempered Glass Edition Micro Case features the simplicity appearance with easy cable management design, AIO liquid cooling compatible, and ample ventilation options. Supporting the latest PC hardware and all high-end GPU solutions, the Versa H18 TG is a good choice for those who opt for stylish PC case with manageable frame size and advanced features.The beautiful tempered glass window allows users to display all component of the build, offering a direct view of inner system. The mesh front panel and perforated top panel plus the heighted foot-stands at the bottom provide efficient airflow for the system.
| Pros for Thermaltake - View 170 TG ARGB Micro-ATX Mid-Tower PC Case - Black | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | Build Quality, Cable Management, Airflow, Size, Component Compatibility | Build Quality, Cable Management |
| Cons for Thermaltake - View 170 TG ARGB Micro-ATX Mid-Tower PC Case - Black | |||
| There were no cons for this product— | There were no cons for this product— | There were no cons for this product— | Size, Button Placement |
Specs
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
View 170 is awesome
It’s an amazing case. Looks so amazing with the rtx 5070 founders edition I also purchased at Best Buy.
MiguelA Posted
- Rated 4 out of 5 stars
Good, not great.
Good case. Was for my daughters build and she loves it. But, I am concern on how to keep the dust out from the bottom. it pulls air up from the bottom, So I may have to reverse the flow and pull air from the top and side and out from the back and bottom if there is a dust issue. A little flimsier that I'd like it to be, but not too bad.
This review is from Thermaltake - View 170 TG ARGB Micro-ATX Mid-Tower PC Case - Snow
Matt Posted
- Rated 2 out of 5 stars
Maybe skip this one
Too many little things to keep it. Sheet metal is thin, maxt boarss oast 8”wide will extend into the fan space. Long three fan viseo caeda will also extend in fron of the fans. Returning mine.
This review is from Thermaltake - View 170 TG ARGB Micro-ATX Mid-Tower PC Case - Snow
Ianb Posted
