NZXT - H3 Flow Micro-ATX High-Airflow PC Case - Black
Color
Black
CORSAIR - RS120 ARGB 120mm PWM Fans (3-pack) - White$44.99$59.99
More Buying Options
Specifications
- Motherboard Form FactormicroATX, Mini-ITXMaximum GPU Length377 millimetersProduct Height15.75 inchesProduct Width10.04 inchesProduct Depth15.32 inchesWindow Panel(s)Side
- Key Specs
- Motherboard Form Factor: microATX, Mini-ITX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 377 millimeters

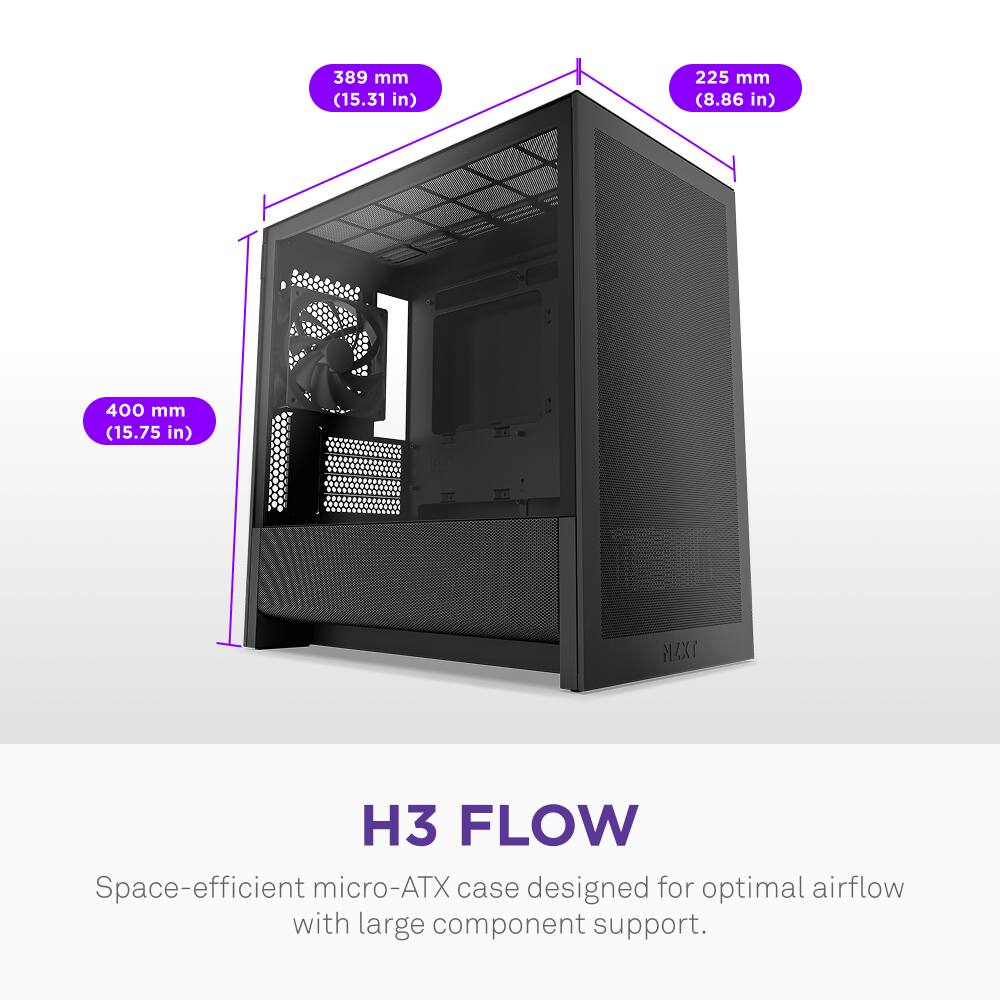

- Product Height: 15.75 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10.04 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15.32 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Side
- Case Material: Metal
- General
- Brand: NZXT
- Model Number: CC-H31FB-01
- Product Name: NZXT - H3 Flow Micro-ATX High-Airflow PC Case
- Color: Black
- Case Material: Metal
- Assembly Required: No
- Compatibility
- Motherboard Form Factor: microATX, Mini-ITX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 185 millimeters
- Maximum GPU Length: 377 millimeters
- Number of Expansion Slots: 4
- Ports
- Number of USB Ports (Total): 2
- USB Ports: 1 x USB-C 3.2, 1 x USB-A 3.2 (The number and type of USB ports the product has.)
- Number of Thunderbolt Ports (Total): 0
- Headphone Jack: false (The device features an interface that allows for the connection of headphones.)
- Microphone Input: false (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 1
- Number Of Internal 3.5" Bays: 1
- Dimensions
- Product Height: 15.75 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10.04 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15.32 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 169.32 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mini tower
- Window Panel(s): Side
- Customizable Case Lighting: true
- Lighting Type: RGB
- Cooling
- Maximum CPU Cooler Height: 170 millimeters
- Number of Fans Supported: 7
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Number of Fans Included: 1
- Radiator Support: Yes
- Liquid Cooling Ready: true
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 810074848046
The H3 Flow is a space-efficient micro-ATX PC case delivering exceptional airflow and versatile component compatibility. Designed for optimal cooling, the mesh panels and ventilated PSU shroud keep high-performance components running smoothly.

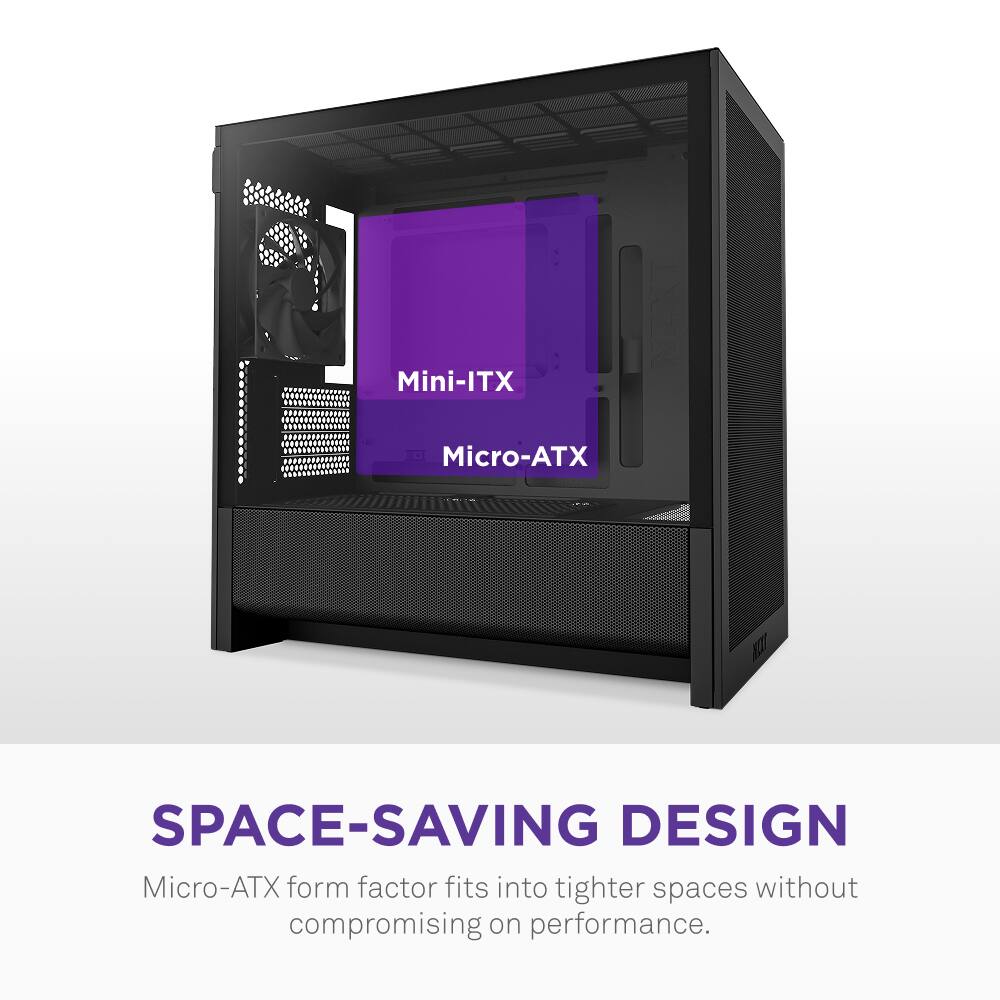

- Space-Saving Size: A space-efficient micro-ATX chassis accommodates standard high-performance components without compromise.
- High-Airflow Design: Ultra-fine steel mesh on the panels and PSU shroud maximizes airflow while effectively filtering dust.
- Extensive Cooling Support: Supports up to a 280 mm radiator at the front, a 240 mm radiator at the top, and up to seven fans for powerful cooling performance.
- Full-Size Graphics Cards: Fits GPUs up to 377 mm (without front fans), 352 mm (with front fans), and 317 mm (with front radiator and fans installed).
- Pre-Installed Rear Fan: Comes equipped with an F120Q (CV) fan at the rear for efficient exhaust airflow right out of the box.
- Easy Cable Management: Integrated cable channels and tie-down points simplify cable routing for a clean and organized build.
- Back-Connect Motherboard Ready: Fully compatible with rear-connect motherboards like ASUS BTF and MSI Project Zero, enabling a sleek, cable-free appearance.

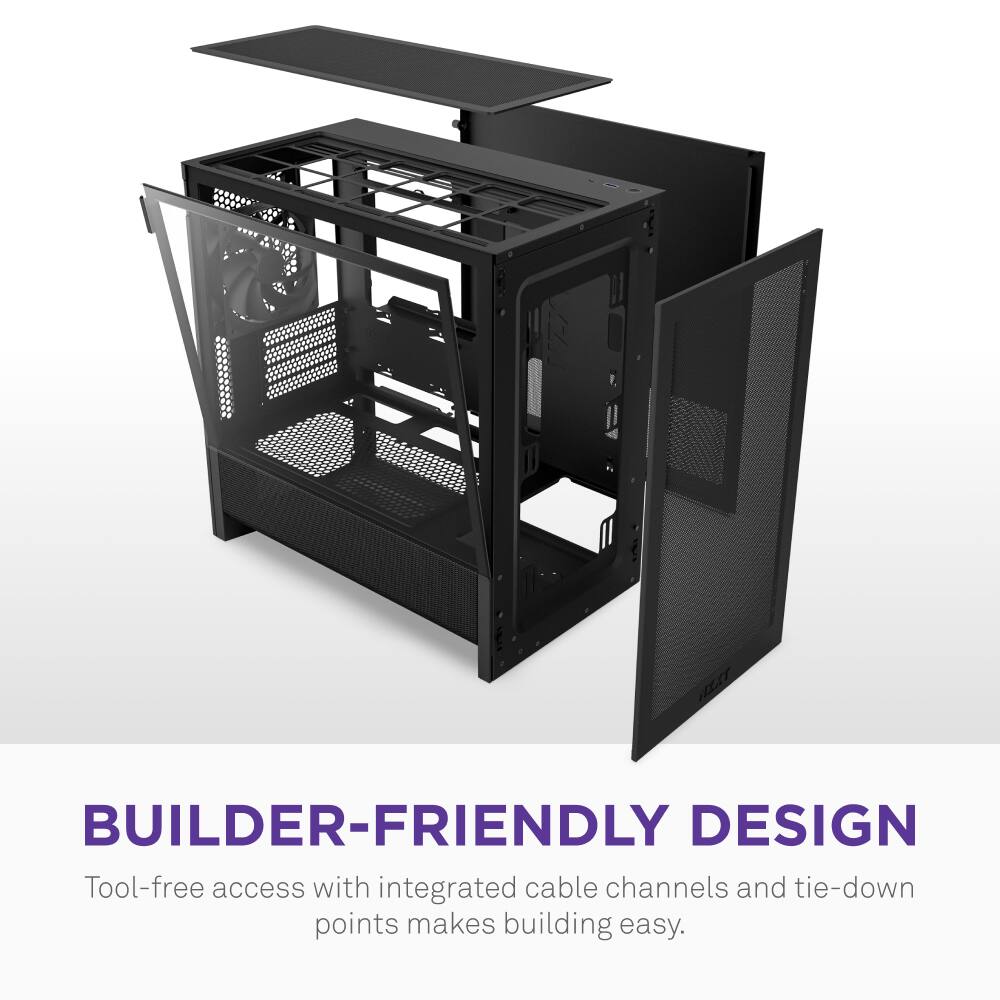

- Tool-Free Entry: Removable top, front, and side panels allow quick, easy access for upgrades and cleaning—no tools required.
- Space-Saving Size: A space-efficient micro-ATX chassis accommodates standard high-performance components without compromise.
- High-Airflow Design: Ultra-fine steel mesh on the panels and PSU shroud maximizes airflow while effectively filtering dust.
- Extensive Cooling Support: Supports up to a 280 mm radiator at the front, a 240 mm radiator at the top, and up to seven fans for powerful cooling performance.
- Full-Size Graphics Cards: Fits GPUs up to 377 mm (without front fans), 352 mm (with front fans), and 317 mm (with front radiator and fans installed).
- Pre-Installed Rear Fan: Comes equipped with an F120Q (CV) fan at the rear for efficient exhaust airflow right out of the box.
- Easy Cable Management: Integrated cable channels and tie-down points simplify cable routing for a clean and organized build.
- Back-Connect Motherboard Ready: Fully compatible with rear-connect motherboards like ASUS BTF and MSI Project Zero, enabling a sleek, cable-free appearance.
- Tool-Free Entry: Removable top, front, and side panels allow quick, easy access for upgrades and cleaning—no tools required.
Q: How many fans are included with this PC case?
A: This PC case includes one fan.
Q: What is the maximum GPU length supported by this PC case?
A: This PC case supports a maximum GPU length of 377 millimeters.
Q: Does this PC case support liquid cooling?
A: Yes, this PC case is liquid cooling ready.
Q: Does this PC case have an integrated cable management system?
A: Yes, this PC case has integrated cable channels and tie-down points.
Q: What type of motherboard form factor does this PC case support?
A: This PC case supports microATX motherboard form factor.
Q: Are any tools required to open this PC case?
A: No, this PC case allows tool-free entry.
Q: Is it possible to customize the lighting on this PC case?
A: Yes, the PC case has customizable case lighting.
Q: Can I put a dell oplex 7010 dt motherboard in this case
A: undefined
Compare similar products
The H3 Flow is a space-efficient micro-ATX PC case delivering exceptional airflow and versatile component compatibility. Designed for optimal cooling, the mesh panels and ventilated PSU shroud keep high-performance components running smoothly.
Built for amazing views thanks to the front and side tempered glass side panels the View 170 TG ARGB Snow is sure to impress. Supporting M-ATX builds, mounting points for up to 7 fans, and a ventilated bottom shroud the View 170 TG ARGB Snow brings flexibility in a small package.
The H5 Flow boosts airflow and GPU cooling with its fully-perforated PSU shroud, mesh panels, and robust radiator support.
Build a PC that supports powerful hardware and advanced GPU solutions with this Thermaltake Versa H17 micro case. The top-facing I/O ports offer quick access when needed, while a cable routing management system hides cables behind the motherboard to avoid tangling and ensure better airflow. This Thermaltake Versa H17 micro case features an elegant front panel that keeps drivers hidden for an aesthetically pleasing look.
| Pros for NZXT - H3 Flow Micro-ATX High-Airflow PC Case - Black | |||
|---|---|---|---|
| Airflow, Cable Management, Size | There were no pros for this product— | Airflow, Cable Management, Build Quality, Appearance, Internal Space | Cable Management |
| Cons for NZXT - H3 Flow Micro-ATX High-Airflow PC Case - Black | |||
| There were no cons for this product— | There were no cons for this product— | Fan Compatibility | There were no cons for this product— |
Specs
Reviews
Customers are saying
Customers admire the H3 Flow Micro-ATX High-Airflow PC Case for its compact size and excellent airflow. Users appreciate the flexibility it offers for cable management, making it easy to build a clean and organized system. Overall, the case seems to be well-received for its design and functionality.

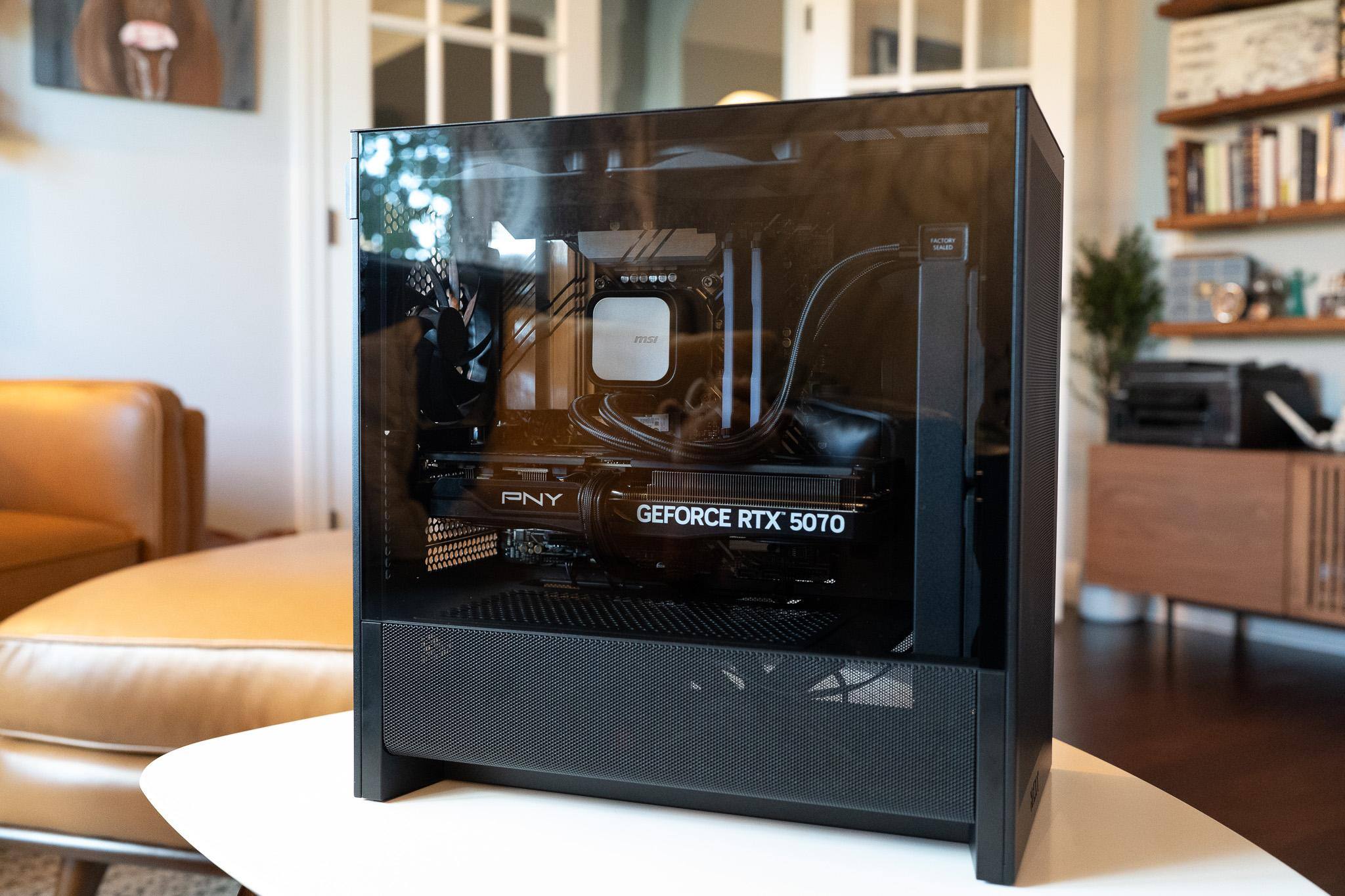

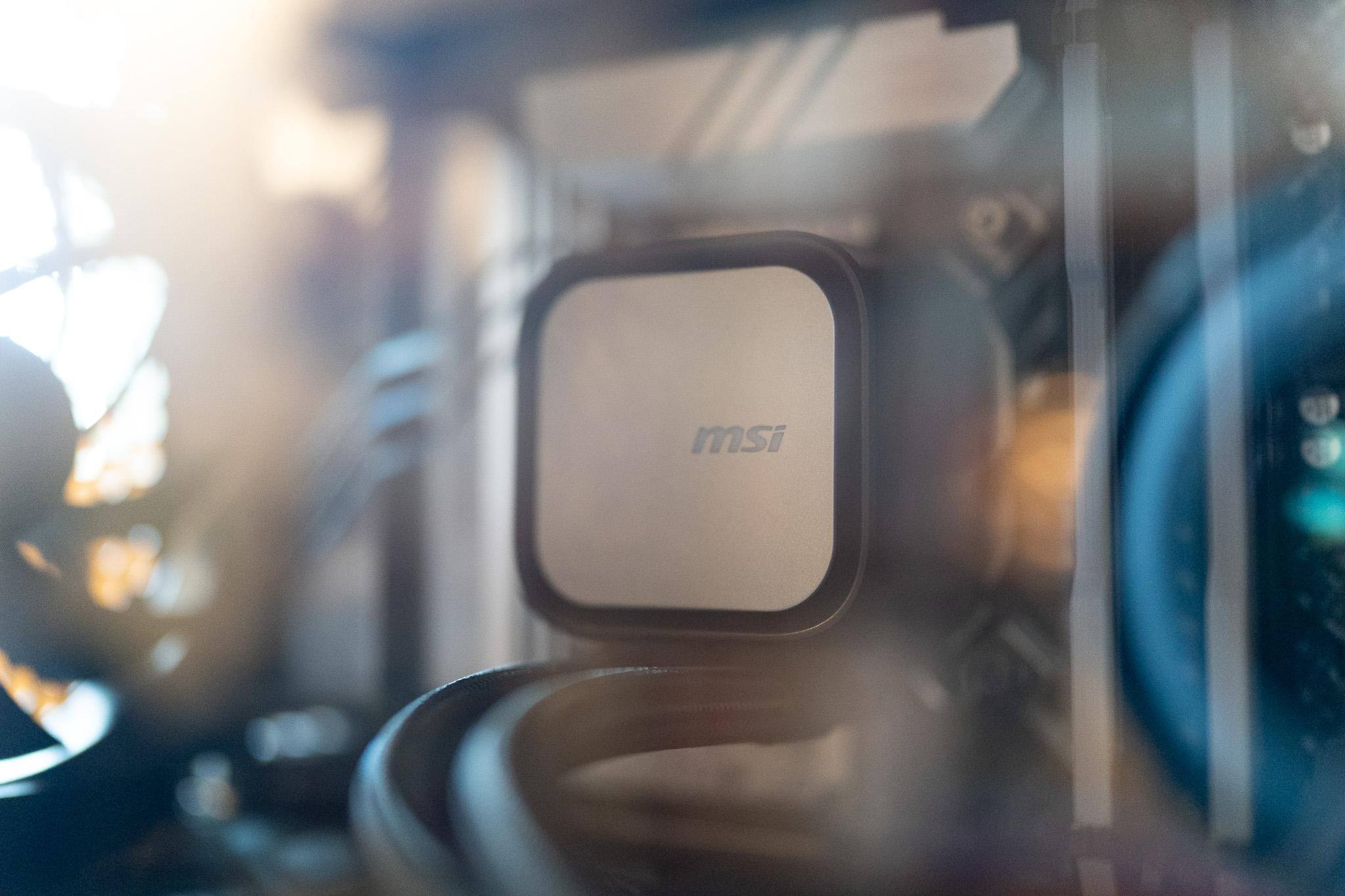

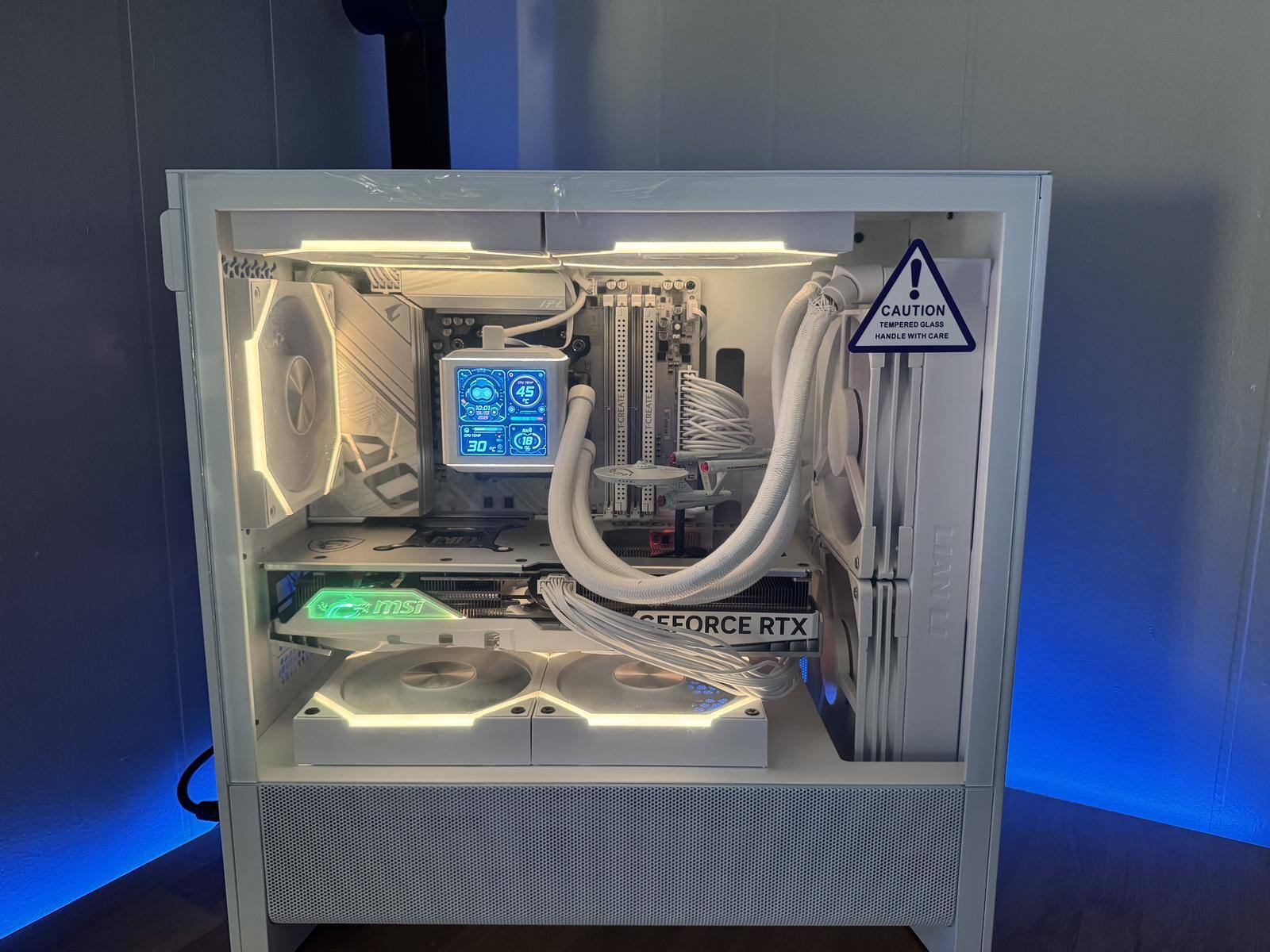

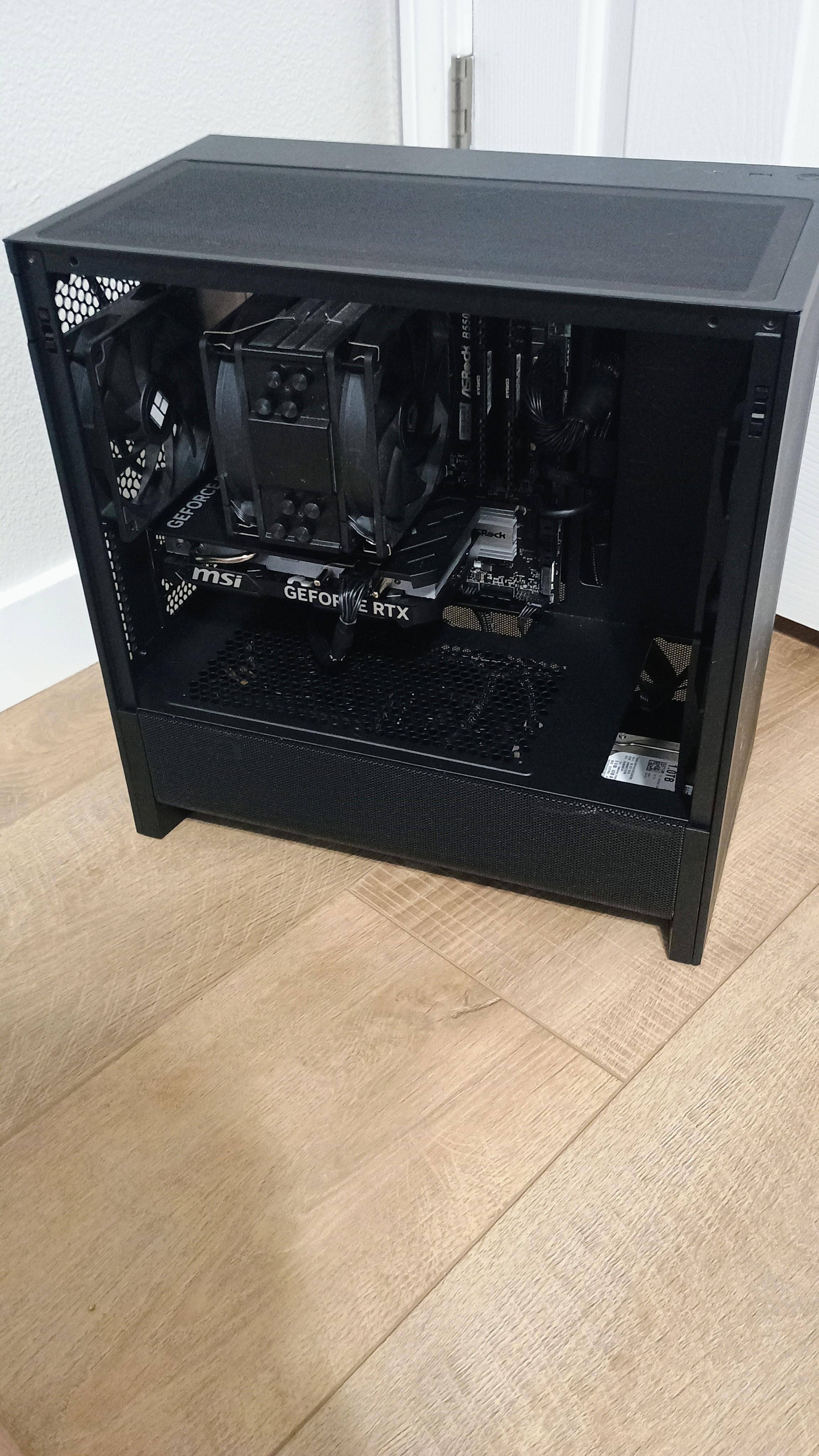

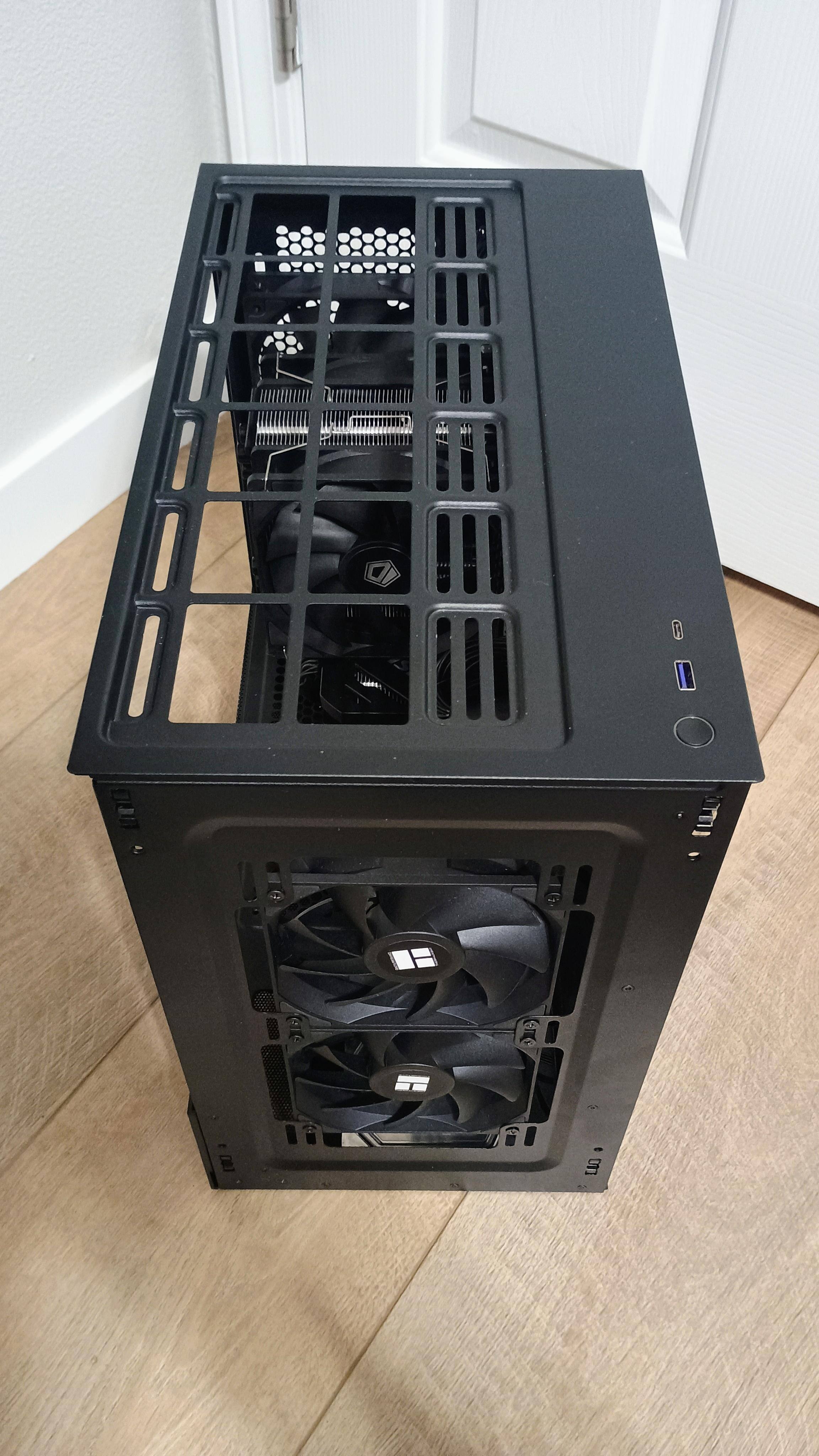

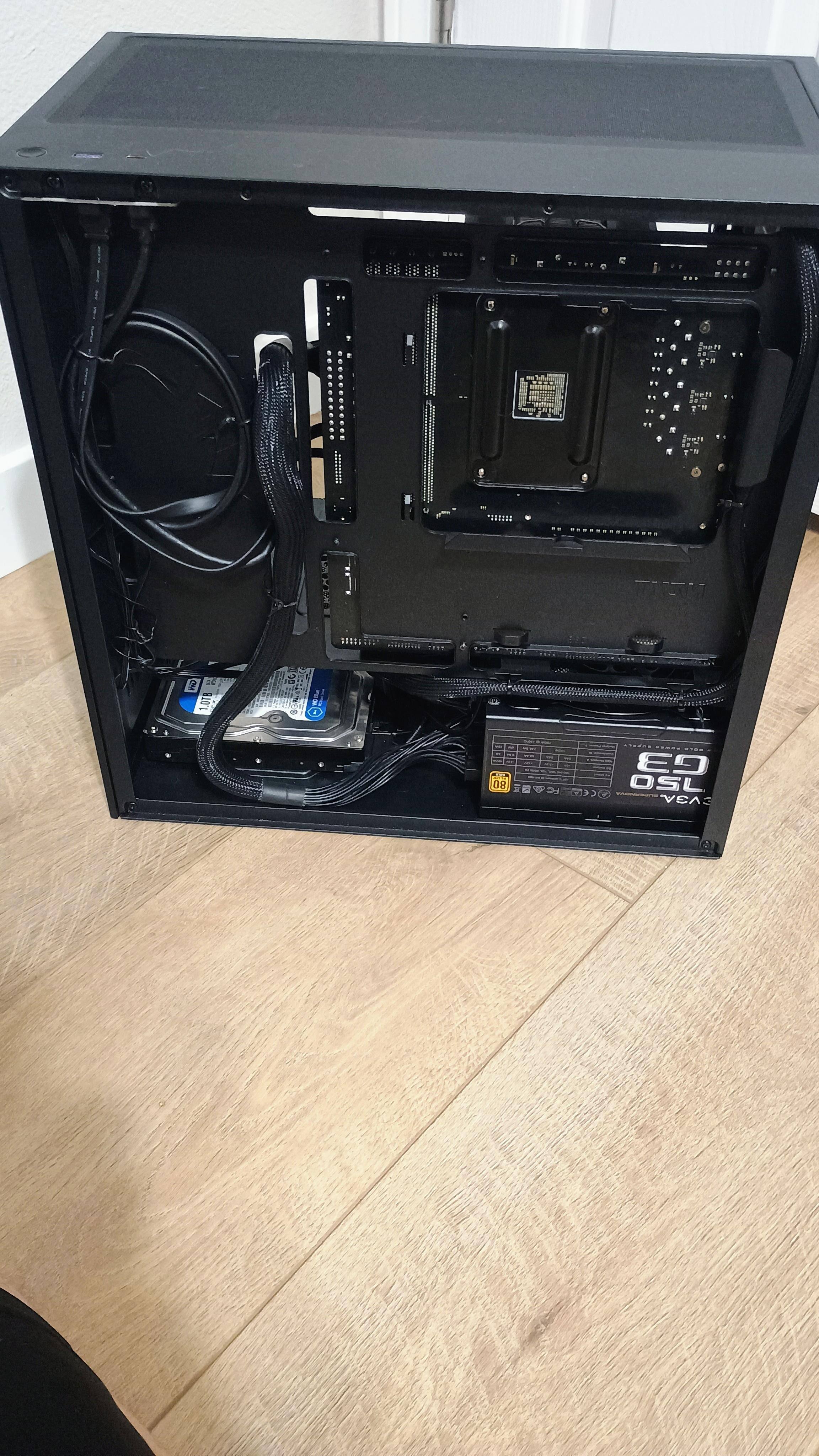

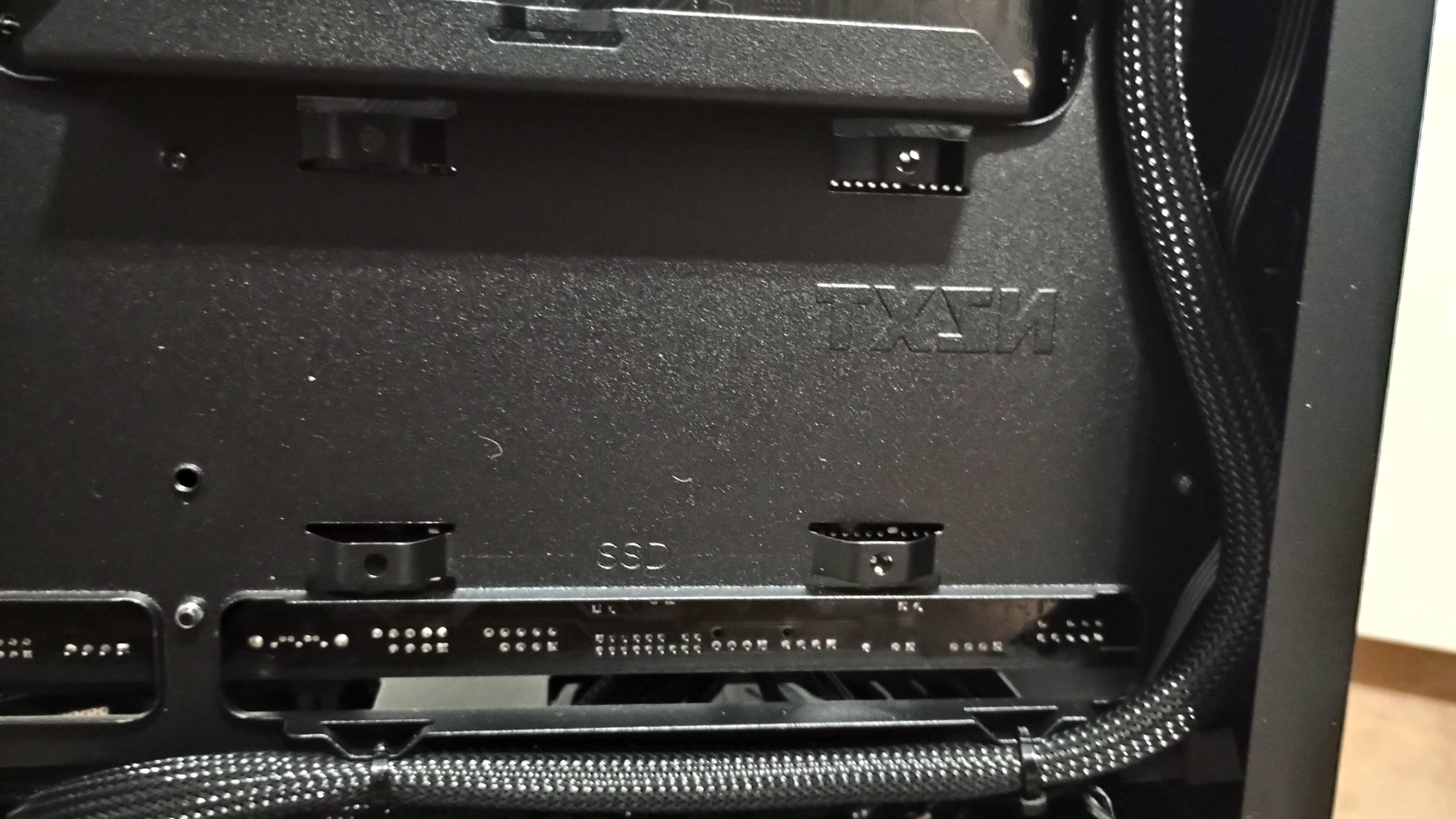

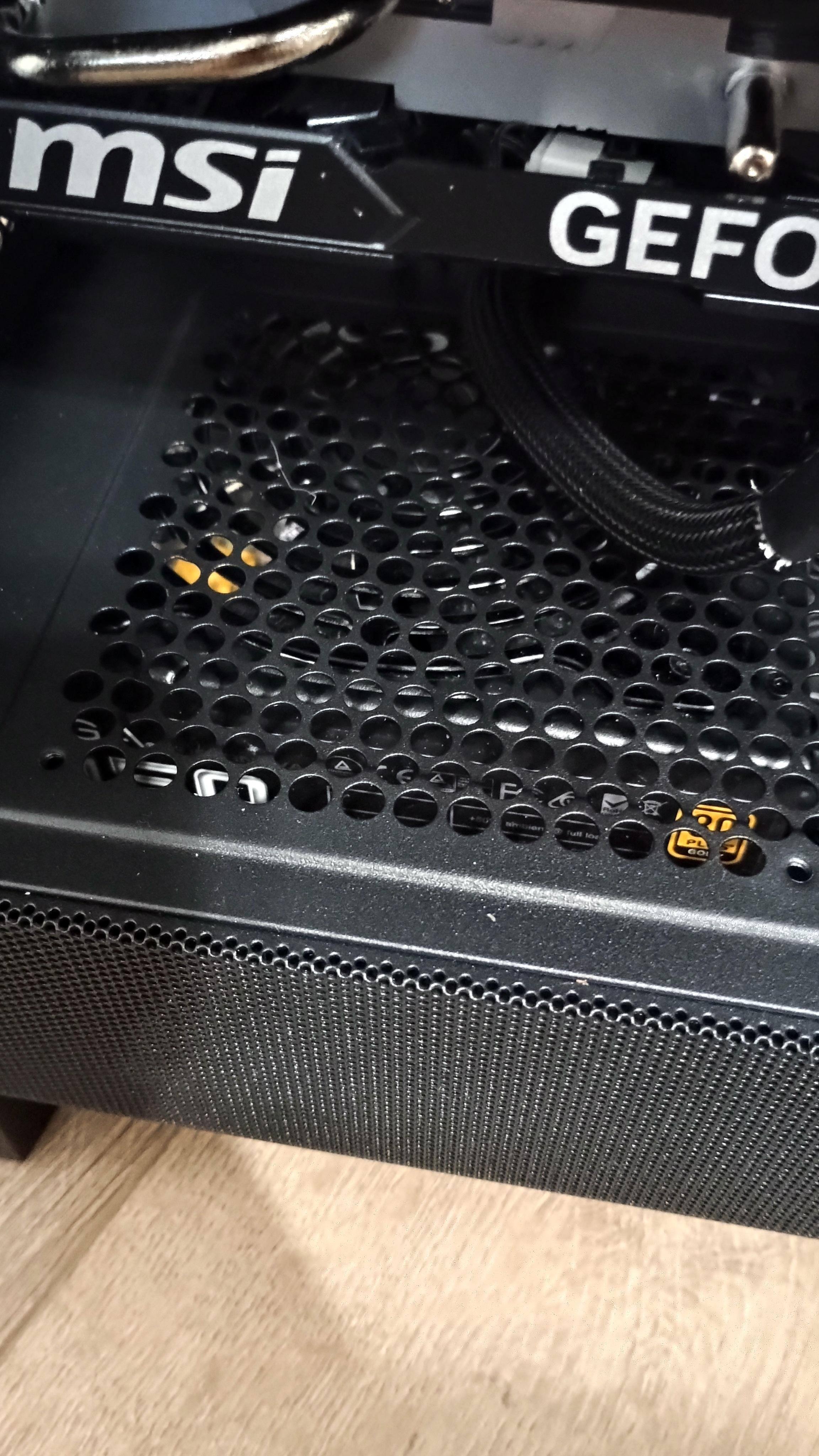

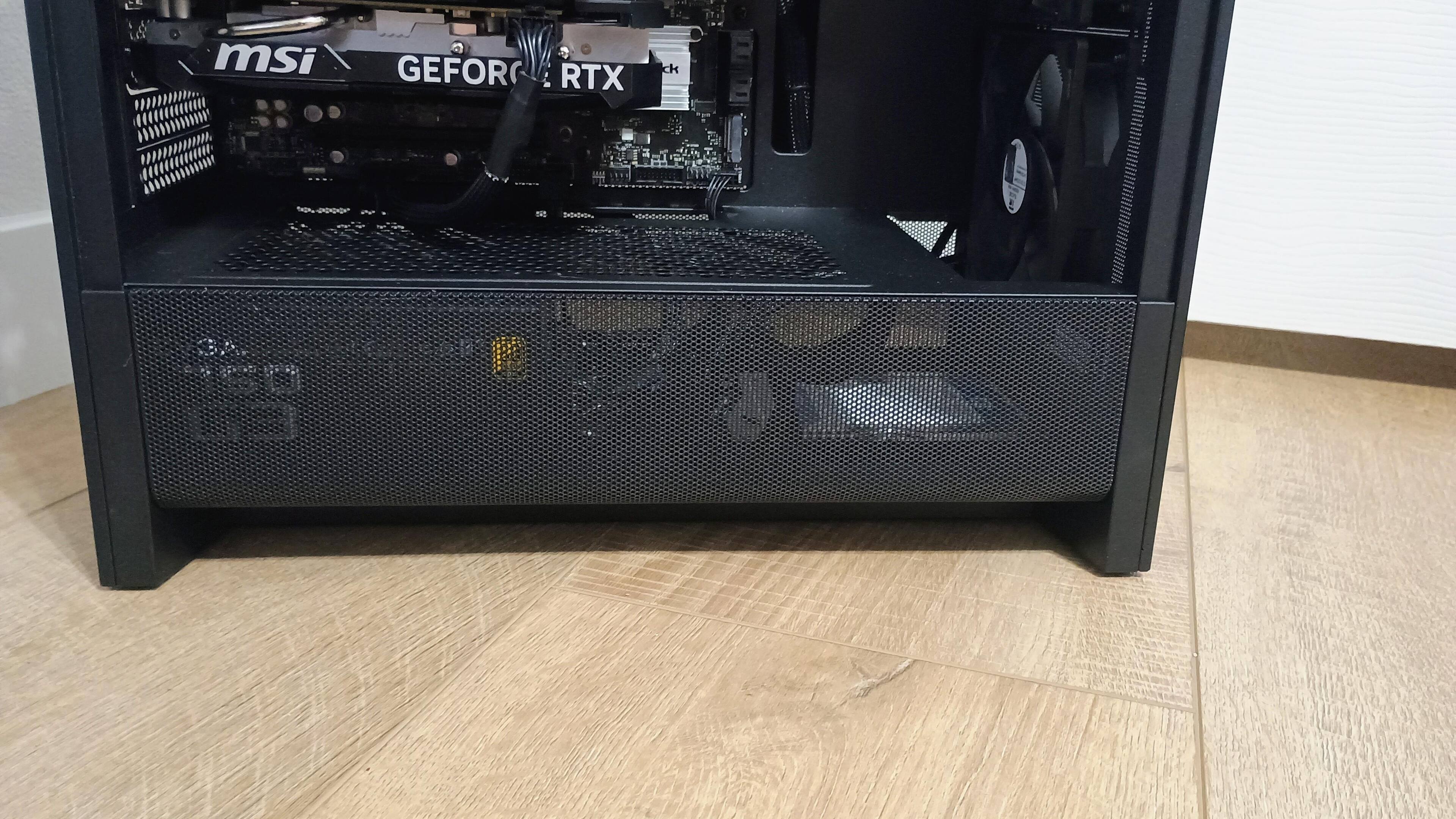

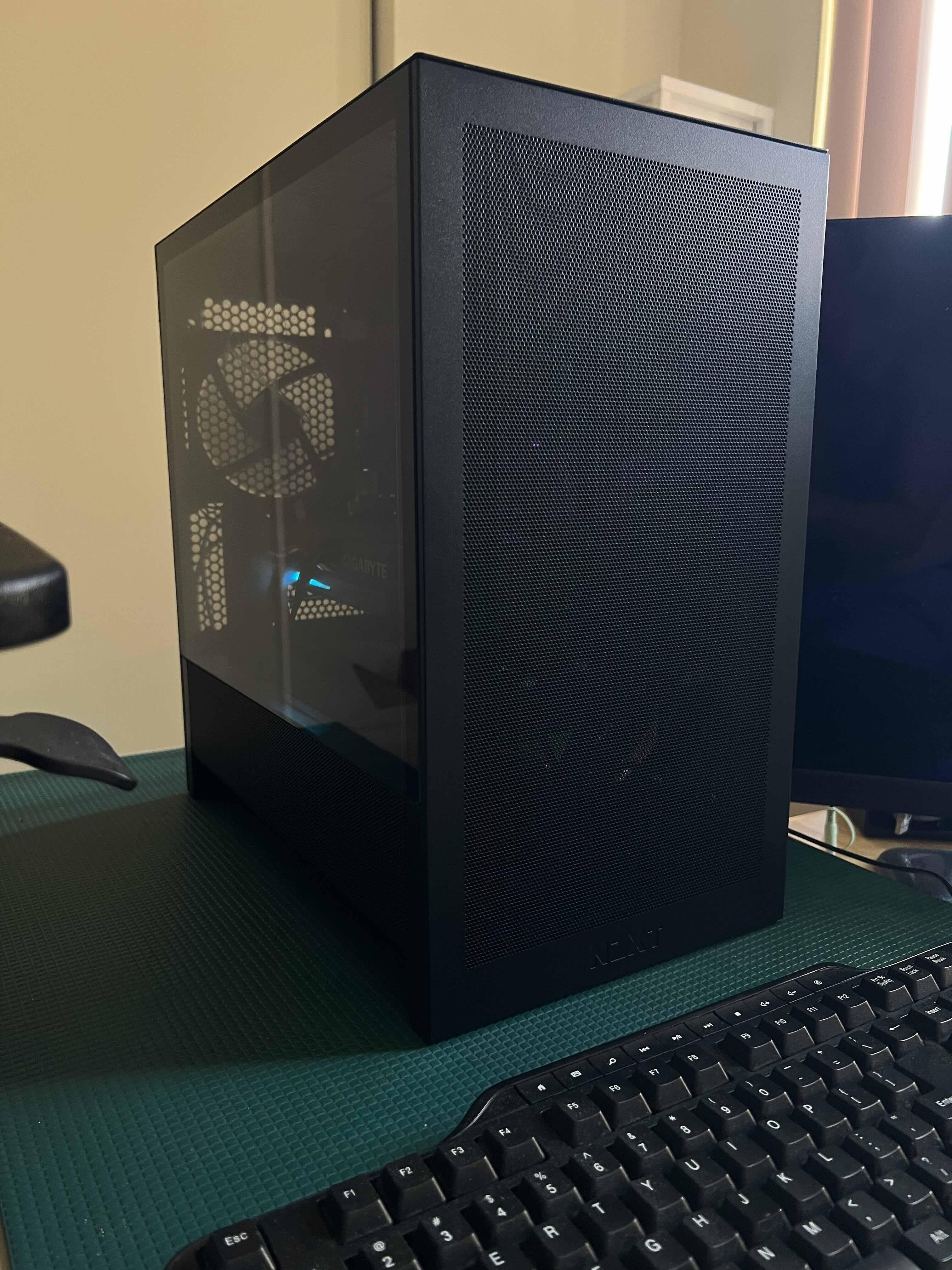

Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Nice, small, cool-looking case.
Small, but lots of airflow. Easy to build in. Excellent case! Attractive design.
Posted by Gamerplayer1
- Rated 5 out of 5 stars
Fantastic somewhat small case
Despite the controversy surrounding their PC rental program, I really like this new case from them! It's super good looking in person and seems to have incredibly good airflow. NZXT is filling a niche here for people like me who still like Micro ATX towers over full ATX towers without it being a cheap, low quality, piece of garbage. My pervious case was one of those pieces of garbage's in question, and after swapping into the new case, the PSU fan kicks on a lot less and the GPU hotspot temperature dropped 10C!
This review is from NZXT - H3 Flow Micro-ATX High-Airflow PC Case - White
Posted by ZacharyM
- Rated 5 out of 5 stars
Nice case
The case is rather nice obviously it’s NZXT it fit my brand new 9060 XT 16 gig and a nice tower cooler from thermal right quite spacious even has room for an AIO which is nice. Oh no tons of room especially down in the basement, great design and airflow.
Posted by WilliamS
