NZXT - H7 Flow 2024 Mid-Tower ATX PC Case - Black
Color
Black- CORSAIR - iCUE LINK LX120 RGB 120mm PWM Fan Expansion - Black$33.99The price was $44.99
More Buying Options
Related Item
Specifications
- Motherboard Form FactorATX, EATX, Mini-ITX, microATXMaximum GPU Length410 millimetersProduct Height21.43 inchesProduct Width9.6 inchesProduct Depth18.4 inchesWindow Panel(s)Panoramic, Left side, Front
- Key Specs
- Motherboard Form Factor: ATX, EATX, Mini-ITX, microATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 410 millimeters
- Product Height: 21.43 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Panoramic, Left side, Front
- Case Material: Steel
- General
- Brand: NZXT
- Model Number: CM-H72FB-01
- Product Name: H7 Flow 2024 Mid-Tower ATX PC Case
- Color: Black
- Case Material: Steel
- Assembly Required: No
- Compatibility
- Motherboard Form Factor: ATX, EATX, Mini-ITX, microATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 200 millimeters
- Maximum GPU Length: 410 millimeters
- Number of Expansion Slots: 7
- Ports
- USB Port Location: Top
- Number of USB Ports (Total): 3
- USB Ports: 2 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of Thunderbolt Ports (Total): 0
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 2
- Number Of Internal 3.5" Bays: 2
- Dimensions
- Product Height: 21.43 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 353.6 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Panoramic, Left side, Front
- Customizable Case Lighting: false
- Lighting Type: None
- Screwless Rail Design: true
- Cooling
- Maximum CPU Cooler Height: 185 millimeters
- Number of Fans Supported: 10
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Support: Water cooling ready
- Number of Fans Included: 3
- Radiator Support: Yes
- Liquid Cooling Ready: true
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 810074845557
The H7 Flow stays true to a traditional mid-tower design while adding bottom fan support for direct GPU cooling due to the vertically oriented PSU. Unlike dual-chamber cases, this keeps the footprint narrow and takes up less desk space. Ultra-fine perforated panels are optimized for airflow, and it's equipped with three 120mm front-mounted fans for out-of-the-box cooling.
- Ultimate Cooling Potential: With the extra height from the vertical PSU layout, the H7 Flow accommodates up to 420mm radiators in the front. Offering 360mm support up top and a maximum fan capacity of 10, it's ready to meet the cooling demands of any build.
- Quality That Endures: Crafted from high-quality steel and accented with sleek tempered glass panels, the H7 Flow is built for the long haul. Precision engineering and rigorous testing guarantee not just durability but also a case that maintains its performance and appearance for years to come.
- Building Made Easy: With the H7 Flow, you will enjoy a simplified building and tinkering experience. An intuitive cable management system, tool-less panel access, and support for ATX and EATX motherboards make working in it a breeze. Convenient top-panel I/O ports, ample drive bay options, and room for up to 400mm GPUs also make it a great choice.
Q: What is the maximum height of a CPU cooler that can be installed?
A: The maximum CPU cooler height that can be installed is 185 millimeters.
Q: How many fans are included with the case?
A: The case includes three fans.
Q: Are there any screwless rails for installing drives?
A: This PC case has a screwless rail design.
Q: What is the maximum length of a graphics card that can be installed?
A: The maximum length of a graphics card that can be installed is 410 millimeters.
Q: Does the case support liquid cooling?
A: This PC case is liquid cooling ready.
Q: Will a Noctua air cooler fit this case?
A: Hello, Thanks for question! While to certainly may depend on what Noctua cooler you are planning on using? Most if not all Noctua coolers, will fit into this case.
Q: Do the standoffs come preinstalled? Other cases seem to do this.
A: Hi Jr, Yes the standoffs come preinstalled for atx. Let us know if you have any further questions.
A: undefined
Compare similar products
The H7 Flow stays true to a traditional mid-tower design while adding bottom fan support for direct GPU cooling due to the vertically oriented PSU. Unlike dual-chamber cases, this keeps the footprint narrow and takes up less desk space. Ultra-fine perforated panels are optimized for airflow, and it's equipped with three 120mm front-mounted fans for out-of-the-box cooling.
The H5 Flow boosts airflow and GPU cooling with its fully-perforated PSU shroud, mesh panels, and robust radiator support.
The CORSAIR 3500X RS-R ARGB Mid-Tower Glass PC Case delivers bold lighting, strong airflow, and a clean, modern look with wraparound tempered glass. Three pre-installed RS-R reverse rotor fans connect via a +5V ARGB header, while its spacious interior fits large GPUs and 360mm radiators. Includes GPU support and reverse motherboard compatibility.
Experience performance with a fresh perspective. The H6 Flow's innovative compact design emphasizes GPU cooling with a strategically angled front corner, so the fans direct air where it's most needed. The panoramic glass proudly showcases the interior, while the dual-chamber layout frees up space for a cleaner look and better cooling performance.
| Pros for NZXT - H7 Flow 2024 Mid-Tower ATX PC Case - Black | |||
|---|---|---|---|
| Airflow, Cable Management, Internal Space, Size, Overall Performance | Airflow, Appearance, Build Quality, Cable Management, Internal Space | Appearance, Airflow, Case Design, Build Quality, Cable Management | Airflow, Cable Management, Case Design, Internal Space, Appearance |
| Cons for NZXT - H7 Flow 2024 Mid-Tower ATX PC Case - Black | |||
| Dust Filter | Fan Compatibility | There were no cons for this product— | Fan Compatibility, Weight |
Specs
- Acer - Nitro 60 Gaming Desktop - Intel Core i7-14700F - 32GB DDR5 Memory - NVIDIA GeForce RTX 5070 - 1TB SSD - Black$1,669.99The price was $1,899.99
Reviews
Customers are saying
Customers consistently note the H7 Flow 2024 Mid-Tower ATX PC Case excels in airflow and cable management, making it easy to build in. The size and space are appreciated, offering ample room while maintaining a simple, appealing design. However, some customers have noted the absence of certain fan features.

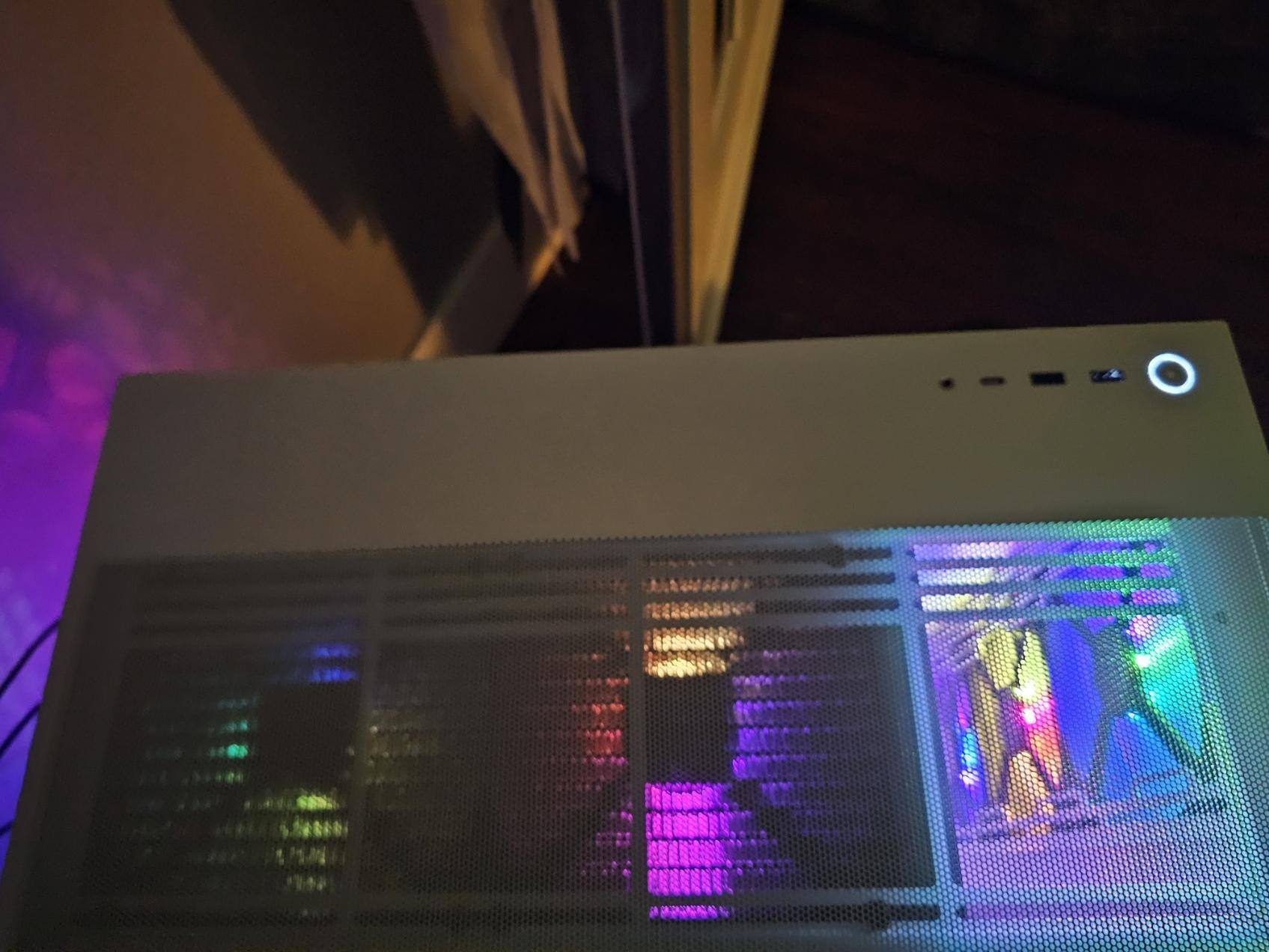

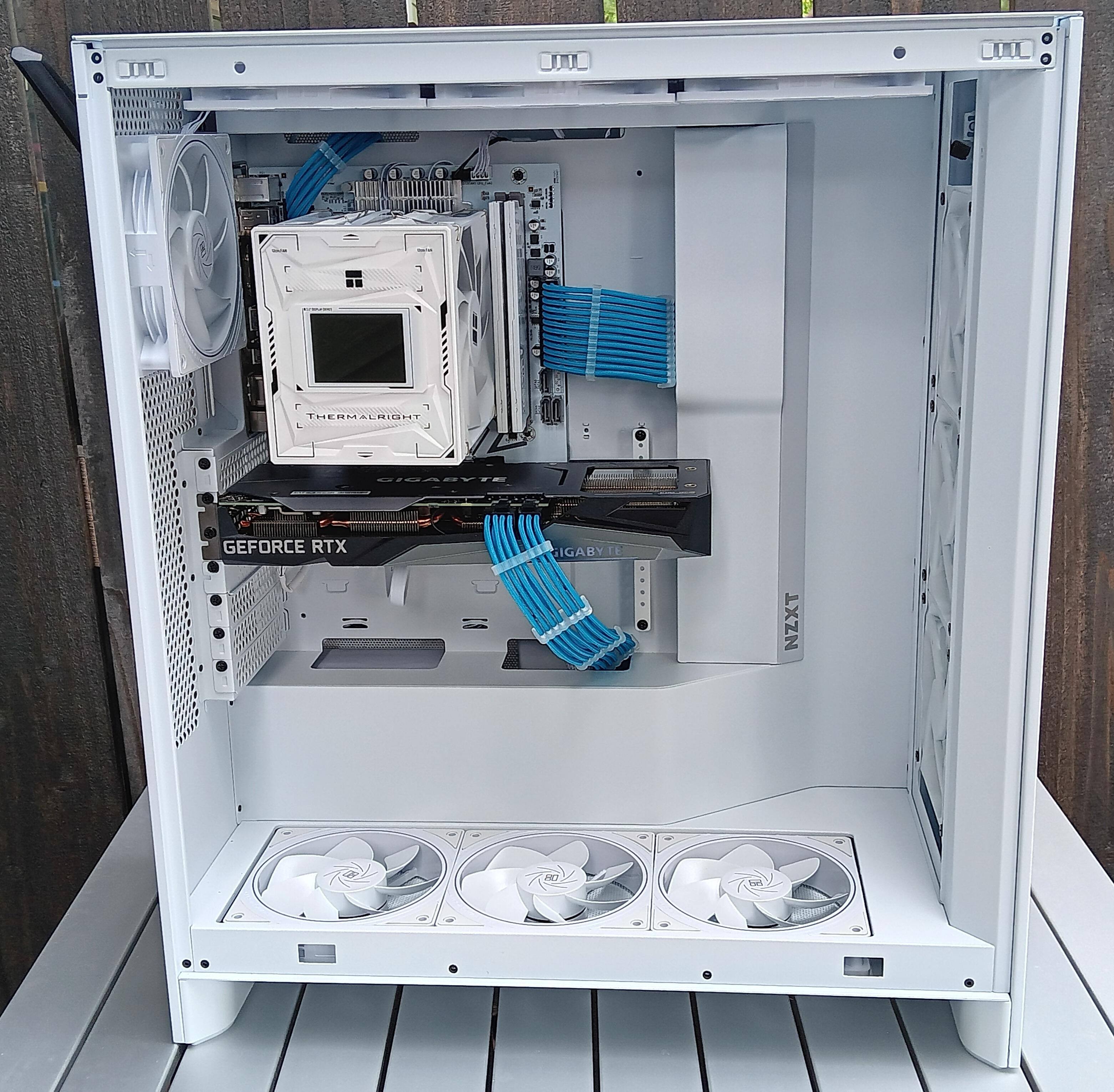

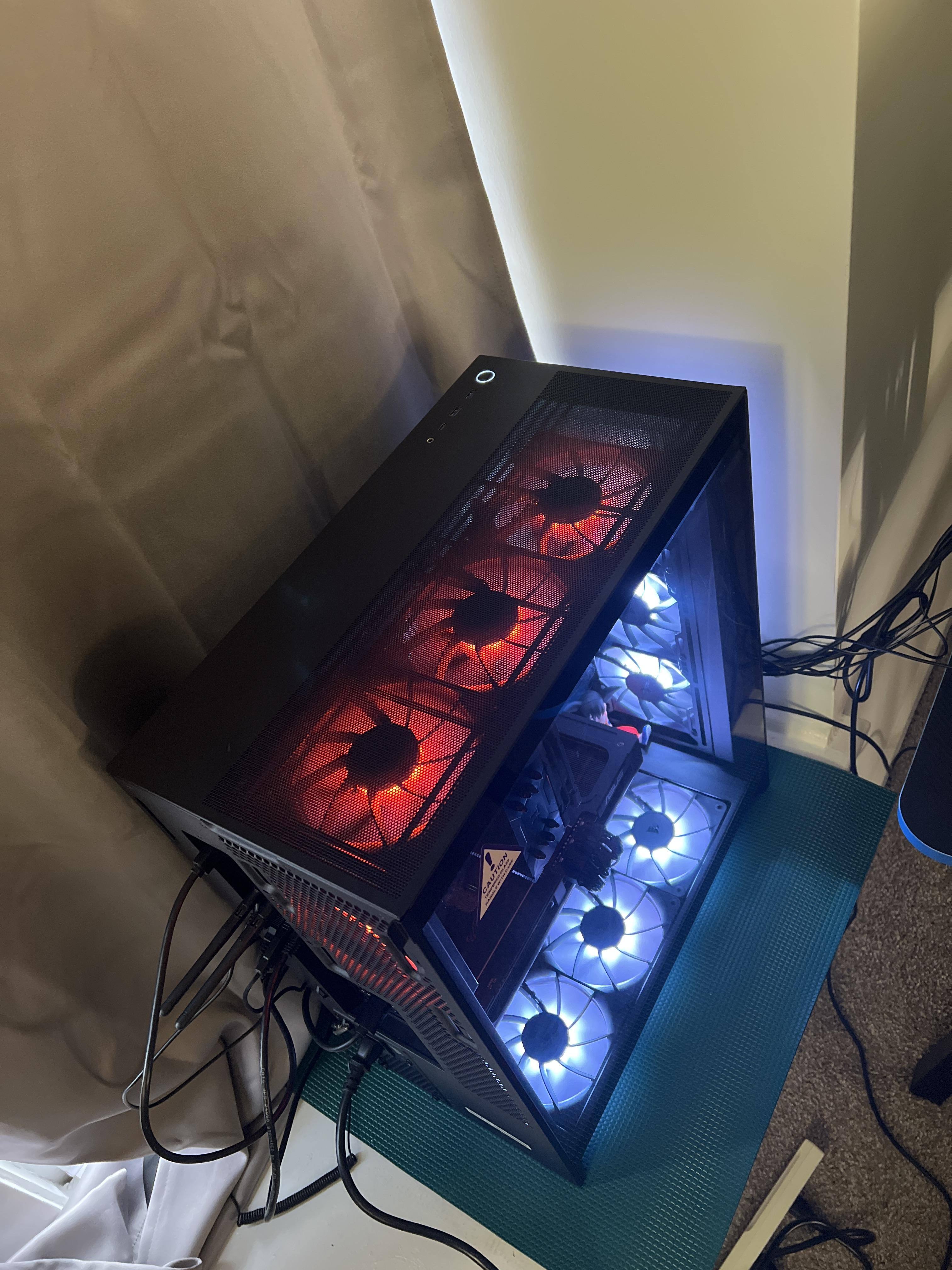

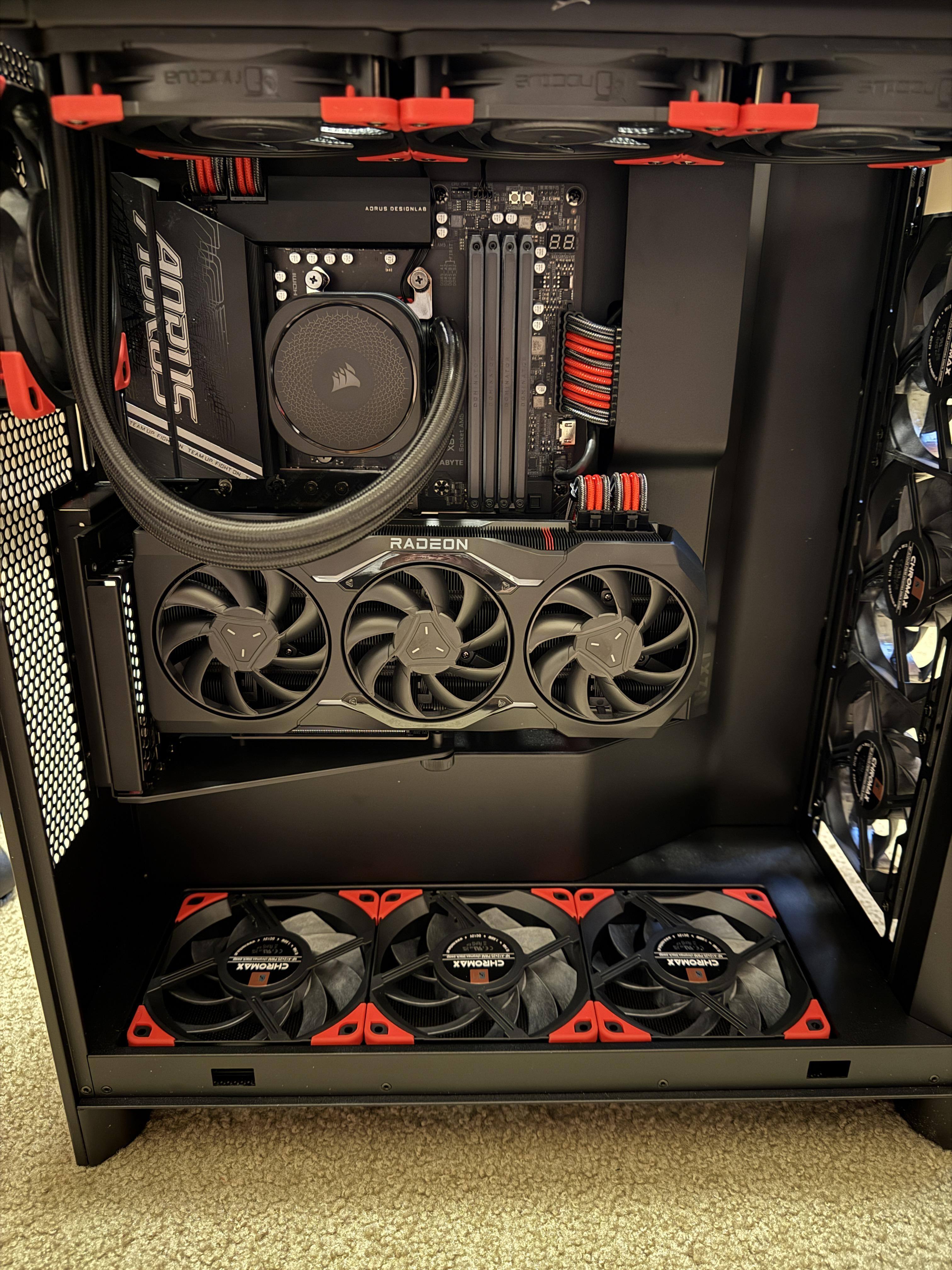

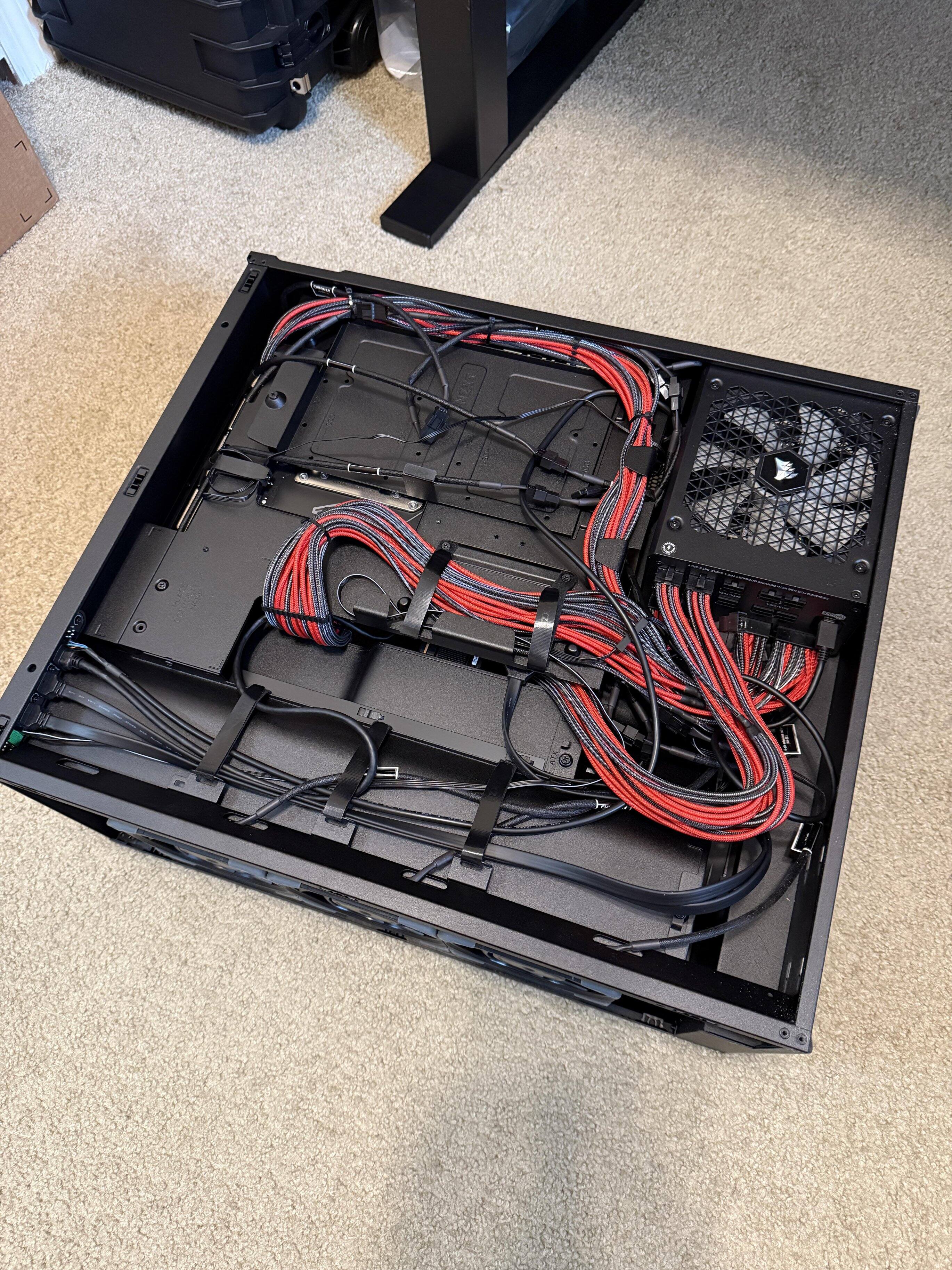

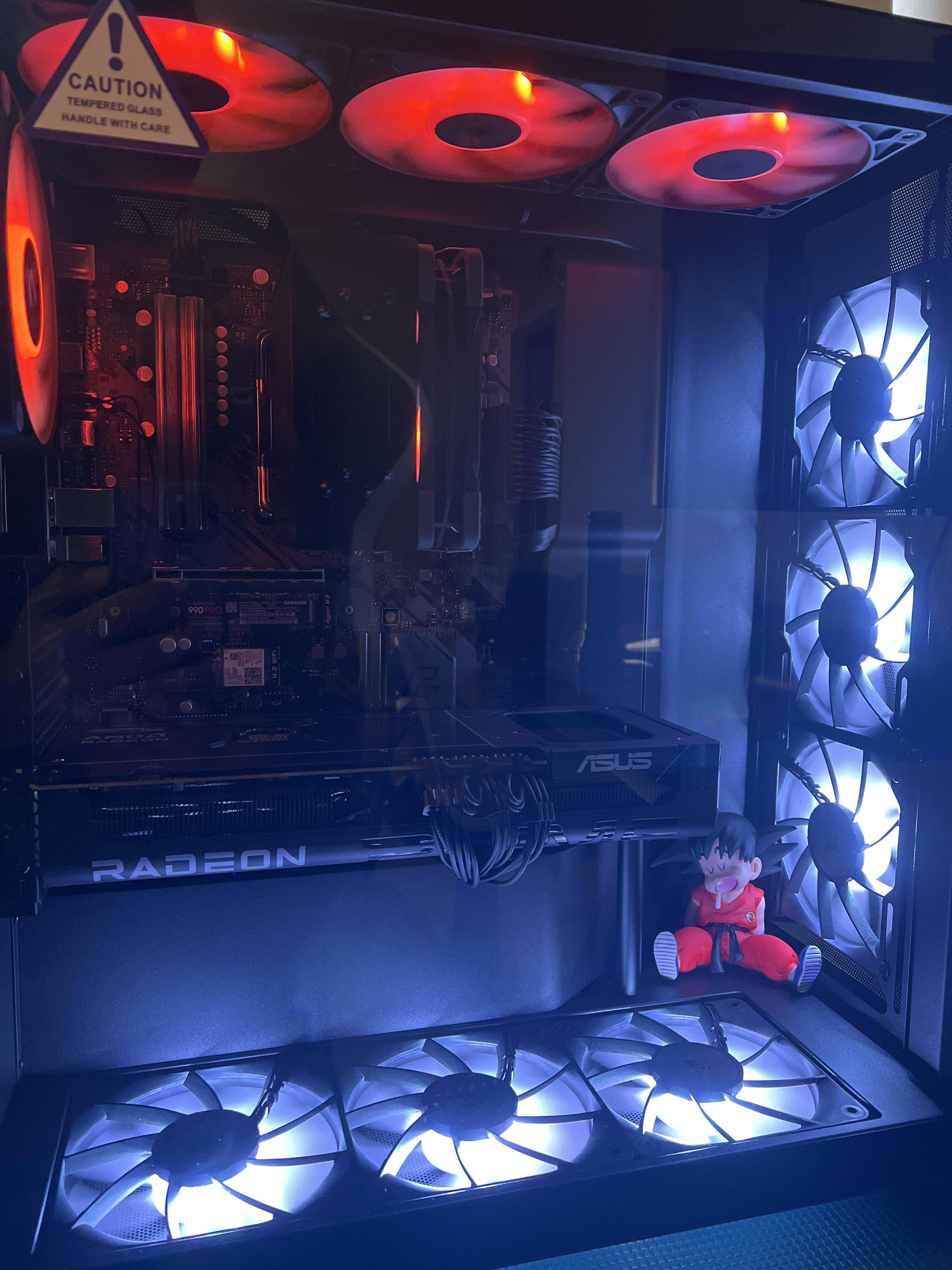

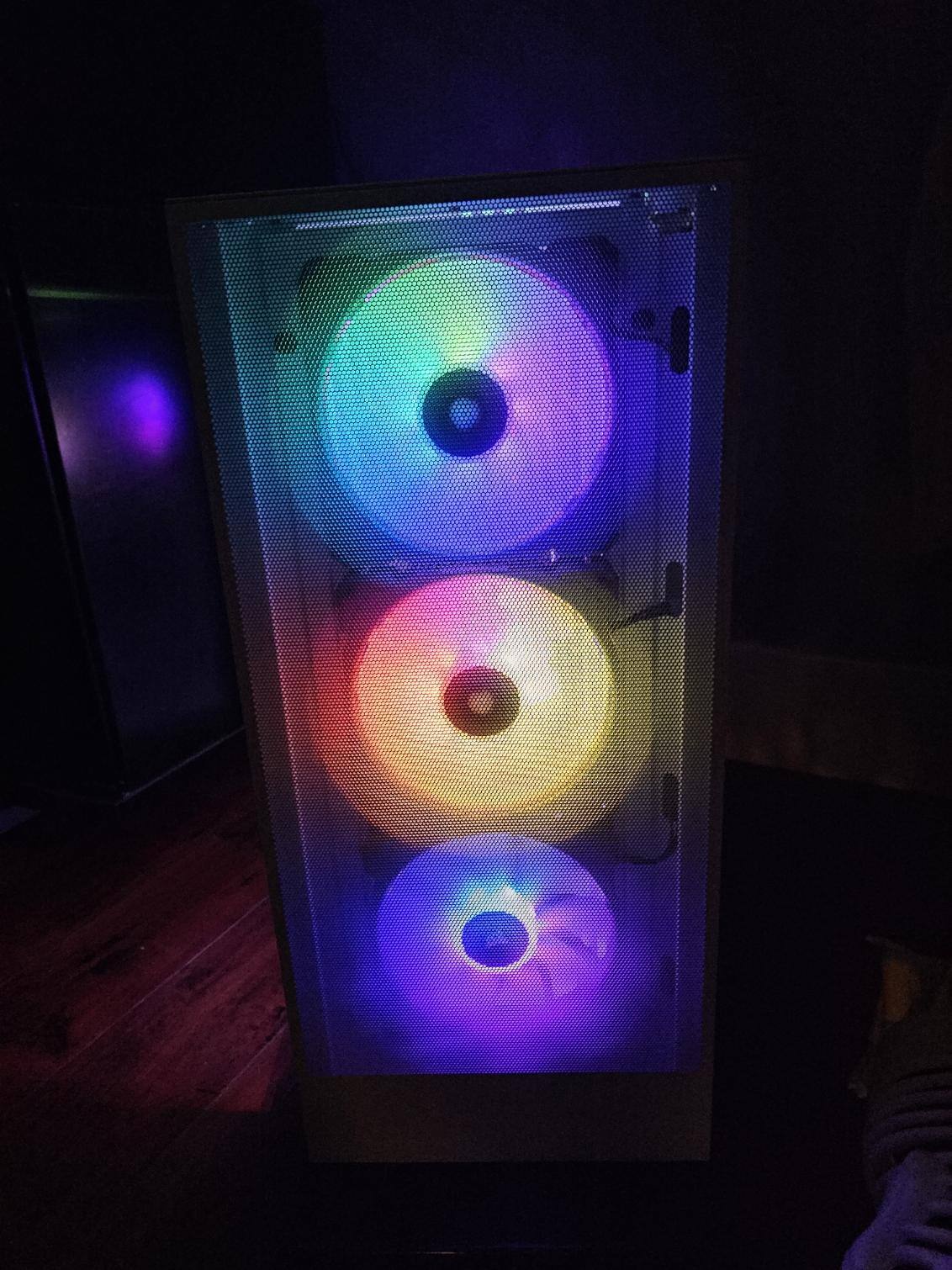

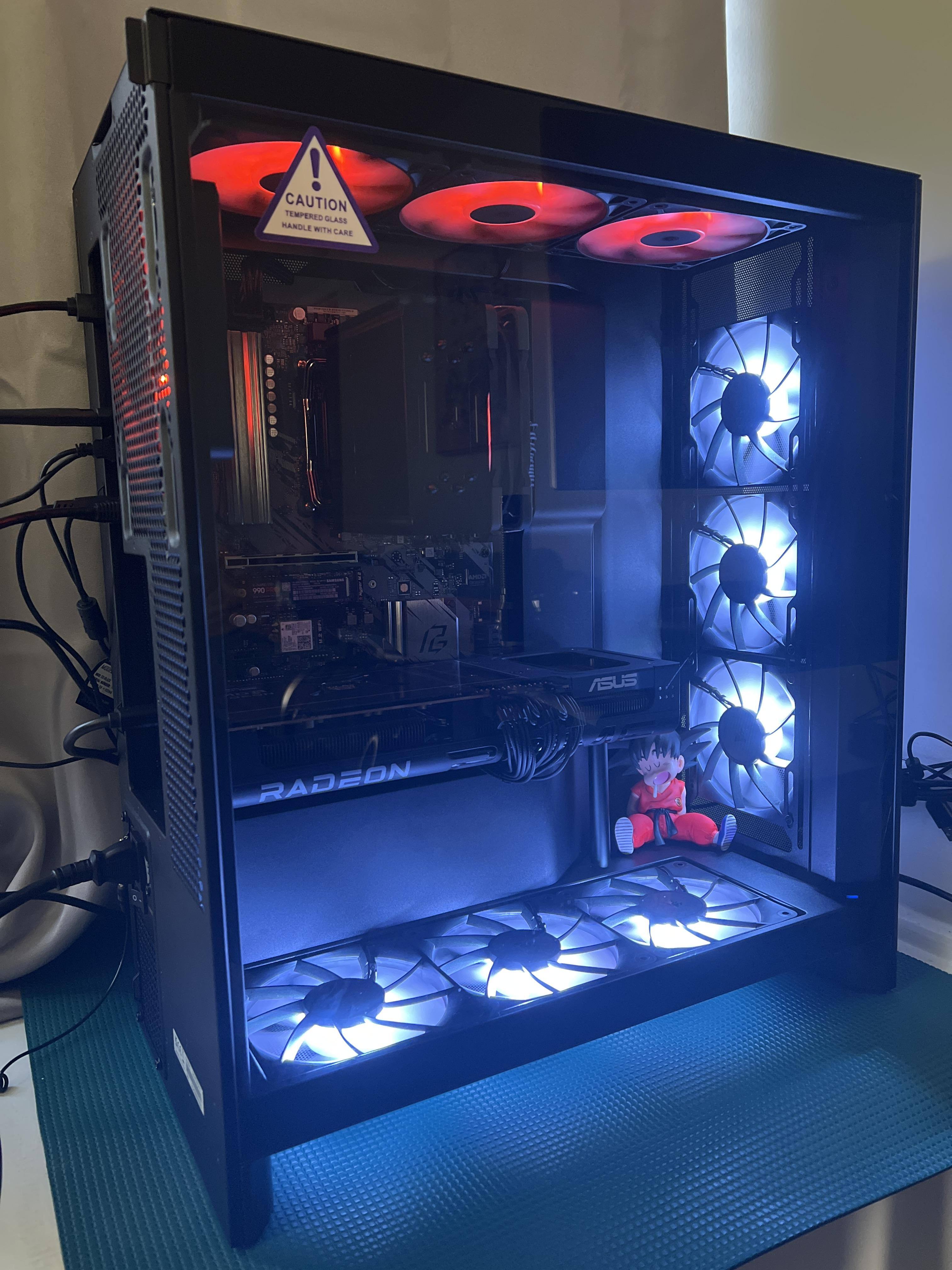

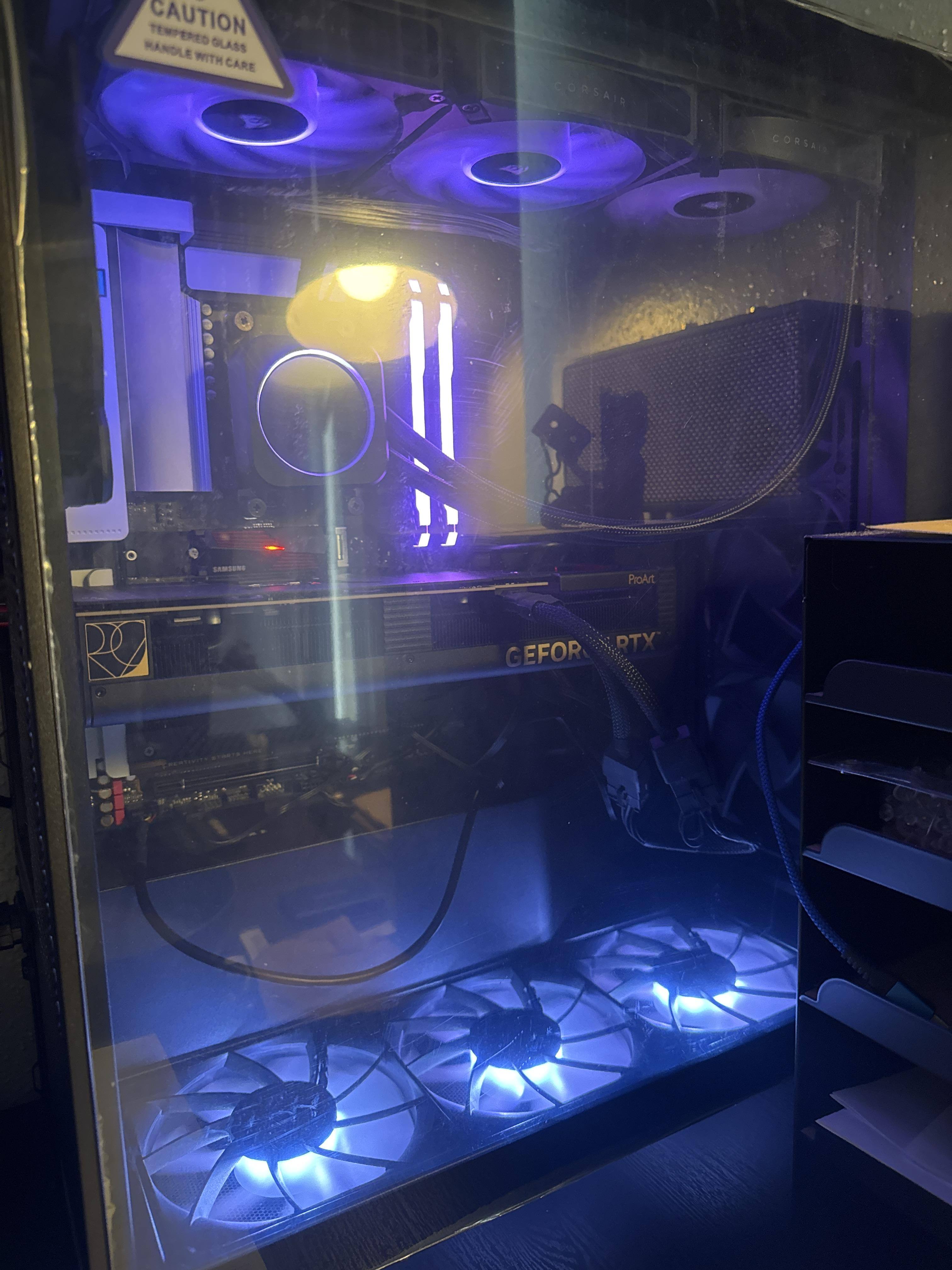

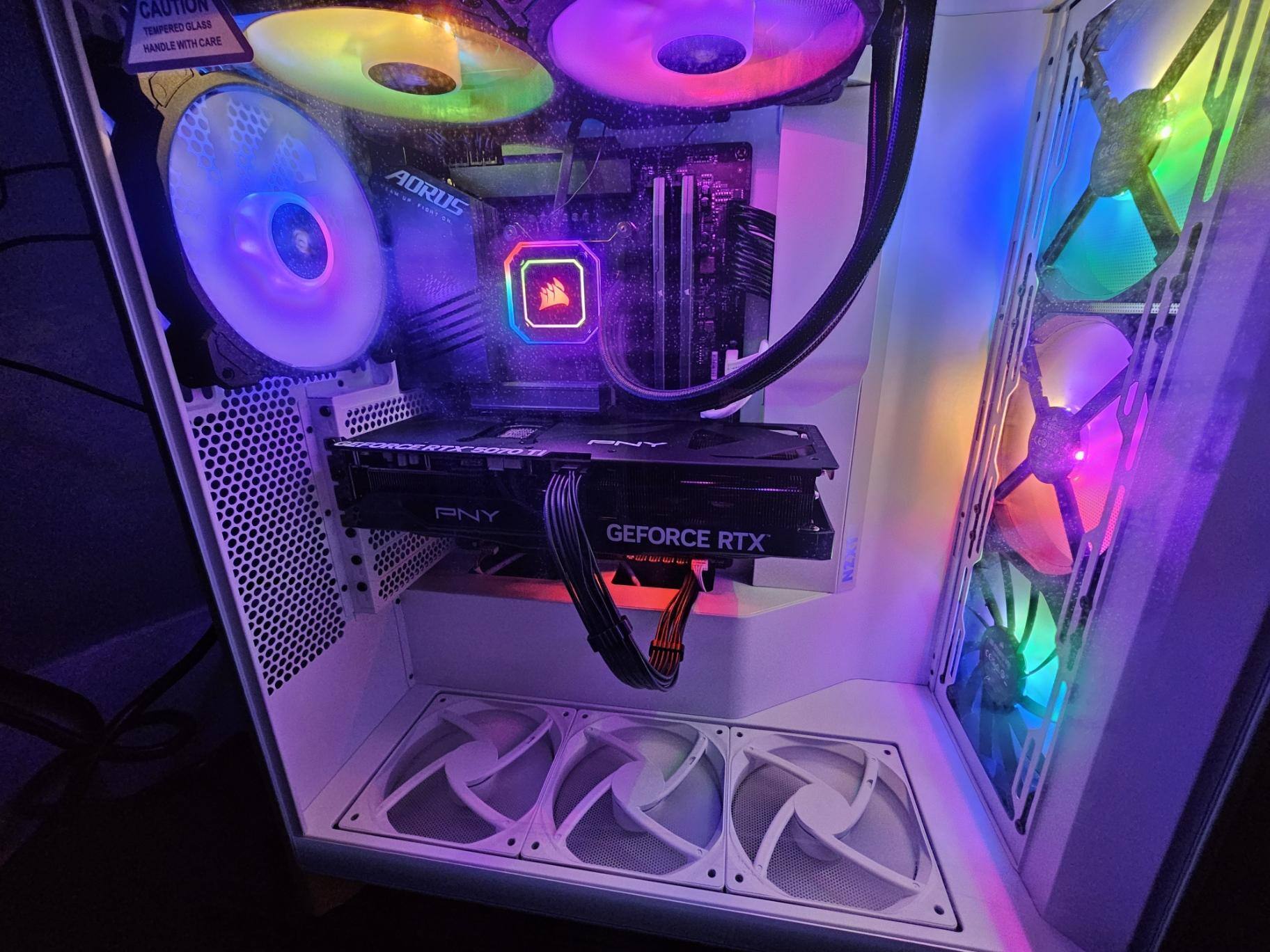

Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Massive Deal
This is a well designed case. It comes with three preinstalled fans in the front. I highly recommend using the 3 fan single frames because they look so clean in the case (seams). Tons of room for a 3-slot gpu and a 360mm aio. A white atx mobo would be preferable, as there is alot of space to fill; cable managment gets a little more entailed w/ smaller boards. There is tons of room and fastener points in the back for painfree cable mgmt. Plentiful airflow from front/bottom to top/back. Oh, and toolless panels. It's a big case tho. There is some visibility on the psu, so either go w/ a white one or be prepared to paint/vinyl wrap/defend your choice of going w/ black. I utilized best buy's price match with microcenter to get a great deal on the case. Highly recommended case; no brainer when on sale, provided u have the room to place it somewhere prominent.
This review is from NZXT - H7 Flow 2024 Mid-Tower ATX PC Case - White
tagiam Posted
- Rated 5 out of 5 stars
Buy it on sale!
Very good price when on sale. This case replaced a Cooler master haf xm from 2012 ( I have been missing out all these years!) It is very spacious and luxurious. I installed a 240mm aio cooler with ease up top. There's much room for the cpu cables in the upper left corner for my atx mobo. My 3080ti fit well but was replaced with a 5070ti shortly after (length decreased a bit). The cable management is awesome and makes everything look tidy. The side mounted PSU is cool and gets it out of the way. Theirs a mobo cable bar that can be taken off if needed I had to in order to get the cables relaxed to fit. I did install an HDD in the back slot and an SSD. I used a corsair commander core and mounted it on the spot that was labeled controller. I took the 3 included case fans (which are silent even running at 1500rpms) and put them on the gpu intake. The case stays cool even about 10 degrees cooler than my old case. I also had 8 fans in my old case vs the 9 now. This new case is now a little taller but shorter than the previous one. I don't see much dust accumulation yet but only time will tell as other have mentioned the supposed intakes are filtered but without an actual filter.
This review is from NZXT - H7 Flow 2024 Mid-Tower ATX PC Case - White
shayla Posted
- Rated 5 out of 5 stars
H7 flow
This is a great case, plenty of space, great airflow. Amazing cable management. Looks nice. Stop thinking, this is your case.
JoseM Posted
