NZXT - H9 Flow 2025 ATX Mid-Tower Dual-Chamber PC Case - Black
NZXT - H9 Flow 2025 ATX Mid-Tower Dual-Chamber PC Case - Black
Color
BlackMore Buying Options
Related Item
Specifications
- Motherboard Form FactorATXMaximum GPU Length459 millimetersProduct Height19.9 inchesProduct Width12.4 inchesProduct Depth18.9 inchesWindow Panel(s)Panoramic, Left side, Front
- Key Specs
- Motherboard Form Factor: ATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 459 millimeters
- Product Height: 19.9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12.4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Panoramic, Left side, Front
- Case Material: Steel
- General
- Brand: NZXT
- Model Number: CM-H92FB-01
- Product Name: NZXT - H9 Flow 2025 ATX Mid-Tower Dual-Chamber PC Case
- Color: Black
- Case Material: Steel
- Assembly Required: No
- Compatibility
- Motherboard Form Factor: ATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 200 millimeters
- Maximum GPU Length: 459 millimeters
- Number of Expansion Slots: 7
- Ports
- Number of USB Ports (Total): 3
- USB Ports: 2 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of Thunderbolt Ports (Total): 0
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Dimensions
- Product Height: 19.9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12.4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 439.51 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Panoramic, Left side, Front
- Customizable Case Lighting: true
- Lighting Type: RGB
- Screwless Rail Design: true
- Cooling
- Maximum CPU Cooler Height: 165 millimeters
- Number of Fans Supported: 10
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Support: Water cooling ready
- Number of Fans Included: 4
- Radiator Support: Yes
- Liquid Cooling Ready: true
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 810074847858
The H9 Flow is a spacious mid-tower ATX case designed for high-performance builds, offering a balanced blend of airflow and aesthetics. Its dual-chamber design enhances cooling efficiency and cable management, while fine-mesh perforated panels, angled fans, and generous radiator and fan capacity deliver optimal thermal performance.

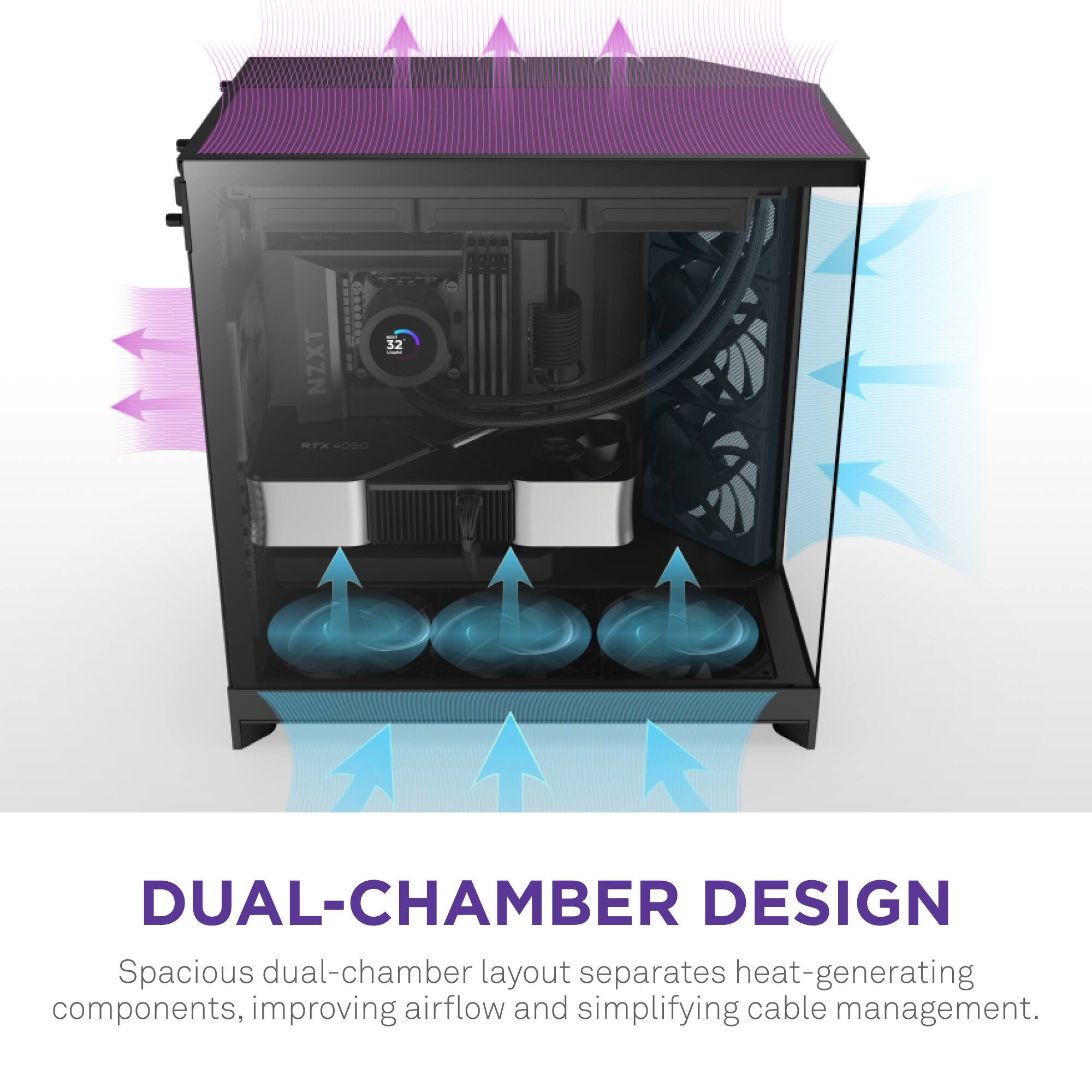

- Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.
- Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.
- Includes three F140Q (CV) fans in the front-right and one F120Q (CV) fan in the rear.: Three optimally angled F140Q (CV) fans and one F120Q (CV) rear fan

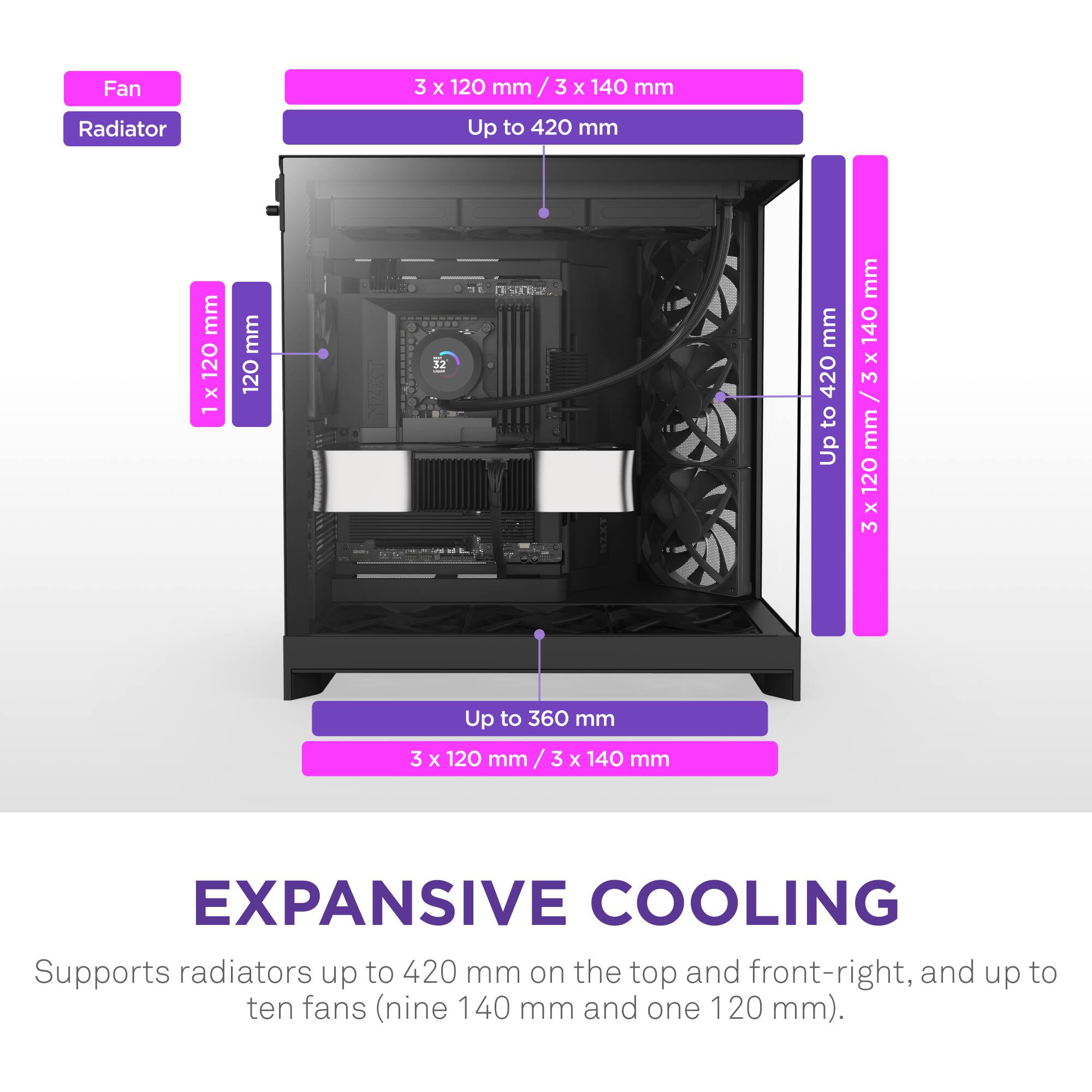

- Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.

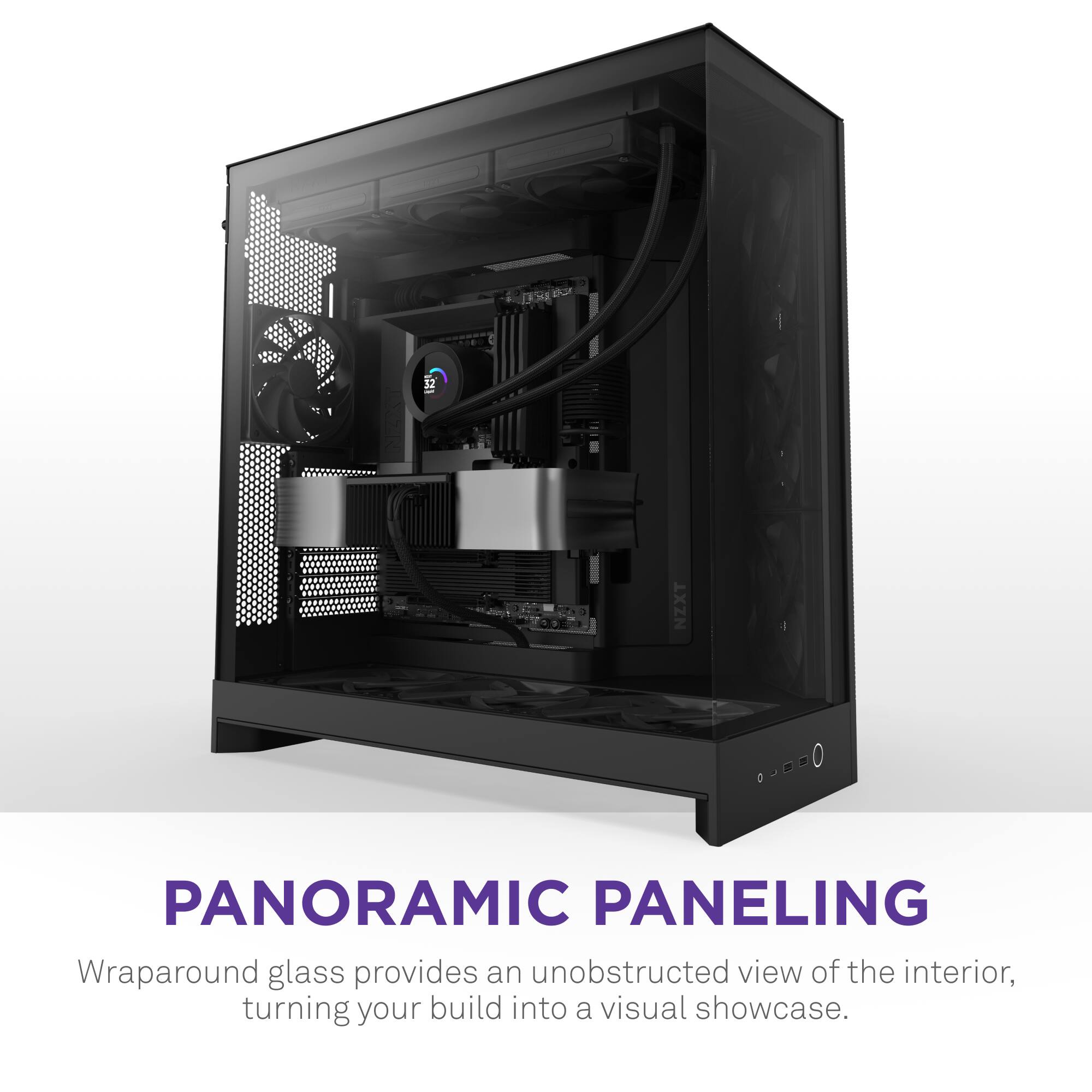

- Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling.
- Larger Radiators and GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.

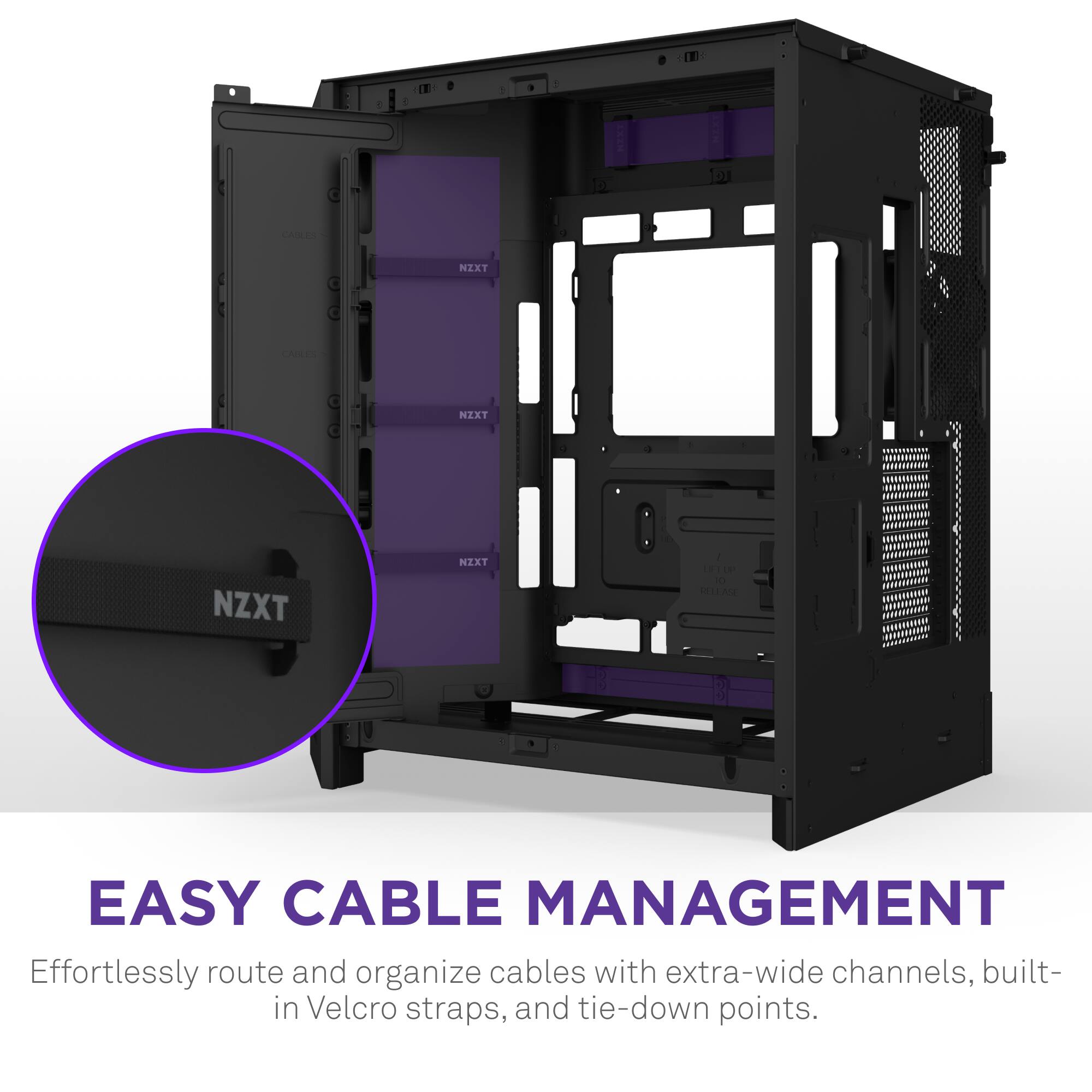

- Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.

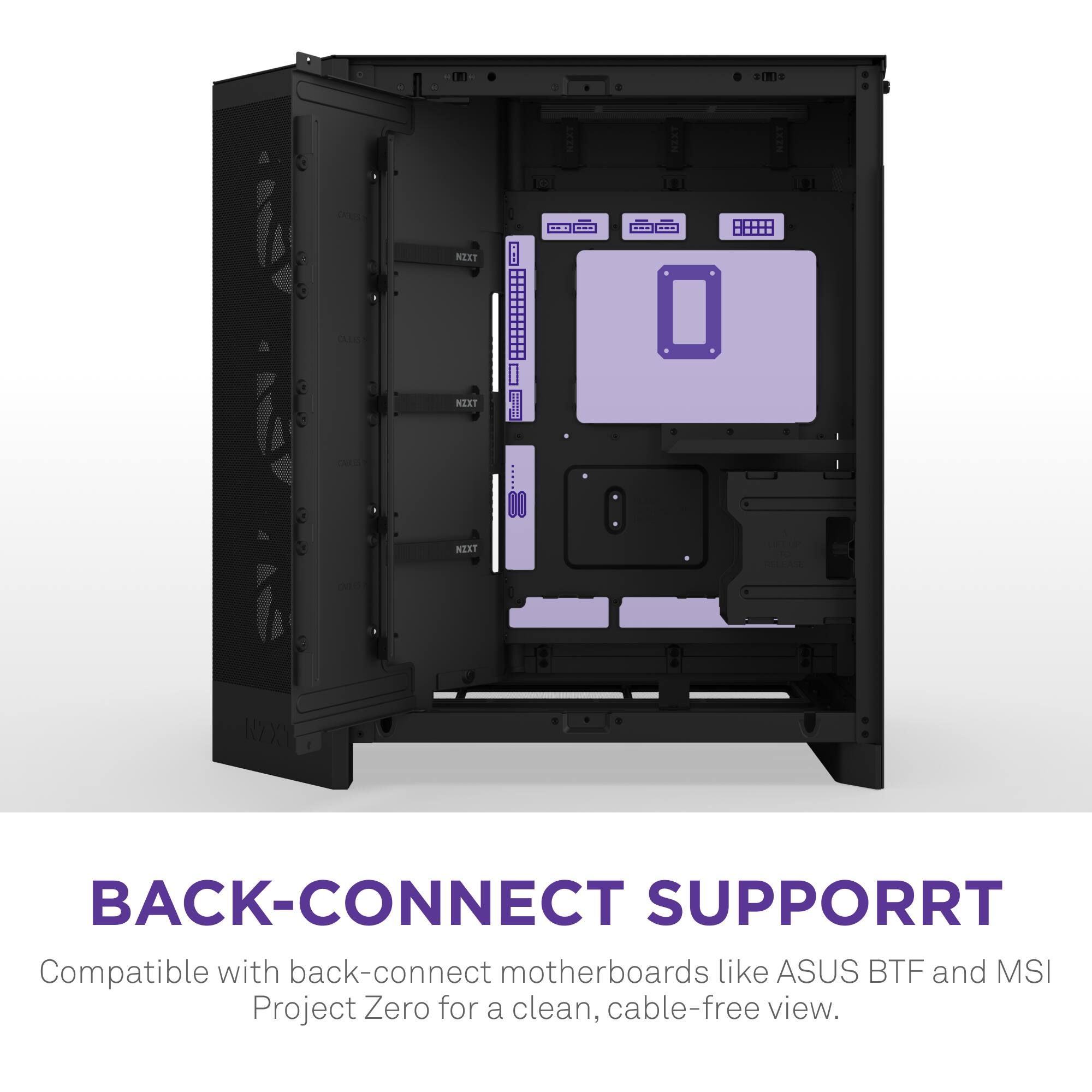

- Back-Connect Motherboard Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.
- Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.
- Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.
- Includes three F140Q (CV) fans in the front-right and one F120Q (CV) fan in the rear.: Three optimally angled F140Q (CV) fans and one F120Q (CV) rear fan
- Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.
- Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling.
- Larger Radiators and GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.
- Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.
- Back-Connect Motherboard Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.
Q: Does it come with power supply?
A: ofc not its a case
Compare similar products
The H9 Flow is a spacious mid-tower ATX case designed for high-performance builds, offering a balanced blend of airflow and aesthetics. Its dual-chamber design enhances cooling efficiency and cable management, while fine-mesh perforated panels, angled fans, and generous radiator and fan capacity deliver optimal thermal performance.
NZXT CM-H92FB-R1 Black tinted tempered glass Mid-Tower Case (Computer Cases - ATX Form)
The CORSAIR 3500X RS-R ARGB Mid-Tower Glass PC Case delivers bold lighting, strong airflow, and a clean, modern look with wraparound tempered glass. Three pre-installed RS-R reverse rotor fans connect via a +5V ARGB header, while its spacious interior fits large GPUs and 360mm radiators. Includes GPU support and reverse motherboard compatibility.
The H7 Flow stays true to a traditional mid-tower design while adding bottom fan support for direct GPU cooling due to the vertically oriented PSU. Unlike dual-chamber cases, this keeps the footprint narrow and takes up less desk space. Ultra-fine perforated panels are optimized for airflow, and it's equipped with three 120mm front-mounted fans for out-of-the-box cooling.
| Pros for NZXT - H9 Flow 2025 ATX Mid-Tower Dual-Chamber PC Case - Black | |||
|---|---|---|---|
| Airflow, Internal Space, Size, Cable Management, Ease of Assembly | There were no pros for this product— | Airflow, Cable Management, Appearance, Case Design, Build Quality | Airflow, Cable Management, Internal Space, Size, Overall Performance |
| Cons for NZXT - H9 Flow 2025 ATX Mid-Tower Dual-Chamber PC Case - Black | |||
| There were no cons for this product— | There were no cons for this product— | There were no cons for this product— | Dust Filter |
Specs
Reviews
Customers are saying
Customers have good things to say about the H9 Flow 2025 ATX Mid-Tower Dual-Chamber PC Case, particularly its excellent airflow and generous internal space. Users appreciate that it's easy to build in, and the cable management is also a standout feature. The size of the case is also well-received by many.

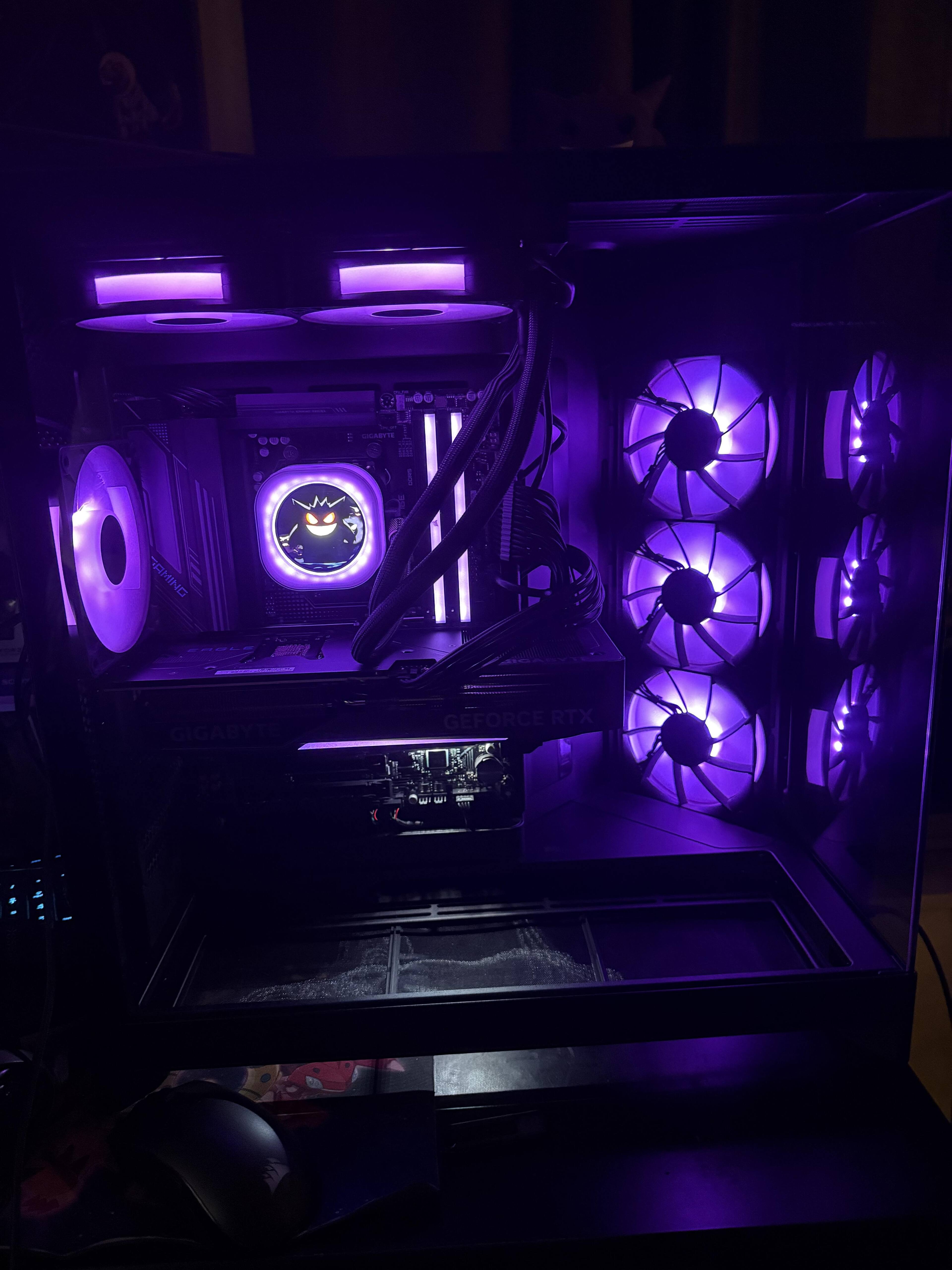

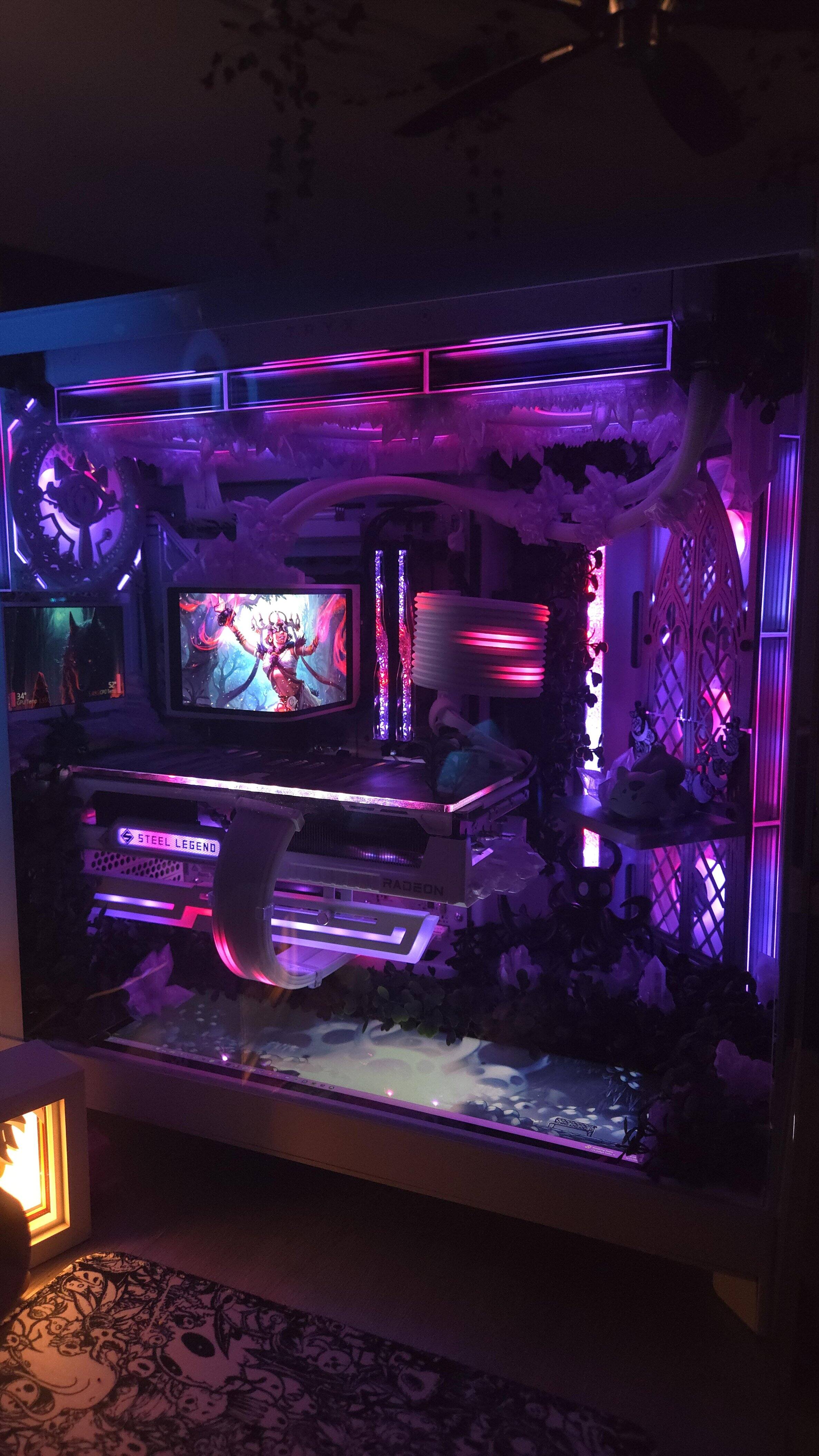

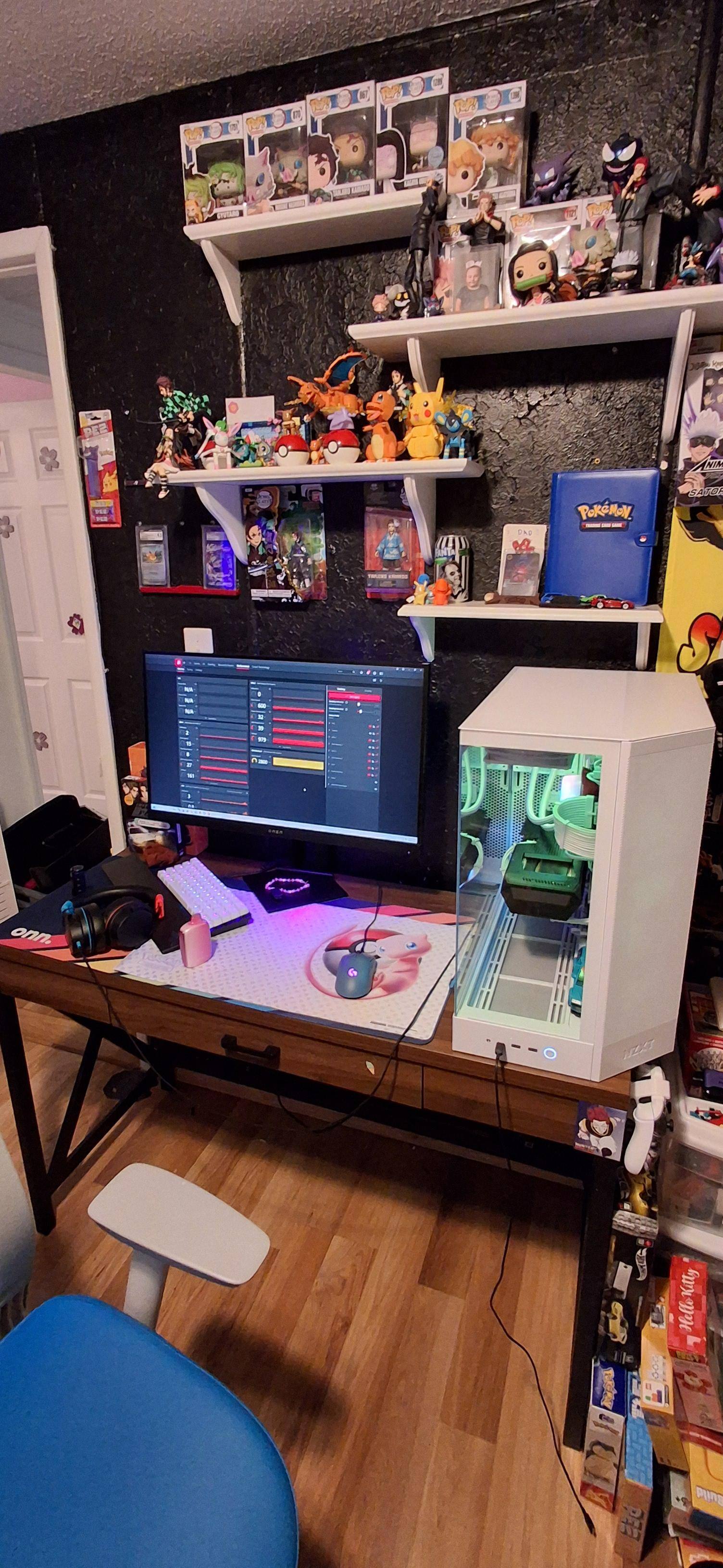

Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
King of cooling 140mm all around
Great case for massive airflow and cooling gains. Personally found 5-10 degree drop between cpu and gpu when moving from the 2021 h5 flow case owned previously. Very easy case for beginers to build in. Plenty of room due to duel chamber. Massive cooling gains!!!
EricS Posted
- Rated 5 out of 5 stars
Plenty of room, looks great
Spacious case with it being dual chamber. It's huge, so expect that. There are self retaining thumb screws for the top and two side panels that make removal pretty easy. The mesh panel in front of the 3 stack vertical fans is retained with 1 phillips head screw, and slides right down into place - you can also remove the fan retaining cage from the case with 2x phillips head screws. The front glass uses 3x phillips head screws and slides into place, though you probably won't be taking those off often. The case has room for nearly any configuration you can imagine. Currently, I'm running a side mounted AIO with a push/pull configuration, 3 bank of fans mounted on the top and bottom of the case with an exhaust in the rear. My MOBO is an MATX, so it gives more room, but doesn't even need it, really. Cable management is super easy as well as there is a swing type panel that lets you hide fan controllers, usb extensions, etc. The only thing to watch out for is when using 140mm fans, if you have odd connectors like lian li slide/lock type, you might have to alter the footprint of the connector to get them to fit. I just use 120mm, no headache that way.
Richard Posted
- Rated 5 out of 5 stars
Big Beautiful Case
I love this case, it’s so easy to build and honestly beautifully BIG! Lot’s of space as well, I already own the H9 Flow previous model in black and will forever love these cases
This review is from NZXT - H9 Flow 2025 ATX Mid-Tower Dual-Chamber PC Case - White
CloudyMellows Posted
