NZXT - H9 Flow 2025 ATX Mid-Tower Dual-Chamber PC Case - White
Color
White
MSI - MAG A1000GL PCIE5 - Full Modular - 80 Plus Gold 1000W - ATX 3.1 Gaming Power Supply - Black$139.99$179.99
More Buying Options
Related Item
Specifications
- Motherboard Form FactorATXMaximum GPU Length459 millimetersProduct Height19.9 inchesProduct Width12.4 inchesProduct Depth18.9 inchesWindow Panel(s)Panoramic, Left side, Front
- Key Specs
- Motherboard Form Factor: ATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 459 millimeters

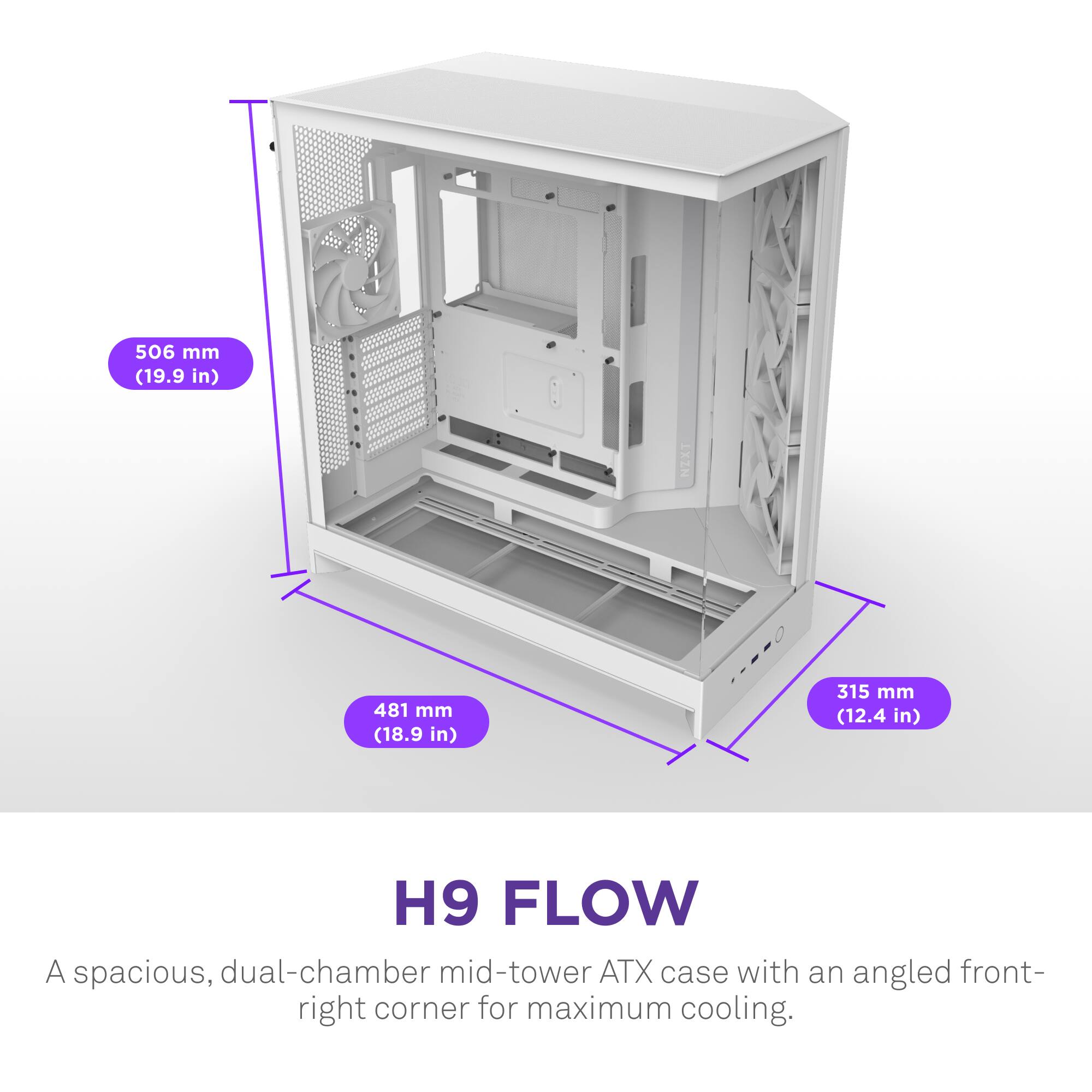

- Product Height: 19.9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12.4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Panoramic, Left side, Front
- Case Material: Steel
- General
- Brand: NZXT
- Model Number: CM-H92FW-01
- Product Name: NZXT - H9 Flow 2025 ATX Mid-Tower Dual-Chamber PC Case
- Color: White
- Case Material: Steel
- Assembly Required: No
- Compatibility
- Motherboard Form Factor: ATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 200 millimeters
- Maximum GPU Length: 459 millimeters
- Number of Expansion Slots: 7
- Ports
- Number of USB Ports (Total): 3
- USB Ports: 2 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of Thunderbolt Ports (Total): 0
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Dimensions
- Product Height: 19.9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12.4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 439.51 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Panoramic, Left side, Front
- Customizable Case Lighting: true
- Lighting Type: RGB
- Screwless Rail Design: true
- Cooling
- Maximum CPU Cooler Height: 165 millimeters
- Number of Fans Supported: 10
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Support: Water cooling ready
- Number of Fans Included: 4
- Radiator Support: Yes
- Liquid Cooling Ready: true
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 810074847841
The H9 Flow is a spacious mid-tower ATX case designed for high-performance builds, offering a balanced blend of airflow and aesthetics. Its dual-chamber design enhances cooling efficiency and cable management, while fine-mesh perforated panels, angled fans, and generous radiator and fan capacity deliver optimal thermal performance.

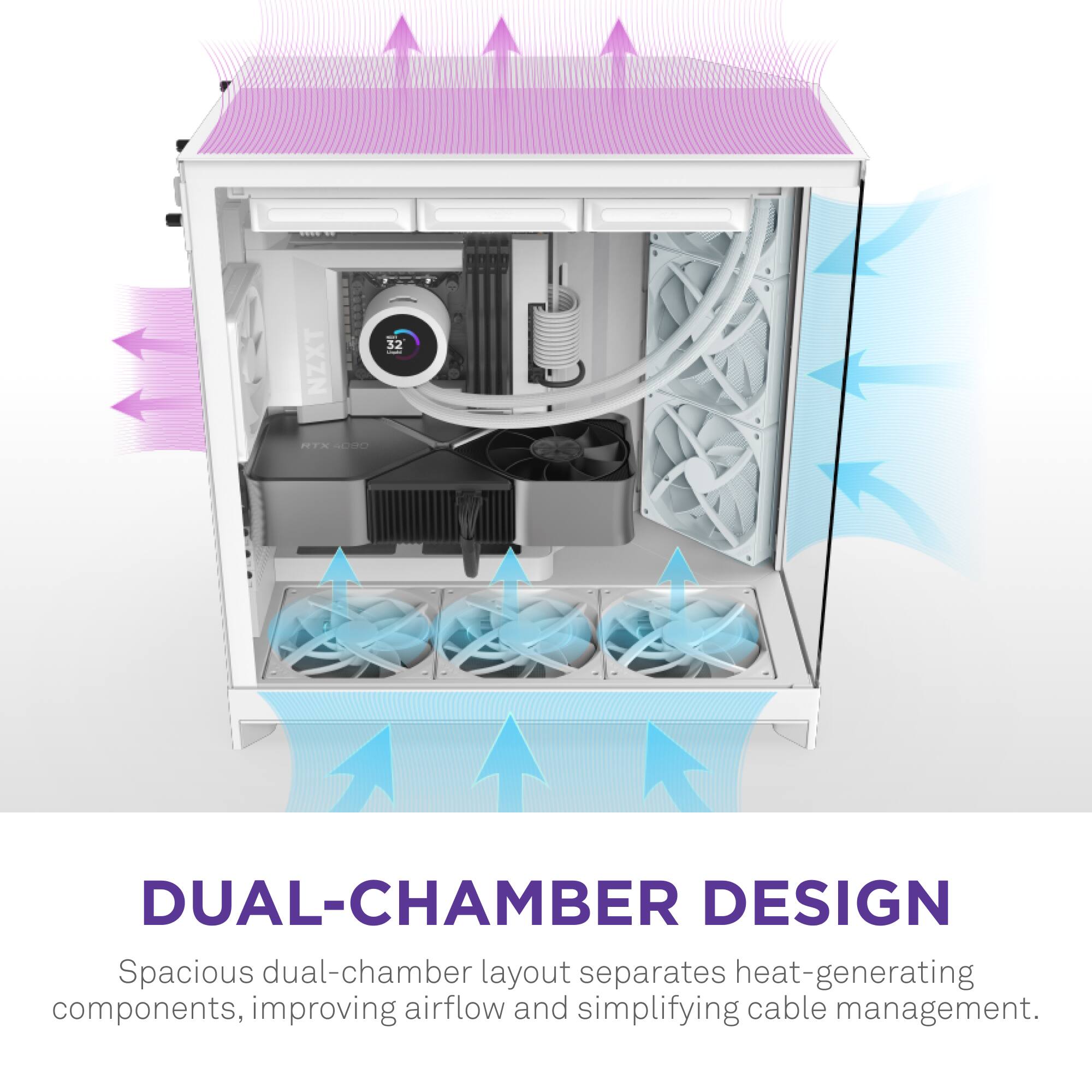

- Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.
- Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.

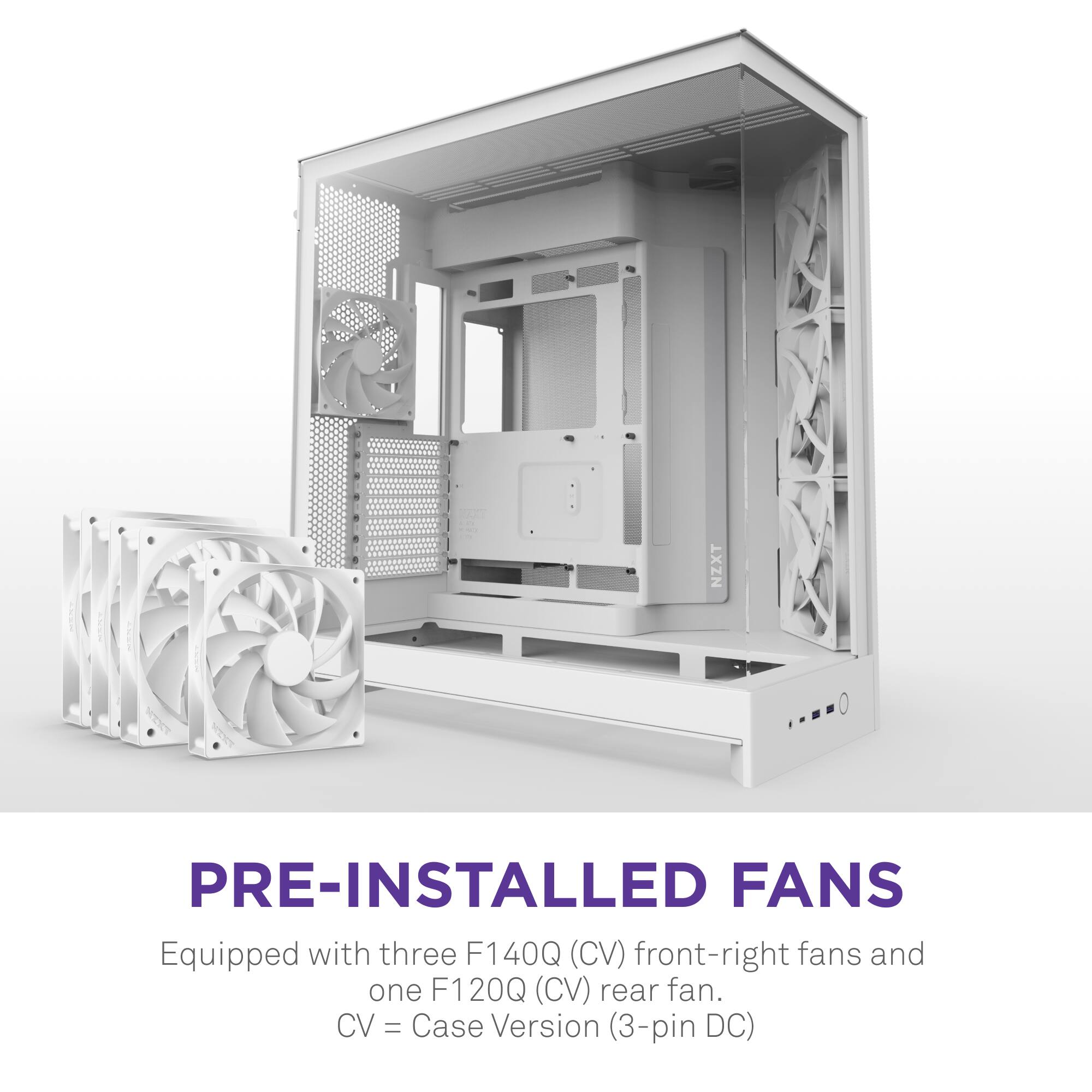

- Pre-Installed Fans: Includes three F140Q (CV) fans in the front-right and one F120Q (CV) fan in the rear. CV = Case Version (3-pin DC)

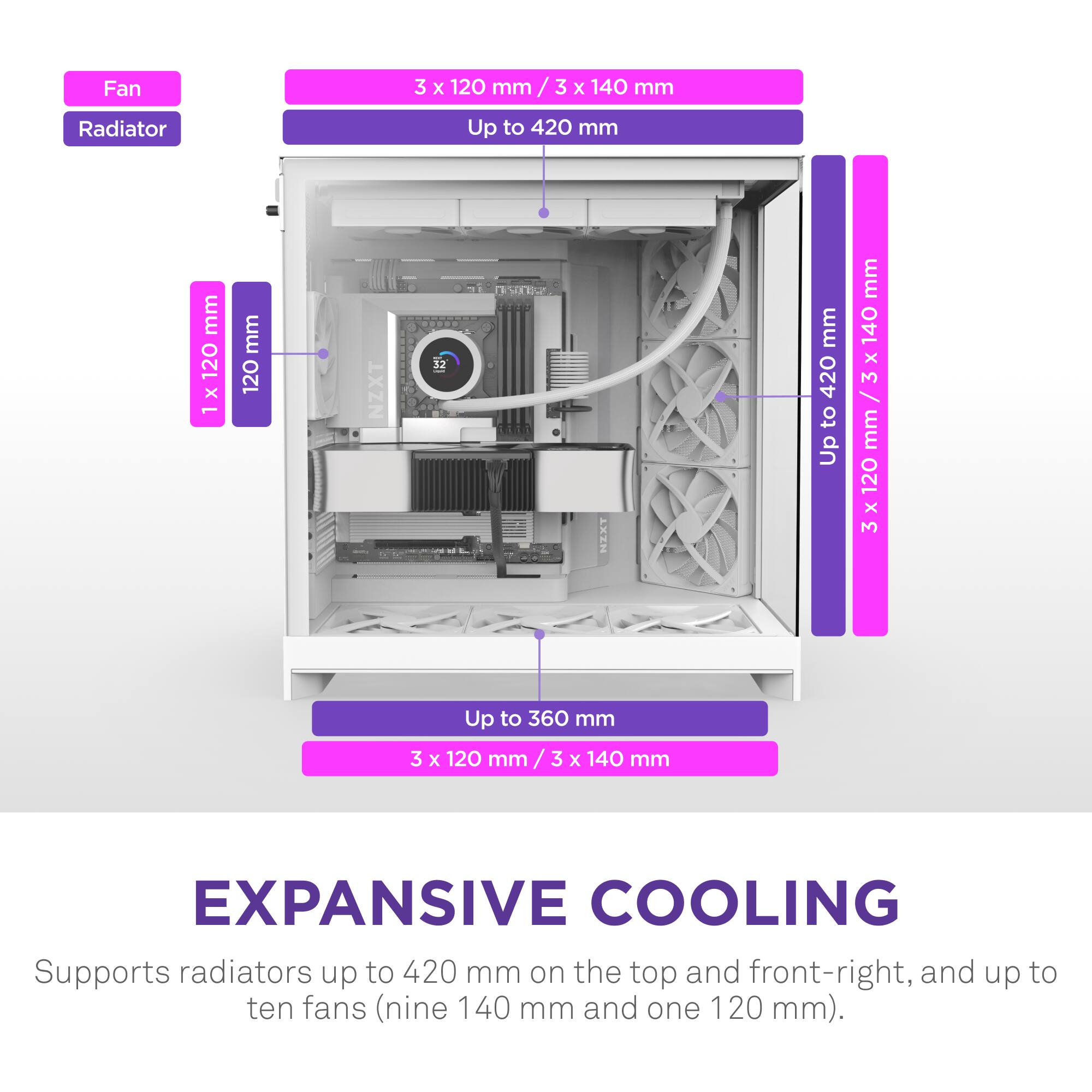

- Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.

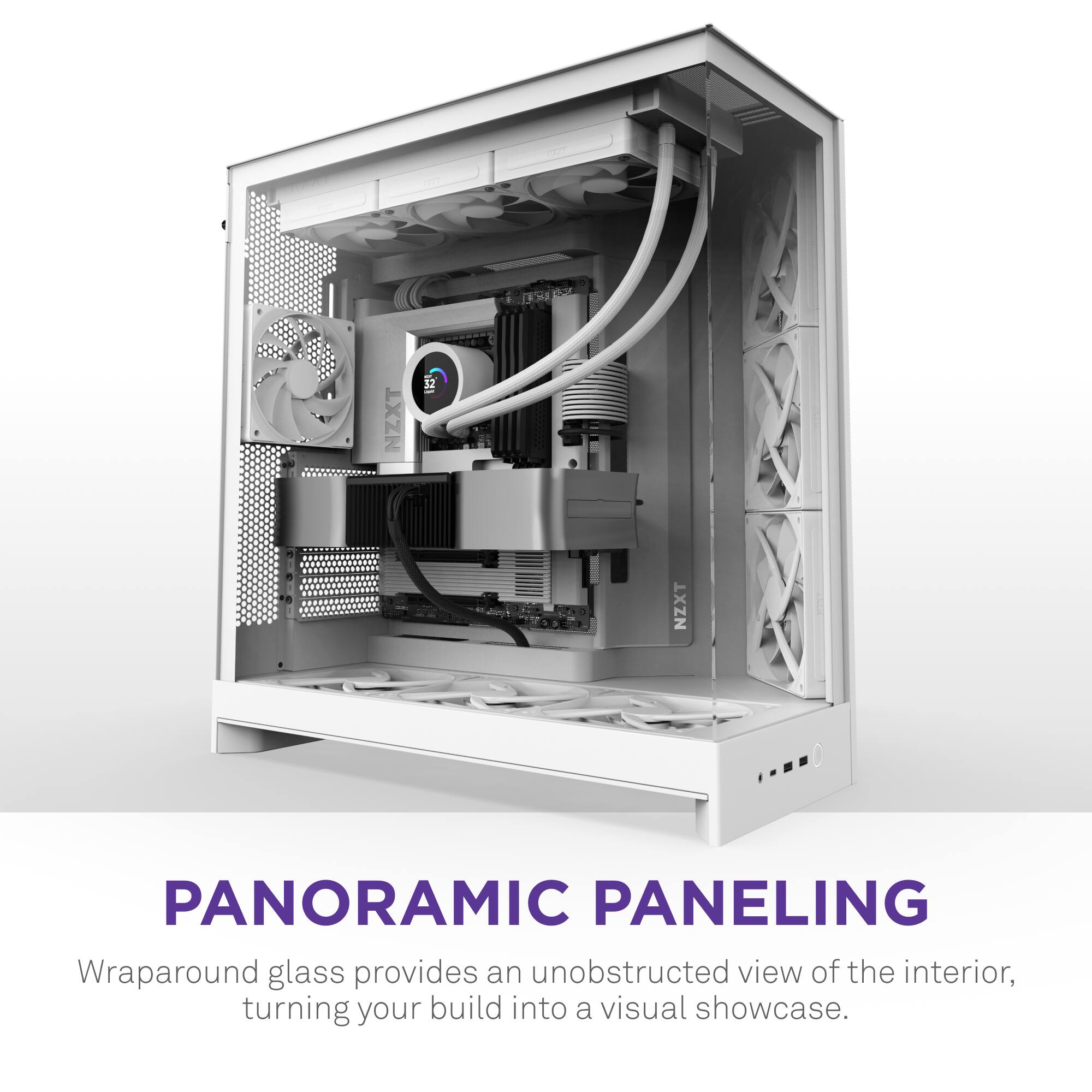

- Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling.

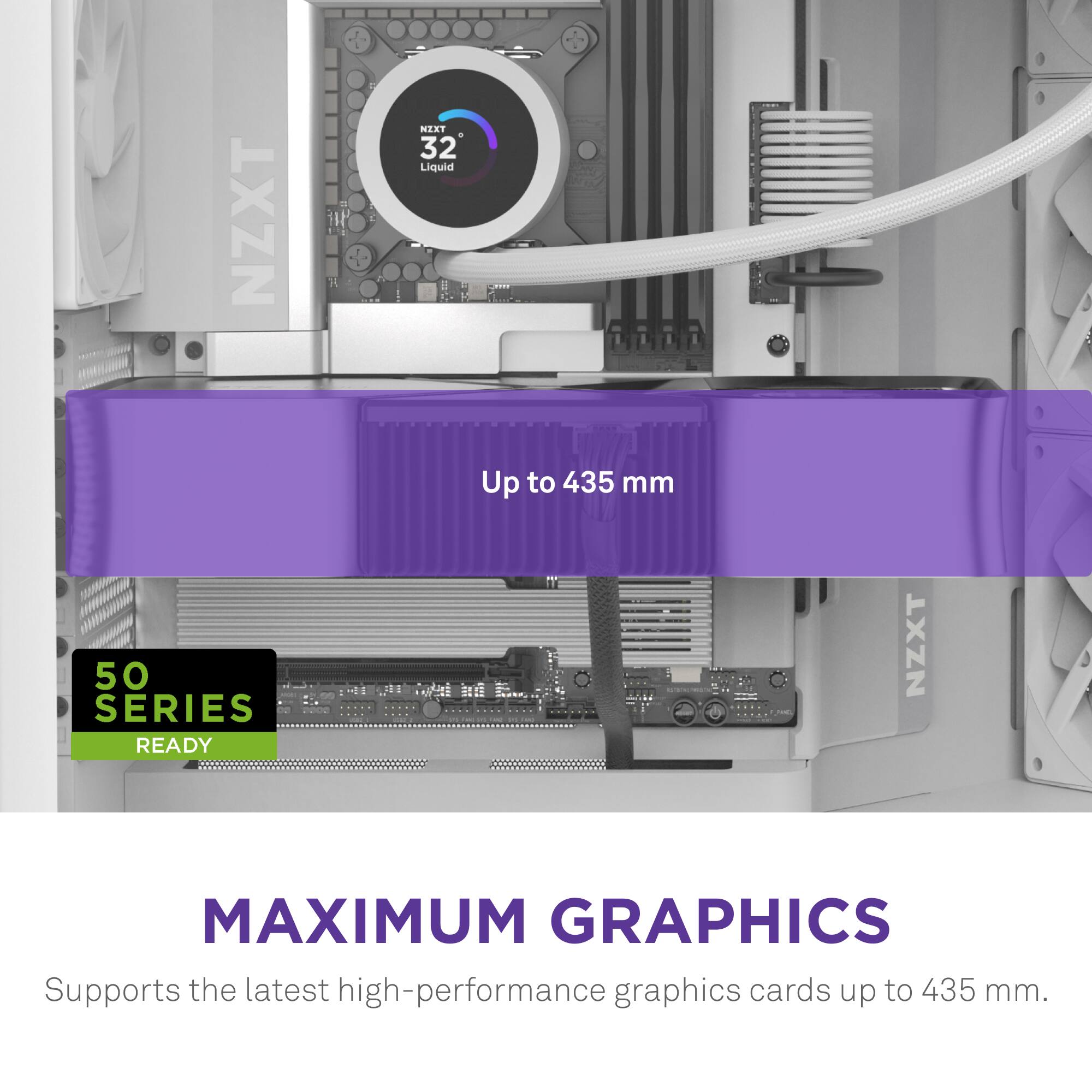

- Larger Radiators and GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.

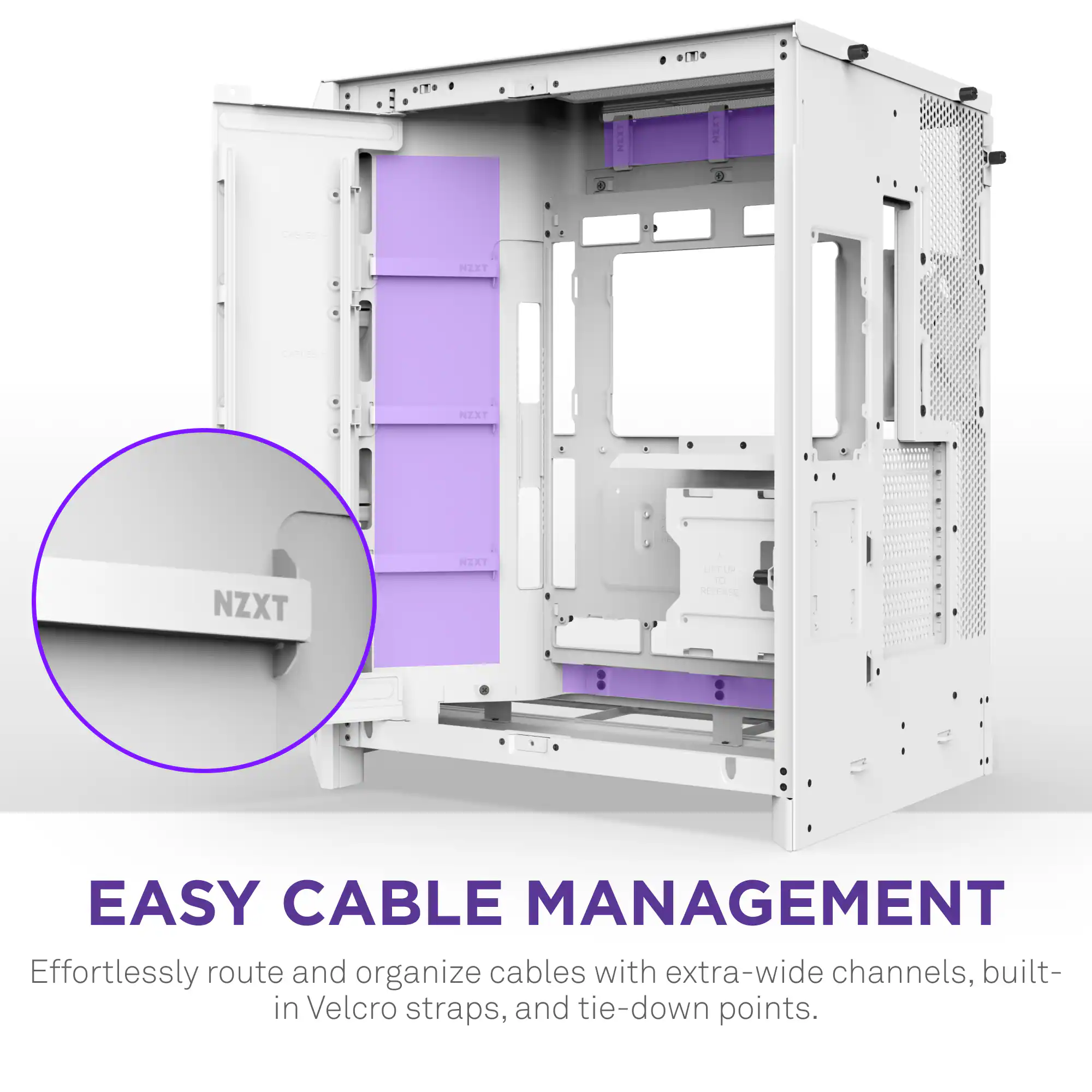

- Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.
- Back-Connect Motherboard Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.
Q: Does it come with power supply?
A: No it does not. Does however have a nice slot for it with lots of cable management space in the rear.
Compare similar products
The H9 Flow is a spacious mid-tower ATX case designed for high-performance builds, offering a balanced blend of airflow and aesthetics. Its dual-chamber design enhances cooling efficiency and cable management, while fine-mesh perforated panels, angled fans, and generous radiator and fan capacity deliver optimal thermal performance.
The CORSAIR 3500X ARGB Mid-Tower Glass PC Case is your gateway to a superior PC build with easy lighting, combining builder-friendly features with a stunning wraparound tempered glass aesthetic. Three pre-installed RS120 ARGB fans deliver high cooling performance and simple motherboard lighting control. Multiple side, roof, and bottom fan mounting options ensure that even high-performance components stay cool. The 3500X ARGB’s spacious interior will fit most large graphics cards and CPU coolers, with multiple radiators up to 360mm to support liquid-cooled builds. Compatibility with ASUS BTF and MSI Project Zero reverse connection motherboards give you a cable-free view of your PC.
The H9 Flow is a spacious mid-tower ATX case designed for high-performance builds, offering a balanced blend of airflow and aesthetics. Its dual-chamber design enhances cooling efficiency and cable management, while fine-mesh perforated panels, angled fans, and generous radiator and fan capacity deliver optimal thermal performance.
Experience performance with a fresh perspective. The H6 Flow's innovative compact design emphasizes GPU cooling with a strategically angled front corner, so the fans direct air where it's most needed. The panoramic glass proudly showcases the interior, while the dual-chamber layout frees up space for a cleaner look and better cooling performance.
| Pros for NZXT - H9 Flow 2025 ATX Mid-Tower Dual-Chamber PC Case - White | |||
|---|---|---|---|
| Airflow, Internal Space, Cable Management, Size, Ease of Assembly | Airflow, Space, Cable Management, Aesthetics, Appearance | Internal Space | Airflow, Cable Management, Space, Size, Design |
Specs
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
My Experience (Non RGB) H9 flow
The airflow was very good and I liked the large size and it was easy to build inside of and I really loved it the build experience and it looks great with my monitor and keyboard.
This review is from NZXT - H9 Flow 2025 ATX Mid-Tower Dual-Chamber PC Case - Black
Posted by EthanR
- Rated 5 out of 5 stars
Big Beautiful Case
I love this case, it’s so easy to build and honestly beautifully BIG! Lot’s of space as well, I already own the H9 Flow previous model in black and will forever love these cases
Posted by CloudyMellows
- Rated 5 out of 5 stars
Great Case
If you're looking for a case with plenty of space and air flow, this is it. Having the option to install fans on the bottom is a great addition to create more air flow to keep all your parts cool and running efficiently. Has plenty of space to add any GPU you would want to install. Also, being a dual chamber case helps keep all your parts installation a breeze. And cable management is super easy with this case. I would definitely give this case an A+ since it exceeded all my expectations. Specs CPU: AMD 7800X3D GPU: ASUS TUF 5080 OC RAM: G.Skill Trident Z5 32GB MB: ASUS ROG Strix X670E-F PSU: 1300 Watt EVGA AIO CPU Cooler: Cooler Master Atmos 360
This review is from NZXT - H9 Flow 2025 ATX Mid-Tower Dual-Chamber PC Case - Black
Posted by BeauP
