CORSAIR - FRAME 4000D RS ARGB ATX Mid-Tower PC Case - White
Color
White
iFixit - Jimmy Device Opener Tool$7.19
More Buying Options
Related Item
Specifications
- Motherboard Form FactorATXMaximum GPU Length430 millimetersProduct Height19.13 inchesProduct Width9.41 inchesProduct Depth19.7 inchesWindow Panel(s)Right side
- Key Specs
- Motherboard Form Factor: ATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 430 millimeters
- Product Height: 19.13 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.41 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Right side
- Case Material: Steel, Tempered glass
- General
- Brand: CORSAIR
- Model Number: CC-9011297-WW
- Product Name: FRAME 4000D RS ARGB ATX Mid-Tower PC Case
- Color: White
- Case Material: Steel, Tempered glass
- Assembly Required: Yes
- Compatibility
- Motherboard Form Factor: ATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 220 millimeters
- Maximum GPU Length: 430 millimeters
- Number of Expansion Slots: 10
- Ports
- Number of USB Ports (Total): 3
- USB Ports: 2 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of Thunderbolt Ports (Total): 0
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 4
- Number Of Internal 3.5" Bays: 2
- Dimensions
- Product Height: 19.13 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.41 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 289.6 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Right side
- Customizable Case Lighting: true
- Lighting Type: RGB
- Cooling
- Maximum CPU Cooler Height: 170 millimeters
- Number of Fans Supported: 12
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Number of Fans Included: 3
- Radiator Support: Top 360mm, 280mm, 240mm; Side 360mm, 280mm, 240mm; Front 360mm, 280mm, 240mm; Rear 140mm, 120mm
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 840440487722
Free yourself from the constraints of traditional PC building with the CORSAIR FRAME 4000D RS ARGB, featuring the innovative FRAME Modular Case System to perfectly customize your build. Includes 3x CORSAIR RS ARGB PWM Fans with daisy-chainable 4-pin connectors, eight LEDs per fan, and +5V ARGB motherboard control. The InfiniRail Mounting System simplifies fan installation, supporting dual 360mm radiators and a 3D Y-Pattern Airflow front panel for optimal cooling. The increased width and length ensure compatibility with powerful graphics cards and cooling options, with support for reverse connection motherboards. We provide the frame. You create the art.
- FRAME Modular Case System: The revolutionary FRAME system gives new meaning to the word customization. Want to upgrade the motherboard tray to billet aluminum? Want to swap out your front I/O panel for more USB ports? Now you can. A case that can change and grow with your needs (or just your mood). The options are nearly limitless.
- 3x CORSAIR RS ARGB PWM Fans: High-performance fans pre-installed in the front of case. Support daisy-chainable 4-pin PWM connections and Zero RPM mode for near-silent operation at low loads. Each Fan has eight LEDs and easily controllable with your motherboard’s +5V ARGB connector.
- CORSAIR InfiniRail Fan Mounting System: This steel multi-point mounting system offers unmatched flexibility in front and roof fan configuration. Simply slide the rail to mount fans up to 200mm (140mm in the roof) wherever you like, ensuring targeted airflow without fixed mounting constraints.
- Clean Lines or Turbo Cooled: The internal side panel near the motherboard tray can be used as a cable cover for clean cable management, or you can remove it and mount fans to the side for increased cooling potential.
- 3D Y-Pattern Airflow: Optimized for high airflow and minimal restriction, the steel front panel is perforated in three dimensions with a Y-pattern that provides a low-obstruction path for cool air.
- Dual 360mm Radiator Support: Take your cooling to the next level with three mounting locations for 360mm radiators (front, roof, and side). Mount up to twelve 120mm fans simultaneously to keep cool air flowing in and hot air exhausting quickly and efficiently.
- Designed With Reverse Connection Motherboards in Mind: ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth validated with plenty of connector and cable cutouts and tie-downs to keep things tidy even where you can’t see them.
- Versatile Connectivity: Stay connected and charge your gear with two easily accessible USB 3.2 Gen 1 Type-A ports and a USB 3.2 Gen 2 Type-C front I/O panel. Want different connections? Better speed? Different layout? The I/O panel is easily swappable with upgrades available on corsair.com.
- Drives, Drives, Drives: Included drive trays for dual 3.5” hard drives or four 2.5” SSDs, or they can be removed entirely to make room for custom liquid cooling components and cables.
- Solid GPU Support (Literally): Modern graphics cards are bigger and heavier than ever, which is why every 4000D comes with an included GPU Antisag stabilization arm. Because nothing is sadder than a sagging GPU.
- Just a Bit Bigger: The FRAME 4000D is just a touch wider, longer, and taller than the previous 4000D to make room for more powerful GPUs and cooling components, but not so big as to hog your desktop space.
- Built for iCUE LINK: Designed from the ground up for easy iCUE LINK integration, the FRAME 4000D has cable hooks, increased tie downs, and a dedicated mounting pocket for an iCUE LINK System Hub (sold separately).
- FRAME Modular Case System: The revolutionary FRAME system gives new meaning to the word customization. Want to upgrade the motherboard tray to billet aluminum? Want to swap out your front I/O panel for more USB ports? Now you can. A case that can change and grow with your needs (or just your mood). The options are nearly limitless.
- 3x CORSAIR RS ARGB PWM Fans: High-performance fans pre-installed in the front of case. Support daisy-chainable 4-pin PWM connections and Zero RPM mode for near-silent operation at low loads. Each Fan has eight LEDs and easily controllable with your motherboard’s +5V ARGB connector.
- CORSAIR InfiniRail Fan Mounting System: This steel multi-point mounting system offers unmatched flexibility in front and roof fan configuration. Simply slide the rail to mount fans up to 200mm (140mm in the roof) wherever you like, ensuring targeted airflow without fixed mounting constraints.
- Clean Lines or Turbo Cooled: The internal side panel near the motherboard tray can be used as a cable cover for clean cable management, or you can remove it and mount fans to the side for increased cooling potential.
- 3D Y-Pattern Airflow: Optimized for high airflow and minimal restriction, the steel front panel is perforated in three dimensions with a Y-pattern that provides a low-obstruction path for cool air.
- Dual 360mm Radiator Support: Take your cooling to the next level with three mounting locations for 360mm radiators (front, roof, and side). Mount up to twelve 120mm fans simultaneously to keep cool air flowing in and hot air exhausting quickly and efficiently.
- Designed With Reverse Connection Motherboards in Mind: ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth validated with plenty of connector and cable cutouts and tie-downs to keep things tidy even where you can’t see them.
- Versatile Connectivity: Stay connected and charge your gear with two easily accessible USB 3.2 Gen 1 Type-A ports and a USB 3.2 Gen 2 Type-C front I/O panel. Want different connections? Better speed? Different layout? The I/O panel is easily swappable with upgrades available on corsair.com.
- Drives, Drives, Drives: Included drive trays for dual 3.5” hard drives or four 2.5” SSDs, or they can be removed entirely to make room for custom liquid cooling components and cables.
- Solid GPU Support (Literally): Modern graphics cards are bigger and heavier than ever, which is why every 4000D comes with an included GPU Antisag stabilization arm. Because nothing is sadder than a sagging GPU.
- Just a Bit Bigger: The FRAME 4000D is just a touch wider, longer, and taller than the previous 4000D to make room for more powerful GPUs and cooling components, but not so big as to hog your desktop space.
- Built for iCUE LINK: Designed from the ground up for easy iCUE LINK integration, the FRAME 4000D has cable hooks, increased tie downs, and a dedicated mounting pocket for an iCUE LINK System Hub (sold separately).
Whats Included
- FRAME 4000D Case
- 3x RS120 Performance Fans
- Case Accessory Box
- FRAME 4000D Case
- 3x RS120 Performance Fans
- Case Accessory Box
A: Hello, This should fit without issues. -Art
A: undefined
A: It is tinted. But it's not to bad.
Q: Are the fans that come with this case a 3 pin?
A: They are a unique configuration because you can chain them. The connection direct to the fan has 4 wires, but the loop or chain has 3. I think that the first fan in the chain connected to the header provides the RPM info to the header and the rest of the fans just get the same PWM or voltage signal looped over to them, but system is using the first fans info to determine the speed.
Compare similar products
Free yourself from the constraints of traditional PC building with the CORSAIR FRAME 4000D RS ARGB, featuring the innovative FRAME Modular Case System to perfectly customize your build. Includes 3x CORSAIR RS ARGB PWM Fans with daisy-chainable 4-pin connectors, eight LEDs per fan, and +5V ARGB motherboard control. The InfiniRail Mounting System simplifies fan installation, supporting dual 360mm radiators and a 3D Y-Pattern Airflow front panel for optimal cooling. The increased width and length ensure compatibility with powerful graphics cards and cooling options, with support for reverse connection motherboards. We provide the frame. You create the art.
The H9 Flow is a spacious mid-tower ATX case designed for high-performance builds, offering a balanced blend of airflow and aesthetics. Its dual-chamber design enhances cooling efficiency and cable management, while fine-mesh perforated panels, angled fans, and generous radiator and fan capacity deliver optimal thermal performance.
The CORSAIR 3500X ARGB Mid-Tower Glass PC Case is your gateway to a superior PC build with easy lighting, combining builder-friendly features with a stunning wraparound tempered glass aesthetic. Three pre-installed RS120 ARGB fans deliver high cooling performance and simple motherboard lighting control. Multiple side, roof, and bottom fan mounting options ensure that even high-performance components stay cool. The 3500X ARGB’s spacious interior will fit most large graphics cards and CPU coolers, with multiple radiators up to 360mm to support liquid-cooled builds. Compatibility with ASUS BTF and MSI Project Zero reverse connection motherboards give you a cable-free view of your PC.
The H3 Flow is a space-efficient micro-ATX PC case delivering exceptional airflow and versatile component compatibility. Designed for optimal cooling, the mesh panels and ventilated PSU shroud keep high-performance components running smoothly.
| Pros for CORSAIR - FRAME 4000D RS ARGB ATX Mid-Tower PC Case - White | |||
|---|---|---|---|
| Airflow, Internal Space, Design | Airflow, Internal Space, Cable Management, Size, Ease of Assembly | Airflow, Cable Management, Space, Aesthetics, Appearance | Airflow, Size, Cable Management |
Specs
Reviews
Customers are saying
Customers are positive about the FRAME 4000D RS ARGB ATX Mid-Tower PC Case, especially its excellent airflow and ease of assembly. The design and appearance are also well-received, along with the ample internal space and cable management options. Finally, customers appreciate the case's size and integrated GPU support.

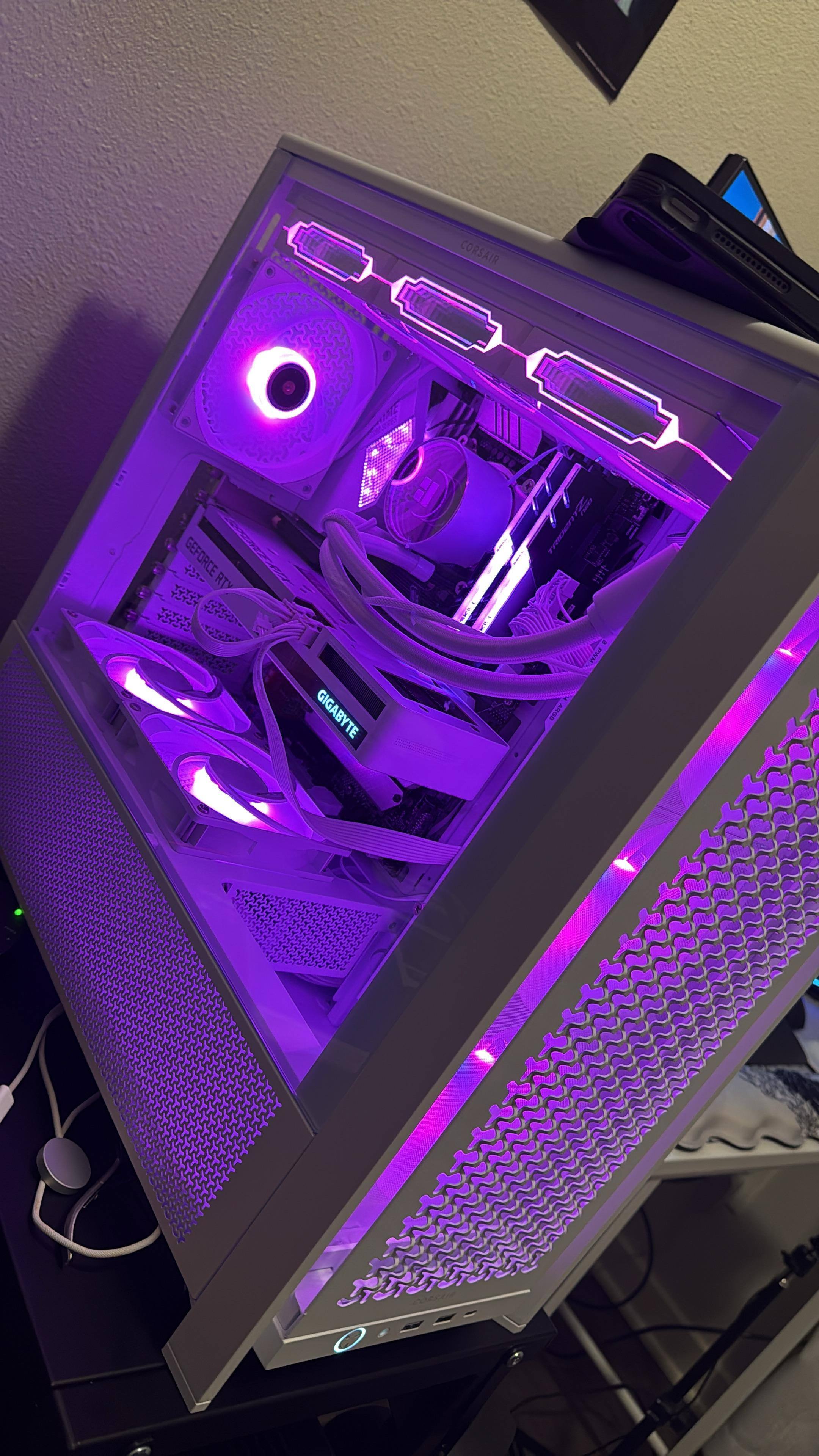

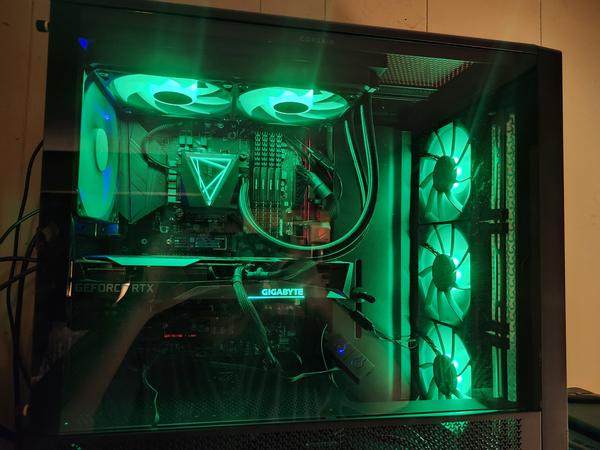

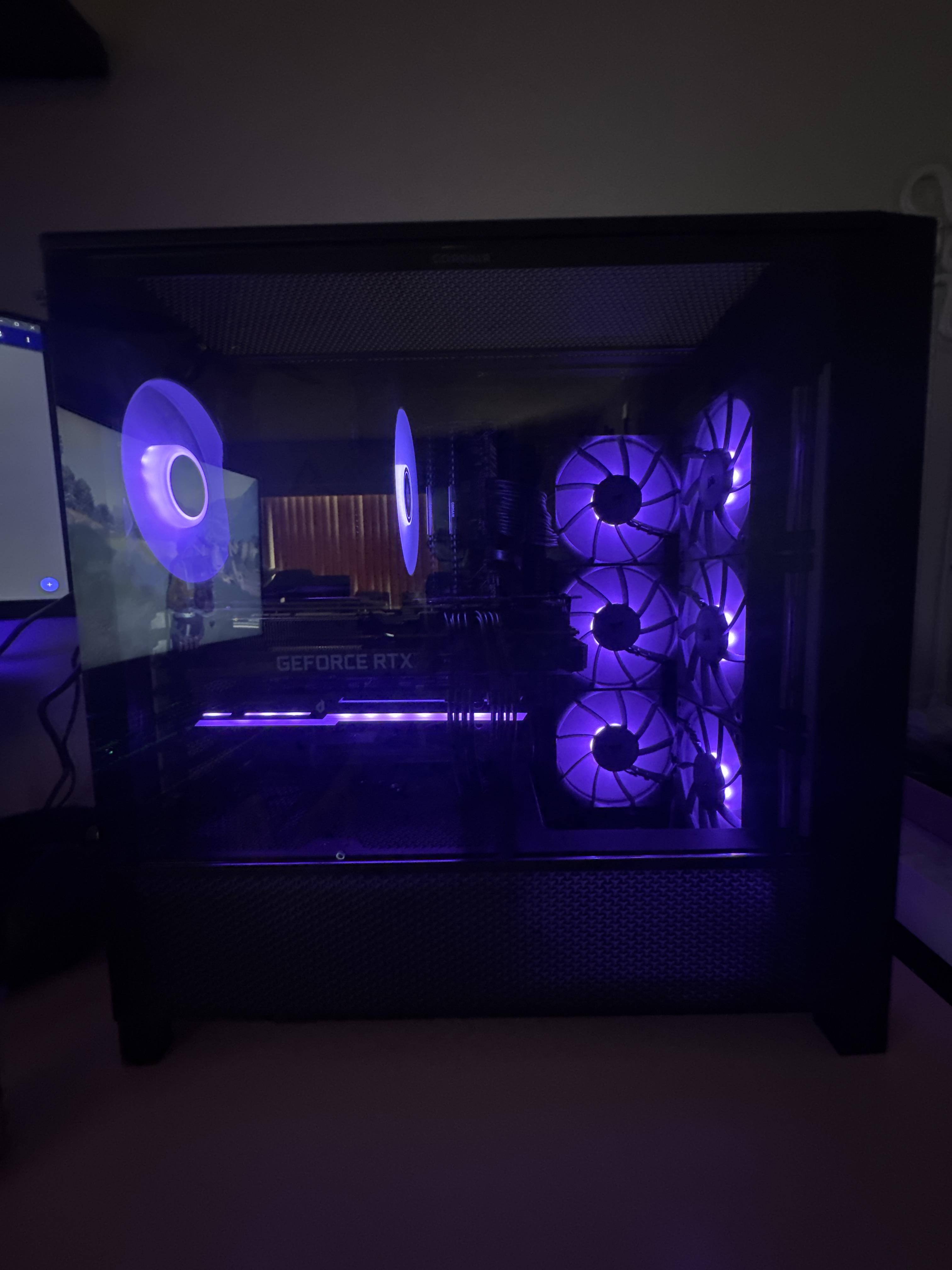

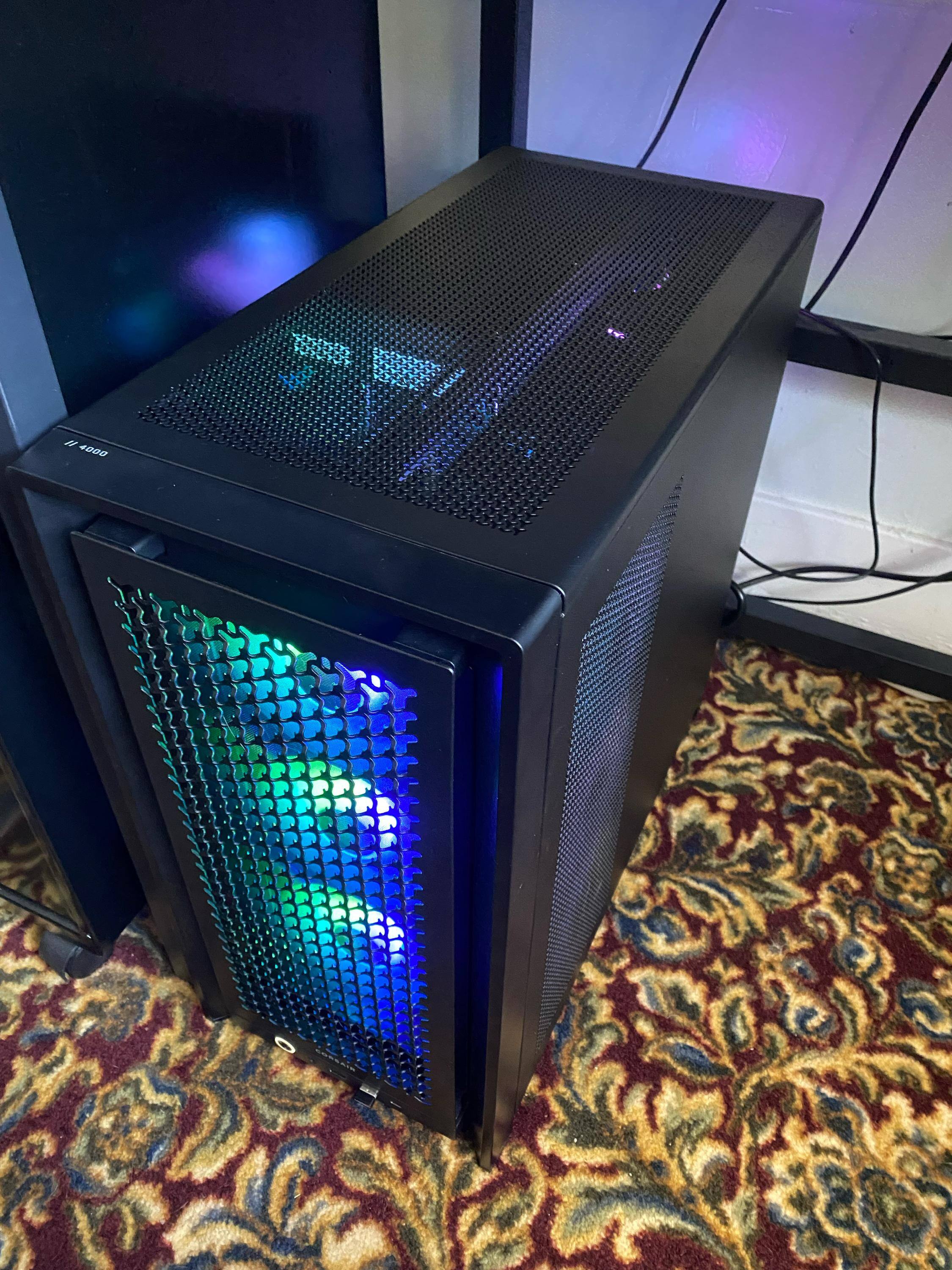

Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Top notch from a top brand. Corsair
I was in the market for a solution that was a little more compact than my ASUS T-501 mid tower that was closer to a full tower than I would like. The 501's size barely met the requirements needed to suspend the case on the Secret labs mount for my Magnus pro XL. Enough on the reasoning. Now about the case. I love the look, the size is perfect and the modularity is very cool. I love the integrated GPU support. Fit and finish is excellent, especially in this price range. Pros: It is the perfect size for mounting to my sit stand desk, air flow is excellent and can be increased by removing plastic like inserts in the "basement " to allow for more airflow. I chose not to and things are still nice and cool with the CPU idling in the 32 C range on a Corsair AIO. Cons: It would be nice to have the option of having IO interfaces on top but it really is not a big deal since I have a U-Green hub , monitor hubs and keyboard hubs. It would be a rare occurrence that required the use of the cases front panel IO interface. Its a little tight getting a 140 mm exhaust fan on the back but doable.
This review is from CORSAIR - FRAME 4000D RS ARGB ATX Mid-Tower PC Case - Black
Posted by MichaelP
- Rated 5 out of 5 stars
Not perfect, but close
Extremely versatile, fantastic airflow and relatively good build quality. It doesn't feel super substantial and the metal is a bit on the thinner side, but when it's completely assembled it's actually very solid. So many options for cooling configurations and the GPU sag adapter actually works even though it's pretty far in the back...just make sure that it isn't jabbing into your GPU fans and use the included pad if necessary. My biggest issue is that I have a 280mm AIO. It will fit in the top or the front, but I really wanted to put it on the side and it does not fit. If I put it in the front it's too deep to put side fans so it basically has to go on the top which is not ideal in my opinion. You also need to make sure that you have room for the motherboard 24pin cable coming from the back if you have fans on the side...I ended up going with 2 140mm fans to space it out a bit. With all that said the airflow and cooling difference was drastic from my old case (BeQuiet). I really like the magentic filters and the height was really important because of where it sits. The bottom line is this...it's a really nice case, extremely versatile, but make sure that you take some measurements if you are using AIO's and I'd really recommend staying with 120mm fan based AIO (240 or 360mm) because with 140mm you will run into clearance issues in some configurations.
This review is from CORSAIR - FRAME 4000D RS ARGB ATX Mid-Tower PC Case - Black
Posted by Andrew
- Rated 5 out of 5 stars
Good case for cable managment and air circulation
This case was a little intimidating at first to work with but once you figure out how everything is mamaged inside, its a very easy case to work with. Installed an ultra 7 processor with 360 aio with no trouble at all. The msi z890 fits like a glove, no need to remover rear port braket. The front case fans can get loud easily but i was able to manage it with the msi softeare.
This review is from CORSAIR - FRAME 4000D RS ARGB ATX Mid-Tower PC Case - Black
Posted by Sharkbite
