Topteng - 2 HP 115/230V Pool Pump Motor with GO-KIT-3 - Direct Replacement for Hayward Super Pump, UST1202 / SP2615X20
Topteng - 2 HP 115/230V Pool Pump Motor with GO-KIT-3 - Direct Replacement for Hayward Super Pump, UST1202 / SP2615X20
About This Item
- General
- Brand: Topteng
- Model Number: H103-A004
- Product Name: 2 HP 115/230V Pool Pump Motor with GO-KIT-3 - Direct Replacement for Hayward Super Pump, UST1202 / SP2615X20
- Recommended Minimum Age: 5 years

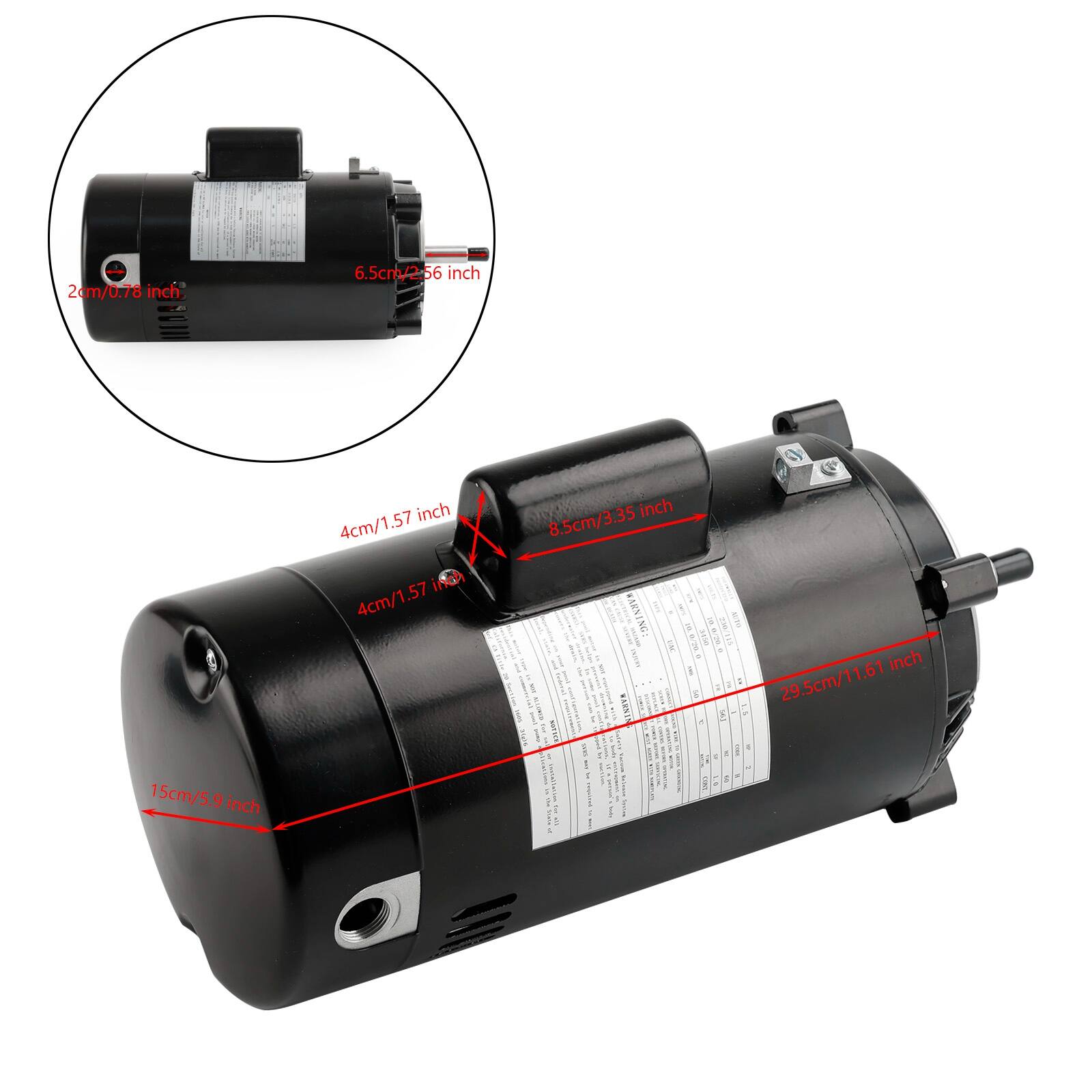

- Dimensions
- Product Height: 9.84 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 17.32 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 9.84 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 31.9 pounds (The out of box weight of the item.)
- Features
- Horsepower: 2 horsepower
- Voltage: 230 volts (Amount of power needed to support an electrical current.)
- Maximum Flow Rate: 1000 gallons per hour
- Maximum Pool Volume: 10000 gallons (The maximum quantity of water a swimming pool can hold.)
- Programmable: false
- Other
- UPC: 851543116846

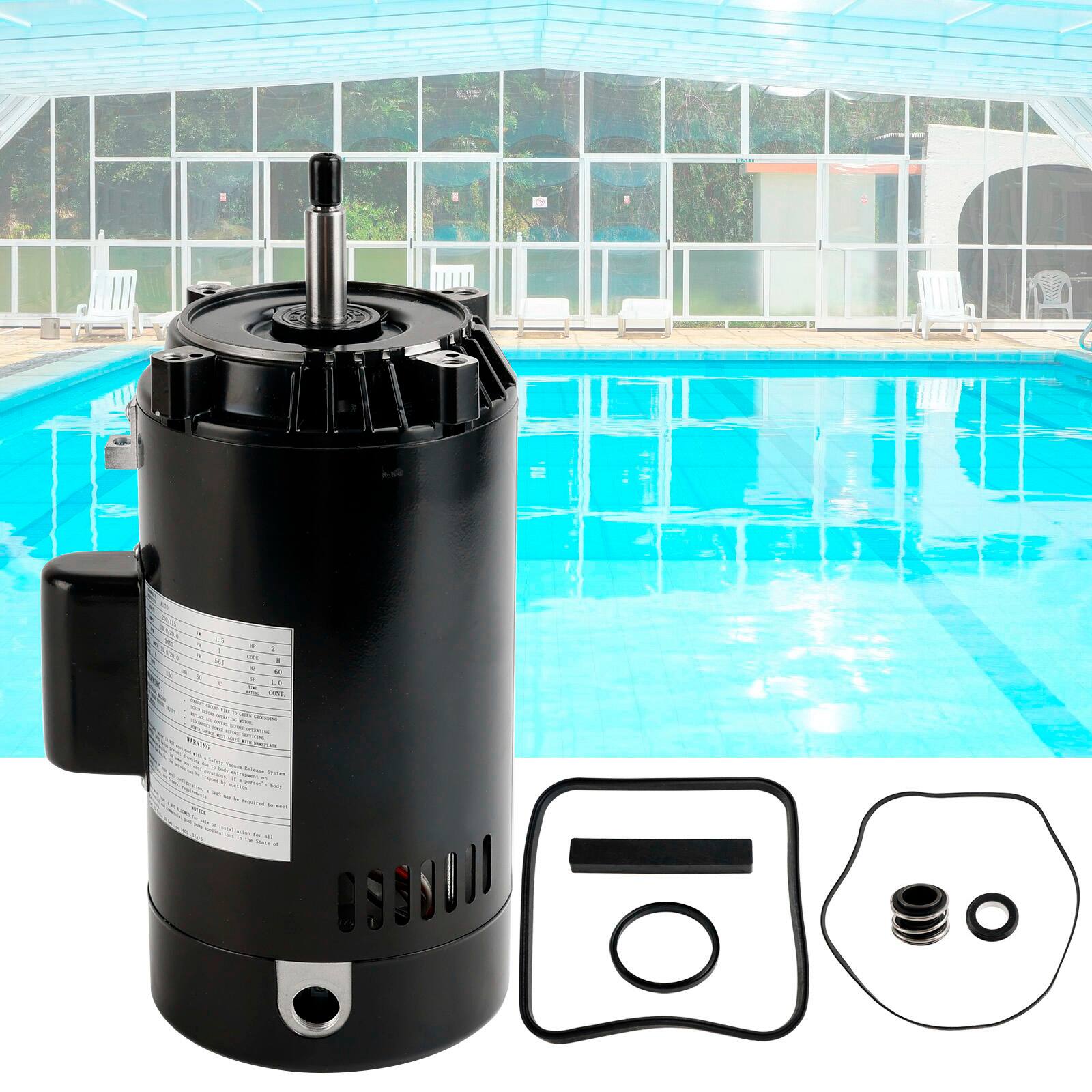

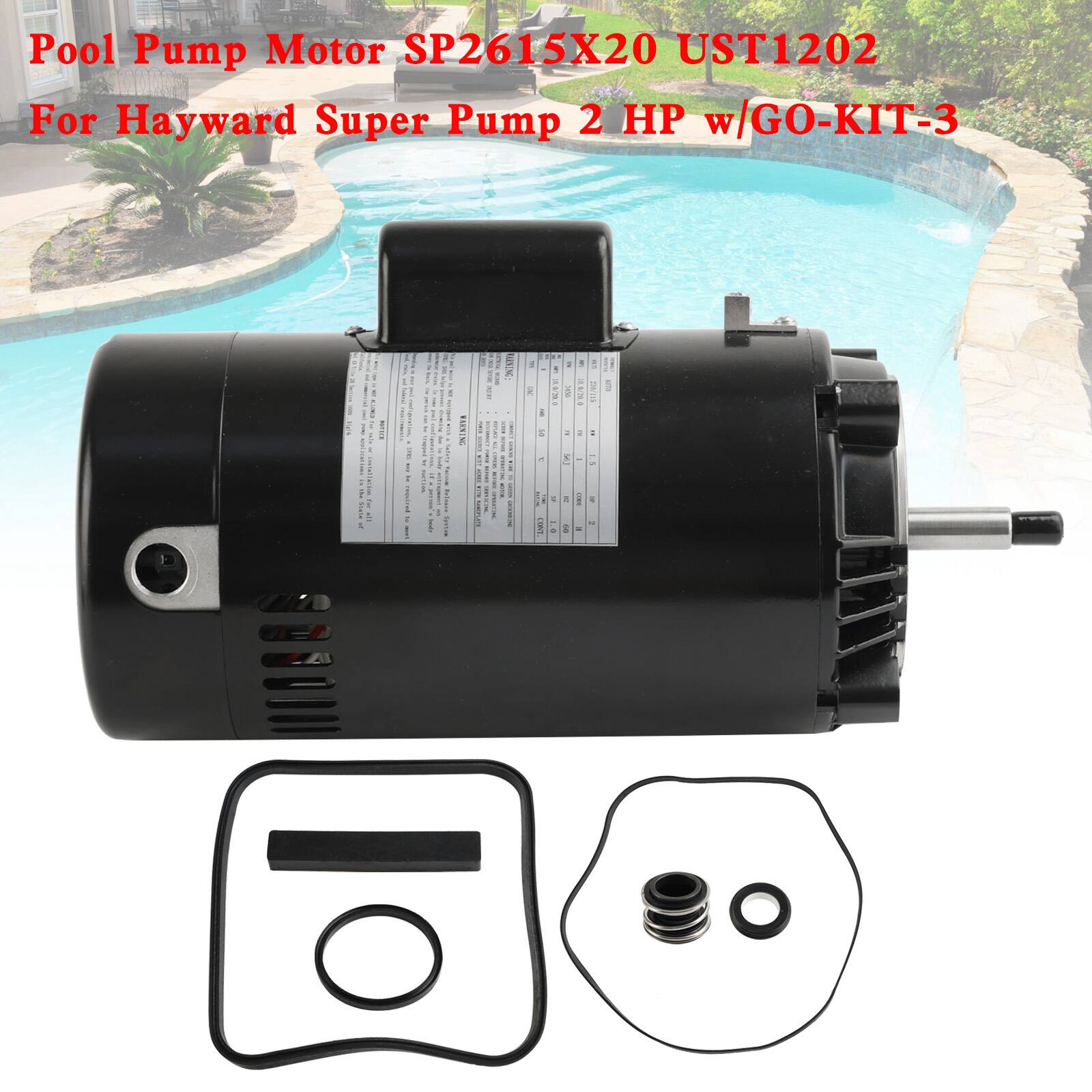

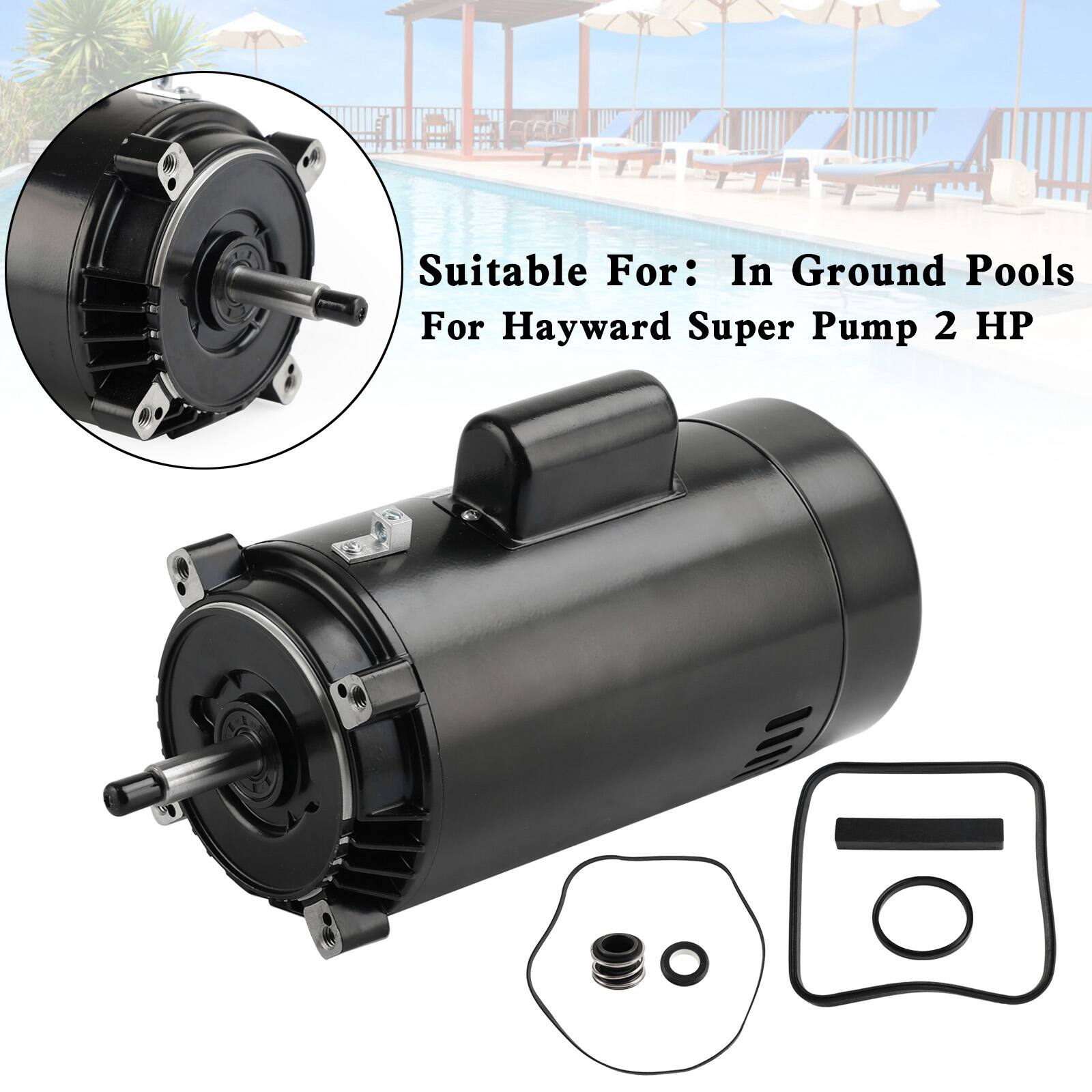

Get your pool circulation system running like new with this complete 2 HP replacement motor and seal kit. Designed as a direct OEM fit for Hayward Super Pump models, the UST1202 motor delivers robust, reliable power while the included GO-KIT-3 provides all essential seals and gaskets for a comprehensive, leak-proof rebuild. This all-in-one solution saves you time and ensures a professional-quality restoration, getting you back to a clean, clear pool with minimal downtime.

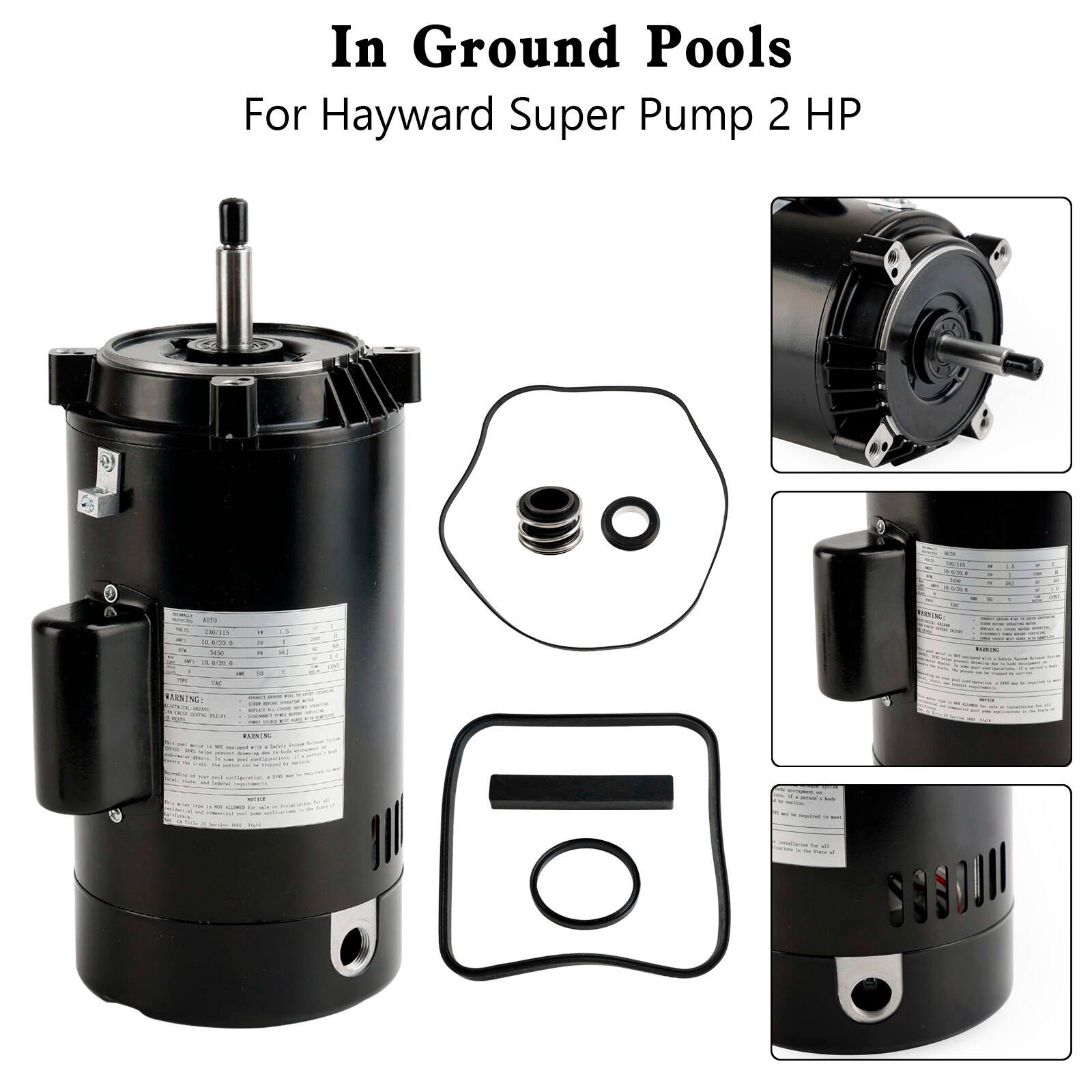

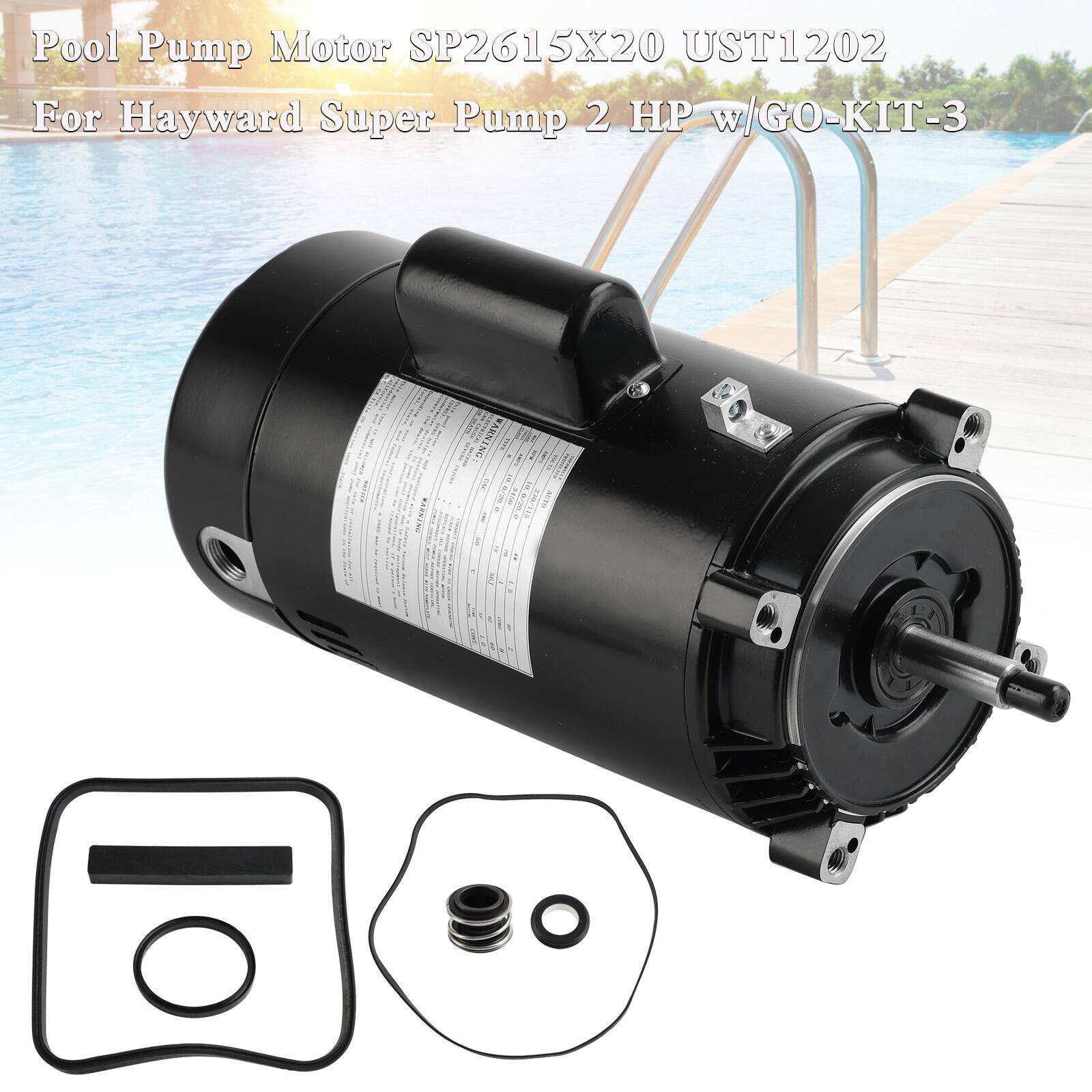

- 🔩Precision OEM Replacement for Hayward Super Pump 2HP Model: Engineered to match the exact specifications of the original Hayward motor. Replaces part numbers SP2615X20 and UST1202, featuring a C-face mount with 4 threaded bolt holes (5-7/8" diagonal centers) and a standard 5/8" threaded stainless steel shaft for a perfect, drop-in fit.

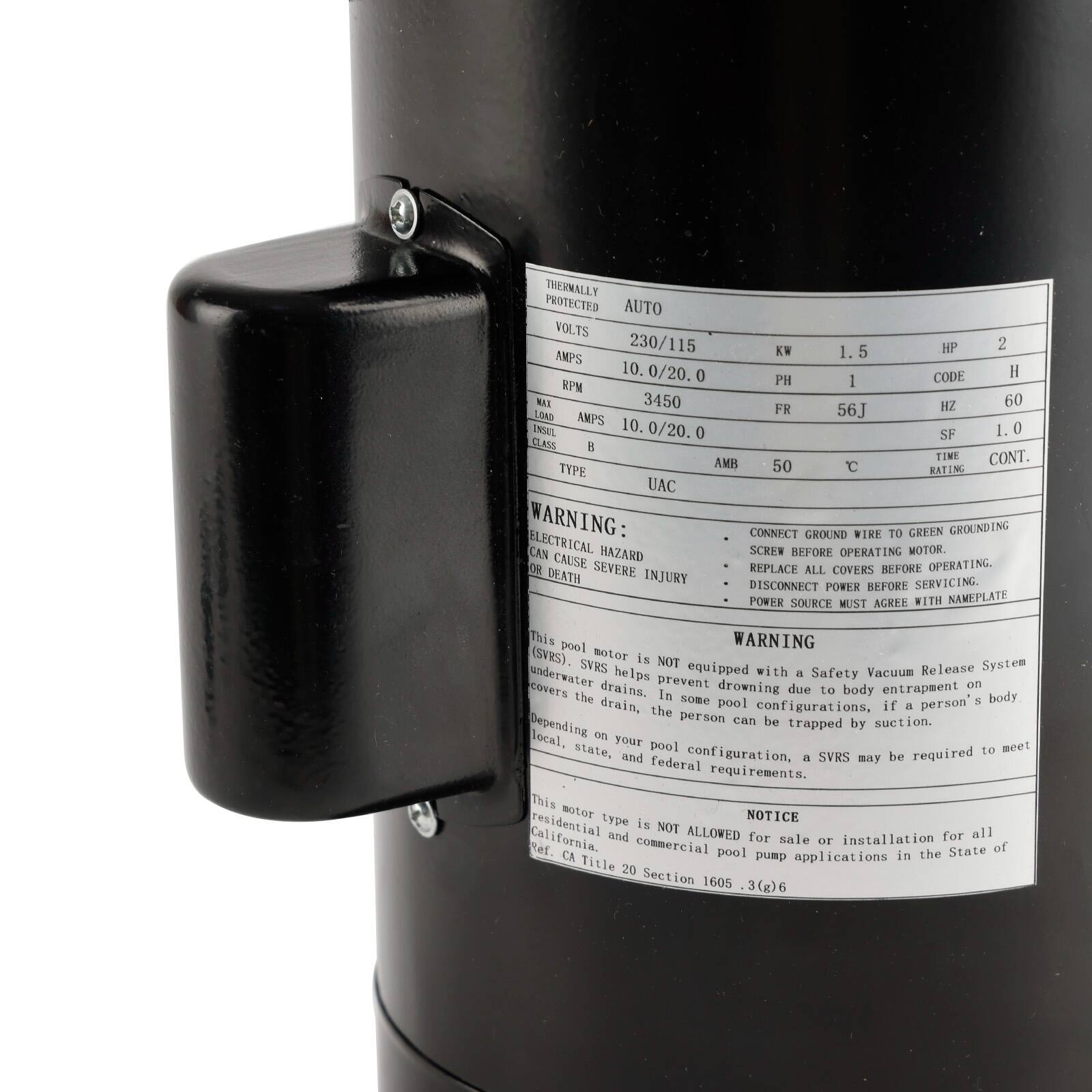

- ⚡ Dual Voltage(115V/230V)2 HP Motor with Overload Protection: Offers wiring flexibility for 115V or 230V power supply (shipped wired for 230V), rated at 19.6/9.8 amps. The 2 HP, 3450 RPM single-phase motor provides powerful circulation, with built-in automatic thermal overload protection to prevent burnout and ensure longevity.

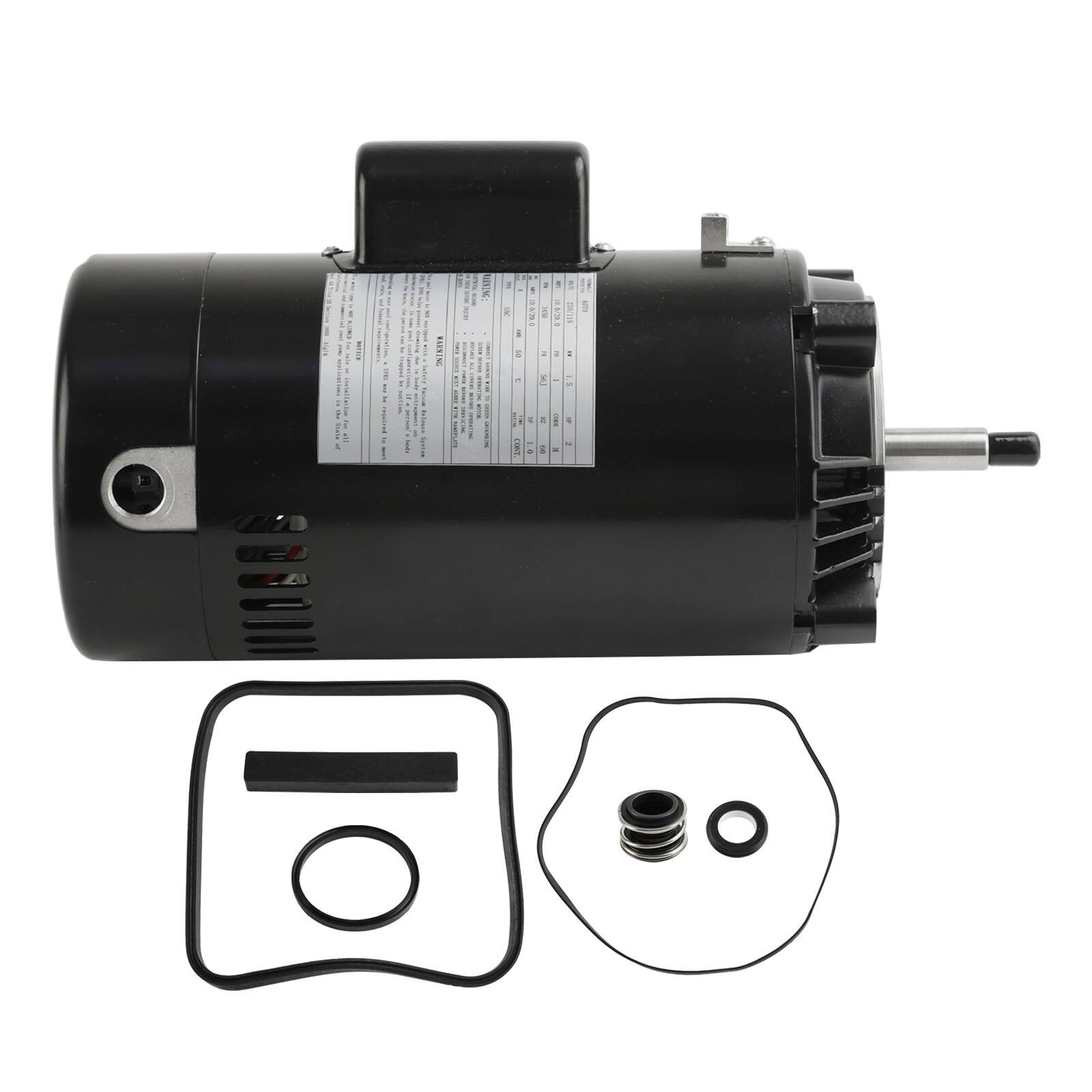

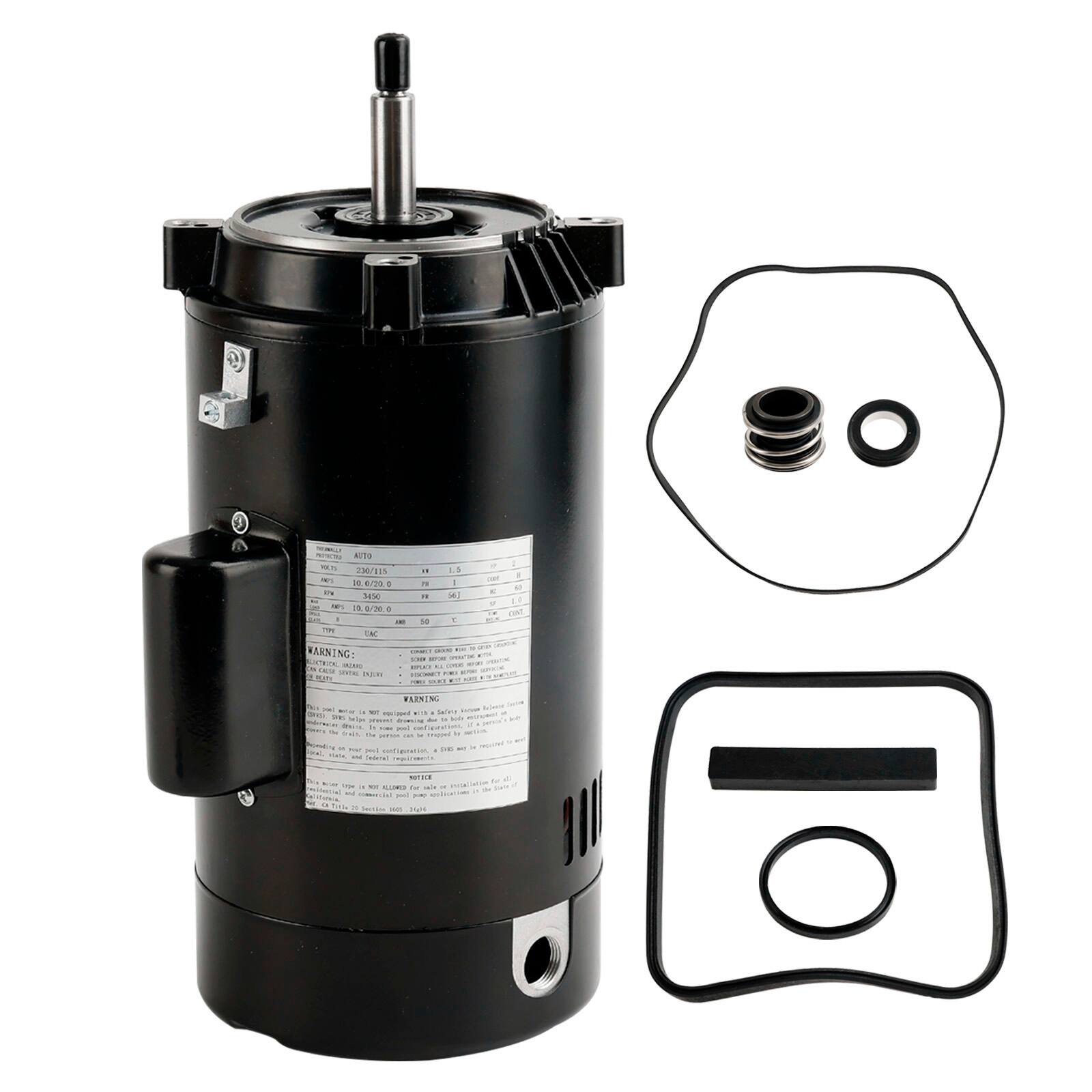

- 🧰 Complete GO-KIT-3 Seal & Gasket Set for a Full Rebuild: Includes all necessary consumables for a professional repair: Super Pump Housing Gasket, Diffuser O-Ring, Lid Gasket, and a PS-201 mechanical shaft seal. This kit prevents leaks and protects the new motor, addressing common wear points in one purchase.

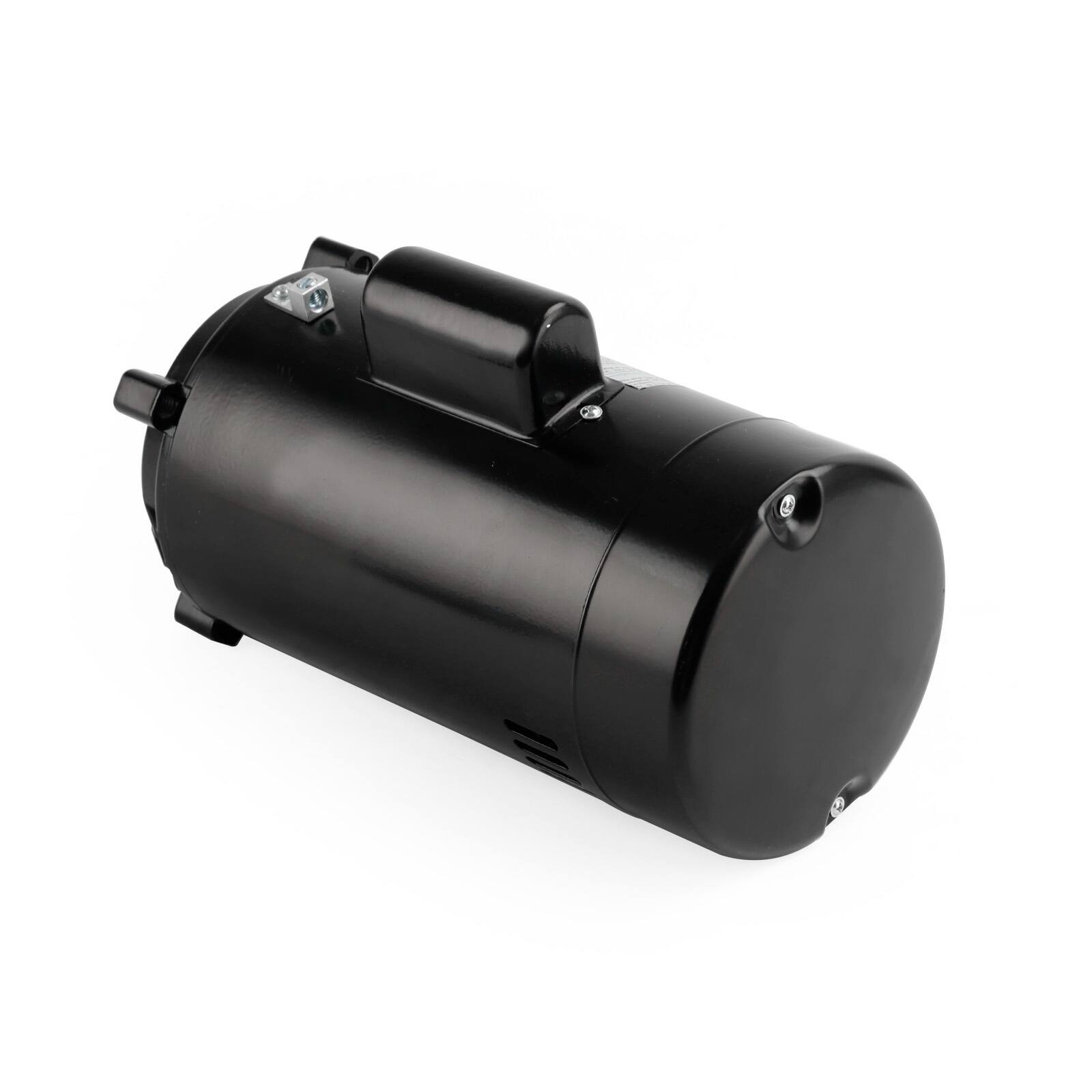

- 🛡️ Durable Drip-Proof Construction with Ball Bearings: Built with a Class B insulated, drip-proof (ODP) enclosure that resists moisture ingress. High-quality ball bearings support smooth, quiet operation and extended service life under continuous use in poolside environments.
- 🔧NonReversible CCW Rotation&Simplified Installation Process: Designed for counterclockwise (CCW) rotation when facing the shaft (non-reversible), matching the original pump's specification. Combined with the complete seal kit, this allows for a straightforward motor swap and system reseal, recommended to be performed by a qualified professional.
