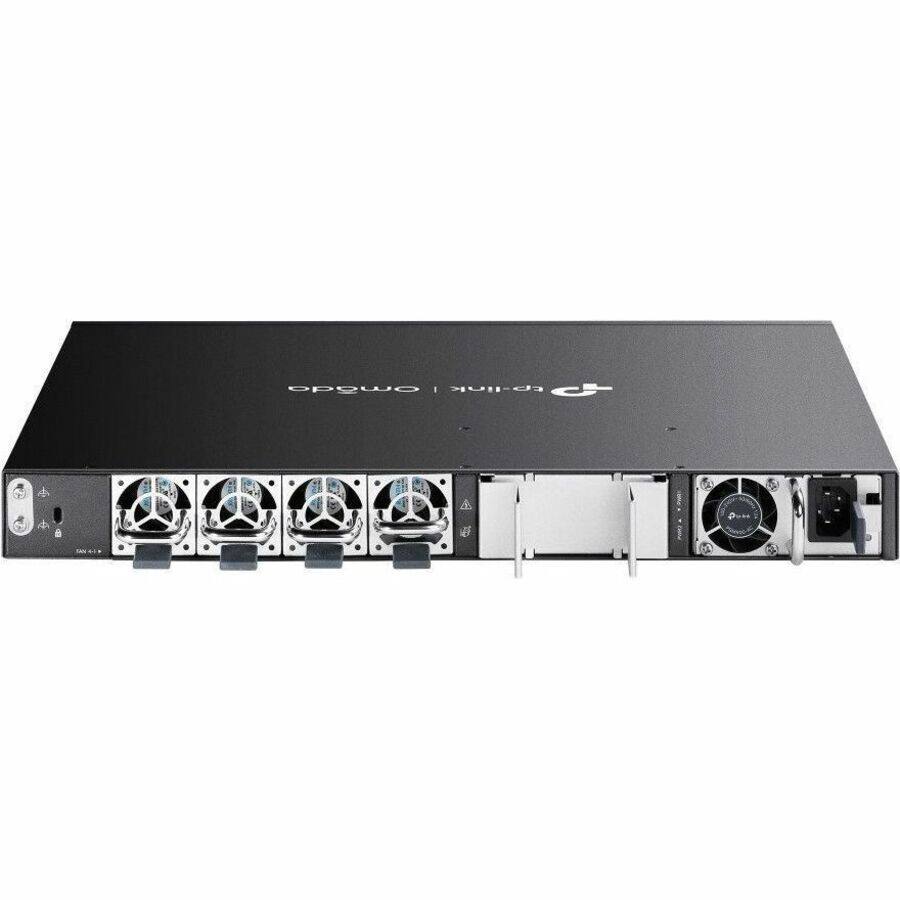

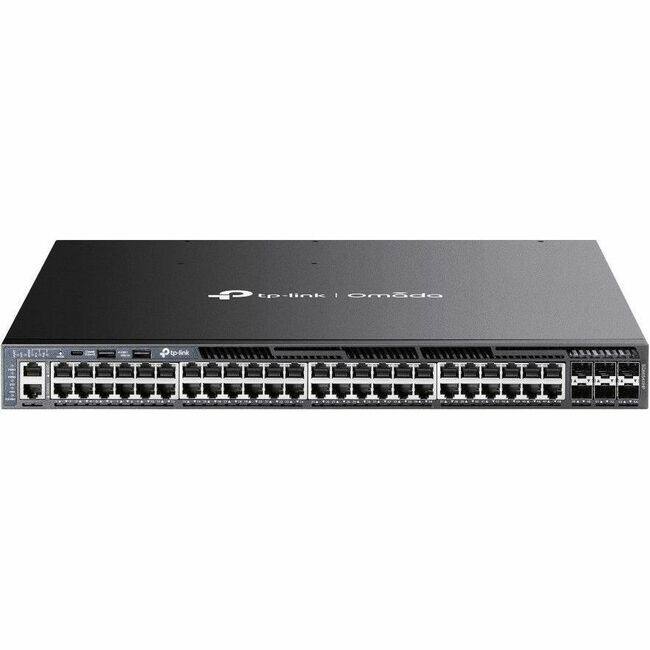

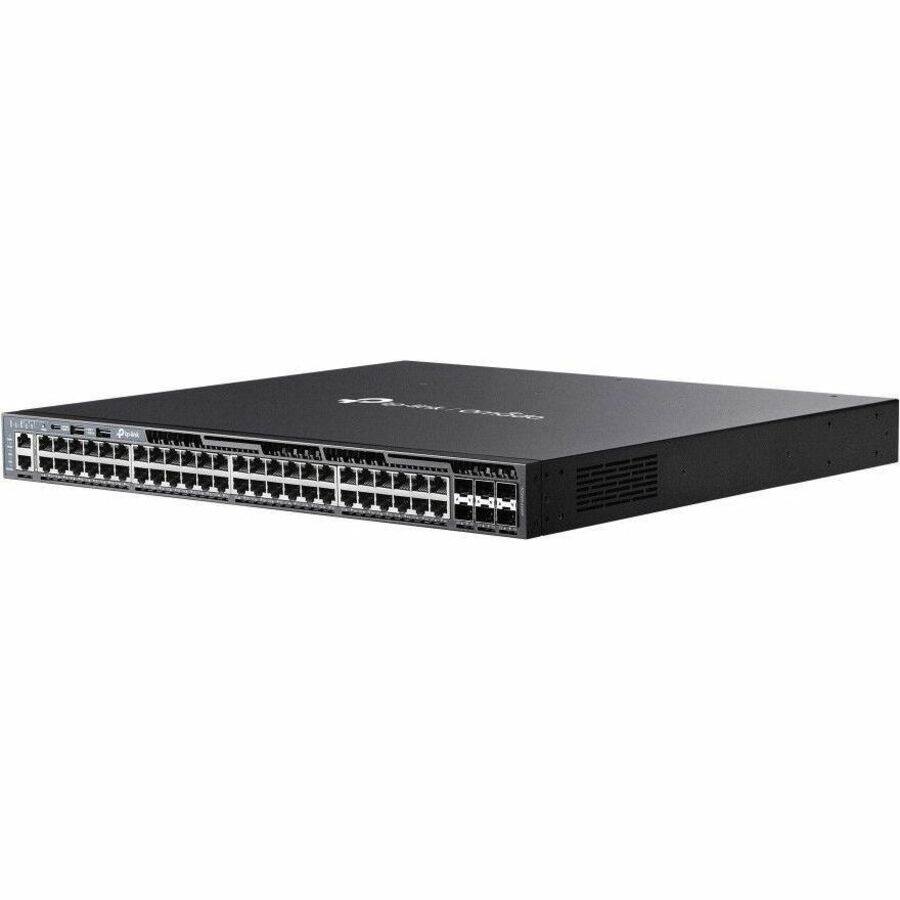

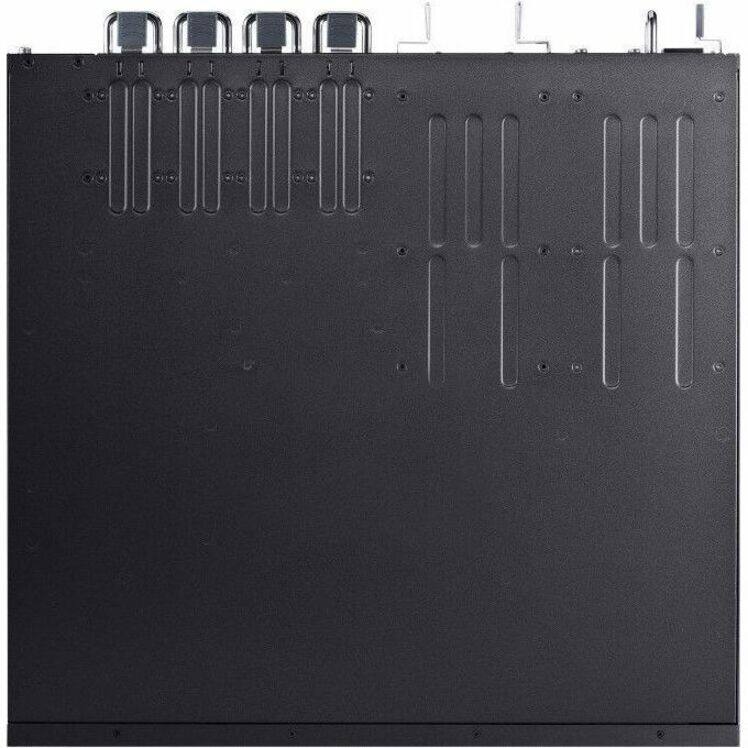

TP-Link - Omada Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6 10G Slots - 48 Ports - Manageable - Gigabit - Unknown
Related Item
Specifications
- Number of LAN Ports5
- Key Specs
- Number of LAN Ports: 5 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- General
- Brand: TP-Link
- Product Name: Omada Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6 10G Slots - 48 Ports - Manageable - Gigabit
- Color: Unknown
- Dimensions
- Product Height: 1.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 16.5 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 17.3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 26.68 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: Manufacturer Warranty
- Warranty - Labor: Manufacturer Warranty
- Other
- UPC: 840030705915
Omada Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6 10G Slots - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 67.24 W Power Consumption - 1440 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Desktop, Rack-mountable
- What This Product Does: Omada SG6654XHP, an advanced L3 managed PoE+ switch, is crafted for convergence layer requirements with features like L3 routing, rapid 10 Gbps wired connectivity, stacking, and redundant power supplies. It offers an impressive 1440 W PoE budget, 48 gigabit RJ45 PoE+ ports, 6 10 Gbps SFP+ slots, and physical stacking. Combined with centralized management, strong security, and comprehensive management features, SG6654XHP is an ideal
- IEEE 802.3at/af-compliant Power over Ethernet: 48 IEEE 802.3at/af-compliant PoE ports supply up to 1440 W total power to 802.3at and 802.3af devices,* with each port supplying up to 30 W power. Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling.
- High-speed Connectivity and Powerful Stacking: 48 gigabit RJ45 ports and 6 10 Gbps SFP+ slots provide up to 216 Gbps switching capacity per unit. Up to 4 units of physical stacking with up to 864 Gbps switching capacity empower the networking structure with built-in redundancy and performance.
- Abundant Layer 3 Capabilities: Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.
- Highly Available: Optional field-replaceable and hot-swappable redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.
Whats Included
- 5406R zl2 Switch, 5400R zl2 Management Module (J9827A), 5406R zl2 Switch Fan Tray (J9831A), Mounting Kit
