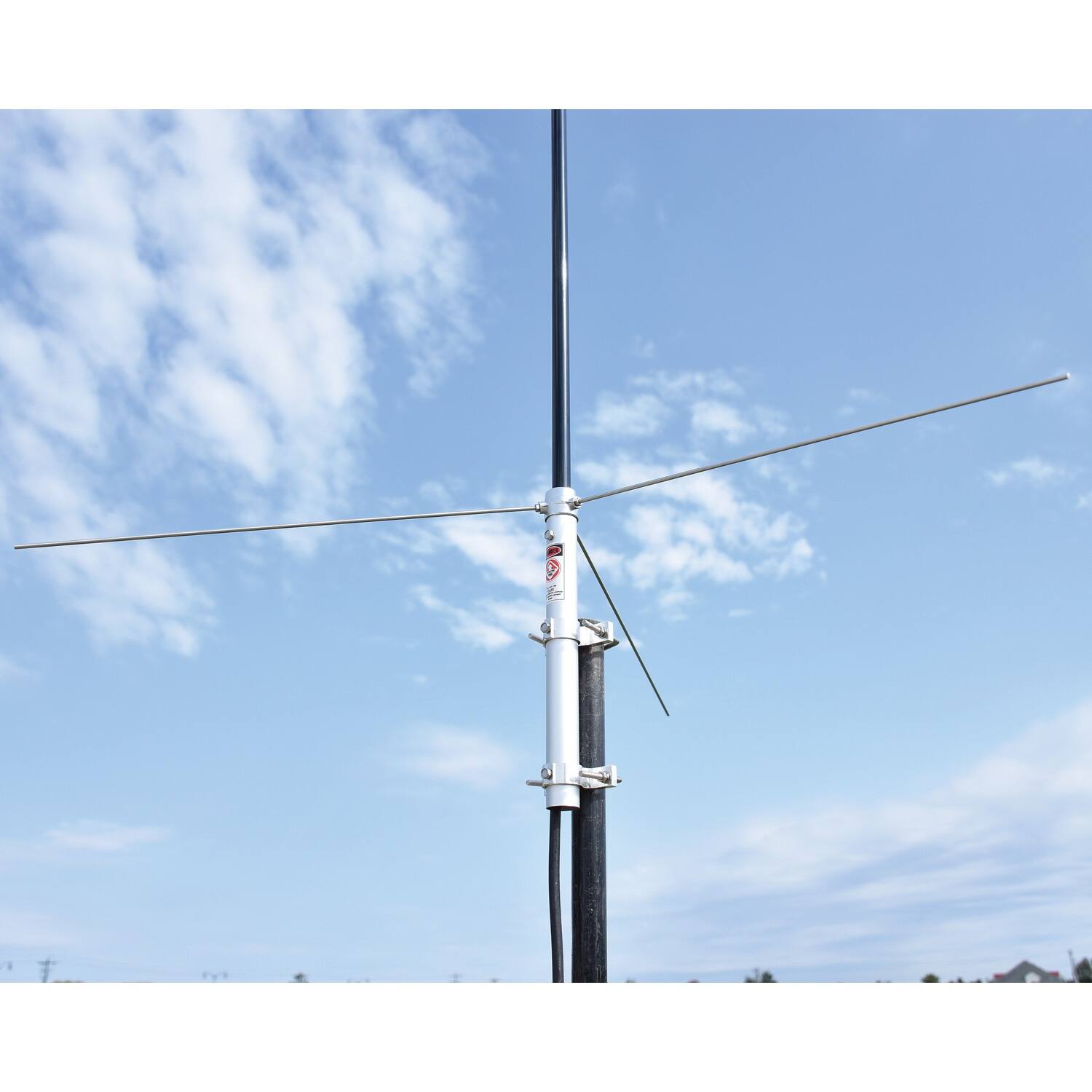

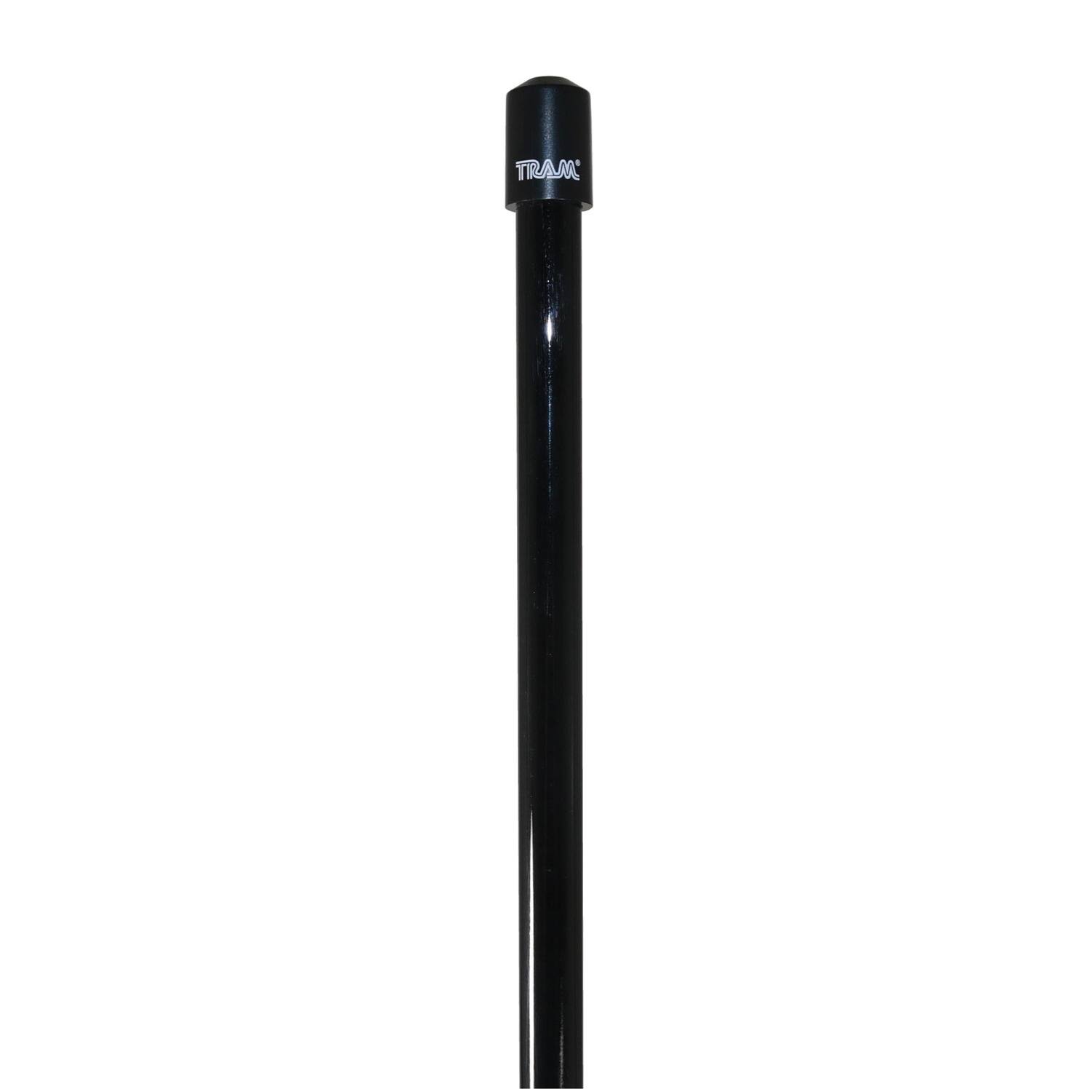

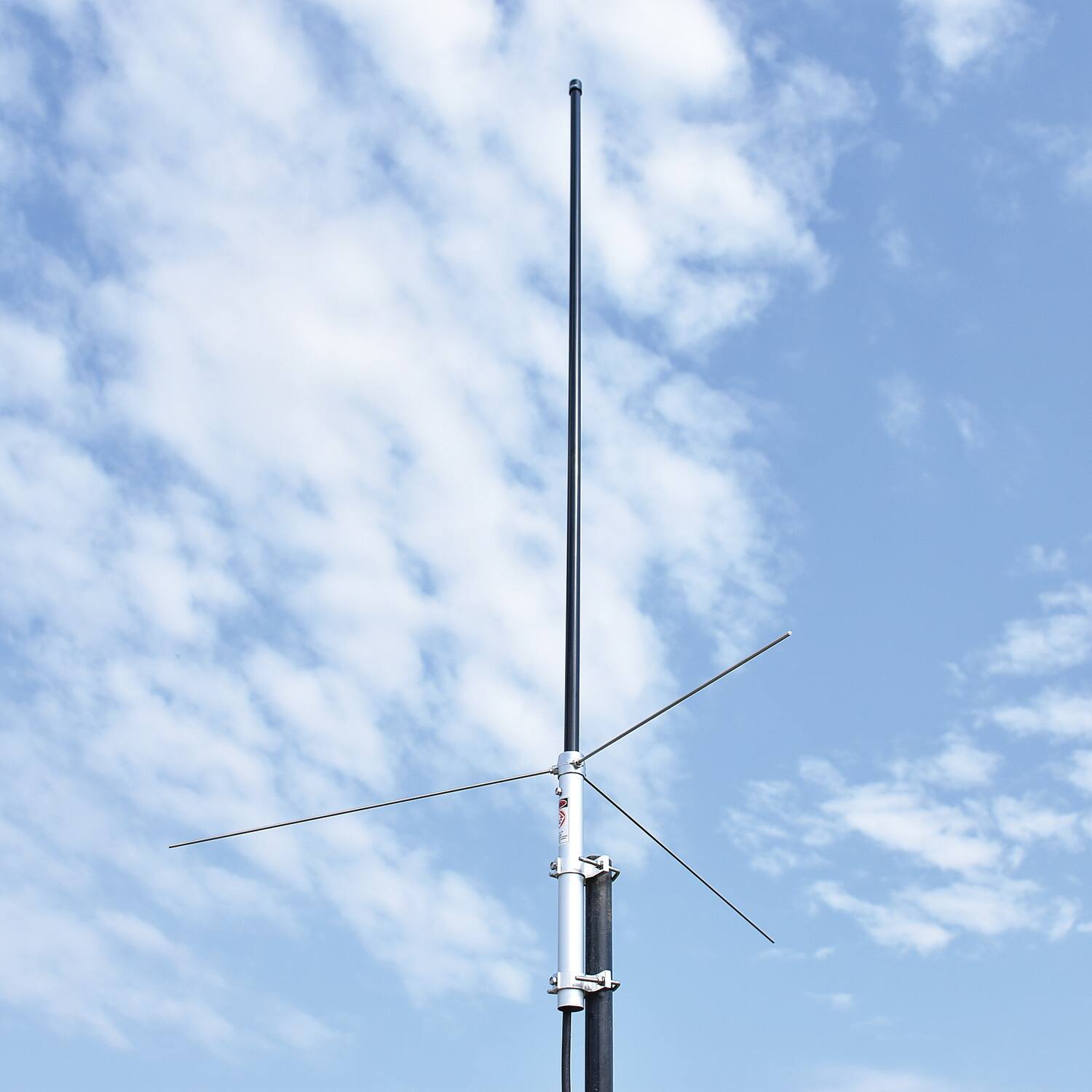

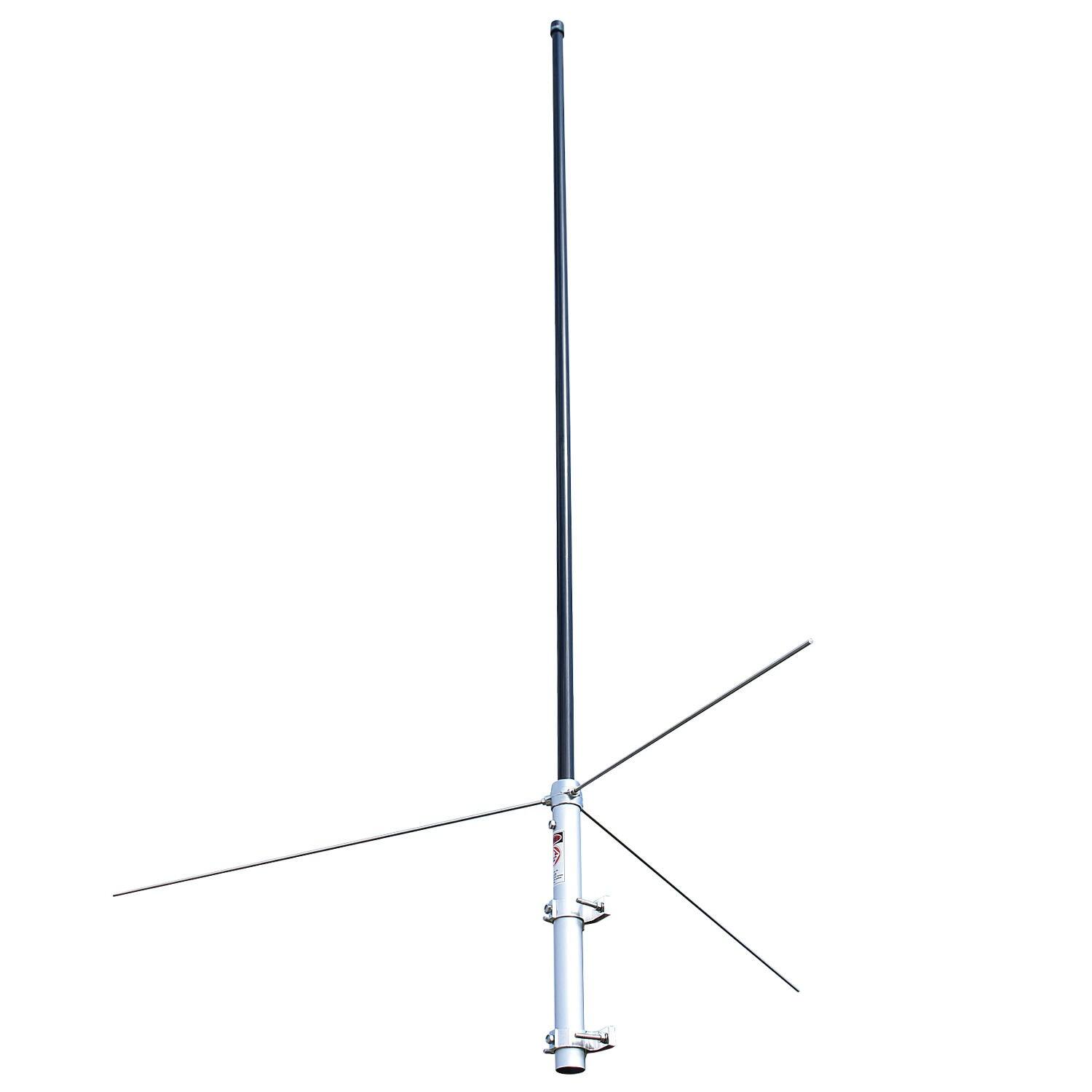

Tram - 200-Watt 134-184 MHz VHF Fiberglass Base Antenna, 4'10" Tall, 50-Ohm UHF SO-239 Connector - Black
Tram - 200-Watt 134-184 MHz VHF Fiberglass Base Antenna, 4'10" Tall, 50-Ohm UHF SO-239 Connector - Black
Related Item
About This Item
- Key Specs
- Amplified Reception: false (A powered antenna is able to pull signals from a greater distance, enabling better reception.)
- General
- Brand: Tram
- Model Number: 1487-B
- Product Name: 200-Watt 134-184 MHz VHF Fiberglass Base Antenna, 4'10" Tall, 50-Ohm UHF SO-239 Connector
- Color: Black
- Features
- Amplified Reception: false (A powered antenna is able to pull signals from a greater distance, enabling better reception.)
- Product Type: 2-Way radio antenna
- Dimensions
- Product Height: 58 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 1.6 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 90 days
- Warranty - Labor: 90 DAY
- Other
- UPC: 727932015611

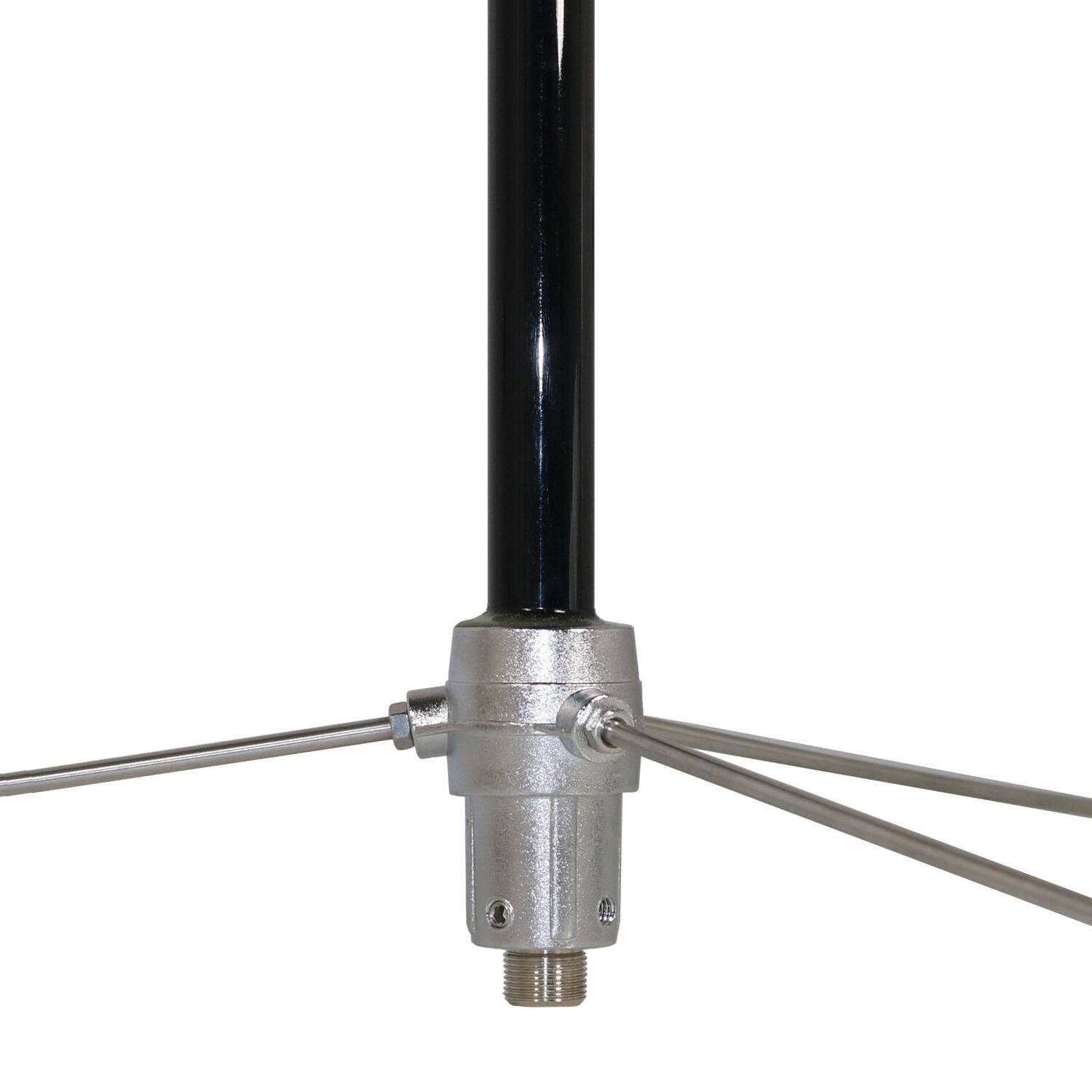

The Tram 200 Watt 134 MHz to 184 MHz VHF Black Fiberglass Base Antenna with 50-Ohm UHF SO-239 Connector has a heavy-duty fiberglass construction base, is 4 ft. 10 in. tall, and can withstand winds up to 135 MPH. It accepts mast diameters 1-3/16 in. to 2-7/16 in. and has an impedance of 50 ohms. This black antenna comes with three 20-1/2 in. stainless steel radials, UHF female (S0-239) connector, and bracket.
- High power rating: Supports up to 200 watts for reliable VHF signal transmission in various applications
- Durable fiberglass construction: Single-section black fiberglass design withstands wind speeds up to 135 MPH for long-lasting performance
- Wide frequency range: Covers 134 MHz to 184 MHz with a 5 MHz bandwidth and 4.5 dBd gain for clear reception
- Low noise and weather resistant: Hermetically sealed radiator and coil ensure low SWR and static dissipation for minimal noise and lightning protection
- Universal mounting compatibility: Fits mast diameters from 1-3/16 in. to 2-7/16 in. with included mounting bracket and stainless steel hardware
Whats Included
- mounting bracket, stainless steel hardware, Black Base Antenna
