Tripp Lite - by Eaton Multi-Function Optical Fiber Cable Tester with Power Meter Light Source and Visual Fault Locator - Black
Reviews coming soon
Related Item
About This Item
- General
- Brand: Tripp Lite
- Model Number: T020-001-PSF
- Product Name: Tripp Lite by Eaton Multi-Function Optical Fiber Cable Tester with Power Meter Light Source and Visual Fault Locator
- Color: Black
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- Product Width: 1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Height: 1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Depth: 1 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.9 pounds (The out of box weight of the item.)
- Batteries Included: true (Indicates whether the product comes with the required batteries for its operation.)
- Battery Size: Not Applicable (The battery size required for operation.)
- Number of Batteries Required: 3
- Application Tested: Cable
- Remote Probe: false
- Minimum Frequency Detected: 0.0 kilohertz
- Maximum Frequency Detected: 1000.0 gigahertz
- UPC: 037332190345

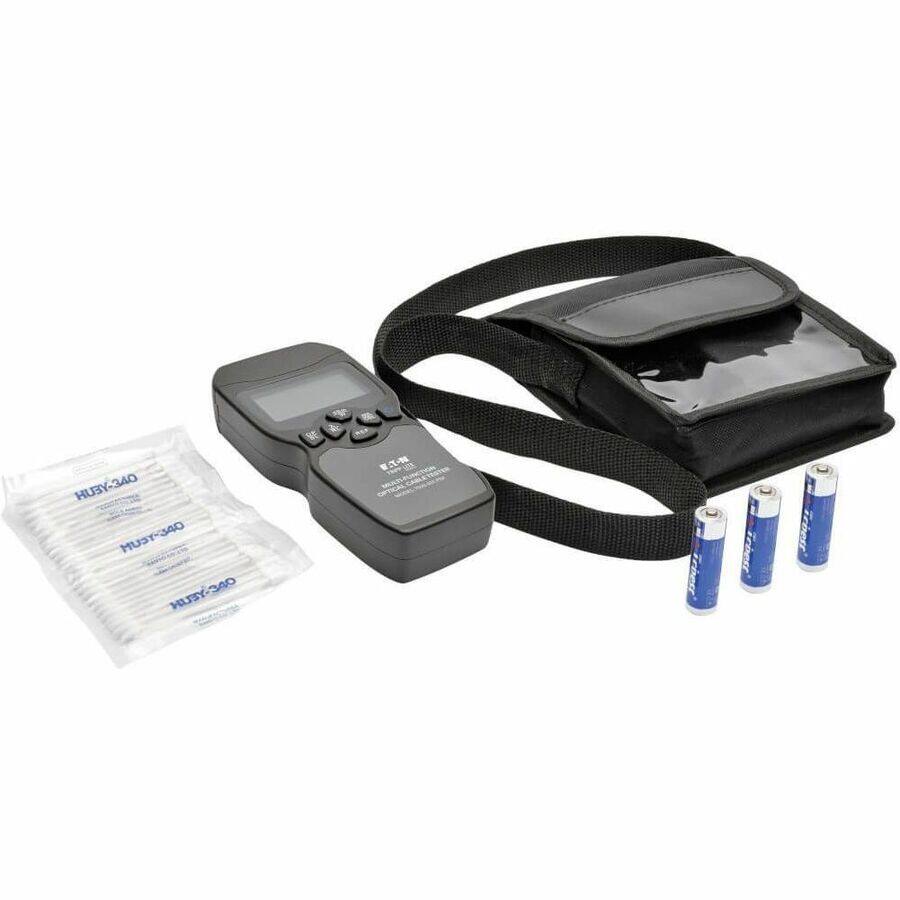

The all-in-one T020-001-PSF Multi-Function Optical Fiber Cable Tester is an essential tool for cable installers or anyone working in telecom or LAN environments. The combination power meter/light source/visual fault locator allows you to test fiber optic cables for breaks, insertion loss and optical power loss. It features FC connectors with optional SC, ST and LC adapters available. The power meter supports 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm and 1625 nm wavelengths, while the light source supports 1310 nm and 1550 nm wavelengths. The visual fault locator features multiple frequency settings for continuous and flashing modes. The easy-to-read LCD interface displays power loss measurement data, wavelength, frequency, battery capacity and battery charge status. Three AA batteries are included, and the auto-off function preserves battery power. If you're using rechargeable AA batteries, the USB Micro-B port charges them via connection to a USB wall charger or a computer's USB port. When not in use, the T020-001-PSF can be stored in its handy carrying case. More from the Manufacturer
- Tripp Lite by Eaton Multi-Function Optical Fiber Cable: The all-in-one T020-001-PSF Multi-Function Optical Fiber Cable Tester is an essential tool for cable installers or anyone working in telecom or LAN environments. The combination power meter/light source/visual fault locator allows you to test fiber optic cables for breaks, insertion loss and optical power loss. It features FC connectors with optional SC, ST and LC adapters available. The power meter supports 850 nm, 1300 nm, 1310 nm
