Tripp Lite - by Eaton PDU 1.9kW Single-Phase Switched PDU - LX Interface 120V Outlets (24 5-15/20R) 10 ft. (3.05 m) Cord - Black

Model: PDU1420T
SKU: 12175967

Reviews coming soon

Sold & shipped by

About this product

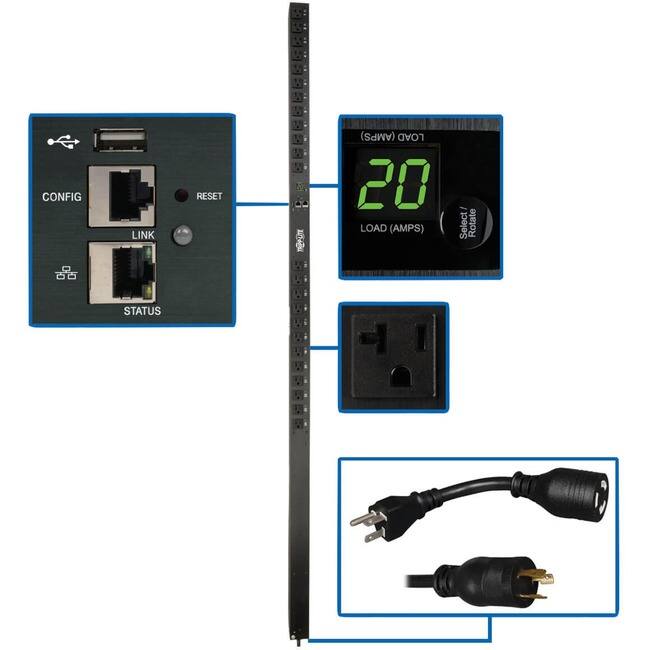

The PDUMV20NETLX 1.9kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for IT and industrial applications, the vertical PDU features 24 switched NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L5-20P plug connects the PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

Features

  • Distributes Network-Grade AC Power

    1.9kW 120V switched PDU with single-phase input Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components NEMA L5-20P plug with 10 ft. cord connects to compatible AC power source Firmware upgrades support future product enhancements

  • 24 Switched NEMA 5-15/20R Outlets Distribute AC Power

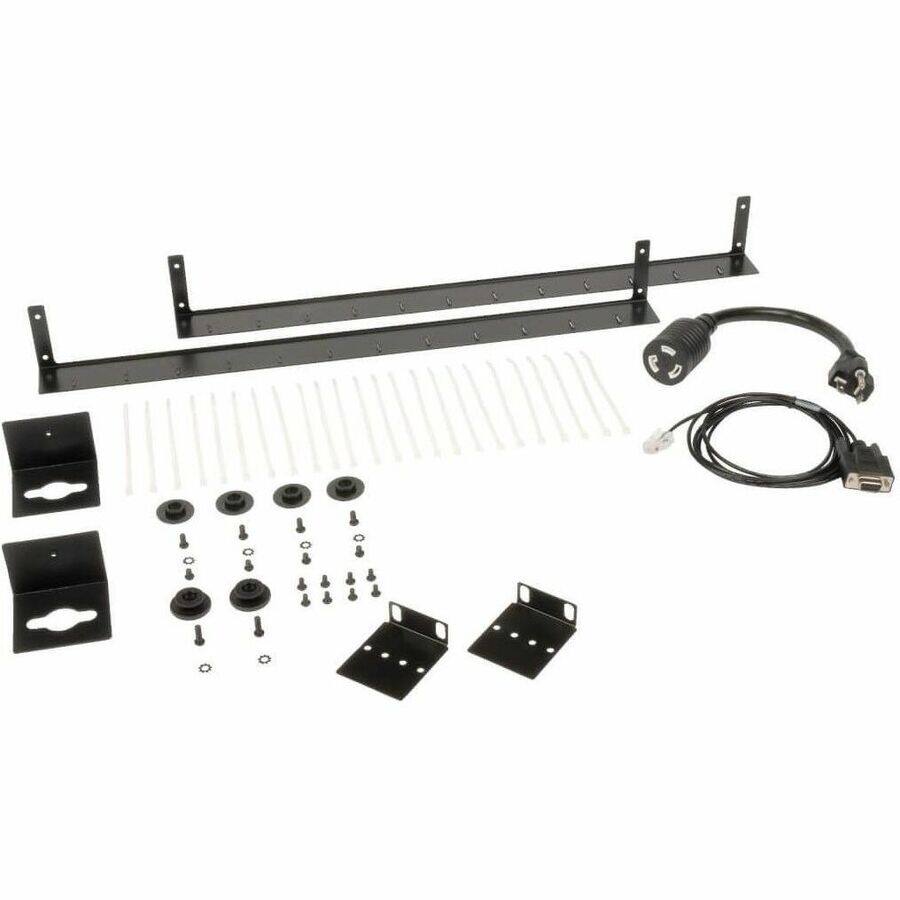

    Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices Cord retention brackets prevent cables from becoming accidentally disconnected

  • Digital Ammeter

    Reports total PDU load in real time Supports IP-address self-ID Rotates 180° for easy reading at either angle

  • Built-In LX Platform Interface

    Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH Supports 10/100 Mbps auto-sensing for communication with an Ethernet network Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities No Java required

  • Broad Communications Compatibility

    Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP Supports automatic and manual assignment of IP address

Specifications

  • Brand
    Tripp Lite
    Model Number
    PDU1420T
    Product Name
    Tripp Lite by Eaton PDU 1.9kW Single-Phase Switched PDU - LX Interface 120V Outlets (24 5-15/20R) 10 ft. (3.05 m) Cord
    Color
    Black
    Voltage
    120.0 volts
    Number Of Outlets
    1
