Tripp Lite - by Eaton PDU 2.4kW Single-Phase 120V Basic PDU 13 NEMA 5-15/20R Outlets NEMA L5-20P Input 15 ft. (4.57 m) - Unknown
More Buying Options from Marketplace sellers
Related Item
About This Item
- General
- Brand: Tripp Lite
- Model Number: PDU1220T
- Product Name: Tripp Lite by Eaton PDU 2.4kW Single-Phase 120V Basic PDU 13 NEMA 5-15/20R Outlets NEMA L5-20P Input 15 ft. (4.57 m)
- Color: Unknown
- Power
- Voltage: 120.0 volts (Amount of power needed to support an electrical current.)
- Features
- Number Of Outlets: 13
- Dimensions
- Product Height: 3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 21 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 5.9 pounds (The out of box weight of the item.)
- Cord Length: 0.0 feet
- Warranty
- Warranty - Parts: 5 Year
- Warranty - Labor: 5 Year
- Other
- UPC: 037332119148

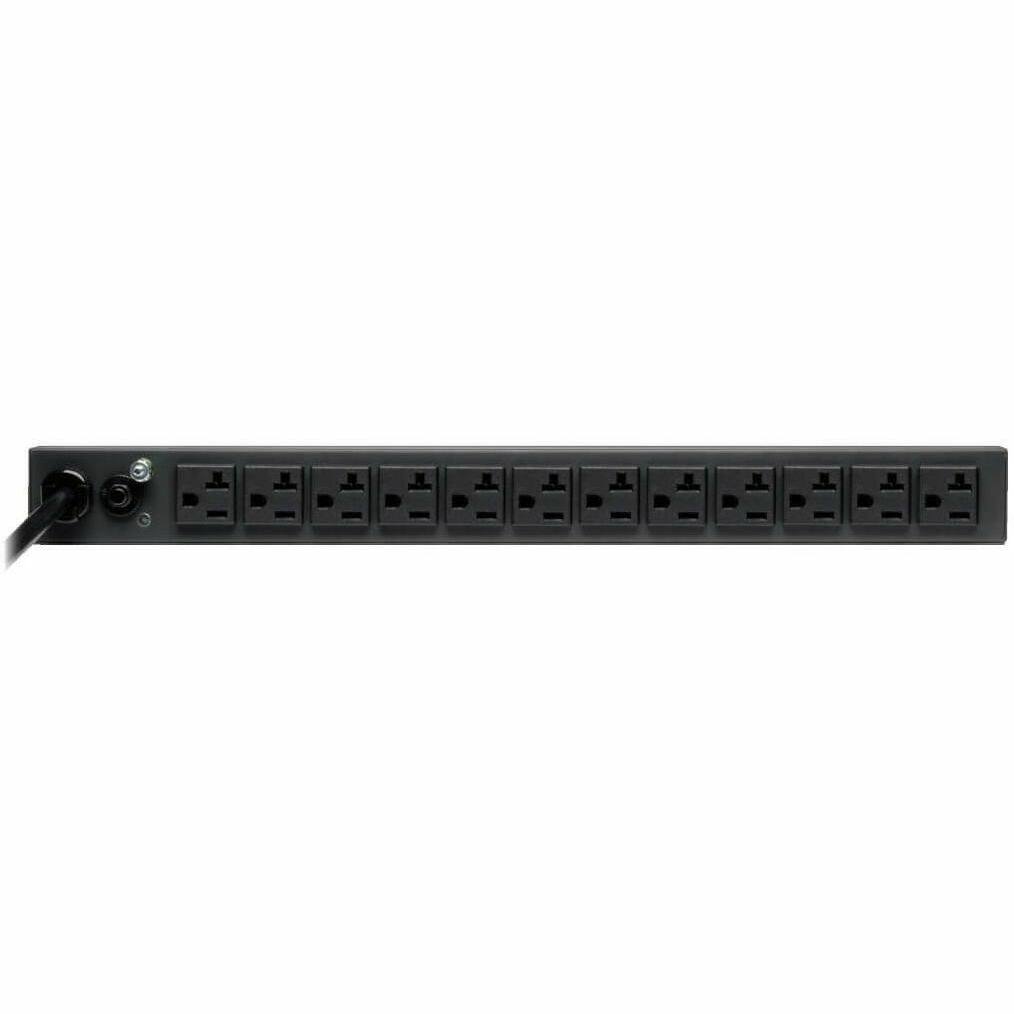

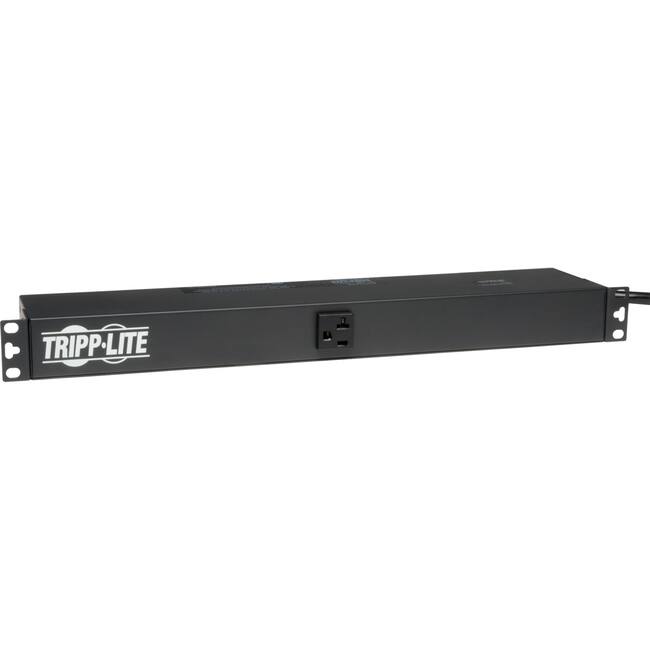

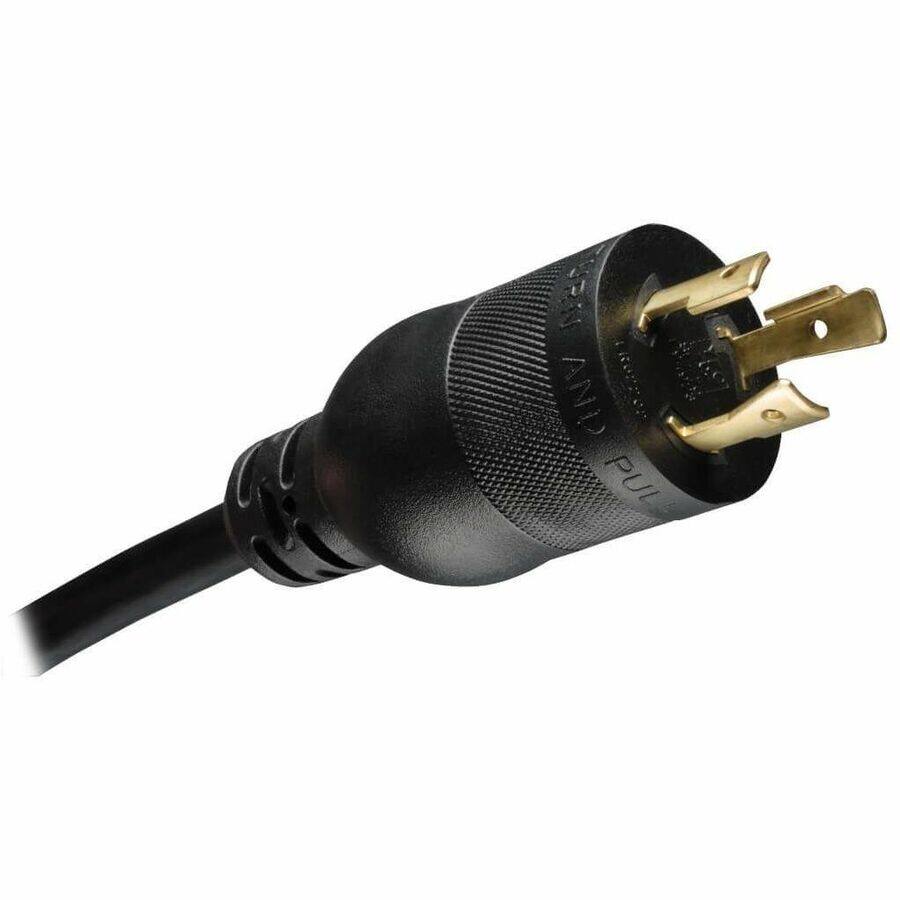

Tripp Lite's PDU1220T AC power distribution unit offers 20 amp, 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 12 rear-facing outlets and one front-facing measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes PDU1220T ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 12 rear-facing NEMA5-20R outlets, 1 front-facing NEMA5-20R outlet, NEMAL5-20P twist lock plug, 15 ft. AC power cord, 20 amp circuit breaker, grounding lug and rugged all-metal case design. PLUG/OUTLETS - Input: NEMA L5-20P/Output: 13 NEMA5-20R (12 rear-facing, one front-facing)ELECTRICAL - 120V AC, 50/60Hz, 20A (Requires NEMA L5-20R wall receptacle)FORMAT - Supports 19 in. rackmount (1U/0U), wallmount, under-counter and more More from the Manufacturer
- Tripp Lite by Eaton PDU 2.4kW Single-Phase 120V Basic PDU 13: Tripp Lite's PDU1220T AC power distribution unit offers 20 amp, 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and
