Tripp Lite - by Eaton PDU 3.7kW Single-Phase 208/230V Monitored PDU - LX Platform 20 C13 4 C19 Outlets C20 Input with - Black

Model: PDU1420T
SKU: 13197098

Reviews coming soon

Sold & shipped by

About this product

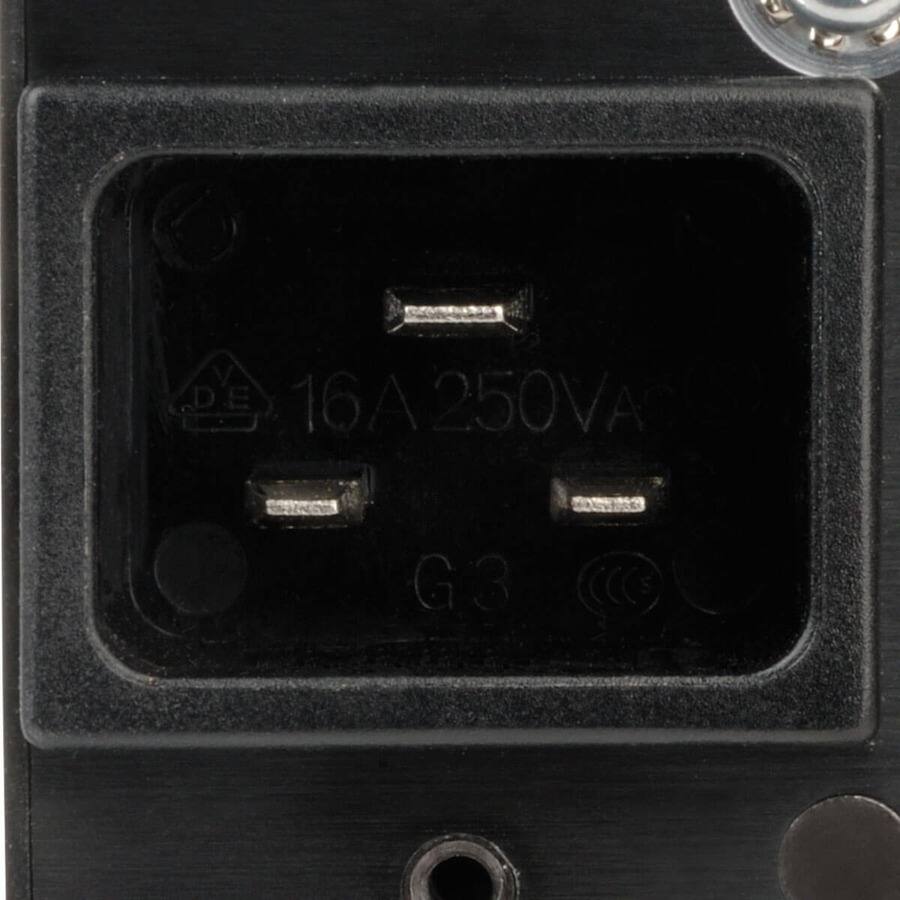

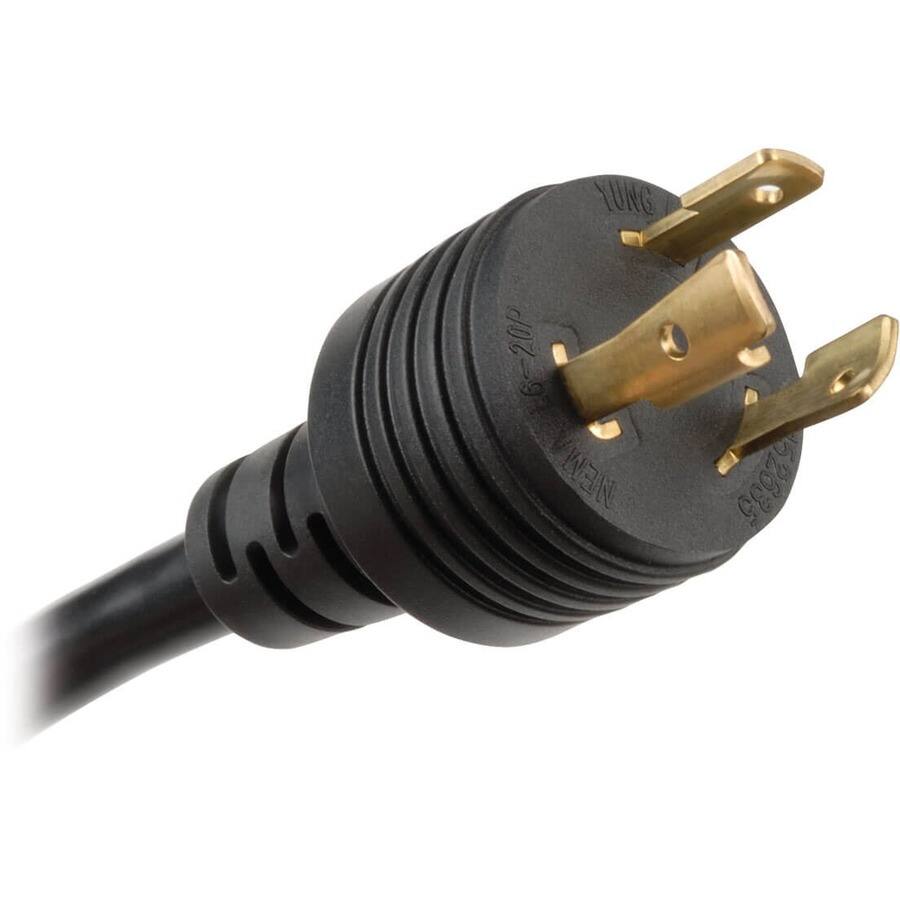

The PDUMNV20HVLX 3.3-3.7kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for your IT or industrial application, the 0U PDU features 24 outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. The C20 inlet is compatible with a wide variety of user-supplied power cords for connecting to an AC source, generator or protected UPS. A detachable 10-foot cord with NEMA L6-20P plug is included. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor the total connected load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

Features

  • Distributes and Monitors Network-Grade AC Power

    3.3-3.7kW 208/230V 20A monitored PDU with single-phase input C20 inlet compatible with wide variety of user-supplied power cords Detachable 10 ft. cord with NEMA L6-20P plug included Firmware upgrades support future product enhancements

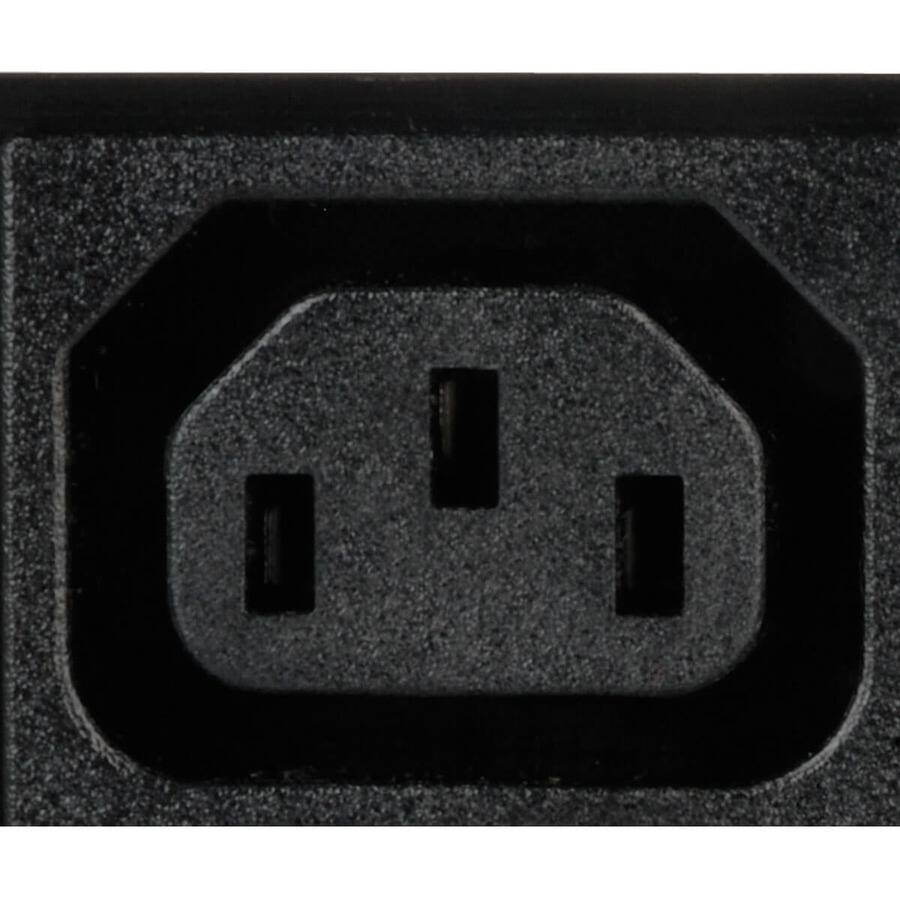

  • 20 C13 and 4 C19 Outlets Distribute AC Power

    Included plug-lock inserts prevent cables from becoming accidentally disconnected

  • Digital Ammeter

    Reports total connected equipment load in real time Supports IP-address self-ID Rotates 180° for easy reading at either angle

  • Built-In LX Platform Interface

    Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH Supports 10/100 Mbps auto-sensing for communication with an Ethernet network Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities No Java required

  • Broad Communications Compatibility

    Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP Supports automatic and manual assignment of IP address

Specifications

  • Brand
    Tripp Lite
    Model Number
    PDU1420T
    Product Name
    Tripp Lite by Eaton PDU 3.7kW Single-Phase 208/230V Monitored PDU - LX Platform 20 C13 4 C19 Outlets C20 Input with
    Color
    Black
    Voltage
    230.0 volts
    Number Of Outlets
    20
