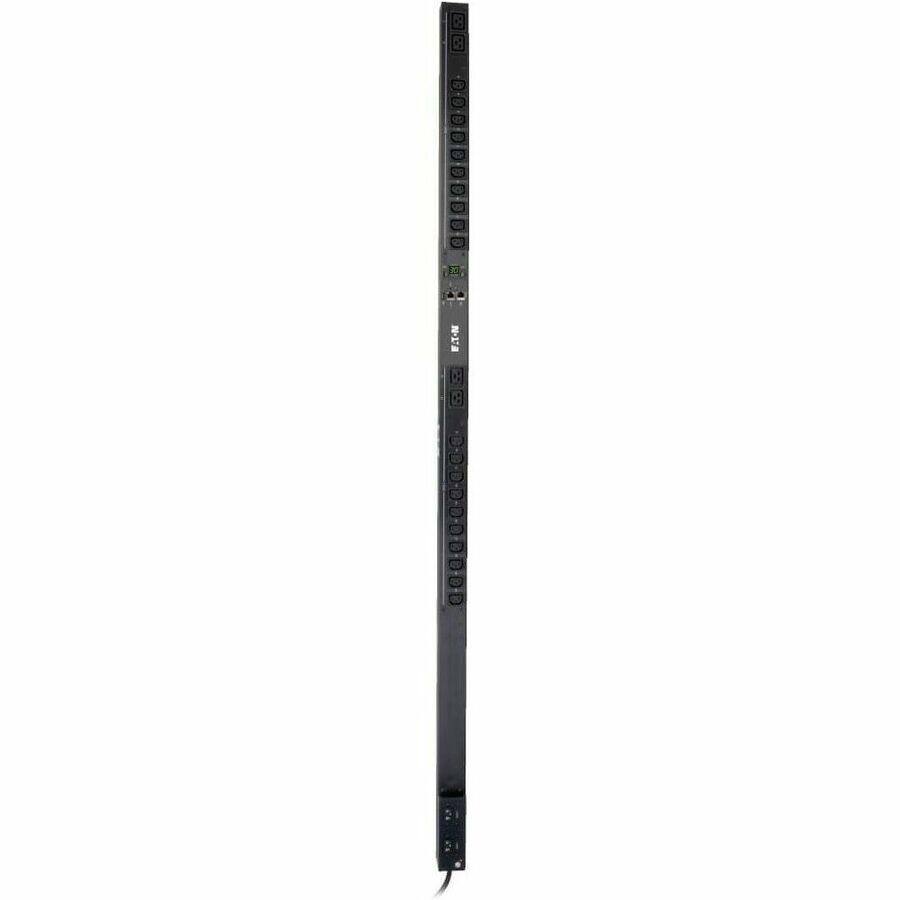

Tripp Lite - by Eaton PDU 5.5kW Single-Phase Monitored PDU with LX Platform Interface 208/230V Outlets (20 C13 & 4 C19) - Black
Tripp Lite - by Eaton PDU 5.5kW Single-Phase Monitored PDU with LX Platform Interface 208/230V Outlets (20 C13 & 4 C19) - Black
More Buying Options
Related Item
About This Item
- General
- Brand: Tripp Lite
- Model Number: PDU1420T
- Product Name: Tripp Lite by Eaton PDU 5.5kW Single-Phase Monitored PDU with LX Platform Interface 208/230V Outlets (20 C13 & 4 C19)
- Color: Black
- Power
- Voltage: 230.0 volts (Amount of power needed to support an electrical current.)
- Features
- Number Of Outlets: 20
- Dimensions
- Product Height: 70 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 2.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 2.6 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 10.0 pounds (The out of box weight of the item.)
- Cord Length: 6.0 feet
- Warranty
- Warranty - Parts: 2 years repair or replace
- Warranty - Labor: 2 years
- Other
- UPC: 037332204479

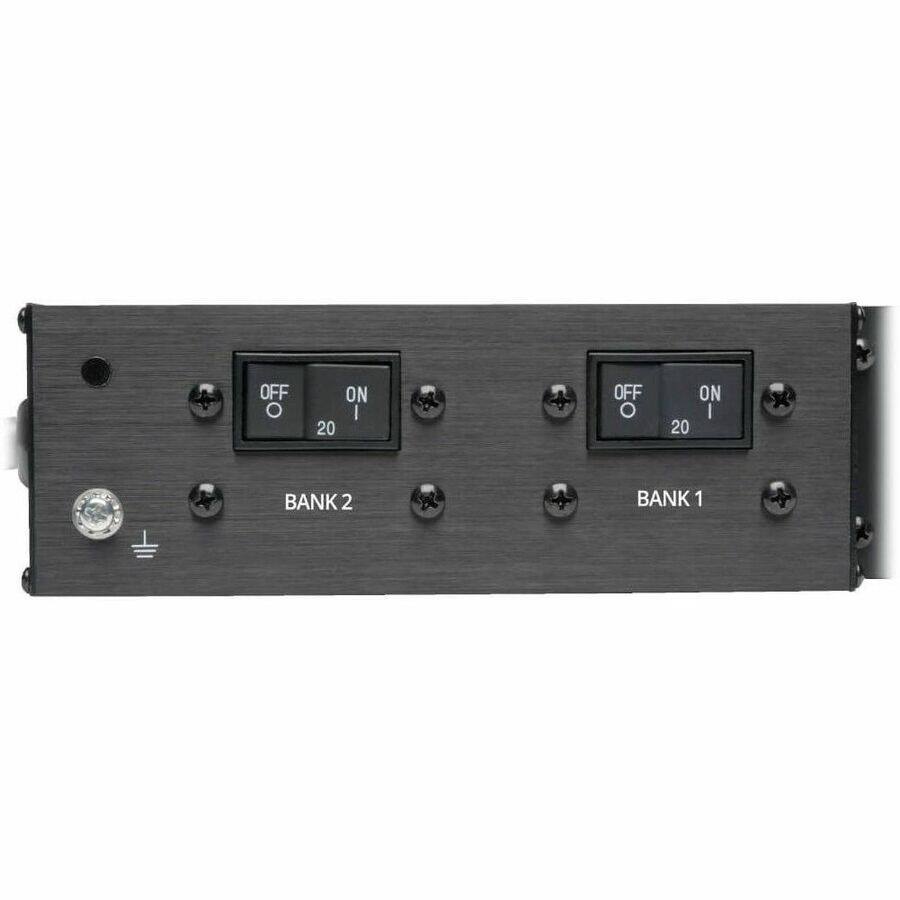

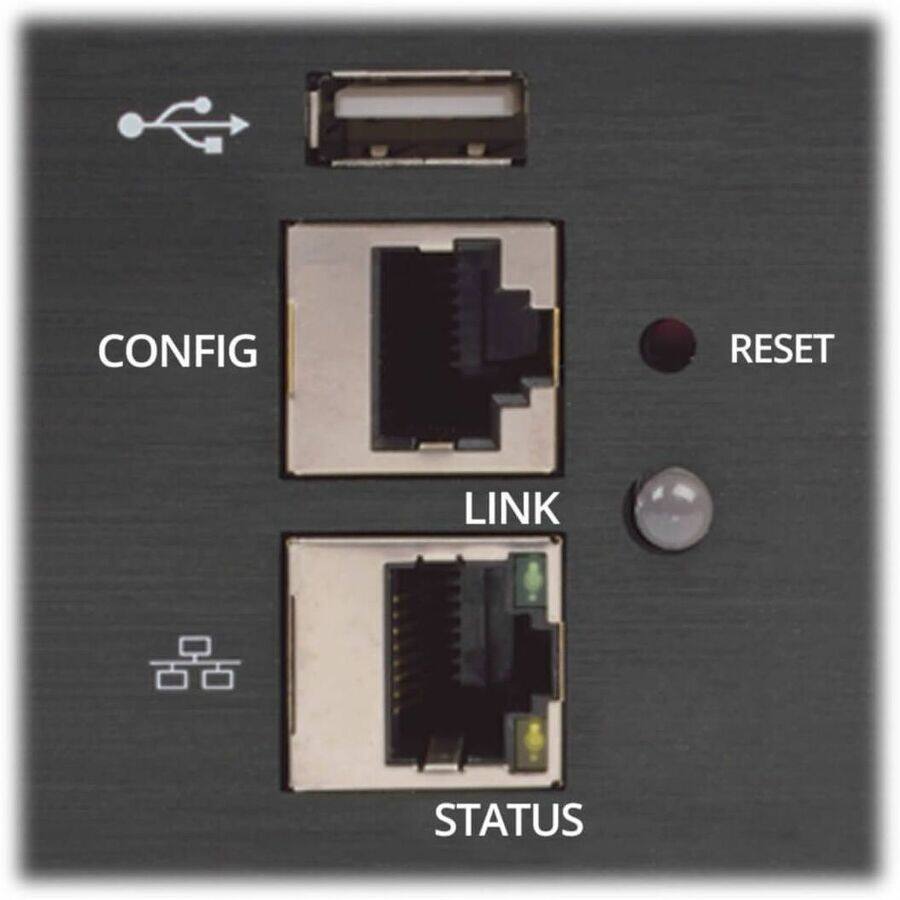

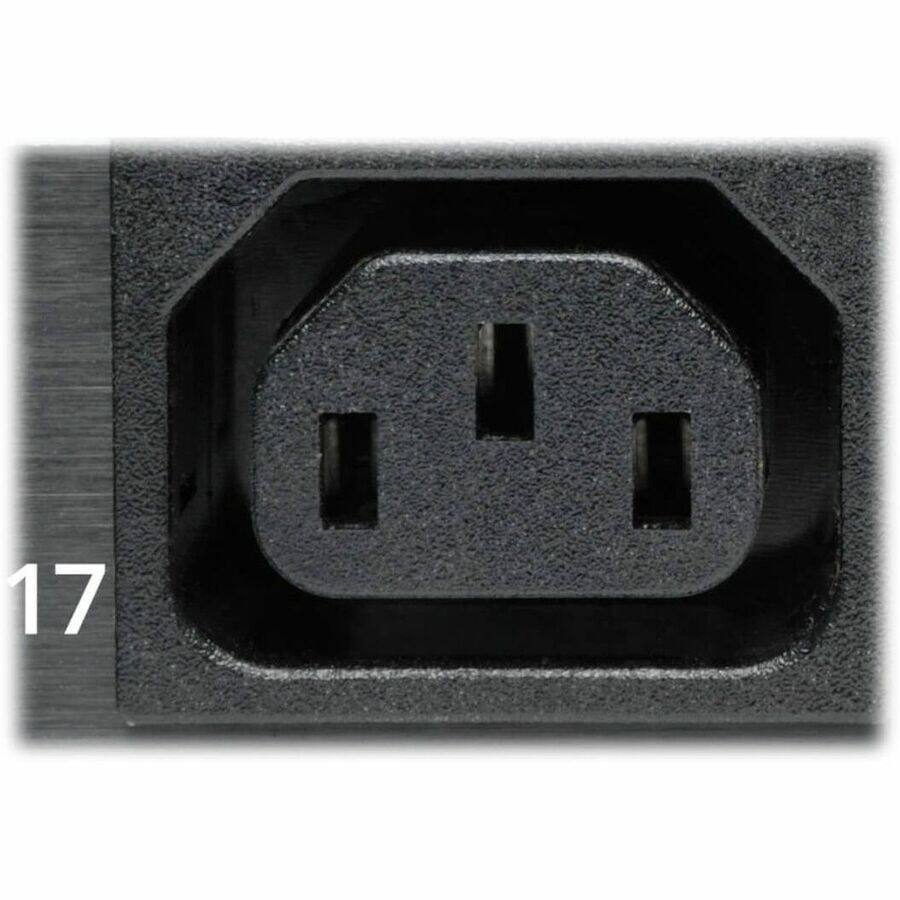

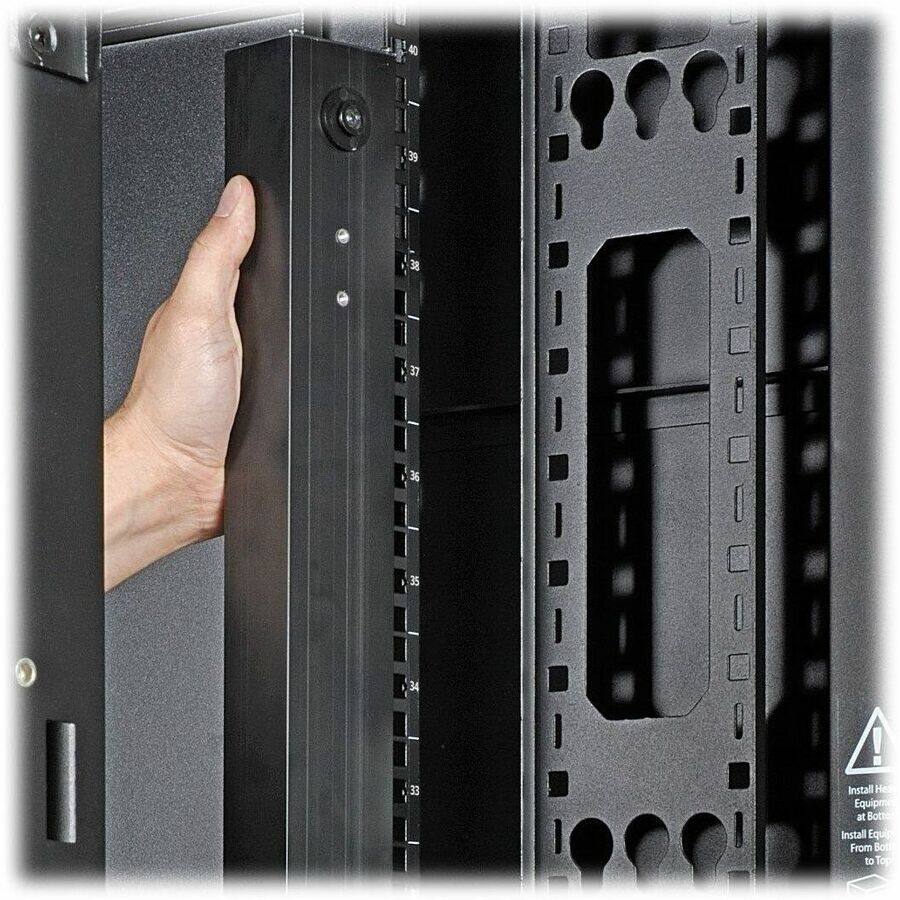

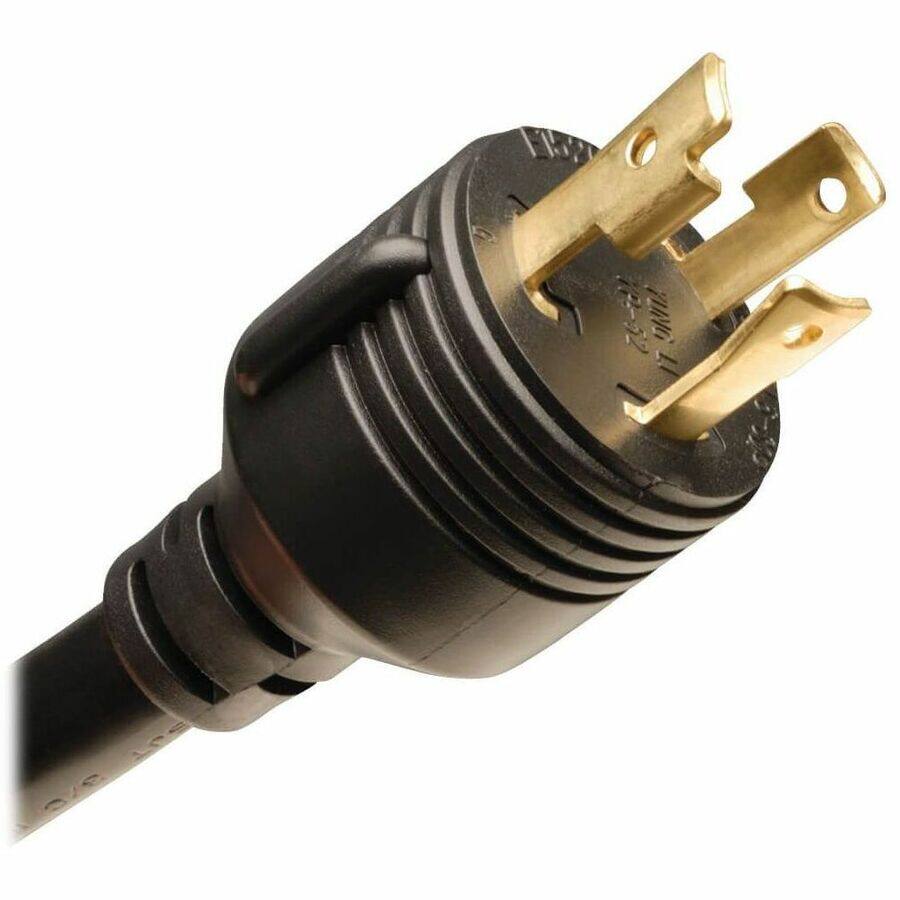

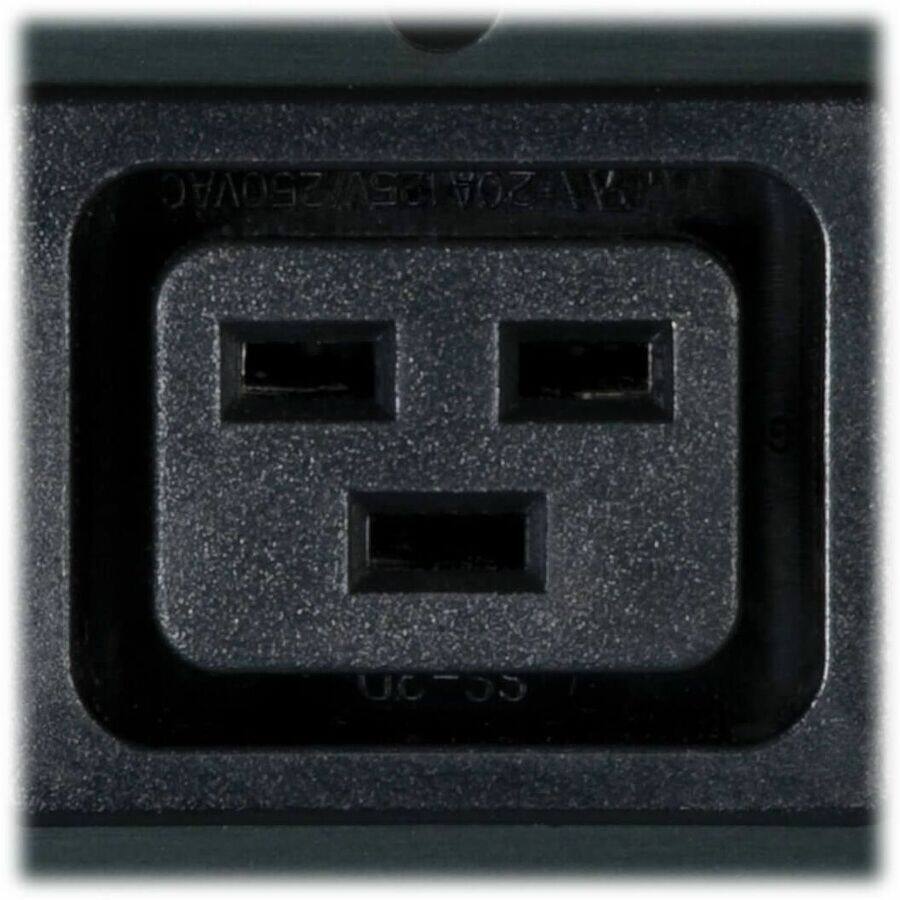

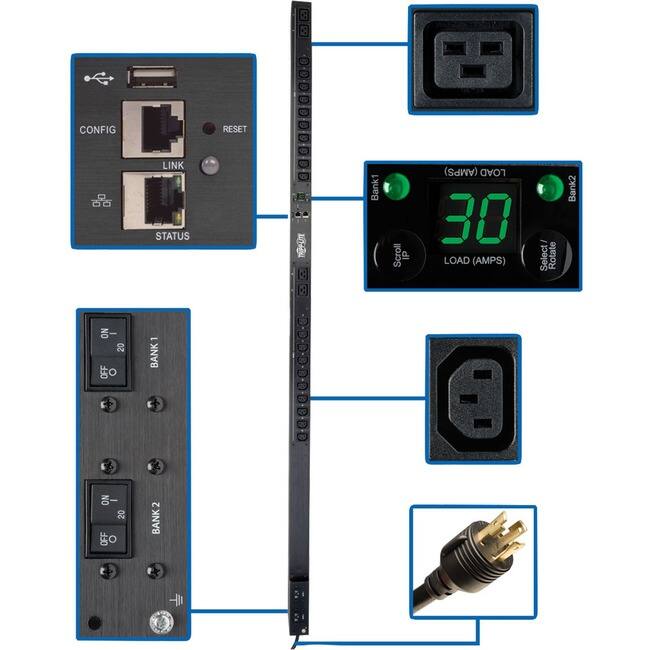

The PDUMNV30HVLX 5.8kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for any IT or industrial application, it features 24 outlets (20 C13 and 4 C19) with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access. More from the Manufacturer
- Tripp Lite by Eaton PDU 5.5kW Single-Phase Monitored PDU: The PDUMNV30HVLX 5.8kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for any IT or industrial application, it features 24 outlets (20 C13 and 4 C19) with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source
- Tripp Lite by Eaton PDU 5.5kW Single-Phase Monitored PDU: The PDUMNV30HVLX 5.8kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for any IT or industrial application, it features 24 outlets (20 C13 and 4 C19) with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source
Reviews
This product doesn't have any reviews yet.
- Hisense - 55" Class U6 Series MiniLED QLED UHD 4K HDR Smart Fire TV (2025)$399.99The price was $799.99
- Hisense - 65" Class U7 Series MiniLED QLED UHD 4K HDR Smart Google TV (2025)$699.99The price was $1,499.99
- Hisense - 85" Class U6 Series MiniLED QLED UHD 4K HDR Smart Fire TV (2025)$847.99The price was $1,999.99
- Hisense - 100" Class U8 Series MiniLED QLED UHD 4K HDR Smart Google TV (2025)$2,977.96The price was $6,999.99
Compare similar products
The PDUMNV30HVLX 5.8kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for any IT or industrial application, it features 24 outlets (20 C13 and 4 C19) with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access. More from the Manufacturer
