Tripp Lite - Fiber Optic Duplex Network Cable N370X10M

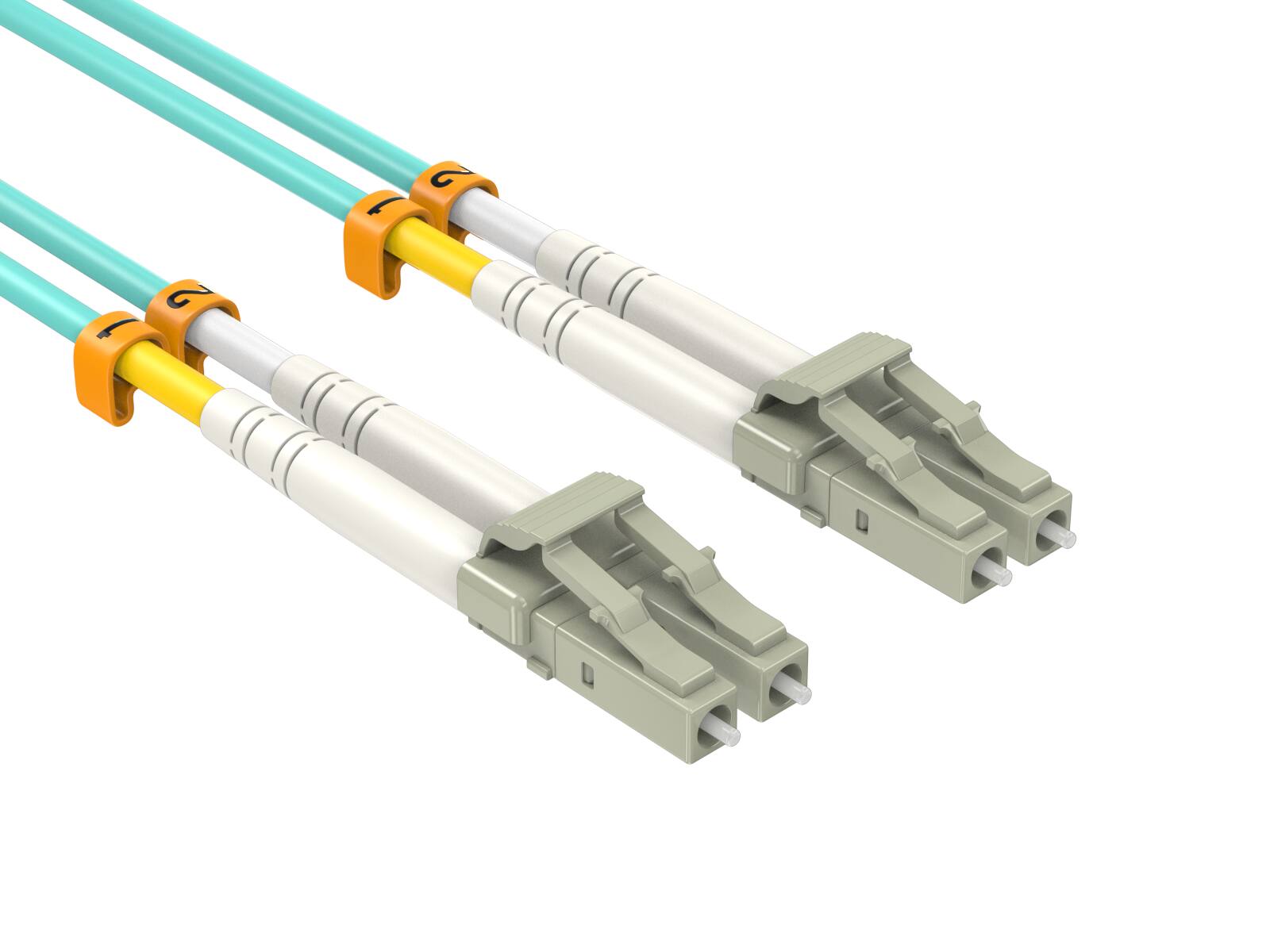

Need to link a 10G SFP+ switch port, server NIC or patch panel over multimode fiber? This Cable Leader OM3 LC to LC fiber patch cable, also sold as an OM3 duplex fiber optic cable or multimode patch cord, uses Corning 50/125 OM3 glass with a 2.0 mm zipcord OFNR riser-rated jacket and LC/UPC connectors on both ends, with insertion loss of 0.30 dB or less and return loss of 35 dB or better per connector. OM3 fiber is specified by TIA-492AAAC at 2000 MHz-km effective modal bandwidth, which carries 10GBASE-SR up to 300 m and 25GBASE-SR up to 70 m under IEEE 802.3. Compatible with 10GBASE-SR and 1000BASE-SX LC transceivers from Cisco, Ubiquiti UniFi, MikroTik, TP-Link, Netgear, Dell, HPE Aruba and Intel X520 or X710 network cards, plus LC duplex patch panels and couplers. Each cable is sample-tested during production, and Cable Leader handles replacement requests directly. Best for: 10G SFP+ uplinks inside a rack or room, server to switch links, LC patch panel jumpers. Not for: single-mode LR or LX transceivers that need yellow OS2 fiber, QSFP MPO parallel ports, or Toslink audio.

Need a single mode jumper for a 10G SFP+ LR port where space behind the port is tight? This Cable Leader OS2 LC to LC fiber patch cable, also sold as a single mode fiber optic cable or LC duplex patch cord, uses Corning 9/125 G657A1 bend-insensitive glass in a 2.0 mm LSZH/OFNR riser-rated zipcord with short-boot LC/UPC connectors, insertion loss 0.30 dB or less, return loss 55 dB or better. OS2 fiber carries 1000BASE-LX and 10GBASE-LR links up to 10 km under IEEE 802.3, and the 19.5 mm short boot needs less clearance than a standard LC boot, so 48 ports on a 1U switch stay serviceable. Compatible with 10GBASE-LR and 1000BASE-LX LC single mode transceivers from Cisco, Ubiquiti UniFi, MikroTik, TP-Link, Netgear, Dell, HPE Aruba and Intel X520 network cards, and LC duplex patch panels. Each cable is sample-tested during production, and Cable Leader handles replacement requests directly. Best for: 10G LR uplinks between floors or buildings, dense 1U switch faceplates, LC patch panel jumpers. Not for: SR or SX multimode optics on aqua OM3 or OM4 fiber, green APC ports, or Toslink audio.

Need to link a 10G SFP+ switch port, server NIC or patch panel over multimode fiber? This Cable Leader OM4 LC to LC fiber patch cable, also sold as an OM4 duplex fiber optic cable or multimode patch cord, uses Corning 50/125 OM4 glass with a 2.0 mm zipcord OFNR riser-rated jacket and LC/UPC connectors on both ends, with insertion loss of 0.30 dB or less and return loss of 35 dB or better per connector. OM4 fiber is specified by TIA-492AAAD at 4700 MHz-km effective modal bandwidth, which carries 10GBASE-SR up to 400 m and 25GBASE-SR up to 100 m under IEEE 802.3. Compatible with 10GBASE-SR and 1000BASE-SX LC multimode transceivers from Cisco, Ubiquiti UniFi, MikroTik, TP-Link, Netgear, Dell, HPE Aruba and Intel X520 or X710 network cards, plus LC duplex patch panels and couplers. Each cable is sample-tested during production, and Cable Leader handles replacement requests directly. Best for: 10G SFP+ uplinks, server to top-of-rack switch links, LC patch panel jumpers. Not for: single-mode LR or LX transceivers that need yellow OS2 fiber, QSFP MPO parallel ports, or Toslink audio.
