Tripp Lite - series NGS16C2-1 Ethernet Switch - 16 Ports - Manageable - Gigabit Ethernet - 1000Base-SX, 1000Base-LX - Black
Tripp Lite - series NGS16C2-1 Ethernet Switch - 16 Ports - Manageable - Gigabit Ethernet - 1000Base-SX, 1000Base-LX - Black
Related Item
Specifications
- Number of LAN Ports28
- Key Specs
- Number of LAN Ports: 28 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- General
- Brand: Tripp Lite
- Product Name: Tripp Lite series NGS16C2-1 Ethernet Switch - 16 Ports - Manageable - Gigabit Ethernet - 1000Base-SX, 1000Base-LX
- Color: Black
- Dimensions
- Product Height: 1.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 17.3 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 8.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 6.3 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 year limited
- Warranty - Labor: 3 Year Limited Warranty
- Other
- UPC: 037332290908
Tripp Lite series NGS16C2-1 Ethernet Switch - 16 Ports - Manageable - Gigabit Ethernet - 1000Base-SX, 1000Base-LX, 10/100/1000Base-T - 3 Layer Supported - 2 SFP Slots - 272.10 W Power Consumption - 220 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable, Desktop - 3 Year Limited Warranty

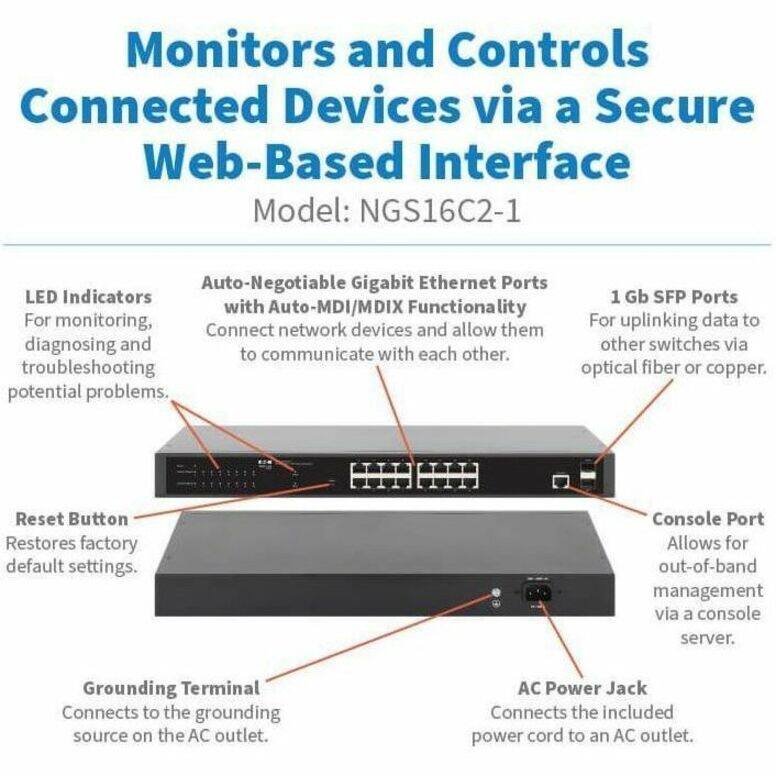

- Enterprise Managed Gigabit Ethernet Switch Connects Your ...: This space-saving desktop switch transmits data over a Gigabit Ethernet (GbE) network. Sixteen auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a/8 cable only to the computers, routers, hubs and other devices designated to receive it, which improves the efficiency and potential throughput of the network. LEDs indicate when the switch is powered on and which Ethernet ports are connected and showing activity.
- Recommended for IT Managers in Server Message Block (SMB)...: The NGS16C2-1 is ideal for IT pros needing a high-performance managed network switch for white space installations. It is also recommended for data centers using Layer 2 and Layer 3 management of connected servers, as well as small installations that manage multiple products within their network closets.
- Built-In Web Smart Management Software: The Web Smart software provides rich Layer 2 functionality for monitoring and controlling connected equipment via a simple web interface. VLAN, trunking, VPN, port monitoring and other features improve network efficiency and performance.
- Dual Dedicated SFP Ports: Two GbE SFP ports connect to user-supplied SFP modules (sold separately) for uplinking data to other switches via optical fiber or copper. LEDs indicate interface traffic.
- Compliant with Energy Efficient Ethernet Standards: The NGS16C2-1 automatically shifts unused ports to a low power state without interrupting its network connection. The switch meets IEEE 802.3ab, 802.3i, 802.3u, 802.3x, 802.3z, 802.3at, 802.3af, 802.1q and 802.1p standards.
Whats Included
- 5406R zl2 Switch, 5400R zl2 Management Module (J9827A), 5406R zl2 Switch Fan Tray (J9831A), Mounting Kit
