Ubiquiti - 24-Port Gigabit PoE+ Compliant Managed Switch USW-24-POE - Gray
FREE shipping to
More Buying Options
Related Item
Specifications
- Number of LAN Ports24
- Key Specs
- Number of LAN Ports: 24 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- General
- Brand: Ubiquiti
- Product Name: 24-Port Gigabit PoE+ Compliant Managed Switch USW-24-POE
- Color: Gray

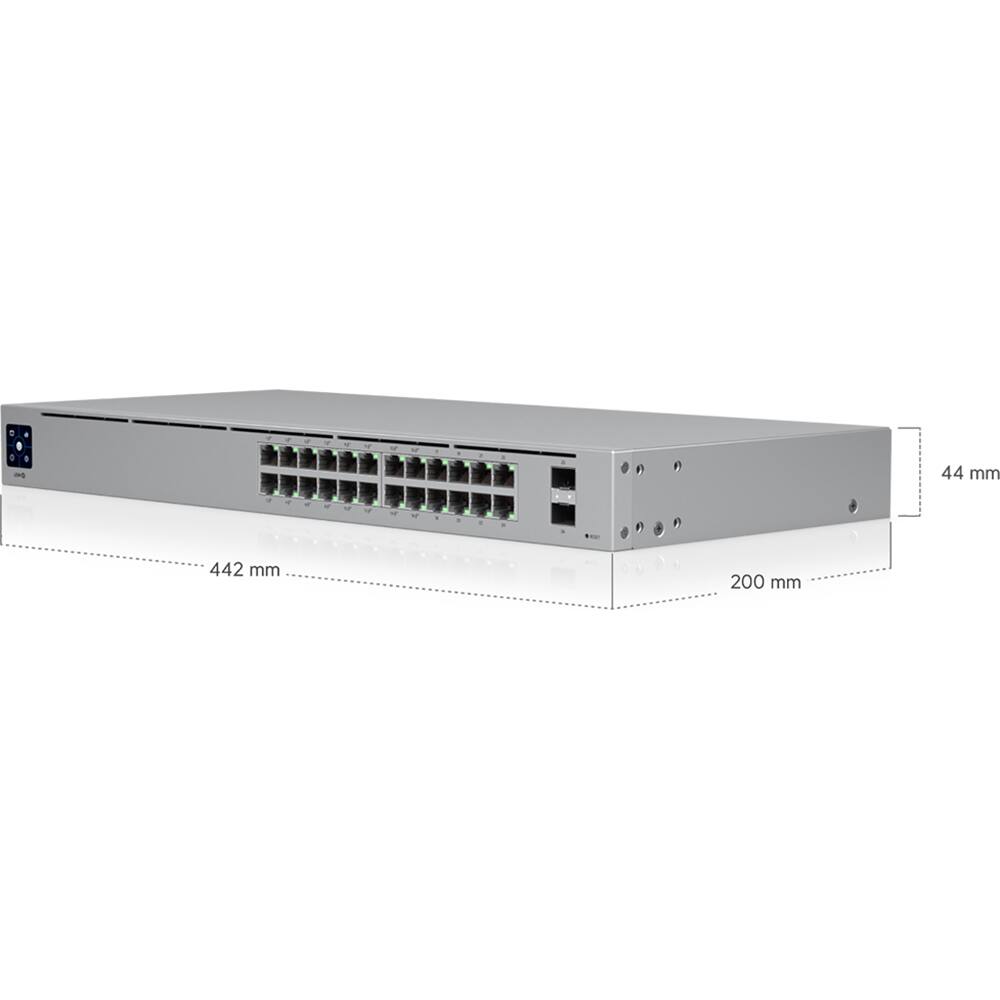

- Dimensions
- Product Height: 1.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 17.4 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 7.9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 6.8 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: Full Manufacturers Warranty
- Warranty - Labor: Full Manufacturers Warranty
- Other
- UPC: 817882028523

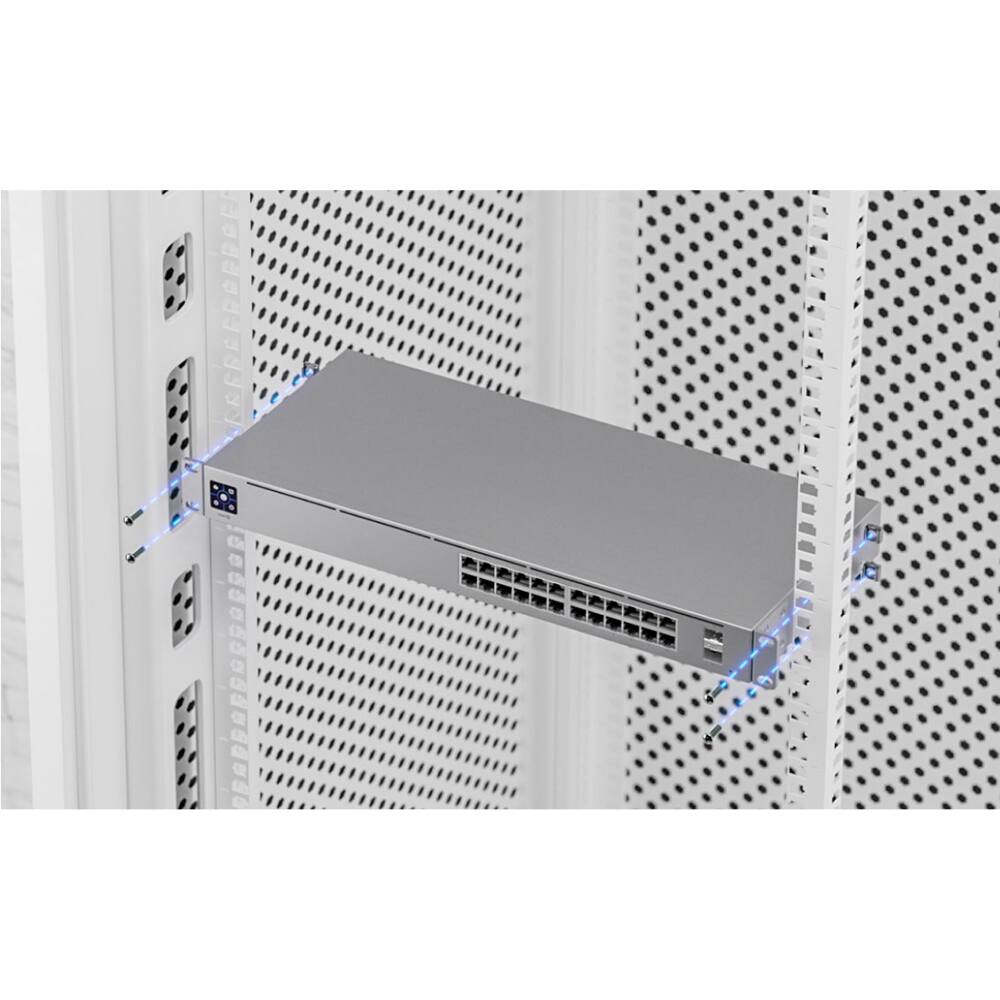

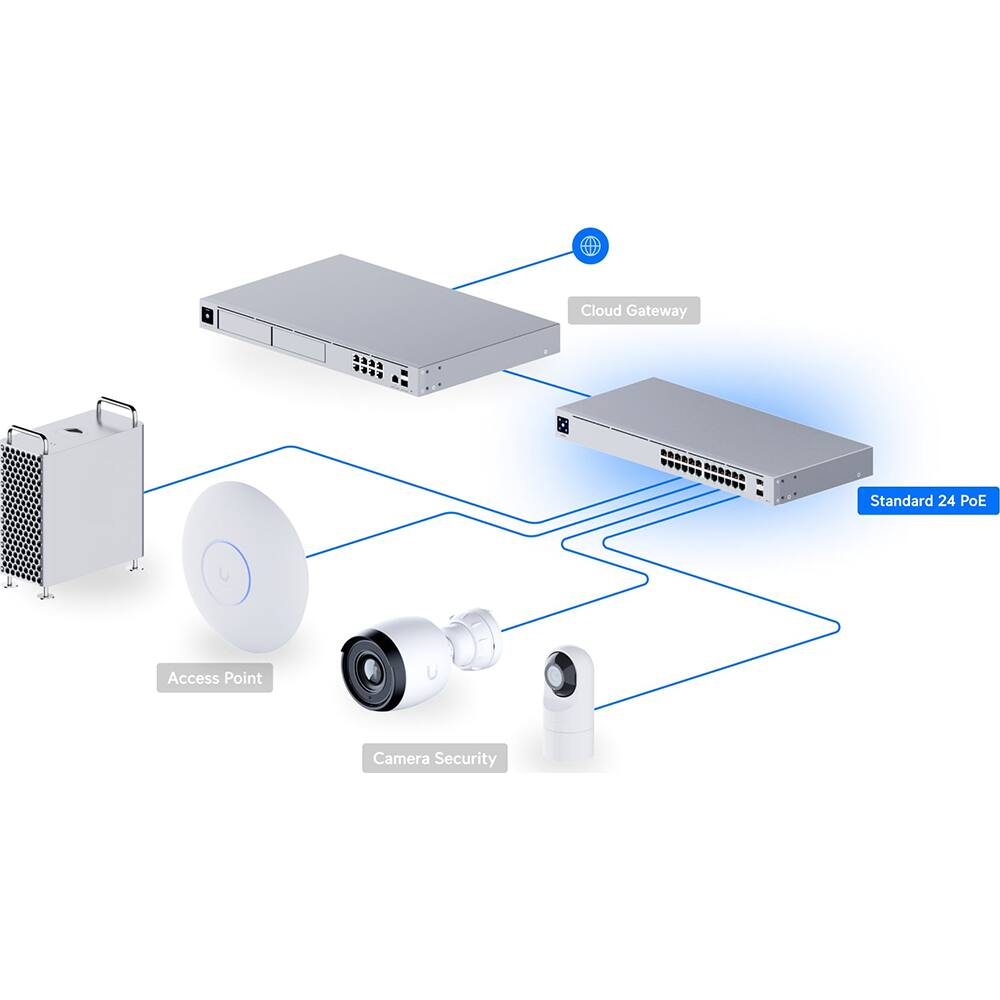

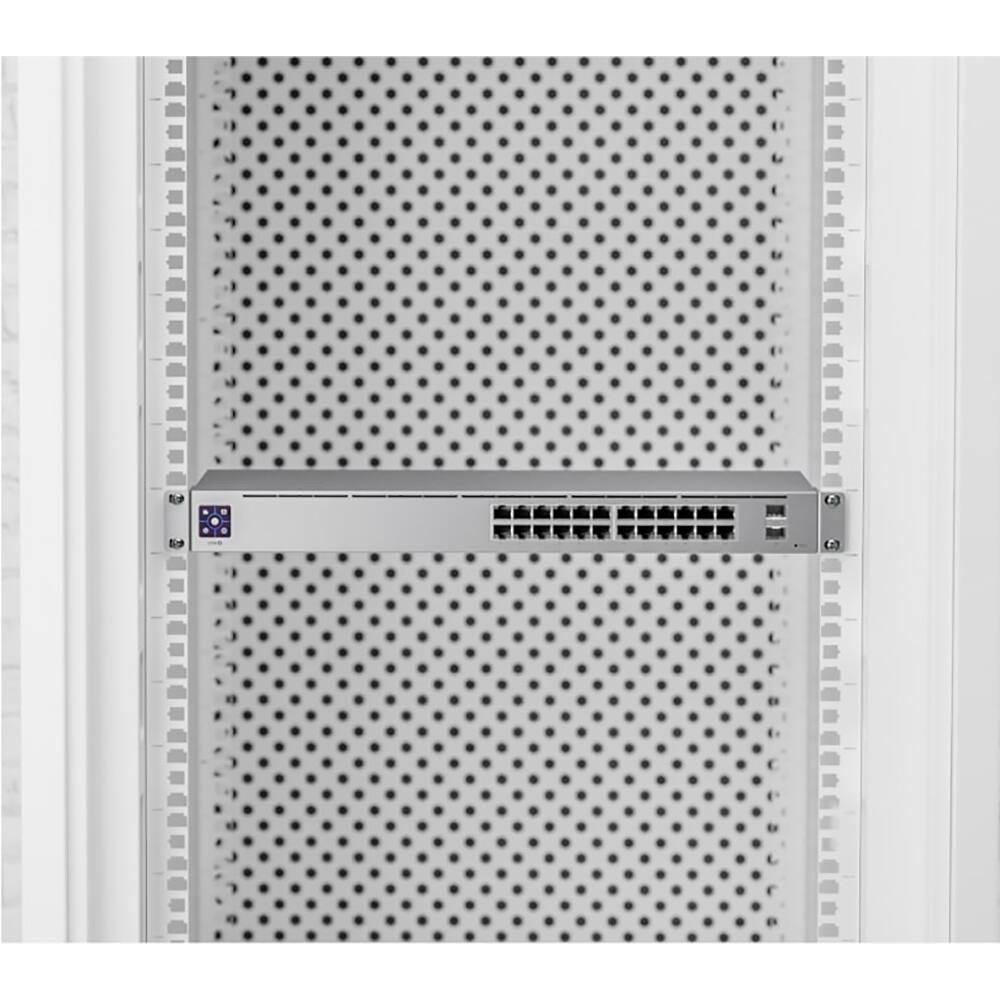

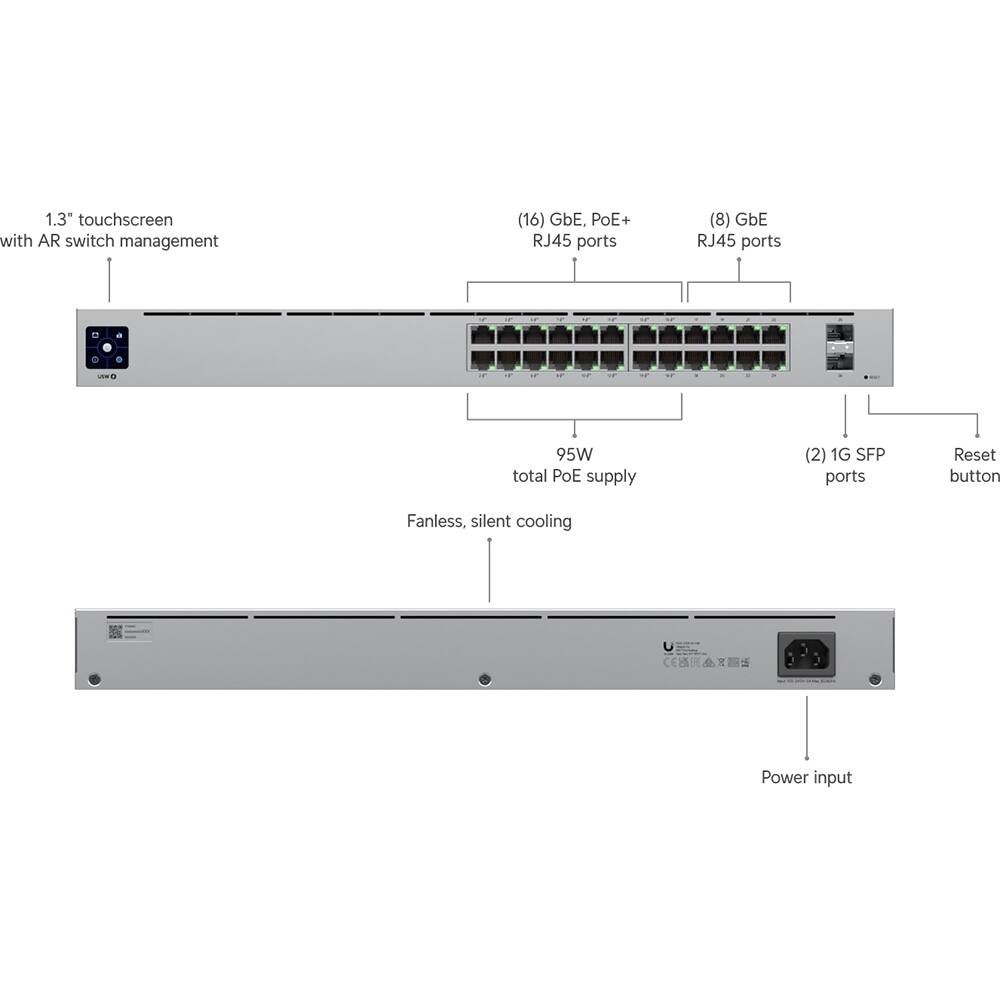

The USW-24-POE is a configurable Gigabit Layer 2 switch with twenty-four Gigabit Ethernet ports including sixteen auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-24-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.
- Switching Performance: This UniFi switch offers a 38.69 Mpps forwarding capacity to simultaneously process traffic on all ports without packet loss. The UniFi PoE Switch has a non-blocking throughput of 26 Gb/s with a 52 Gb/s switching capacity.
Whats Included
- Ubiquiti Networks Commercial UniFi 24 Port Gigabit PoE Switch
Compare similar products
The USW-24-POE is a configurable Gigabit Layer 2 switch with twenty-four Gigabit Ethernet ports including sixteen auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-24-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.
Grow your business's network capacity to support computers, printers, storage, and other devices with the UniFi USW-24 24-Port Managed Gigabit Managed Switch from Ubiquiti Networks. Featuring a desktop or rack-mountable design, this Layer 2 managed switch includes 24 Gigabit Ethernet ports alongside two Gigabit SFP ports for fiber connections. With its 52 Gb/s (26 Gb/s non-blocking) switching capacity and 38.69 Mpps forwarding rate, the UniFi USW-24 switch is built to deliver optimized network traffic to connected devices, which can be further managed using the UniFi Network Controller. The durable steel construction and fanless design help the switch to operate silently in the background of your home office or business.
Expand your business's network with the Pro Max 24-Port 2.5G / 1G Managed Network Switch from Ubiquiti Networks to support additional computers, servers, and other compatible devices. Eight 2.5G Ethernet ports and sixteen 1G ports are available with Etherlighting technology illuminating each of them to indicate their location, speed/link status, and native VLAN/network configurations when used with compatible cables. Two SFP+ ports are also available for up to 10 Gb/s uplinks. A 1.3" touchscreen display provides important status information at a glance. Supporting a 112 Gb/s (56 Gb/s non-blocking) switching capacity and Layer 3 features, the Pro Max 48 delivers smooth data transfers. Its settings may be managed through the UniFi Network platform. Performance. This switch supports Layer 3 features with a 112 Gb/s (56 Gb/s non-blocking) switching capacity. Backup Power. Connecting the DC backup power input to a compatible source provides failover support for added peace of mind.
Expand your business's network with the Pro Max 16 PoE 16-Port 2.5G / 1G Managed Network Switch from Ubiquiti Networks to support advanced IP cameras, access points, and other PoE compatible devices. Four 60W 2.5G PoE++ Ethernet ports are available alongside twelve 30W Gigabit speed Ethernet ports with a total power budget of 180W for compatible equipment. Two SFP+ ports are also available for up to 10 Gb/s uplinks. Etherlighting technology illuminates each port to indicate the port location, speed/link status, and native VLAN/network configurations when used with compatible cables. A 1.3" touchscreen display provides important status information at a glance. Supporting a 84 Gb/s (42 Gb/s non-blocking) switching capacity, 62.496 Mpps forwarding rate, and Layer 3 features, the Pro Max 16 PoE delivers smooth data transfers. Its settings may be managed through the UniFi Network platform. Performance. This switch supports Layer 3 features with a 84 Gb/s (42 Gb/s non-blocking) switching capacity and 62.496 Mpps forwarding rate. Flexible Mounting. Place the Pro Max 16 PoE onto a desk, wall, or rack.
Specs
Reviews
This product doesn't have any reviews yet.
