Ubiquiti - Flex 5-Port Managed Gigabit PoE Network Switch USW-Flex - White
Specifications
- Number of LAN Ports5
Compare similar products

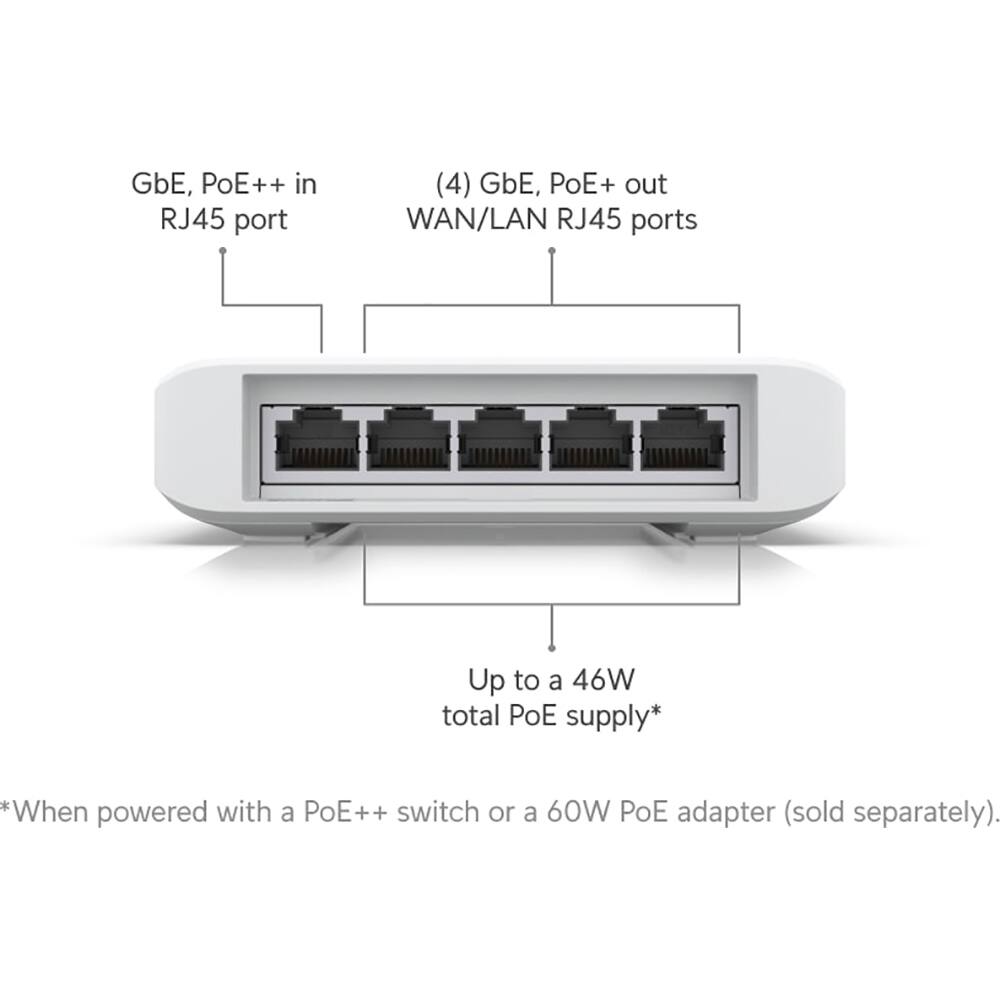

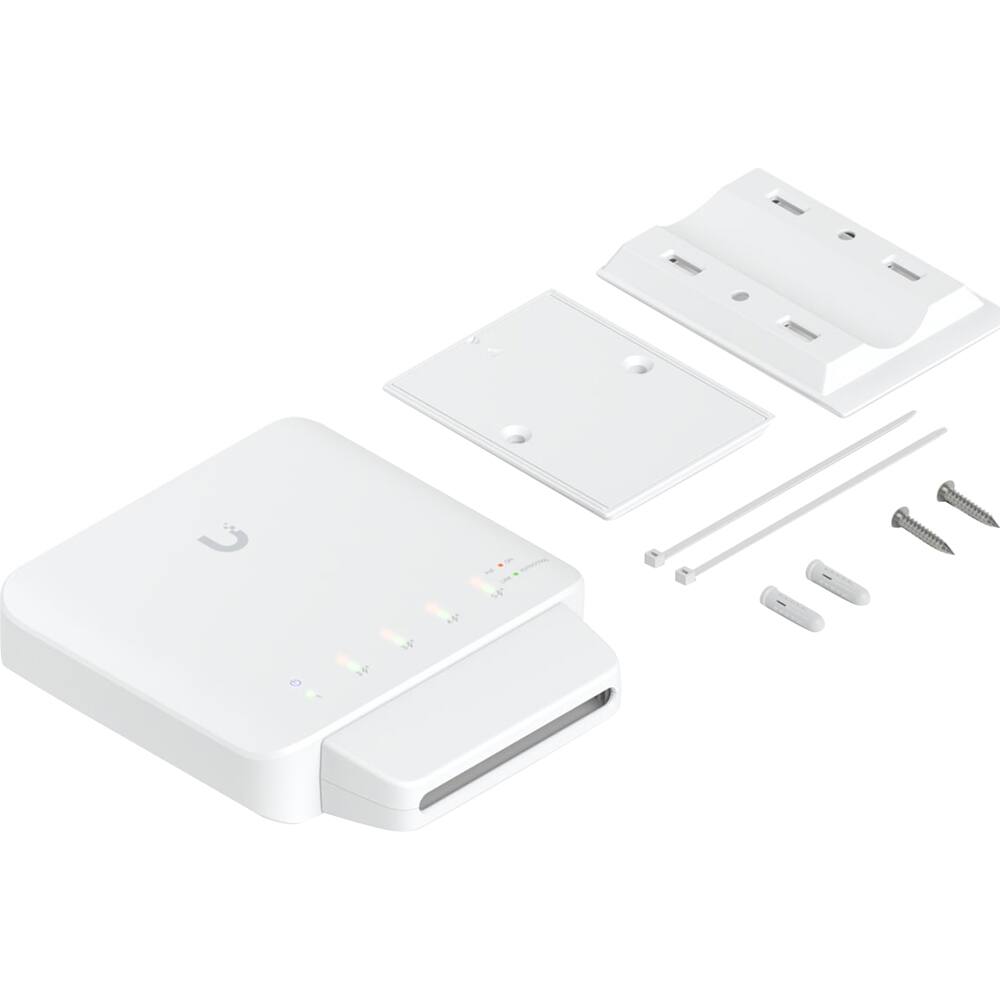

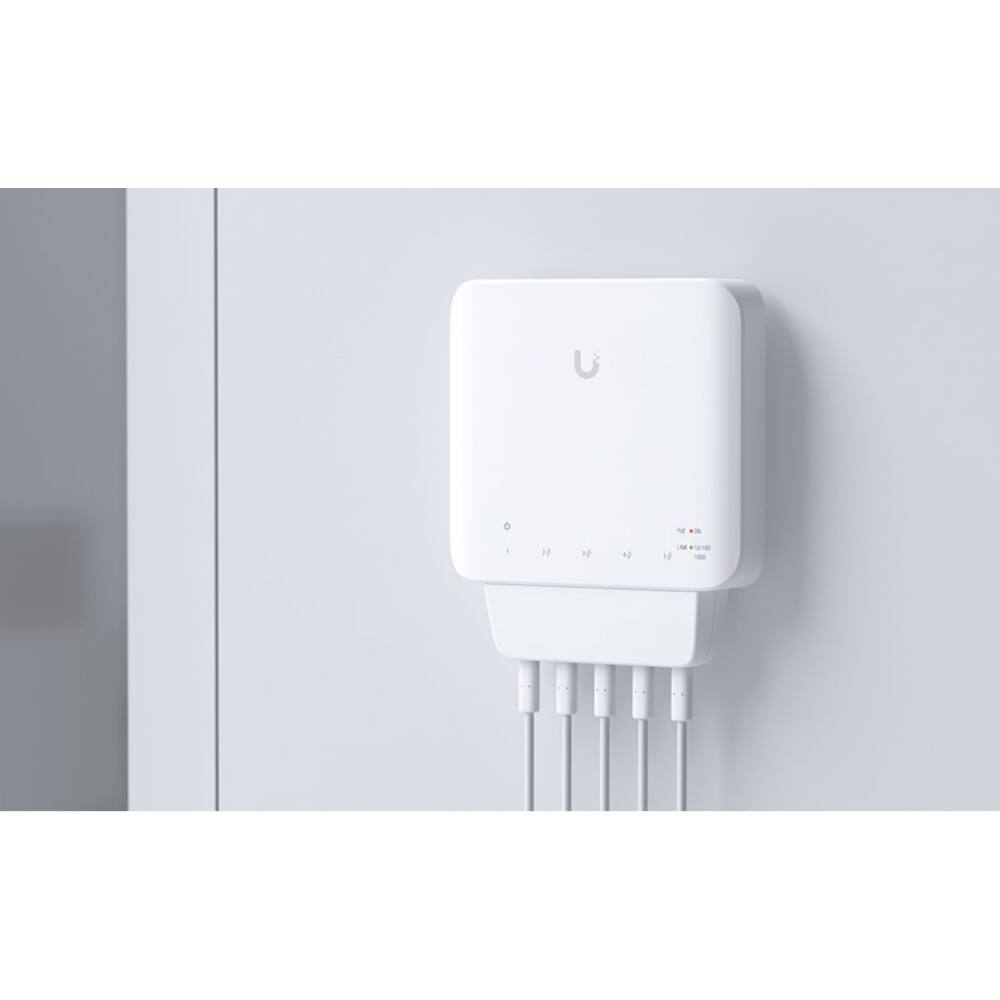

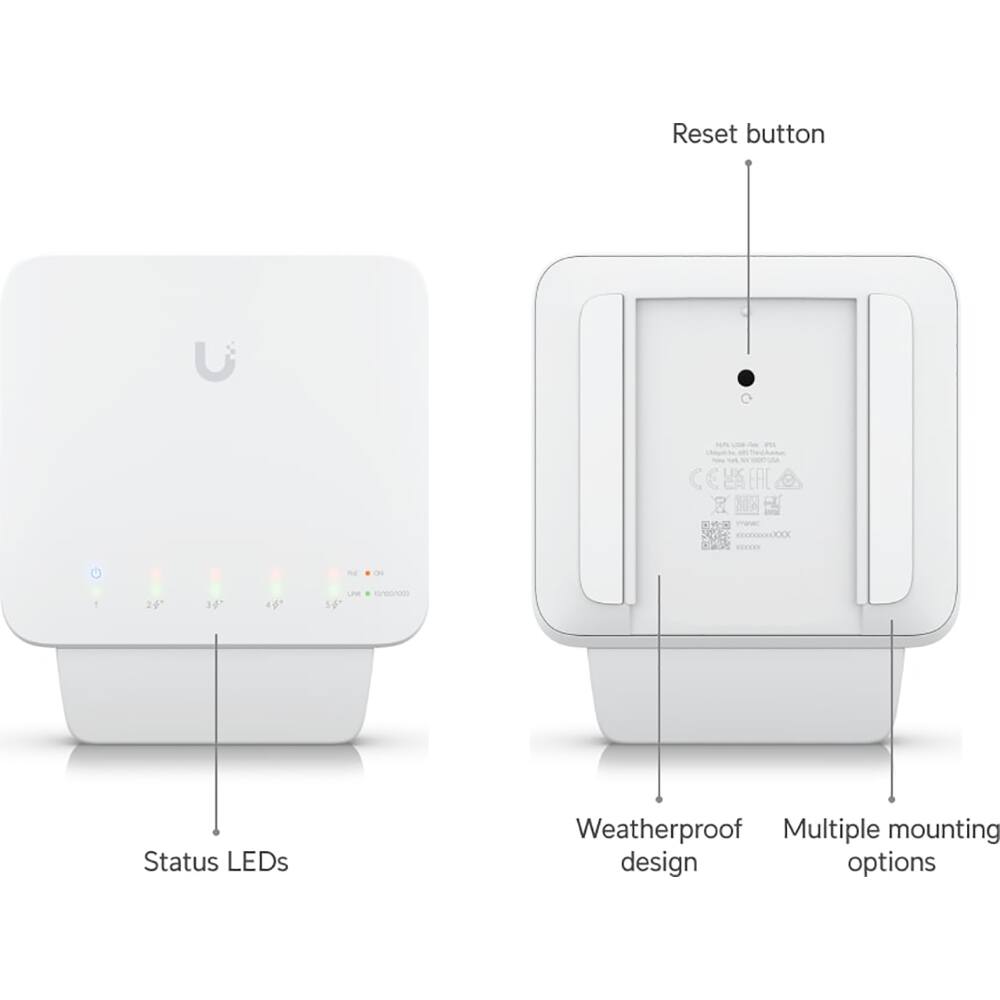

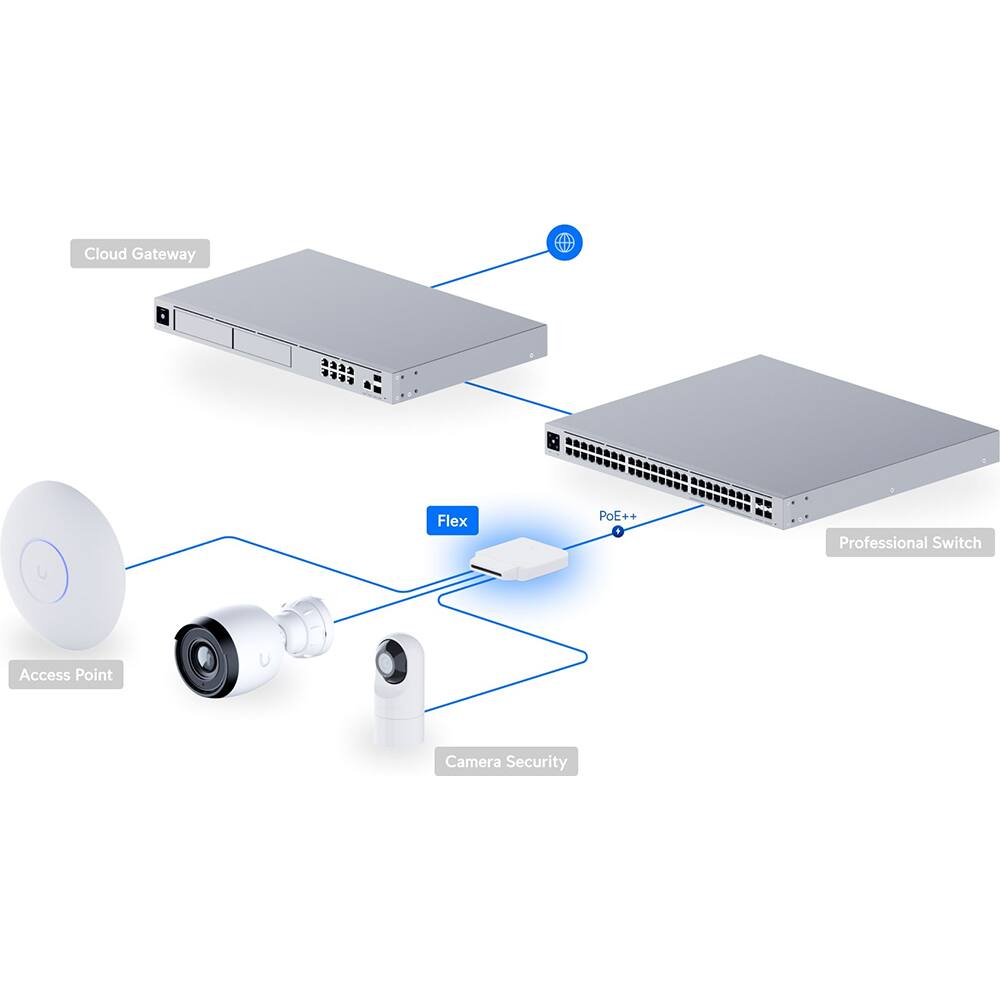

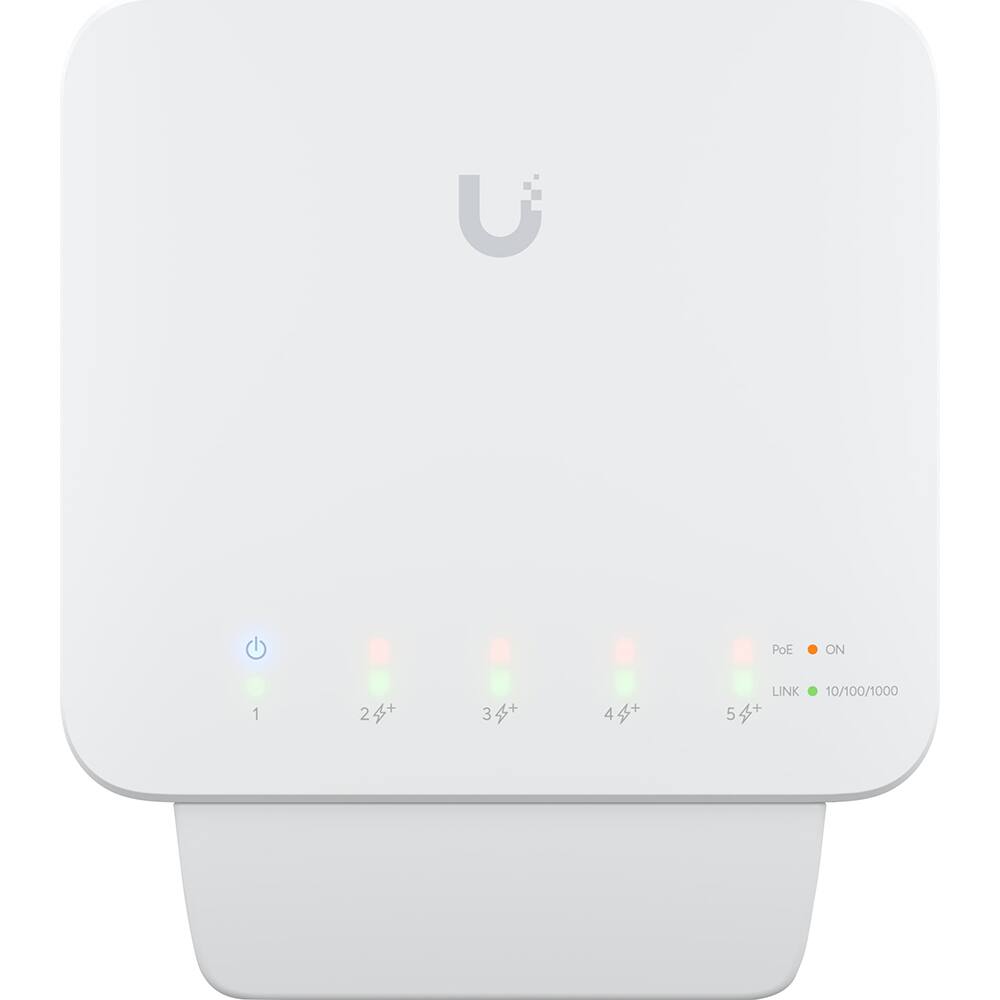

Build and expand your network with the UniFi Switch, part of the UniFi Enterprise System. The UniFi Switch, model USW-Flex, is a configurable Layer 2 Gigabit switch with auto-sensing 802.3af PoE. It offers 5 RJ45 Gigabit Ethernet ports, providing 1 PoE input and 4 PoE output links to your devices. The UniFi Switch Flex features a single PoE In port for power and four PoE ports that provide up to 15W PoE output to power a UniFi access point or other PoE devices. With 802.3bt rated PoE switches (USW-Pro-48-PoE, USW-Pro-24-PoE, and USW-Industrial switches, sold separately) as power source, USW-Flex supports maximum 46W PoE output budget. It has weatherproof housing and offers versatile mounting options. Managed and configured by the UniFi Controller or UniFi Mobile app, the UniFi Switch Flex offers basic Layer 2 switching protocols and features. The UniFi Controller and mobile app allow admins to configure and monitor virtually all of the switch features using a graphical user interface from anywhere.
Flexible, 8port 2.5 GbE switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with a USBC or PoE+ adapter.8 2.5 GbE ports1 10 GbE PoE+ input port for power / SFP+ port comboOptional powering with included 5V, 3A USBC adapterNote. EU version comes with EU power plug only.
Flexible, 8port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter.8 2.5 GbE PoE++ output ports1 10 GbE PoE+++ input port for power / SFP+ port combo 57W PoE availability with PoE+++ input 37W PoE availability with PoE++ input 12W PoE availability with PoE+ input196W PoE availability with optional AC power adapterAC power adapter sold separately.
Designed for high versatility, the compact Ubiquiti Switch Ultra discreetly mounts onto a desktop or wall to operate powered devices such as IP cameras, VoIP phones, and access points. Seven of its Gigabit Ethernet ports support up to 30W PoE+ output with a total budget that is determined by the power input. For instance, connecting the PoE++ input to a compatible source provides up to 42W while using a separately purchased 210W AC adapter increases the budget to 202W. With a 16 Gb/s (8 Gb/s non-blocking) switching capacity, this Layer 2 switch provides smooth and reliable data transfers. Its fanless design allows it to operate silently in the background of your office. PoE Budget Configurations. PoE++ input: 42W. PoE+ input: 16W. 60W PoE adapter input: 42W. 60W AC adapter input: 52W. 210W AC adapter input: 202W. Note: 202W budget is available with up to 113°F operating temperature. Budget reduces to 161W or 121W at 140°F. Layer 2 Features. Port isolation. Storm control. Port mirroring. Multicast / broadcast rate limiting. Flow control. Jumbo frames. Egress rate limit.
