Ubiquiti - UniFi Cloud Gateway Ultra Security Router with 2.5GbE WAN, 4x Gigabit LAN, Redundant WAN Failover, 1Gbps IDS/IPS - White
Ubiquiti - UniFi Cloud Gateway Ultra Security Router with 2.5GbE WAN, 4x Gigabit LAN, Redundant WAN Failover, 1Gbps IDS/IPS - White
Related Item
Specifications
- WirelessNoFirewall TypeApplicationVPNYesVPN ProtocolIPsecMaximum Throughput0.125 gigabytes per secondSecurity FeaturesStateful firewall; application-aware rules; signature-based IDS/IPS; content/country/domain/ad filtering; VLAN/subnet segmentation
- Key Specs
- Wireless: false
- Firewall Type: Application (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- VPN: true (Extends a private network across a public network, enabling users to transmit data as if their devices were directly connected to the private network; applications on a VPN may have increased functionality and security.)
- VPN Protocol: IPsec
- Maximum Throughput: 0.125 gigabytes per second (The maximum rate of data that is successfully delivered over a communication channel.)
- Security Features: Stateful firewall; application-aware rules; signature-based IDS/IPS; content/country/domain/ad filtering; VLAN/subnet segmentation
- General
- Brand: Ubiquiti
- Model Number: UCG-ULTRA
- Product Name: UniFi Cloud Gateway Ultra Security Router with 2.5GbE WAN, 4x Gigabit LAN, Redundant WAN Failover, 1Gbps IDS/IPS
- Color: White
- Security
- Encryption Type: WPA2-Personal (The security protocols or certification programs that protect the Wi-Fi network.)
- VPN Connection: Site-to-site
- Network
- Quality Of Service (QoS) Traffic Prioritization: true (Allows a user to manage a device's network performance by configuring the types of traffic that receive top priority for transmission. High priority functions and applications receive maximum network performance, while low priority traffic receives minimum performance.)
- Certifications Listings & Approvals
- Certifications and Standards: CE | FCC | IC
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- App Name: UniFi
- Form Factor: Freestanding (The size, arrangement, and physical configuration of the product.)
- Processor Type: Quad-core ARM Cortex-A53 @ 1.5 GHz
- System Memory (RAM): 3 gigabytes (Random-access memory (RAM) is a computing device's short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the device can handle large amounts of information at one time. For example, gaming or video editing requires more RAM for optimal performance.)
- Ports
- Number of LAN Ports: 4 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Number of PoE (Power over Ethernet) Ports: 0 (Allow connection of a single cable that provides both data connection and electrical power (Power over Ethernet).)
- USB Ports: 1 x USB-C (The number and type of USB ports the product has.)
- Compatibility
- System Requirements: UniFi iOS app v10.12.0+ or UniFi Android app v10.11.2+ (The software that a product must have for it to be able to integrate with another product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Performance
- Minimum Operating Temperature: 14 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 104 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Power
- Rechargeable: false
- Power Supply: USB Type-C (5V DC/3A) adapter included; 100–240V AC input
- Dimensions
- Product Height: 1.18 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 5.58 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 5.02 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.1 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: None
- Other
- UPC: 810084695135
Manage and secure your UniFi network with the Cloud Gateway Ultra, a compact UniFi Cloud Gateway built for fast routing, license-free SD-WAN, and advanced threat protection. It features a 1/2.5GbE WAN port plus four Gigabit LAN ports for flexible ISP and LAN connectivity, with redundant WAN failover and load balancing for higher uptime. Run secure remote access and site-to-site connections using WireGuard, L2TP, OpenVPN, IPsec, Teleport, and Identity VPN, while policy-based WAN/VPN routing and application-aware firewall rules help optimize traffic. With 1 Gbps IDS/IPS throughput, application/domain/country filtering, VLAN/subnet segmentation, QoS with UniFi APs, and detailed internet quality reporting, it’s an ideal gateway router for small business, branch, and advanced home networks.
- Redundant WAN failover & load balancing: Improve uptime with redundant WAN capability that supports failover and load balancing to keep your network online when an ISP link degrades or drops.

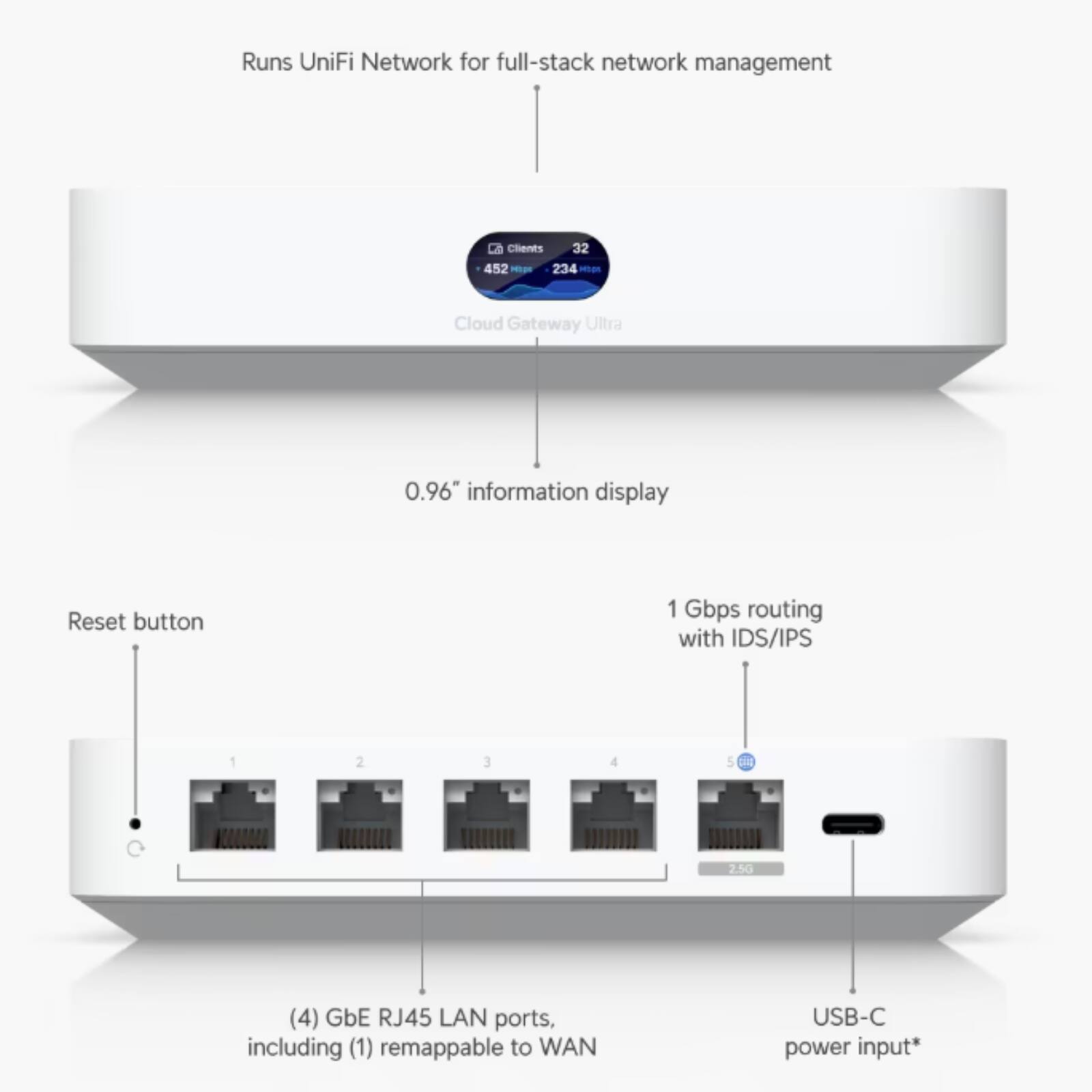

- High-speed wired ports: Connect your internet and wired devices with (1) 1/2.5GbE RJ45 WAN port plus (4) Gigabit RJ45 LAN ports for flexible ISP and LAN connectivity.
- Advanced security with 1Gbps IDS/IPS: Add next-generation protection with signature-based IDS/IPS and up to 1 Gbps IDS/IPS throughput, plus application-aware firewall rules and stateful firewall controls.
- UniFi VPN & SD-WAN features: Enable secure remote access and site-to-site links using license-free SD-WAN features and VPN options including WireGuard, OpenVPN, and IPsec site-to-site VPN.
- VLAN segmentation and QoS controls: Segment and manage traffic with VLAN and subnet-based controls, plus application/domain/country-based QoS to help optimize performance across home, branch, or small business networks.
- Redundant WAN failover & load balancing: Improve uptime with redundant WAN capability that supports failover and load balancing to keep your network online when an ISP link degrades or drops.
- High-speed wired ports: Connect your internet and wired devices with (1) 1/2.5GbE RJ45 WAN port plus (4) Gigabit RJ45 LAN ports for flexible ISP and LAN connectivity.
- Advanced security with 1Gbps IDS/IPS: Add next-generation protection with signature-based IDS/IPS and up to 1 Gbps IDS/IPS throughput, plus application-aware firewall rules and stateful firewall controls.
- UniFi VPN & SD-WAN features: Enable secure remote access and site-to-site links using license-free SD-WAN features and VPN options including WireGuard, OpenVPN, and IPsec site-to-site VPN.
- VLAN segmentation and QoS controls: Segment and manage traffic with VLAN and subnet-based controls, plus application/domain/country-based QoS to help optimize performance across home, branch, or small business networks.

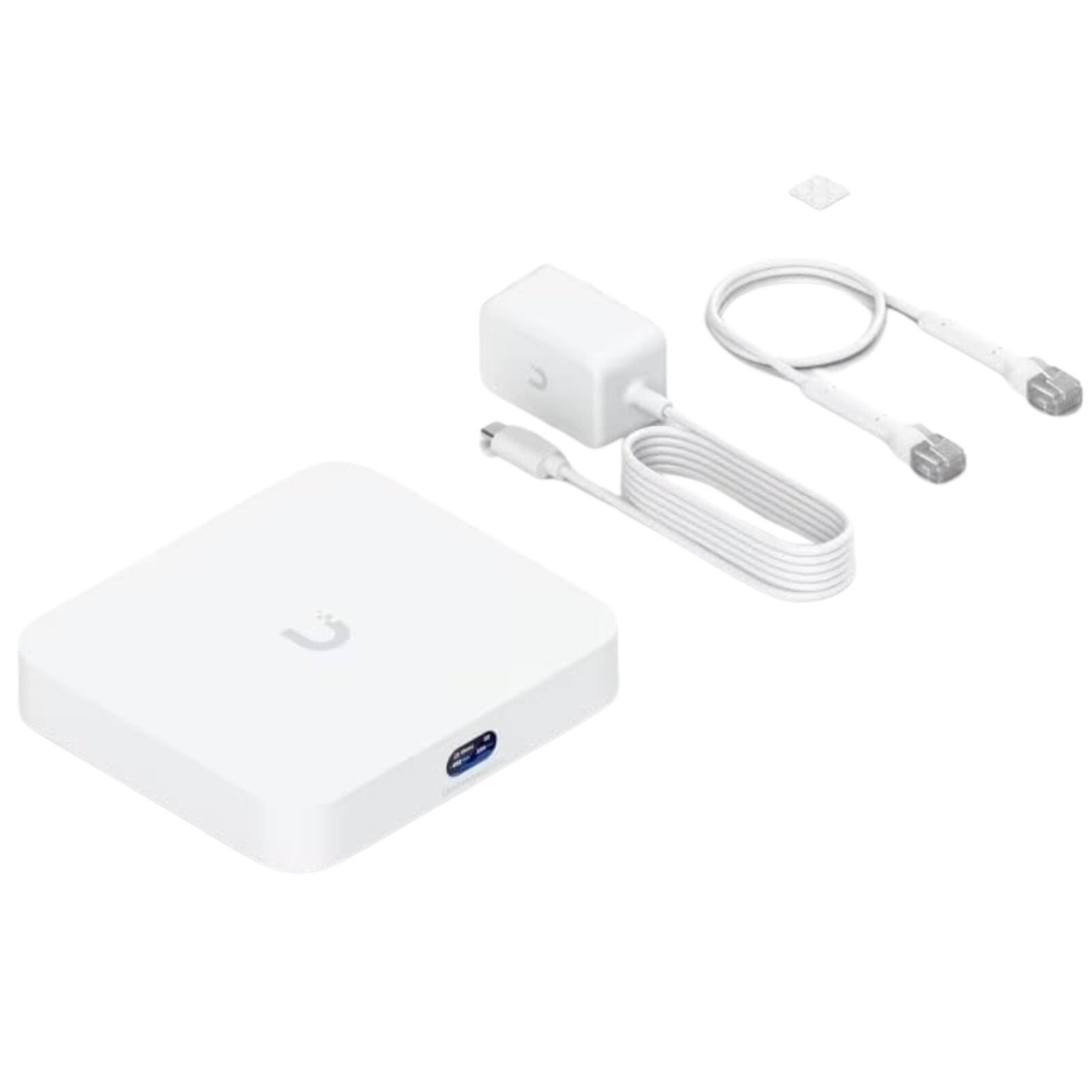

Whats Included
- Cloud Gateway Ultra (UCG-ULTRA), USB-C power adapter
- Cloud Gateway Ultra (UCG-ULTRA), USB-C power adapter
