Unique Bargains - 10uF 100V Non-Polarized Electrolytic Capacitor, 10x20mm Aluminum Audio Cap, for DIY Tweeter, 10pcs - Gold
Reviews coming soon
About this product

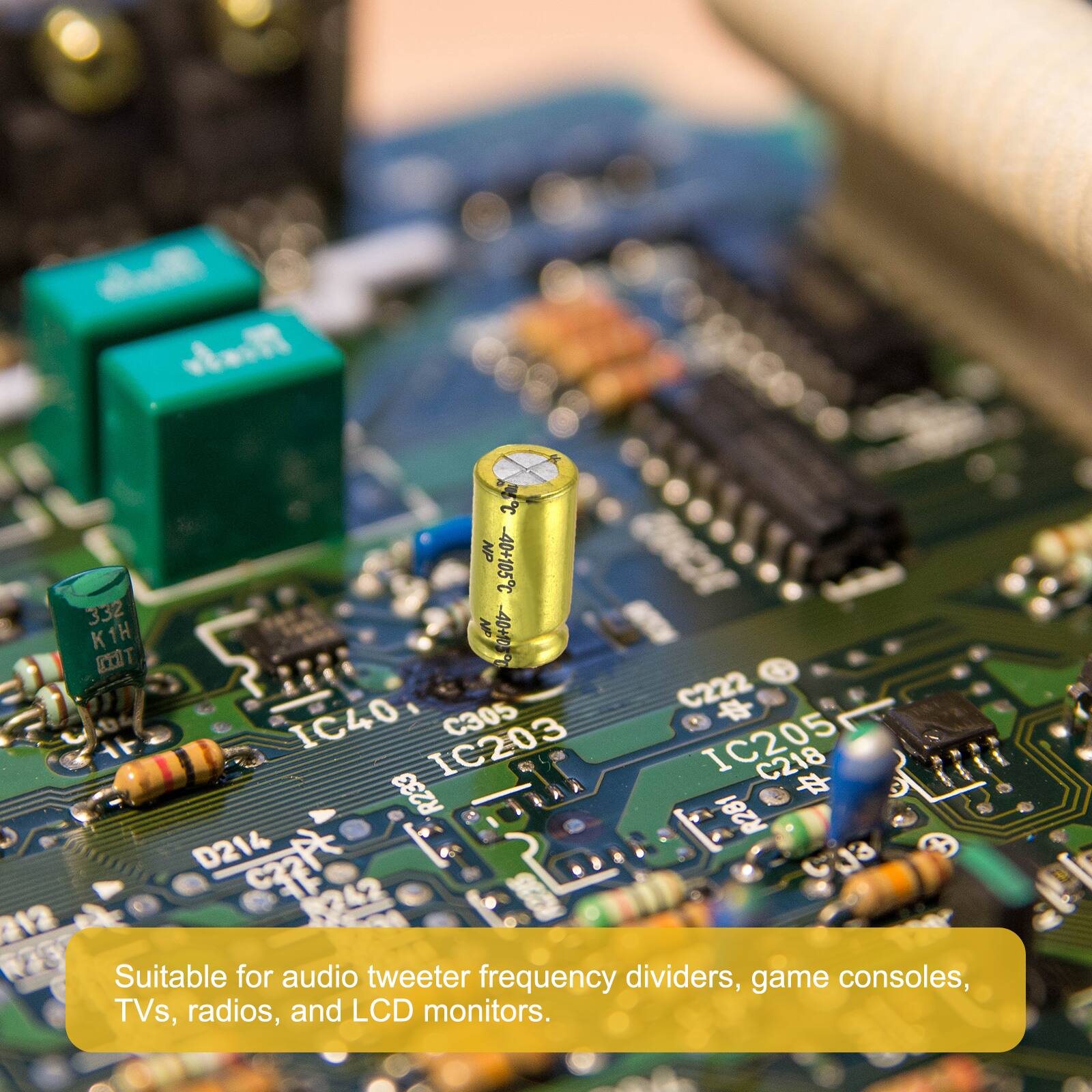

The non-polarized electrolytic capacitor is a high-capacity energy storage device that combines the rapid charge or discharge benefits of capacitors. Its radial termination style ensures easy through-hole PCB mounting, making it suitable for DIY projects, as well as repair, prototyping, and hobby builds, including stepless audio tweeter frequency dividers, game consoles, TVs, radios, and LCD monitors.
Features
10Pcs 10uF 100V 10x17mm Non-Polar Electrolytic Capacitor

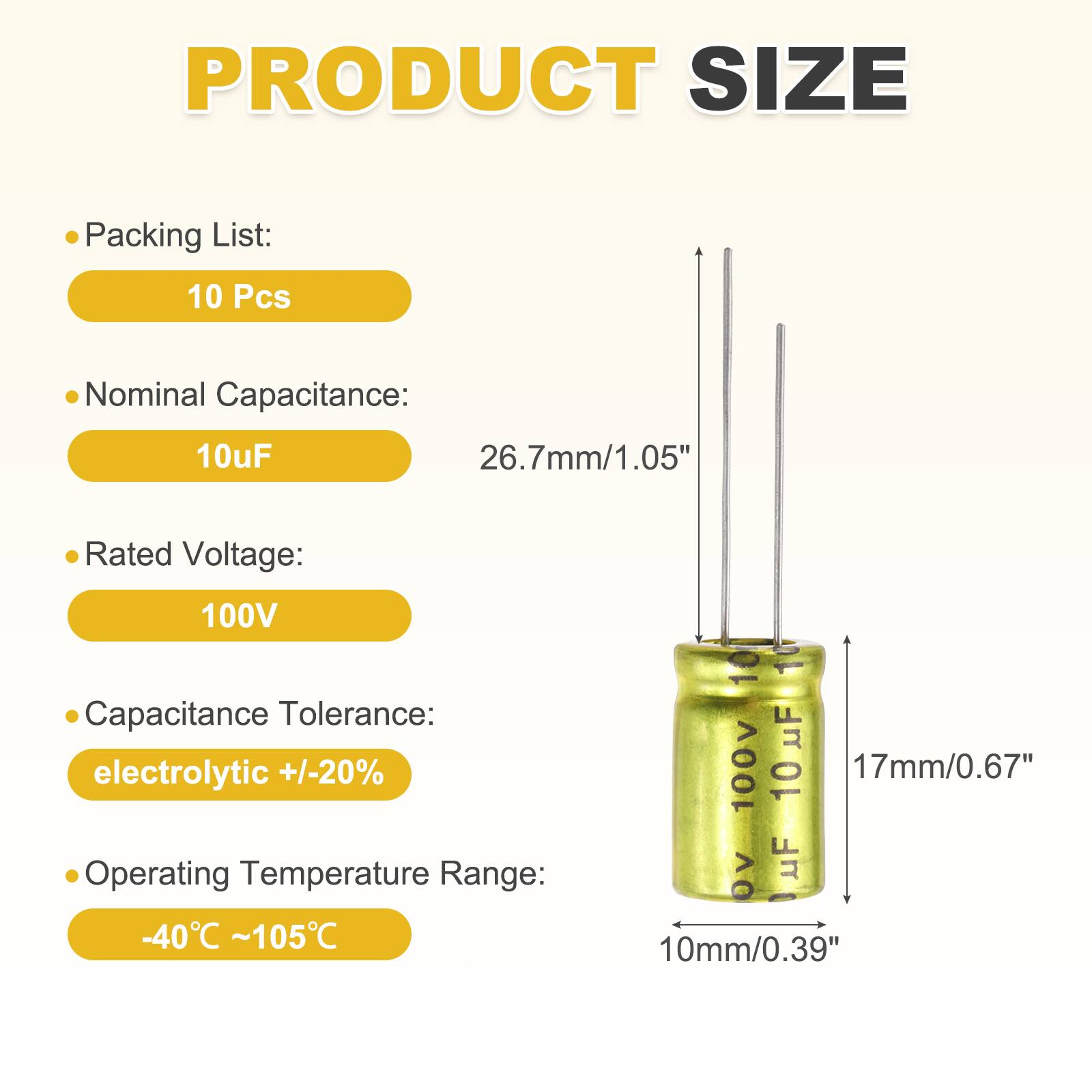

The non-polarized electrolytic capacitor we provide here is in dimensions of: Nominal Capacitance: 10uF; Rated Voltage: 100V; Total size: 10x10x17 mm/0.39x0.39x0.67 inch(L*W*H); Pin Length: 26.7mm/1.05 inch; Capacitance Tolerance: electrolytic +/-20%; Operating Temperature Range: -40℃ ~105℃; Packing List: 10 Pcs x Non-Polar Electrolytic Capacitors.

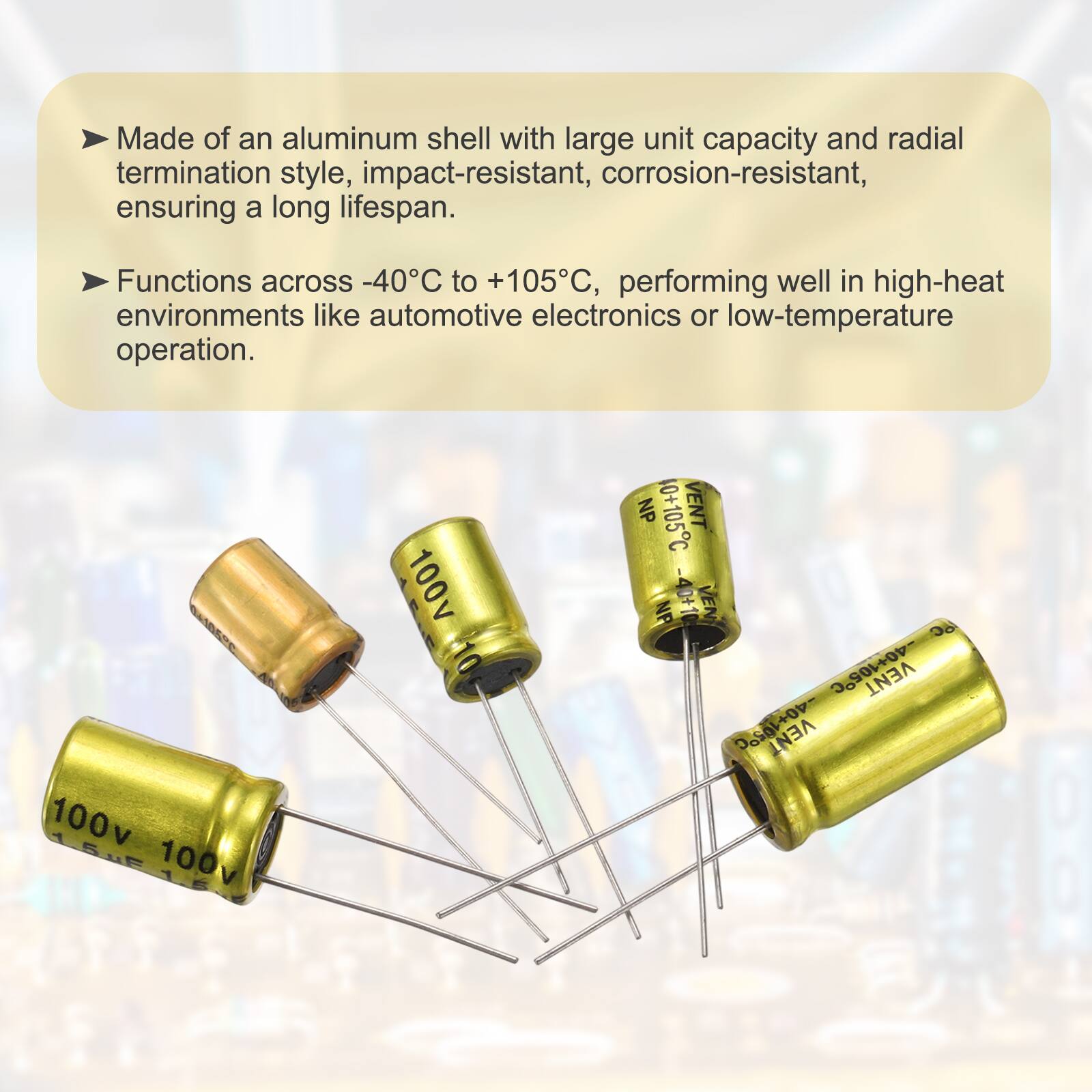

The non-polar electrolytic capacitor is made of an aluminum shell with large unit capacity and radial termination style, which is impact-resistant, corrosion-resistant, ensuring a long lifespan.
Non-polarized electrolytic capacitors support bidirectional current and can be used in AC circuits or DC circuits with reversed polarity to avoid damage caused by reverse voltage. Functions across -40°C to +105°C, performing well in high-heat or low-temperature environments.

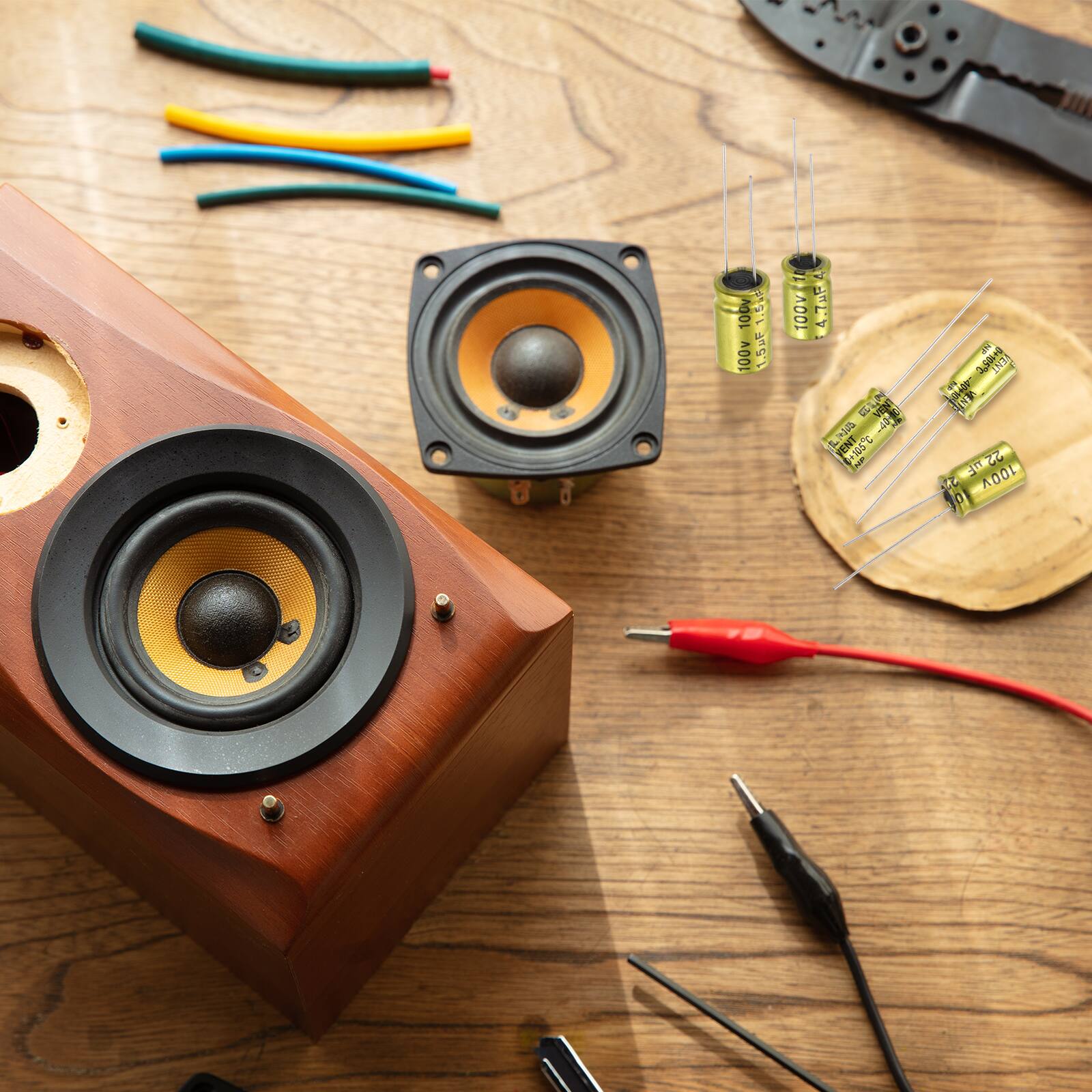

The non-polarized electrolytic capacitor can be soldered radially onto circuit boards for stable power or peak-demand support. For DIY projects, integrate it into audio systems to smooth signal output, or connect to solar panels or batteries to buffer irregular energy flow. For repairs, replace faulty capacitors in TVs, speakers, or game consoles to restore quick-start functionality.
Please check the size and capacitance carefully to meet your needs.
Specifications
- BrandUnique BargainsModel Numbers26081900ux8355Product Name10uF 100V Non-Polarized Electrolytic Capacitor, 10x20mm Aluminum Audio Cap, for DIY Tweeter, 10pcsColorGoldAmperage0 amperesProduct Safety Certifications and Standard(s)Not Applicable
