Unique Bargains - 2pcs KSD301 Thermostat 160°C/320°F 16A Normally Closed N.C Adjust Snap Disc Temperature Switch Ceramic - Silver
Reviews coming soon
About this product

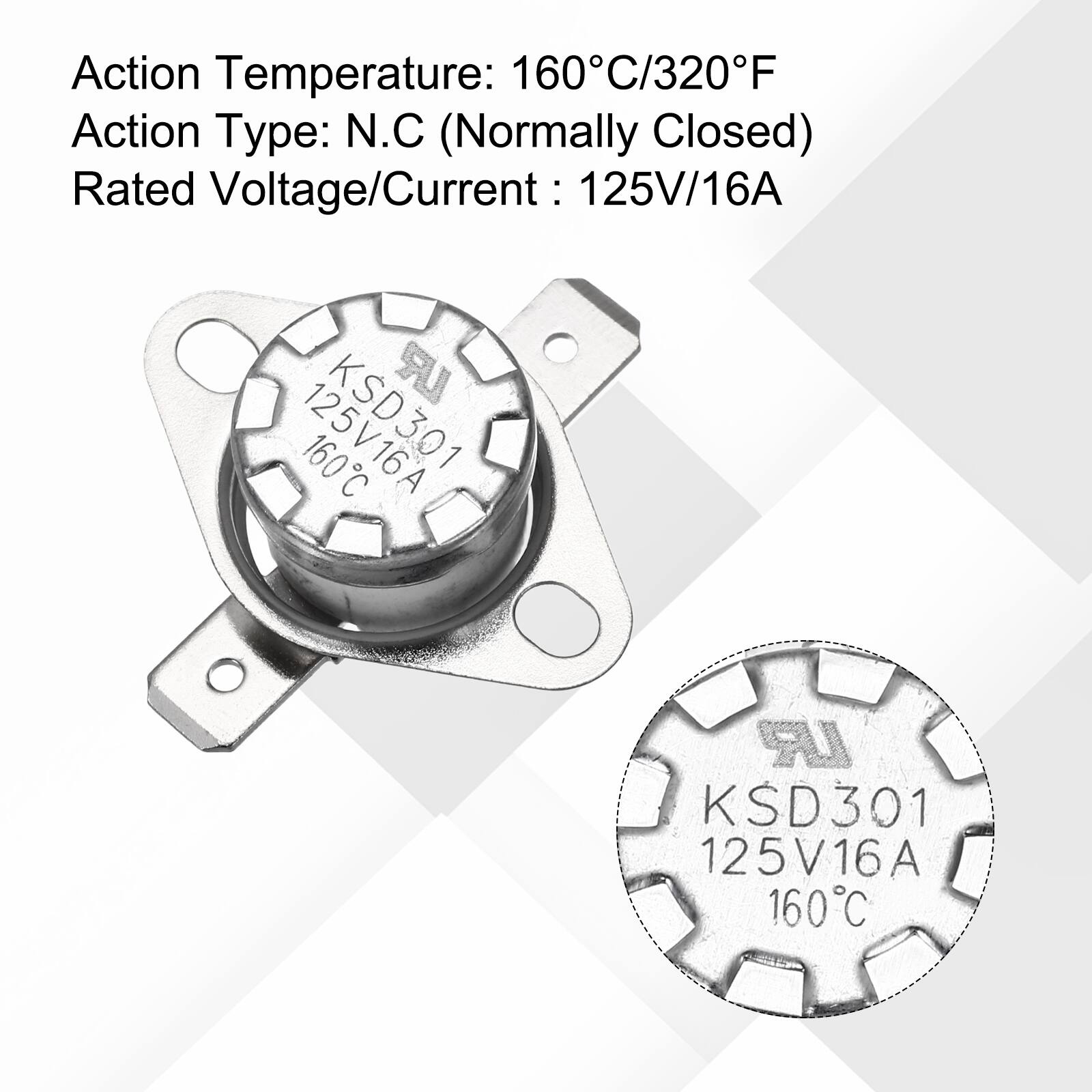

Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 160°C/320°F ; Action Type: N.C (Normally Closed); Rated Voltage/Current : 125V/16A; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 2 Pcs x Temperature Control Switch
Number Of Switches
12Pcs KSD301 160°C NC 16A Thermostat
Type: KSD301 160°C/320°F Thermal Control Switch 125V 16A N.C (Normally Closed)
Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.
Advantage: Double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon. General purpose, automatic reset, low cost, large capacity, minute current thermostats.

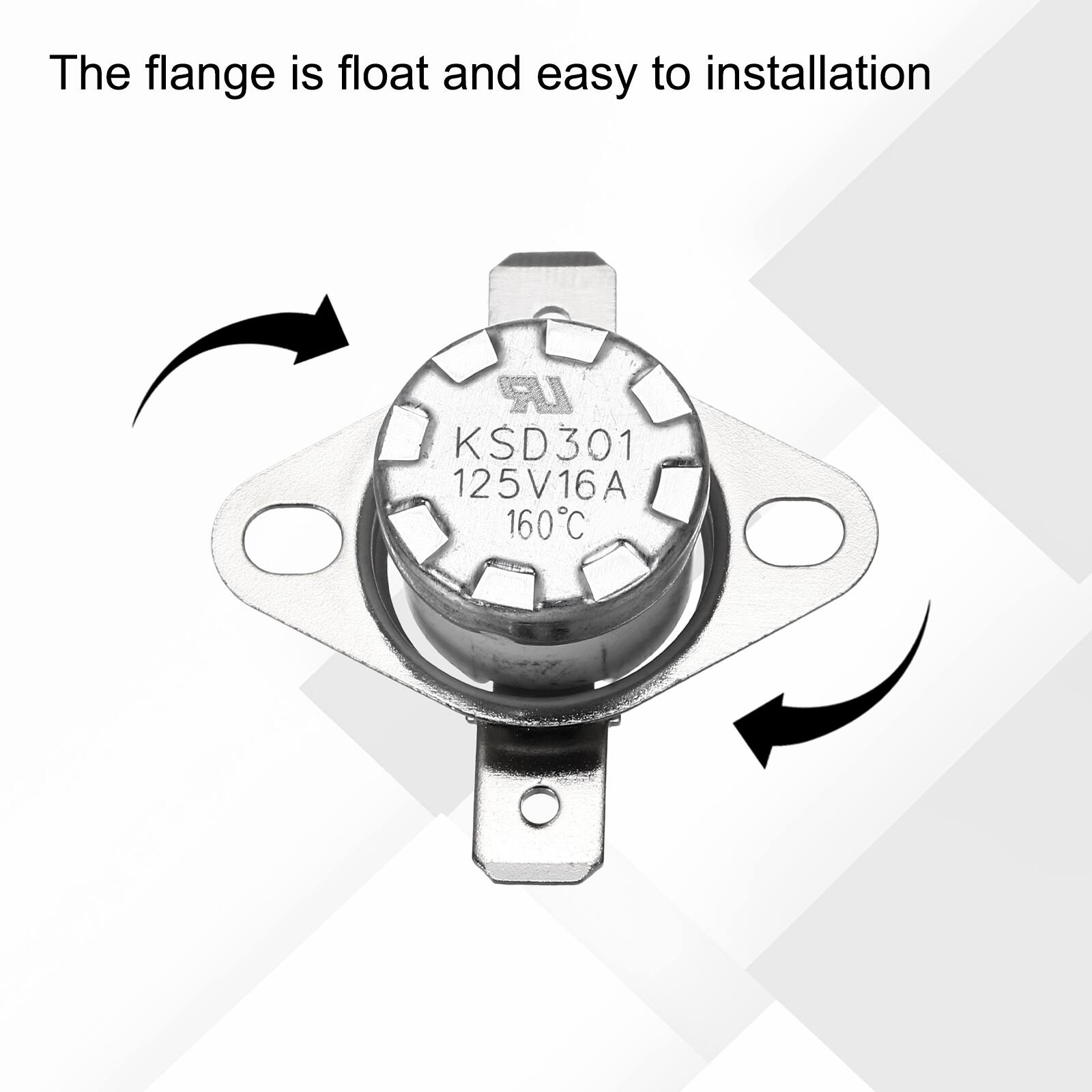

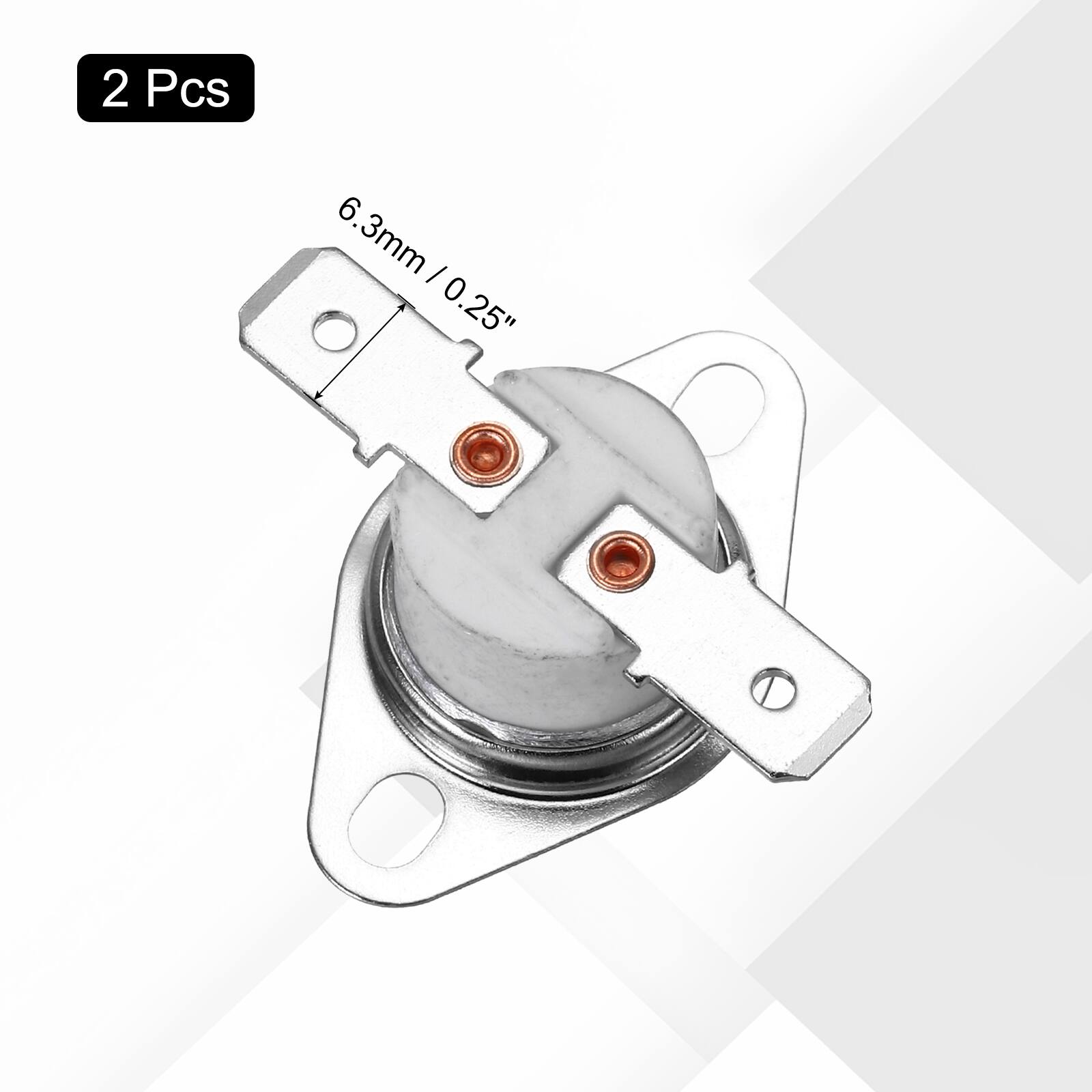

Easy to installation : The flange on the switch is float and easy to installation.The pin width is 6.3mm
Application: Mainly used for microwave,oven,coffee maker,Speed Cook oven,heater,Dryer,gas furnace,Bath Vent/Heater,wall heater,motor electric heating water dispenser, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, motor cleaner
- BrandUnique BargainsModel Numbers26060900ux2749Product Name2pcs KSD301 Thermostat 160°C/320°F 16A Normally Closed N.C Adjust Snap Disc Temperature Switch CeramicColorSilverSwitch TypeToggleVoltage125 volts
Reviews
This product doesn't have any reviews yet.
Compare similar products
Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 160°C/320°F ; Action Type: N.C (Normally Closed); Rated Voltage/Current : 125V/16A; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 2 Pcs x Temperature Control Switch
Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 85°C/185°F ; Action Type: N.C (Normally Closed); Rated Voltage/Current : 125V/16A; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 2 Pcs x Temperature Control Switch
Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 150°C/302°F; Action Type: N.C (Normally Closed); Pin Type : Bent Pin; Rated Voltage/Current : 250V/20A; Length x Diameter x Height:32x16x22mm/1.26x0.63x0.87inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 2 Pcs x Temperature Control Switch; 4 Pcs x Terminal Wire(length: 26cm/10.24inch)
A thermostat automatically switches circuits on or off by sensing temperature changes to maintain a set point, widely used in circuits requiring automatic temperature-based switching, including household appliances (coffee makers, ovens, microwaves, air fryers, toasters, rice cookers, steamers, heaters) as well as transformers, motors, automotive electronics, and automated equipment.
