Unique Bargains - 2pcs KSD9700 Thermostat 70C Normally Open N.O Temperature Switch 250V 10A Thermal Protector Metal - Black
Reviews coming soon
About this product
This is a thermostat with a normally open (NO) contact and an action temperature. It is designed to automatically close electrical circuits when the temperature reaches the set point. The normally open temperature switch is widely used in household appliance motors and electrical equipment, such as various micro motors, washing machines, air conditioners, fans, induction cookers, and other small appliances.
Color
BlackNumber Of Switches
2Features
KSD9700 Thermostat 70°C NO 10A Metal 2 Pcs

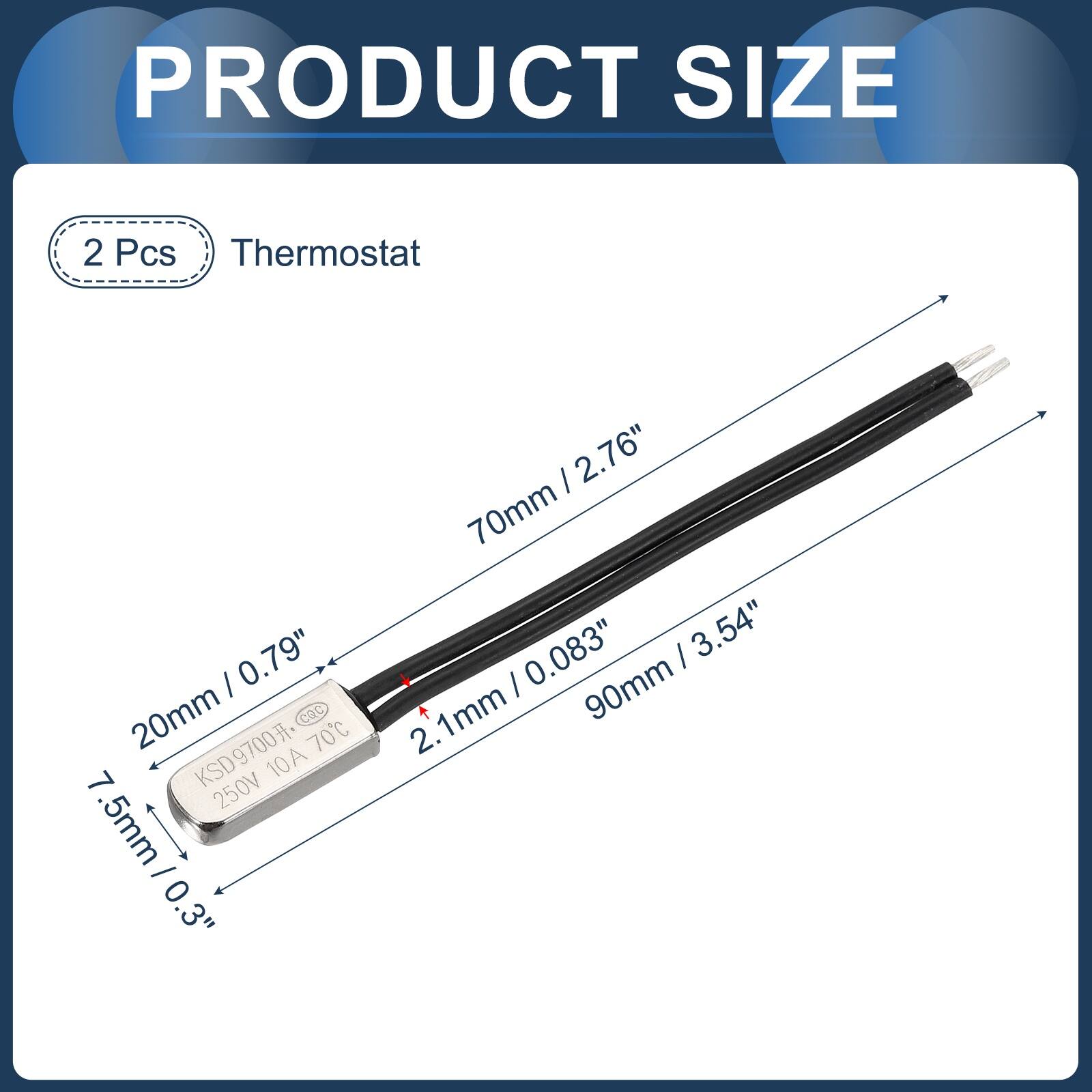

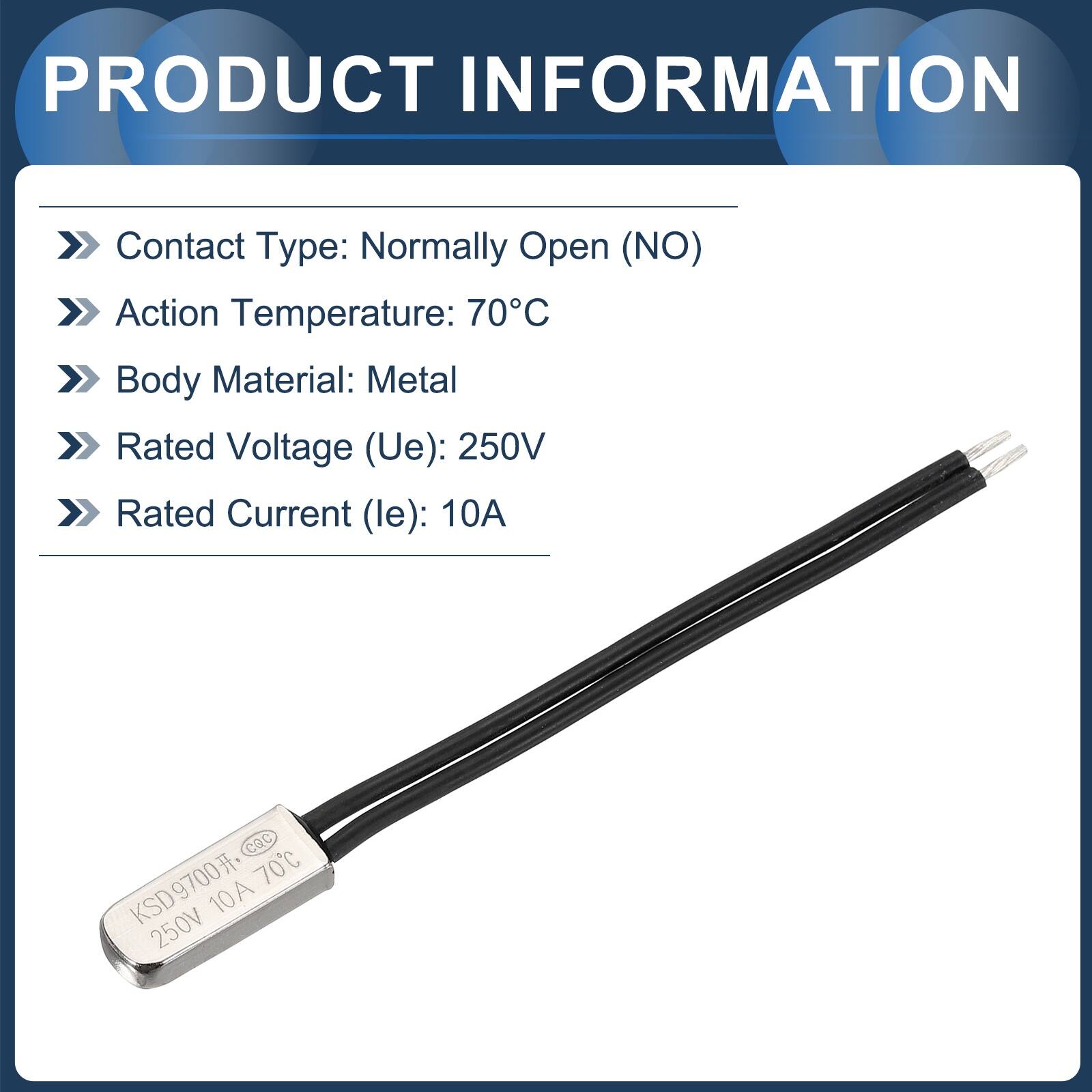

Product: Thermostat; Contact Type: Normally Open (NO); Action Temperature: 70°C; Body Material: Metal; Body Size: 20mm x 7.5mm x 3.7mm / 0.79" x 0.3" x 0.15" (L x W x H); Wire Length: 70mm / 2.76"; Total Length: 90mm / 3.54"; Wire Diameter: 2.1mm / 0.083"; Rated Voltage (Ue): 250V; Rated Current (Ie): 10A; Package: 2 Pcs Thermostat
The metal body of the thermal switch ensures durability and efficient thermal conductivity, while normally open contacts keep the circuit open under normal conditions and close at the action temperature.
The thermostat features a small size, fast response, precise temperature control, high control current, stable performance, and long lifespan.
Connect the two wires of the thermal protector in series with the circuit you wish to control. Mount the metal body close to the heat source or area requiring temperature monitoring. When the temperature reaches the action temperature, the switch will close, completing the circuit to enable heating or operation.
Ensure the voltage and current in your application do not exceed the rated values. Install the temperature controller in a dry location away from direct exposure to water or corrosive substances. Verify the temperature range and contact type (NO) are suitable for your specific use before installation.
Specifications
- BrandUnique BargainsModel Numbers26082400ux7312Product Name2pcs KSD9700 Thermostat 70C Normally Open N.O Temperature Switch 250V 10A Thermal Protector MetalColorBlackSwitch TypeToggleVoltage250 volts
