Unique Bargains - 3uF CBB60 Run Capacitor, 450VAC Start/Run 50/60Hz for Refrigerator Motor Air Compressor Pump - Red
Reviews coming soon
About this product

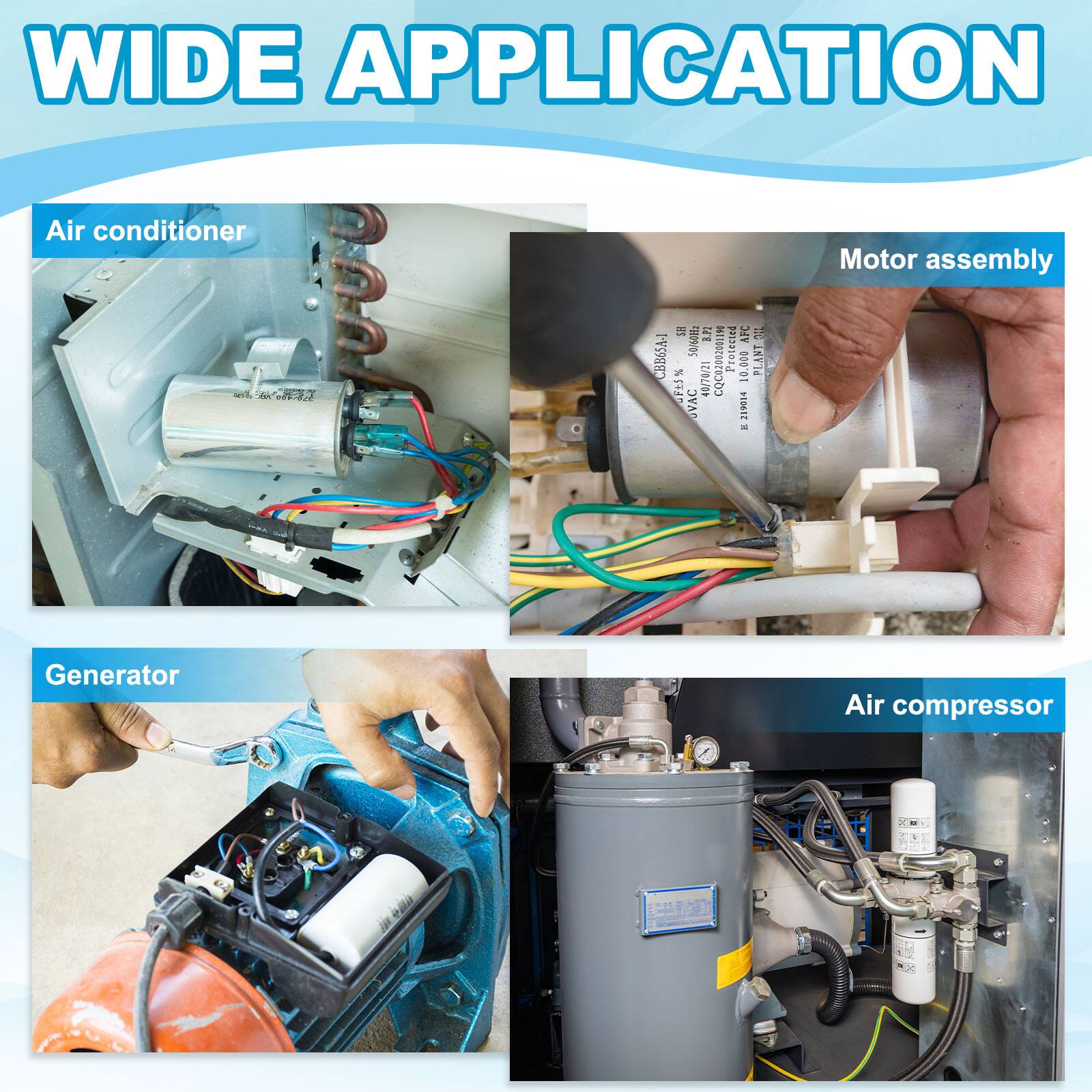

The CBB60 capacitor is a starting capacitor suitable for starting single-phase motors with operating frequencies of 50Hz and 60Hz. It features excellent heat dissipation, enabling stable operation at high temperatures, and is widely used in various applications such as air compressors, water pumps, washing machines, electric drills, and electric saws.

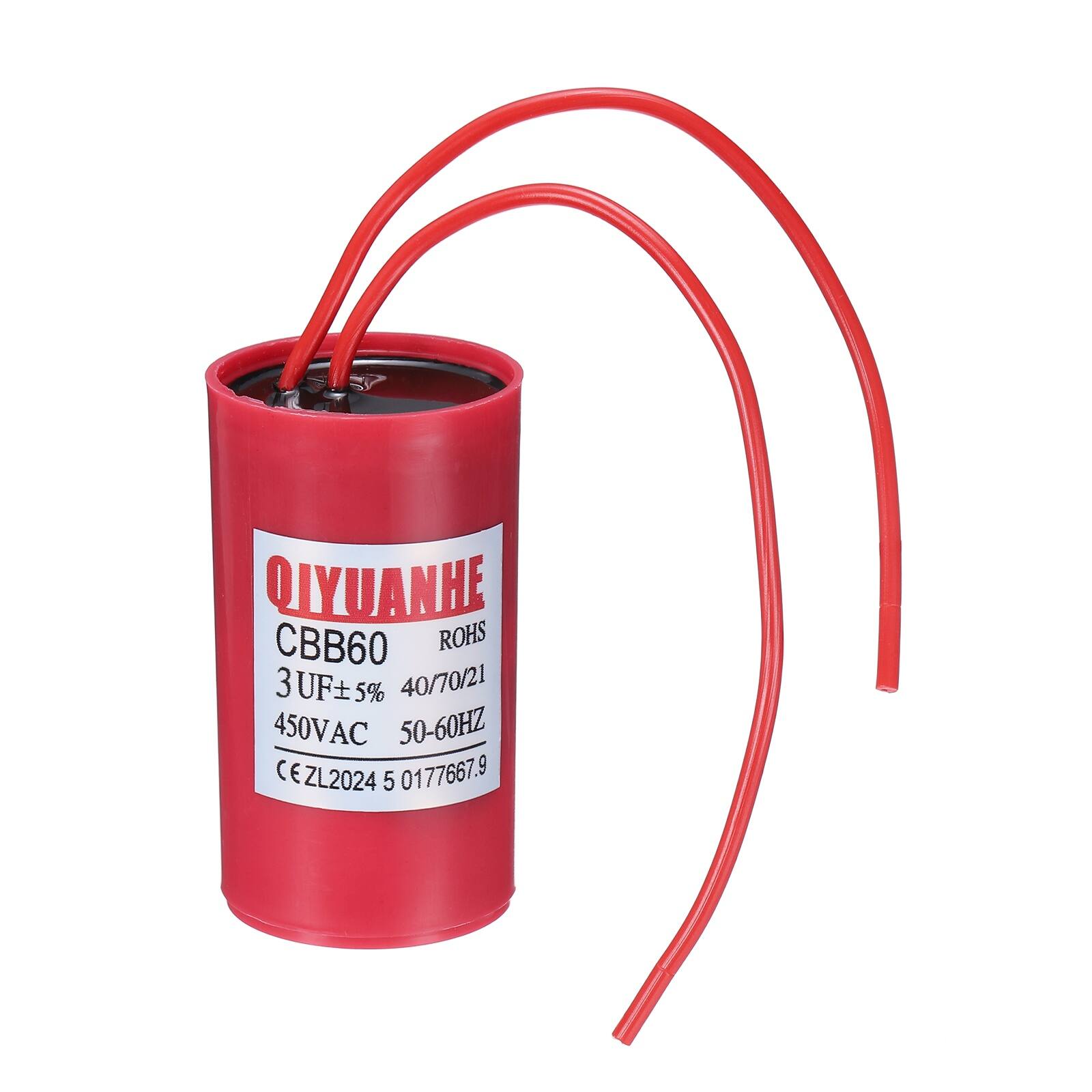

3uF 450V CBB60 Run Cap 50/60Hz
CBB60 capacitors; Rated Capacity: 3uF; Rated Voltage: 450V AC; Rated Frequency: 50/60Hz; Lead Type: 2 leads; Capacity Deviation: ±5%; Working Temperature: 40/70/21℃; Body Size: 140 x 35 x 63mm / 5.51 x 1.38 x 2.48 Inch (L x W x H); Color: Red; Material: Plastic; Packing List: 1 Pcs CBB60 capacitors.
The CBB60 capacitor utilizes a polypropylene film and aluminum housing, offering significant advantages such as low energy loss, efficient heat dissipation, and robust physical protection.
Its compact and lightweight design makes it easy to install, while its ability to withstand heavy loads, reliable insulation, and strong surge protection make it a durable and high-performance component in motor applications.
The running capacitor offers stable performance and excellent heat dissipation. Its non-polar design makes connection simple; there's no need to worry about polarity. Simply connect it to the motor circuit to support the continuous operation of a single-phase motor.
Please avoid exceeding the recommended current or voltage values during use.
- BrandUnique BargainsModel Numbers26060800ux9681Product Name3uF CBB60 Run Capacitor, 450VAC Start/Run 50/60Hz for Refrigerator Motor Air Compressor PumpColorRedAmperage0 amperesProduct Safety Certifications and Standard(s)Not Applicable
