Unique Bargains - KSD301 Thermostat 110°C/230°F 16A Normally Open N.O Temperature Switch for Microwaves/Oven 8pcs Ceramic - Silver
Reviews coming soon
About this product

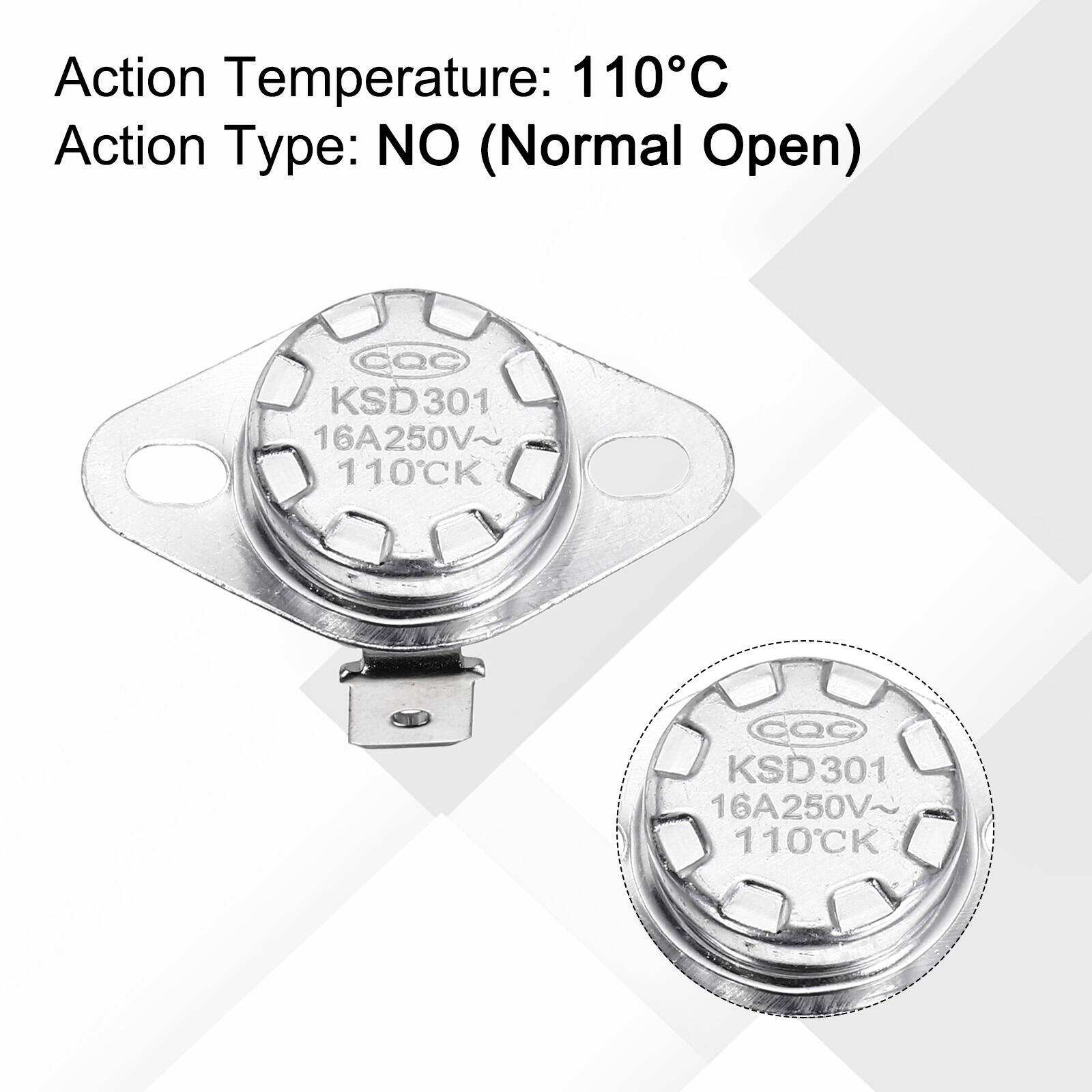

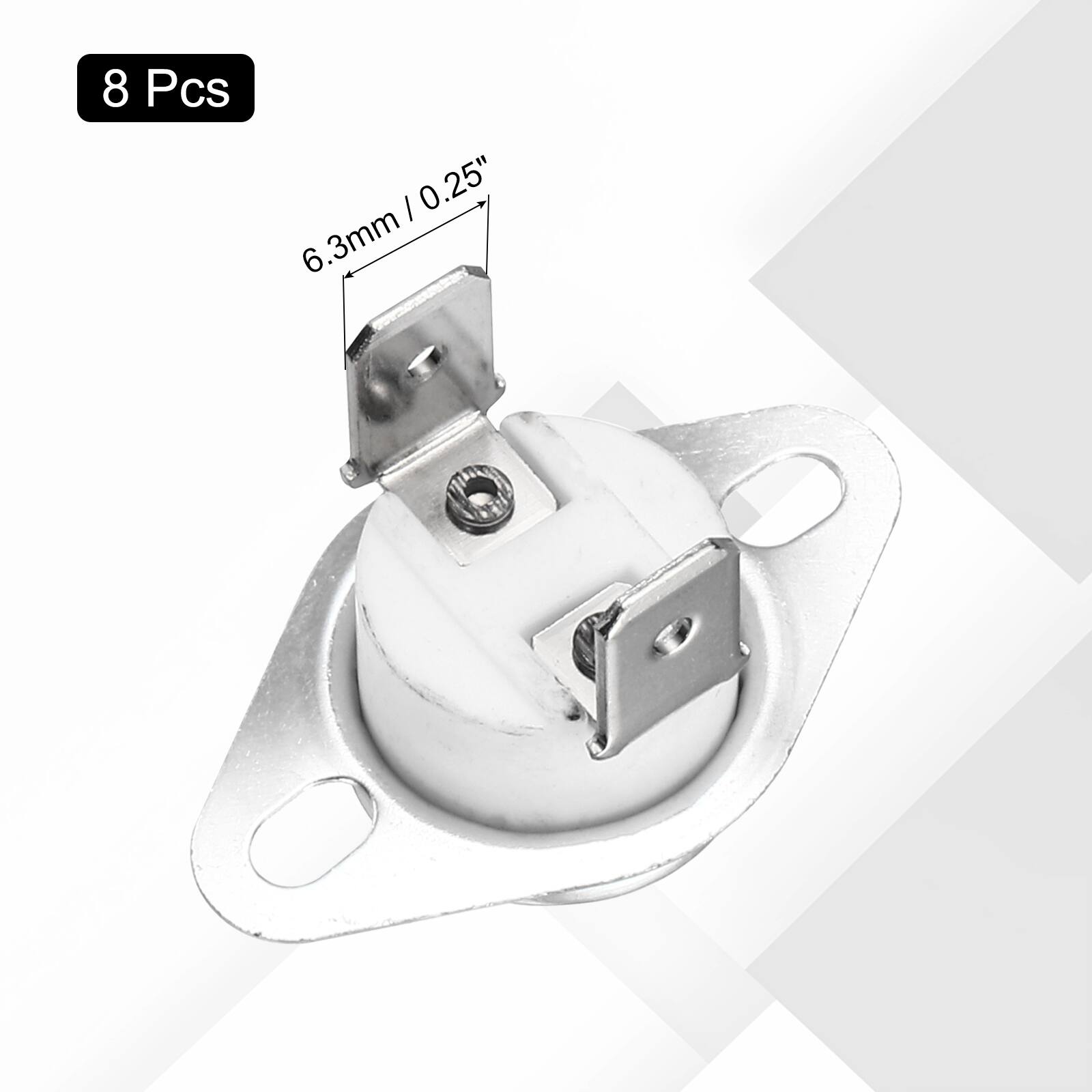

Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 110℃ ; Action Type: NO (Normal Open); Rated Voltage/Current : 250V/16A; Pin Type : Right Angle; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 8 x Temperature Control Switch
Features
8Pcs KSD301 110°C NO 16A Thermostat
Type: KSD301 110 degrees Celsius Thermal Control Switch 250V 16A NO (Normal Open)
Normally Open: The original state of temperature control switch contact is open, and open when the temperature sensing exceeds the rated temperature 110 Celsius degree
Advantage: Double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon. General purpose, automatic reset, low cost, large capacity, minute current thermostats.

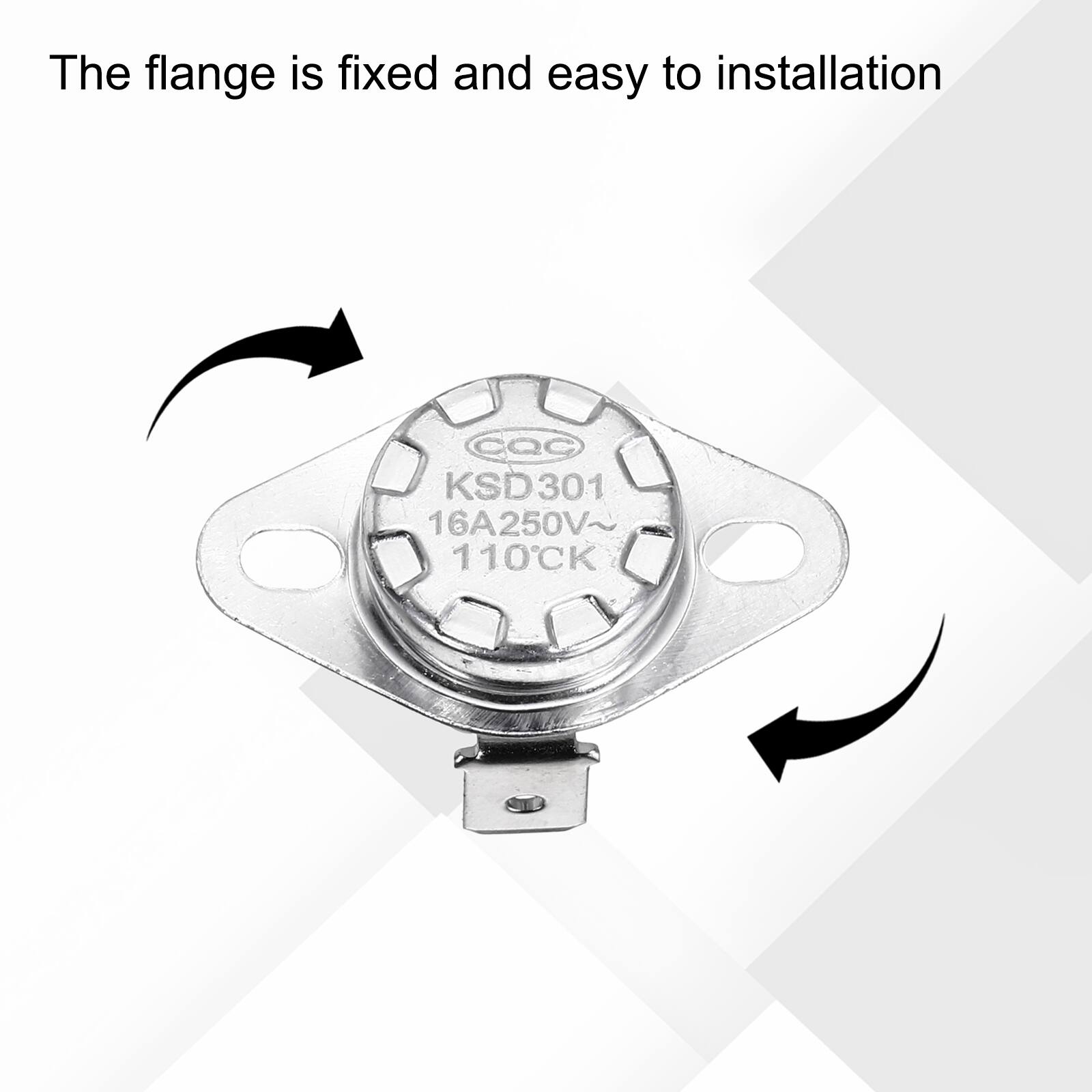

Easy to install: The flange on the switch is fixed for easy installation. The pin width is 6.3 mm
Application: Mainly used for microwave,oven,coffee maker,Speed Cook oven,heater,Dryer,gas furnace,Bath Vent/Heater,wall heater,motor electric heating water dispenser, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, motor cleaner
Specifications
- BrandUnique BargainsModel Numbers26060900ux2734Product NameKSD301 Thermostat 110°C/230°F 16A Normally Open N.O Temperature Switch for Microwaves/Oven 8pcs CeramicColorSilverSwitch TypeToggleVoltage250 volts
Reviews
This product doesn't have any reviews yet.
Compare similar products
Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 110℃ ; Action Type: NO (Normal Open); Rated Voltage/Current : 250V/16A; Pin Type : Right Angle; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 8 x Temperature Control Switch
Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 175℃ ; Action Type: NC (Normal Close); Rated Voltage/Current : 250V/16A; Pin Type : Right Angle; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 8 x Temperature Control Switch
Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 80℃ ; Action Type: NO (Normal Open); Rated Voltage/Current : 250V/16A; Pin Type : Right Angle; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 8 x Temperature Control Switch
Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 180℃ ; Action Type: NO (Normal Open); Rated Voltage/Current : 250V/16A; Pin Type : Right Angle; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 8 x Temperature Control Switch
