Unique Bargains - KSD301 Thermostat 5°C/41°F 10A Normally Closed N.C Adjust Snap Disc Temp Switch for Microwave/Oven 2pcs Bakelite - Silver
Reviews coming soon
About this product

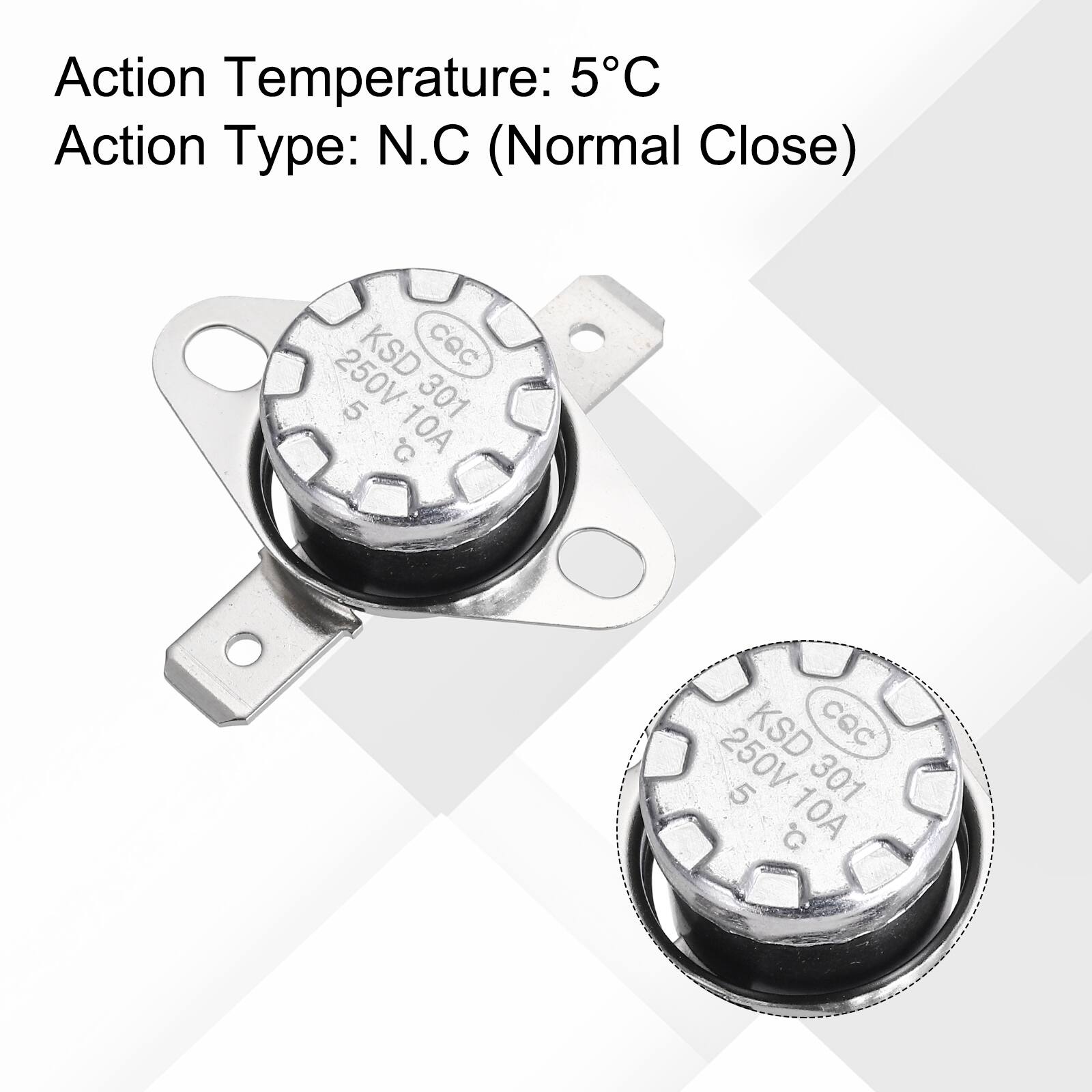

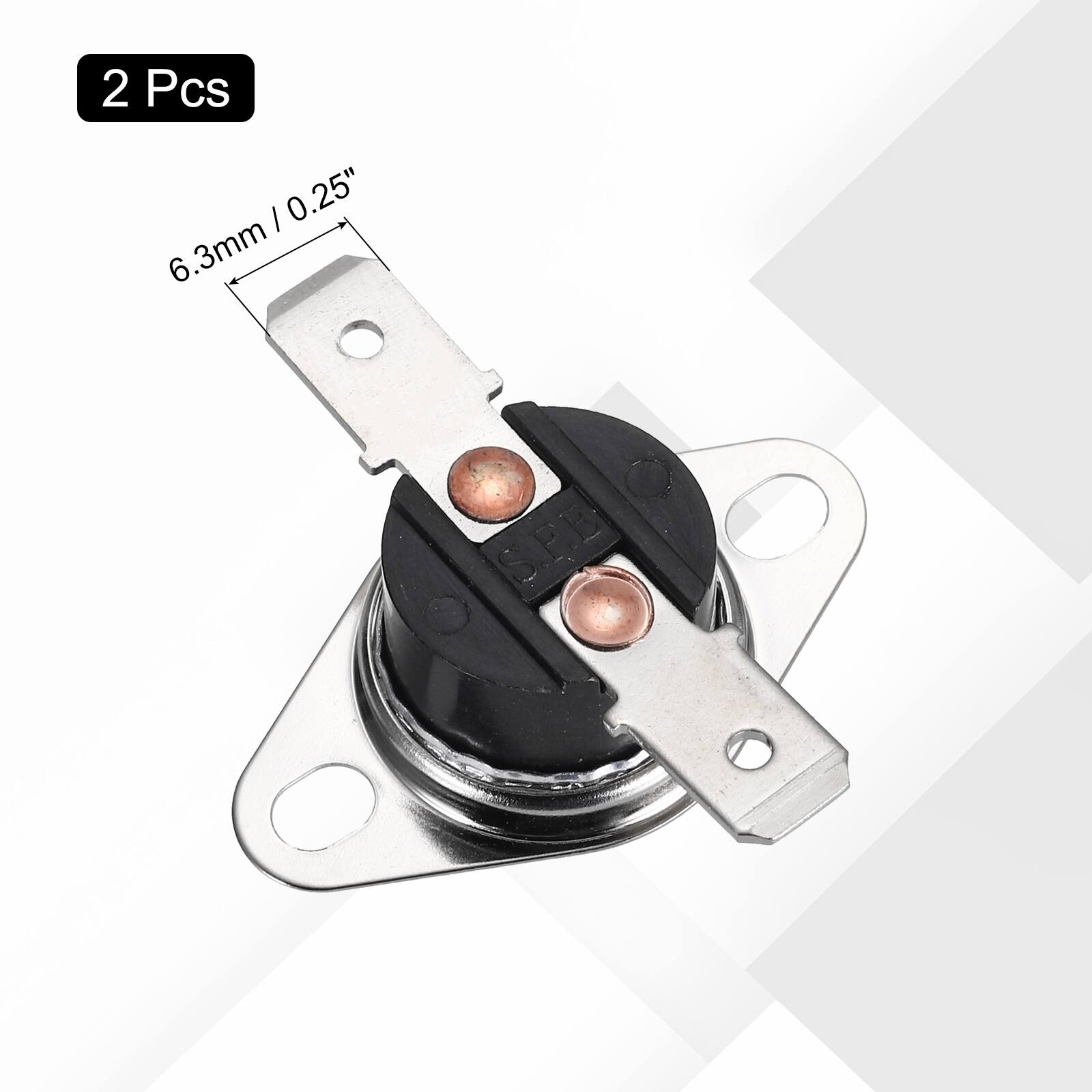

Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 5°C; Action Type: N.C (Normal Close); Rated Voltage/Current : 250V/10A; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 2 x Temperature Control Switch
Number Of Switches
1Features
2Pcs KSD301 5°C NC 10A Thermostat Bakelite
Type: KSD301 5 degree Celsius Thermal Control Switch 110V/120V/250V 10A NC (Normal Close), 6.3mm pin
Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature 0 Celsius degree
Advantage: Double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon. General purpose, automatic reset, low cost, large capacity, minute current thermostats.

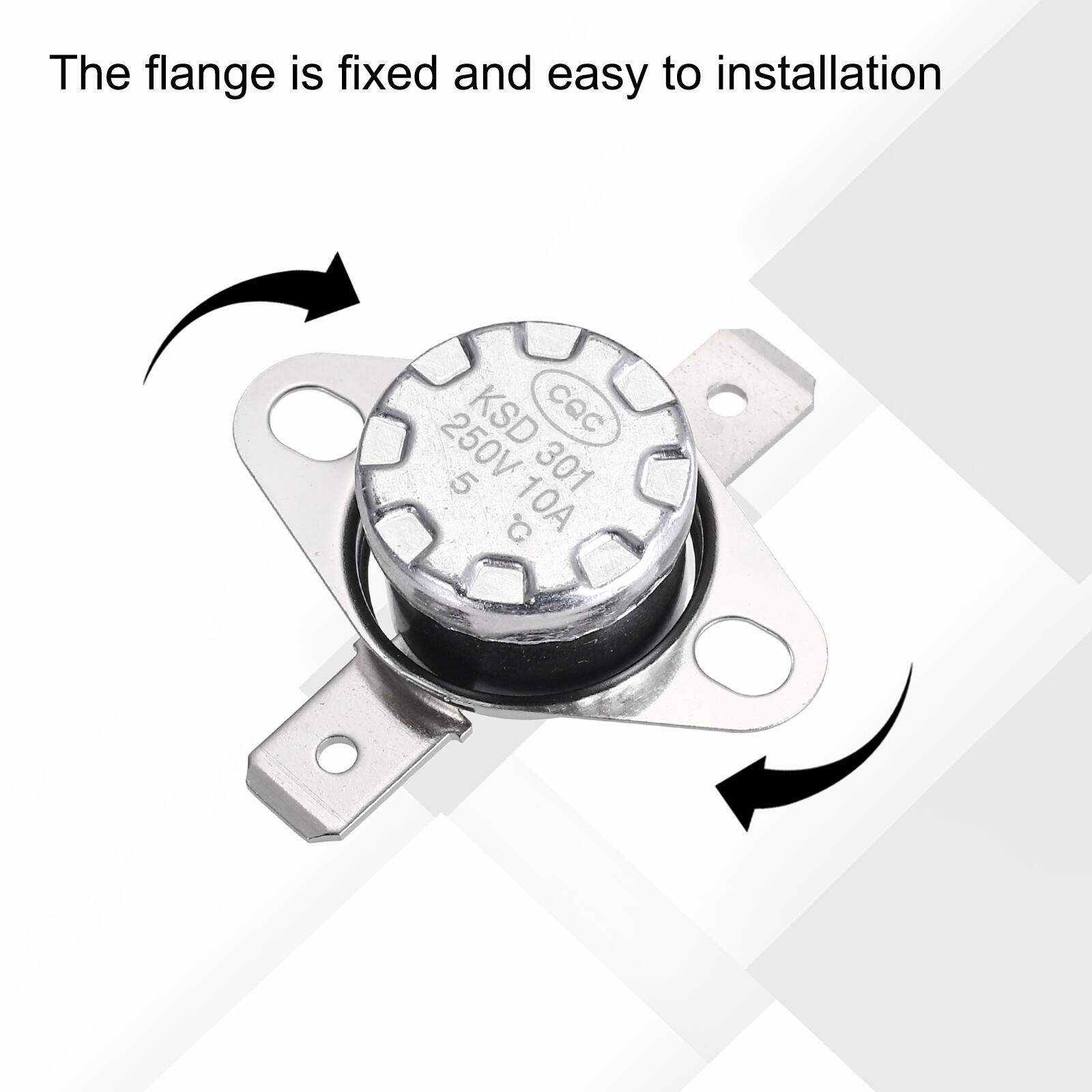

Easy to installation : The flange on the switch is float and easy to installation.The pin width is 6.3mm
Application: Mainly used for microwave,oven,coffee maker,Speed Cook oven,heater,Dryer,gas furnace,Bath Vent/Heater,wall heater,motor electric heating water dispenser, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, motor cleaner
Specifications
- BrandUnique BargainsModel Numbers26060900ux2820Product NameKSD301 Thermostat 5°C/41°F 10A Normally Closed N.C Adjust Snap Disc Temp Switch for Microwave/Oven 2pcs BakeliteColorSilverSwitch TypeToggleVoltage250 volts
Reviews
This product doesn't have any reviews yet.
Compare similar products
Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 5°C; Action Type: N.C (Normal Close); Rated Voltage/Current : 250V/10A; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 2 x Temperature Control Switch
Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 10°C; Action Type: N.O (Normally Open); Rated Voltage/Current : 110V/120V/250V 10A; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 2pcs x Temperature Control Switch
A thermostat automatically switches circuits on or off by sensing temperature changes to maintain a set point, widely used in circuits requiring automatic temperature-based switching, including household appliances (coffee makers, ovens, microwaves, air fryers, toasters, rice cookers, steamers, heaters) as well as transformers, motors, automotive electronics, and automated equipment.
Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 115°C/239°F; Action Type: N.C (Normally Closed); Rated Voltage/Current : 125V/16A; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon
