VEVOR - 7.5HP Air Compressor Motor, 230V 31.6 Amps Electric Motor, 3450RPM 184T Frame, 1-1/8" Keyed Shaft, 2.75" Shaft Length - Black

Model: DP1272184T
SKU: 13102188

Reviews coming soon

Sold & shipped by

About this product

Inject powerful energy into your air compressor with 7.5HP compressor motor, 230V voltage, 31.6A current, 184T frame, 2.75 inch shaft length, 1-1/8" keyed shaft, CW/CCW dual rotation direction (Factory Setting is CCW). A perfect addition to air compressors, industrial and commercial needs.

Features

  • High Performance

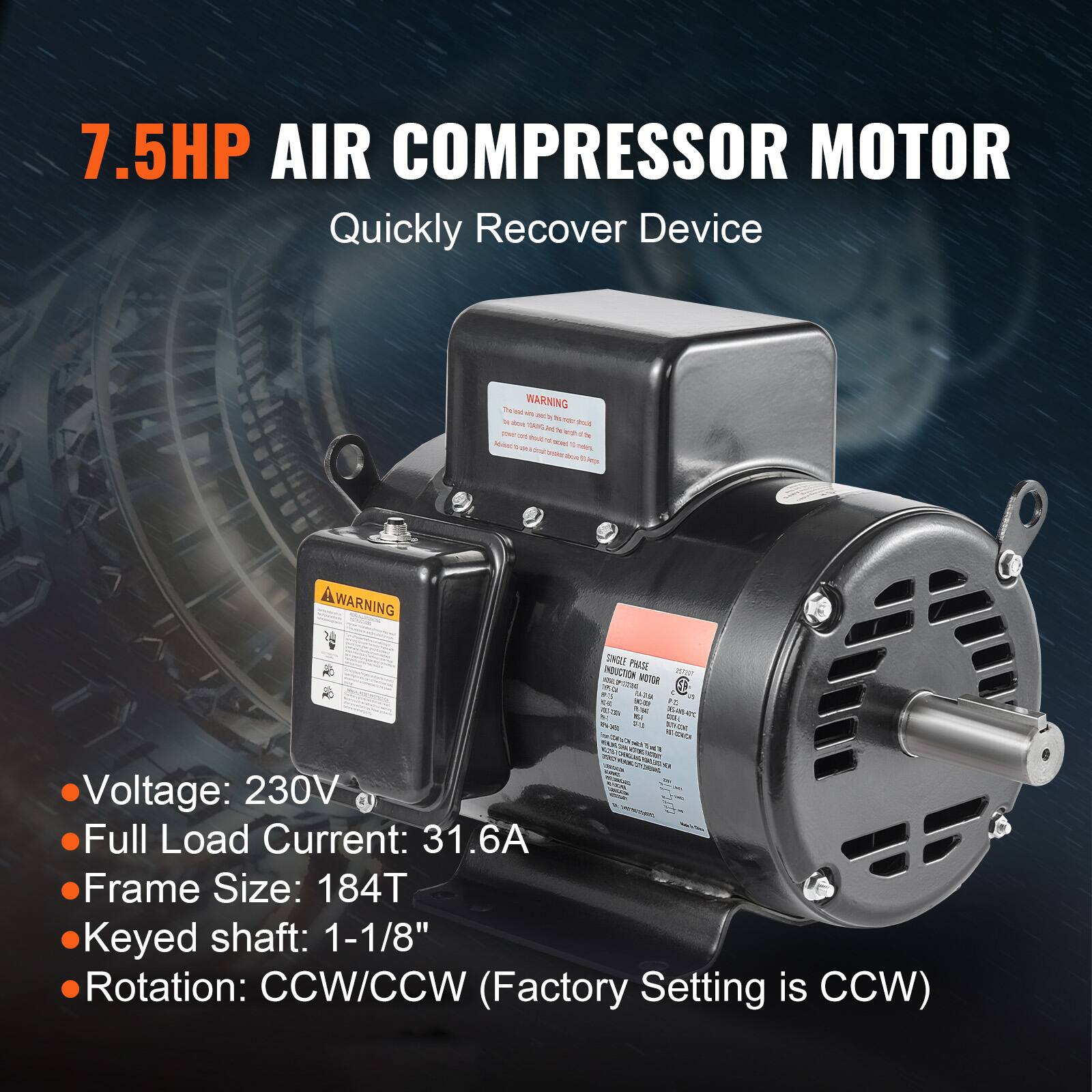

    7.5HP, 3450 RPM, Single Phase, Full Load Amps: 31.6Amp, 230V 60Hz, SF: 1.0.

  • Frame Type

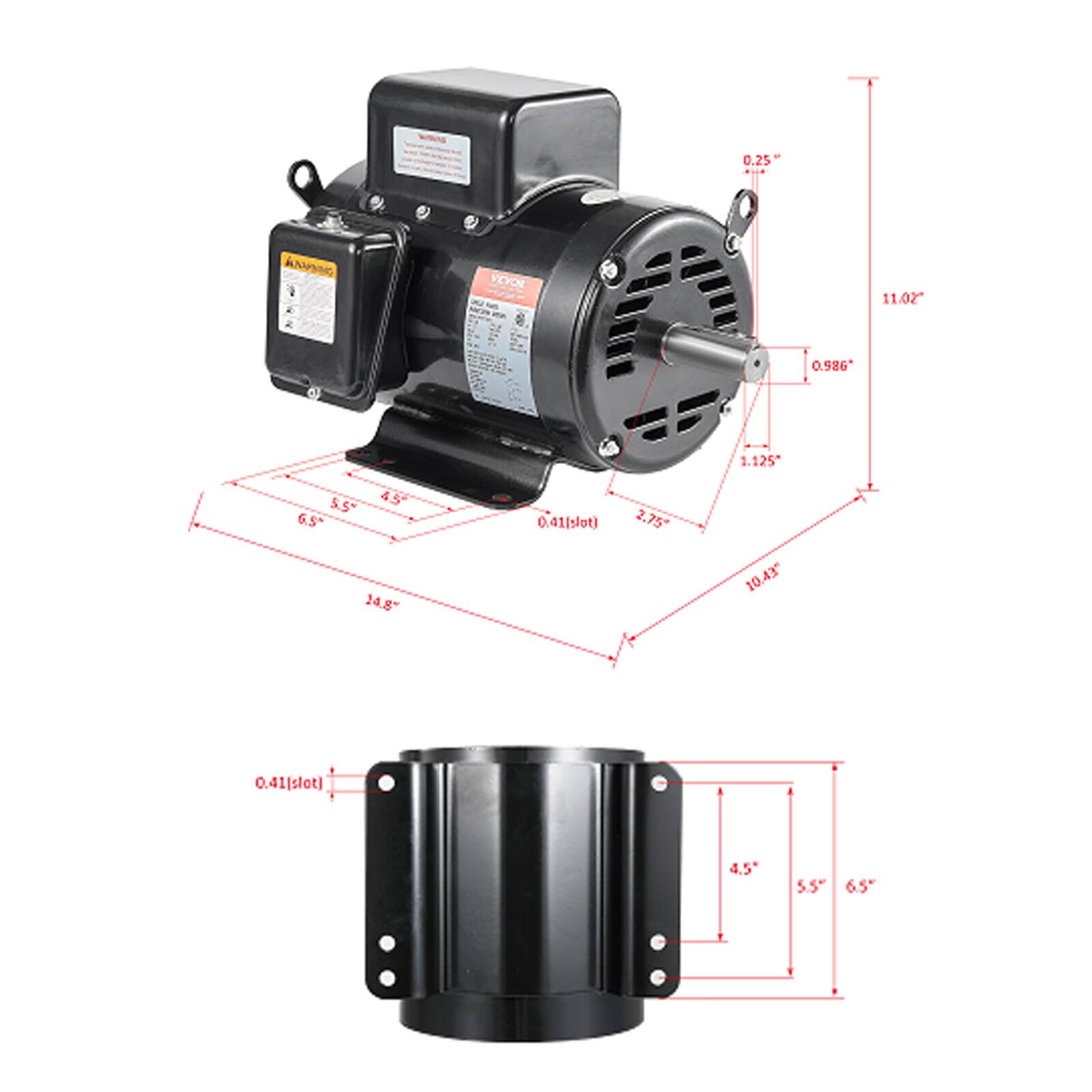

    184T Frame, 1-1/8" Keyed shaft, 2.75" Shaft length, 0.25" Keyway Size.

  • Open Drip-proof

    Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.

  • Dual Rotation Direction

    Motor is Reversible for CCW/CCW rotation (Factory Setting is CCW), provides easier wiring operations.

  • Safe & Durable

    A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 60.0 amps.)

Specifications

  • Brand
    VEVOR
    Model Number
    DP1272184T
    Product Name
    7.5HP Air Compressor Motor, 230V 31.6 Amps Electric Motor, 3450RPM 184T Frame, 1-1/8" Keyed Shaft, 2.75" Shaft Length
    Color
    Black
    Horsepower
    7.5 horsepower
    Portable
    No
