VEVOR - Hydraulic Directional Control Valve, 1 Spool Hydraulic Spool Valve, 21 GPM Hydraulic Loader Valve, 3625 PSI Directional - Black

Model: 121GPM3625
SKU: 12901871

Reviews coming soon

Sold & shipped by

About this product

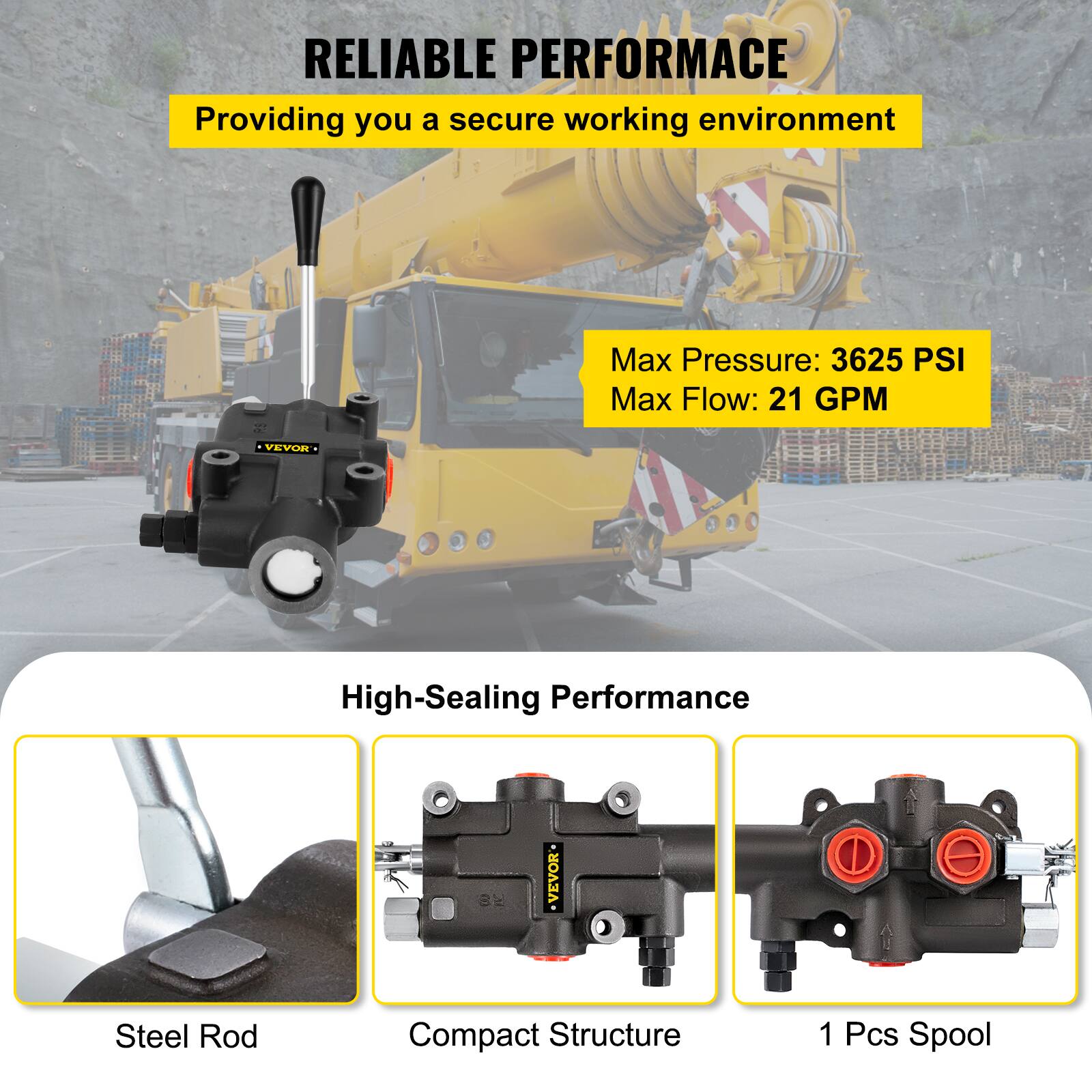

Our hydraulic spool control valve has been specifically designed for use in mobile hydraulic applications. It is compact but has a flow capacity of 21GPM at 3625psi. This valve is an alternative to currently available monoblocks. It is supplied with an adjustable relief valve and levers as standard.

Features

  • Hydraulic Spool Valve

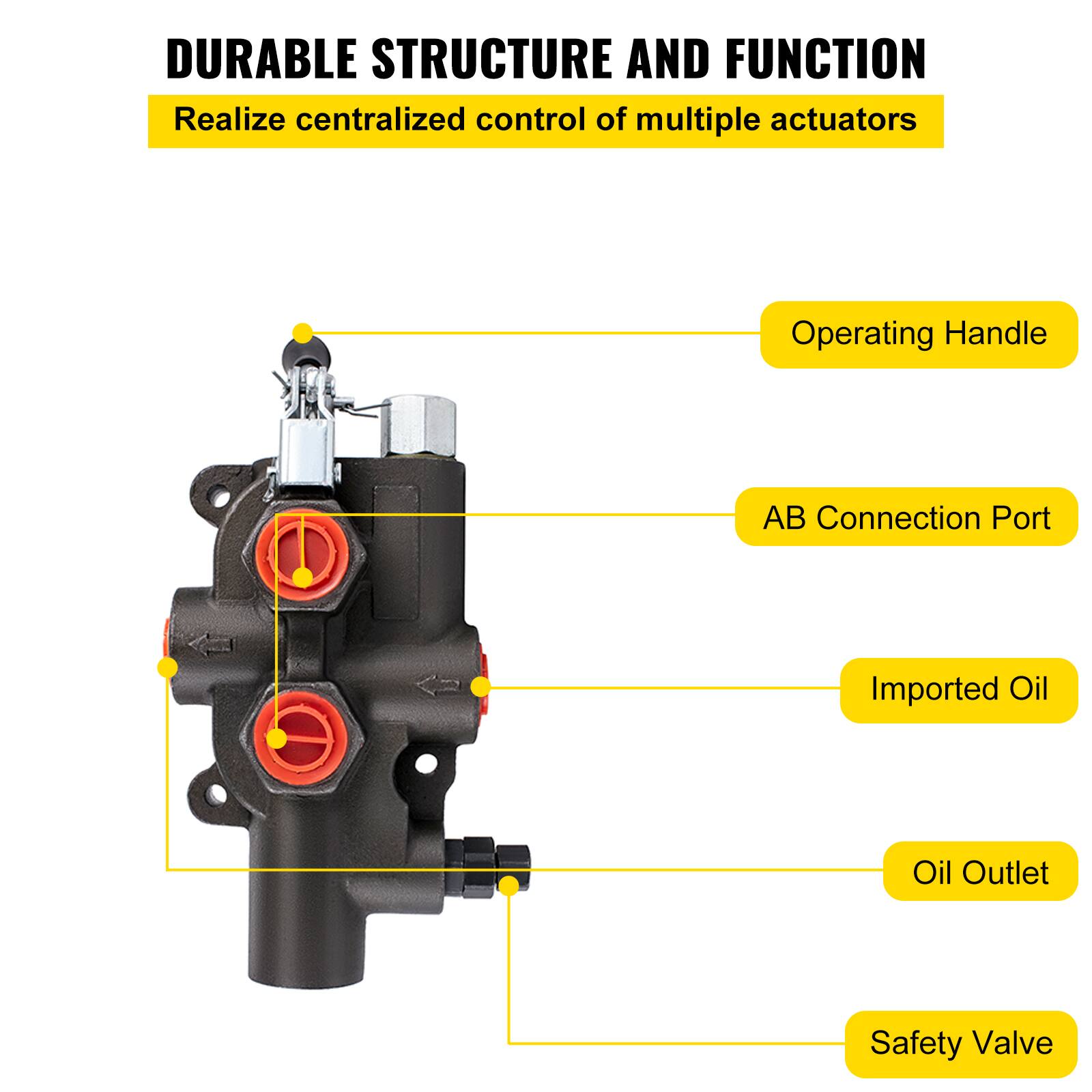

    Equipped with 1 spool, 1/2" NPT A, B, N ports, and 3/4" NPT P, T ports. The maximum pressure of this hydraulic is 3625 PSI, and the maximum flow can reach 21 GPM. The opening and disconnection of hydraulic oil are controlled by connecting the valve to the oil line.

  • Automatically Reset

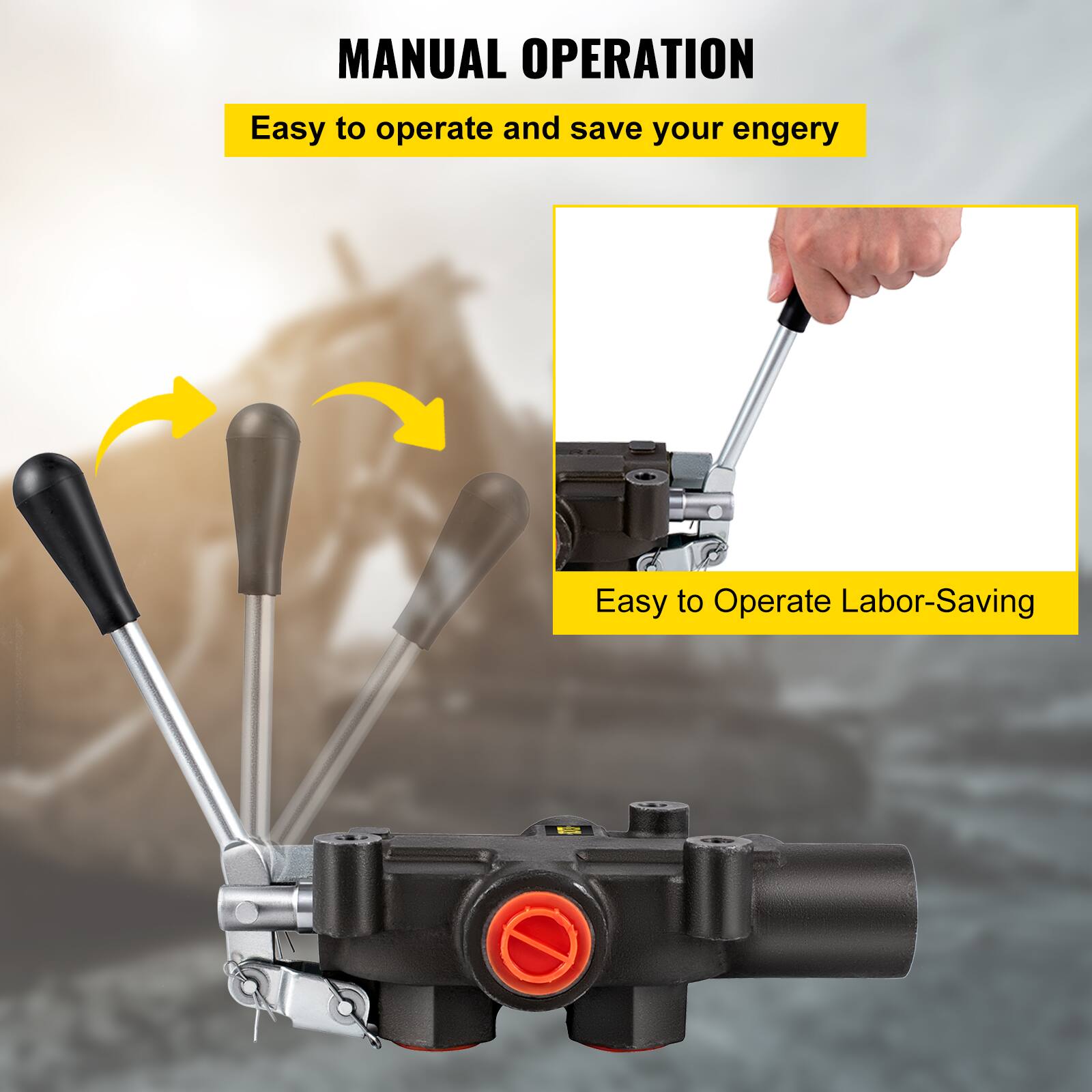

    The standard spool is spring-returned and can be reset to the neutral position. In addition, there is a spring at the bottom of the handle that makes the joystick easy to control.

  • Great Inner Valve

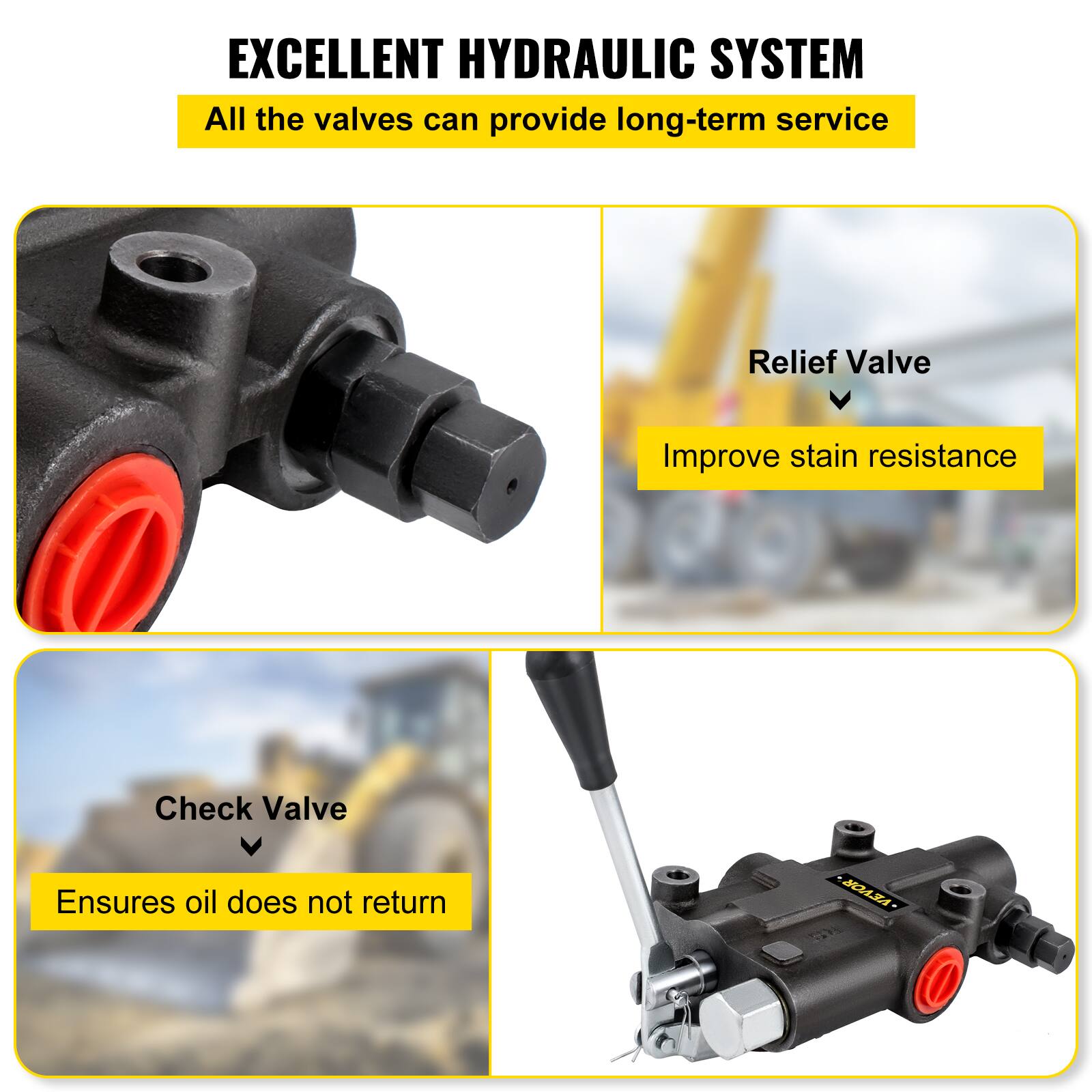

    The check valve in the valve body ensures that the hydraulic oil does not return, and the overflow valve in the valve body can adjust the working pressure of the hydraulic system.

  • Compact Structure

    1 spool hydraulic valve is made of aluminum and iron, and the solid structure can provide long-term service. The compact design allows it to install in narrow areas and maximizes its control capabilities.

  • Widely Used

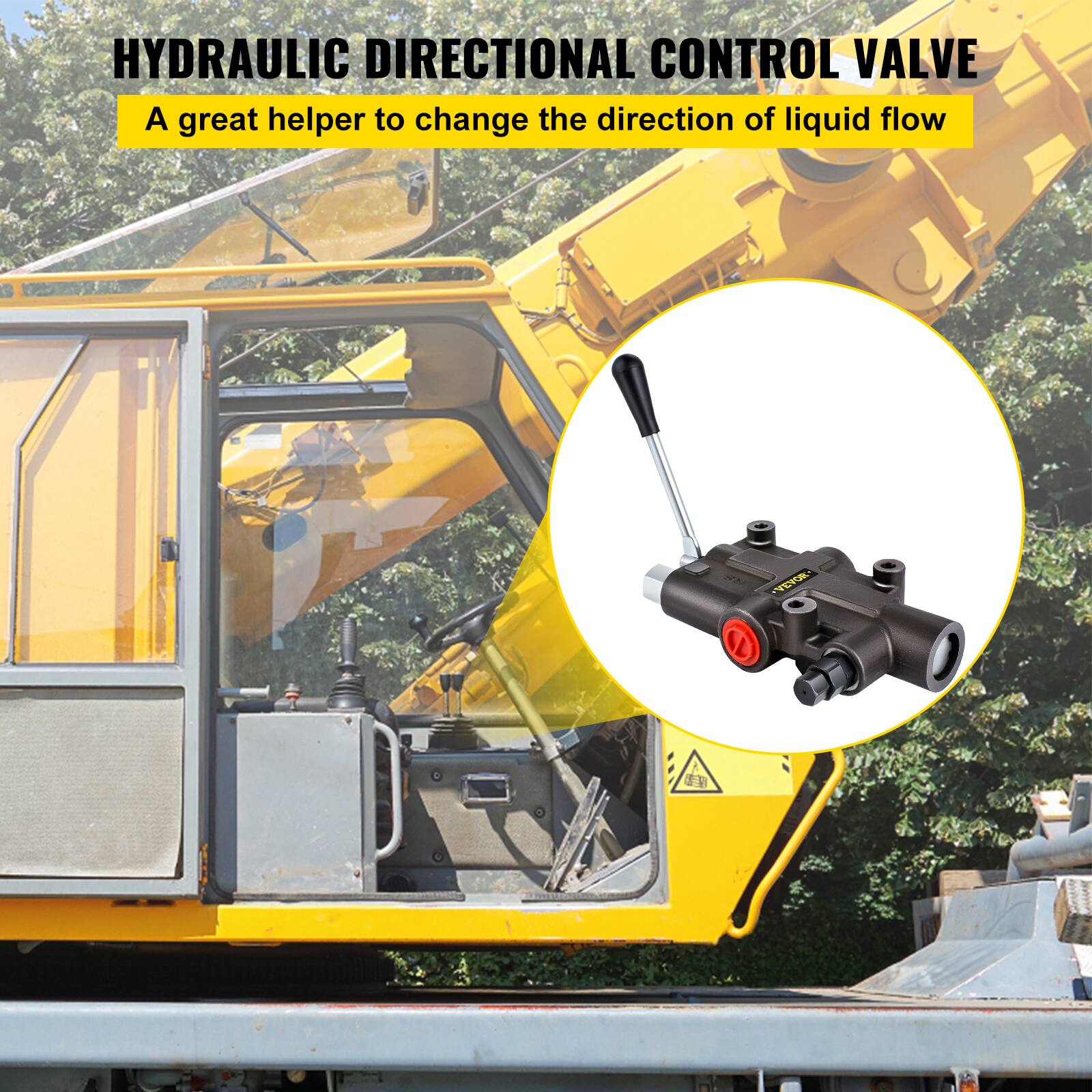

    It is used in hydraulic systems in agriculture, horticulture, forestry, construction, and industry. The distributor is adapted to different types of machines: agricultural machines, tractors, sprayers, construction machines, loaders, excavators, sweepers, industrial machines, and for other applications hydraulically controlled.

Specifications

  • Brand
    VEVOR
    Model Number
    121GPM3625
    Product Name
    Hydraulic Directional Control Valve, 1 Spool Hydraulic Spool Valve, 21 GPM Hydraulic Loader Valve, 3625 PSI Directional
    Color
    Black

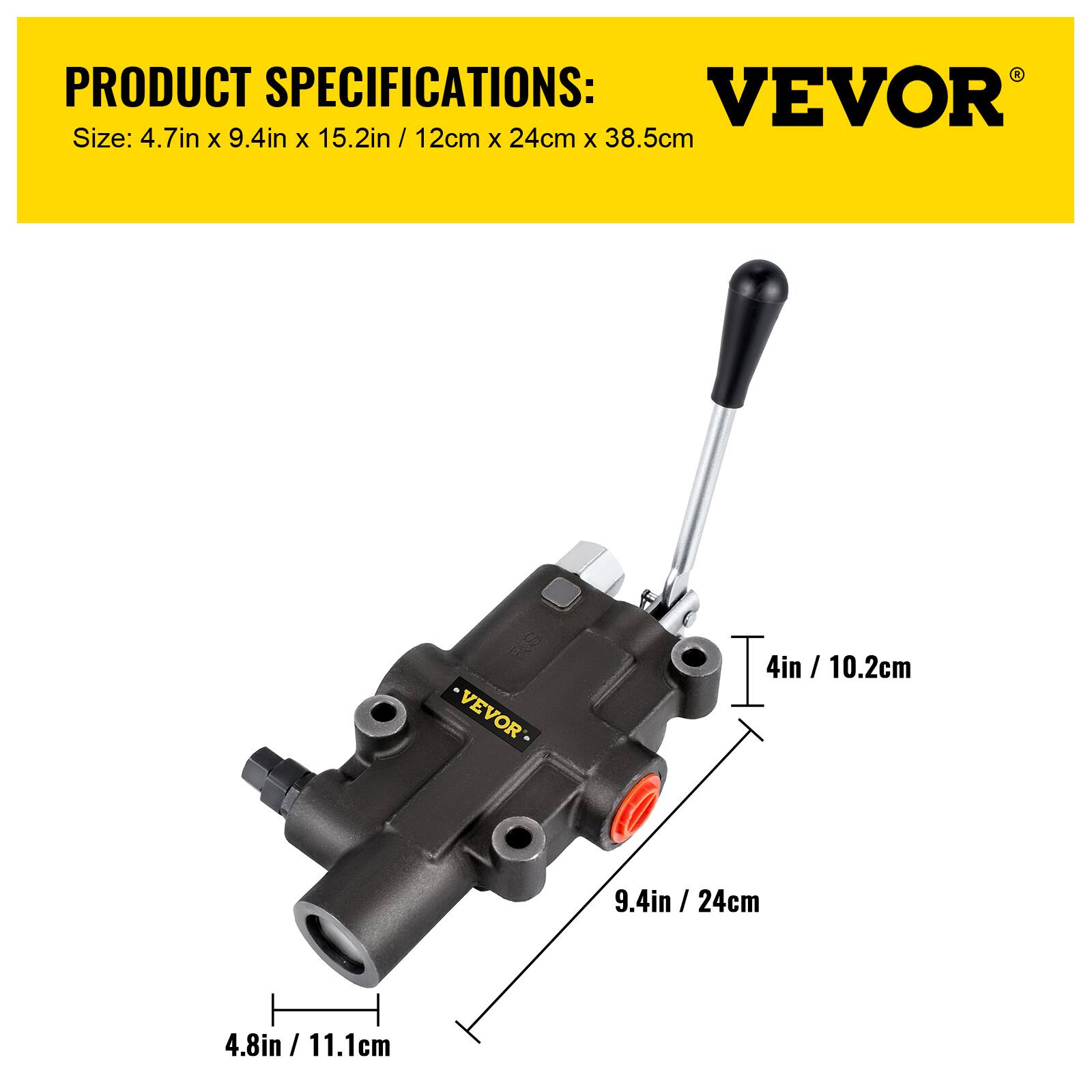

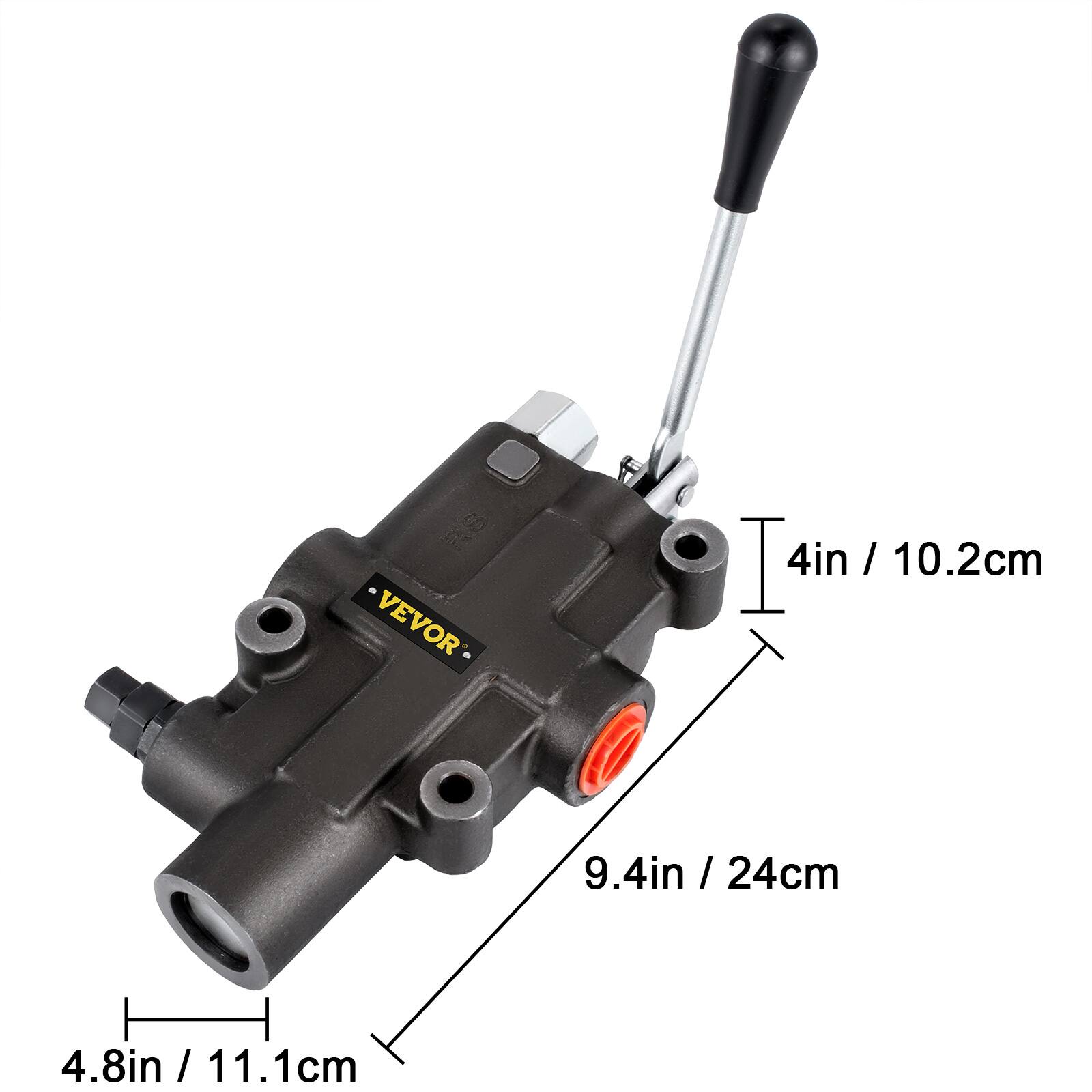

    Product Height
    15.2 inches
    Product Width
    9.4 inches
