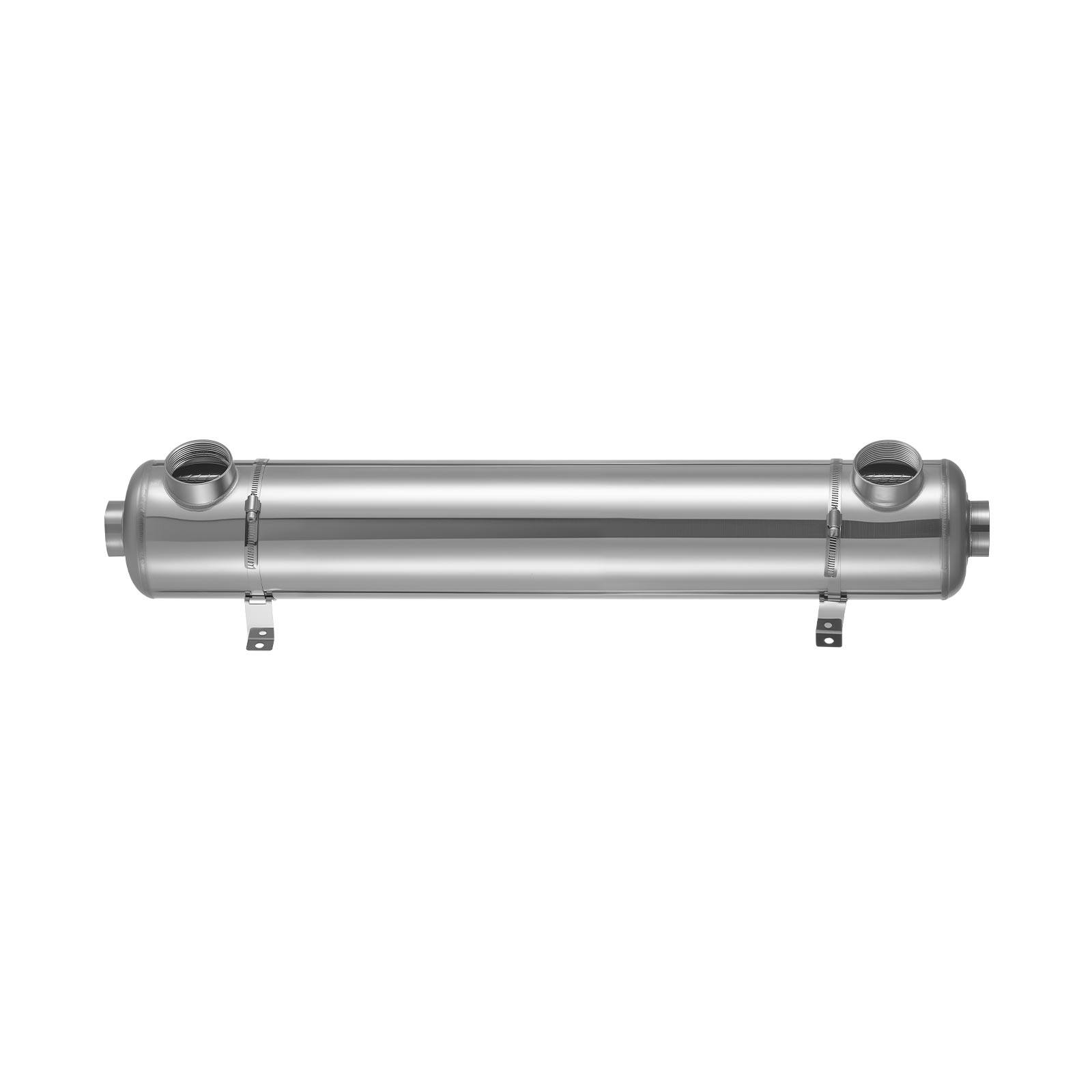

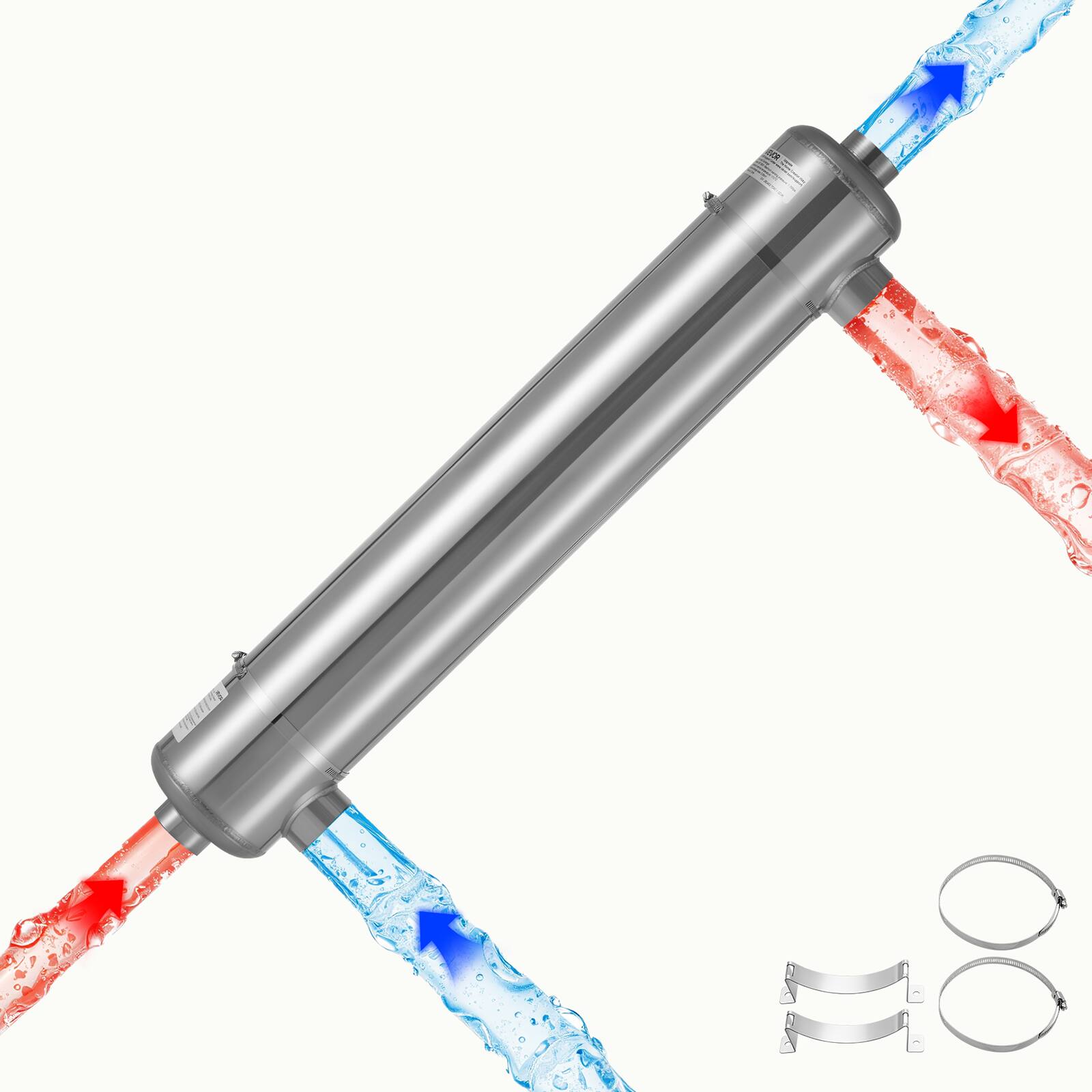

VEVOR - Pool Heat Exchanger, 360K BTU Swimming Pool Heater Exchanger, 316L Stainless Steel Construction, High Efficiency Water - Silver
Related Item
About This Item
- General
- Brand: VEVOR
- Model Number: MF-360K
- Product Name: Pool Heat Exchanger, 360K BTU Swimming Pool Heater Exchanger, 316L Stainless Steel Construction, High Efficiency Water
- Color: Silver
- Recommended Minimum Age: 13 years
- Dimensions

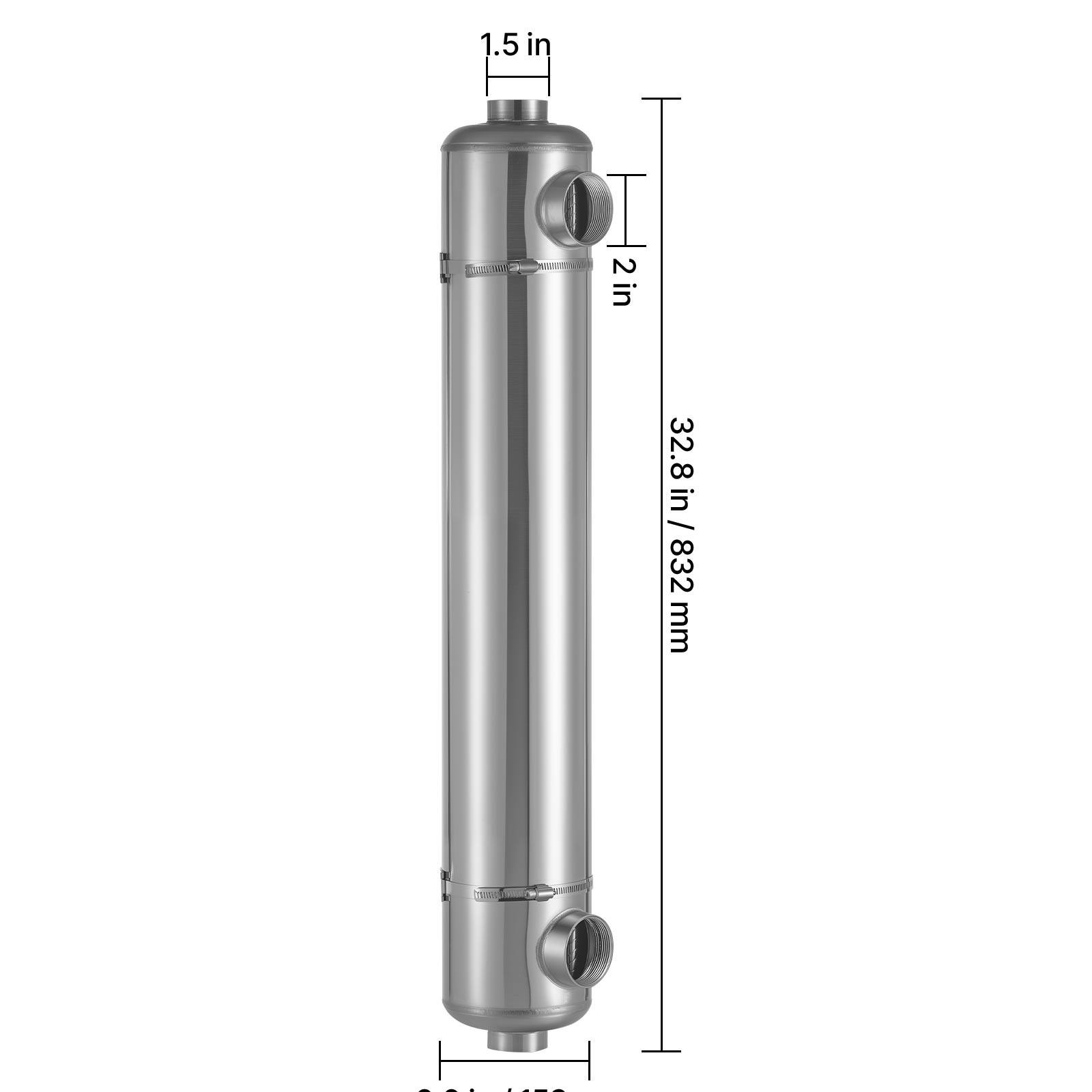

- Product Height: 32.76 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 5.24 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 6.02 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 17.64 pounds (The out of box weight of the item.)
- Features
- Maximum Pool Volume: 36000 gallons (The maximum quantity of water a swimming pool can hold.)
- Pool Type: In ground (Type of swimming pools based on construction, materials, and placement.)
- BTU Heat Rating: 360000 british thermal units (The number of BTUs (British Thermal Units) per hour the unit produces to heat the air, also known as heating capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to heat. The recommended capacity depends on several factors such as climate and level of insulation, but generally ranges from 30-60 BTUs per square foot.)
- Power Source: Hard wired
- Material
- Material: Stainless Steel 316L
- Warranty
- Warranty - Parts: None
- Warranty - Labor: None
- Other
- UPC: 199412516114
Engineered as a high-performance pool heat exchanger, this unit includes mounting brackets and clamps for easy installation and secure fixing. Bolts and connection sealing materials are not included; please prepare them separately.

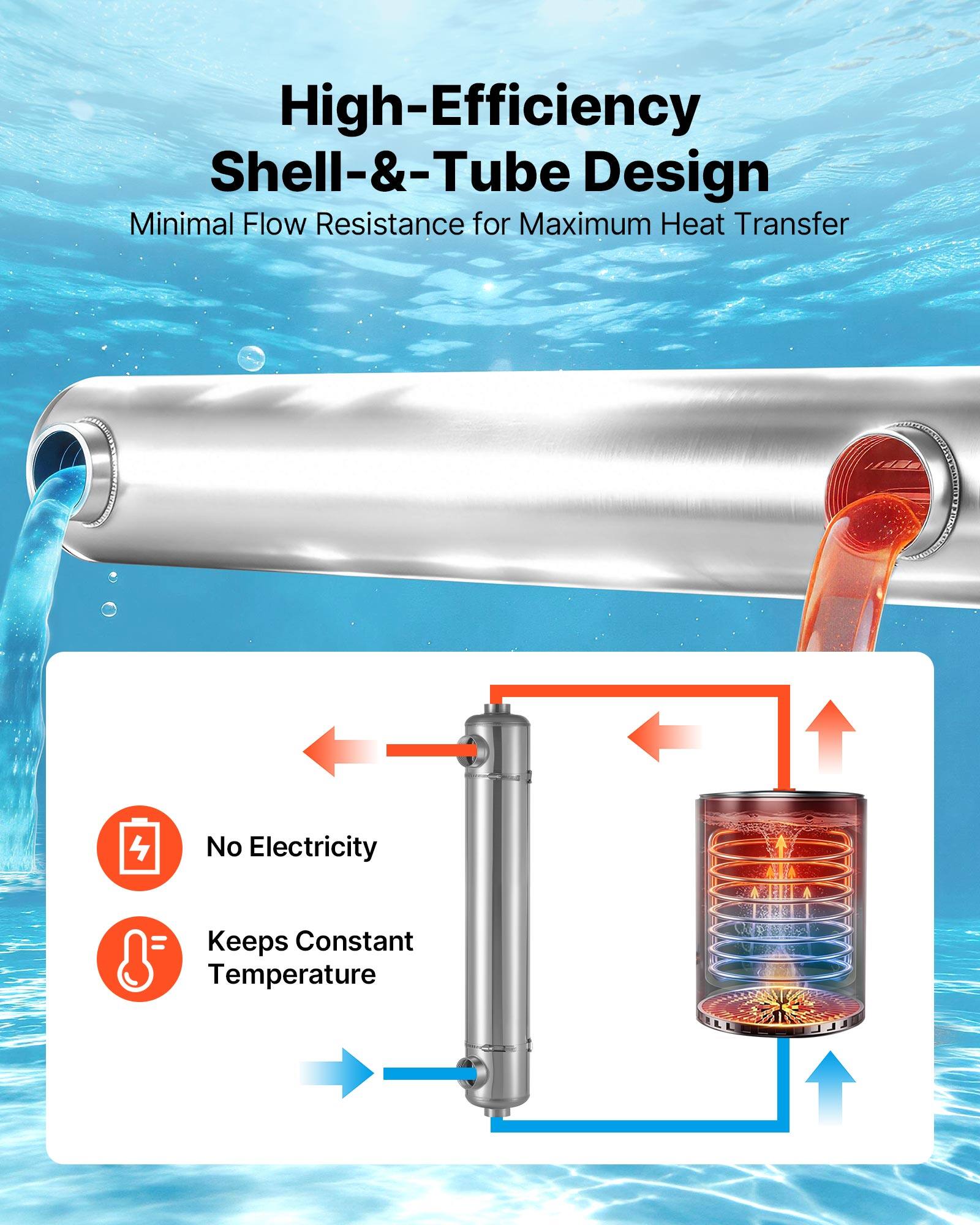

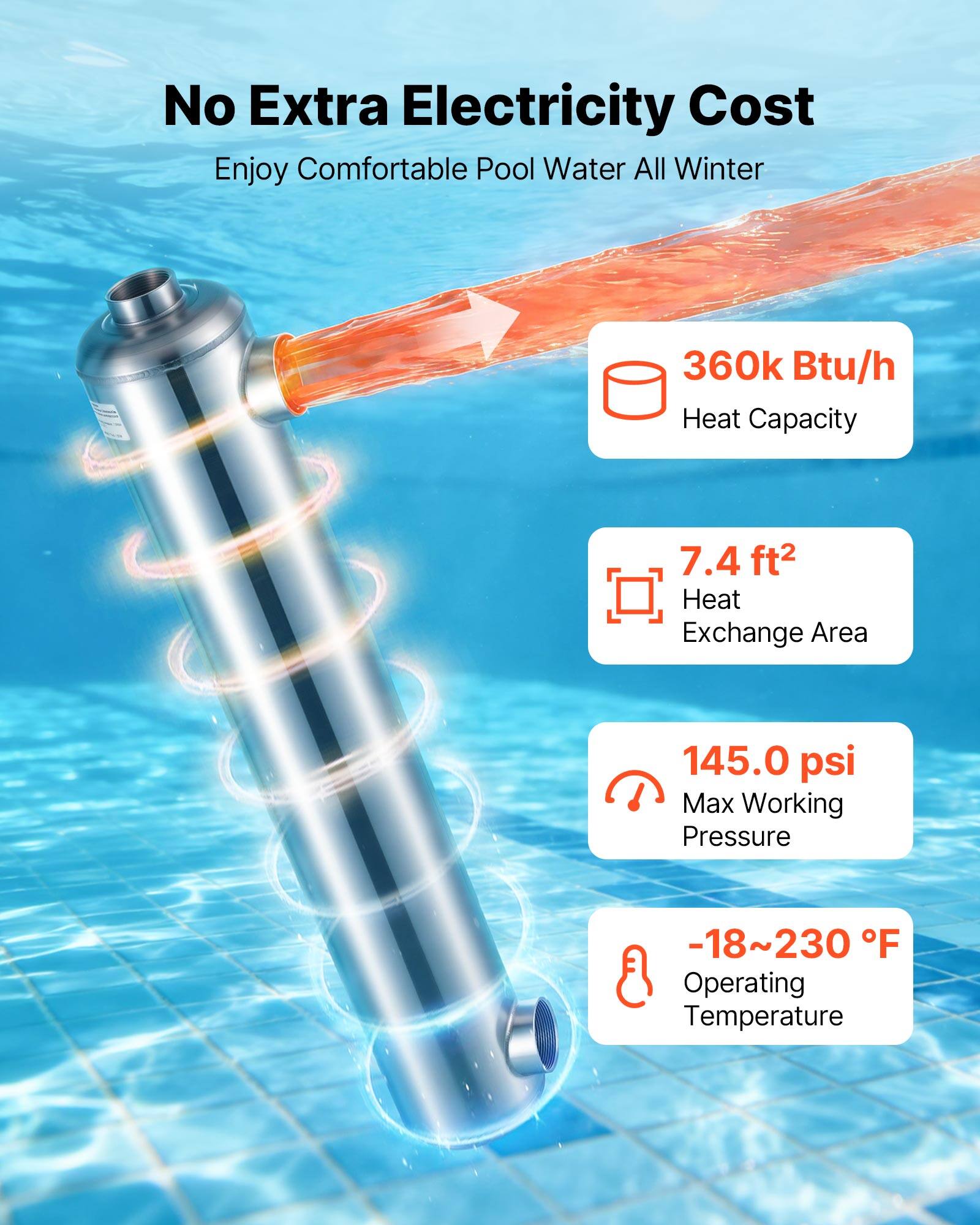

- High Efficiency & Energy Saving: The pool heat exchanger is constructed with 316 stainless steel tubing to enhance heat transfer efficiency. It delivers high thermal capacity of up to 360k BTU/h, making it ideal for demanding pool heating applications
- Large Heat Transfer Area: This heat exchanger features 30 capillary tubes and an effective heat transfer area of 7.4 ft², delivering efficient and reliable performance for a wide range of applications
- Solid Construction: Built from high-quality 316 stainless steel, this pool heater heat exchanger withstand high temperatures and pressure, not prone to rust, suitable for use in humid environments, operating temperature -18-230 ℉
- Sealed and Leakproof: Built to perform as a reliable swimming pool heat exchanger, it uses high-pressure vacuum brazing technology and undergoes rigorous leak testing for extended service life and dependable operation
- Wide Application: This pool water heat exchanger is suitable for indoor and outdoor swimming pools, spa pools, hot tubs, aquaculture, and water treatment systems, providing fast heat transfer and consistent temperature control for enhanced comfort
Whats Included

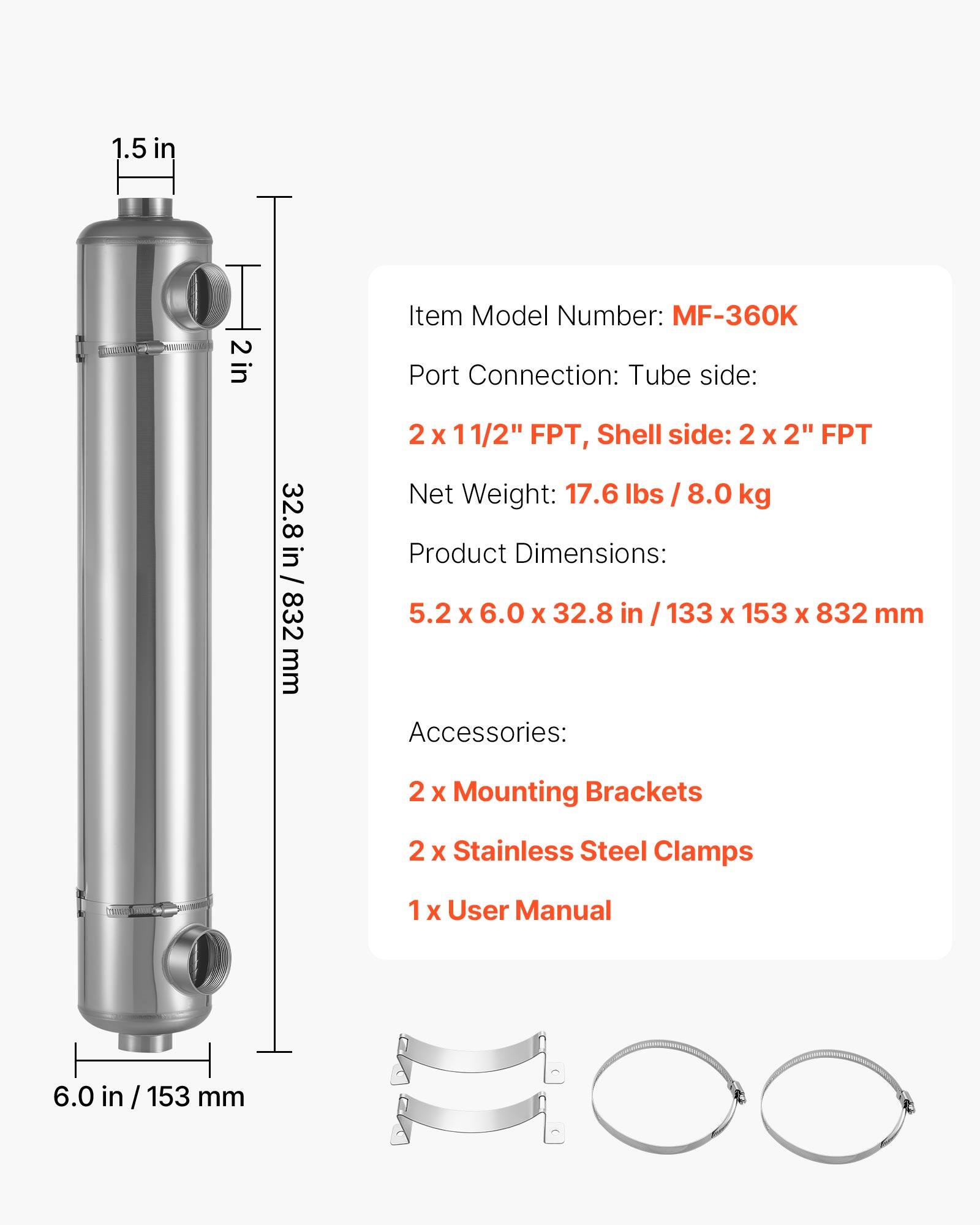

- 1 x Pool Heat Exchanger;2 x Mounting Brackets;2 x Stainless Steel Clamps;1 x User Manual
