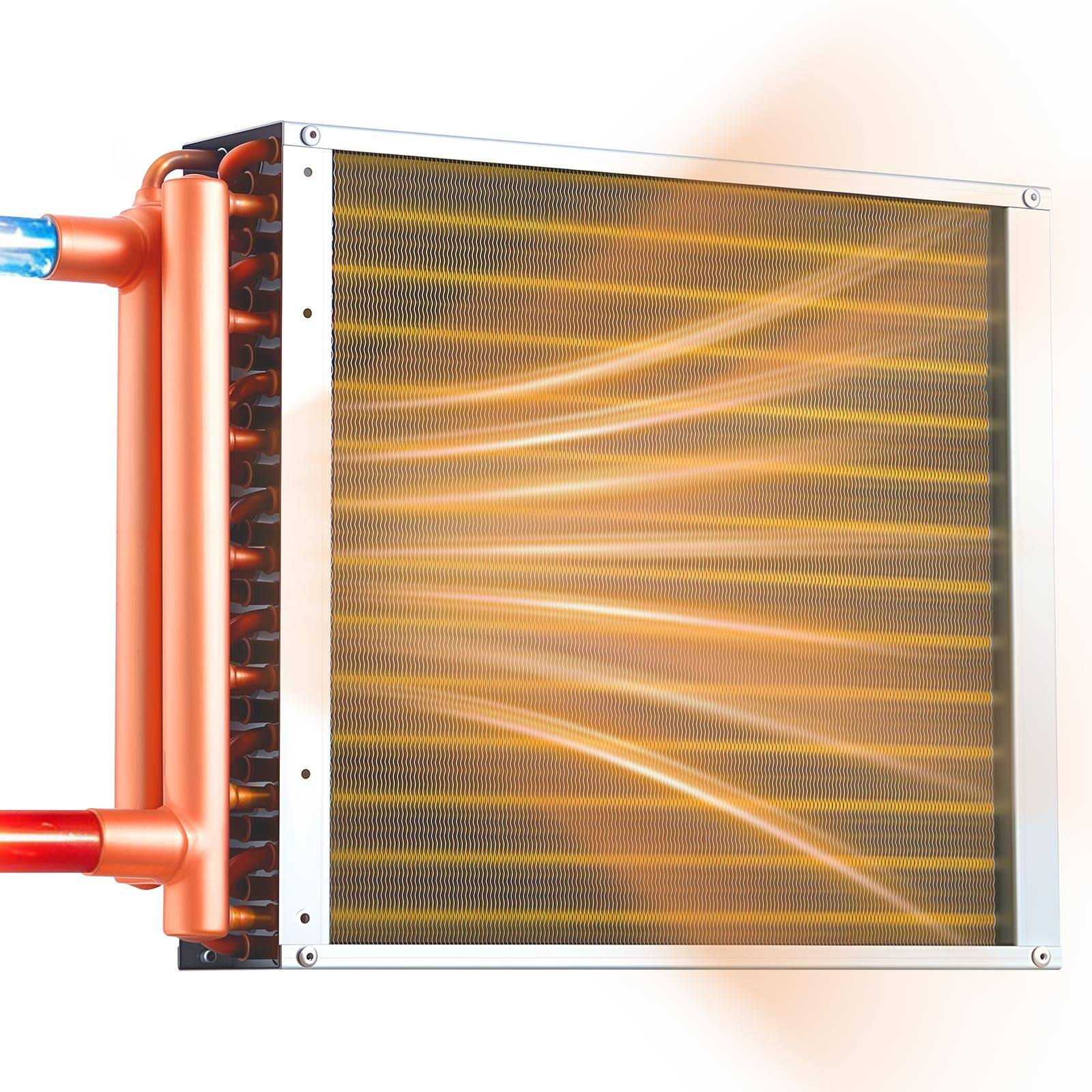

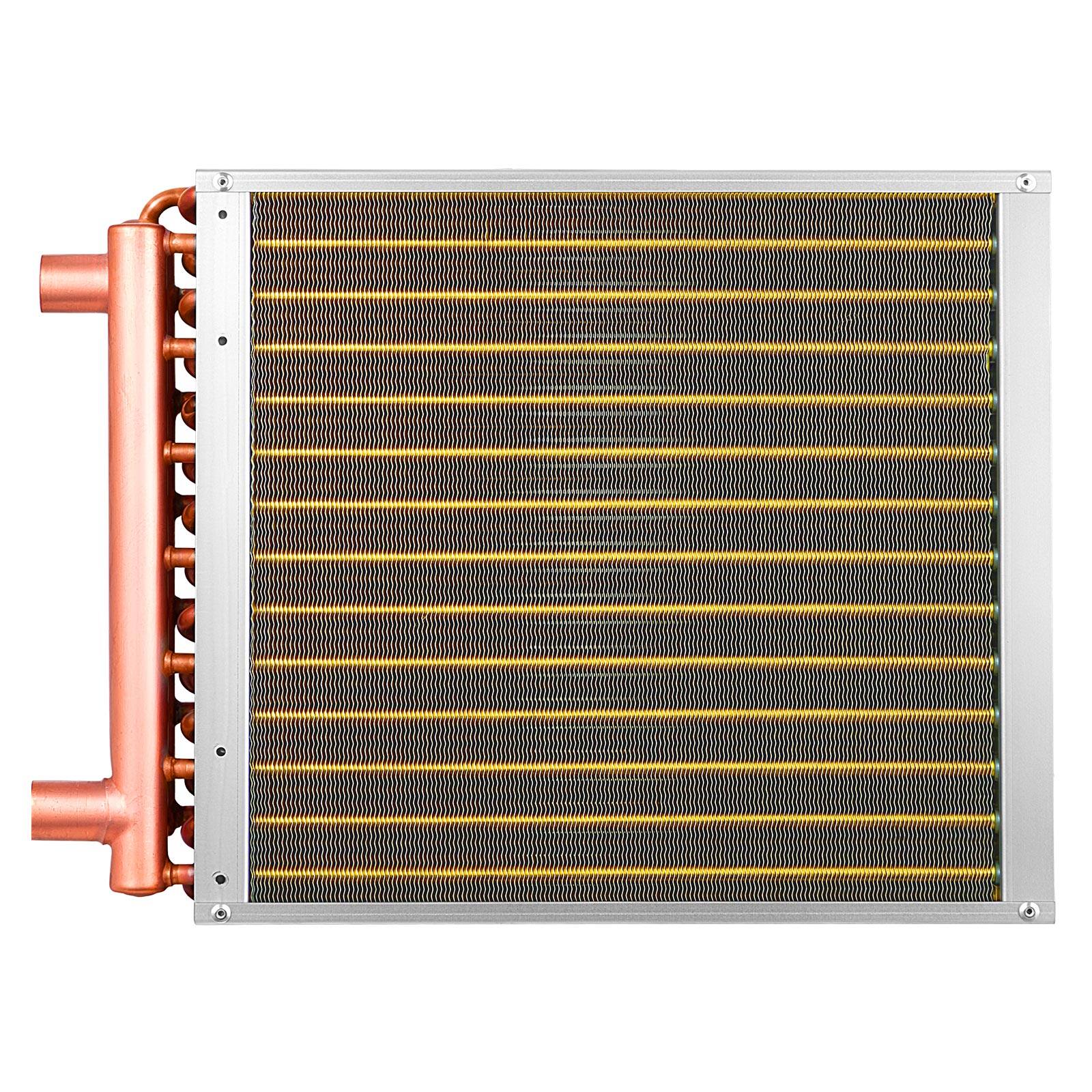

VEVOR - Water to Air Heat Exchanger, 14 x 14 in Finned Tube HVAC Heat Exchanger Coil with Copper Tubes & Aluminum Fins, 65K BTU - Red-brown;Silver
Reviews coming soon
Related Item
Reviews coming soon
Specifications
- Product Height3.5 inchesProduct Width14.02 inches
- Key Specs
- Product Height: 3.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 14.02 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- General
- Brand: VEVOR
- Model Number: C14×14
- Product Name: Water to Air Heat Exchanger, 14 x 14 in Finned Tube HVAC Heat Exchanger Coil with Copper Tubes & Aluminum Fins, 65K BTU
- Color: Red-brown;Silver
- Dimensions
- Product Height: 3.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 14.02 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 12.57 pounds (The out of box weight of the item.)
- Product Depth: 19.33 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Electrical
- Cord Length: 0 inches
- Performance
- Insulated: false
- Features
- Water Heater Power Source: Electric
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: None
- Other
- UPC: 199412326744

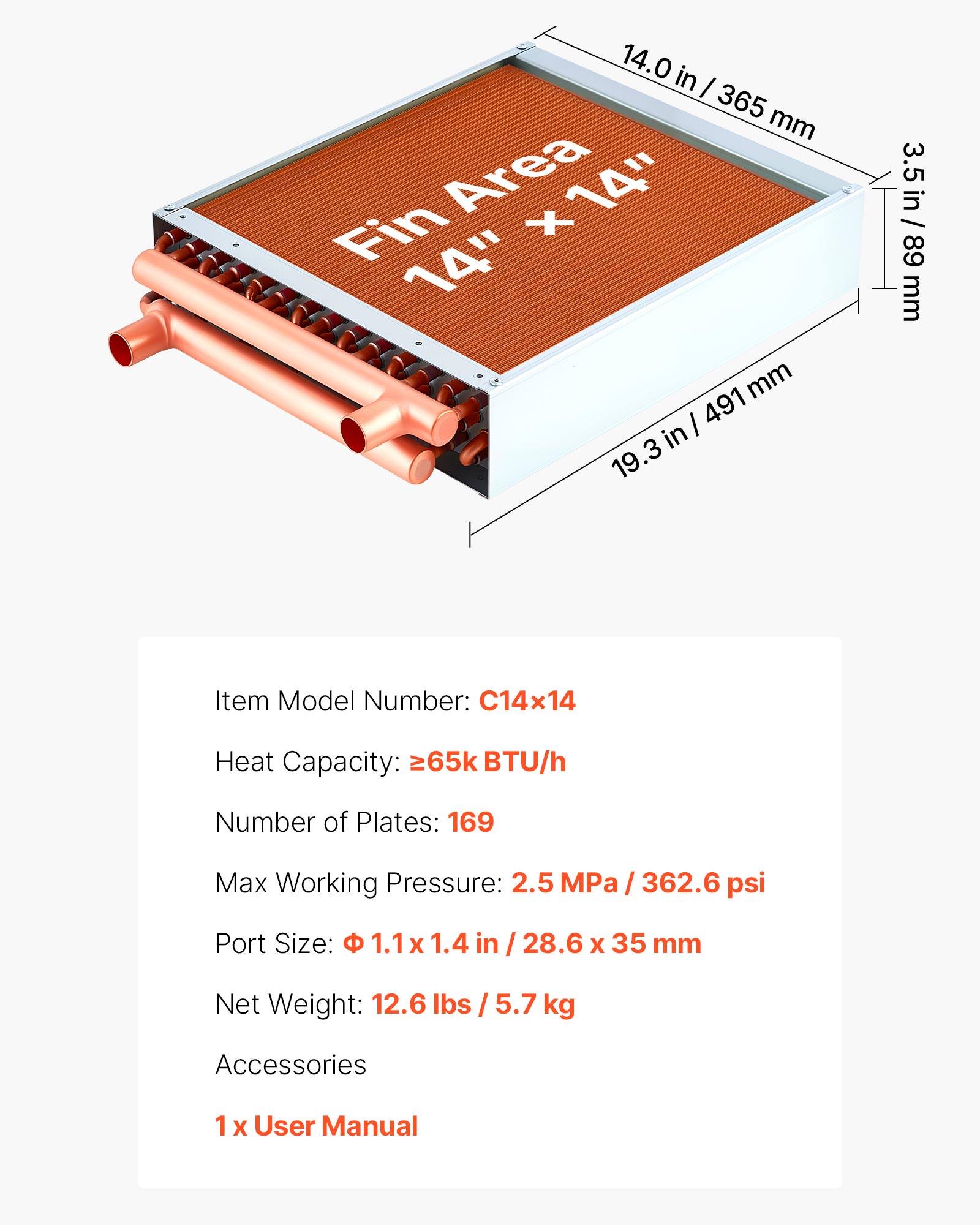

Designed as an efficient air to water heat exchanger, Φ28.6 x 35 mm ports, tolerance ±10 mm, supports multiple installation methods; can be directly connected to ductwork and secured with clamps, or welded or riveted.

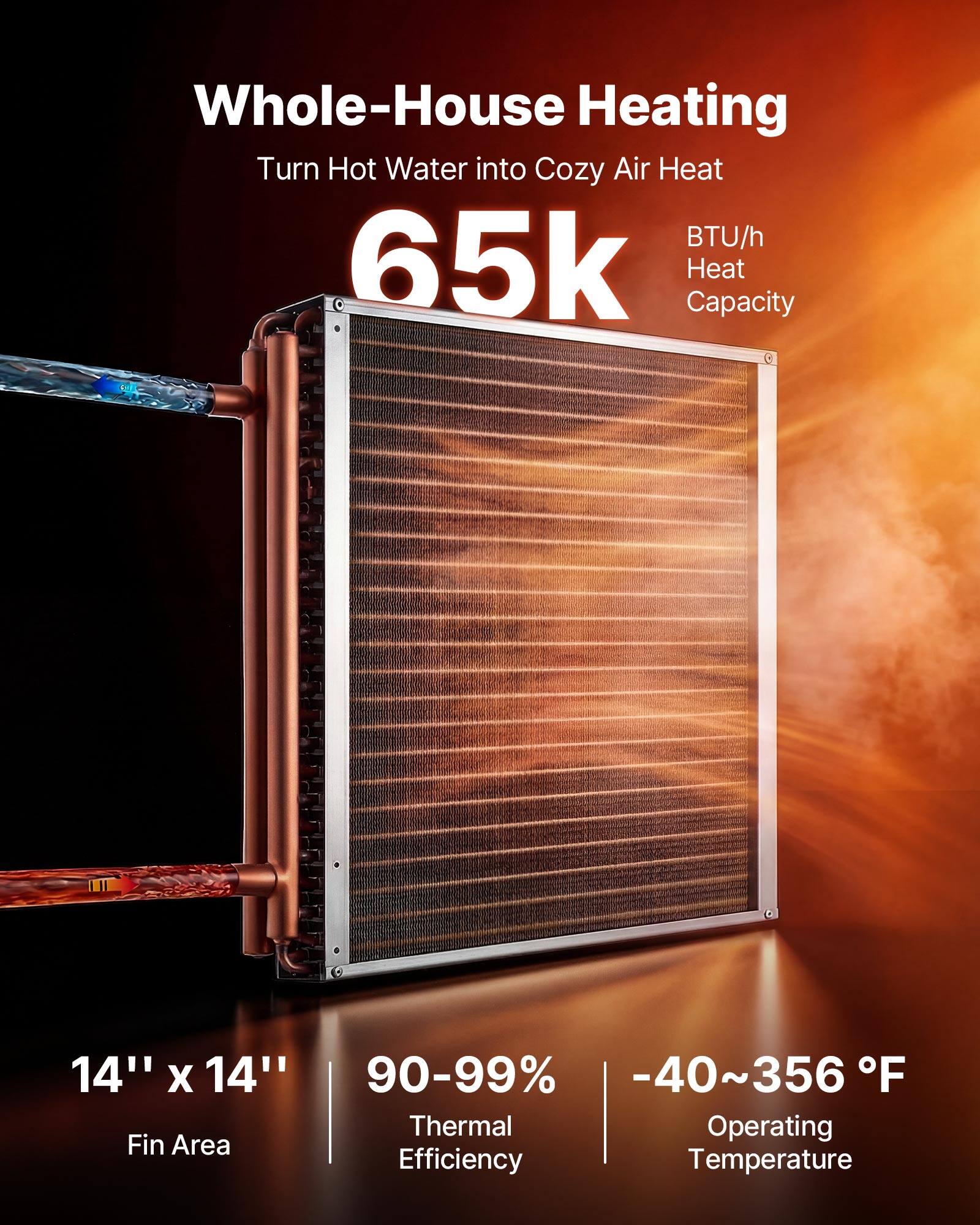

- High Efficiency: this heat exchanger is constructed with copper tubes and aluminum fins to maximize thermal conductivity, delivering efficient heat transfer efficiency and a heating capacity of up to 65k BTU/h

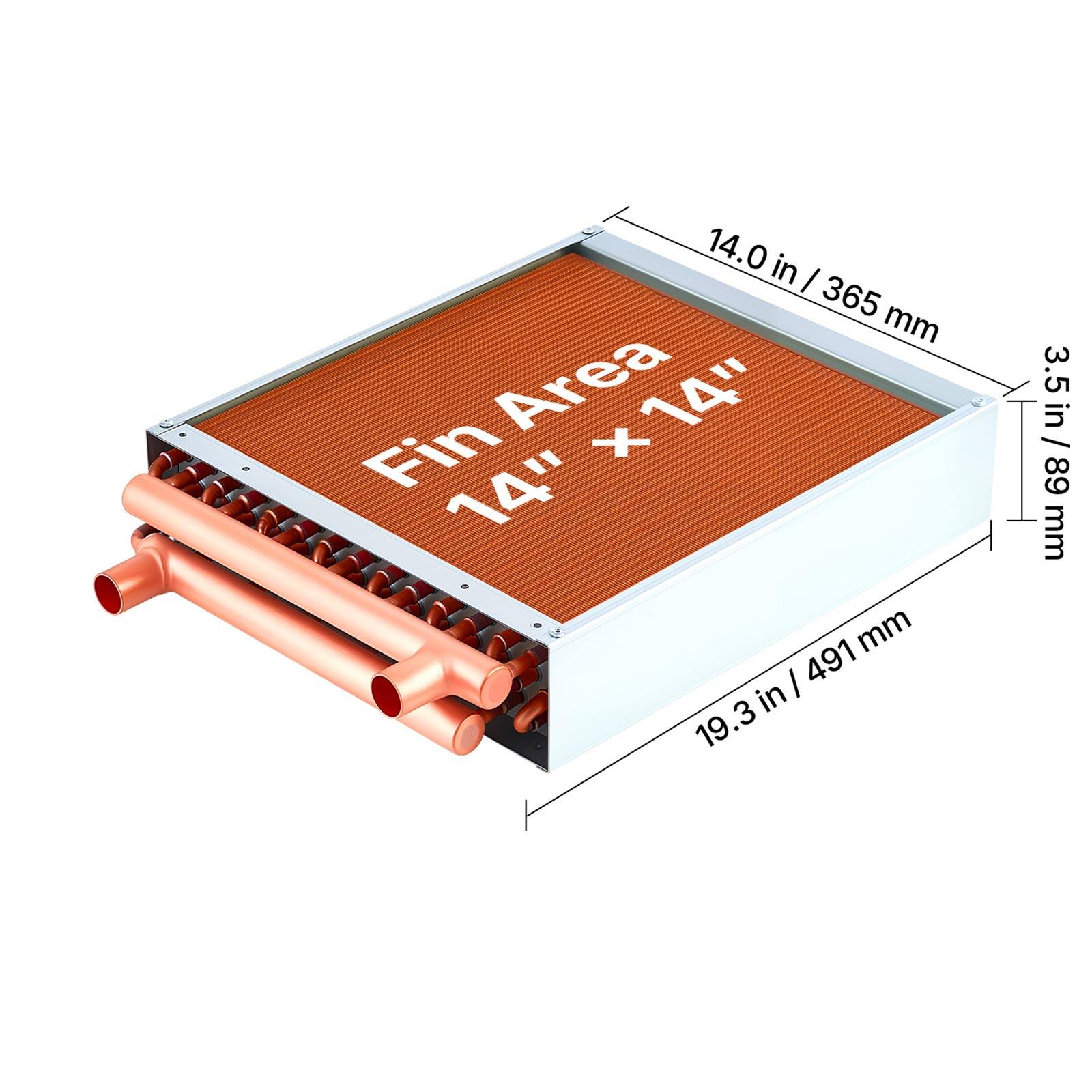

- Large Heat Transfer Area: This heat exchanger coil features a 14 x 14 in effective heat transfer area with 169 fins and 3 rows of 3/8 in seamless copper tubes, delivering outstanding performance across a wide range of applications
- Solid and Long-Lasting: Designed as a sturdy air to water heat exchanger, high-hardness epoxy-coated aluminum fins help reduce scale buildup, paired with pure copper tubing for efficient heat transfer, with an operating temperature range of -40–356 °F
- Sealed and Leakproof: Built to perform as a reliable HVAC heat exchanger, it uses high-pressure vacuum brazing technology and undergoes rigorous leak testing for extended service life and dependable operation
- Wide Application: This water to air heat exchanger is an excellent solution for residential use, outdoor wood furnaces, large farm shops, hydroponic grow rooms, commercial heating and cooling, forced-air heating, and hybrid systems
Whats Included
- 1 x Heat Exchanger;1 x User Manual
