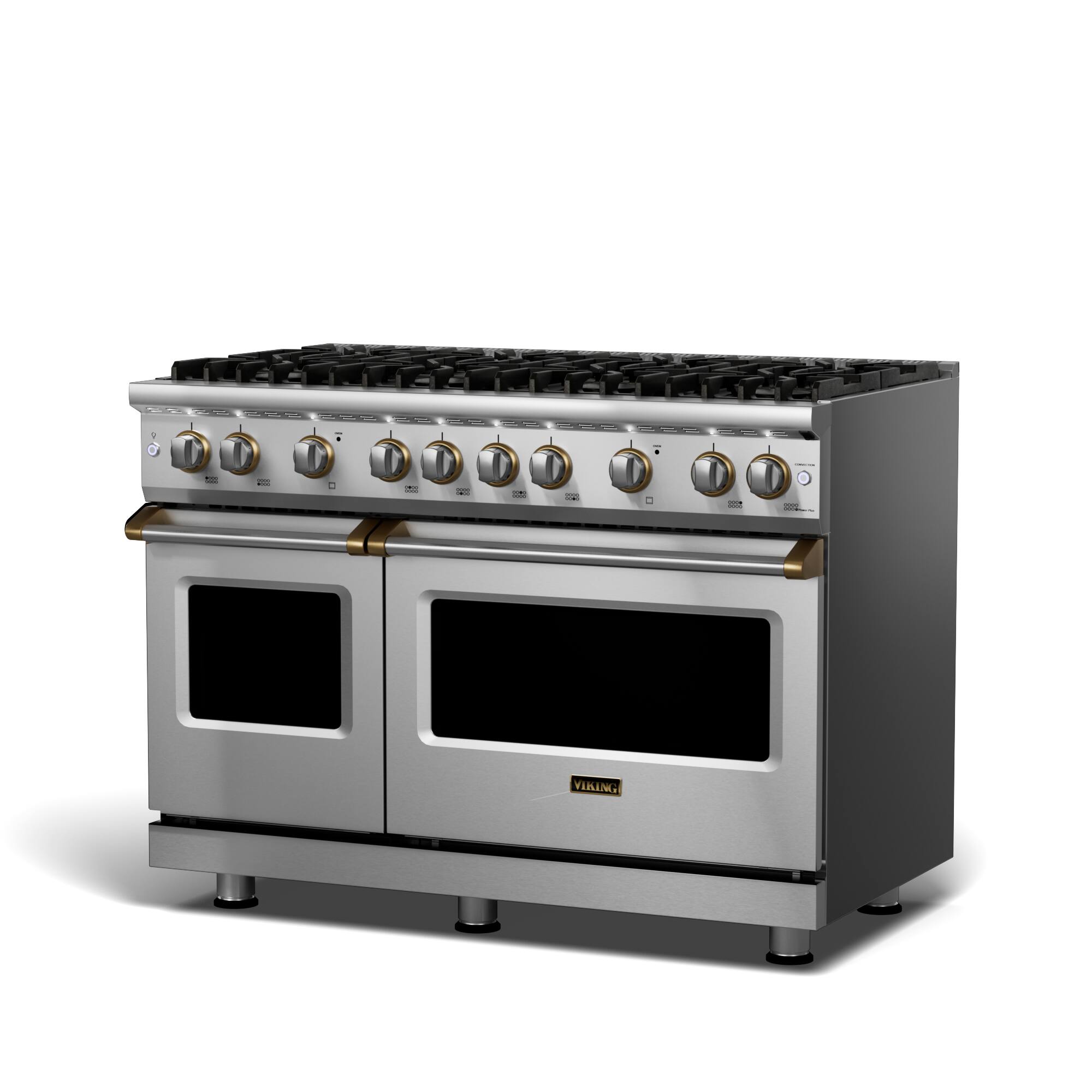

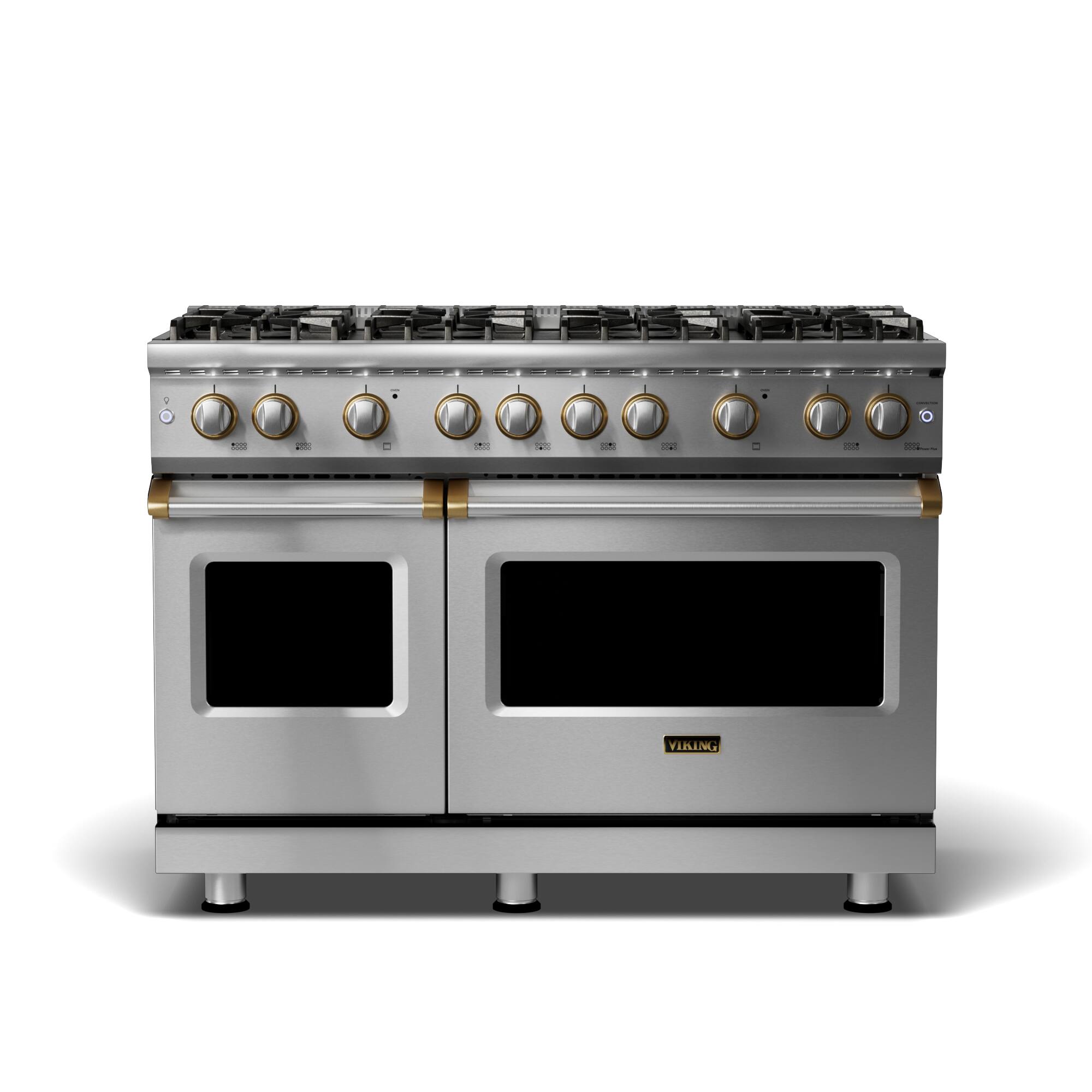

Viking - 5-Series Dual Fuel Self-Clean 48"W Sealed Burner Range - Stainless with Brushed Brass Accents
Viking - 5-Series Dual Fuel Self-Clean 48"W Sealed Burner Range - Stainless with Brushed Brass Accents
Related Item
Specifications
- Product Height36 7/8 inchesProduct Width47 7/8 inchesProduct Depth24 5/16 inchesDepth Without Handle25 3/4 inchesDepth With Handle28.6875 inchesRange TypeFreestanding
- Key Specs
- Product Height: 36 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 47 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 5/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 25 3/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28.6875 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Single/Double Oven: Double Oven
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 8
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Viking
- Model Number: VDR5488BSSBBLP
- Product Name: 5-Series Dual Fuel Self-Clean 48"W Sealed Burner Range
- Color: Stainless with Brushed Brass Accents
- Vendor Collection: Viking 5 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 36 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 47 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 5/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 25 3/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28.6875 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 575 pounds (The out of box weight of the item.)
- Capacity
- Oven 1 Capacity: 2.6 cubic feet
- Oven 2 Capacity: 4.7 cubic feet
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Gas Type: Liquid propane
- Range Power Source: Dual fuel
- Ignition Type: Electric
- Soft Close Door: true
- Control Type: Backlit knob
- Oven Control Location: Front panel
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Oven Cooking Modes: Bake, Convection, Broil, Dehydrate, Defrost
- Oven Settings: Bake, Convection Bake, Convection Roast, Broil, Convection Broil, Convection Dehydrate and Convection Defrost.
- Oven Features
- Convection Type: Single-fan (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Single/Double Oven: Double Oven
- Drawer Type: None (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Oven
- Oven 1
- Oven 1 Location: Left
- Oven 1 Window: true
- Oven 1 Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Racks: 2
- Number of Oven 1 Rack Positions: 6
- Oven 1 Interior Depth: 19 1/2 inches
- Oven 1 Interior Height: 16 1/2 inches
- Oven 1 Interior Width: 13 3/4 inches
- Oven 2
- Oven 2 Location: Right
- Oven 2 Window: true
- Oven 2 Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 2 Racks: 3
- Number of Oven 2 Rack Positions: 6
- Oven 2 Interior Depth: 19 1/2 inches
- Oven 2 Interior Height: 16 1/2 inches
- Oven 2 Interior Width: 26 inches
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Porcelain
- Number of Burners: 8
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Power Burner (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Griddle Included: false
- Burner Rating
- Burner 1 Rating: 16600 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 12500 british thermal units
- Burner 3 Rating: 12500 british thermal units
- Burner 4 Rating: 12500 british thermal units
- Burner 5 Rating: 12500 british thermal units
- Burner 6 Rating: 12500 british thermal units
- Burner 7 Rating: 12500 british thermal units
- Burner 8 Rating: 12500 british thermal units
- Total Maximum BTU Rating: 104100 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Electrical
- Amperage: 49 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- Chemical Disclosures: 0 (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: Two (2) years from the date of original retail purchase. 90 Day Cosmetic Warranty: Products are warranted to be free from costmetic defects in material or workmanship for a period of 90 days from original purchase.
- Warranty - Labor: Two (2) years from the date of original retail purchase. 90 Day Cosmetic Warranty: Products are warranted to be free from costmetic defects in material or workmanship for a period of 90 days from original purchase.
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 800284084600
Start baking faster with the rapid preheating of this Viking dual fuel range. The large-capacity convection oven has a four-pass concealed bake element for precise temperature control, and the separate Gourmet-Glo broiler lets you broil and bake at the same time. The VariSimmer setting on all eight sealed burners of this 48-inch Viking dual fuel range provide low, even heat.
- 8 sealed burners: Provide between 12,500 and 16,600 BTUs to meet various cooking requirements.
- Porcelain-enamel cooktop surface: Offers a durable, easy-to-clean design.
- Bi-directional Convection Fan: Maximum airflow throughout the oven for faster cooking times and more flavorful results.
- Self-cleaning oven: Conveniently eliminates the need to scrub by doing the cleaning for you.
- Dual Oven Design: Accomodates multiple cooking tasks and provides flexibilty when cooking a wide range of food at different temperatures.
Whats Included
- (1) Regular Rack
- (2) Tru-Glide Rack
- Island Trim
- Range
- 4 screw-in adjustable feet
Product Manuals
Q: What is the manufacturer's warranty on this range?
A: The manufacturer's warranty for this Viking range is 2 years for both parts and labor.
Q: What is the material of the grates?
A: The grates of the 5-Series Dual Fuel Self-Clean 48"W Sealed Burner Range by Viking are made of cast iron. This information is found in the product specifications section, under the "Cooktop Surface Material" attribute.
Q: What is the height of this range?
A: The height of the Viking 5-Series Dual Fuel Self-Clean 48"W Sealed Burner Range is 36 inches. This information can be found in the product specifications section under "Product Height."
Q: What is the total oven capacity of this Viking range?
A: The total oven capacity of the Viking range is 6.6 cubic feet. Oven1 has a capacity of 2 cubic feet, while Oven2 has a capacity of 4.6 cubic feet.
Q: What is the BTU rating of the least powerful burner?
A: The least powerful burner is the Burner 1 with a BTU rating of 15000 british thermal units. All other burners have a BTU rating of 15000 or 18500.
Q: What is the weight of this range?
A: The weight of the Viking 5-Series Dual Fuel Self-Clean 48"W Sealed Burner Range is 575 pounds.
Q: What type of gas does this range use?
A: The Viking 5-Series Dual Fuel Self-Clean 48"W Sealed Burner Range uses Liquid Propane gas. This information can be found in the "Gas Type" section of the product specifications.
Q: Does this range have a self-cleaning feature?
A: Yes, this Viking range has a self-cleaning feature. The product name itself includes "Self-Clean" and the product features section explicitly mentions "Self-cleaning oven: Conveniently eliminates the need to scrub by doing the cleaning for you."
