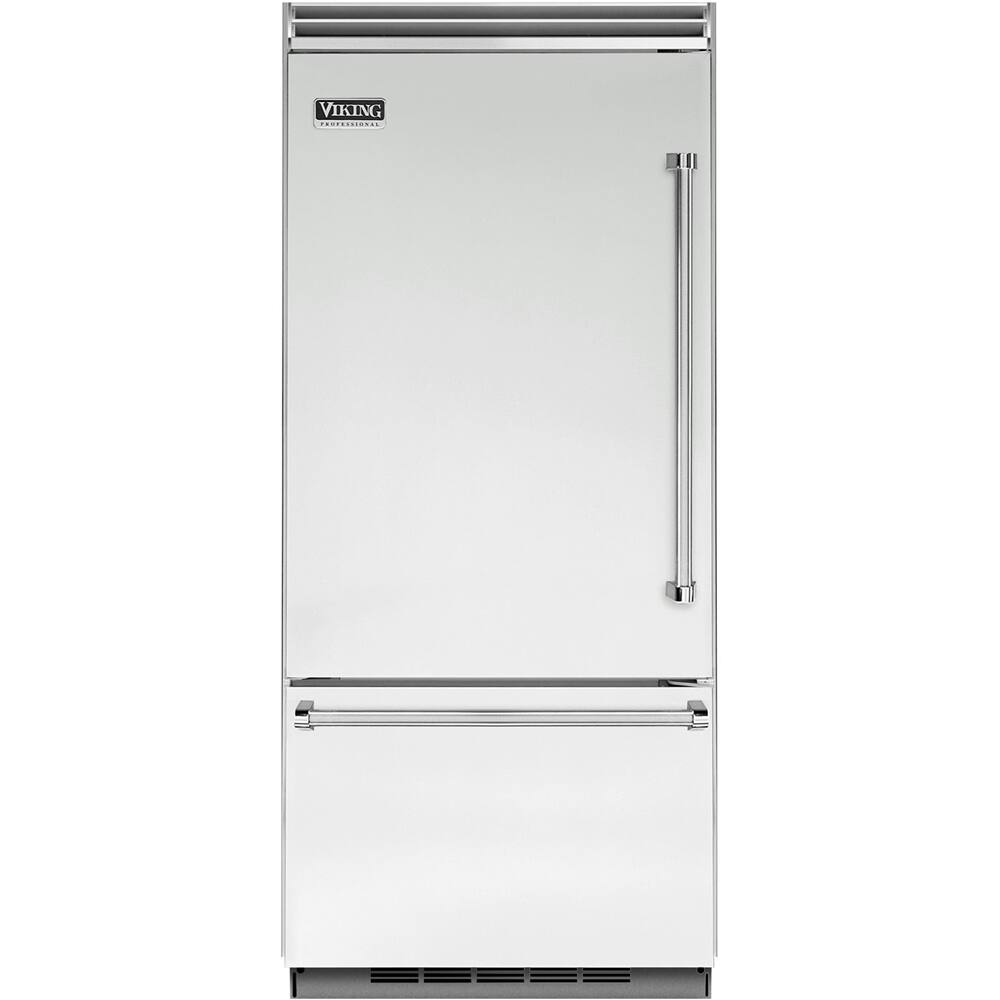

Viking - Professional 5 Series Quiet Cool 20.4 Cu. Ft. Bottom-Freezer Built-In Refrigerator - Frost White
- Key Specs
- Color Finish: White
- Product Height: 82 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 82 3/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 24 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Total Capacity: 20.4 cubic feet
- Refrigerator Style: Bottom Freezer
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Viking
- Model Number: VCBB5363ELFW
- Product Name: Professional 5 Series Quiet Cool 20.4 Cu. Ft. Bottom-Freezer Built-In Refrigerator
- Color: Frost White
- Color Finish: White
- Dimensions
- Product Height: 82 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 82 3/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: false (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 24 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth Without Door: 22 3/16 inches (Measurement from the back of the product to its front, not including the door.)
- Product Weight: 565 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 82 7/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 35 5/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 20.4 cubic feet
- Refrigerator Capacity: 15.3 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 5.1 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Performance
- Minimum Operating Temperature: 55 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 110 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Configuration: Built-in (The size, arrangement, and physical configuration of the product.)
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: Bottom Freezer
- Garage Ready: false (Garage Ready appliances have been tested by the manufacturer to operate within a wider range of external temperatures than the average home environment, such as a garage which can fall below freezing or heat above 100 degrees Fahrenheit. Please refer to the manufacturer's documentation for detailed external operating temperature requirements.)
- Door-Open Alarm: true
- Temperature Control Type: Electronic
- Defrost Type: Manual (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: false
- Hinge Setting: Fixed left
- Lighting Type: LED
- Ice & Water
- Ice Maker: Yes
- Ice Maker Location(s): Freezer
- Ice and Water Dispenser: None
- Storage
- Number of External Doors/Drawers: 2
- Number of Refrigerator Shelves: 3
- Refrigerator Shelf Style: Adjustable, Removable
- Dairy Center: true (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Deli Meat Drawer: true (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Spill-proof glass,Tempered Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Freezer Shelf Material: Other
- Filter Info
- Water Filtration: false
- Electrical Specification
- Amperage: 9.9 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 649 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 78 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 800284038207
Keep your perishables fresh with this Viking 5 Series bottom-mount refrigerator. The Plasmacluster ion air purifier enhances food preservation by eliminating airborne bacteria, odors and mold from the interior. This Viking 5 Series bottom-mount refrigerator has an energy-efficient, Variable Speed DC Overdrive compressor to quickly chill food, while seamless shelves ensure space maximization and easy access to items.
- Self-closing freezer door and adjustable door stops: Align perfectly with any stylish kitchen design.
- Electronic controls: Make operation simple.
- 2 baskets: Make it easy to organize frozen food.
- Organize contents with ease: Includes spillproof plus shelves, tempered glass shelves, 2 adjustable humidity zone with soft-close slides drawers, and more to provide ample space for storing items.
- Theatre ramp-up LED light: Bright lights to illuminate interior.
- Door alarm: Alerts you when the refrigerator door is accidentally left open to save energy.
- Automatic ice maker: Provides a steady supply of ice without the mess of having to refill ice trays.
- Self-closing freezer door and adjustable door stops: Align perfectly with any stylish kitchen design.
- Electronic controls: Make operation simple.
- 2 baskets: Make it easy to organize frozen food.
- Organize contents with ease: Includes spillproof plus shelves, tempered glass shelves, 2 adjustable humidity zone with soft-close slides drawers, and more to provide ample space for storing items.
- Theatre ramp-up LED light: Bright lights to illuminate interior.
- Door alarm: Alerts you when the refrigerator door is accidentally left open to save energy.
- Automatic ice maker: Provides a steady supply of ice without the mess of having to refill ice trays.
Whats Included
- Viking Professional 5 Series Quiet Cool 20.4 Cu. Ft. Bottom-Freezer Built-In Refrigerator
- Viking Professional 5 Series Quiet Cool 20.4 Cu. Ft. Bottom-Freezer Built-In Refrigerator
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: How does the Plasmacluster ion air purifier in this refrigerator help preserve food?
A: The Plasmacluster™ Ion Air Purifier in the Viking refrigerator employs ions to eliminate airborne bacteria and mold spores, effectively preserving food. It removes odors and enhances food preservation by maintaining a bacteria and mold- free environment within the refrigerator.
Q: What is the duration of the manufacturer's warranty coverage for both labor and parts?
A: The manufacturer provides a two-year full warranty for both labor and parts for the Professional 5 Series Quiet Cool 20.4 Cu. Ft. Bottom-Freezer Built-In Refrigerator. Additionally, there's a six-year full warranty on sealed refrigeration parts and a twelve-year limited warranty on sealed refrigeration parts.
Q: What are the exact dimensions of the cut-out required for installation?
A: The cut-out dimensions required for installation are as follows: - Cut-Out Width: 35 5/8 inches - Cut-Out Height: 82 7/8 inches - Cut-Out Depth: 24 inches
A: The Variable Speed DC Overdrive compressor saves energy by adjusting its speed to maintain the desired temperature, reducing energy consumption. It efficiently chills food by quickly reaching and maintaining the set temperature, ensuring optimal food preservation.
Q: Does this refrigerator have a counter-depth design, and if not, what is its actual depth?
A: This refrigerator does not have a counter-depth design. Its actual depth is 26 1/2 inches.
A: The estimated annual electricity consumption of this refrigerator is 649 kilowatt-hours. This information can be found in the product specifications section, under "Estimated Annual Electricity Use". I cannot provide a comparison to similar models as the context does not provide this information.
Q: What is the product depth, including the handle, and how does it impact the overall dimensions?
A: The product depth, including the handle, is 26 1/2 inches. This impacts the overall dimensions by adding 2 1/2 inches to the depth of the refrigerator without the handle. Therefore, the overall dimensions of the refrigerator with the handle are 36 inches in width, 82 3/4 inches in height, and 26 1/2 inches in depth.
Q: How does the depth of the refrigerator, including the handle, affect its overall dimensions?
A: The depth of the refrigerator, including the handle, adds 2.5 inches to the overall depth of the appliance. Therefore, the overall depth of the refrigerator with the handle is 26 1/2 inches.
