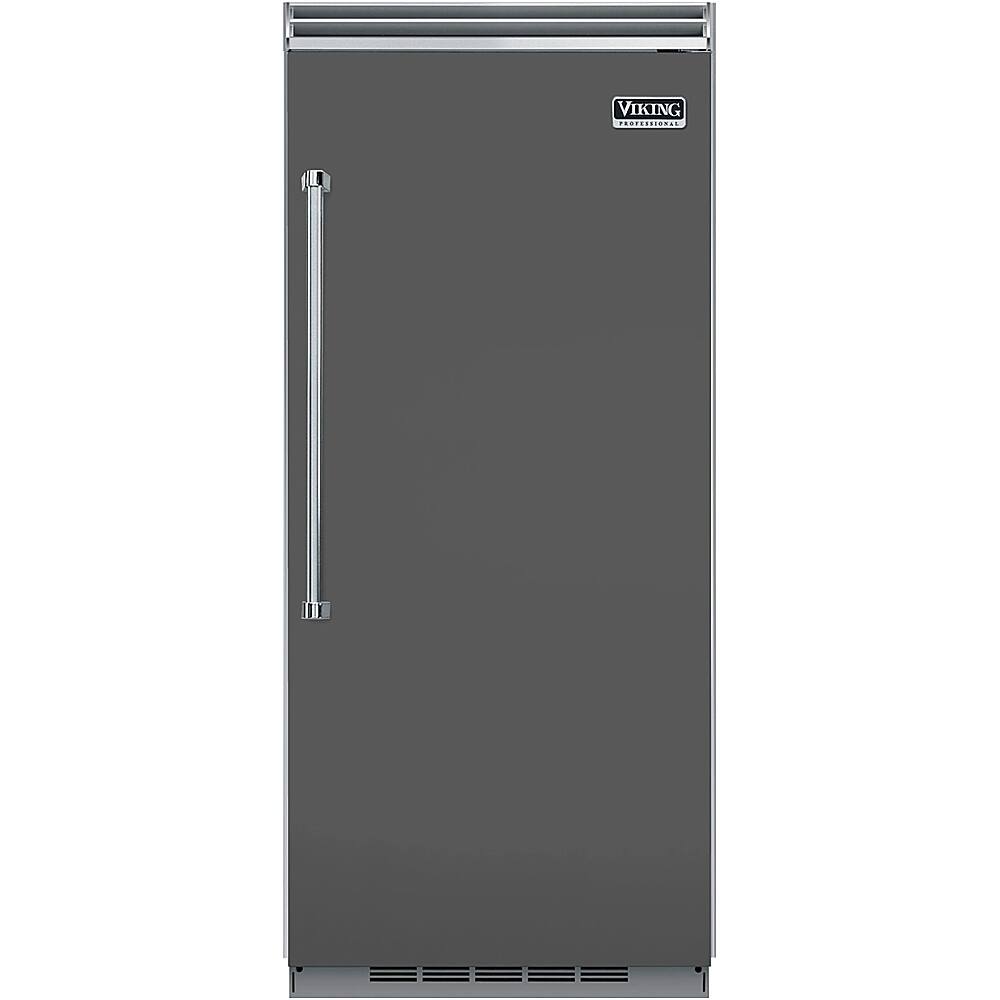

Viking - Professional 5 Series Quiet Cool 22.8 Cu. Ft. Built-In Refrigerator - Damascus Gray
- Key Specs
- Color Finish: Gray
- Product Height: 82 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 82 3/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 24 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Total Capacity: 22.8 cubic feet
- Refrigerator Style: No Freezer
- Lighting Type: LED
- Ice Maker: No
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Viking
- Model Number: VCRB5363RDG
- Product Name: Professional 5 Series Quiet Cool 22.8 Cu. Ft. Built-In Refrigerator
- Color: Damascus Gray
- Color Finish: Gray
- Dimensions
- Product Height: 82 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 82 3/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: false (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 24 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth Without Door: 22 3/16 inches (Measurement from the back of the product to its front, not including the door.)
- Product Weight: 590 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 82 7/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 35 5/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 22.8 cubic feet
- Refrigerator Capacity: 22.8 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Performance
- Minimum Operating Temperature: 55 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 110 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Configuration: Built-in (The size, arrangement, and physical configuration of the product.)
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: No Freezer
- Garage Ready: false (Garage Ready appliances have been tested by the manufacturer to operate within a wider range of external temperatures than the average home environment, such as a garage which can fall below freezing or heat above 100 degrees Fahrenheit. Please refer to the manufacturer's documentation for detailed external operating temperature requirements.)
- Temperature Control Type: Electronic
- Defrost Type: None (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: false
- Hinge Setting: Fixed right
- Lighting Type: LED
- Ice & Water
- Ice Maker: No
- Ice and Water Dispenser: None
- Storage
- Number of External Doors/Drawers: 1
- Number of Refrigerator Shelves: 4
- Refrigerator Shelf Style: Adjustable, Removable, Spill proof
- Dairy Center: true (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Deli Meat Drawer: true (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Spill-proof glass,Tempered Glass
- Filter Info
- Water Filtration: false
- Electrical Specification
- Amperage: 6.5 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 403 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 48 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 800284040484
Keep foods cool with this Viking 36-inch Professional 5 Series refrigerator. The Plasmacluster ion air purifier helps eliminate mold, odors and airborne bacteria by using advanced ion technology. Two humidity zone drawers maintain freshness for fruits and vegetables, while a Variable Speed DC Overdrive compressor chills food very fast, saving energy. This Viking 36-inch Professional 5 Series refrigerator has broad-tempered glass shelves for improved durability and easy maintenance.
- Adjustable door stops: Aligns perfectly with any stylish kitchen design.
- Electronic controls: Make operation simple.
- Organize contents with ease: Includes spillproof plus shelves, tempered glass shelves, 2 adjustable humidity zone with soft-close slides drawers, and more to provide ample space for storing items.
- Theatre ramp-up LED light: Bright lights to illuminate interior.
- Adjustable door stops: Aligns perfectly with any stylish kitchen design.
- Electronic controls: Make operation simple.
- Organize contents with ease: Includes spillproof plus shelves, tempered glass shelves, 2 adjustable humidity zone with soft-close slides drawers, and more to provide ample space for storing items.
- Theatre ramp-up LED light: Bright lights to illuminate interior.
Whats Included
- Viking Professional 5 Series Quiet Cool 22.8 Cu. Ft. Built-In Refrigerator
- Viking Professional 5 Series Quiet Cool 22.8 Cu. Ft. Built-In Refrigerator
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: What is the required cutout height for installing this refrigerator?
A: The required cutout height for installing the Viking Professional 5 Series Quiet Cool 22.8 Cu. Ft. Built-In Refrigerator is 82 7/8 inches.
Q: What type of lighting is used inside the refrigerator?
A: The interior of the refrigerator is illuminated with LED lights. These lights are positioned at the top and sidewalls to provide bright illumination of the refrigerator's contents.
Q: How many shelves are there in the refrigerator compartment?
A: The refrigerator compartment of the Viking Professional 5 Series Quiet Cool 22.8 Cu. Ft. Built-In Refrigerator has 4 shelves. This information is found in multiple places in the context, including the line "Number_of_Refrigerator_Shelves: 4".
Q: What is the maximum temperature this refrigerator can operate at?
A: The maximum operating temperature for this refrigerator is 110 degrees Fahrenheit. This information is found in the "Maximum Operating Temperature" specification.
Q: Is this a built-in or freestanding refrigerator?
A: This is a built-in refrigerator. The product name "Professional 5 Series Quiet Cool 22.8 Cu. Ft. Built-In Refrigerator" and the product specifications "Configuration: Built-in" both indicate that this is a built-in refrigerator.
Q: How much does this refrigerator weigh?
A: The weight of the Professional 5 Series Quiet Cool 22.8 Cu. Ft. Built-In Refrigerator by Viking is 590 pounds.
Q: Can the door hinge be adjusted on this refrigerator?
A: The door hinge setting of this refrigerator is fixed on the right side and cannot be adjusted.
Q: What is the approximate annual operating cost of this refrigerator?
A: The estimated annual operating cost of the Viking Professional 5 Series Quiet Cool 22.8 Cu. Ft. Built-In Refrigerator is approximately 48 United States dollars. This information is provided in the context under the "Estimated Annual Operating Cost" field.
