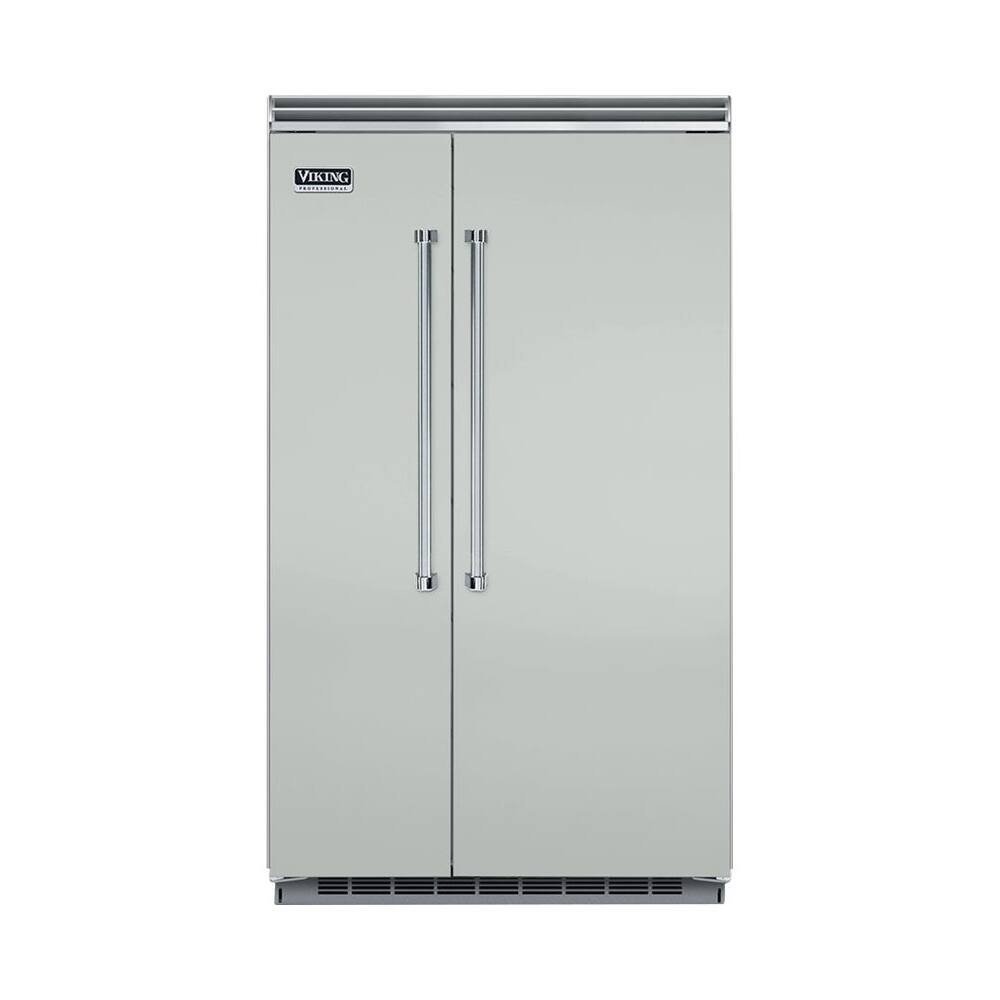

Viking - Professional 5 Series Quiet Cool 29.1 Cu. Ft. Side-by-Side Built-In Refrigerator - Arctic Gray
Model: VCSB5483AG
SKU: 6386866
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Gray
- Product Height: 82 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 48 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 82 3/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 26 1/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 29 3/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 29.1 cubic feet
- Refrigerator Style: Side-by-Side
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Viking
- Model Number: VCSB5483AG
- Product Name: Professional 5 Series Quiet Cool 29.1 Cu. Ft. Side-by-Side Built-In Refrigerator
- Color: Arctic Gray
- Color Finish: Gray
- Dimensions
- Product Height: 82 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 48 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 29 3/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 82 3/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: false (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 26 1/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 29 3/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 580 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 82 7/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 47 5/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 29.1 cubic feet
- Refrigerator Capacity: 19.5 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 9.6 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Performance
- Minimum Operating Temperature: 55 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 110 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Configuration: Built-in (The size, arrangement, and physical configuration of the product.)
- Refrigerator Style: Side-by-Side
- Garage Ready: false (Garage Ready appliances have been tested by the manufacturer to operate within a wider range of external temperatures than the average home environment, such as a garage which can fall below freezing or heat above 100 degrees Fahrenheit. Please refer to the manufacturer's documentation for detailed external operating temperature requirements.)
- Door-Open Alarm: true
- Temperature Control Type: Electronic
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Hinge Setting: Fixed right, Fixed left
- Lighting Type: LED
- Ice & Water
- Ice Maker: Yes
- Ice Maker Location(s): Freezer
- Ice and Water Dispenser: None
- Storage
- Number of External Doors/Drawers: 2
- Number of Refrigerator Shelves: 4
- Refrigerator Shelf Style: Adjustable, Removable, Spill proof
- Dairy Center: true (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Deli Meat Drawer: true (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Spill-proof glass,Tempered Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Freezer Shelf Material: Wire
- Freezer Interior Light: true
- Filter Info
- Water Filtration: false
- Electrical Specification
- Amperage: 9.9 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 715 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 86 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 800284039976
Keep groceries cold and fresh with this Viking 5 Series side-by-side refrigerator and freezer. The large refrigerator has two Humidity Zone drawers that help keep fruits and vegetables fresh. This Viking 5 Series side-by-side refrigerator and freezer has a Variable Speed DC Overdrive compressor that chills food quietly and efficiently.
- Electronic controls: Make operation simple.
- Generous storage: Includes 3 adjustable wire shelves, 2 slide-out baskets and 3 adjustable aluminum door bins to create plenty of space to organize frozen food.
- Organize contents with ease: Includes spillproof plus shelves, tempered glass shelves, 2 adjustable humidity zone with soft-close slides drawers, and more to provide ample space for storing items.
- Theatre ramp-up LED light: Bright lights to illuminate interior.
- Door alarm: Alerts you when the refrigerator door is accidentally left open to save energy.
- Automatic ice maker: Provides a steady supply of ice without the mess of having to refill ice trays.
- Electronic controls: Make operation simple.
- Generous storage: Includes 3 adjustable wire shelves, 2 slide-out baskets and 3 adjustable aluminum door bins to create plenty of space to organize frozen food.
- Organize contents with ease: Includes spillproof plus shelves, tempered glass shelves, 2 adjustable humidity zone with soft-close slides drawers, and more to provide ample space for storing items.
- Theatre ramp-up LED light: Bright lights to illuminate interior.
- Door alarm: Alerts you when the refrigerator door is accidentally left open to save energy.
- Automatic ice maker: Provides a steady supply of ice without the mess of having to refill ice trays.
Whats Included
- Viking Professional 5 Series Quiet Cool 29.1 Cu. Ft. Side-by-Side Built-In Refrigerator
- Viking Professional 5 Series Quiet Cool 29.1 Cu. Ft. Side-by-Side Built-In Refrigerator
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: How deep of a space do I need to install this refrigerator?
A: The required cutout depth for installing the refrigerator is 24 inches. The refrigerator's actual depth is 29 3/16 inches, but additional space is needed for proper ventilation and connections.
Q: How many adjustable shelves are there in the refrigerator section?
A: The product has 4 adjustable shelves in the refrigerator section. The context mentions "Number of Refrigerator Shelves: 4".
Q: Does this refrigerator have an alarm to let me know if the door is left open?
A: Yes, this refrigerator has a door open alarm that sounds and the "DOOR OPEN" light blinks if either door is left open for more than three minutes. To deactivate the door open alarm, press the "ALARM OFF" pad or close the door that is open.
Q: Is there an ice maker in this refrigerator? If yes, where is it located?
A: Yes, there is an ice maker in this refrigerator. It is located in the freezer compartment.
Q: What is the total usable storage capacity of this Viking refrigerator?
A: The total usable storage capacity of the Viking Professional 5 Series Quiet Cool 29.1 Cu. Ft. Side-by-Side Built-In Refrigerator is 29.1 cubic feet. This includes 19.5 cubic feet of refrigerator space and 9.6 cubic feet of freezer space.
Q: Can the door bins be adjusted or are they fixed?
A: Yes, the door bins can be adjusted. To remove a bin, simply grasp it, lift it up, and pull it out. To replace the bin, place it over the glides in the refrigerator door and push the door bin down to lock it into place.
Q: How many shelves are in the freezer?
A: The freezer has a total of 4 shelves. This includes 1 non-adjustable shelf and 3 adjustable shelves. The context mentions "Number of Freezer Shelves: 4" and further specifies "Non-Adjusting Freezer Shelf (1)13. Adjustable Freezer Shelves (3)14.".
Q: What kind of shelves are in the freezer compartment?
A: The freezer compartment of this Viking refrigerator features three adjustable wire shelves, one non-adjusting wire shelf, and three adjustable aluminum door bins for organizing frozen food.
