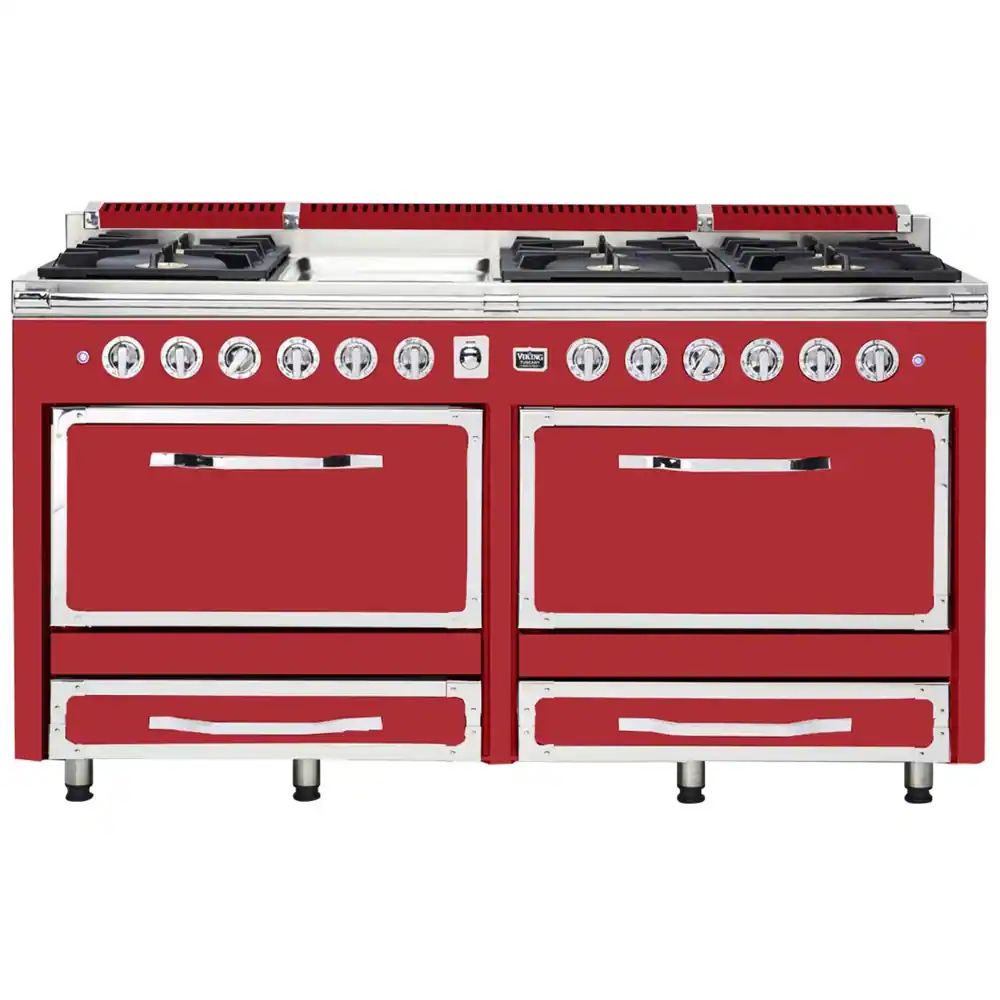

Viking - Tuscany 7.6 Cu. Ft. Freestanding Dual Fuel Convection Range - San Marzano Red
- Key Specs
- Color Finish: Red
- Product Height: 39 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 66 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 27 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 30 3/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Single/Double Oven: Double Oven
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 6
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Viking
- Model Number: TVDR6616GSM
- Product Name: Tuscany 7.6 Cu. Ft. Freestanding Dual Fuel Convection Range
- Color: San Marzano Red
- Color Finish: Red
- Dimensions
- Product Height: 39 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 66 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 66 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 27 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 30 3/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 745 pounds (The out of box weight of the item.)
- Capacity
- Oven 1 Capacity: 3.8 cubic feet
- Oven 2 Capacity: 3.8 cubic feet
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Gas Type: Natural gas
- Range Power Source: Dual fuel
- Ignition Type: Electric
- Soft Close Door: false
- Control Type: Knob
- Oven Control Location: Front panel
- Oven Light: true
- Propane (LP) Convertible: true
- Propane Kit Model Compatibility: Convert to LP with Kit LPKTVDR1., LP conversion by experienced servicer.
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Oven Cooking Modes: Convection, Bake, Broil, Proof, Roast
- Oven Settings: True Convection, Convection Bake, Convection Broil, Bake, Broil, Proof and Defrost modes.
- Oven Features
- Convection Type: Multi-fan (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Single/Double Oven: Double Oven
- Drawer Type: Storage (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Oven
- Oven 1 Specification
- Oven 1 Location: Left
- Oven 1 Window: false
- Oven 1 Cleaning Method: Manual cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Racks: 2
- Number of Oven 1 Rack Positions: 6
- Oven 2 Specification
- Oven 2 Location: Right
- Oven 2 Cleaning Method: Manual cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 2 Racks: 2
- Number of Oven 2 Rack Positions: 6
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Stainless steel
- Number of Burners: 6
- Sealed Burners: false (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Electric griddle (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Griddle Included: true
- Griddle Type: Integrated (A griddle surface may either replace the burner grates on the cooktop or be able to be placed on top. Either type can typically be attached and removed as needed. Some griddles also feature a ribbed, grill-like side that can be reversed for even more cooking options.)
- Burner Rating
- Burner 1 Rating: 20500 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 20500 british thermal units
- Burner 3 Rating: 20500 british thermal units
- Burner 4 Rating: 8500 british thermal units
- Burner 5 Rating: 13500 british thermal units
- Burner 6 Rating: 13500 british thermal units
- Total Maximum BTU Rating: 76500 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Electrical Specification
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Included
- Propane Conversion Kit Included: false
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- Chemical Disclosures: NA (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 90 days cosmetic
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 800284044352
The originator of professional performance for your home brings you a taste of Italy you can enjoy every day. This sophisticated line of Italian Provincial ranges are sized and featured to meet the needs of American architecture and lifestyles. Incorporating high-quality materials and unsurpassed reliability Viking is known for.
- 6 cooktop burners: Provide between 8,500 and 20,500 BTUs to meet various cooking requirements.
- Comes with integrated electric griddle: Machined steel griddle has a chrome finish and offers excellent cooking performance with easy clean-up.
- Circulates air throughout the oven: Convection technology for fast cook times and flavorful results.
- Accommodates multiple courses simultaneously: 3.8 cu. ft. oven lets you cook for a large group in less time.
- Store cookie sheets, cooling racks and more: Storage drawer offers discreet storage for your bakeware.
- Cook pancakes, eggs, grilled sandwiches and other foods: The stovetop griddle lets you prepare a variety of foods and can be removed for easy cleanup.
- Interior oven light: Lets you keep an eye on food being cooked without opening the oven door and letting heat escape.
- San marzano red color: Match your existing décor with this color.
- Safety features: Include automatic flame reignition.
Whats Included
- Viking Tuscany TVDR6616GSM
- TruGlide rack
Product Manuals
Disclaimers
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
Q: What is the product weight of the range?
A: The product weight of the Tuscany 7.6 Cu. Ft. Freestanding Dual Fuel Convection Range is 745 pounds. This information is found in the product specifications section, under the "Product Weight" attribute.
Q: What is the total capacity of the oven?
A: The total capacity of the oven is 7.6 cubic feet. This oven has two compartments, each with a capacity of 3.8 cubic feet.
Q: What are the dimensions of the range (height, width, depth)?
A: The dimensions of the Tuscany 7.6 Cu. Ft. Freestanding Dual Fuel Convection Range (model: TVDR6616GSM) are as follows: - Height: 39 3/4 inches - Width: 66 inches - Depth with handle: 30 3/8 inches
Q: What type of griddle is included?
A: The griddle included with the Viking Tuscany 7.6 Cu. Ft. Freestanding Dual Fuel Convection Range is made of machined steel and has a chrome finish. It is designed for excellent cooking performance and easy cleanup. The griddle has an electronic thermostat to maintain an even temperature and a power "ON" indicator light.
Q: What accessories are included with the range?
A: The accessories included with the Viking Tuscany 7.6 Cu. Ft. Freestanding Dual Fuel Convection Range are: three oven lights, six easy glide oven racks, heavy-duty cast iron burner grates, and a storage drawer for bakeware. However, it's important to note that the electric cord is sold separately and is not included with the range.
Q: What is the material of the cooktop surface?
A: The cooktop surface of the Viking Tuscany 7.6 Cu. Ft. Freestanding Dual Fuel Convection Range is made of glass. The context mentions "Cleaning of glass tops is different from cleaning a standard porcelain finish" and provides instructions for cleaning the glass cooktop.
Q: Can this range be converted to use propane instead of natural gas?
A: Yes, this range can be converted to use propane instead of natural gas. The Propane Kit Model Compatibility section of the product specifications states that it can be converted to LP with Kit LPKTVDR1.
Q: Does the range have a convection oven?
A: Yes, the range has a convection oven. The product specifications indicate that "Oven2 Convection: true". Additionally, the product features mention "Circulates air throughout the oven: Convection technology for fast cook times and flavorful results".
