weBoost - Home Studio Cell Phone Signal Booster Kit for Single Room Coverage, Boosts 4G LTE & 5G for all U.S. Networks - Black
- Key Specs
- Brand Compatibility: Universal
- Model Compatibility: Universal
- Maximum Coverage Area: 1500 square feet
- Networks Supported: 3G, 4G, LTE, 5G, EDGE, GSM
- General
- Brand: weBoost
- Model Number: 470166
- Product Name: Home Studio Cell Phone Signal Booster Kit for Single Room Coverage, Boosts 4G LTE & 5G for all U.S. Networks
- Color: Black
- Compatibility
- Brand Compatibility: Universal
- Model Compatibility: Universal
- Carrier Compatibility: Universal
- Signal
- Maximum Coverage Area: 1500 square feet
- Impedance: 75 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Networks Supported: 3G, 4G, LTE, 5G, EDGE, GSM
- Adjustable Gain: true (Adjustment of a signal booster's gain allows for more flexibility and control of the incoming signal. This is helpful for adjusting coverage area and reducing the risk of overpowering the booster.)
- Maximum Gain: 60 decibels (Measurement of the signal booster's maximum amplification (gain). The higher the number, the more the signal is amplified. For example, gain of 10 dB equals 10x the original signal strength, 20 dB equals 100x, etc.)
- FCC Certified: true (Indicates whether the product has been certified by the Federal Communications Commission (FCC), an independent government agency responsible for regulating all interstate communications. The FCC mark denotes that electromagnetic interference from the product is within approved limits set by the agency.)
- Antenna Included: true
- Antenna_Port(s): 1 x SMA
- Features
- Product Use: Home
- Power Source: Plug-in
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- LED Indicator(s): true
- Dimensions
- Product Height: 7.38 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 13 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8.63 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 5.97 ounces (The out of box weight of the item.)
- Cord Length: 30 feet
- Warranty
- Warranty - Parts: 2 Year Manufacturer's Warranty
- Warranty - Labor: 2 Year Manufacturer's Warranty
- Other
- UPC: 810005962452
Boost cell signal where you need it most — at home. The weBoost Home Studio Cell Signal Booster is an excellent value for instantly improving talk, text, and data at home. The multi-user cell signal booster is designed to increase cellular connectivity and signal strength in one large room, like a home office, living room, or studio apartment (up to 1,500 sq. ft. depending on outside signal strength). The integrated booster antenna works on all U.S. carrier networks and is compatible with all phones and cellular devices. You’ll enjoy fewer dropped calls, uninterrupted texts, better voice quality, improved hotspot capability, faster internet speeds, better streaming, and more. The booster meets all FCC guidelines and won’t interrupt or harm any cell carriers' signals to and from the cell tower. The booster kit is backed by our 2-year manufacturer’s warranty and a 30-day money-back guarantee with U.S.-based customer service. Stay connected, where it matters most, with the weBoost Home Studio Cellular Signal Booster Kit.
- One Room Coverage: With up to 60dB max gain, Home Studio improves cell coverage in one large room, like a home office, studio apartment, or living room. (Inside coverage is determined by signal strength outside, the stronger the signal the larger the coverage area)
- Multi-User: Instantly improve talk, text, and data for multiple users and cellular devices.
- One-time cost: Once you purchase a weBoost Home Studio, that’s it. No subscription costs or hidden fees.
- Works on every network and with all U.S. carriers: Works with every network and all U.S. carriers; including Verizon, AT&T, T-Mobile, Straight Talk, and U. S. Cellular.

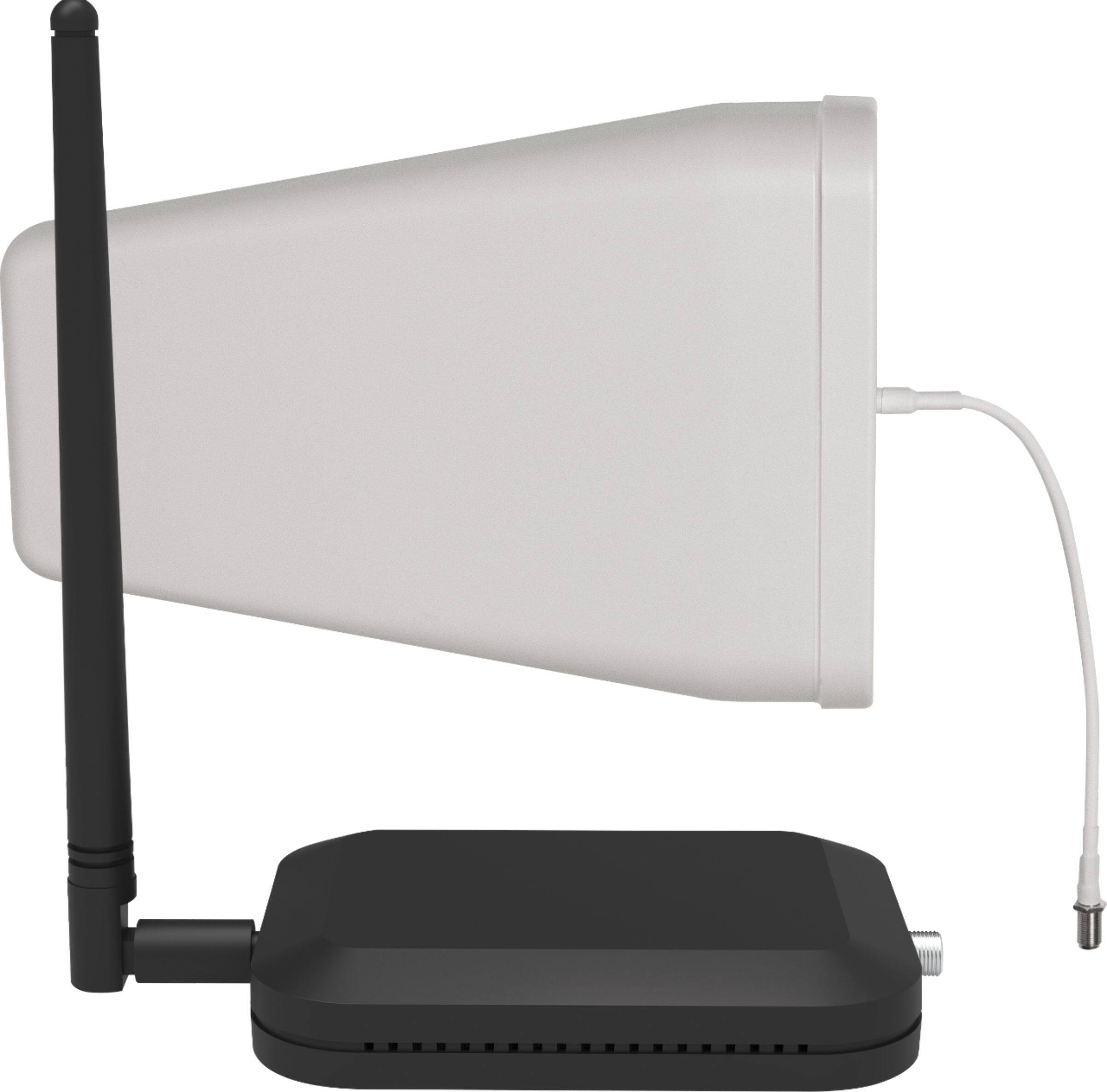

- How it works: The outside directional antenna picks up cell signal from the closest tower. Then, the booster amplifies that signal. The attached antenna broadcasts the amplified signal to nearby devices.
- Ability to target cell towers from any location: With 23 dBm in uplink-output power and 14 dBm in downlink-output power, the Home Studio booster easily reaches cell phone towers from far distances.
- Ideal for budget-conscious consumers: For anyone looking for a cost-effective way to improve cell signal in a specific area of their home on all carrier networks.
- 5G Compatible: weBoost products will work for the next decade and beyond.
- FCC Approved: Meets all FCC guidelines and won’t interrupt or harm any cell carriers' signals to and from the cell tower.
- Satisfaction Guaranteed: The Home Studio is backed by a 2-year manufacturer’s warranty and a 30-day money-back guarantee by weBoost.
- U.S. Company: All weBoost products are designed and assembled in the U.S. and come with friendly, U.S.-based customer support.
- Designed by the leading cell signal booster technology company: weBoost, a brand of Wilson Electronics, is the country’s leading manufacturer of cellular signal booster technology.
- Will this work for me?: A booster doesn’t create cell signal. It picks up the outside cell signal (no matter how weak) and amplifies it inside your home for better talk, text, and data. The effectiveness of any booster depends on the strength of the outside cell signal.
- What kind of coverage can I expect?: If the cell signal outside your home is strong, you can cover a large room (up to 1,500 sq. ft.). If the signal is good, a medium size room. If the signal is weak, a small room.
- Frequencies Covered: Band 12/17 700 MHz, Band 13 700 MHz, Band 5 850 MHz, Band 4 1700/2100 MHz, Band 2 1900 MHz.
- Download the weBoost App: This app is an interactive guide to help with the installation of a do-it-yourself cell signal booster kit at home, in your vehicle, or at work. Includes step-by-step videos, antenna positioning guide, and before and after cell signal readings.
- One Room Coverage: With up to 60dB max gain, Home Studio improves cell coverage in one large room, like a home office, studio apartment, or living room. (Inside coverage is determined by signal strength outside, the stronger the signal the larger the coverage area)
- Multi-User: Instantly improve talk, text, and data for multiple users and cellular devices.
- One-time cost: Once you purchase a weBoost Home Studio, that’s it. No subscription costs or hidden fees.
- Works on every network and with all U.S. carriers: Works with every network and all U.S. carriers; including Verizon, AT&T, T-Mobile, Straight Talk, and U. S. Cellular.
- How it works: The outside directional antenna picks up cell signal from the closest tower. Then, the booster amplifies that signal. The attached antenna broadcasts the amplified signal to nearby devices.
- Ability to target cell towers from any location: With 23 dBm in uplink-output power and 14 dBm in downlink-output power, the Home Studio booster easily reaches cell phone towers from far distances.
- Ideal for budget-conscious consumers: For anyone looking for a cost-effective way to improve cell signal in a specific area of their home on all carrier networks.
- 5G Compatible: weBoost products will work for the next decade and beyond.
- FCC Approved: Meets all FCC guidelines and won’t interrupt or harm any cell carriers' signals to and from the cell tower.
- Satisfaction Guaranteed: The Home Studio is backed by a 2-year manufacturer’s warranty and a 30-day money-back guarantee by weBoost.
- U.S. Company: All weBoost products are designed and assembled in the U.S. and come with friendly, U.S.-based customer support.
- Designed by the leading cell signal booster technology company: weBoost, a brand of Wilson Electronics, is the country’s leading manufacturer of cellular signal booster technology.
- Will this work for me?: A booster doesn’t create cell signal. It picks up the outside cell signal (no matter how weak) and amplifies it inside your home for better talk, text, and data. The effectiveness of any booster depends on the strength of the outside cell signal.
- What kind of coverage can I expect?: If the cell signal outside your home is strong, you can cover a large room (up to 1,500 sq. ft.). If the signal is good, a medium size room. If the signal is weak, a small room.
- Frequencies Covered: Band 12/17 700 MHz, Band 13 700 MHz, Band 5 850 MHz, Band 4 1700/2100 MHz, Band 2 1900 MHz.
- Download the weBoost App: This app is an interactive guide to help with the installation of a do-it-yourself cell signal booster kit at home, in your vehicle, or at work. Includes step-by-step videos, antenna positioning guide, and before and after cell signal readings.

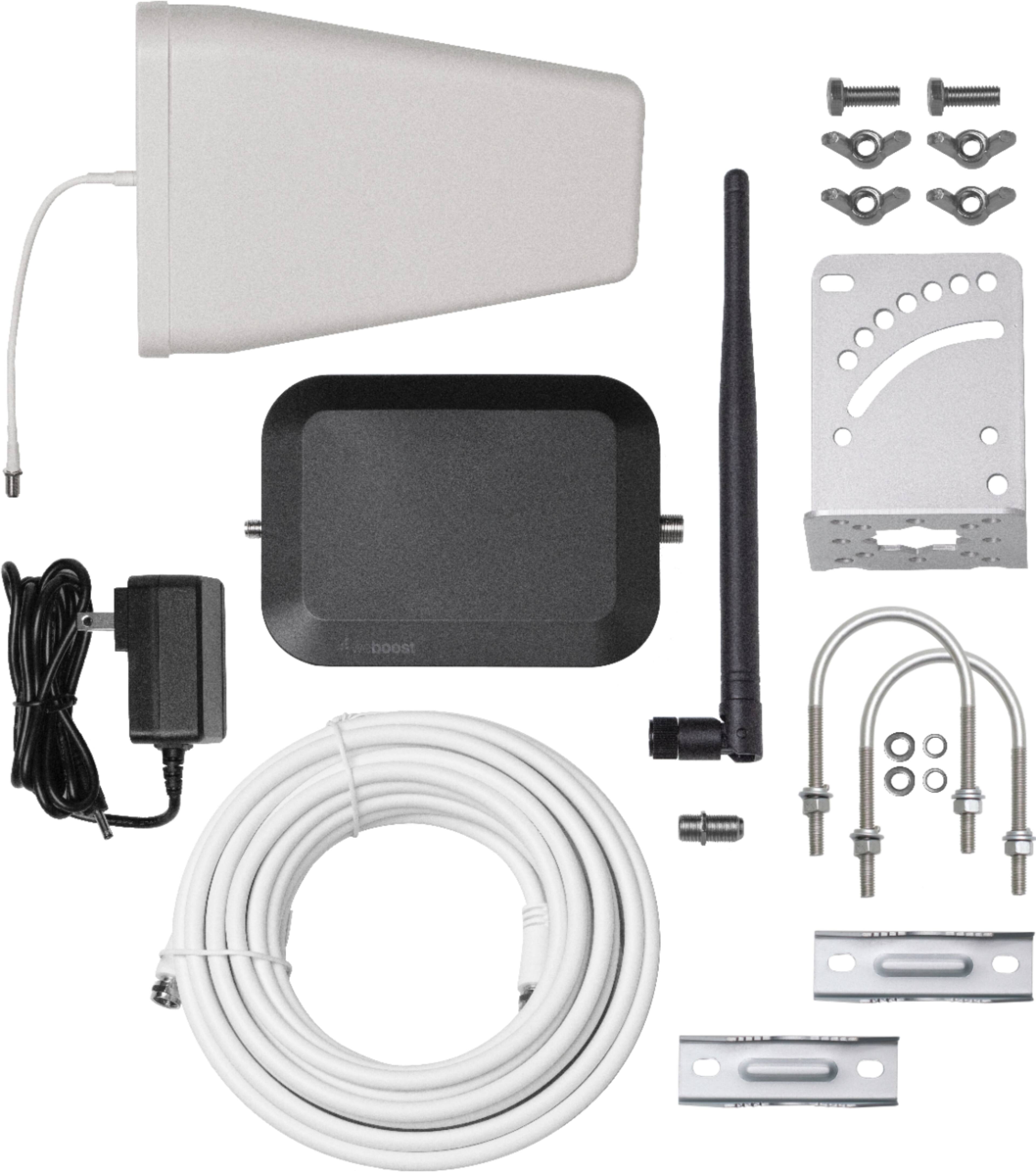

Whats Included

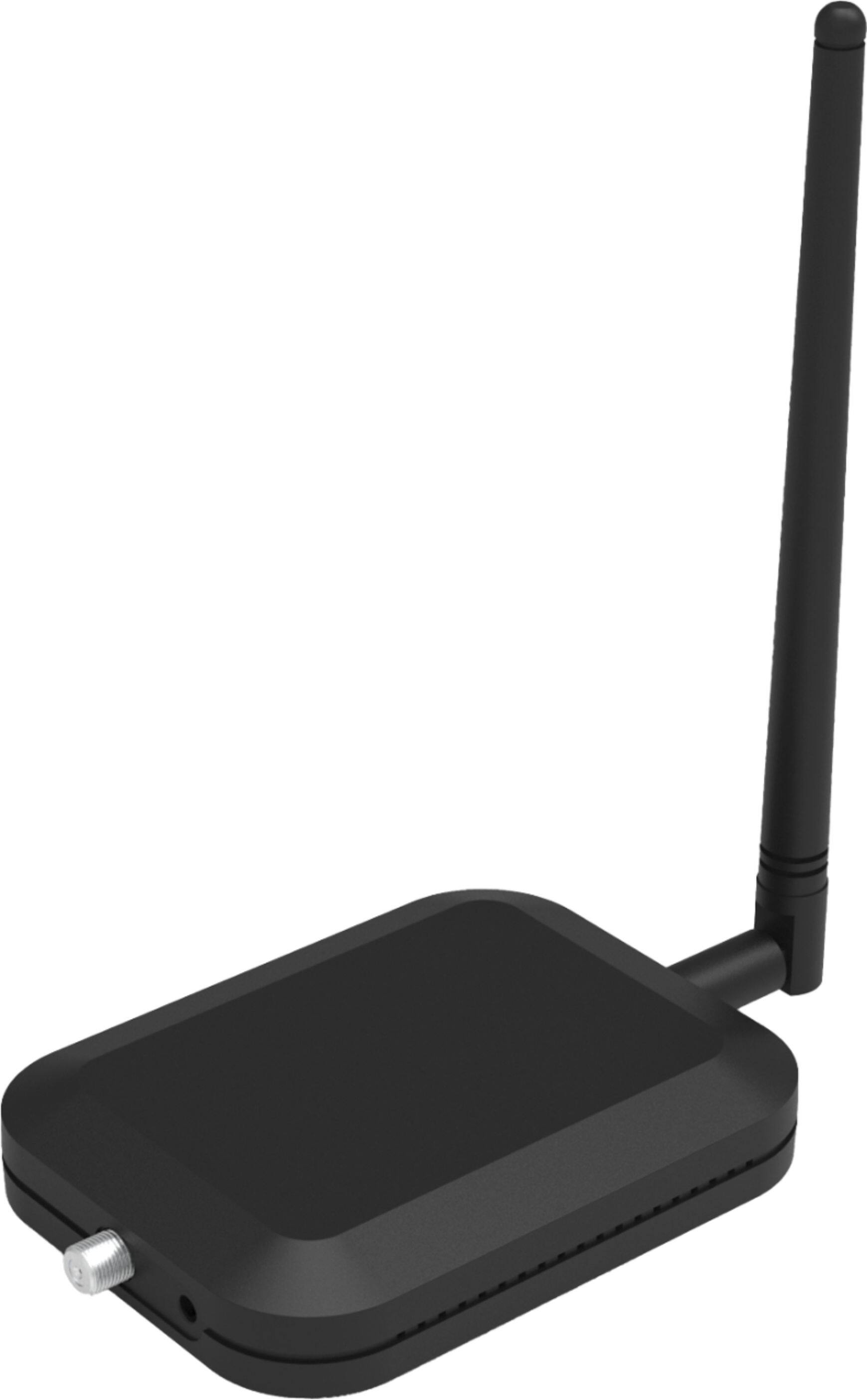

- weBoost Home Studio Booster - 470166
- Outside Directional Antenna - 314475
- Booster Antenna w/ SMA Male Connector - 311159
- Power Supply - 850027
- (2) 30’ White RG6 Coax Cables - 950630
- Mounting Hardware
- weBoost Home Studio Booster - 470166
- Outside Directional Antenna - 314475
- Booster Antenna w/ SMA Male Connector - 311159
- Power Supply - 850027
- (2) 30’ White RG6 Coax Cables - 950630
- Mounting Hardware
Q: What is the maximum gain of the Home Studio booster?
A: This booster has a maximum gain of up to 60 dB.
Q: Is there a warranty on this product?
A: Yes, the Home Studio booster is backed by a 2-year manufacturer's warranty.
Q: What is the maximum coverage area of this booster?
A: It can cover up to 1,500 square feet, but this depends on the outside signal strength.
Q: Does the booster work with all US carriers?
A: Yes, it works with all US carriers, including Verizon, AT&T, T-Mobile, Straight Talk, and U.S. Cellular.
Q: Are there any recurring costs after purchasing the booster?
A: No, there are no subscription costs or hidden fees after the initial purchase.
Q: How does this cell signal booster work?
A: The outside antenna picks up the signal from the tower, the booster amplifies it, and then the attached antenna broadcasts the stronger signal to your devices.
Q: What is the desired height to mount the outside antenna?
A: 30 feet is the maximum hight any single booster antenna can be mounted. It comes with two 35 foot coax cables if you hook one to the antenna you should have at lease 5 foot left at ground level.
Q: Will this help me get cell coverage inside a metal/steel barn?
A: Hi there! Yes, this will help to get cell coverage inside a metal/steel barn. All of our systems come with an external antenna, so as long as you have signal outside, where the external antenna is, then that will bring signal into the booster, inside the building/structure. This booster, the Home Studio, is one of our small home ones, good for a room inside a home, but our Home MultiRoom and Home Complete are for larger areas in a home.
