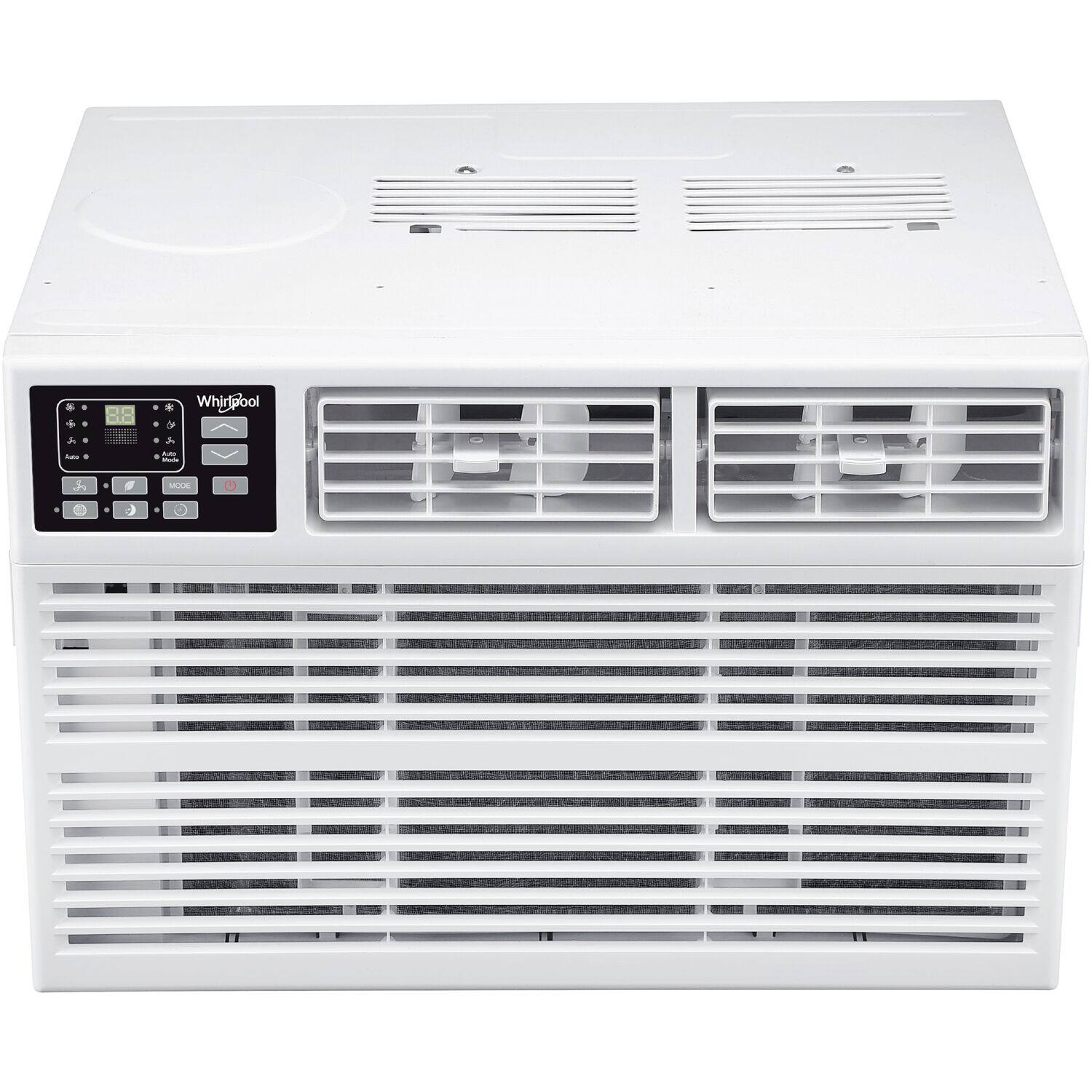

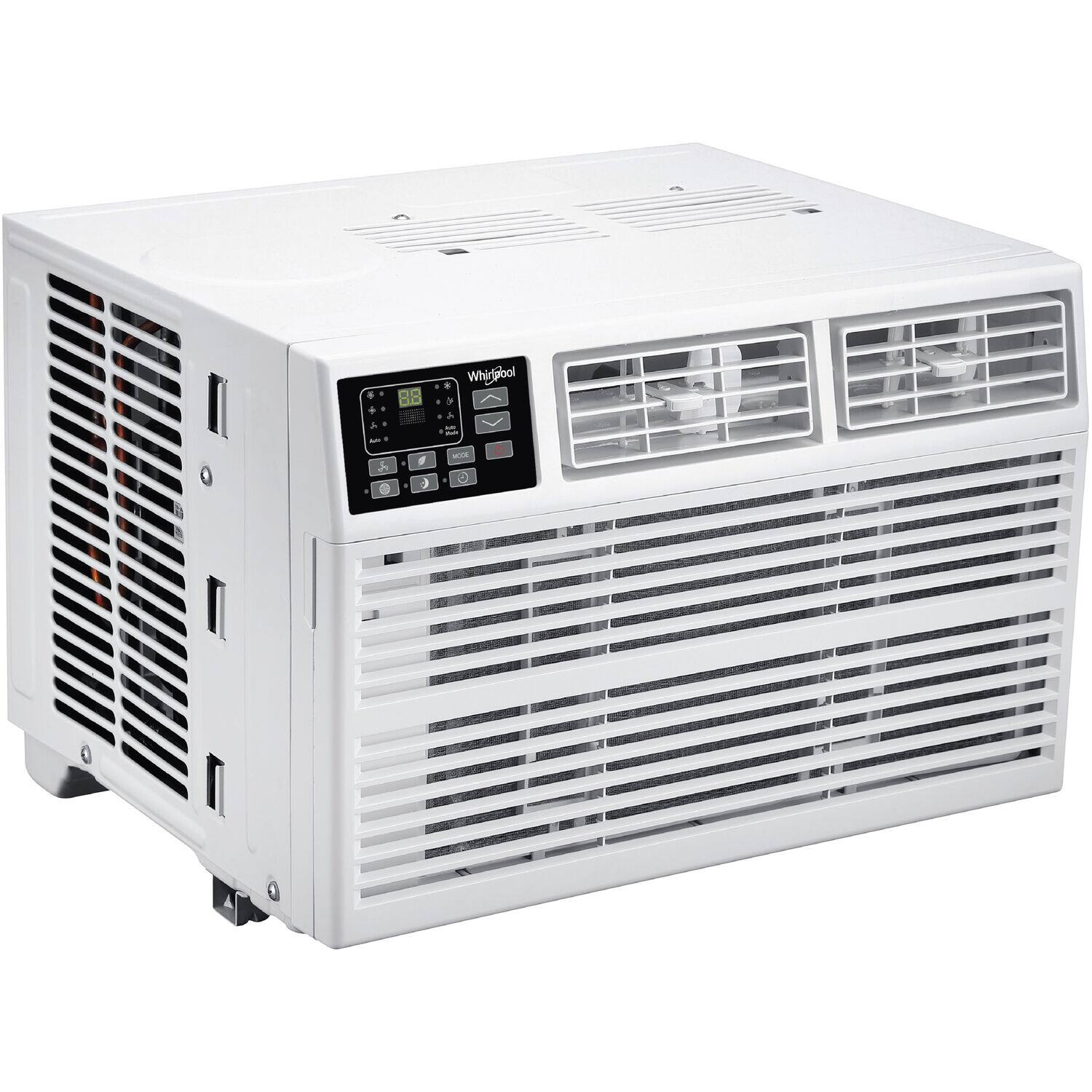

Whirlpool - 1,500 Sq. Ft. 23,200 BTU 230V Window Mounted Air Conditioner with Supplemental Heat - White
Recommended Room Size
1500 square'Related Item
Specifications
- Recommended Room Size1500 square feetBTU Cooling Rating23200 british thermal unitsNumber of Cool Settings3Number of Fan Speeds3Airflow Rate480 cubic feet per minuteRemote ControlYes
- Key Specs
- Recommended Room Size: 1500 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 23200 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- Number of Cool Settings: 3
- Number of Fan Speeds: 3
- Airflow Rate: 480 cubic feet per minute
- Remote Control: true
- Integrated Heater: true
- Sleep Mode: true (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Combined Energy Efficiency Ratio (CEER): 9.4 (The standard used to measure energy efficiency in window and room air conditioners by the Department of Energy (DOE) as of June of 2014. CEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) in standby mode and while the unit is operating. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Window Mounting Kit Included: true
- Air Conditioner Type: Window
- General
- Brand: Whirlpool
- Model Number: WHHW232BW
- Product Name: 1,500 Sq. Ft. 23,200 BTU 230V Window Mounted Air Conditioner with Supplemental Heat
- Color: White
- Air Conditioner Type: Window
- Dimensions
- Minimum Window Opening Height: 19.5 inches
- Minimum Window Opening Width: 30 inches
- Maximum Window Opening Height: 50 inches
- Maximum Window Opening Width: 41 inches
- Product Height: 18.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 26.9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26.4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 125.22 pounds (The out of box weight of the item.)
- Cord Length: 54 inches
- BTU Rating
- Recommended Room Size: 1500 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 23200 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- BTU Heat Rating: 10600 british thermal units (The number of BTUs (British Thermal Units) per hour the unit produces to heat the air, also known as heating capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to heat. The recommended capacity depends on several factors such as climate and level of insulation, but generally ranges from 30-60 BTUs per square foot.)
- Features
- Number of Cool Settings: 3
- Number of Fan Speeds: 3
- Airflow Rate: 480 cubic feet per minute
- Maximum Noise Level: 62 decibels adjusted
- Remote Control: true
- Control Type: Button
- Integrated Heater: true
- Filter Indicator Light(s): true
- Filter Type: Reusable
- Sleep Mode: true (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Power
- Combined Energy Efficiency Ratio (CEER): 9.4 (The standard used to measure energy efficiency in window and room air conditioners by the Department of Energy (DOE) as of June of 2014. CEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) in standby mode and while the unit is operating. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Voltage Requirement: 230
- Amperage: 16 amperes (Strength of electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Included
- Window Mounting Kit Included: true
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 840148734296
The Whirlpool 23,200 BTU window air conditioner is easy to install and operate in your home. Designed for cooling and dehumidifying a room up to 1500 square feet, this unit features on-board electronic controls with many options for customized comfort. Three cooling speeds, supplemental heating, Eco mode, and Sleep mode all give you the flexibility you need to keep you and your loved ones cool and comfortable. A 24-hour programmable timer lets you decide exactly when you want cooling so your room will be comfortable by the time you get home from work or school without wasted energy. The included remote control allows you to adjust the settings from across the room. The filter on this window air conditioner helps keep the air free of dust, debris, and contaminants, so it will get dirty. With easy access, the filter can easily be removed and washed to help keep your AC running at its highest level. At Whirlpool, we take comfort and caring to the next level. (Please note: Requires a special 230V electrical outlet)

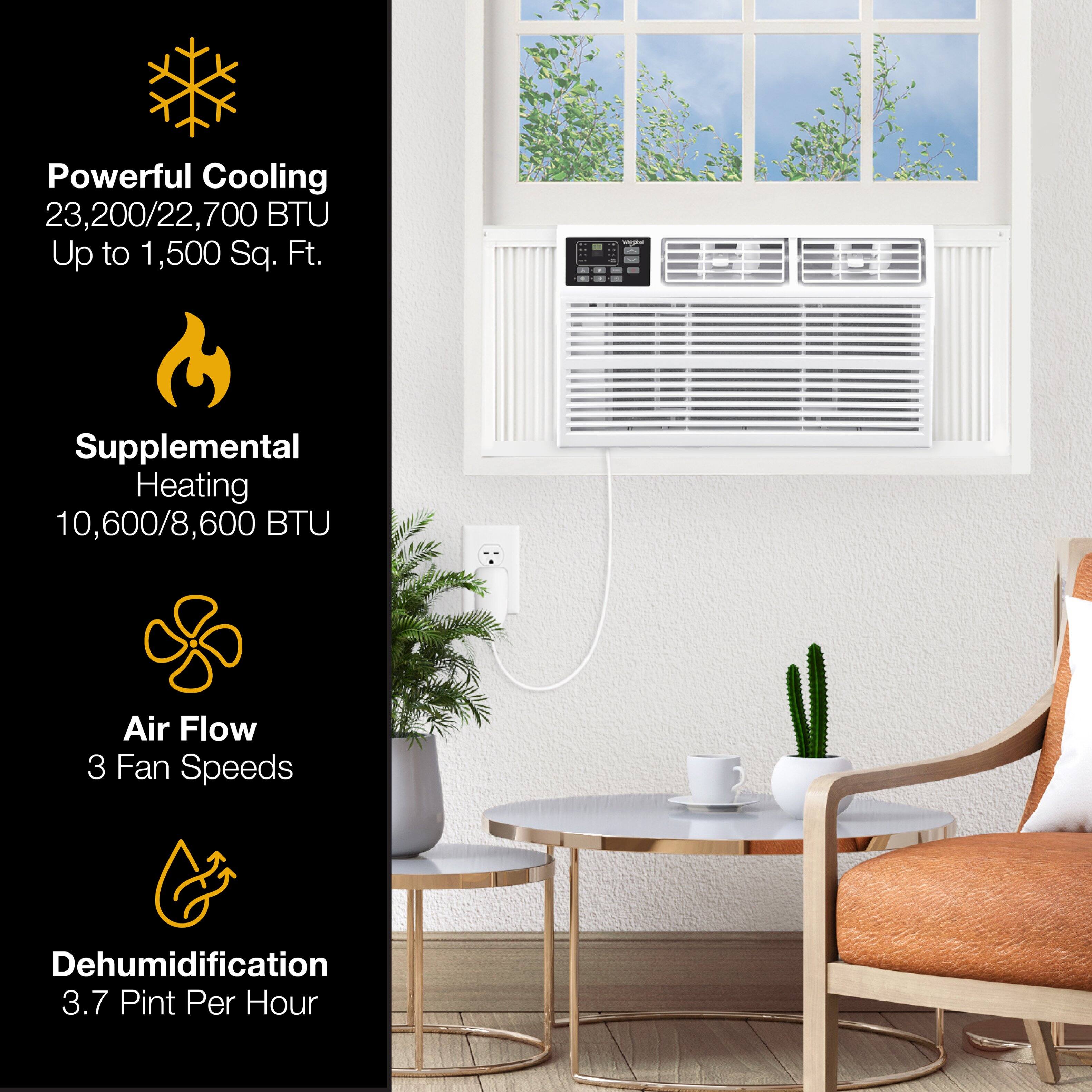

- Exceptional Cooling: This powerful 23,200/22,700 BTU window air conditioner with 10600/8600 BTU supplemental heat (not meant to be used as a primary heat source in the coldest months) is best for spaces up to 1500-sq. ft.

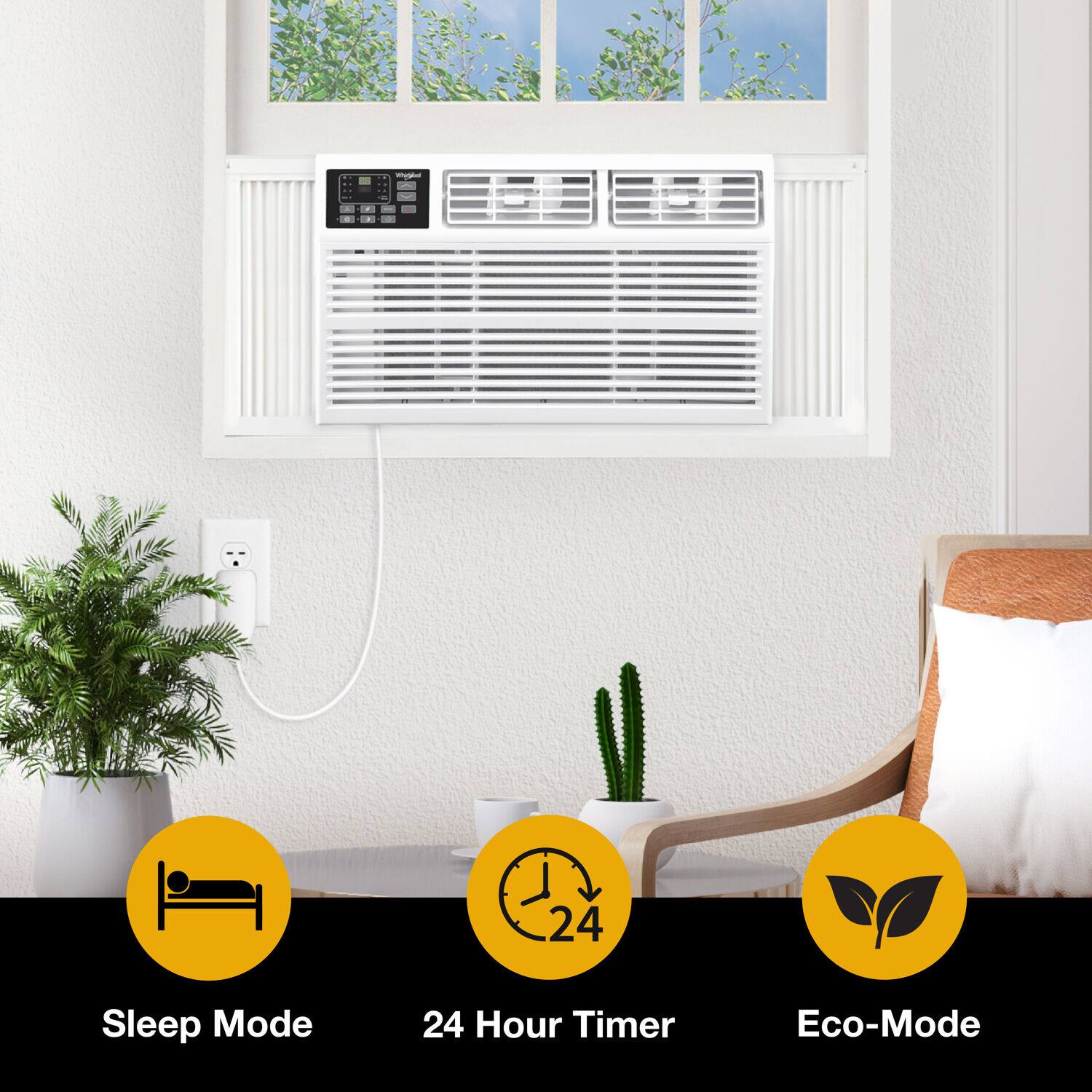

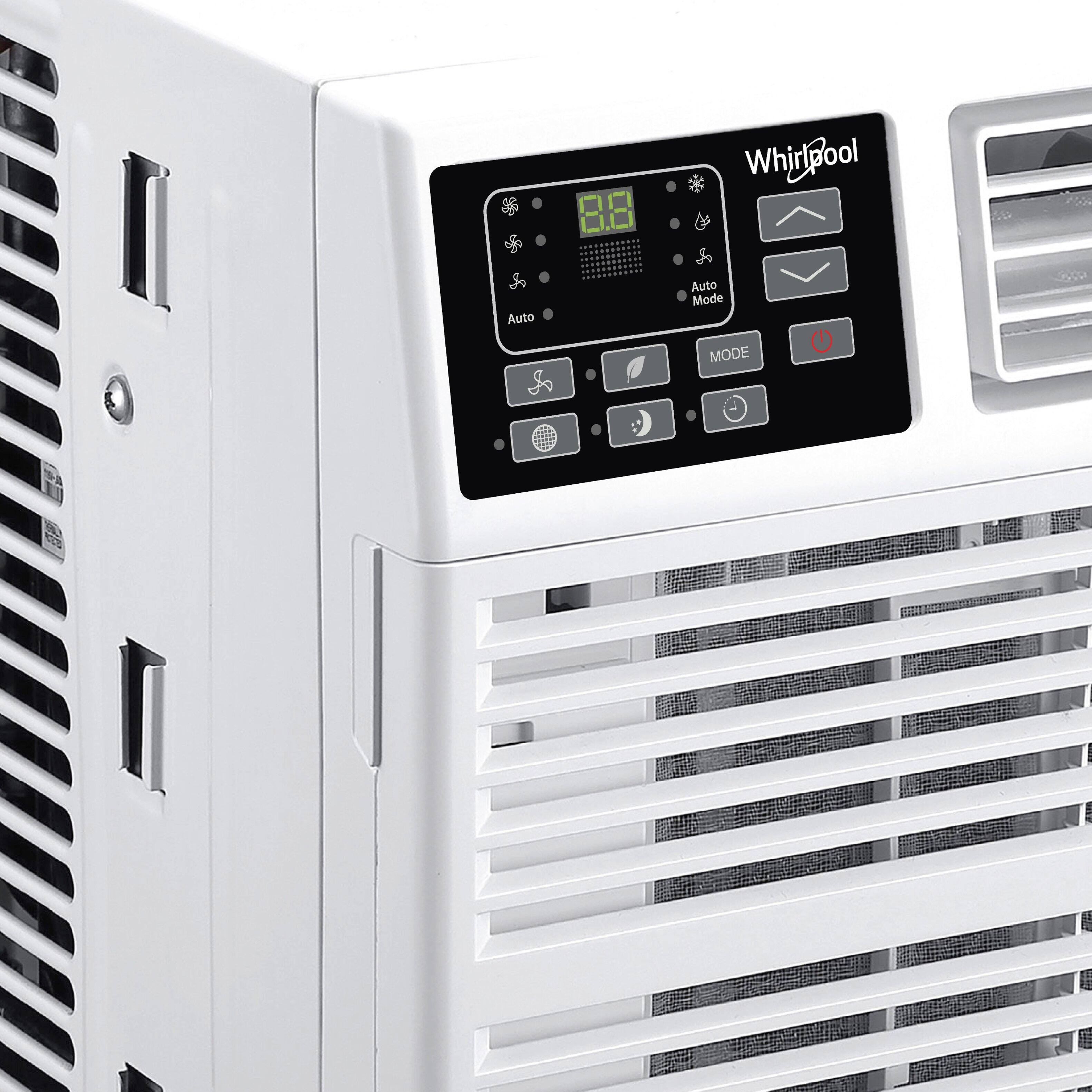

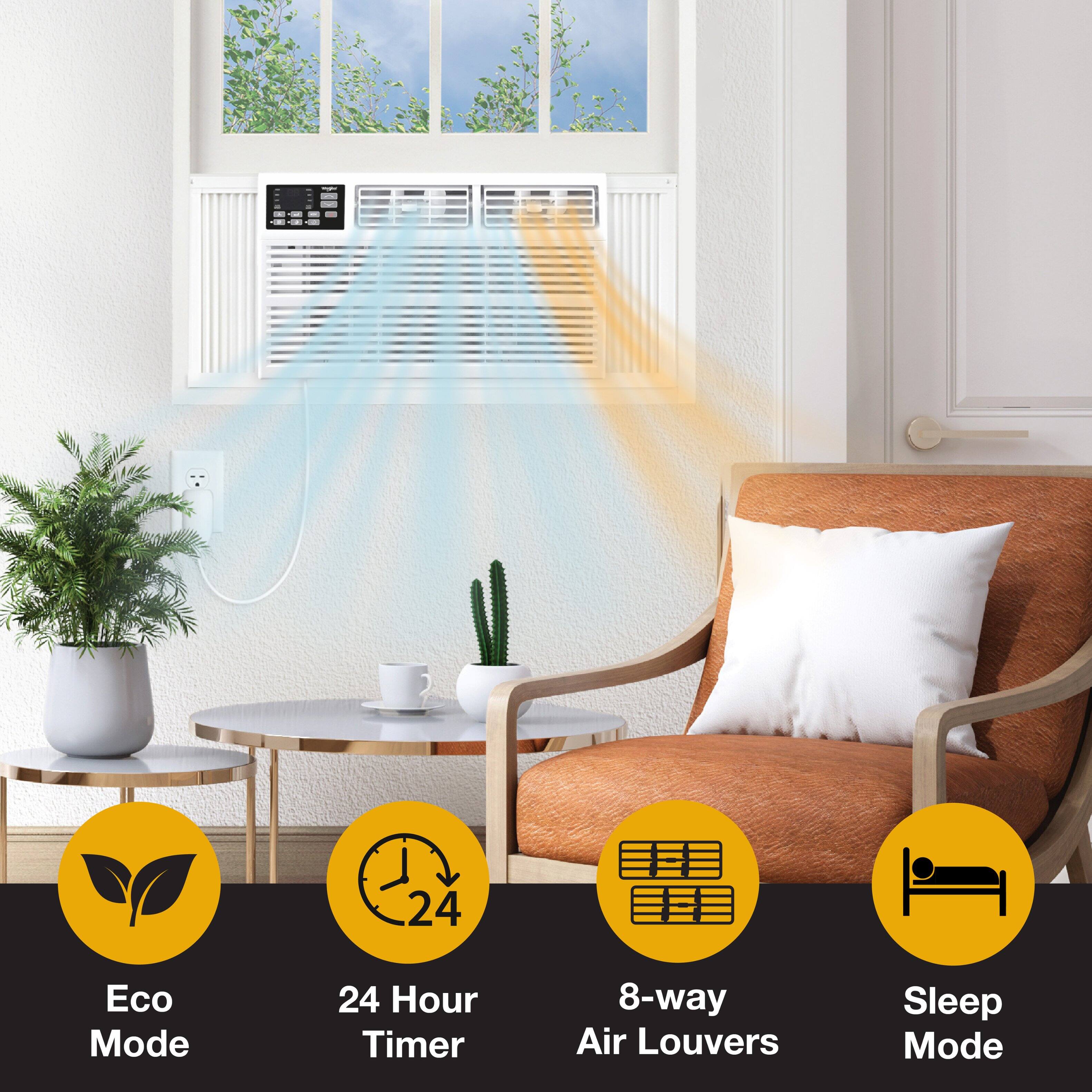

- Easy Functionality: Electronic control panel with digital display and 3 cooling speeds, supplemental heating, eco mode, sleep mode, and programmable 24 hour on/off timer with 8-way directional air louvers to give multiple options for comfort
- Easy to Install: Comes with a quick and effective window mounting kit that allows for easy installation in windows with minimum window height of 19.5 inches

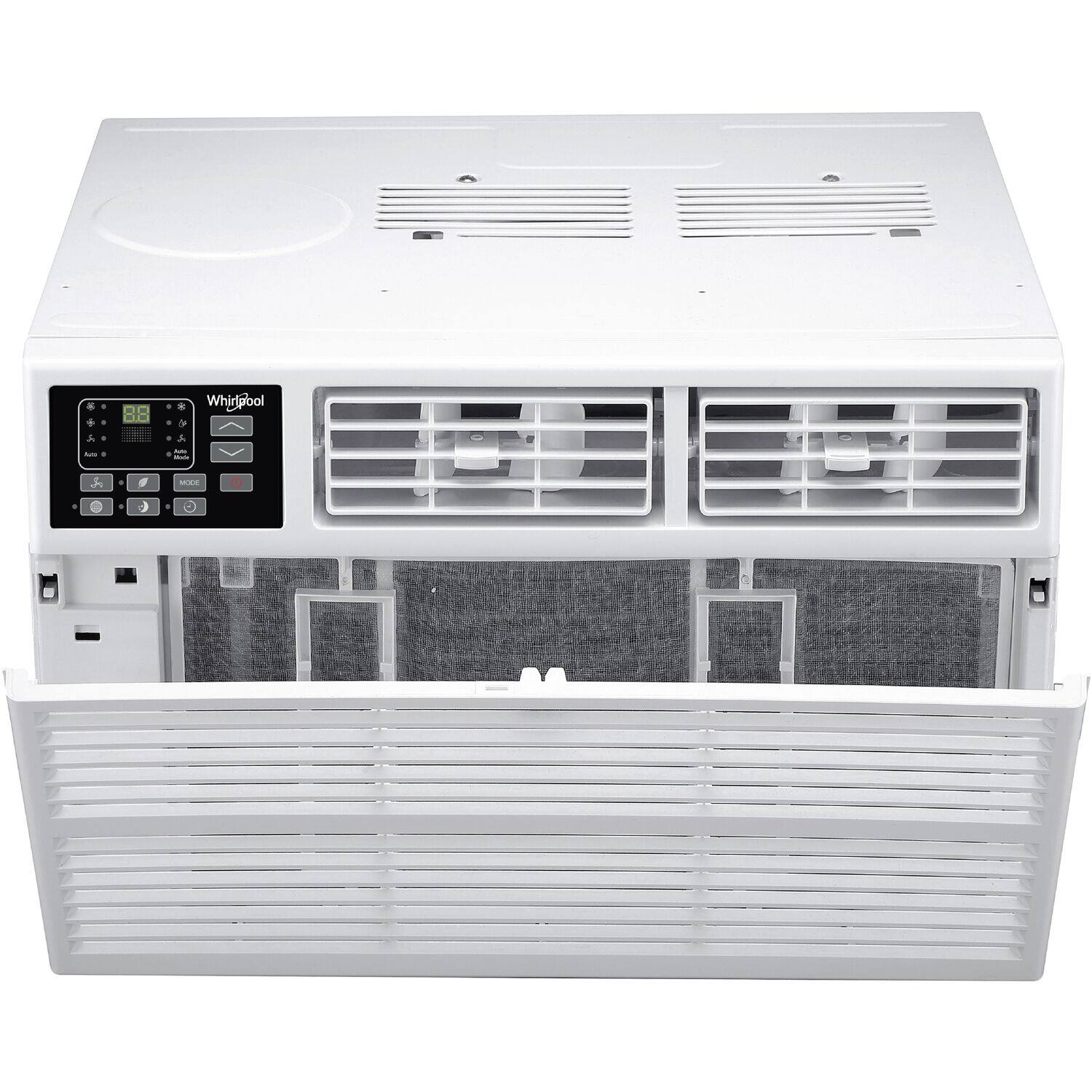

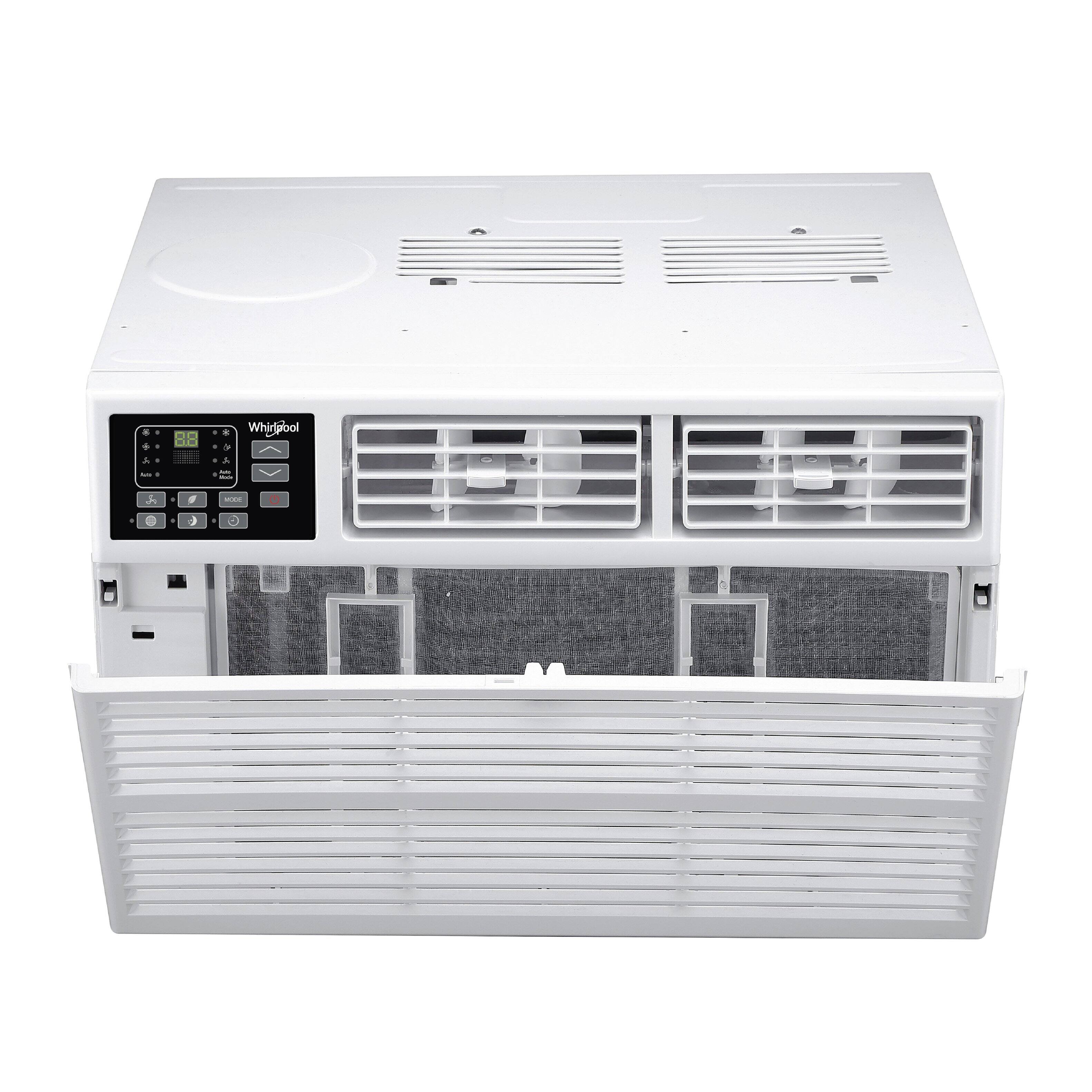

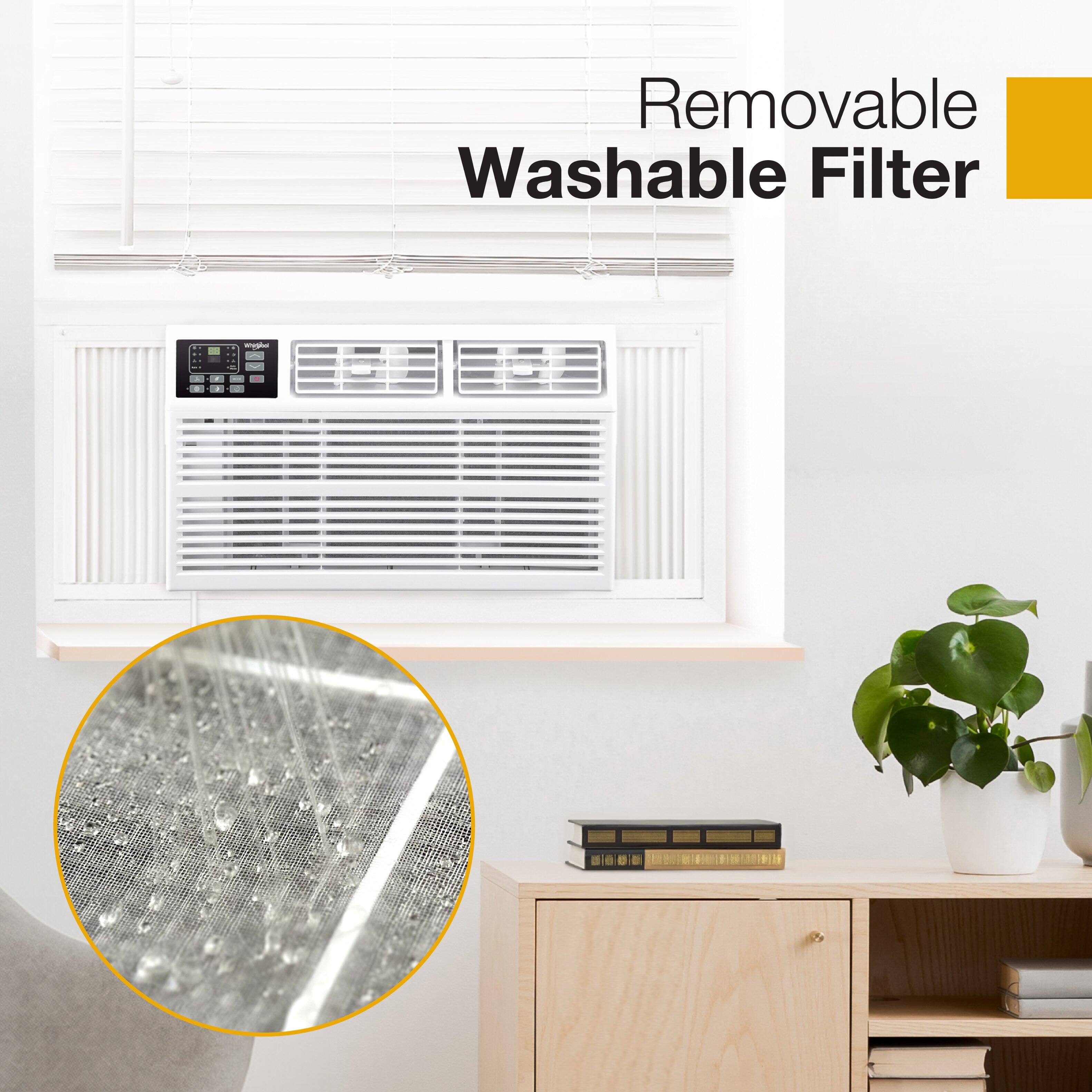

- Reusable Filter: The filter on this window air conditioner with heat helps keep the air free of dust, debris, and contaminants, and the filter can easily be removed and washed to help keep your ac heater window unit running at its highest level

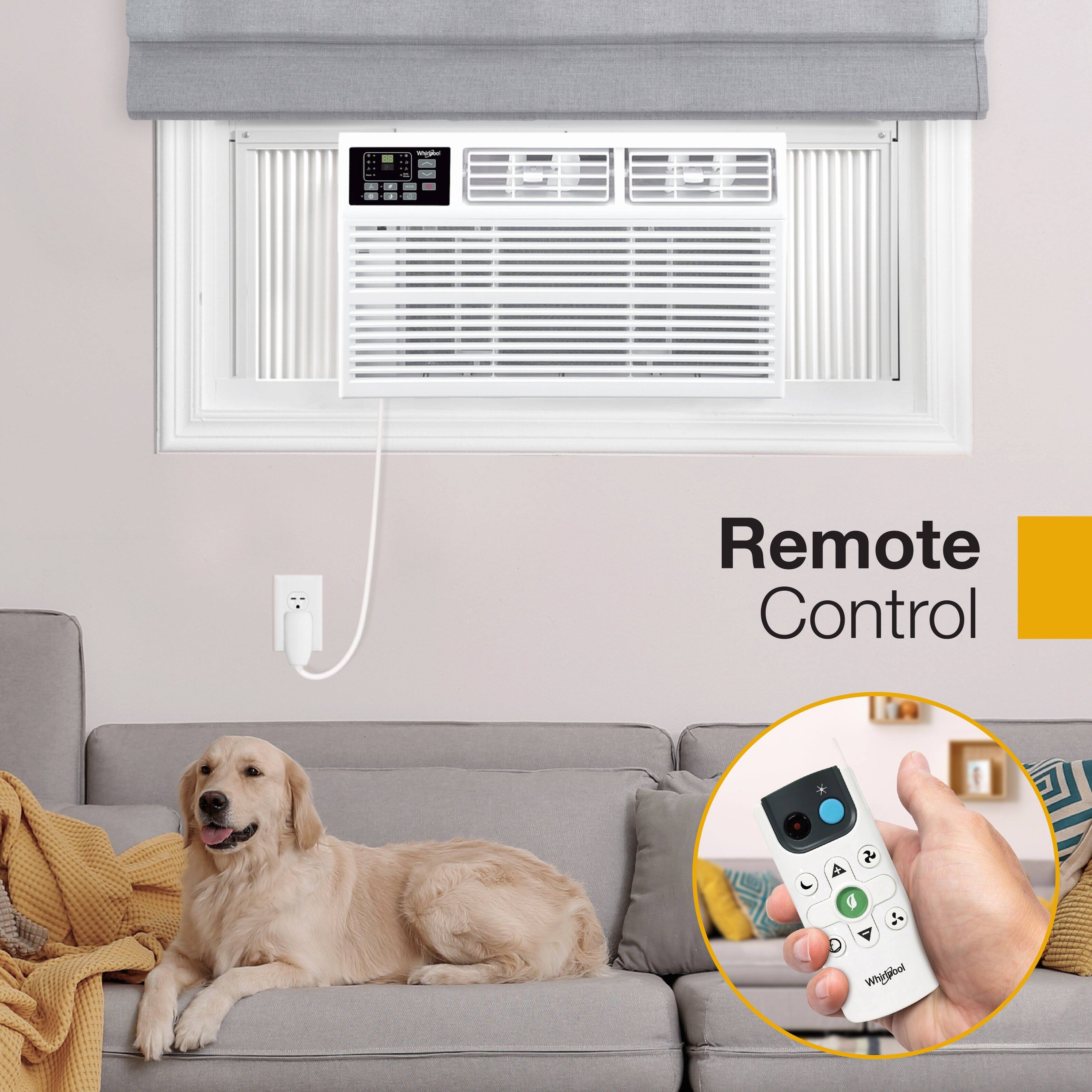

- Remote Control Included: Adjust your heat and air window unit's settings from across the room with the touch of a button

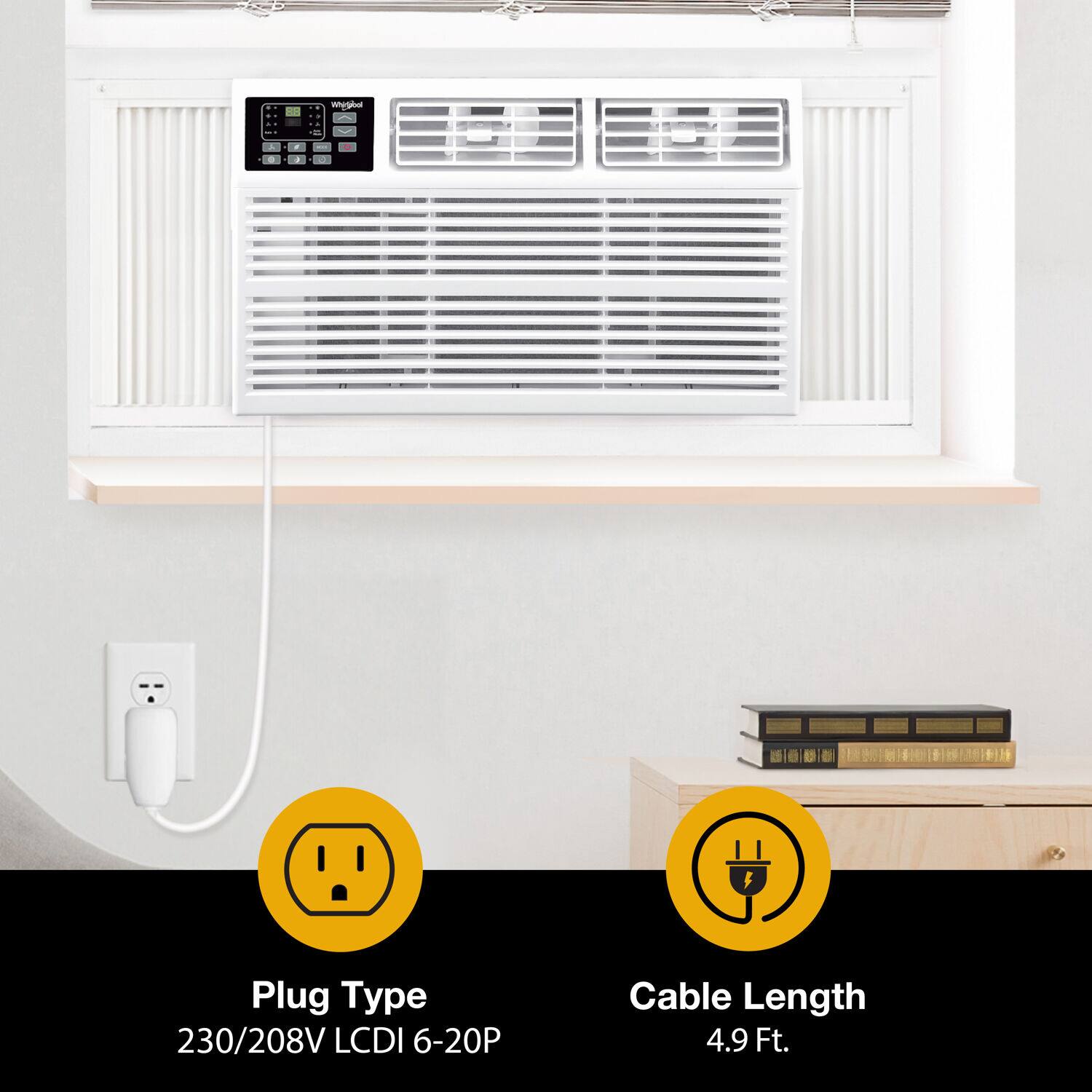

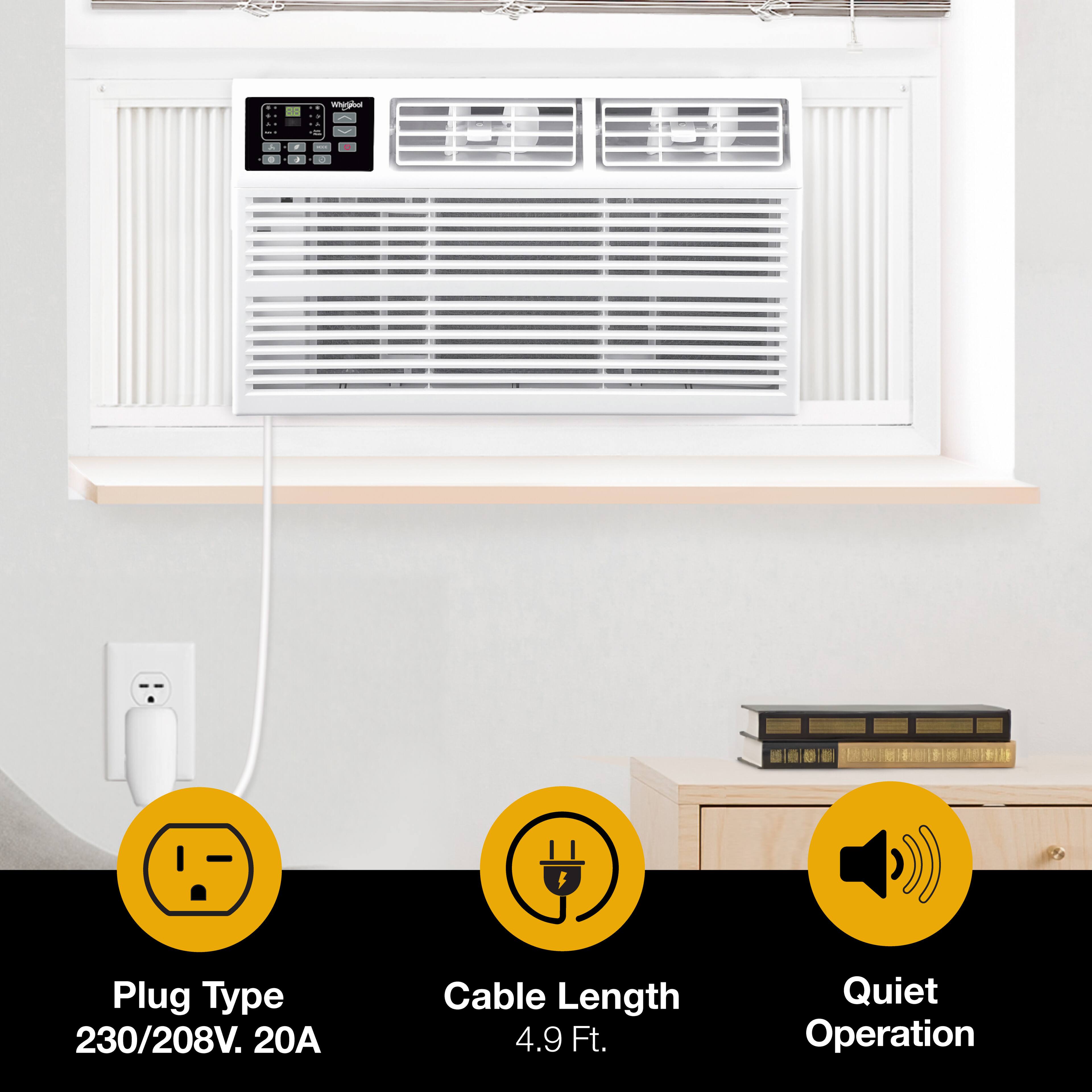

- Voltage Requirement: This unit requires a special 230V electrical outlet and will not operate with a standard 115V outlet
- Exceptional Cooling: This powerful 23,200/22,700 BTU window air conditioner with 10600/8600 BTU supplemental heat (not meant to be used as a primary heat source in the coldest months) is best for spaces up to 1500-sq. ft.
- Easy Functionality: Electronic control panel with digital display and 3 cooling speeds, supplemental heating, eco mode, sleep mode, and programmable 24 hour on/off timer with 8-way directional air louvers to give multiple options for comfort
- Easy to Install: Comes with a quick and effective window mounting kit that allows for easy installation in windows with minimum window height of 19.5 inches
- Reusable Filter: The filter on this window air conditioner with heat helps keep the air free of dust, debris, and contaminants, and the filter can easily be removed and washed to help keep your ac heater window unit running at its highest level
- Remote Control Included: Adjust your heat and air window unit's settings from across the room with the touch of a button
- Voltage Requirement: This unit requires a special 230V electrical outlet and will not operate with a standard 115V outlet
Whats Included
- AC Unit
- Remote
- Window Mounting Kit
- AC Unit
- Remote
- Window Mounting Kit
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: What is the warranty on the air conditioner?
A: The air conditioner comes with a 1-year limited warranty for both parts and labor.
Q: Does the air conditioner have a filter indicator light?
A: This air conditioner has a filter indicator light.
Q: Can the air conditioner be controlled with an app?
A: This air conditioner is not compatible with an app.
Q: What is the maximum noise level of the air conditioner?
A: The maximum noise level of the air conditioner is 62 decibels adjusted.
Q: Is the air conditioner ENERGY STAR certified?
A: This air conditioner is ENERGY STAR certified.
A: undefined
Q: does this air conditioner need a bracket outside
A: undefined
Compare similar products
The Whirlpool 23,200 BTU window air conditioner is easy to install and operate in your home. Designed for cooling and dehumidifying a room up to 1500 square feet, this unit features on-board electronic controls with many options for customized comfort. Three cooling speeds, supplemental heating, Eco mode, and Sleep mode all give you the flexibility you need to keep you and your loved ones cool and comfortable. A 24-hour programmable timer lets you decide exactly when you want cooling so your room will be comfortable by the time you get home from work or school without wasted energy. The included remote control allows you to adjust the settings from across the room. The filter on this window air conditioner helps keep the air free of dust, debris, and contaminants, so it will get dirty. With easy access, the filter can easily be removed and washed to help keep your AC running at its highest level. At Whirlpool, we take comfort and caring to the next level. (Please note: Requires a special 230V electrical outlet)
The LW2423HRSM is a SMART solution for maintaining a comfortable home environment. LG ThinQ technology allows you to effortlessly control the air conditioner using your smartphone, or via voice commands with Amazon Alexa and Hey Google. This window unit is particularly suitable for cooling medium to large rooms of up to 1440 sq. ft., ensuring ample coverage for a wide range of living spaces. In addition, the supplemental heat option allows you to add warmth on cooler days. With 2 cooling and fan speeds, as well as a 24-hour timer, you have the flexibility to create a customized cooling schedule. The 4-way air deflection feature ensures that the airflow is directed precisely where it's needed the most—whether for cooling, heating, or air circulation. In the event of a power outage, the auto restart feature will automatically turn the unit back on once power is restored. Other features include a remote control, a window installation kit for hassle-free setup, a removable and washable filter for easy maintenance, and a check filter alert to remind you when it's time to clean the filter. Experience the convenience of precise climate control and ensure year-round comfort with this reliable and innovative air conditioner.
Experience ultimate comfort with Keystone's versatile 230V window and wall-mounted air conditioner, the best solution for large room environments. This energy-efficient AC unit combines powerful cooling and supplemental heating with a sleek design for your home. Enjoy the quiet operation and precise temperature control with the included remote and electronic display. With a cooling capacity of 12,000/11,600 BTUs and supplemental heating of 11,000 BTUs, this modern unit keeps spaces up to 550 sq. ft. comfortable year-round. The convenient auto-restart feature and energy-saving modes ensure uninterrupted comfort and cost-effective operation. Elevate your space with Keystone - where innovation meets comfort. (Please note: Requires a special 230V electrical outlet)
Elevate your home's comfort level with the versatile LG LW1823HR air conditioner, designed to keep your living space a cozy retreat in any weather condition. This powerful unit is perfect for cooling medium rooms up to 1,000 sq. ft., offering relief from the sweltering heat of summer. Plus, on cooler days, you can easily activate the supplemental heat option for added warmth and comfort. With two cooling and fan speeds, along with a convenient 24-hour timer, you can personalize your cooling schedule to suit your lifestyle. The 4-way air deflection feature ensures that airflow is directed precisely where it's needed most, whether for cooling, heating, or air circulation. In the event of a power outage, the auto restart function kicks in to automatically power up your unit once electricity is restored. Enjoy the convenience of the included remote control, easy window installation kit, and a removable, washable filter for easy maintenance. For added peace of mind, the check filter alert prompts you when it's time to clean or replace the filter for optimal performance. Trust the LG LW1823HR to maintain a comfortable indoor environment year-round, presenting a sanctuary from varying temperatures outside.
| Pros for Whirlpool - 1,500 Sq. Ft. 23,200 BTU 230V Window Mounted Air Conditioner with Supplemental Heat - White | |||
|---|---|---|---|
| Cooling Performance | There were no pros for this product— | Cooling Performance | Cooling Performance |
Specs
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 4 out of 5 stars
A/C is very nice !!

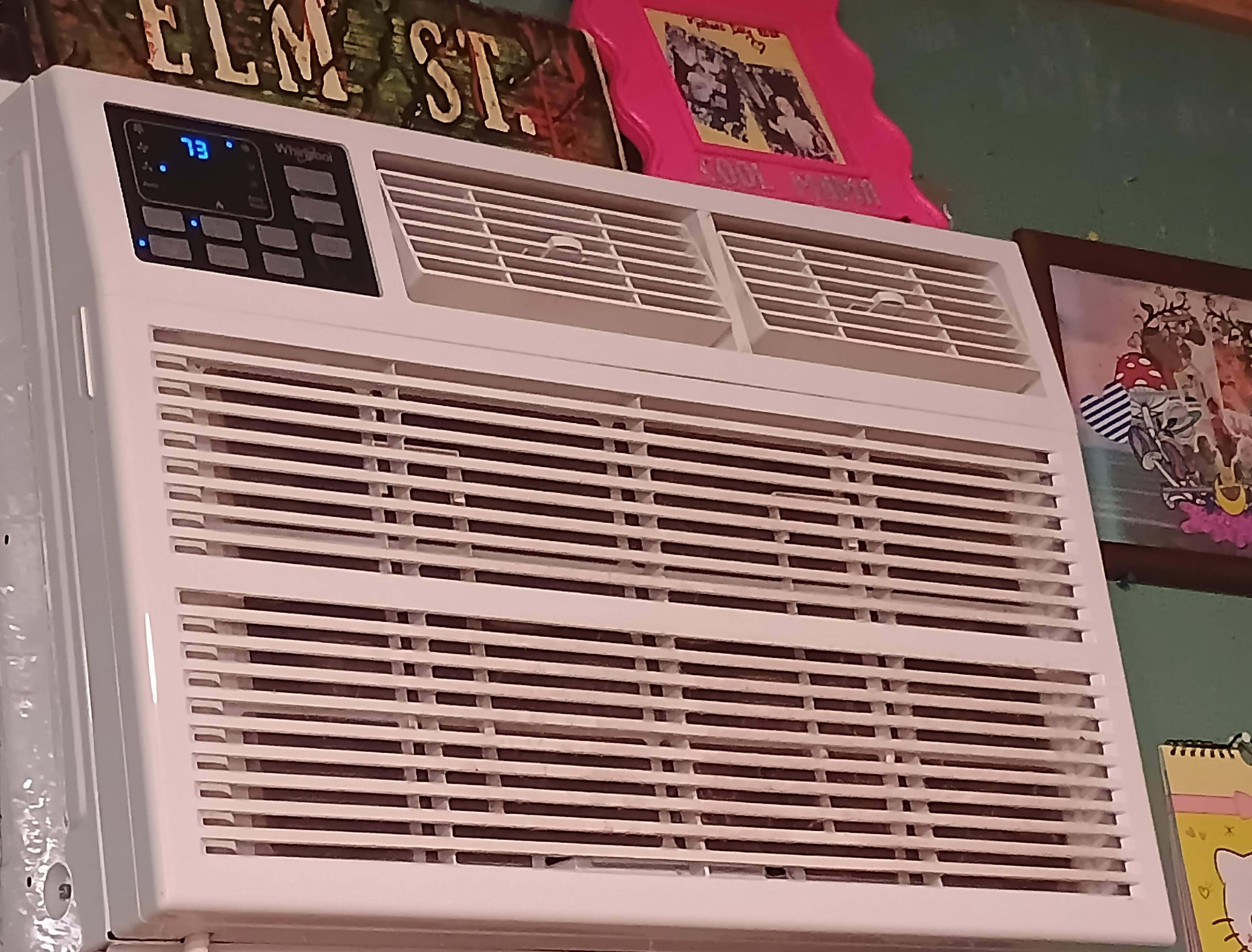

I have had The ac for 4 months at the time of this review the A/C is very nice and blows cold also puts out a good amount of heat for the winter, the only reason for 4 stars is because me shipping was delayed twice and did not receive the product until 2 1/2 weeks after purchase when the delivery time was supposed to be 3 days, but overall this is a good product.
Posted by DaltonC
- Rated 1 out of 5 stars
Poor product

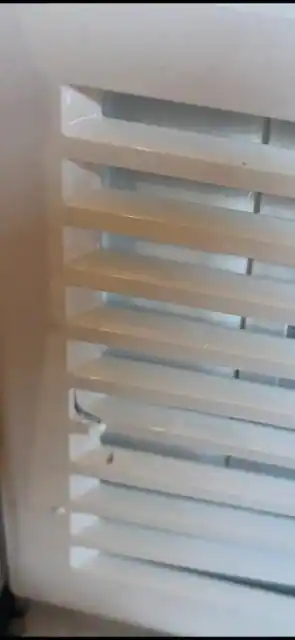

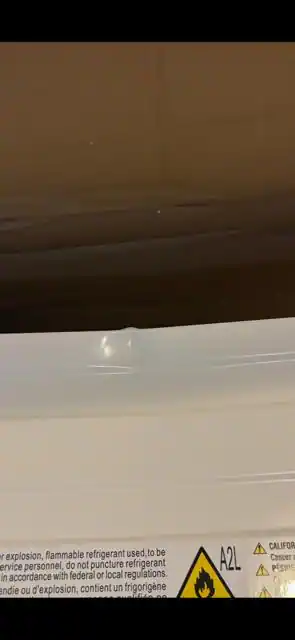

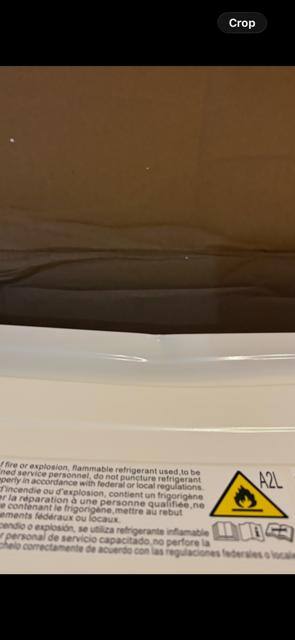

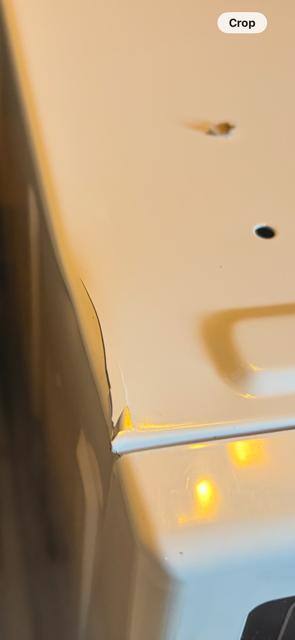

I was delivered a damaged ac/heat unit that i was not able to return because i did not open the box until after 15 days... unit never powered up!!!! ..and leaking oil..Delivered sep 11, 2025 still waiting on whirlpool service oct 31 2025 totally disappointed!!
Posted by AW01
- Rated 5 out of 5 stars
AC/HEAT Combo
Was easy installation and cools and heats beautifully
Posted by ElizabethB
