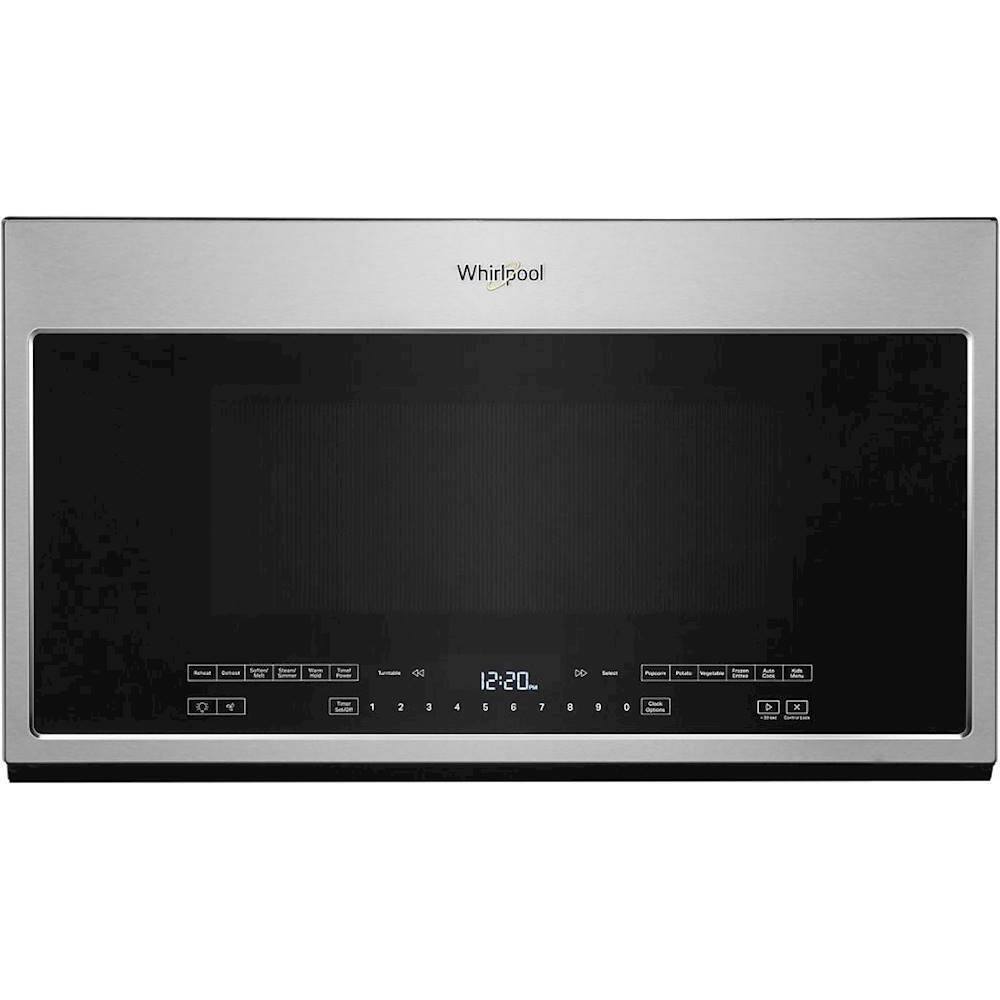

Whirlpool - 2.1 Cu. Ft. Over-the-Range Microwave with Sensor and Steam Cooking - Stainless Steel
- Key Specs
- Color Finish: Stainless steel
- Product Height: 17 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 16 1/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Turntable Diameter: 14 inches
- Control Type: Button
- Sensor Cook: true (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Wattage: 1000 watts (Measurement of electrical power.)
- General
- Brand: Whirlpool
- Model Number: WMH54521JZ
- Product Name: 2.1 Cu. Ft. Over-the-Range Microwave with Sensor and Steam Cooking
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 17 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 16 1/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 58 pounds (The out of box weight of the item.)
- Interior Microwave Cavity Dimensions: 14-1/8 x 10-1/16 x 21-1/16 (The measurement of the internal cavity of the microwave from top to bottom, side to side, and front to back, listed as height by width by depth.)
- Cut-Out Dimensions
- Cut-Out Width: 30 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Capacity: 2.1 cubic feet
- Microwave Size: Full-size
- Connectivity
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Features
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Fingerprint Resistant: true
- Timer: true
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
- Removable Turntable: true
- Turntable Diameter: 14 inches
- Interior Light(s): true
- Cooktop Lighting: true (A light that illuminates the cooktop below.)
- Nightlight: true
- Controls
- Control Type: Button
- Sensor Cook: true (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Display Type: LCD
- Number of Preset Programs: 11
- Number of Fan Speeds: 3
- Number of Power Levels: 10
- Turntable On/Off Option: true
- Functions
- Oven Cooking Modes: Defrost
- Oven Preset Settings: Popcorn
- Filter Info
- Filter Type: Charcoal
- Removable Filter: true
- Ventilation
- Vent Style: External, Recirculating (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Exhaust Vent Location: Rear
- Maximum Air Flow Capacity: 300 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1000 watts (Measurement of electrical power.)
- Power Consumption: 1000 watts
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Other
- UPC: 883049532516
Quickly clean up spills with a wipe in this over-the-range microwave thanks to its CleanRelease® nonstick interior. Free up cooktop space by steaming foods such as vegetables or fish right in your over-the-oven microwave, or use sensor cooking that adjusts the cook time so your food comes out of your over-the-range microwave ready to eat.
- Sensor Cooking: Take out the guesswork with sensors that track the cooking progress of your food and automatically adjust cook times.
- CleanRelease® Non-Stick Interior: Help prevent spills from sticking with the CleanRelease® Non-Stick Interior, which lets you easily clean up with the simple wipe of a damp cloth.
- Tap Touch Controls: Clean the controls as easily as you use them.
- 3-Speed, 280 CFM Motor Class: Match the right amount of ventilation to the dish being prepared and quickly help get rid of cooking odors with three different fan speed settings (Performance varies based on installation. Resources available at aham.org.)
- Fingerprint Resistant: Available in easy-to-clean steel resists fingerprints and smudges.
- 90º Hinge Door: Install your microwave hood next to a wall if necessary with a 90º hinge door.
- Steam Cooking: Clear up cooktop space by steaming foods like rice, vegetables and fish right in the microwave. Steam accessory available separately.
- Popcorn Cycle: Helps prevent your popcorn from burning by using sensor technology to track the time between pops.
- Turntable On/Off Option: Choose whether the turntable rotates or not to accommodate a wide range of dish sizes.
- Dishwasher-Safe Turntable Plate: Clean up spills on the turntable by simply putting it in the dishwasher.
- Microwave Presets: Get just the right amount of heat and time, whether you're cooking or defrosting, with specific preset options.
- Add 30 Seconds Option: Quickly set the microwave timer to 30 seconds or add it to already in-progress cooking time with the touch of a button.
- Adjustable Cooktop Lighting: Keep an eye on what's cooking below the microwave or keep a nightlight on in the kitchen.
- Sensor Cooking: Take out the guesswork with sensors that track the cooking progress of your food and automatically adjust cook times.
- CleanRelease® Non-Stick Interior: Help prevent spills from sticking with the CleanRelease® Non-Stick Interior, which lets you easily clean up with the simple wipe of a damp cloth.
- Tap Touch Controls: Clean the controls as easily as you use them.
- 3-Speed, 280 CFM Motor Class: Match the right amount of ventilation to the dish being prepared and quickly help get rid of cooking odors with three different fan speed settings (Performance varies based on installation. Resources available at aham.org.)
- Fingerprint Resistant: Available in easy-to-clean steel resists fingerprints and smudges.
- 90º Hinge Door: Install your microwave hood next to a wall if necessary with a 90º hinge door.
- Steam Cooking: Clear up cooktop space by steaming foods like rice, vegetables and fish right in the microwave. Steam accessory available separately.
- Popcorn Cycle: Helps prevent your popcorn from burning by using sensor technology to track the time between pops.
- Turntable On/Off Option: Choose whether the turntable rotates or not to accommodate a wide range of dish sizes.
- Dishwasher-Safe Turntable Plate: Clean up spills on the turntable by simply putting it in the dishwasher.
- Microwave Presets: Get just the right amount of heat and time, whether you're cooking or defrosting, with specific preset options.
- Add 30 Seconds Option: Quickly set the microwave timer to 30 seconds or add it to already in-progress cooking time with the touch of a button.
- Adjustable Cooktop Lighting: Keep an eye on what's cooking below the microwave or keep a nightlight on in the kitchen.
Whats Included
- Whirlpool 2.1 Cu. Ft. Over-the-Range Microwave with Steam Cooking
- Owner's manual
- Whirlpool 2.1 Cu. Ft. Over-the-Range Microwave with Steam Cooking
- Owner's manual
Q: How do you open the door? There's no handle and I don't see a button to do so.
A: Think of it as an interior handle. It's a gap where you can grip and open without any trouble. The biggest issue for me though is the vent in the back and that doesn't work as well no matter the cfm level. I use my stove a lot especially those power burners.
A: Steam or Simmer is a sensor cooking function that use microwaves to steam or simmer food. Use microwave-safe container with a loose-fitting lid. Sensor will detect when liquid begins to boil, then begin the Steam or Simmer countdown. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our Whirlpool appliances!
Q: What is the measurement of clearance with door open? Can it be opened from left or right?
A: Hello Larae, the depth with door open 90 Degree(IN,inches) 44 5/16. The depth with the door closed is 16 1/8". The door swing direction is to the left. We hope this helps.
A: Hello, this Microwave can be vented Exterior or Recirculating. We recommend following the Installation Instructions for venting requirements. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our Whirlpool appliances!
A: Hi! Yes, there is a recessed handle at the right side to open the microwave. It’s very easy to open and close. It doesn’t need to pushing any buttons to open.
Q: Is the vent located on the top of the microwave?
A: Hello! Yes, the vent is located at the top of the microwave. We hope this helps.
Q: i am looking to see if this mircrowave is compatable with the following model number WMH75021HZ-2
A: Hi Compatable, this unit is 1/4 inch different than the microwave you currently asked about on its width.
Q: Can this microwave be installed Ike a built in?
A: Hi Linda, since this unit is an Over the Range Hood as well as a Microwave, it will need to be installed over a cooktop or range. That being said, if you are looking to completely "house" a Microwave including the underside, for a built in look, we suggest going with one of our countertop Microwave models with a trim kit. We have linked one here for you to look at: Model WMC30516HZ https://bit.ly/3ybj5oO You can purchase 27" (MK2167AZ) and 30" (MK2160AZ) trim kits to give it a built in look. Please don't hesitate to reach out to us for direct assistance if you have any further questions or concerns. Whirlpool 866-698-2538 M-F 8 AM to 6 PM ET
